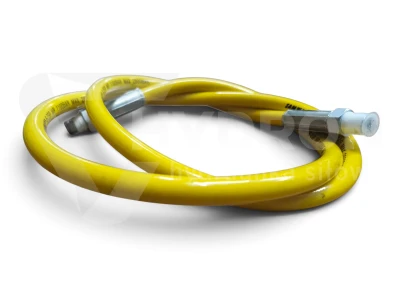

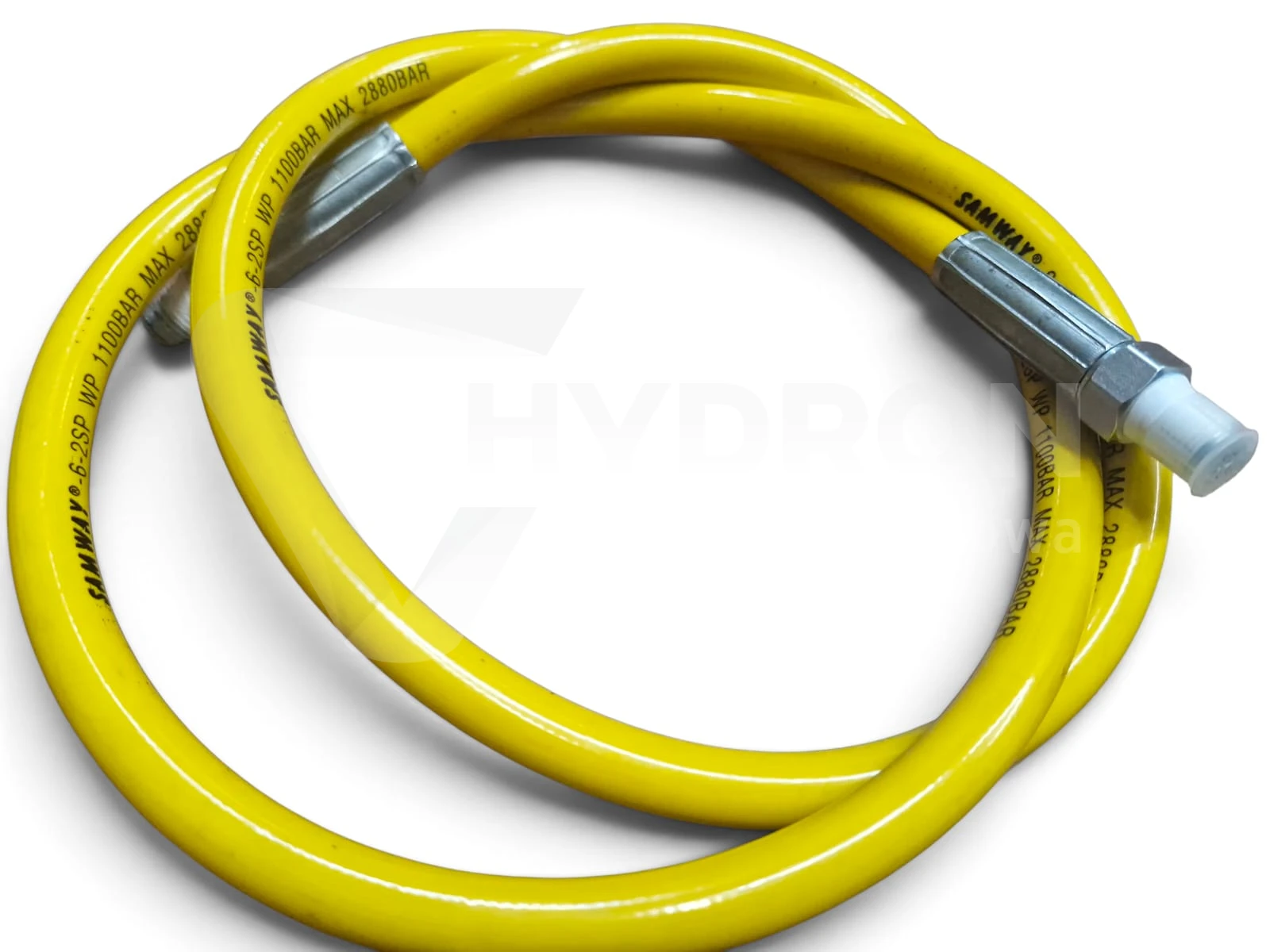

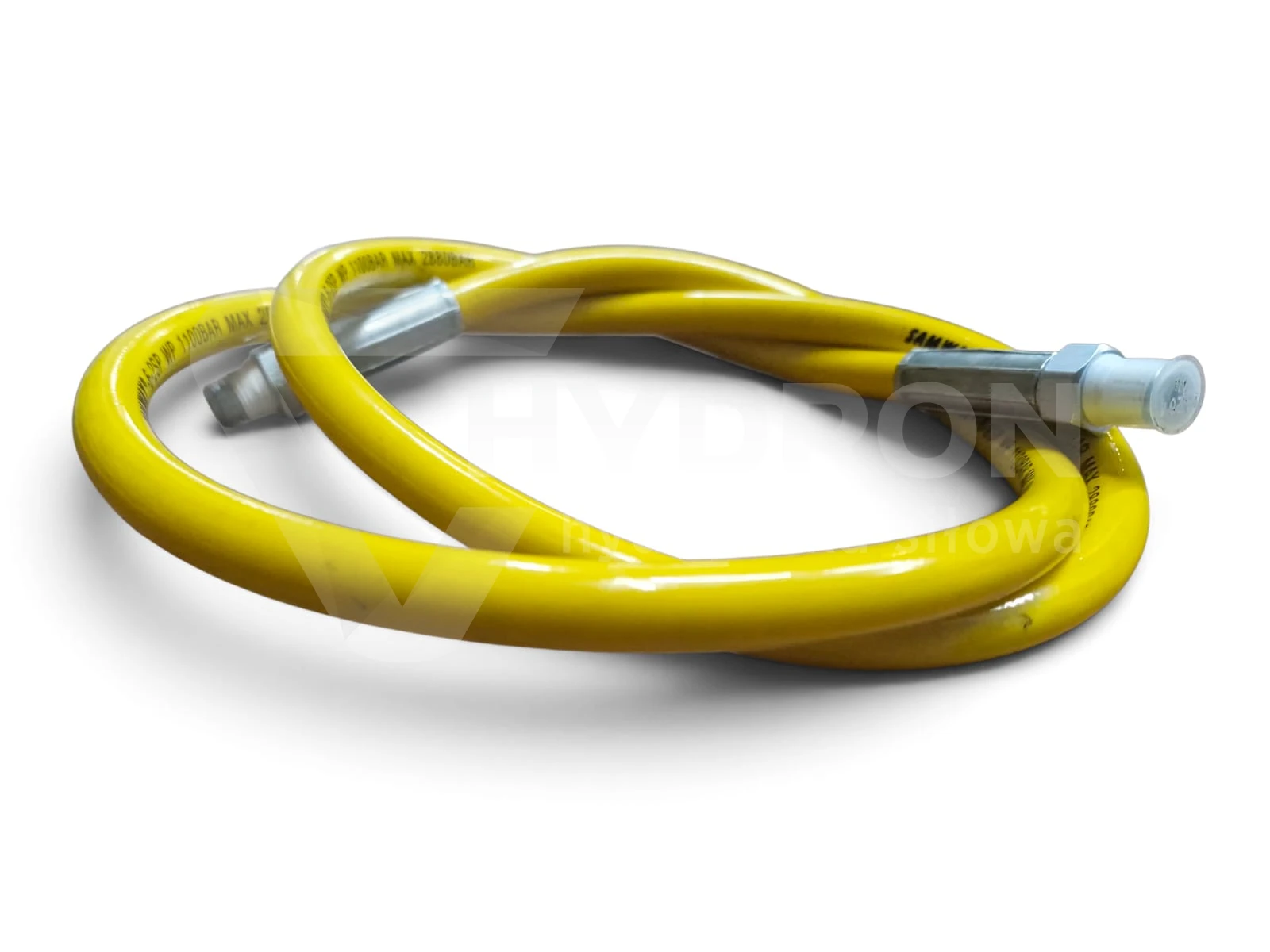

SAMWAY hydraulic hose 1100 bar

SAMWAY high-pressure hose 1100 bar for hydraulic oil

The SAMWAY hydraulic hose is a thermoplastic high-pressure hose designed for use in hydraulic equipment such as cylinders or manual crimping machines. Thanks to the reinforcement with two steel braids (2SN), this hose provides exceptional strength and pressure resistance, enabling the safe transfer of hydraulic oil in difficult conditions. The steel braid and the operating pressure of 1100 bar make the hose ideal for intensive use in industrial hydraulics.

Key features:

• High operating pressure – operating pressure up to 1100 bar, guaranteeing reliability in demanding hydraulic applications.

• Two steel braids (2SN) – reinforcement providing high resistance to mechanical damage and high pressure.

• Complete hose crimped with 1/4" male thread fittings

Technical specifications:

• Purpose: hydraulic oil

• Hose / reinforcement type: 2SN two steel braids

• Operating pressure: 1100 bar

• Burst pressure: 2880 bar

• Hose color: yellow / black

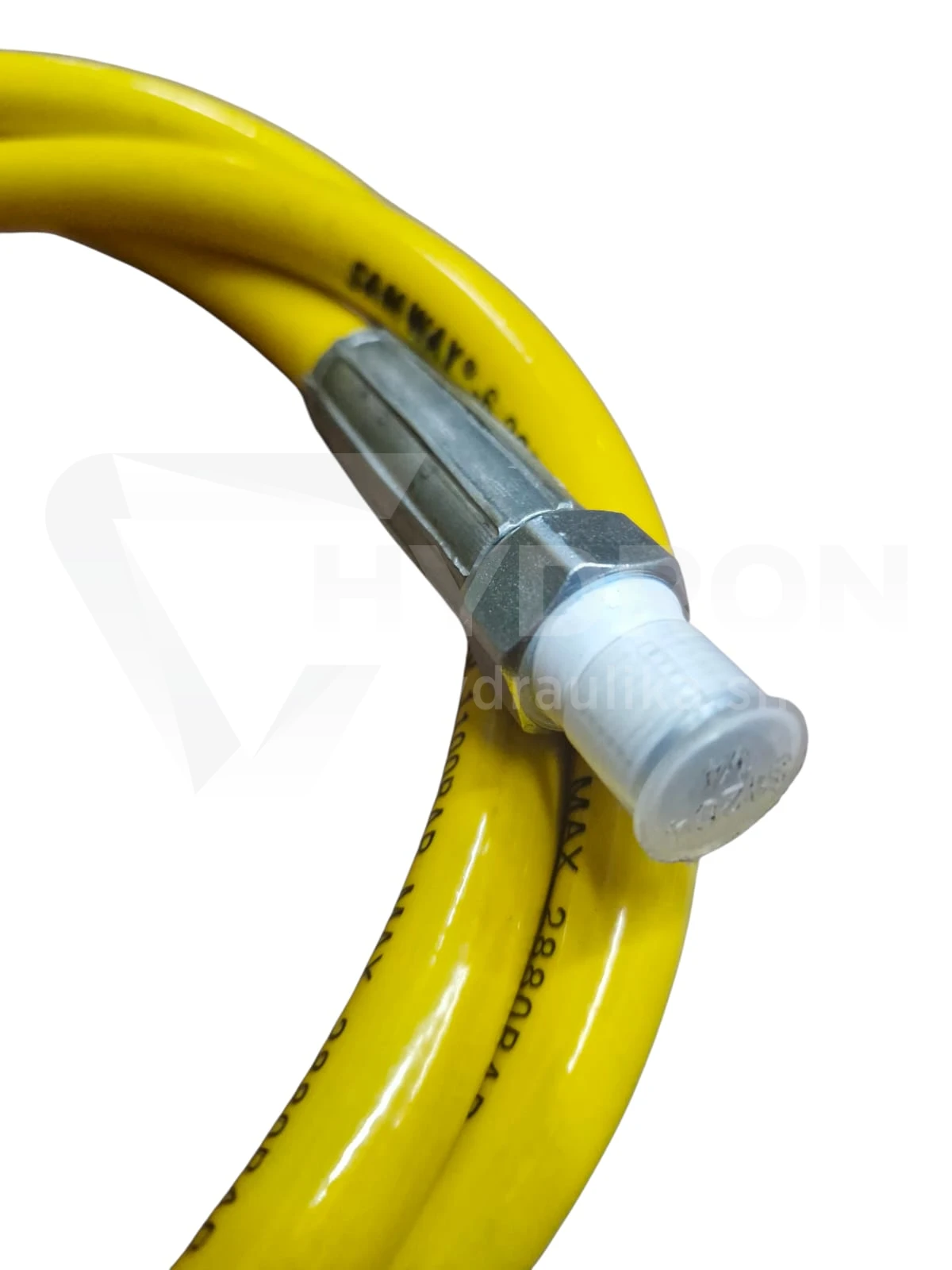

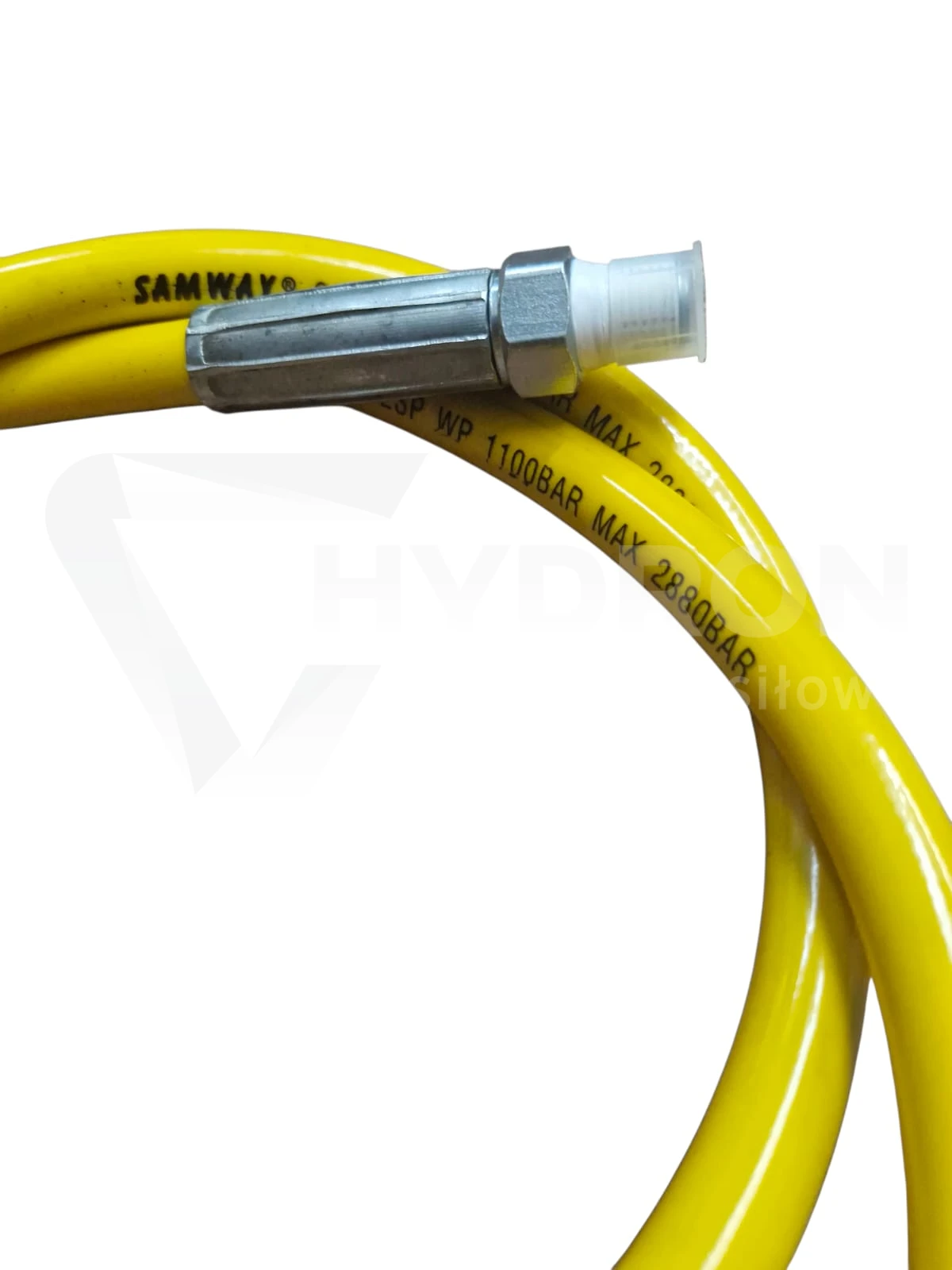

• Hose fitting: 1/4" tapered male thread

⚠ Note: Illustrative photo
