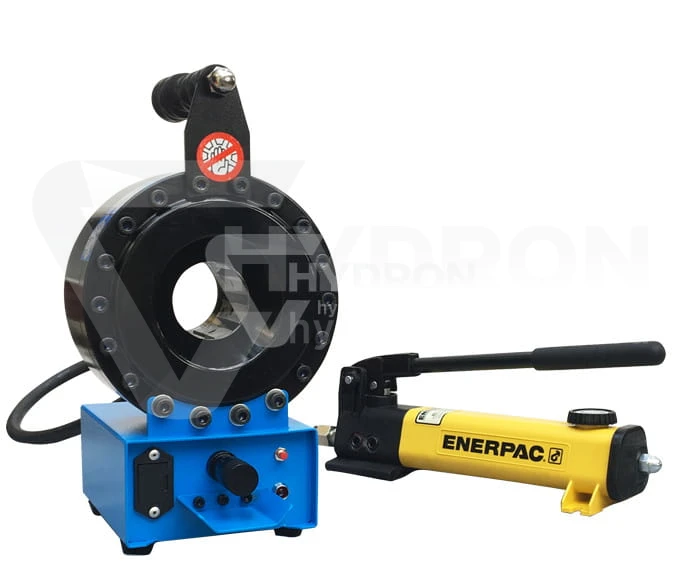

Mobile crimping – P16 press (set with fittings and hoses)

Mobile crimping. A kit essential for starting the adventure with on-site hose crimping (e.g., agriculture, forestry, forklifts, bucket lifts, truck-mounted cranes, etc.). The kit works well in hard-to-reach places – thanks to the separate head and pump of the crimper, we can crimp and repair the hose directly at the device.

Technical data of the crimper:

• MODEL: SAMWAY P16HPZ
• Maximum hose: 1" 3 braids
• Crimping range: 4–45 mm
• Die type: P16
• Main die length: 64 mm
• Maximum die opening: +20 mm
• Two-stage hand pump: 700 bar
• Crimping force: 100 kN
• Control: micrometer
• Dimensions: 330 mm x 400 mm x 280 mm
• Weight: 25 kg

Dies included:

Ready to work, filled with oil!

We offer complete, ready-to-crimp machines. Along with the machine, we send all documentation: user manual for the manual crimper, CE certificate, crimping tables, thread tables, hose selection and many others. We offer free transport and full technical support.

Warranty

All machines offered by us have a written warranty. 12-month warranty from the date of purchase – there is a possibility to extend the warranty. We have a professional warranty and post-warranty service.

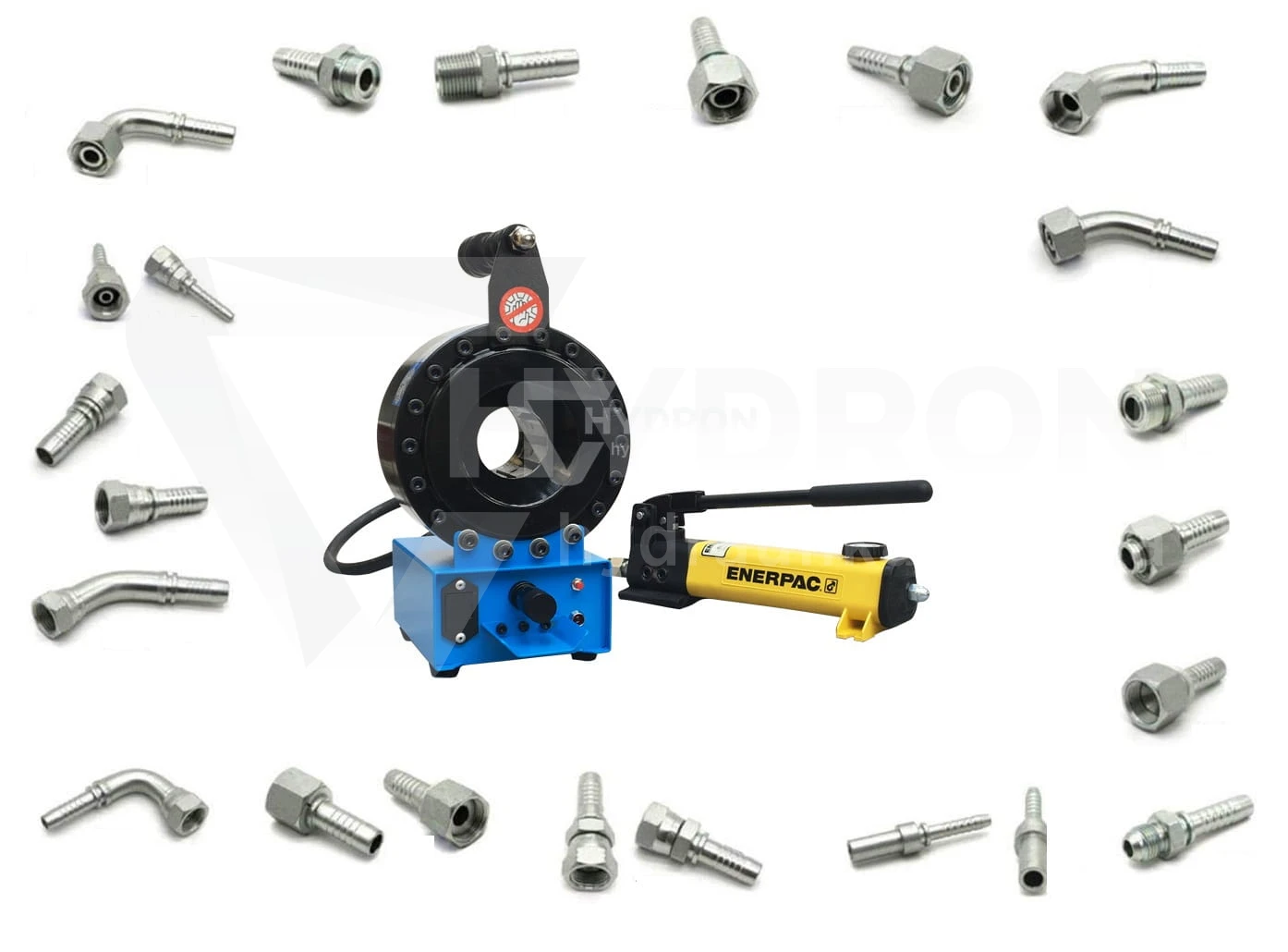

Package of the most popular crimping fittings for agriculture, fruit growing, transport

Starter pack designed for crimping pressure hoses. The pack is intended for people wanting to run a line service or for their own needs, contains the most popular elements. A kit ideal for the start.

The package includes:

• DKR DN06 1/4" fitting - 2pcs
• DKR DN08 3/8" fitting - 2pcs
• DKR DN10 3/8" fitting - 2pcs
• DKR DN13 1/2" fitting - 2pcs
• DKR DN16 5/8" fitting - 2pcs
• DKR DN20 3/4" fitting - 2pcs
• DKR DN25 1" Z fitting - 2pcs
• DKR 90 DN06 1/4" fitting - 2pcs
• DKR 90 DN08 3/8" fitting - 2pcs
• DKR 90 DN10 3/8" fitting - 2pcs
• DKR 90 DN13 1/2" fitting - 2pcs
• DKR 45 DN10 3/8" Z fitting - 2pcs
• DKR 45 DN13 1/2" fitting - 2pcs
• AGR DN06 1/4" BSP fitting - 2pcs
• AGR DN08 3/8" BSP fitting - 2pcs
• AGR DN10 3/8" BSP fitting - 2pcs
• AGR DN13 1/2" BSP fitting - 2pcs
• AGR DN16 5/8" BSP fitting - 2pcs
• AGR DN20 3/4" BSP fitting - 2pcs
• DKOL DN06 06L M12x1.5 fitting - 2pcs
• DKOL DN06 08L M14x1.5 fitting - 2pcs
• DKOL DN08 10L M16x1.5 fitting - 2pcs
• DKOL DN10 12L M18x1.5 fitting - 2pcs
• DKOL DN13 15L M22x1.5 fitting - 2pcs
• DKOL DN16 18L M26x1.5 fitting - 2pcs
• DKOL DN20 22L M30x2 fitting - 2pcs
• DKOL DN25 28L M36X2 fitting - 2pcs
• DKOL 90 DN06 06L M12x1.5 HEX17 fitting - 2pcs
• DKOL 90 DN06 08L M14x1.5 fitting - 2pcs
• DKOL 90 DN08 10L M16x1.5 fitting - 2pcs
• DKOL 90 DN10 12L M18x1.5 fitting - 2pcs
• DKOL 90 DN13 15L M22x1.5 fitting - 2pcs
• DKOL 45 DN10 12L M18x1.5 fitting - 2pcs
• DKOL 45 DN08 10L M16x1.5 fitting - 2pcs
• CEL DN06.06L M12x1.5 S12mm fitting - 2pcs
• CEL DN06.08L M14x1.5 fitting - 2pcs
• CEL DN08.10L M16x1.5 fitting - 2pcs
• CEL DN10.12L M18x1.5 fitting - 2pcs
• CEL DN13.15L M22x1.5 fitting - 2pcs
• CEL DN16.18L M26x1.5 fitting - 2pcs
• CEL DN20.22L M30x2 fitting - 2pcs
• CONNECTOR - Hose repair joint DN06 - 10pcs
• CONNECTOR - Hose repair joint DN08 - 10pcs
• CONNECTOR - Hose repair joint DN10 - 10pcs
• CONNECTOR - Hose repair joint DN13 - 10pcs
• CONNECTOR - Hose repair joint DN16 - 5pcs
• CONNECTOR - Hose repair joint DN20 - 5pcs
• CONNECTOR - Hose repair joint DN25 - 2pcs
• Crimping ferrule for hose DN06 2SN - 20pcs
• Crimping ferrule for hose DN08 2SN - 20pcs
• Crimping ferrule for hose DN10 2SN - 20pcs
• Crimping ferrule for hose DN13 2SN - 20pcs
• Crimping ferrule for hose DN16 2SN - 10pcs
• Crimping ferrule for hose DN20 2SN - 10pcs
• Crimping ferrule for hose DN25 2SN - 4pcs
• Crimping ferrule for hose DN06 1SN / 2SC - 10pcs
• Crimping ferrule for hose DN08 1SN / 2SC - 10pcs
• Crimping ferrule for hose DN10 1SN / 2SC - 10pcs
• Crimping ferrule for hose DN13 1SN / 2SC - 10pcs
• Crimping ferrule for hose DN16 1SN / 2SC - 5pcs
• Crimping ferrule for hose DN20 1SN / 2SC - 5pcs
• Crimping ferrule for hose DN25 1SN / 2SC - 2pcs
• PREMIUM Hydraulic hose DN06 2SN (1/4") 400 bar - 25m
• PREMIUM Hydraulic hose DN08 2SN (5/16") 350 bar - 25m
• PREMIUM Hydraulic hose DN10 2SN (3/8") 330 bar - 25m
• PREMIUM Hydraulic hose DN13 2SN (1/2") 275 bar - 25m
• PREMIUM Hydraulic hose DN16 2SN (5/8") 250 bar - 10m
• PREMIUM Hydraulic hose DN20 2SN (3/4") 215 bar - 10m
• PREMIUM Hydraulic hose DN25 2SN (1") 165 bar - 10m

If needed, we can configure any set, expand, or reduce it. For changes and quotes, please send an inquiry to the e-mail address.
