Mobile crimper for hydraulic hoses

Manual hose crimper SAMWAY P16HPZ - mobile

• Check the specification of the P16HPZ crimper
• Schedule a free meeting and machine presentation
• Crimper leasing
• What the crimper warranty covers

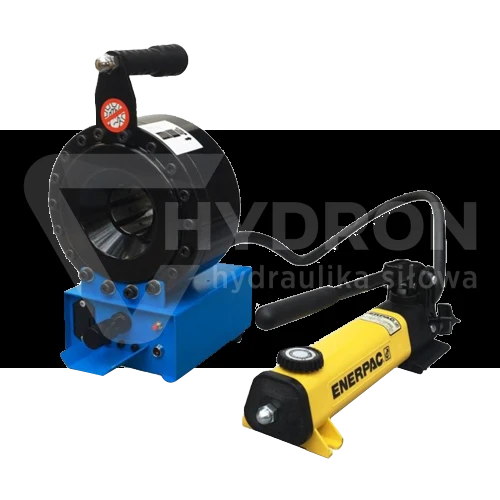

• See an example of the P16HPZ crimper configuration with an electric pump

Characteristics of the mobile hose crimping press

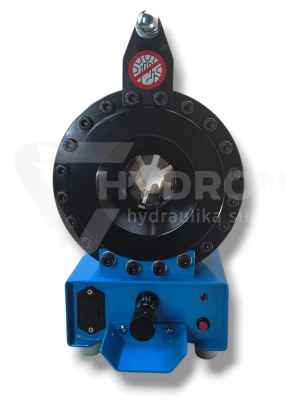

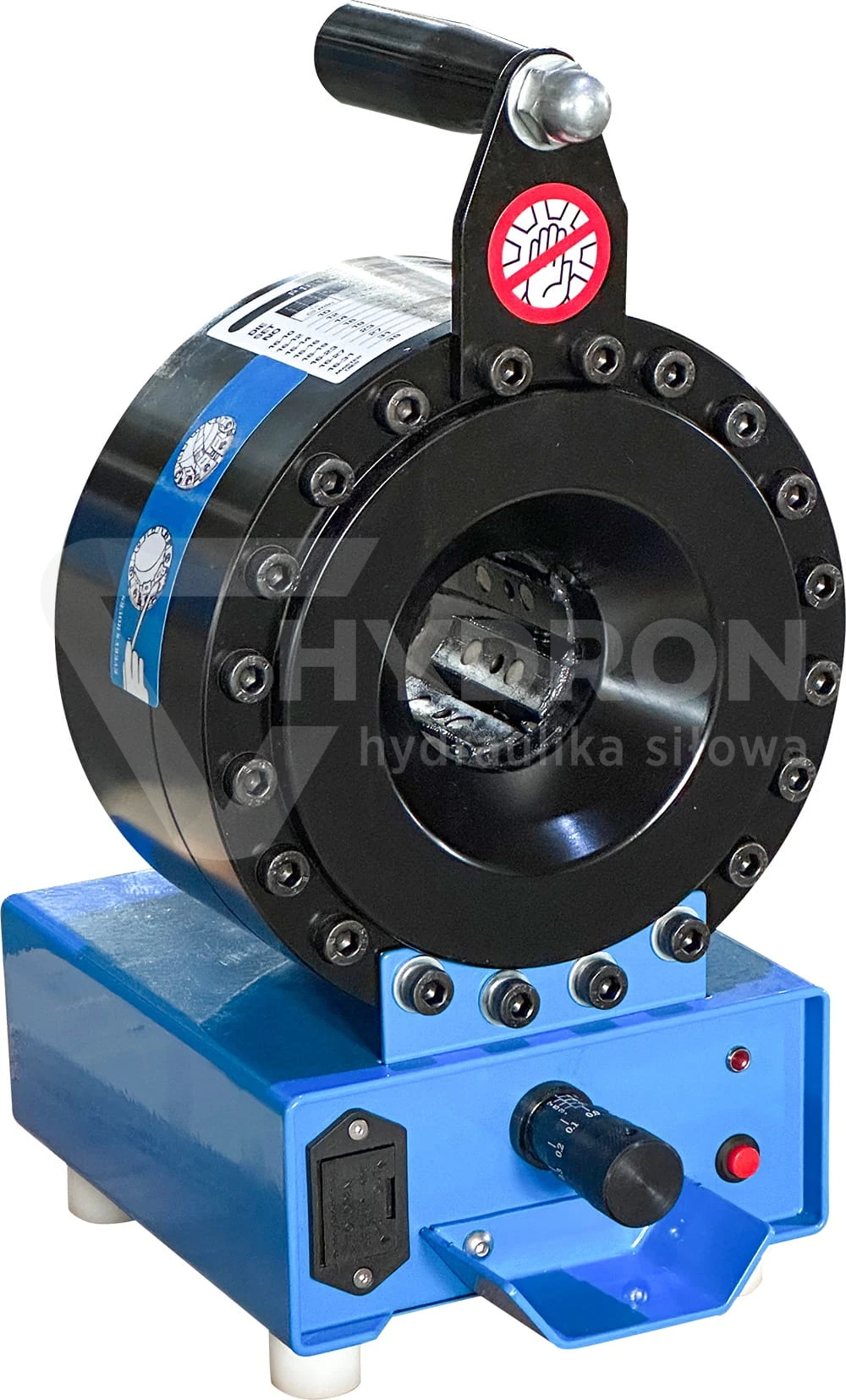

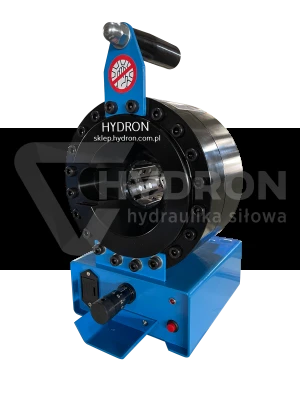

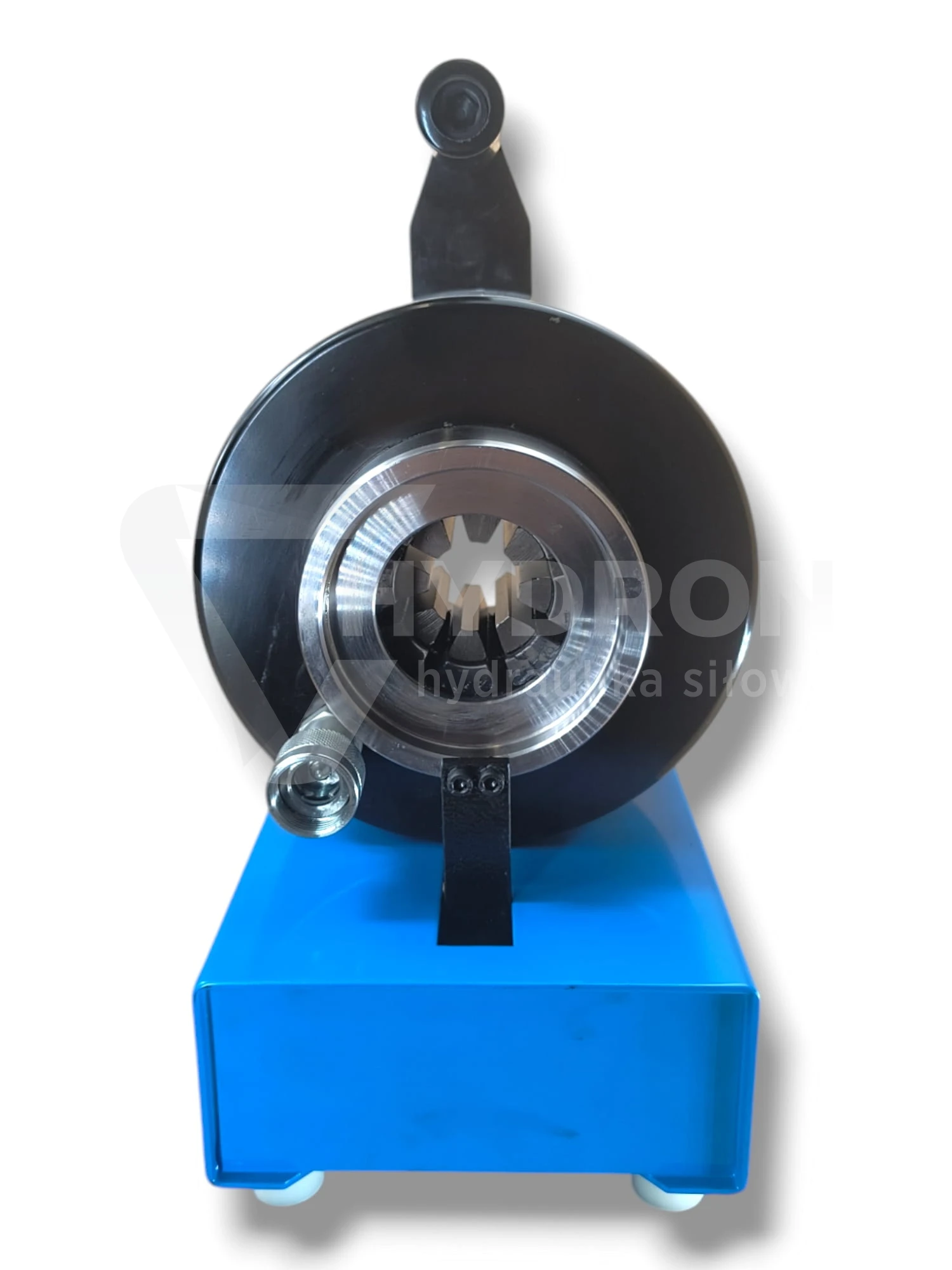

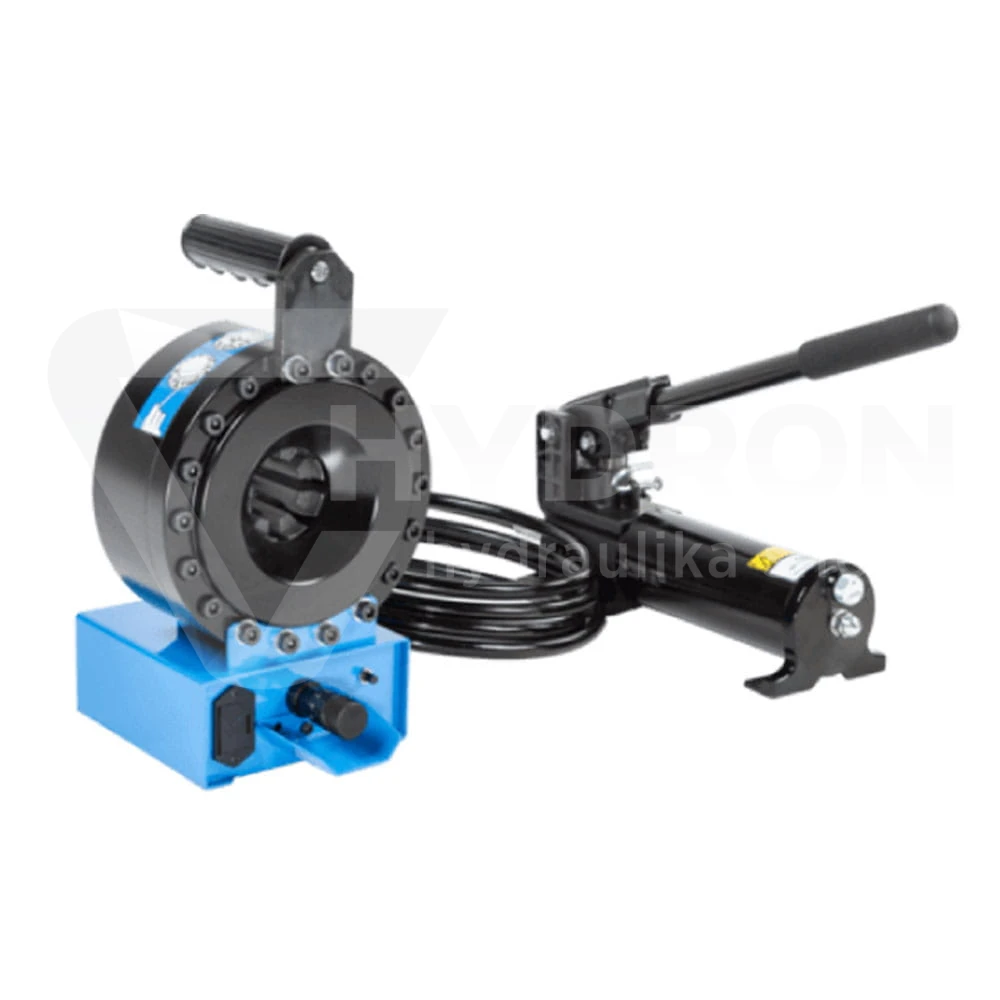

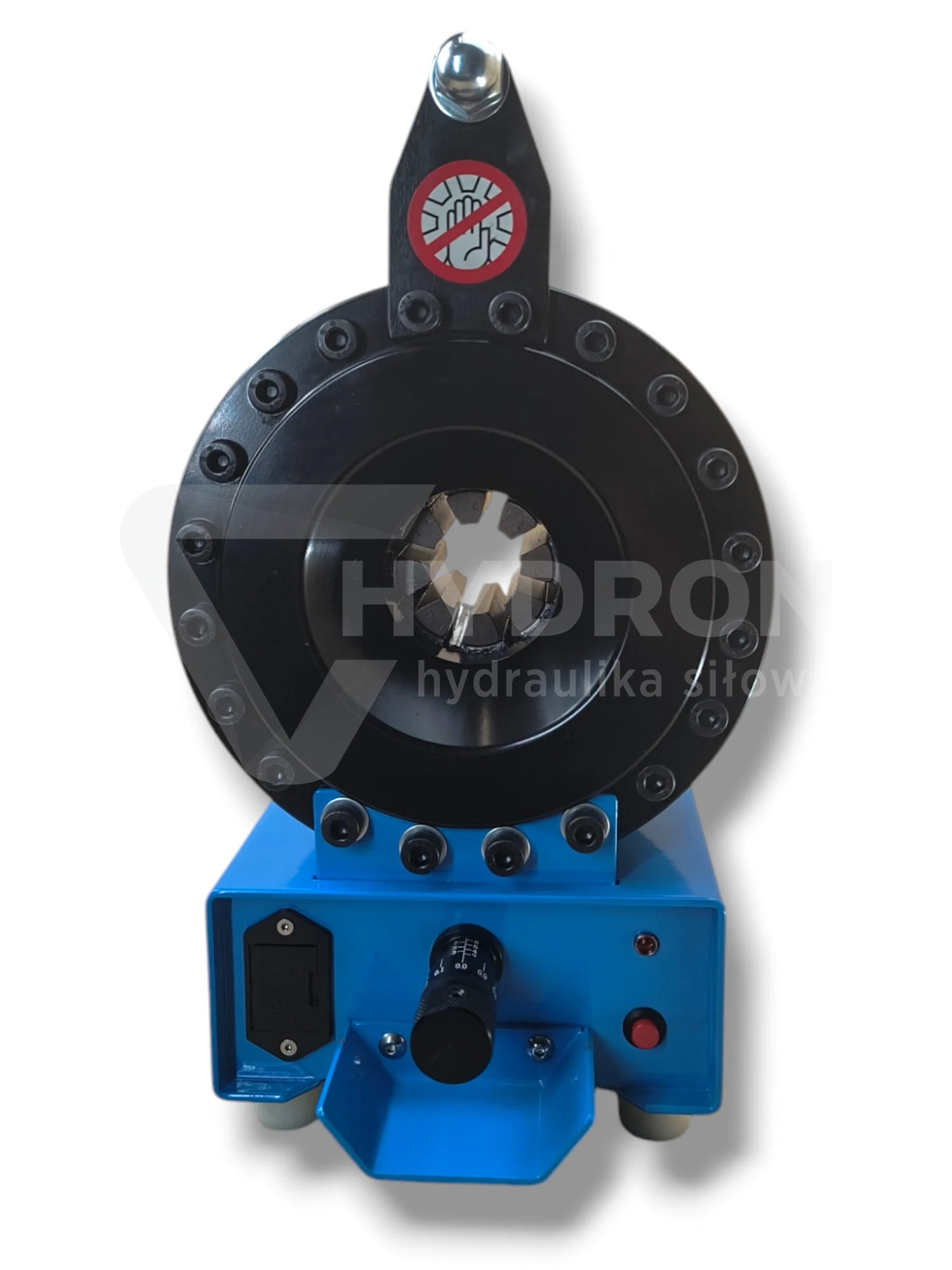

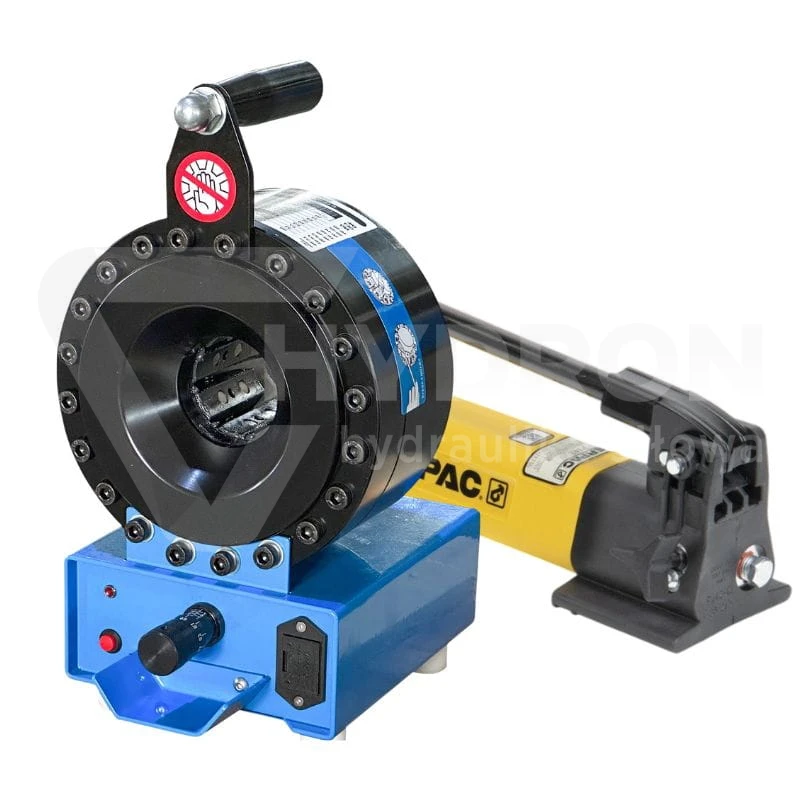

The P16HPZ model is a compact, manual crimper with a portable head, ideal for field work. Thanks to its small size, lightness, and mobility, the device is an excellent choice for those who need flexibility and convenience of work outside the workshop. The P16HPZ crimper is suitable for hoses with a diameter up to 1", offering precise crimping with full control.

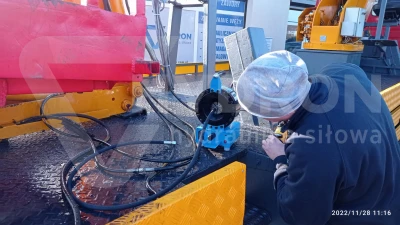

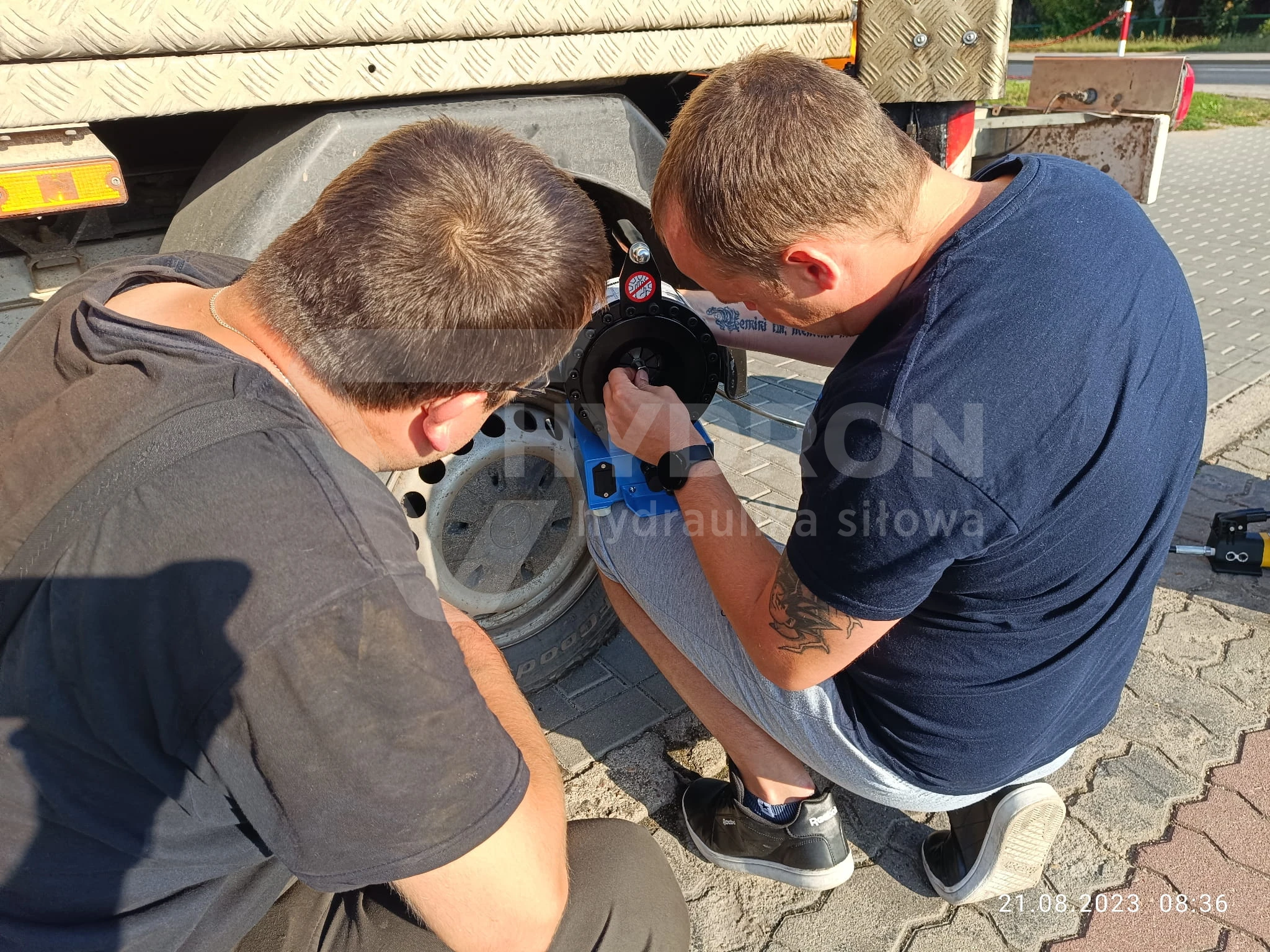

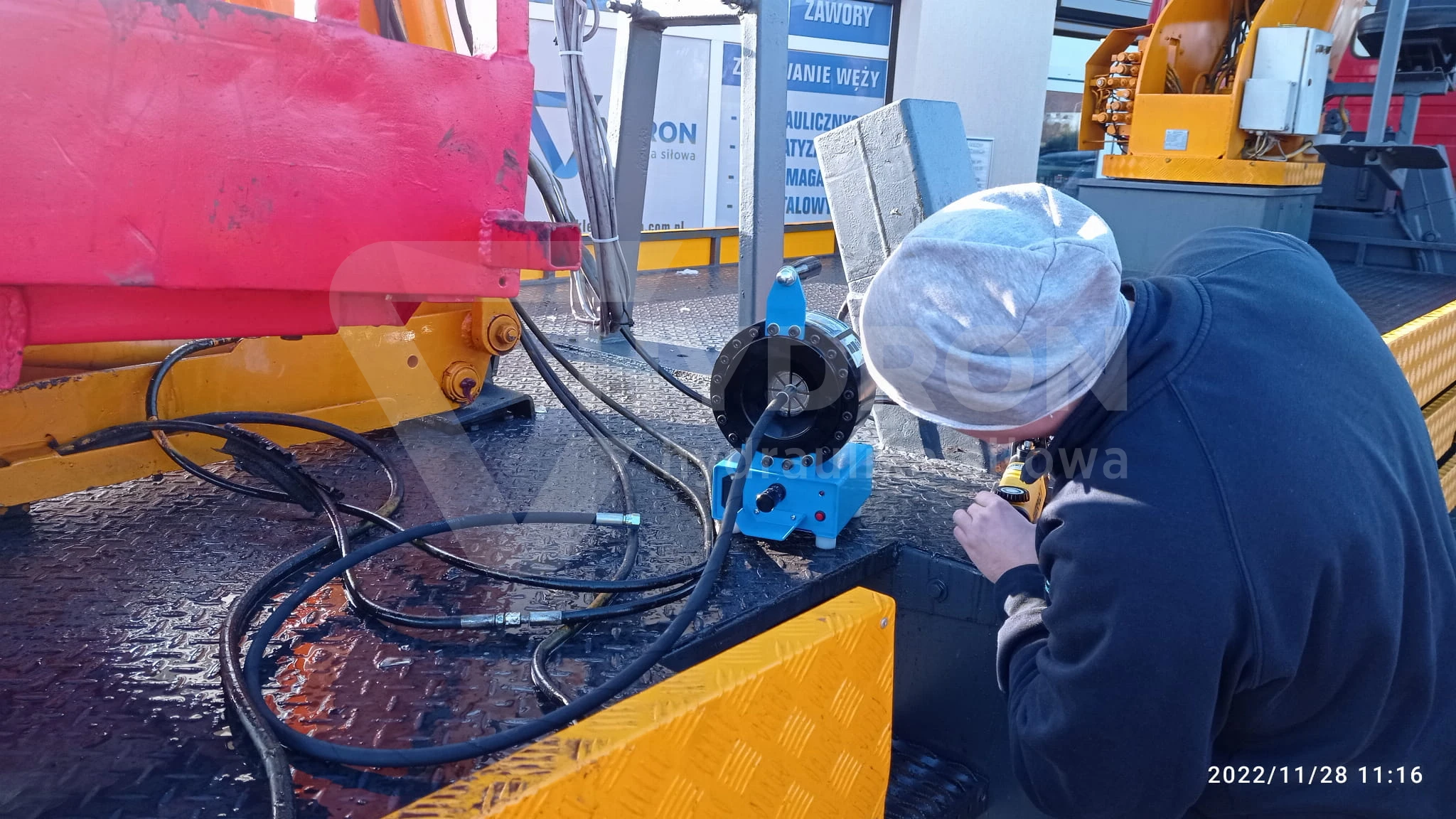

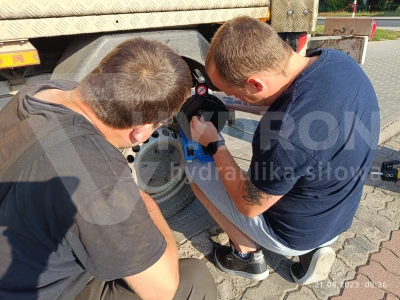

Ideal crimper for field applications

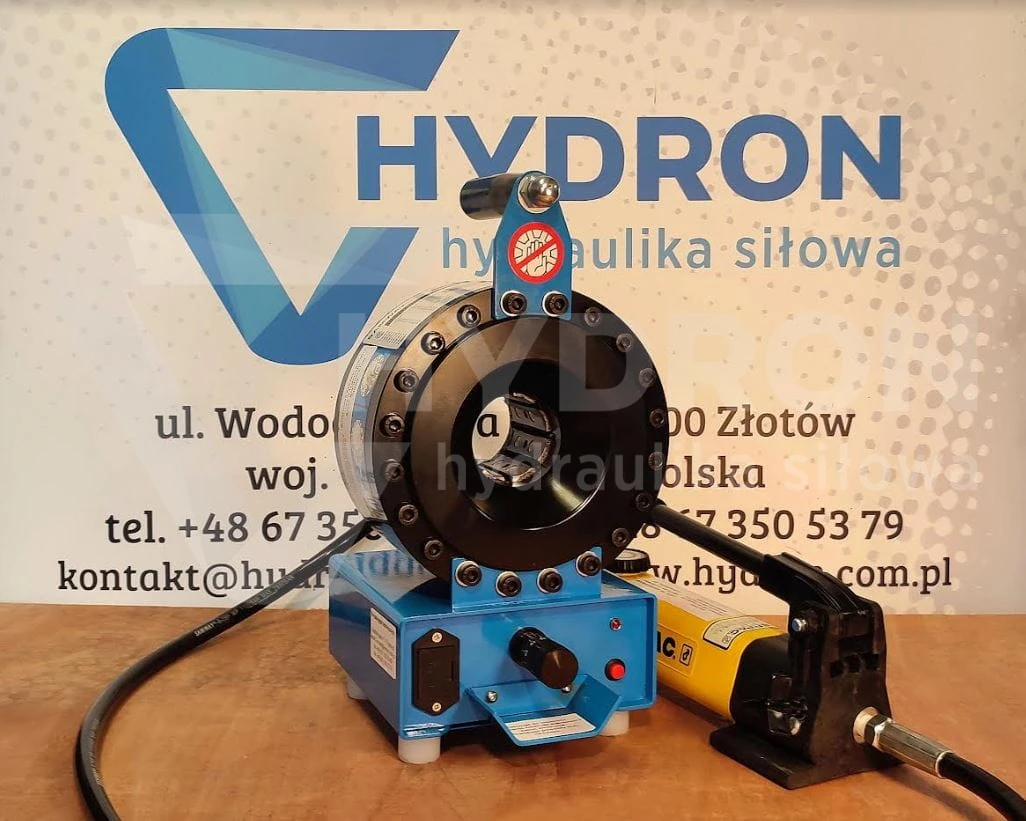

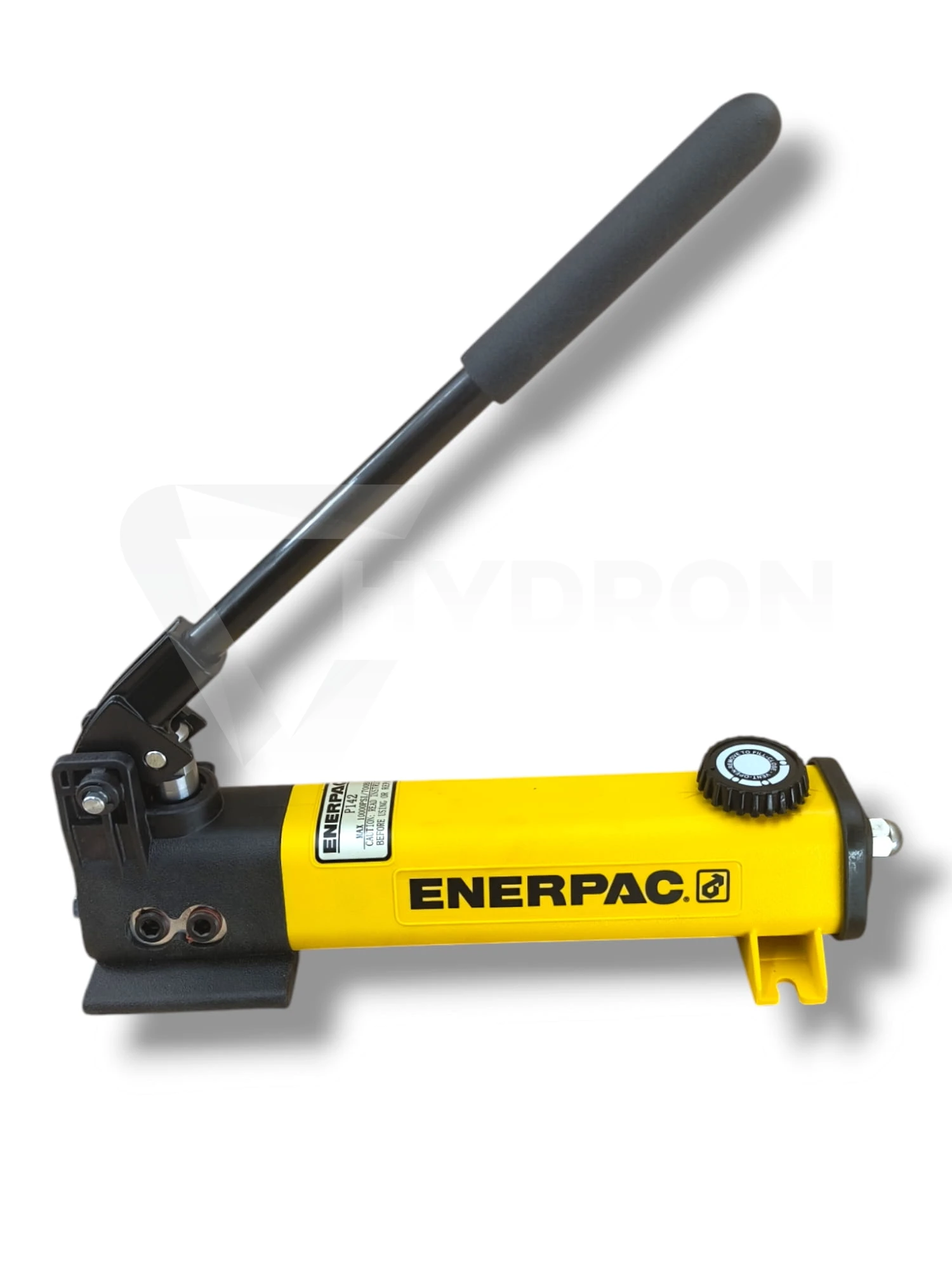

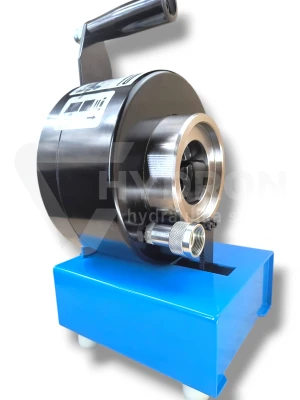

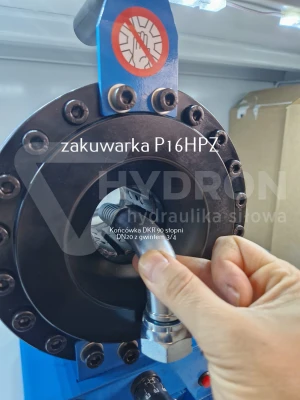

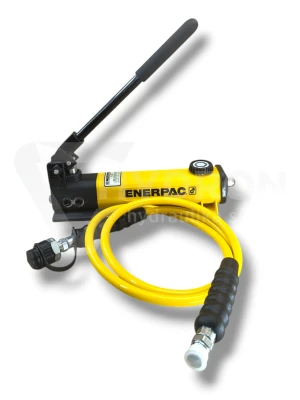

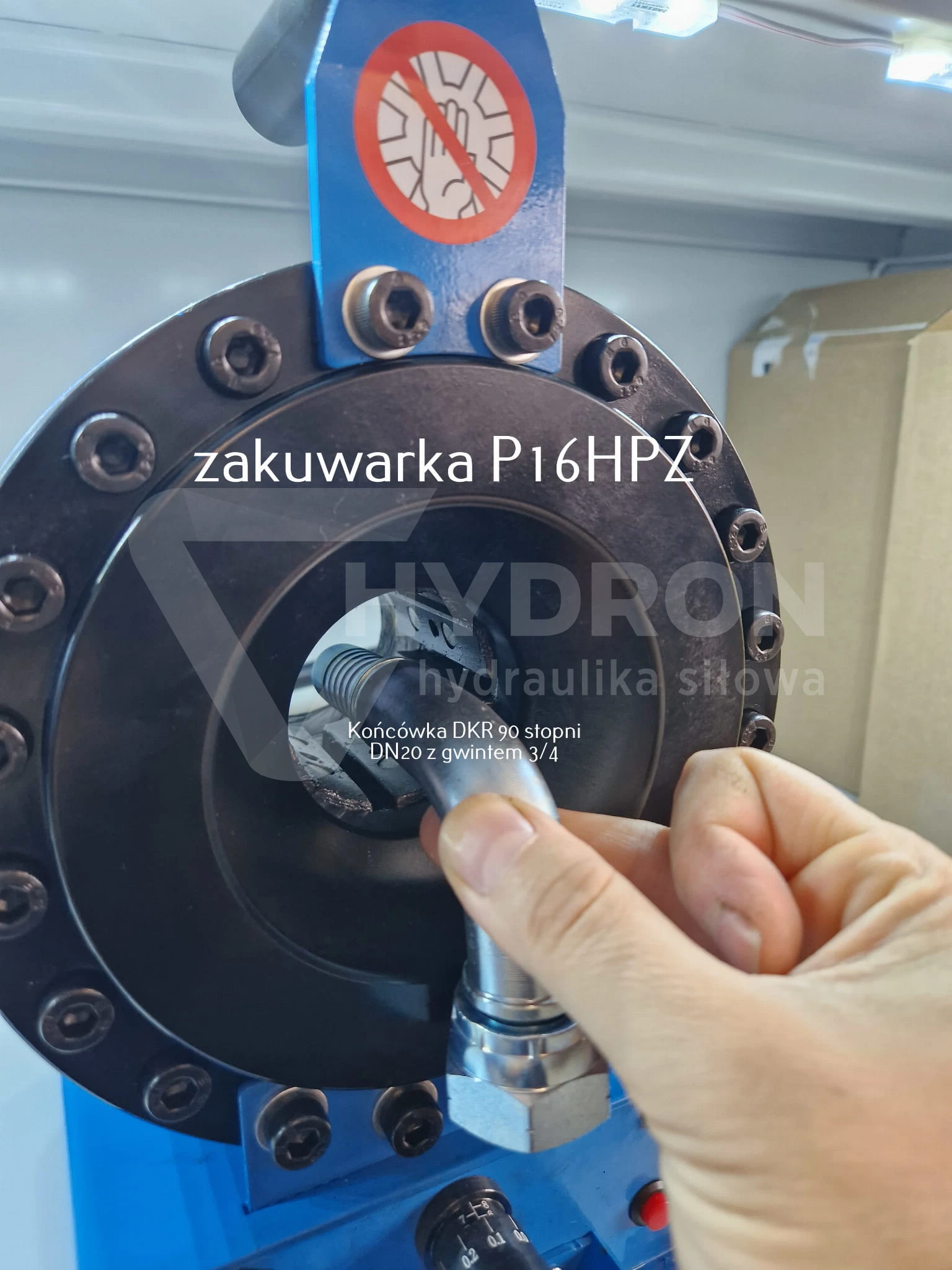

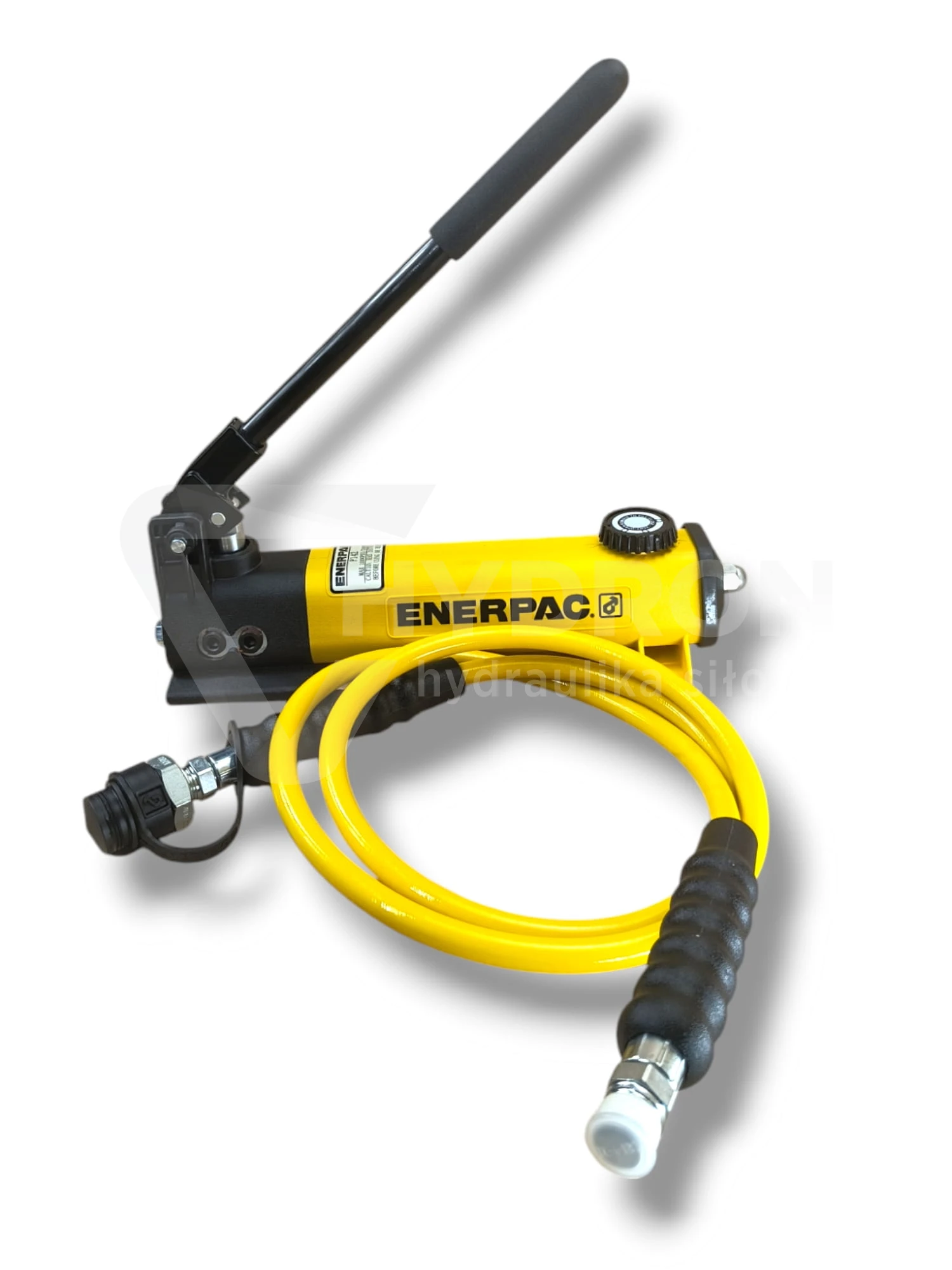

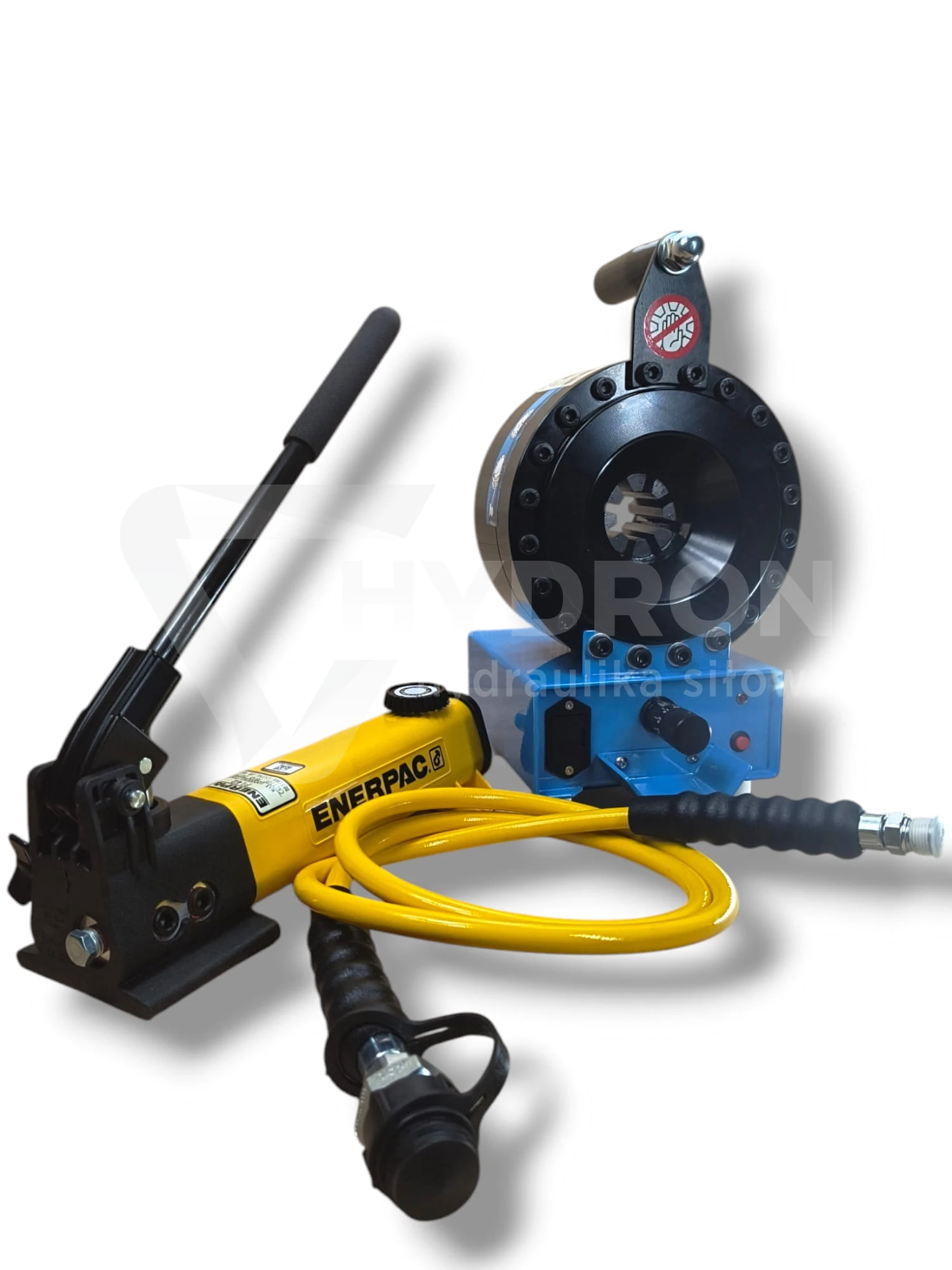

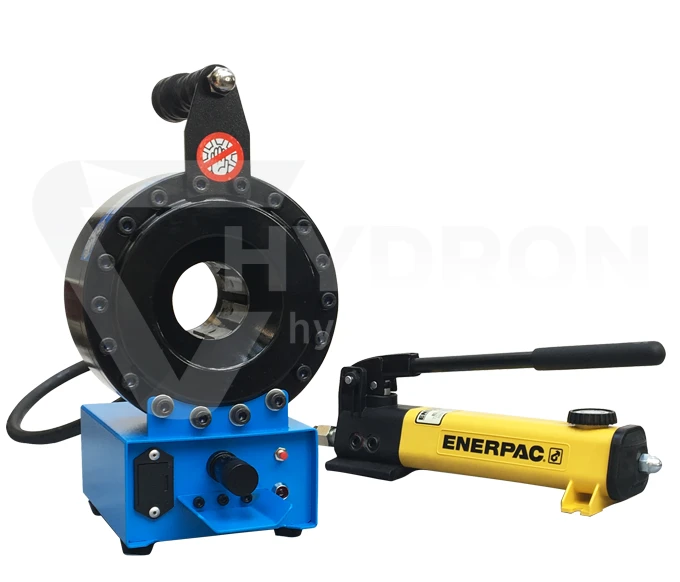

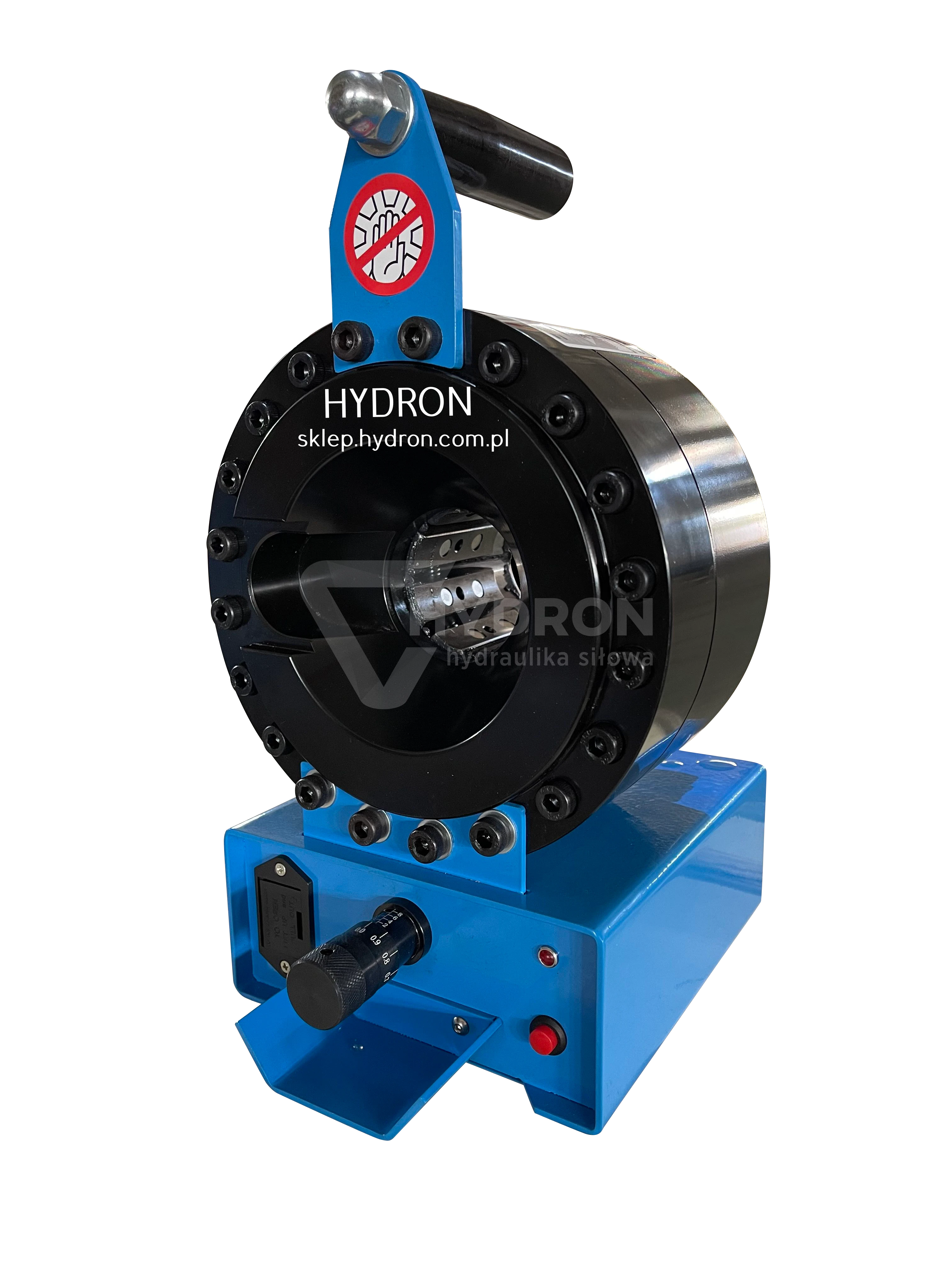

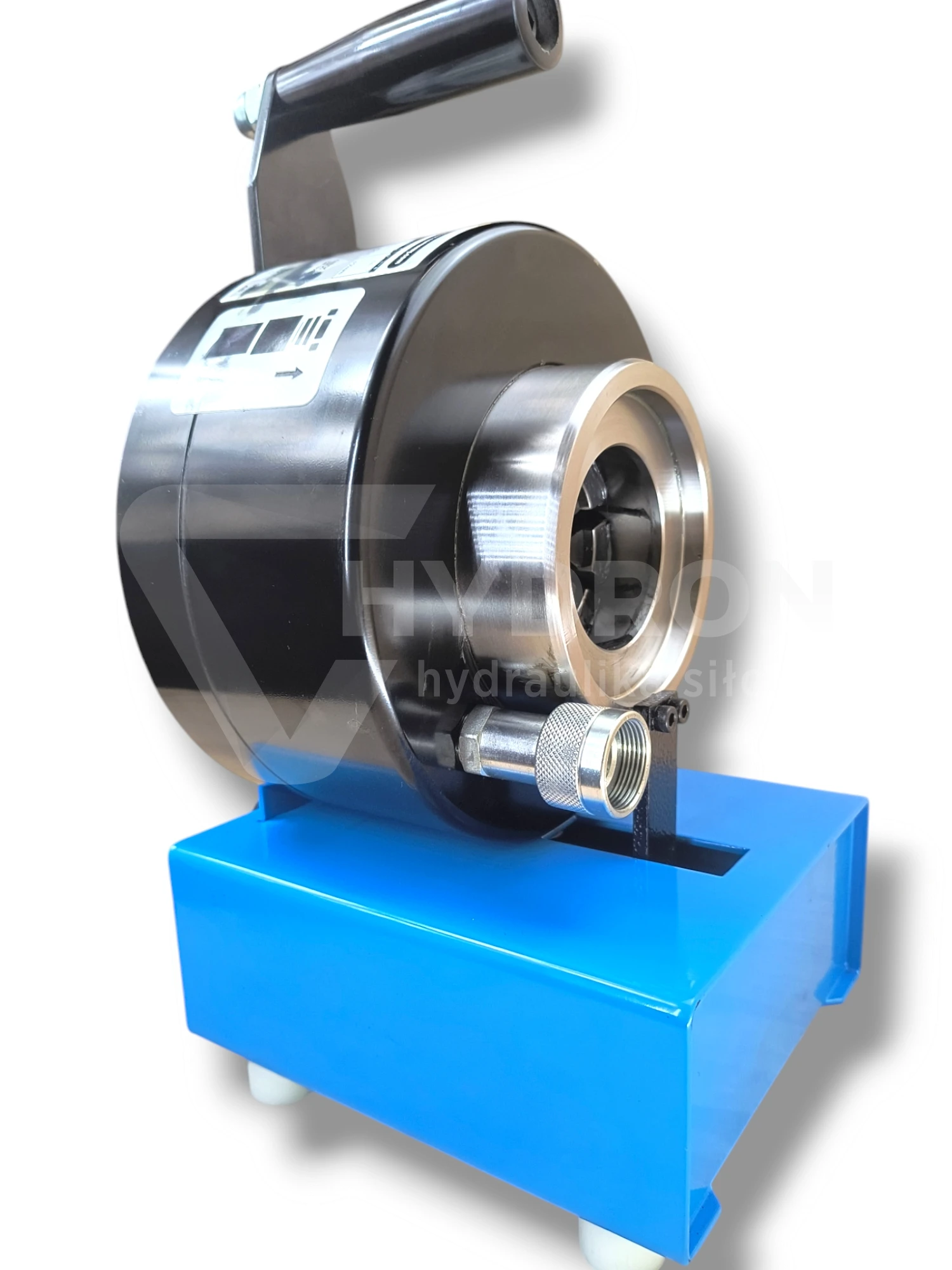

Lightweight and ergonomic manual press for crimping hydraulic hoses. The crimper has a set of 8 interchangeable dies, which allow for crimping hydraulic hoses in the diameter range from DN06 – DN25. Mobile crimper (independent crimping head) connected by a flexible hose to a hydraulic pump (pump and hose are included in the set!). A separate head is extremely useful when it is necessary to crimp a hydraulic hose without having to completely disassemble it from the machine. The press is powered by a manual hydraulic pump, making it work great in the field (no need for a power supply). The press has a detailed die selection instruction. The manual crimper is an ideal solution for small workshops and people providing mobile hydraulic service. The quality-to-price ratio makes the manual press an optimal solution for points planning to crimp hoses in small quantities.

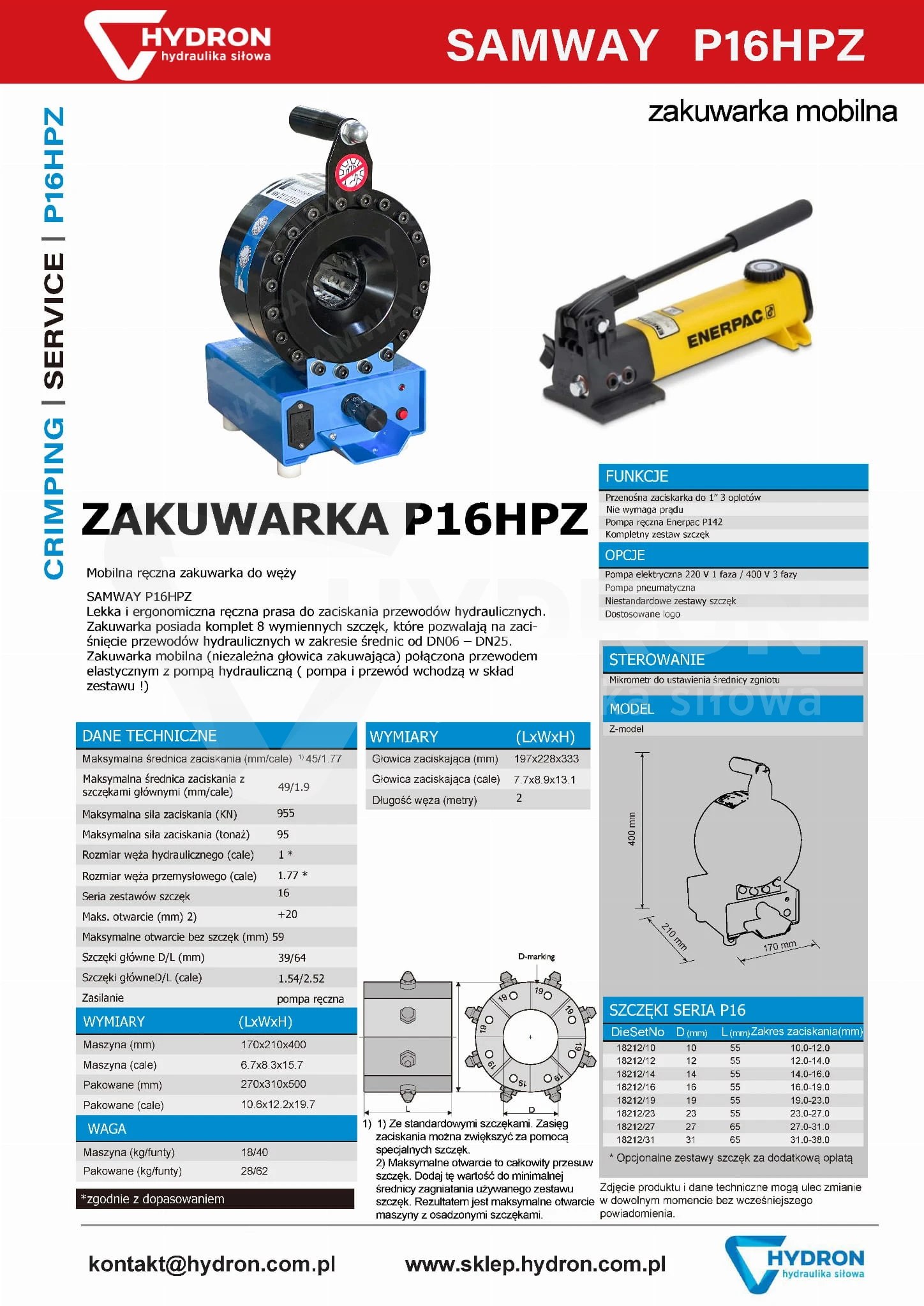

Technical parameters of the P16HPZ press

• Press model: SAMWAY P16HP
• Maximum hose: 1" 3 braids
• Crimping range: 4-45 mm
• Die type: P16
• Length of main dies: 64 mm
• Maximum die opening: +20 mm

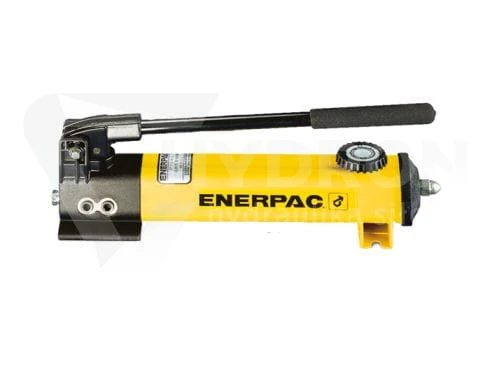

• Two-stage hand pump: 700 bar
• Crimping force: 100 kN

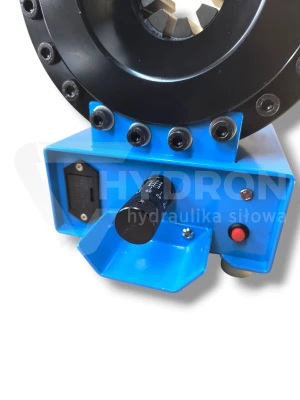

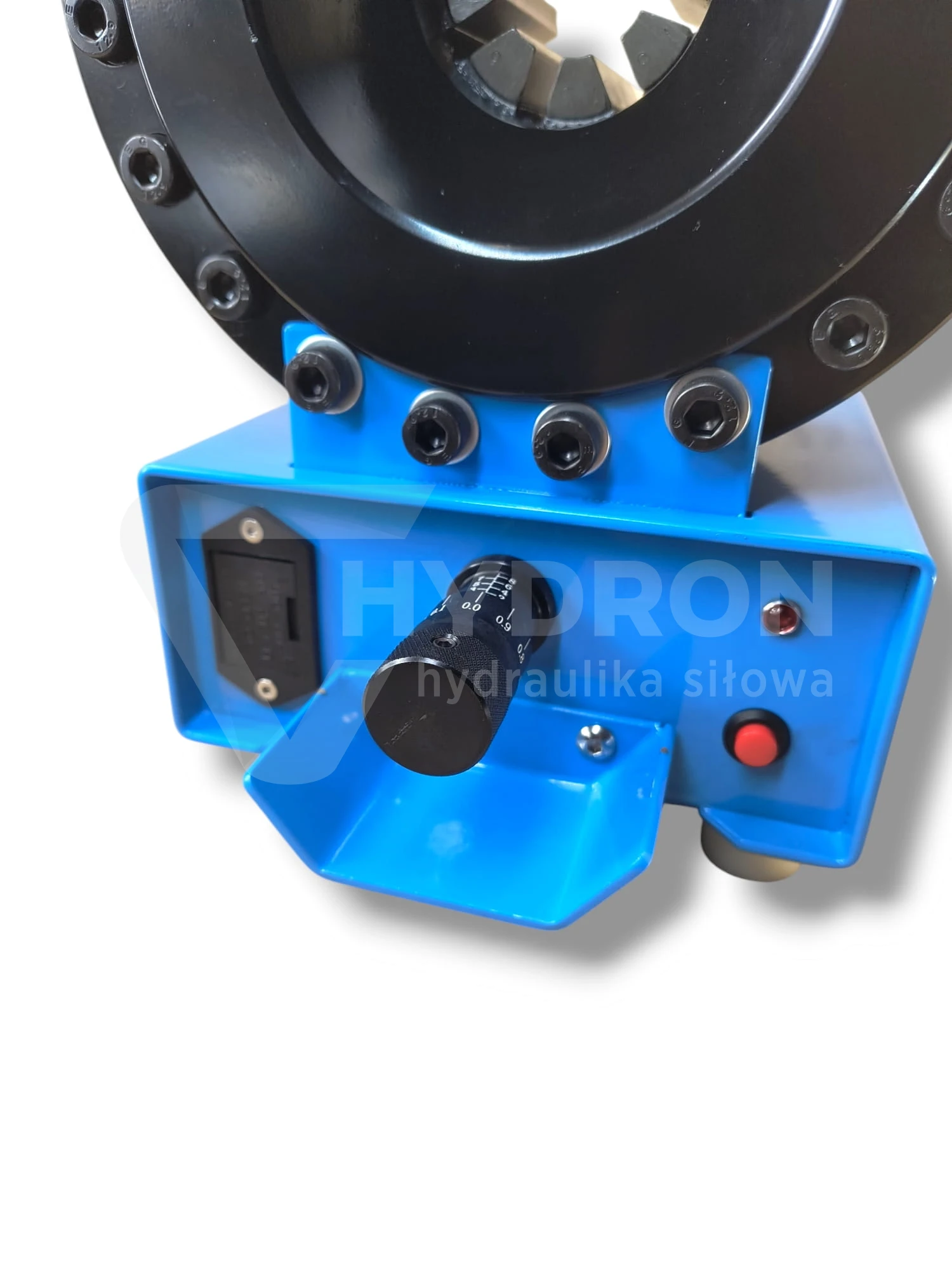

• Control: micrometer
• Dimensions: 330mm*400mm*280mm
• Crimper weight: 25 kg

Crimping dies included in the set (size / length):

• 10 mm (length 55 mm)
• 12 mm (length 55 mm)
• 14 mm (length 55 mm)
• 16 mm (length 55 mm)
• 19 mm (length 55 mm)
• 23 mm (length 55 mm)
• 27 mm (length 65 mm)
• 31 mm (length 65 mm)

Note: this model is not suitable for crimping large stainless steel ferrules! (very hard material) for this a larger machine is needed like P20HP, P20AP or larger.

Choosing a manual crimper - tips, offer overview

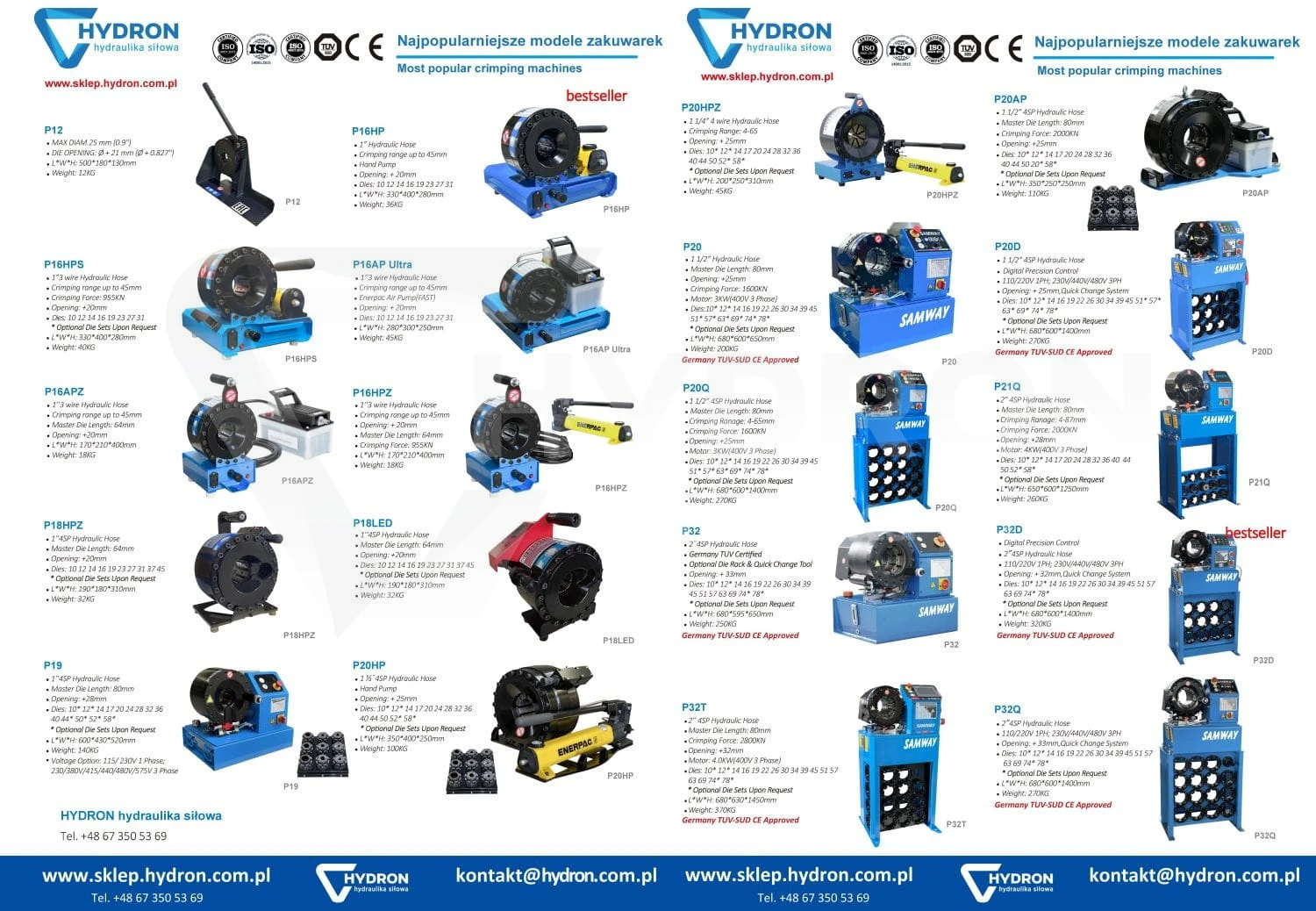

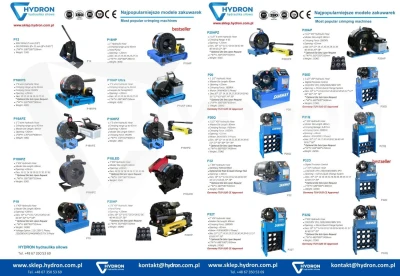

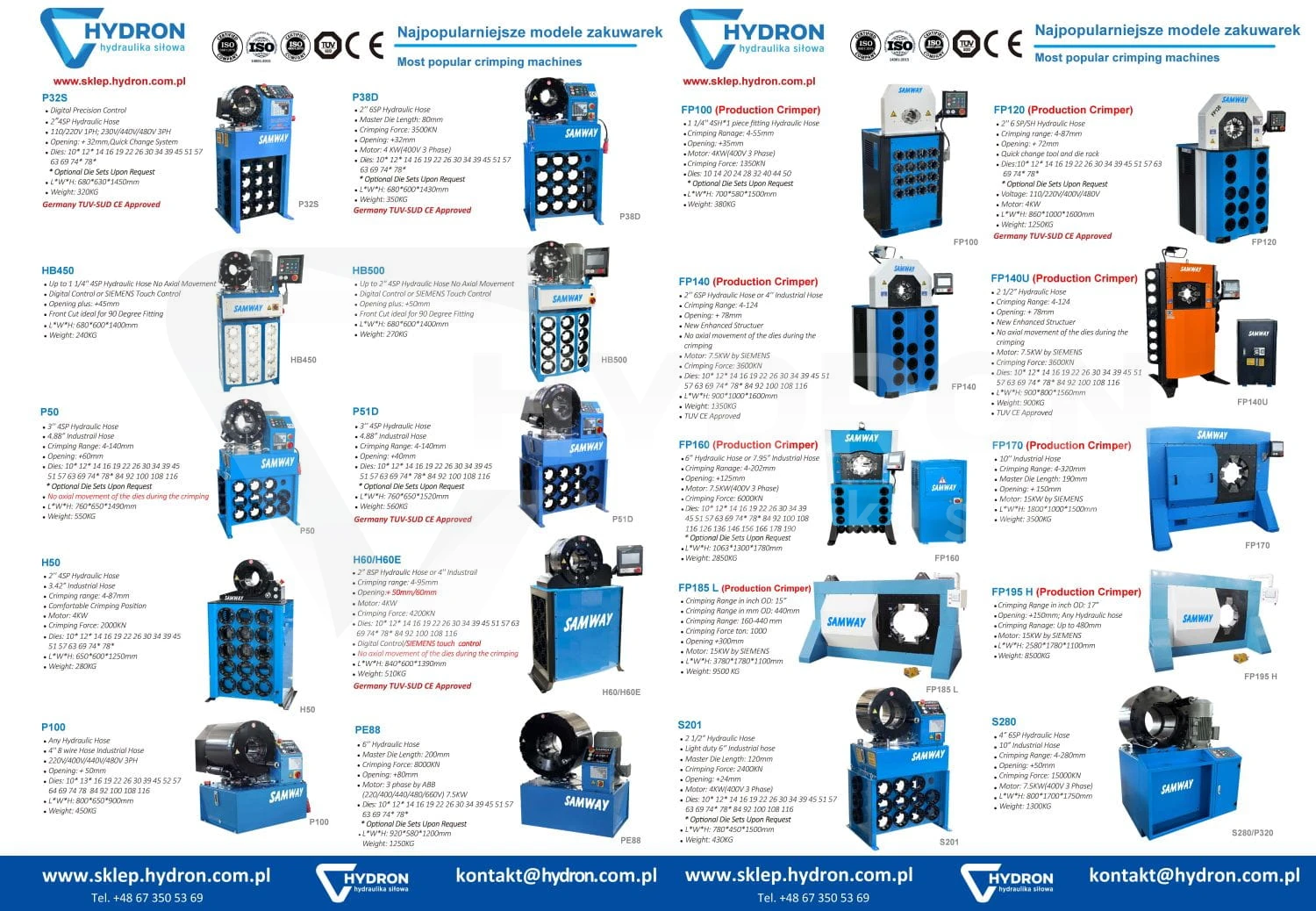

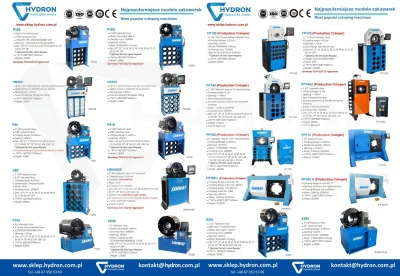

Regardless of your needs, HYDRON offers a wide range of crimpers. We invite you to familiarize yourself with the full offer of crimping machines.

The choice of crimper depends primarily on the specificity of the work, the expected comfort of use, and the available resources:

• P16HPZ: Compact, portable manual crimper for mobile applications.
• P16HP: Built-in manual crimper with an integrated pump for convenient stationary work.
• P16AP: Pneumatic crimper for fast, repeatable crimping in a workshop environment with access to compressed air.
• P20HP: Manual crimper for larger hoses, ideal for workshops specializing in large diameters.

Alternative: manual crimper P16HP with built-in pump

If you care about similar parameters as in the P16HPZ model, but prefer a device integrated with a manual pump, the P16HP model will be a great choice. It is a manual crimper for hydraulic hoses with the possibility of crimping hoses with a diameter up to 45 mm (1/2SN). The built-in pump makes it a more ergonomic device, ideal for stationary applications, where the compact design ensures convenience and work efficiency.

Pneumatic crimper P16AP – efficiency and crimping speed

For those seeking even higher efficiency, the ideal solution is the pneumatic crimper P16AP. The device offers the same operating parameters as the manual models, with the ability to crimp hoses up to DN25 (1", 2SN), but thanks to the pneumatic drive, it significantly increases the speed of work and reduces operator effort. The P16AP crimper is the choice of professionals who care about efficient and repeatable crimping, especially in places with access to a pneumatic installation.

Larger crimper models: Manual crimper P20HP

For more demanding applications, such as working
