Pipe flaring device for 37-degree angles.

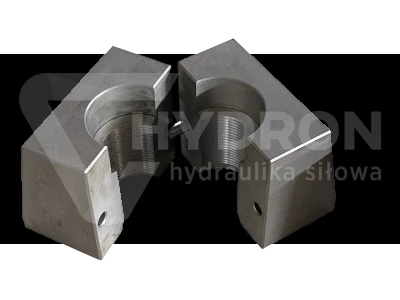

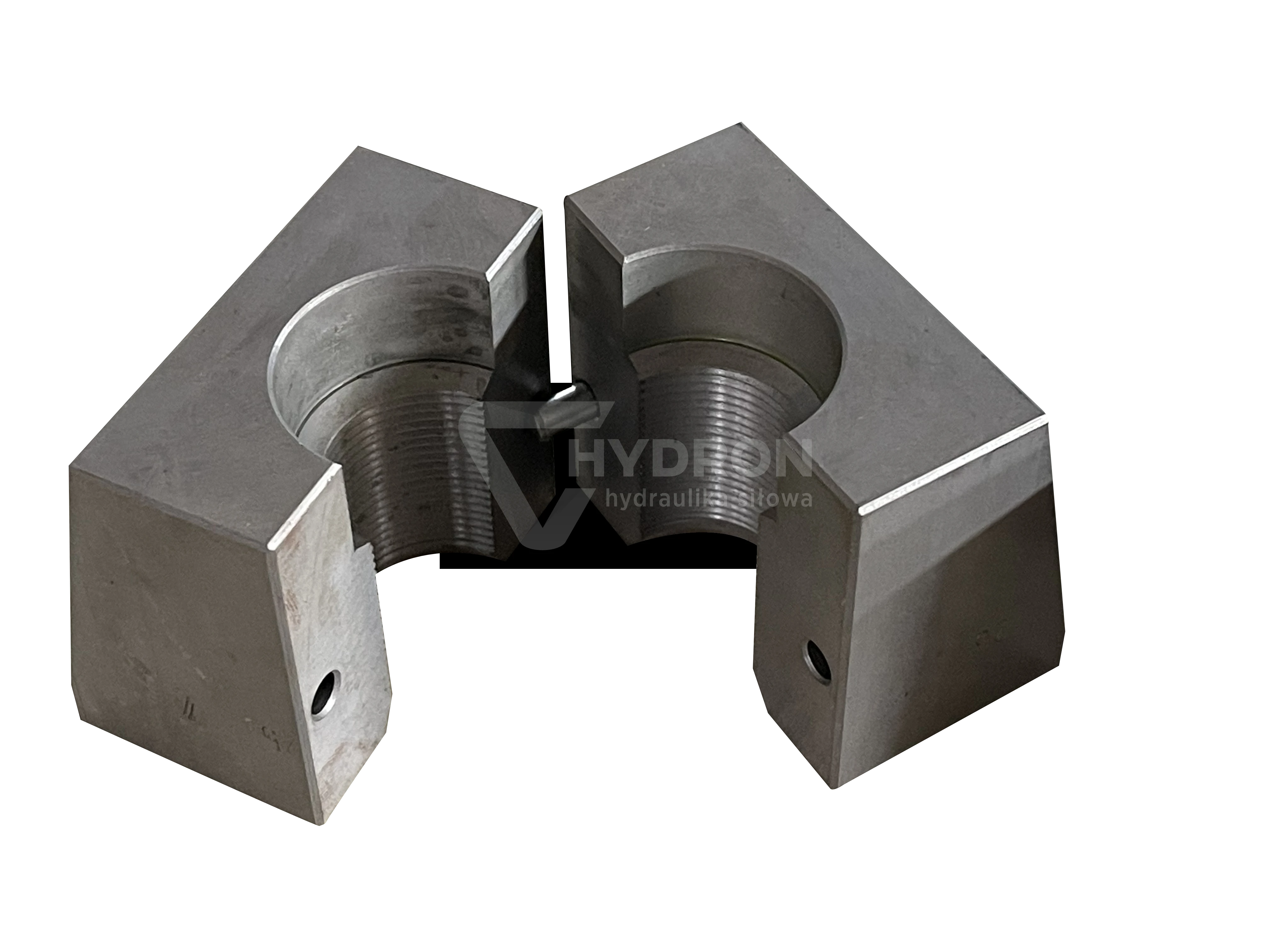

Complete device with all dies and a block for tube flaring

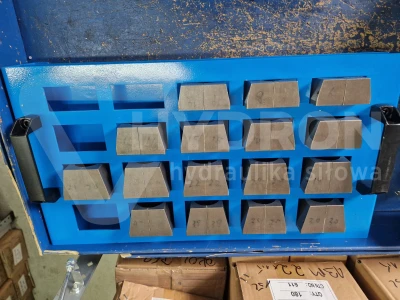

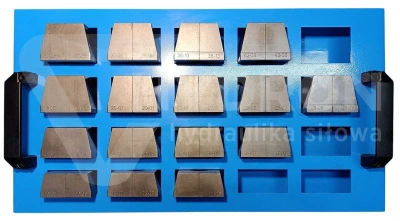

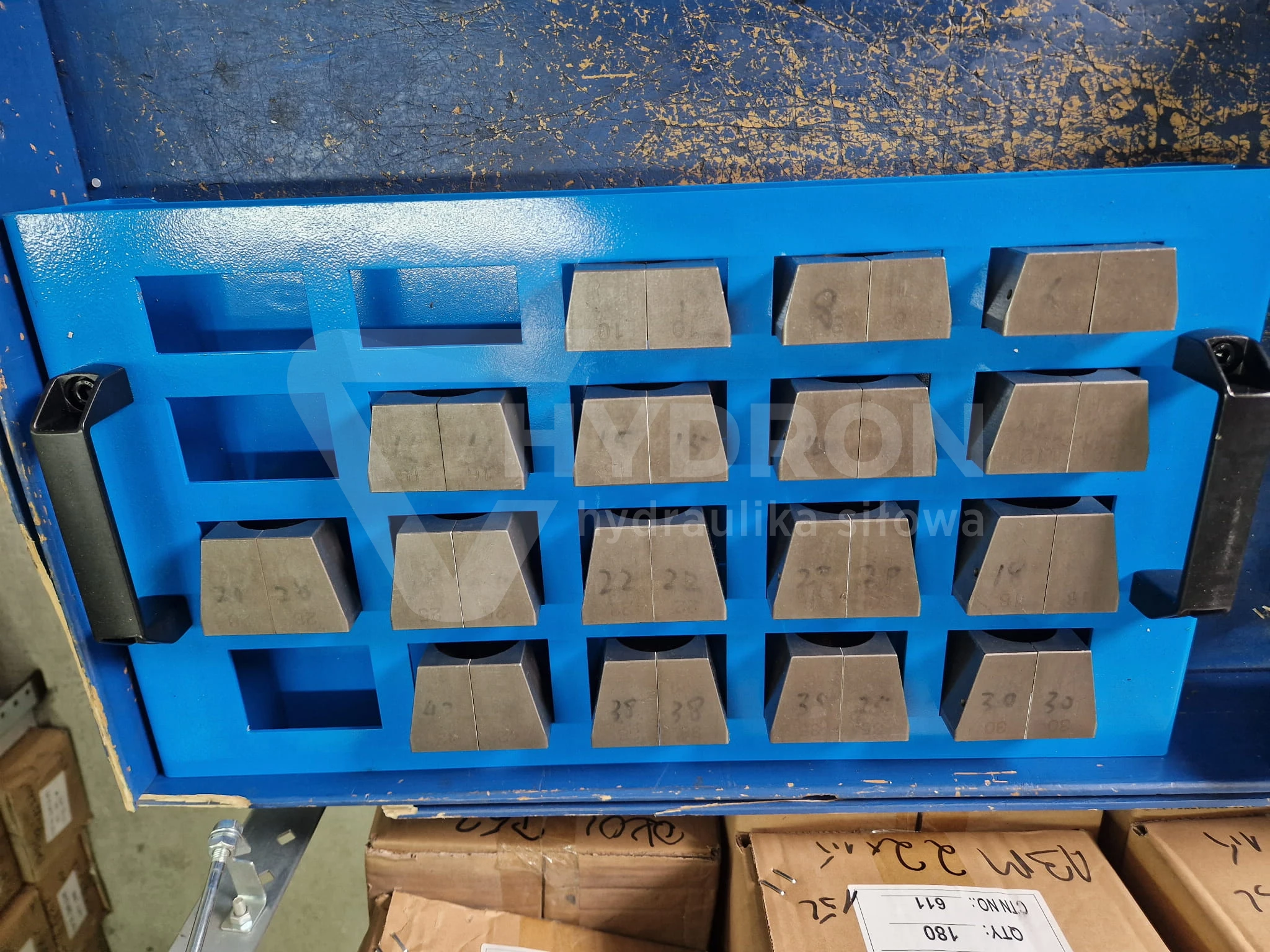

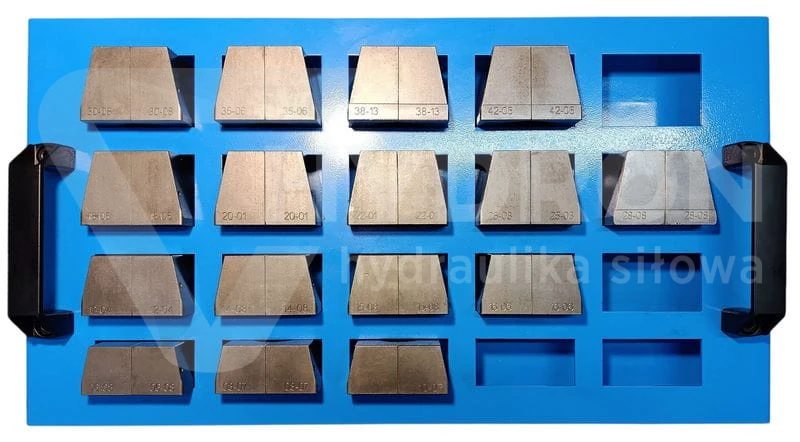

Flaring die sizes included in the set : 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm. Each size indicates the size of the pipe that can be flared. Note: it is also possible to purchase the machine and dies separately.

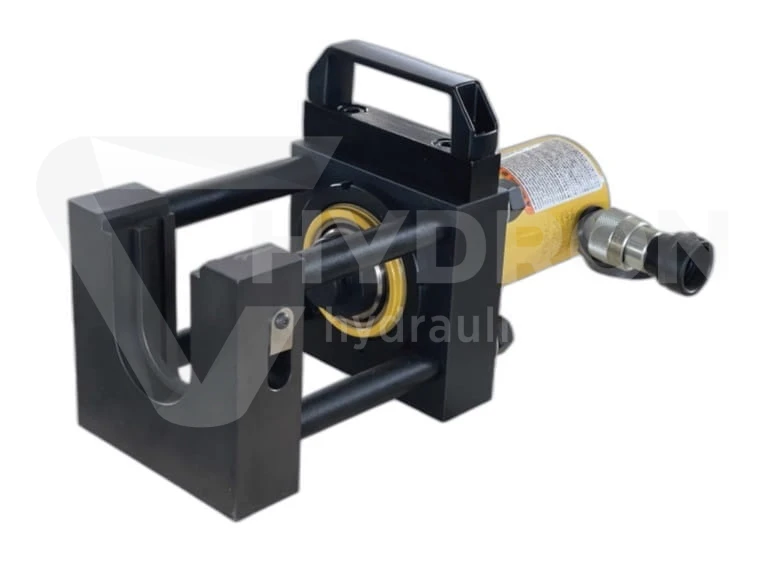

Pipe flaring machine set with a hand pump, flaring module, and all stones (dies) for pipes from 6mm to 42 mm. The device contains a flaring block and all tools for pipes in the range of 6 to 42mm for flaring. An additional option allows for the purchase of a cutting-ring module (not included). The pipe flaring device with a hand pump is a tool used to create flares (expansions) at the ends of pipes. These flares are often used in hydraulic installations and pipelines to ensure a secure connection between pipes. Below is a brief description of the pipe flaring device with a hand pump:

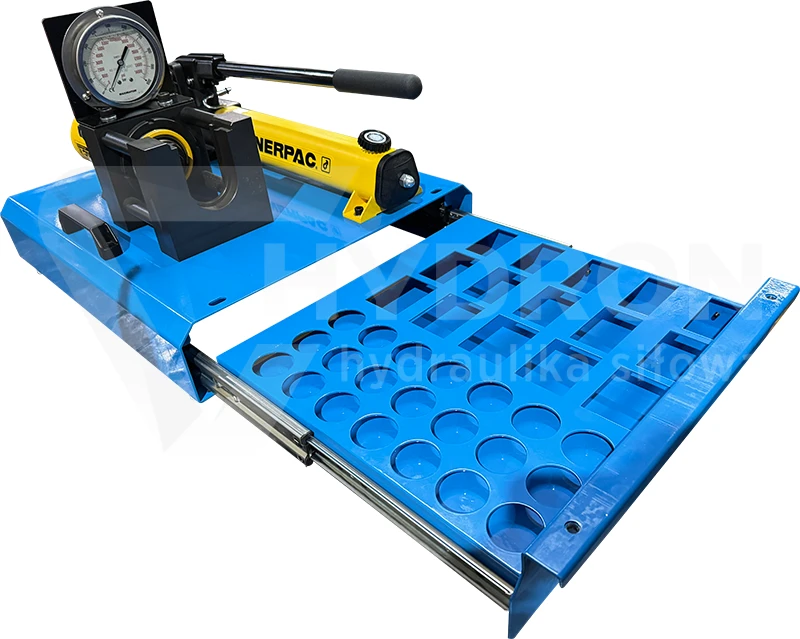

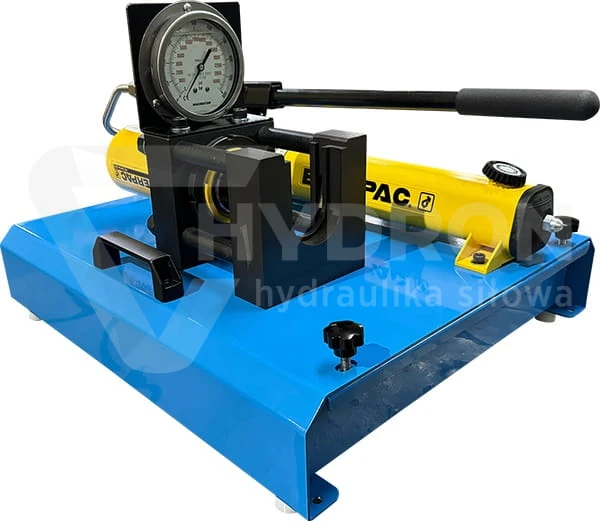

SAMWAY Flaring Device at a 37° angle with Enerpac P392 hand pump

The SAMWAY flaring device is a professional tool used for the precise forming of hydraulic pipe edges at a 37° angle, primarily used in hydraulic and pneumatic systems. Equipped with the Enerpac P392 hand pump, this compact and efficient device provides excellent flaring results even in difficult industrial conditions. 37° flaring is commonly used in high-pressure systems with JIC (Joint Industry Council) type fittings, ensuring safe and tight connections. Where are pipes with a 37-degree angle used? The answer is: American JIC hydraulic fittings.

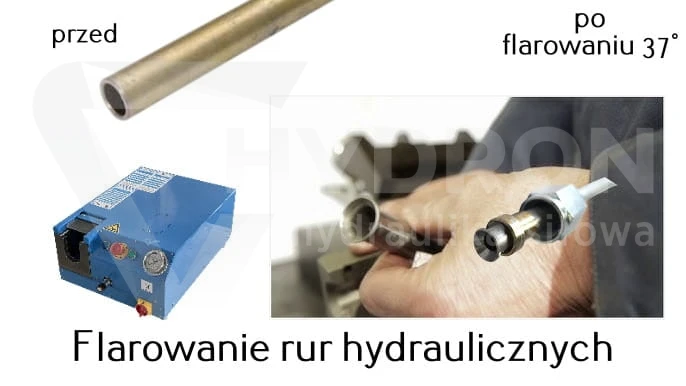

Pipe flaring

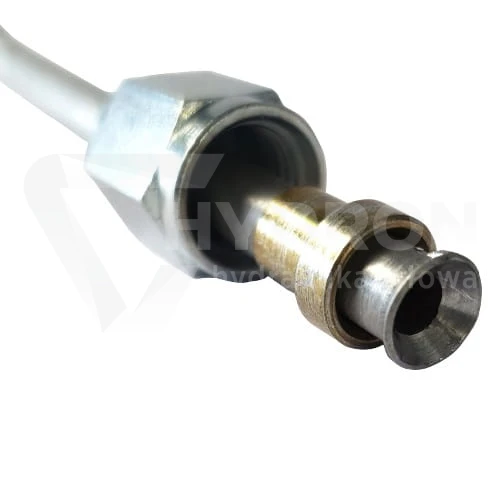

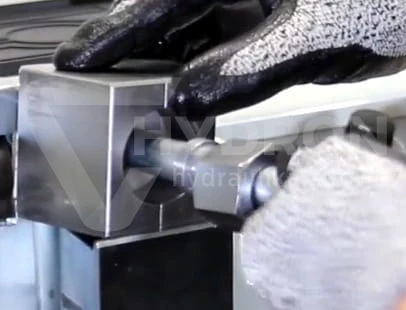

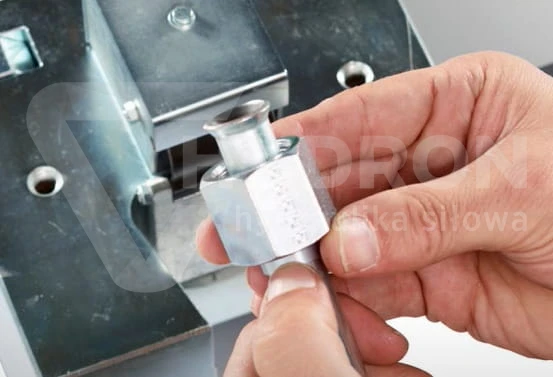

Pipe flaring is a process of mechanical processing of metal pipe ends, which involves expanding their ends at the appropriate angle to make a durable and tight connection with sleeves, fittings, or other hydraulic elements. In practice, flaring allows the preparation of the pipe end so that it fits perfectly into a fitting with a tapered thread or another connection standard, which is crucial for obtaining a safe and secure connection in hydraulic, fuel, or pressure installations. A pipe flaring device, such as the SAMWAY flaring machine with a manual pump available at Hydron, is a tool intended for both workshops and technical services. Thanks to it, it is possible to precisely and quickly perform flares with the required angle and diameter, which eliminates the risk of leaks, pipe deformation, or material damage. Such an operation is particularly important in the assembly of hydraulic installations, where the quality of connections determines the work safety and durability of the entire system. Pipe flaring is also used in fuel or air conditioning installations, where the precise fitting of elements affects the efficiency and reliability of the system. By choosing a flaring device from the Hydron offer, you gain a tool that combines ease of use with high quality of workmanship, which translates into fast pipe preparation for assembly and secure, durable connections.

Main features of the flaring device :

• Precise flaring at a 37° angle — ideal for hydraulic systems with JIC connections.

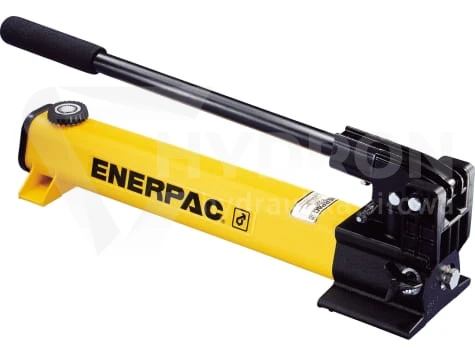

• Enerpac P392 hand pump — enables convenient and fast forming of pipe edges, without the need for an external power source.
• Compact dimensions and solid construction — the device is easy to move and use, while being resistant to intensive exploitation.
• Wide application — ideal for flaring pipes in workshops, production and service plants, as well as on construction sites.

Device application:

• Hydraulic and pneumatic systems — device intended for professional applications in the hydraulic industry, agriculture, industry, and power engineering.
• Production and service — perfect for repair workshops, factories, and plants producing pressure systems.
• Field installations — thanks to its compact size and hand pump, the device can be used in the field, without the need for access to electricity.

Comparison with other devices :

Compared to other devices of this type, the SAMWAY device with the Enerpac P392 hand pump stands out for its versatility and solid workmanship. The Enerpac hand pump ensures reliability and simplicity of operation, eliminating the necessity of using electrical or pneumatic energy, which makes this device more portable and versatile in field applications. Unlike less advanced devices that may offer only limited functionality, SAMWAY provides durability, ergonomics, and the ability to work in the most difficult conditions. Why is it worth choosing this device? Reliability and efficiency — thanks to the precise Enerpac hand pump, the device offers fast and effective pipe forming. Ease of use — no need for an external power source and compact dimensions make the device convenient for transport and use. Versatility — the possibility of working with different pipe diameters and wide application in hydraulic systems makes this device a universal tool in your workshop. Buy the SAMWAY 37° flaring device with the Enerpac P392 hand pump now and see for yourself why it is the best choice for precise pipe forming in hydraulic systems!

Manual pre-assembly machine with P392 hand pump - FAST & EASY 37° Flaring - Manual pre-assembly machine with P392 hand pump
