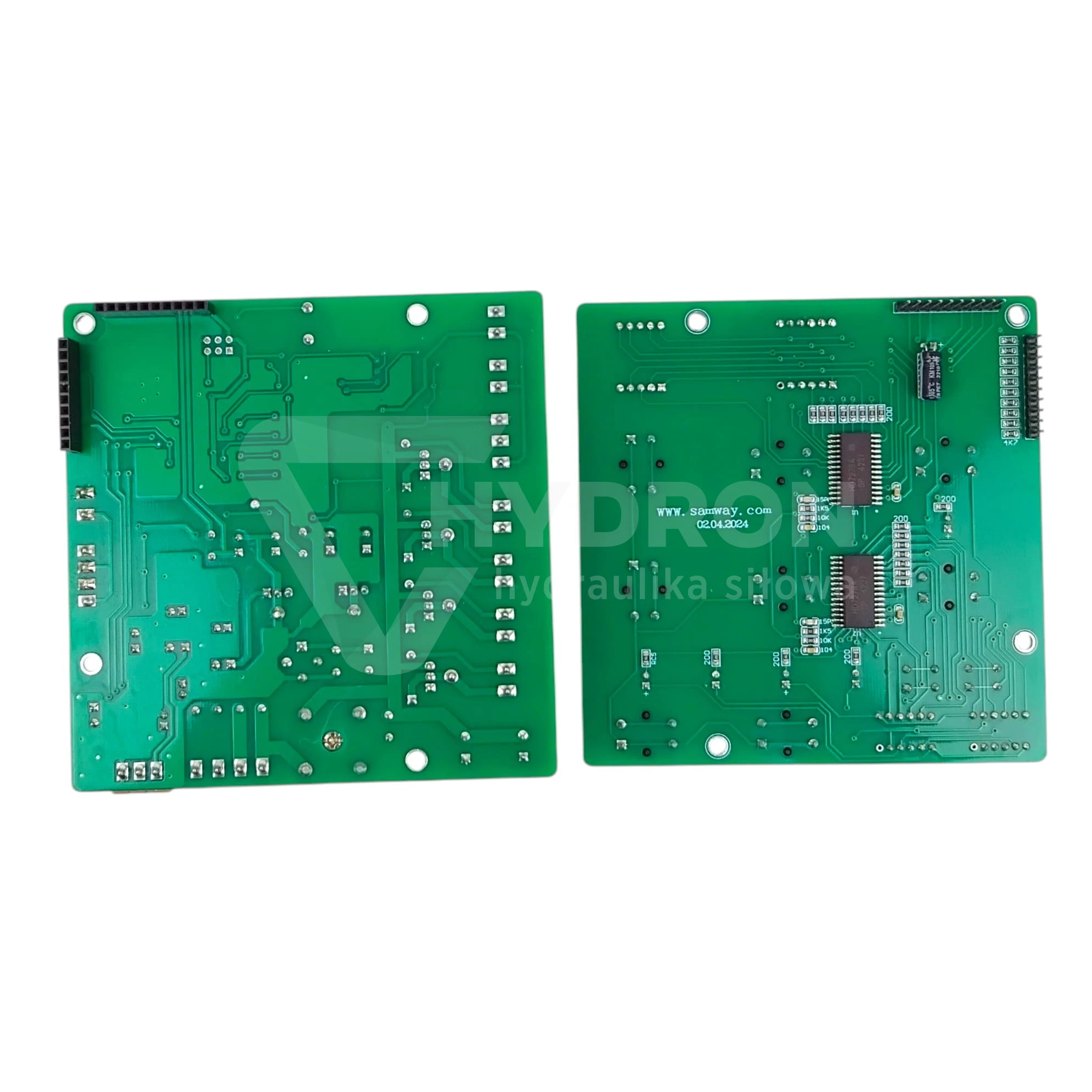

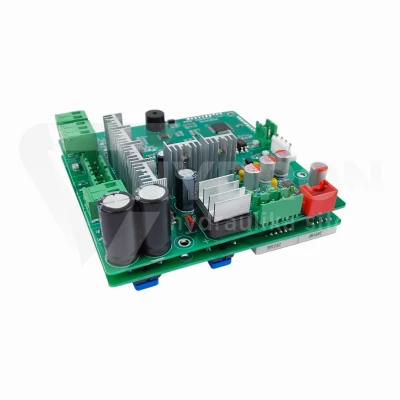

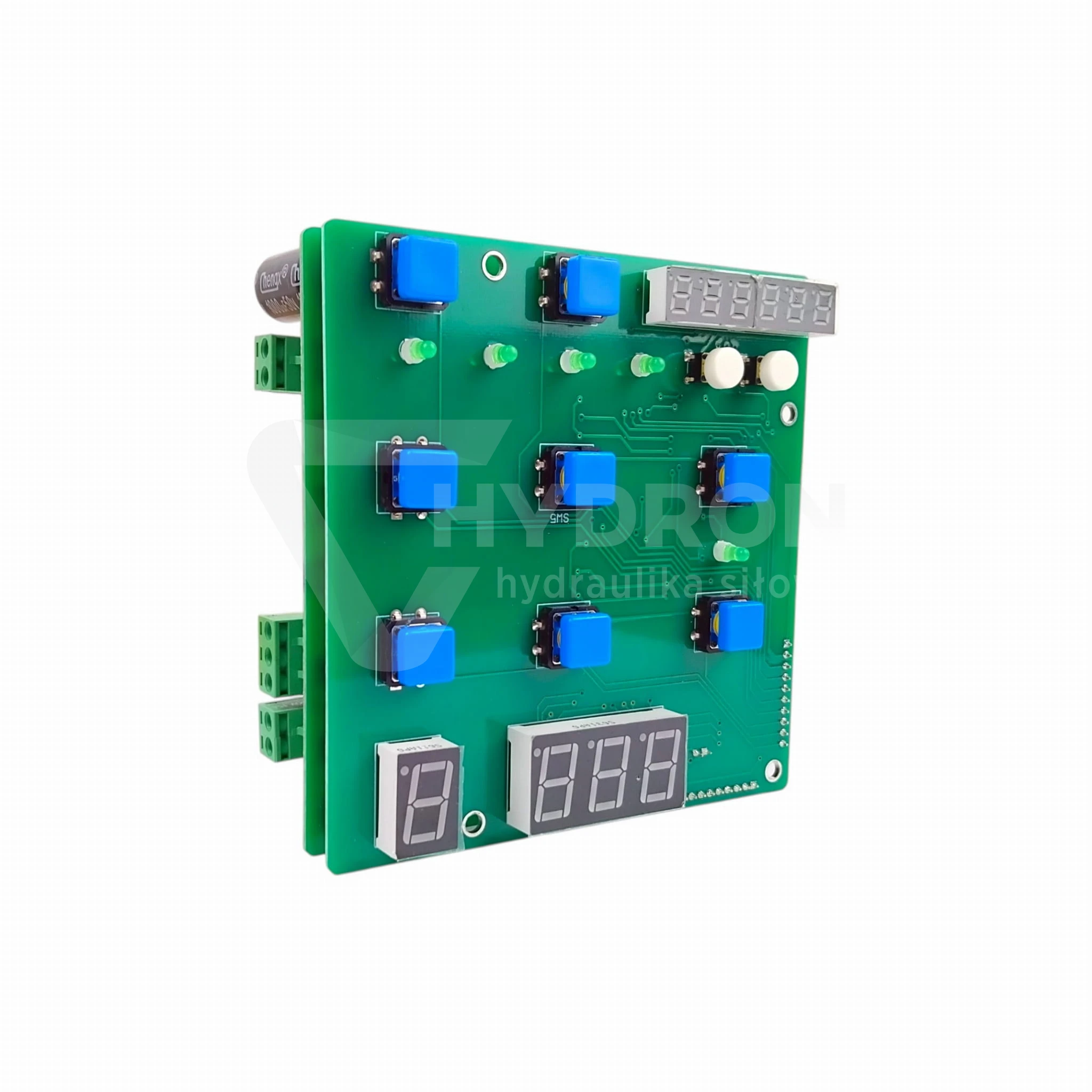

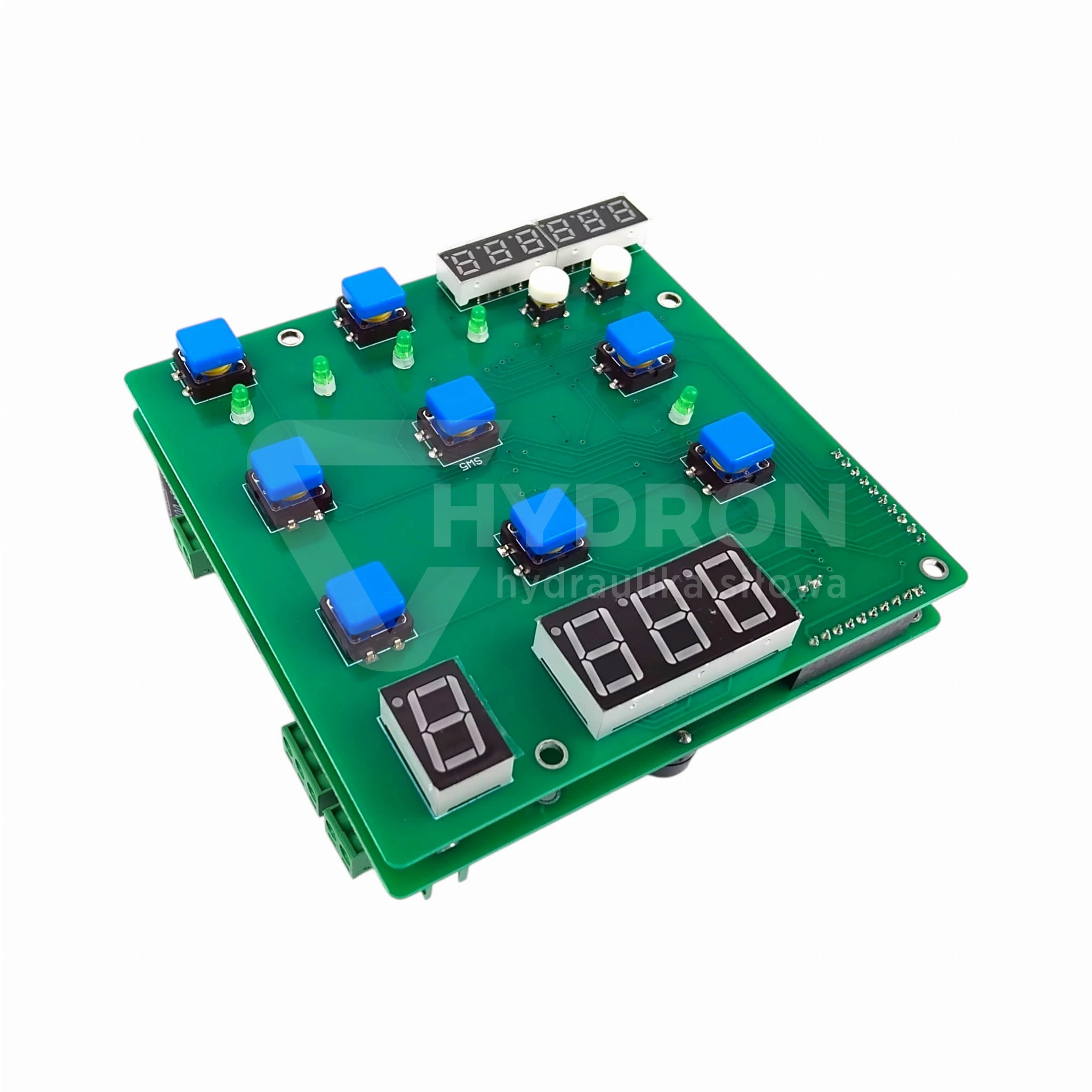

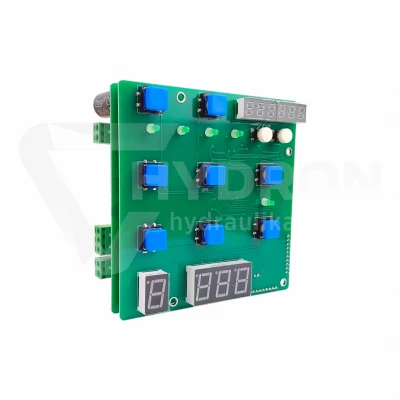

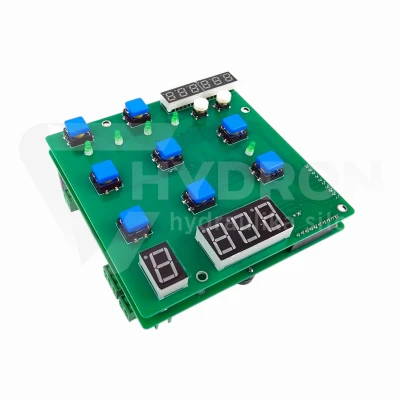

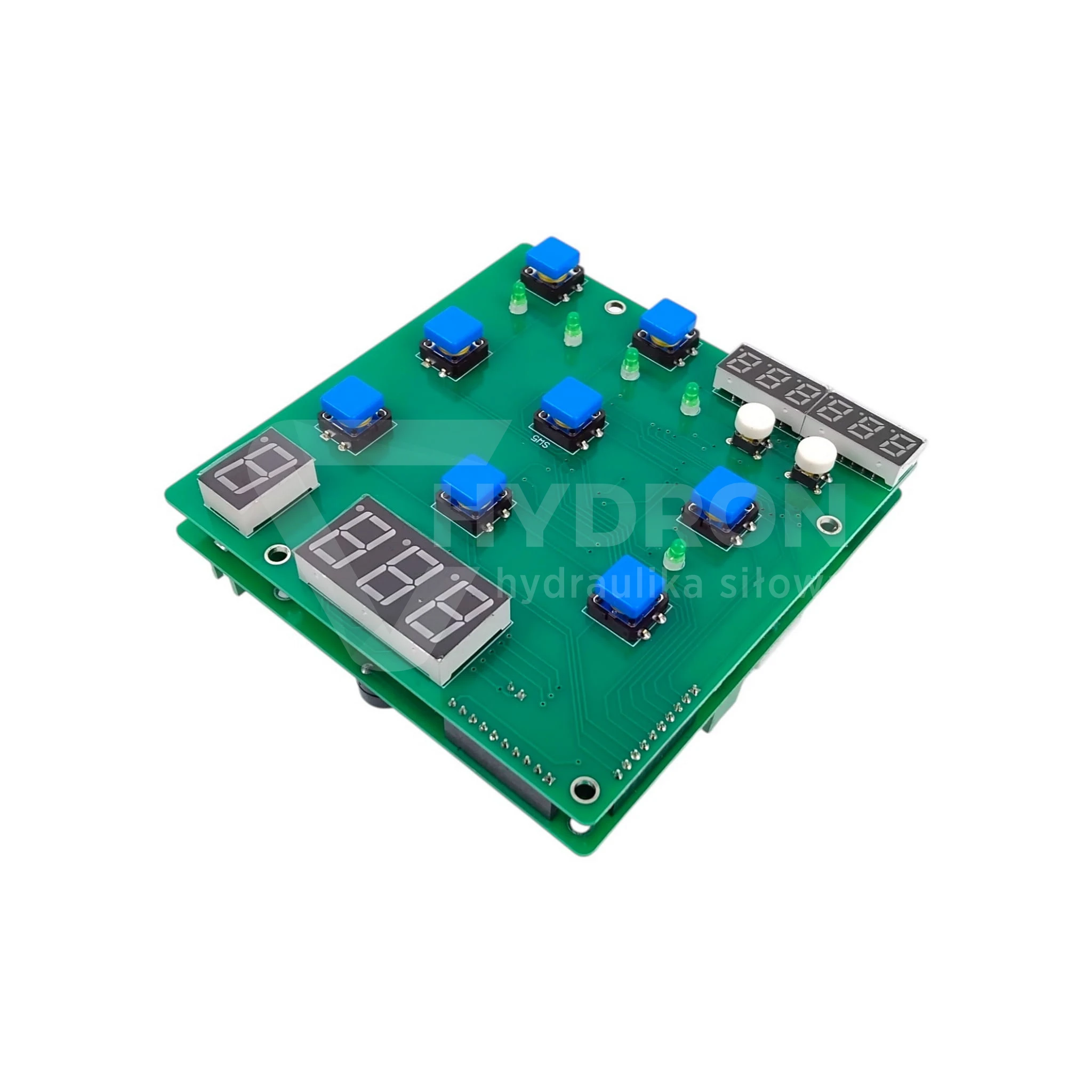

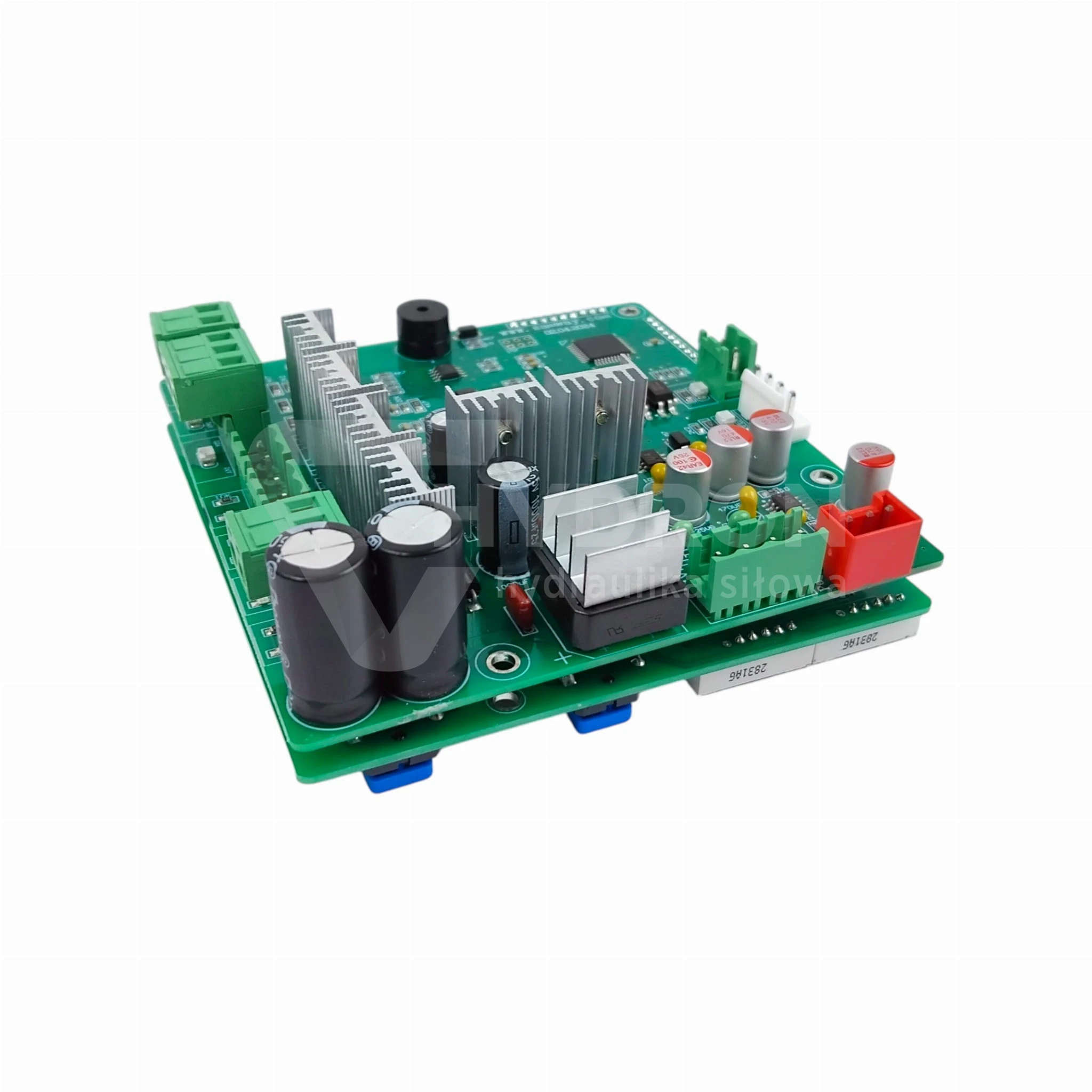

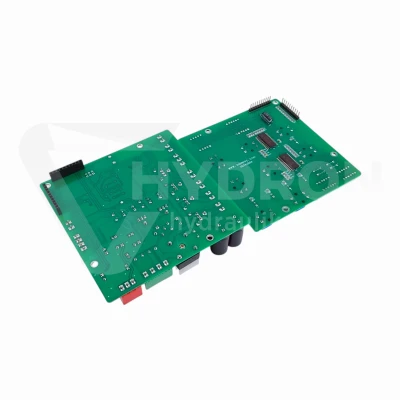

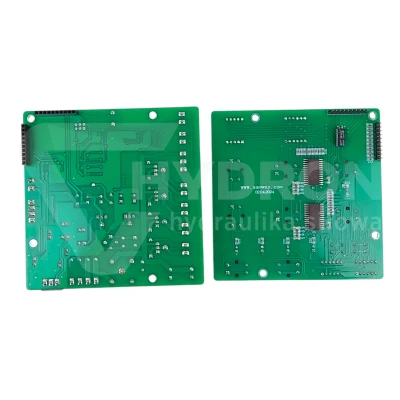

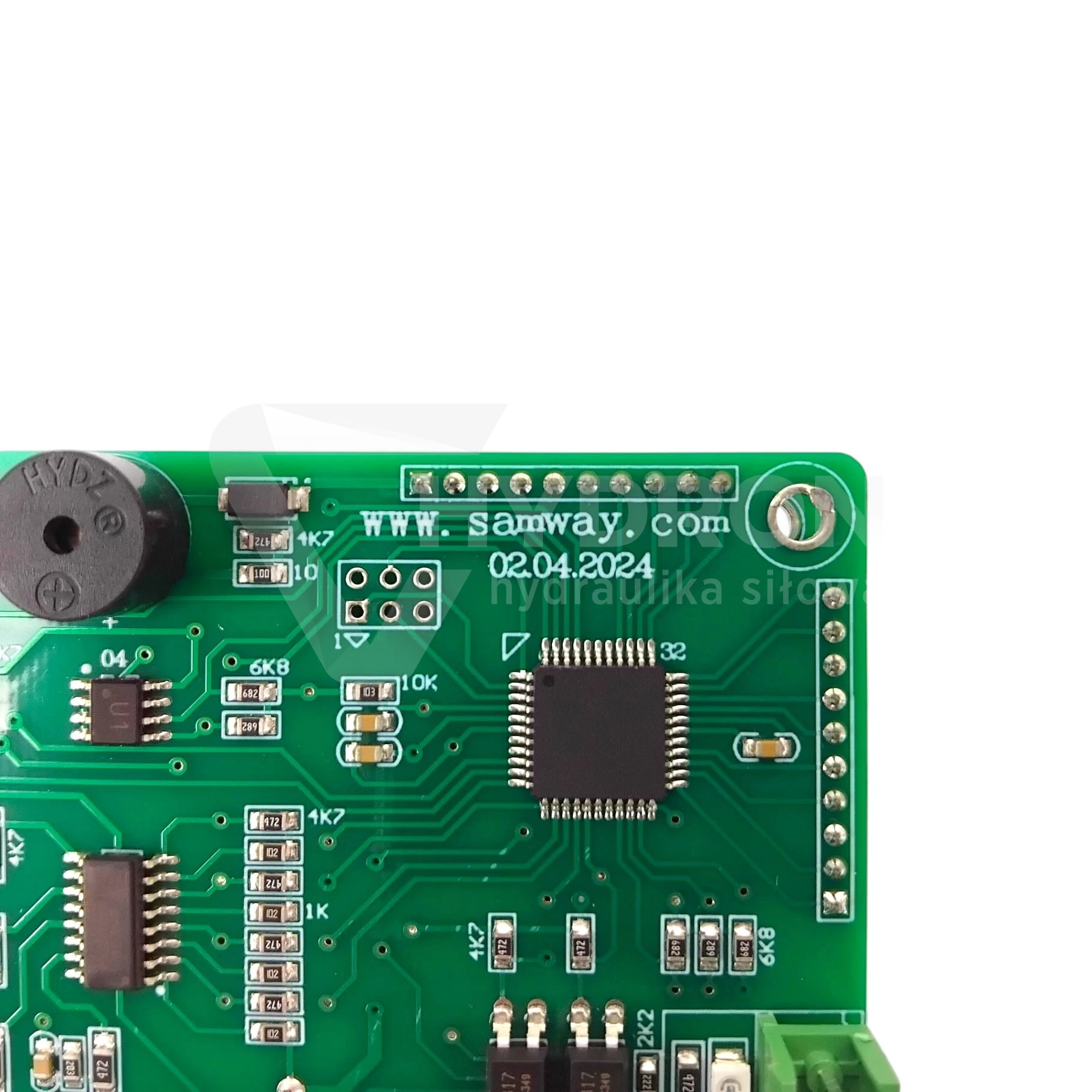

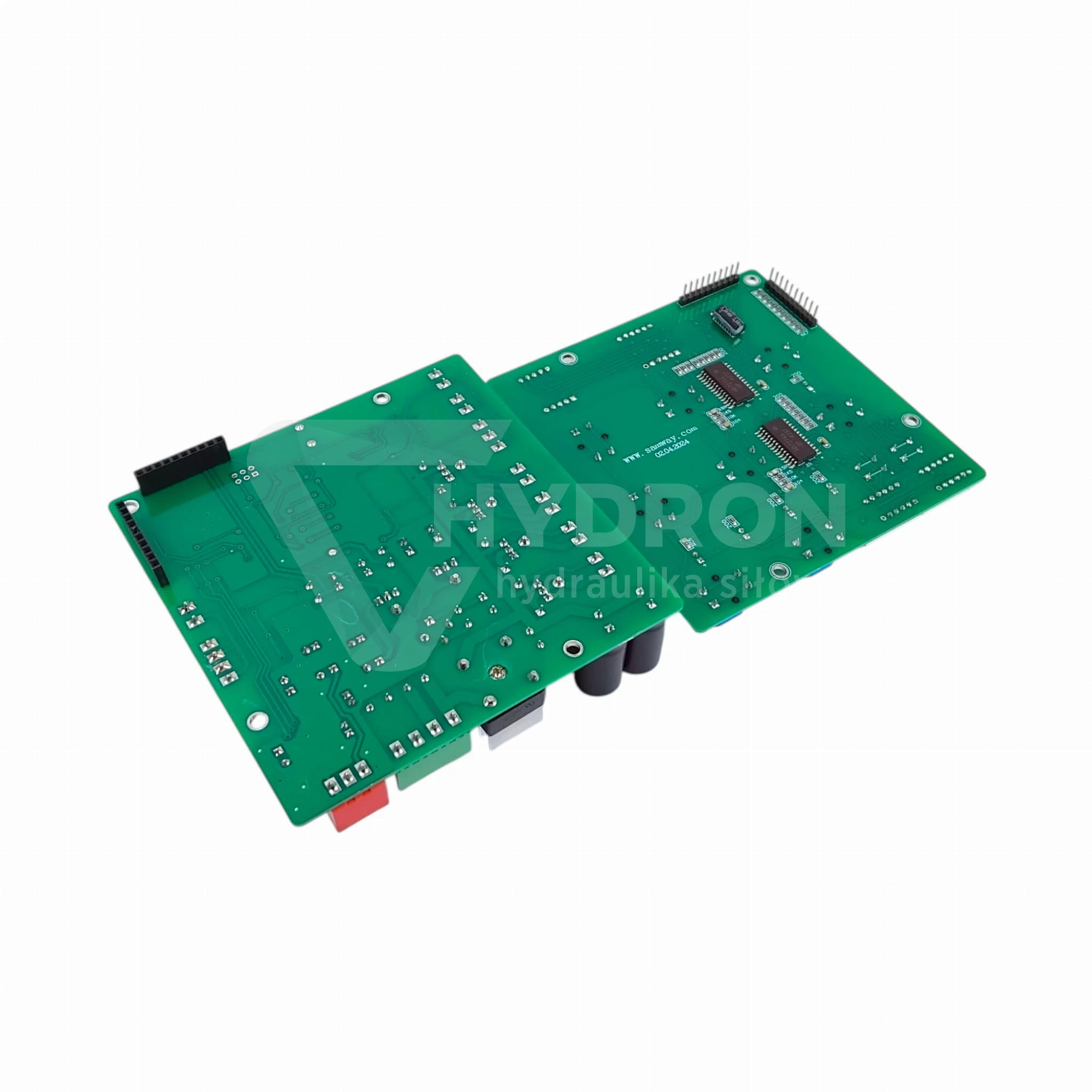

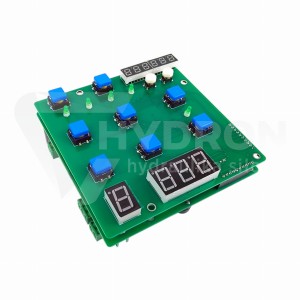

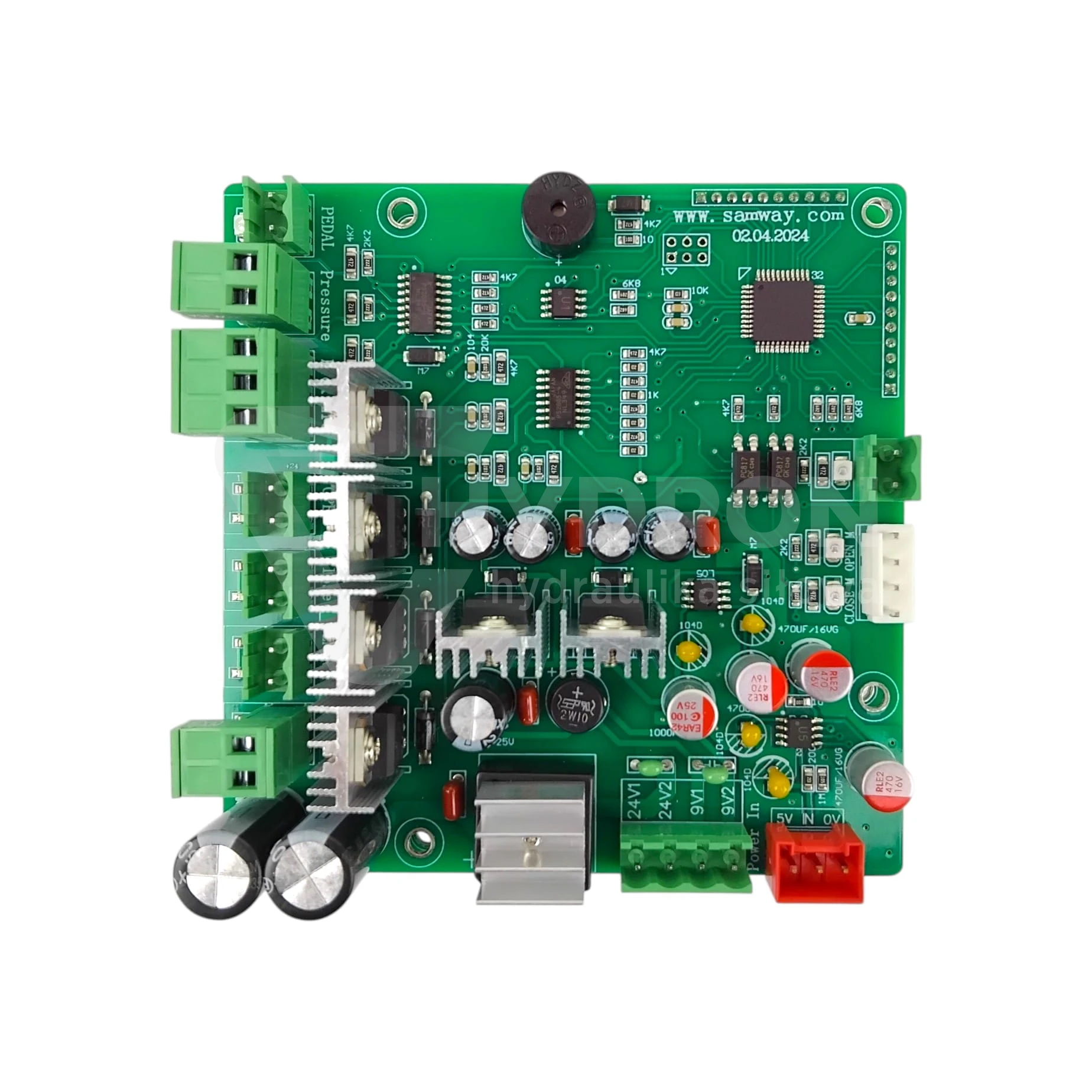

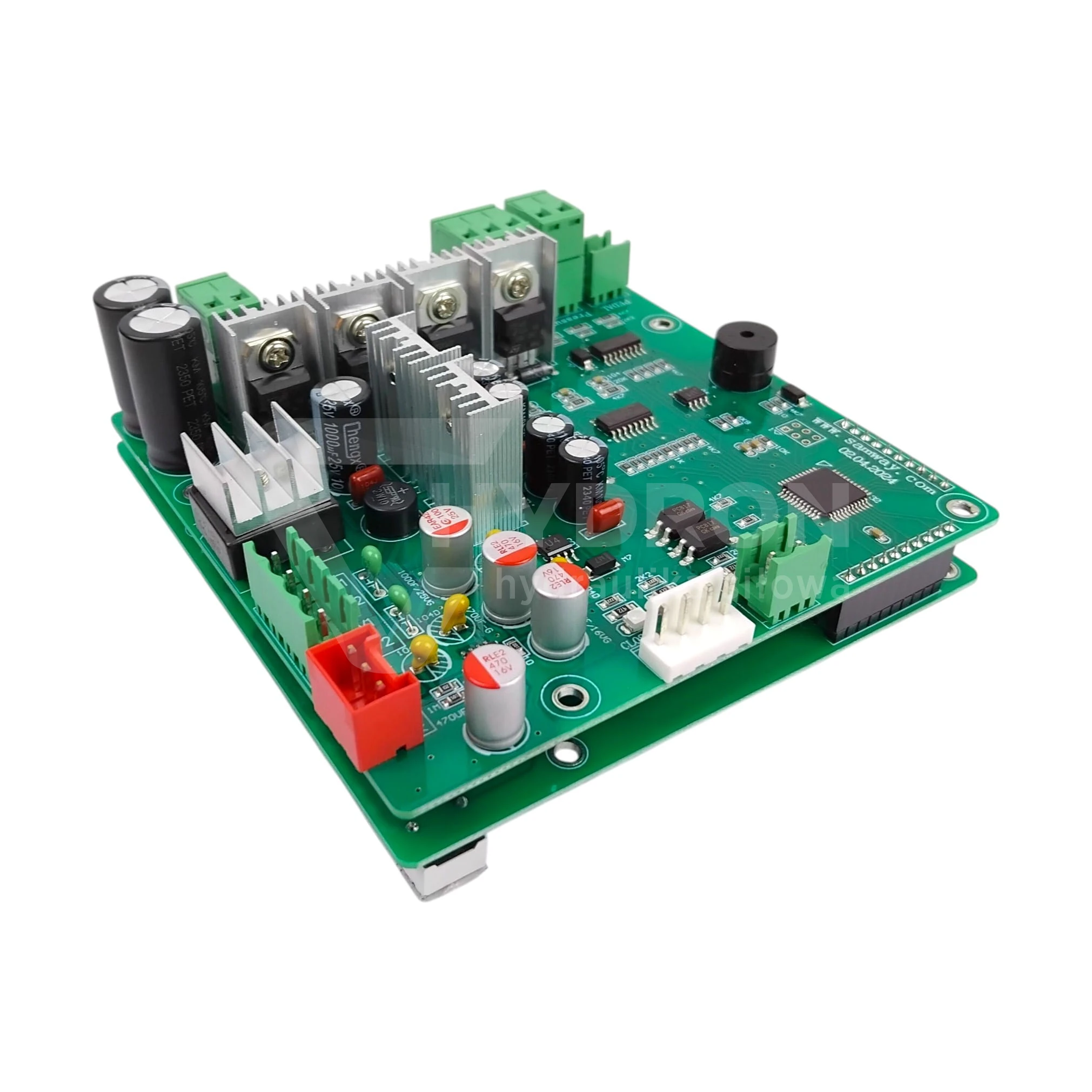

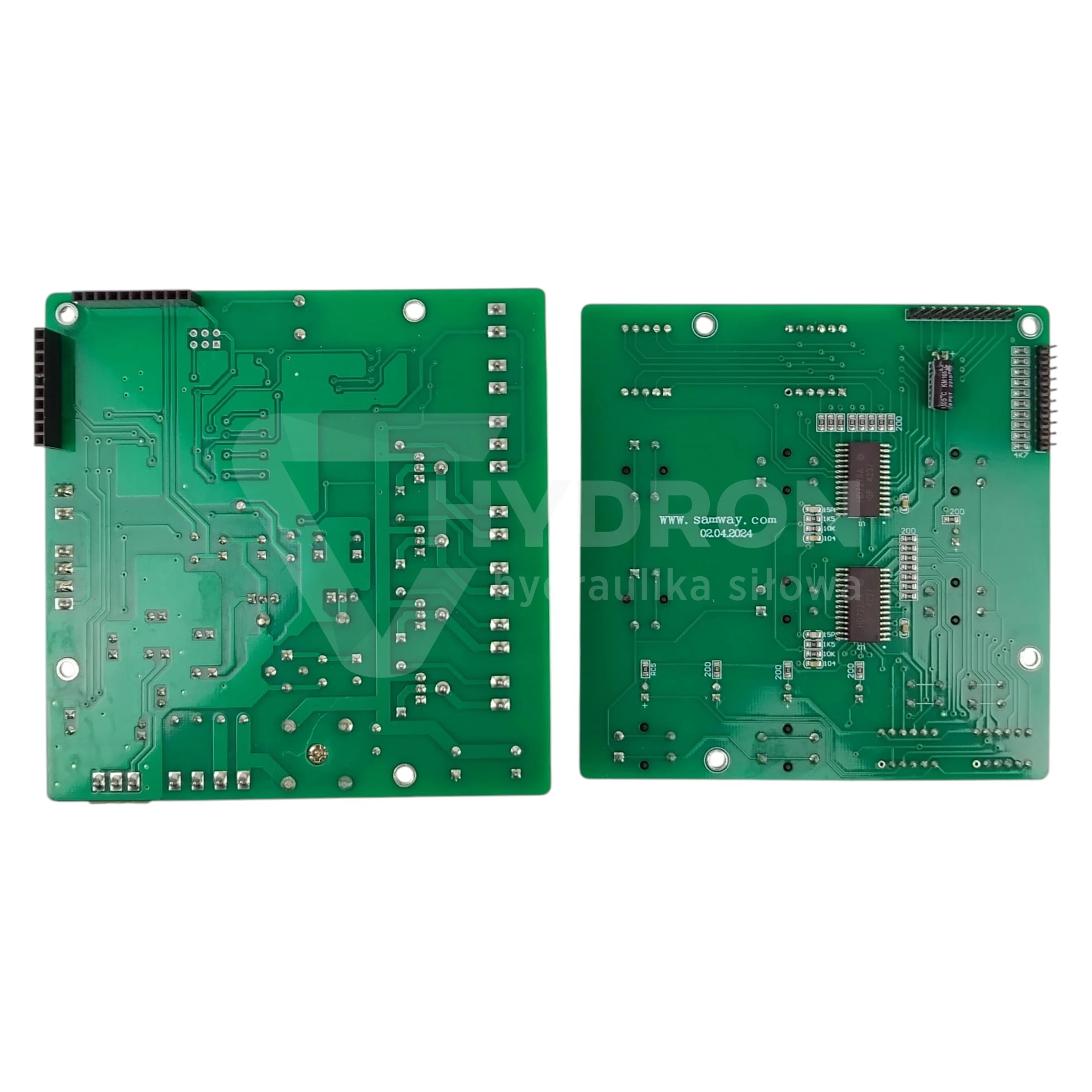

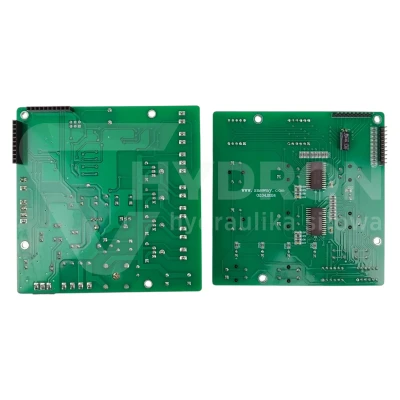

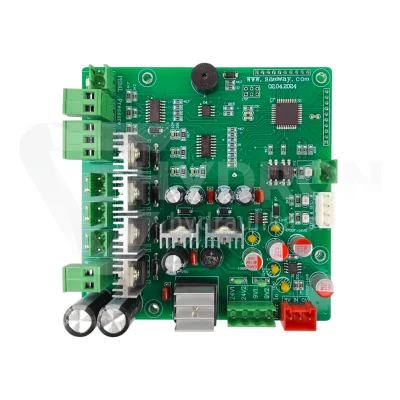

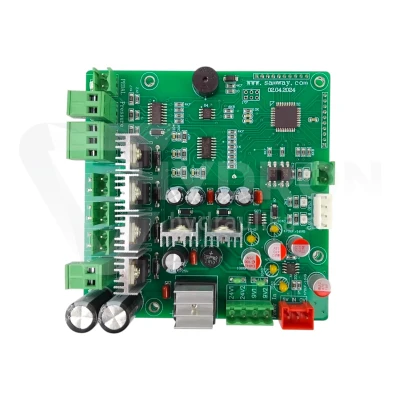

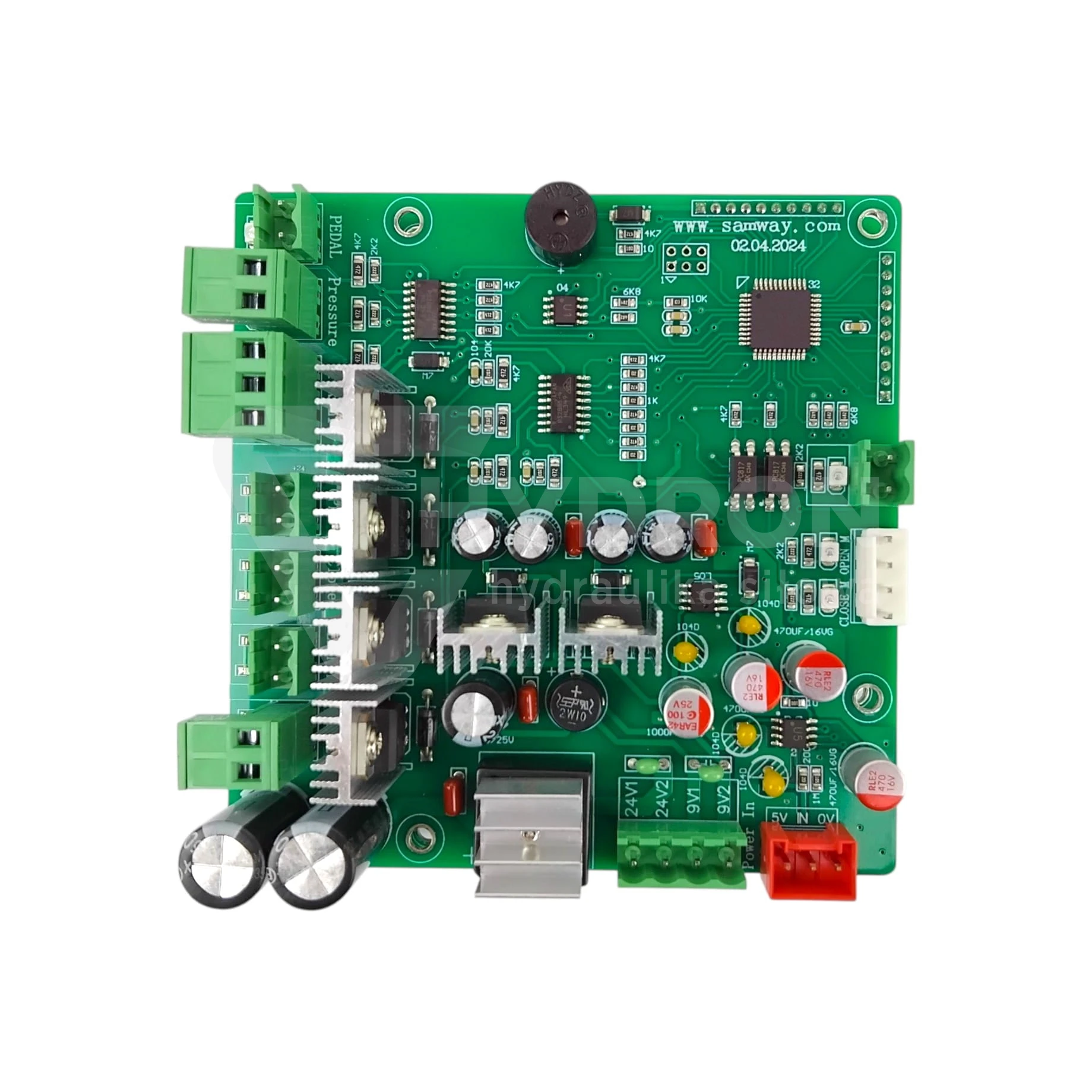

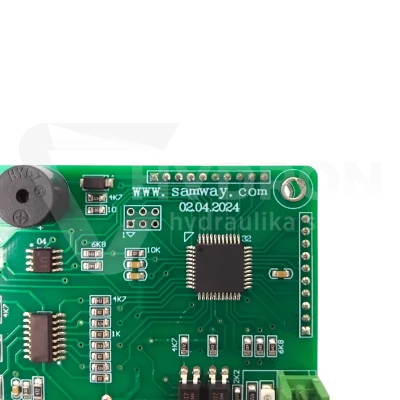

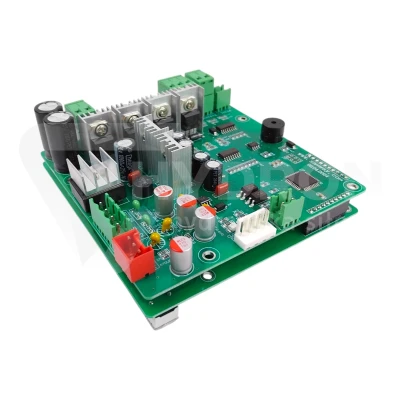

Control board (electronic module) for Samway P20D crimping machine (years 2017–2018)

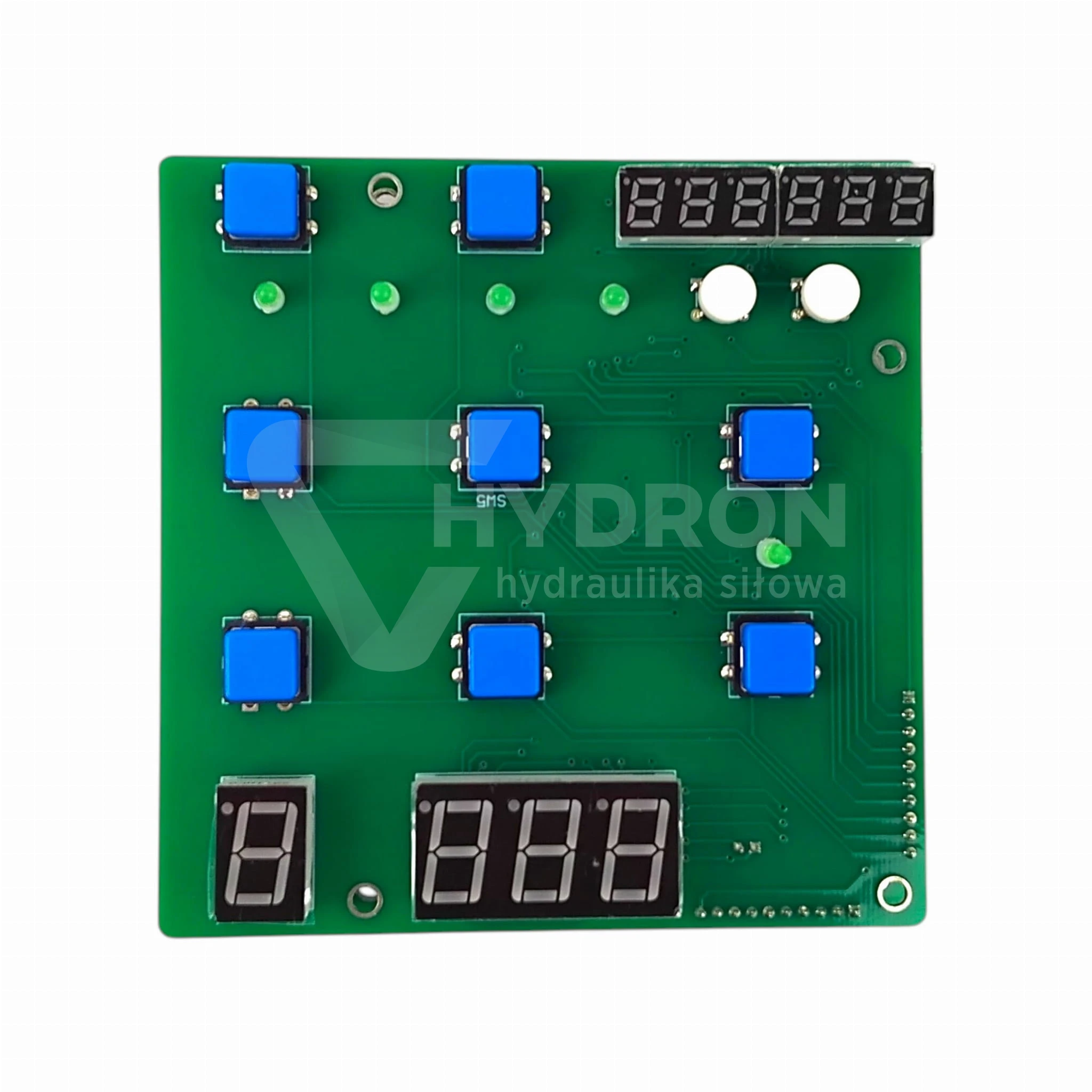

Dedicated control board designed for hydraulic hose crimping machines by Samway, model P20D manufactured in the years 2017–2018. It is a key electronic module responsible for precise management of the entire machine's operation, controlling the crimping cycle and ensuring proper communication with the digital panel (reading and micrometer).

Key features and functionality:

• Full compatibility: Designed directly for the electrical and control system of P20D models from the years 2017–2018 (perfect fit of sockets and connectors).

• Crimping precision: Responsible for accurate processing of signals from position sensors and the accuracy of crimp size settings.

• Stability and safety: Adapted to work in industrial conditions, characterized by high resistance to vibrations and voltage fluctuations occurring during hydraulic system operation.

• Fast service installation: Design type Plug & Play (depending on the installation version) allows for efficient replacement of a damaged module without the need to modify the factory wiring harness.

When should the control board be replaced?

The replacement is used in case of failure of the factory controller, manifested by, among others:

• Lack of reaction of the crimper to set parameters or control buttons.

• Incorrect crimp size readings on the display.

• Uncontrolled interruption of the work cycle or problems with activating hydraulic valves.
