Schneider Electric main switch for SAMWAY P32 hose crimper

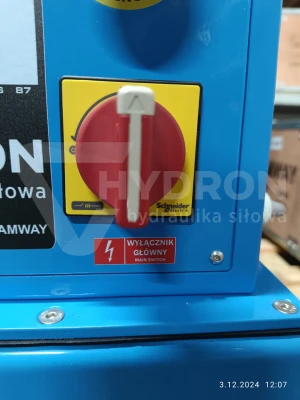

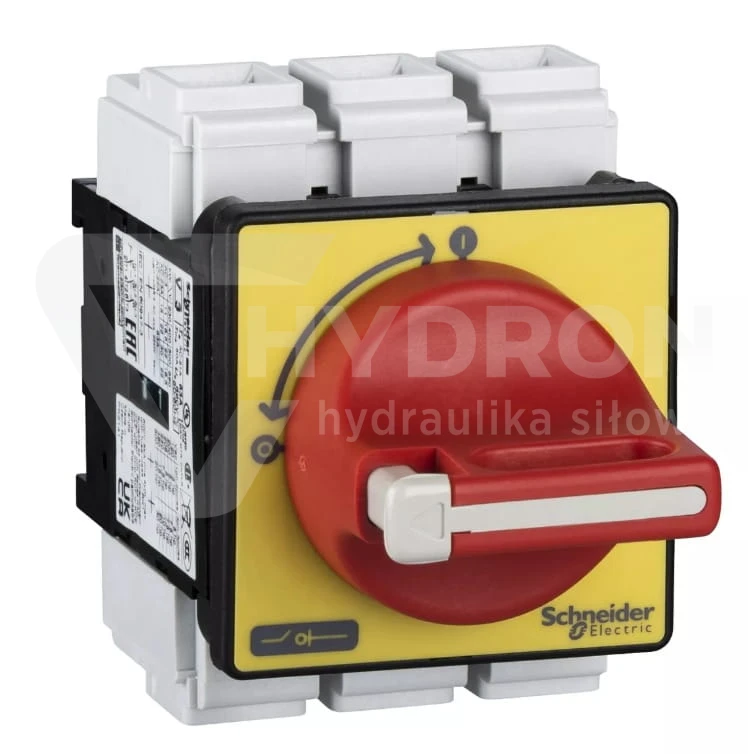

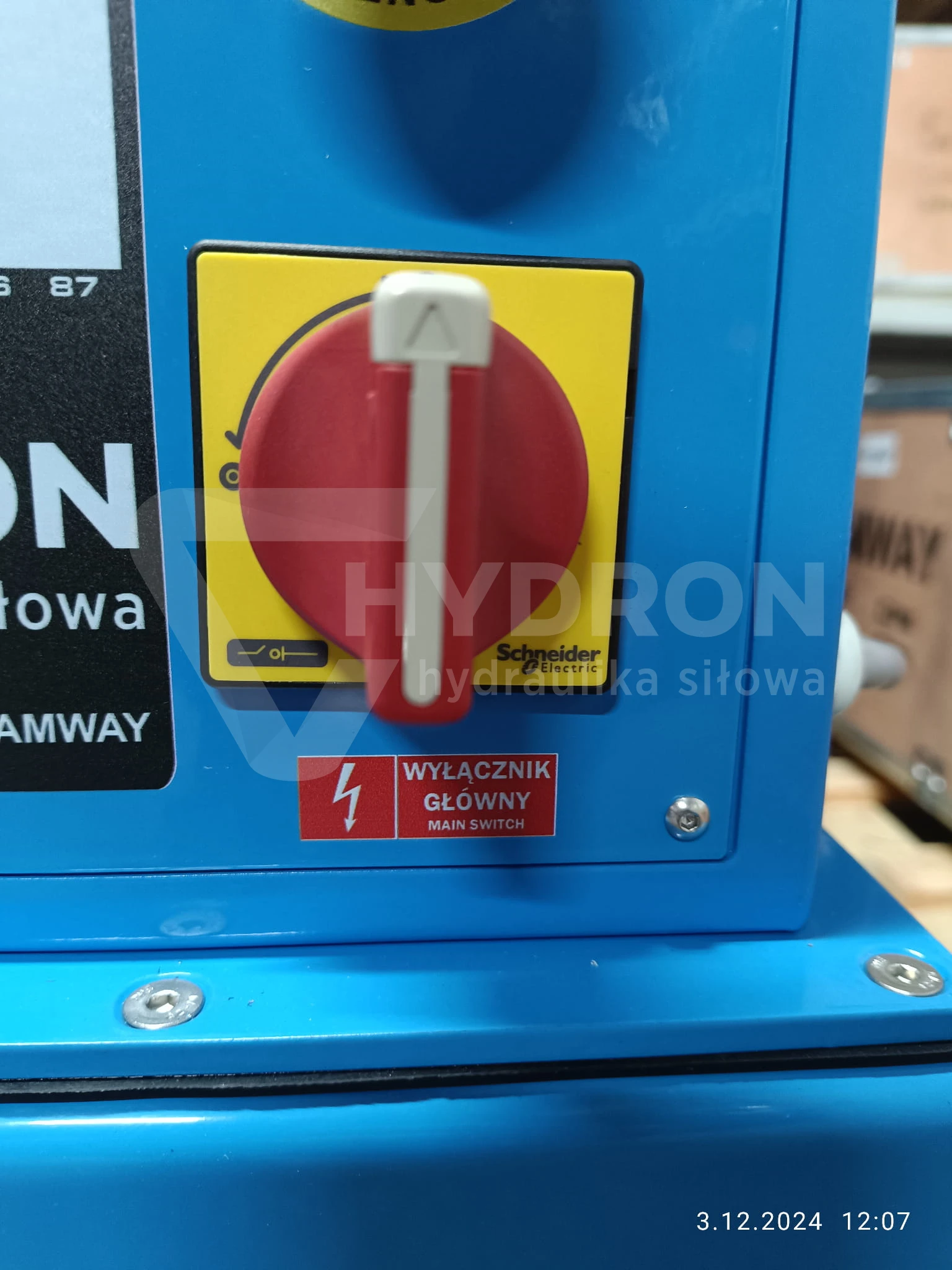

The main switch for the SAMWAY P32 hose crimper is a Schneider Electric electrical disconnect switch designed for switching the machine's power supply on and off. The device features a red rotary handle with locking capability and three poles. The rated continuous current is 25 A, while the maximum rated operating voltage for alternating current is 690 V. The switch allows for front mounting using four holes and has an IP65 protection rating from the front. It is intended for use in the electrical system of the SAMWAY P32 hydraulic hose crimper.

Application and technical characteristics

The Schneider Electric main disconnect switch is a part of the electrical equipment of the SAMWAY P32 crimper. Its task is to enable manual connection and disconnection of the machine's power supply circuit. It can be used as a spare part during repair or replacement of a damaged main switch, after confirming compatibility with the installation of a specific unit.

The switch has three poles and a rated continuous current of 25 A. For the AC-21 category at 400 V, the current is 25 A, while for AC-23 at 400 V, the current is 14.5 A. The rated operational power for the AC-3 category at 400 V is 5.5 kW. When selecting a disconnect switch, the usage category, installation parameters, and type of connected load should be considered.

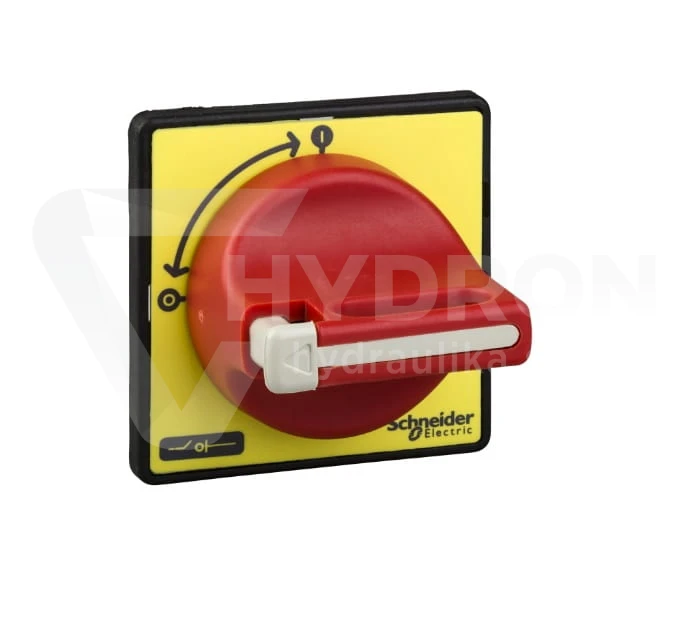

The device is equipped with a red rotary handle with a locking function. The technical data sheet indicates the possibility of using it as a main switch and an emergency stop device. At the same time, it does not define this model as a safety switch or a maintenance switch. Selection and application method should be adapted to the machine's electrical documentation.

The disconnect switch is intended for built-in installation with front mounting using four holes. The main circuit connections are screw-type, and the protection rating from the front is IP65. The device's dimensions are 60 mm wide, 74 mm high, and 109 mm deep. Assembly and electrical work should be performed by individuals with appropriate qualifications.

Why choose the main switch for SAMWAY P32?

• Intended for the SAMWAY P32 hydraulic hose crimper.
• Schneider Electric brand main disconnect switch.
• Three poles and 25 A rated continuous current.
• Red rotary handle with locking capability.
• IP65 protection rating from the front.
• Front mounting with four holes and screw connections.

Technical specification

Frequently Asked Questions (FAQ)

Which crimper is the main switch intended for?

The switch is offered as a part intended for the SAMWAY P32 hydraulic hose crimper. Before purchasing, it is worth comparing the parameters and mounting method with the previously used component.

What are the electrical parameters of the SAMWAY P32 switch?

The disconnect switch has three poles, a rated continuous current of 25 A, and a maximum rated AC operating voltage of 690 V. For the AC-3 category at 400 V, the stated operating power is 5.5 kW.

Can the disconnect switch function as an emergency stop?

Yes, the product datasheet indicates the possibility of using the device for emergency switching. At the same time, the manufacturer does not classify it as a safety switch. Use in a specific circuit should be verified based on the machine's documentation.

How is the P32 crimper main switch mounted?

The device is designed for front mounting with four holes and has screw connections. Its dimensions are 60 × 74 × 109 mm. Installation and connection should be performed by a qualified electrician.
