Hydraulic hose crimping machine

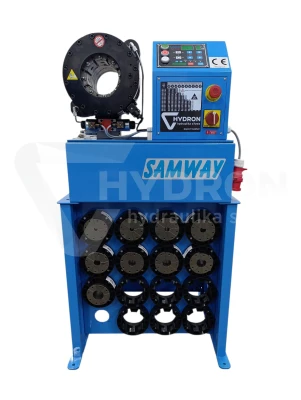

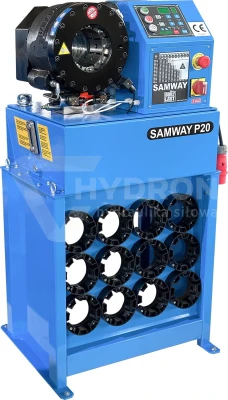

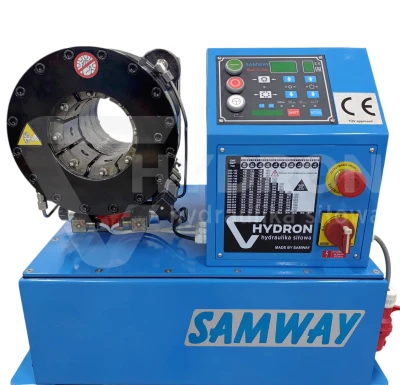

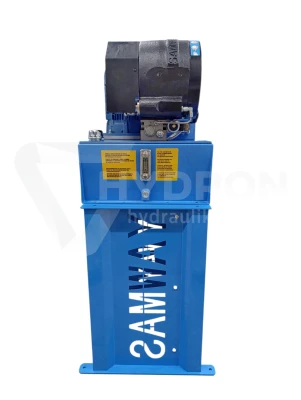

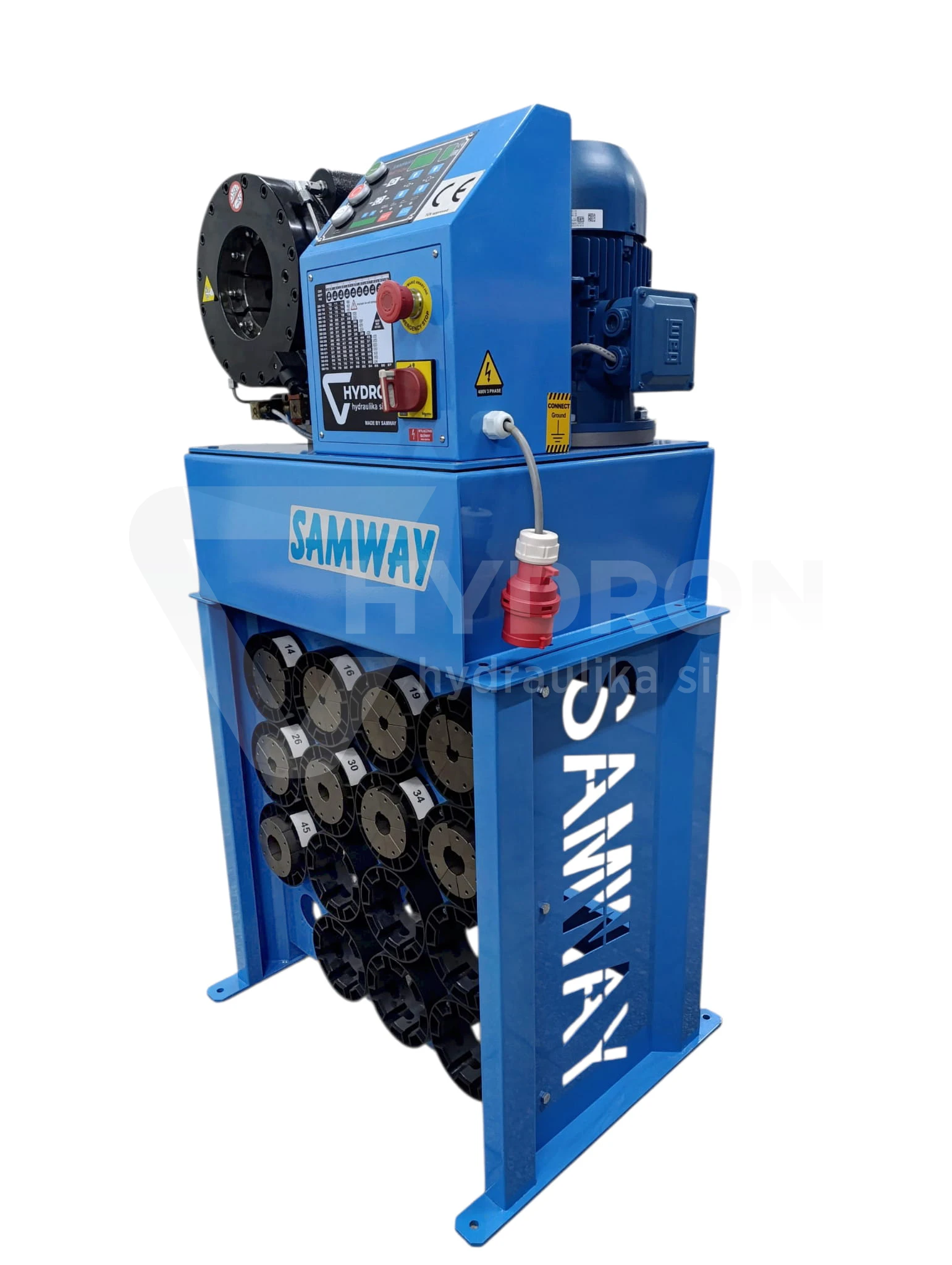

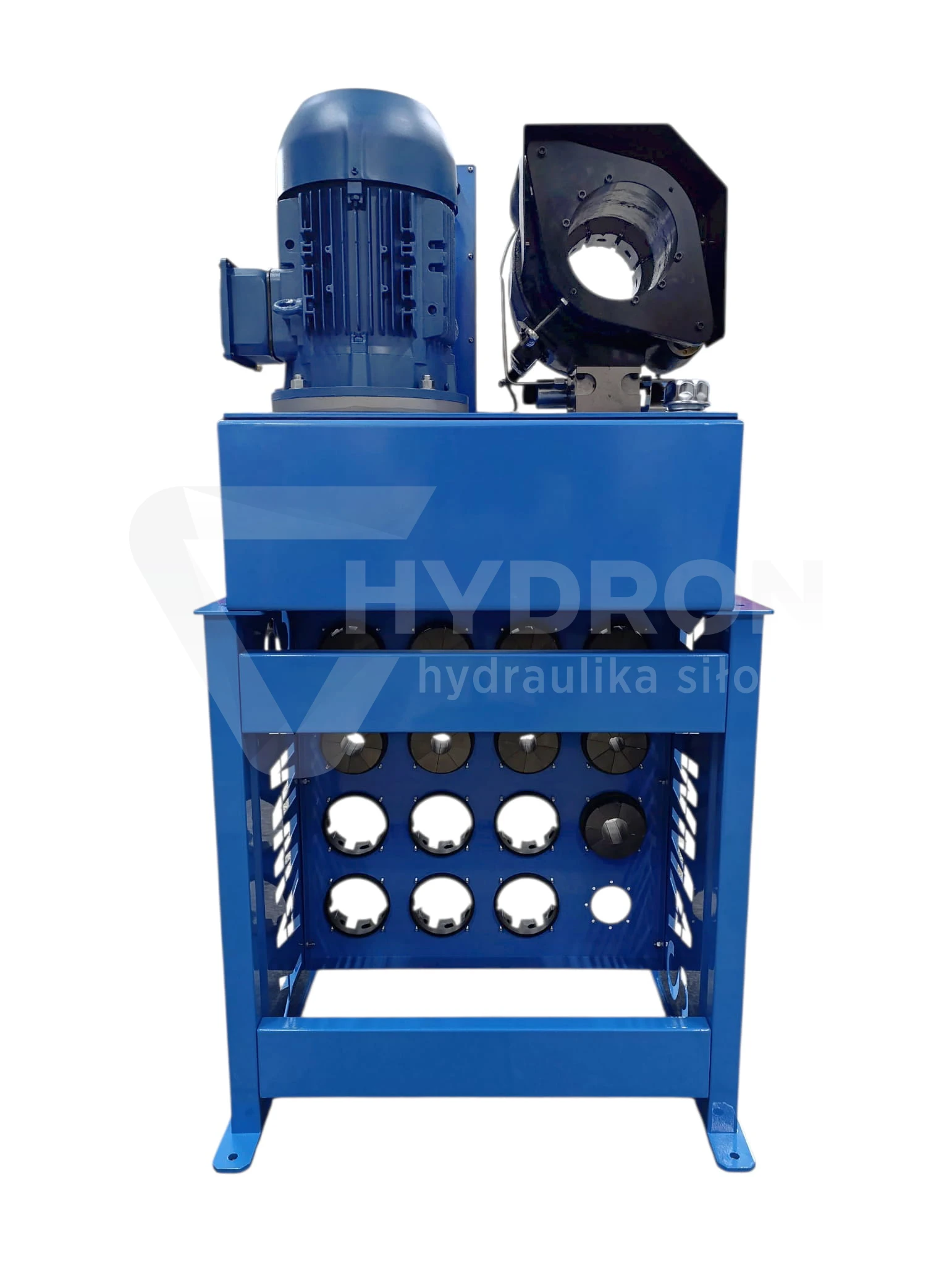

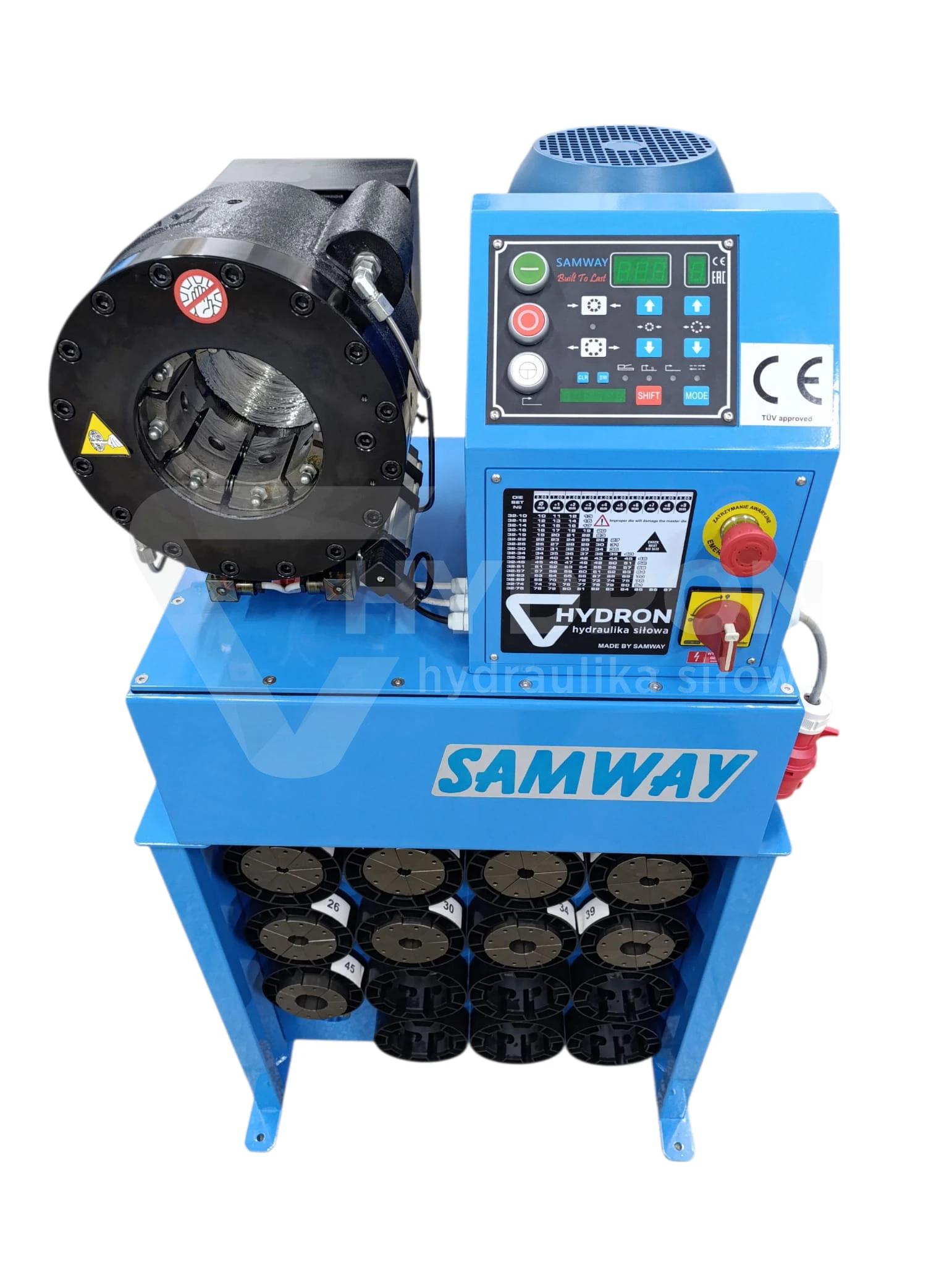

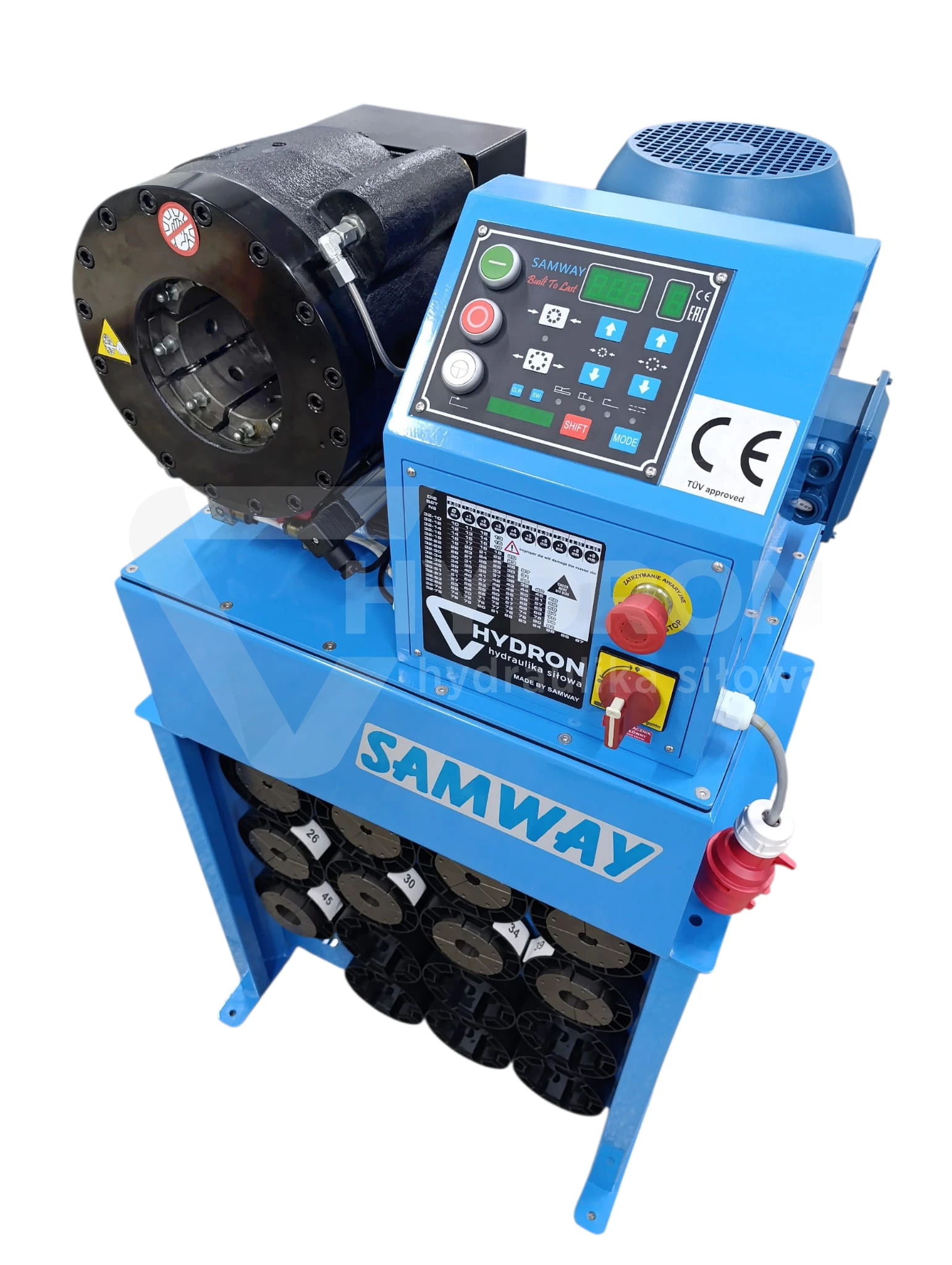

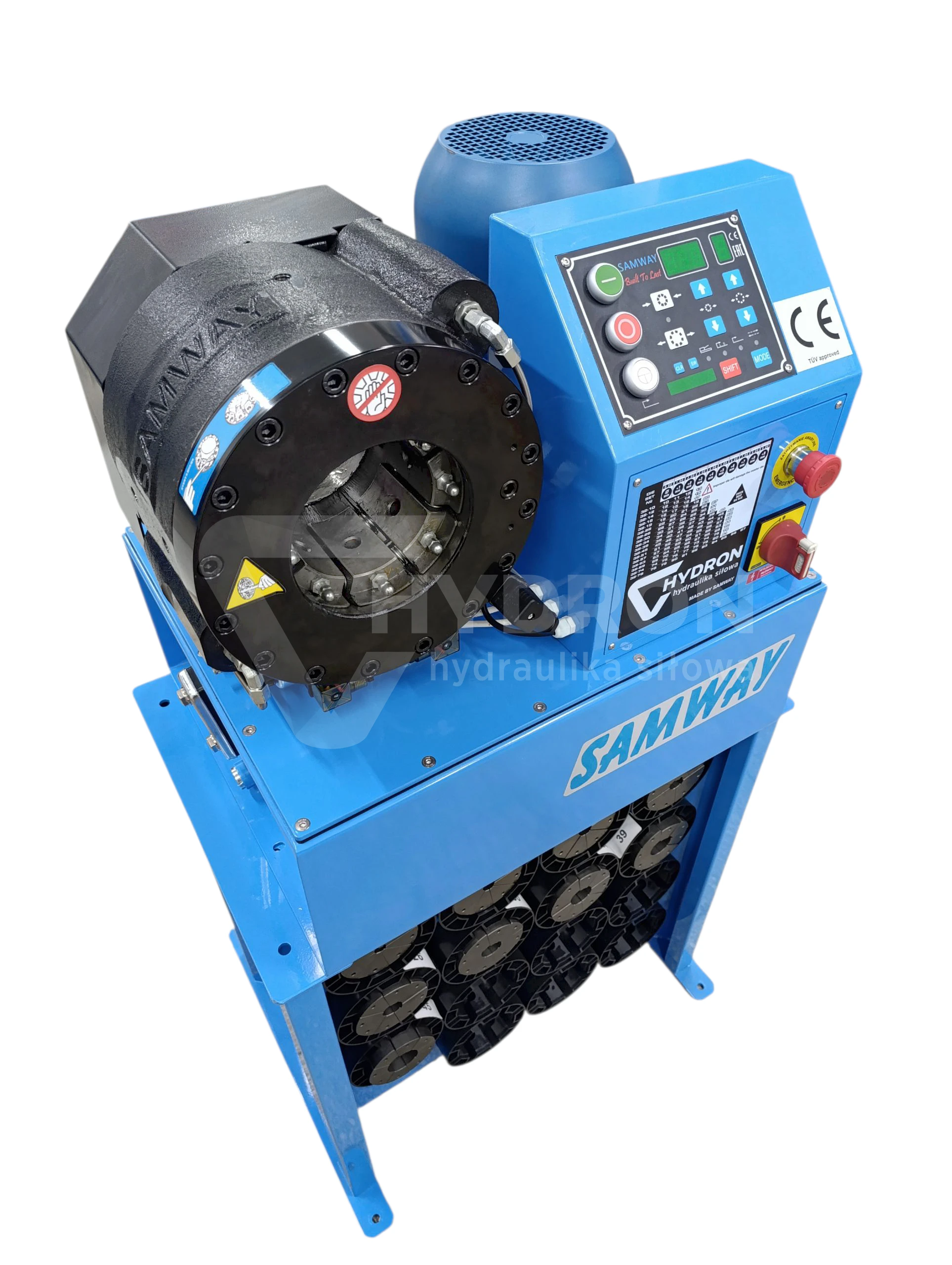

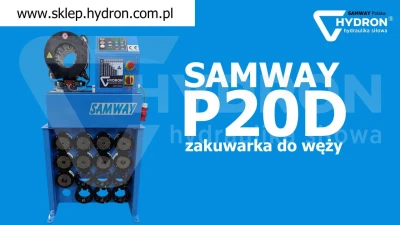

SAMWAY P20D (DN32 4SP) hose crimping machine with digital control

• user manual ( identical as in the P32D model )
• control panel in digital crimping machines
• leasing of crimping machines

Professional workshop and production crimping machine.

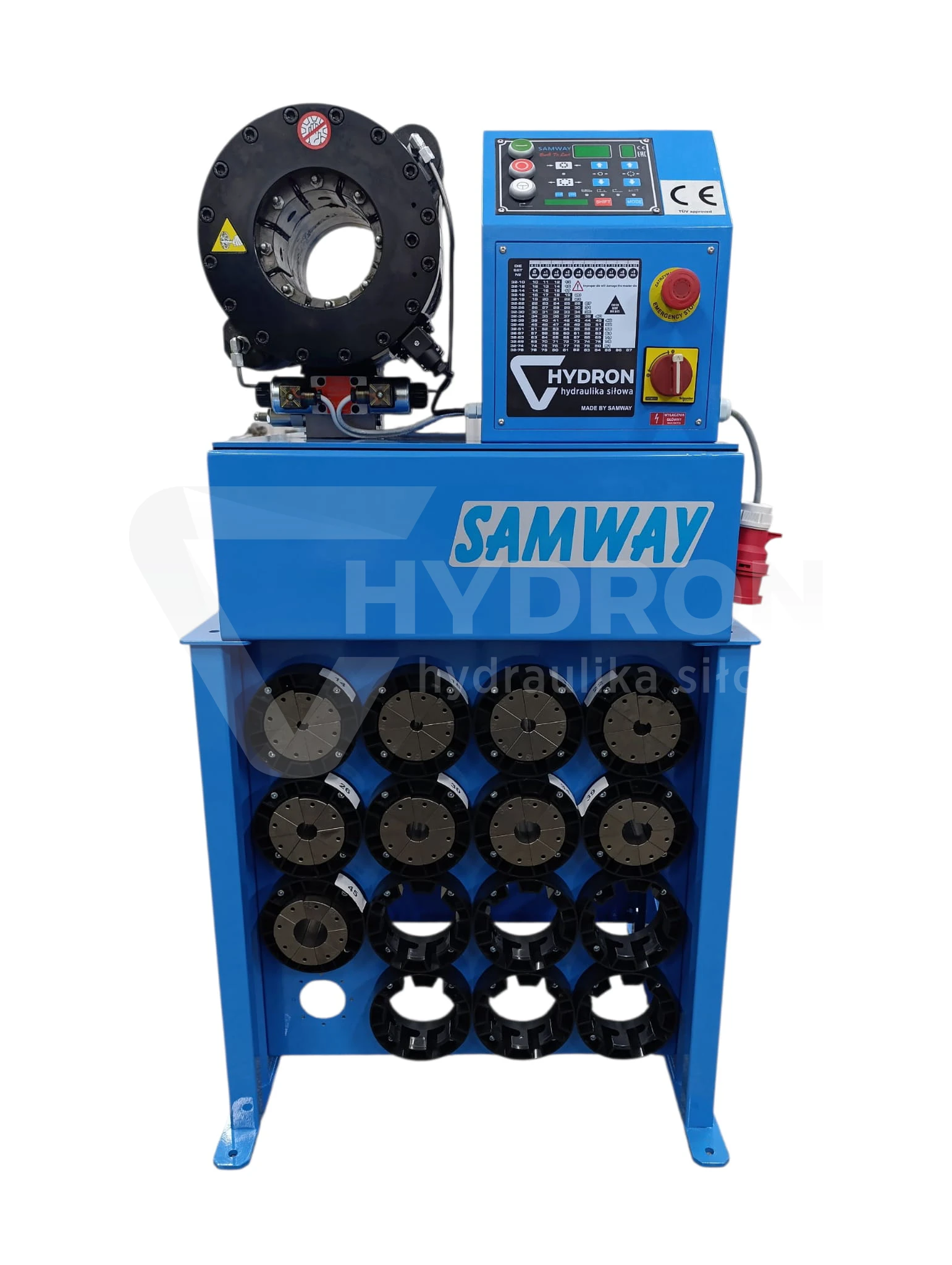

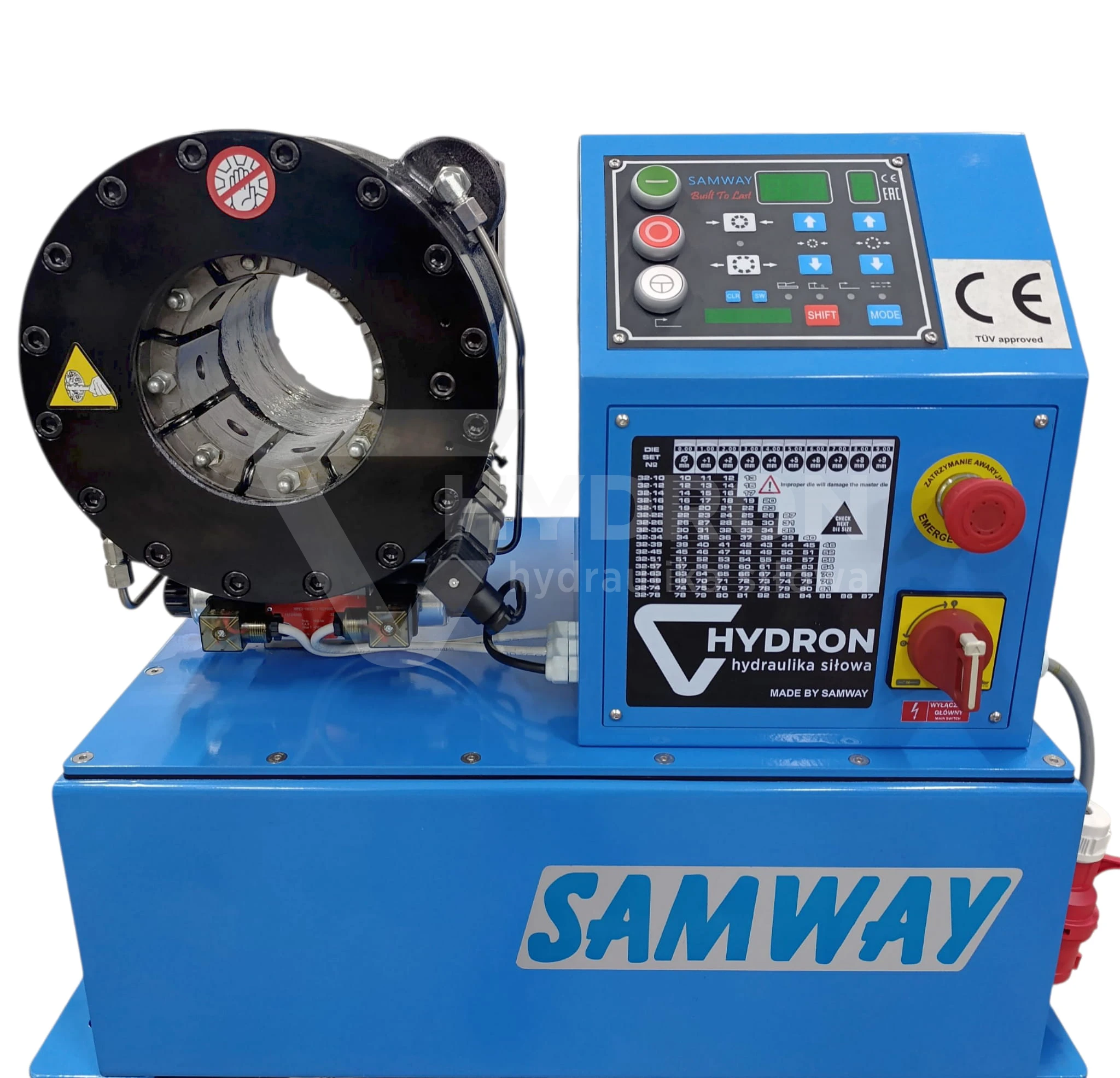

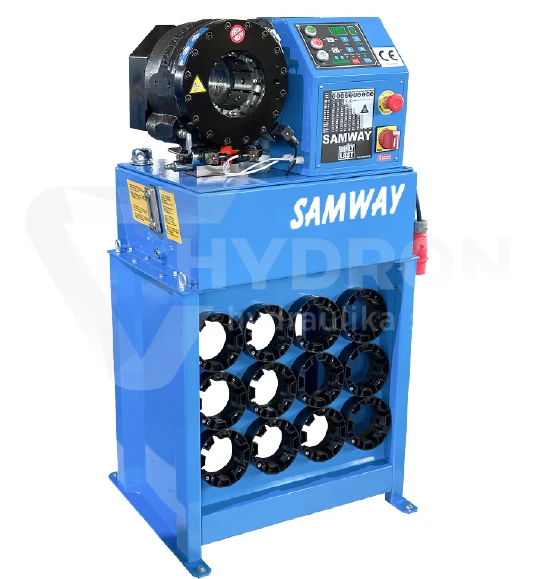

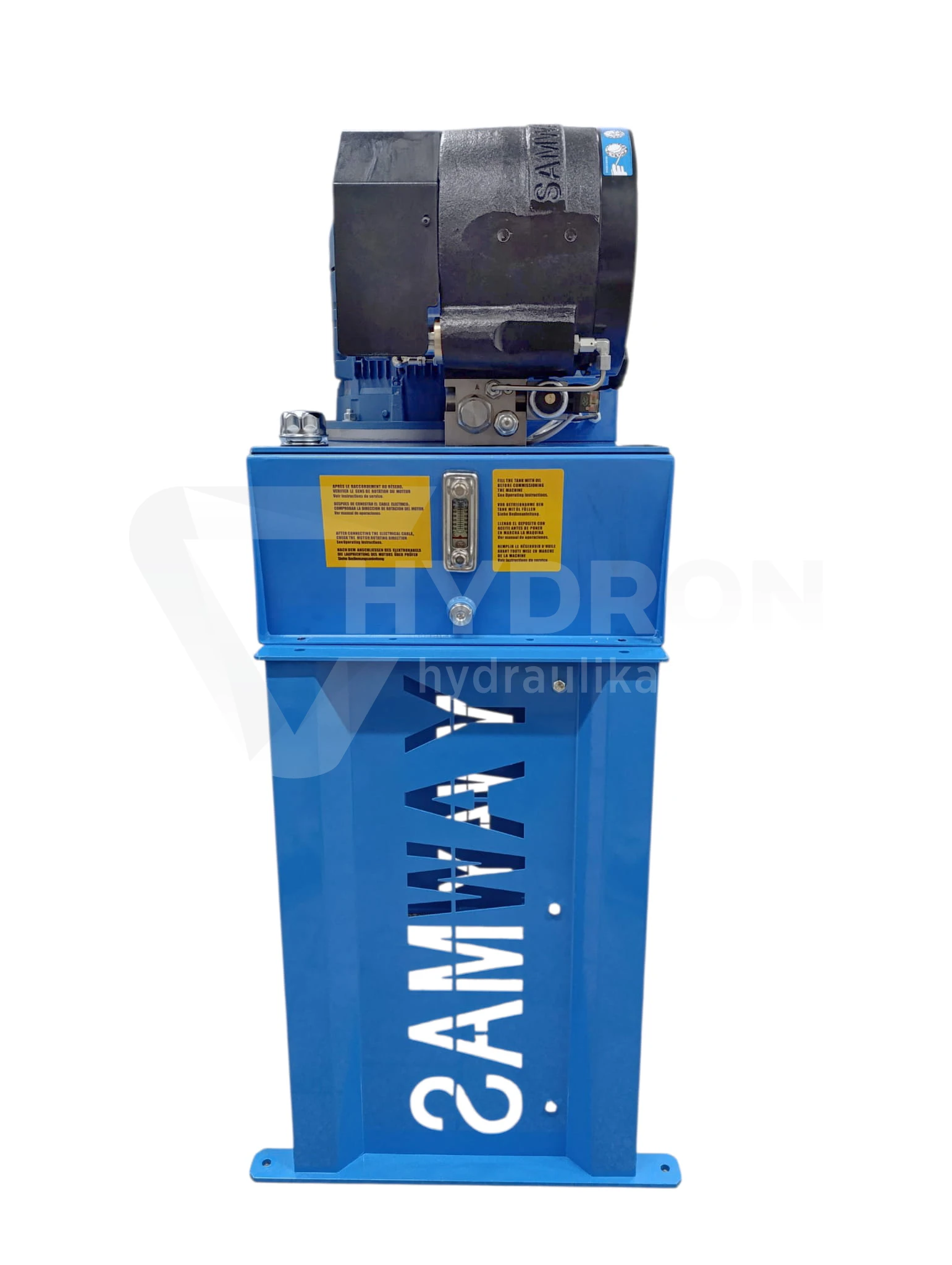

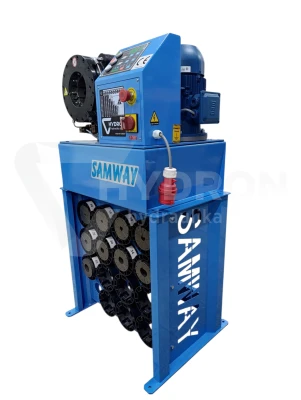

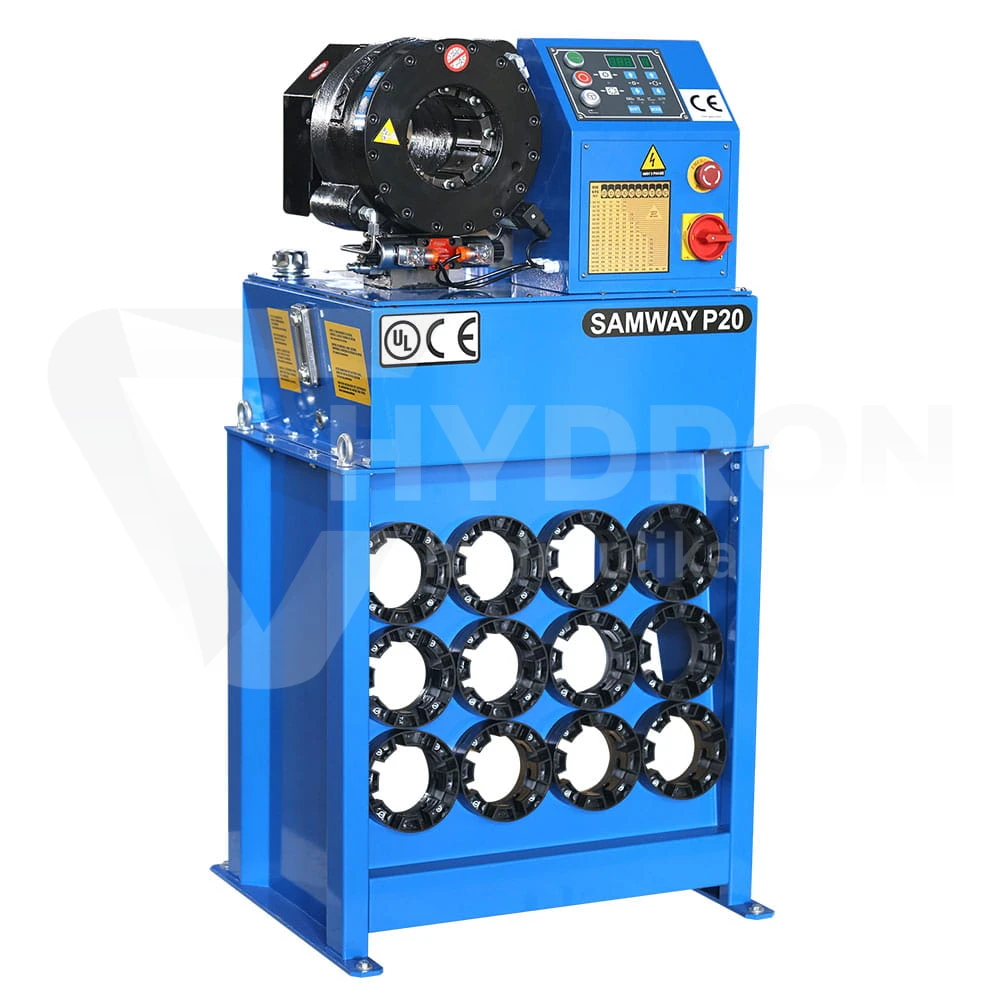

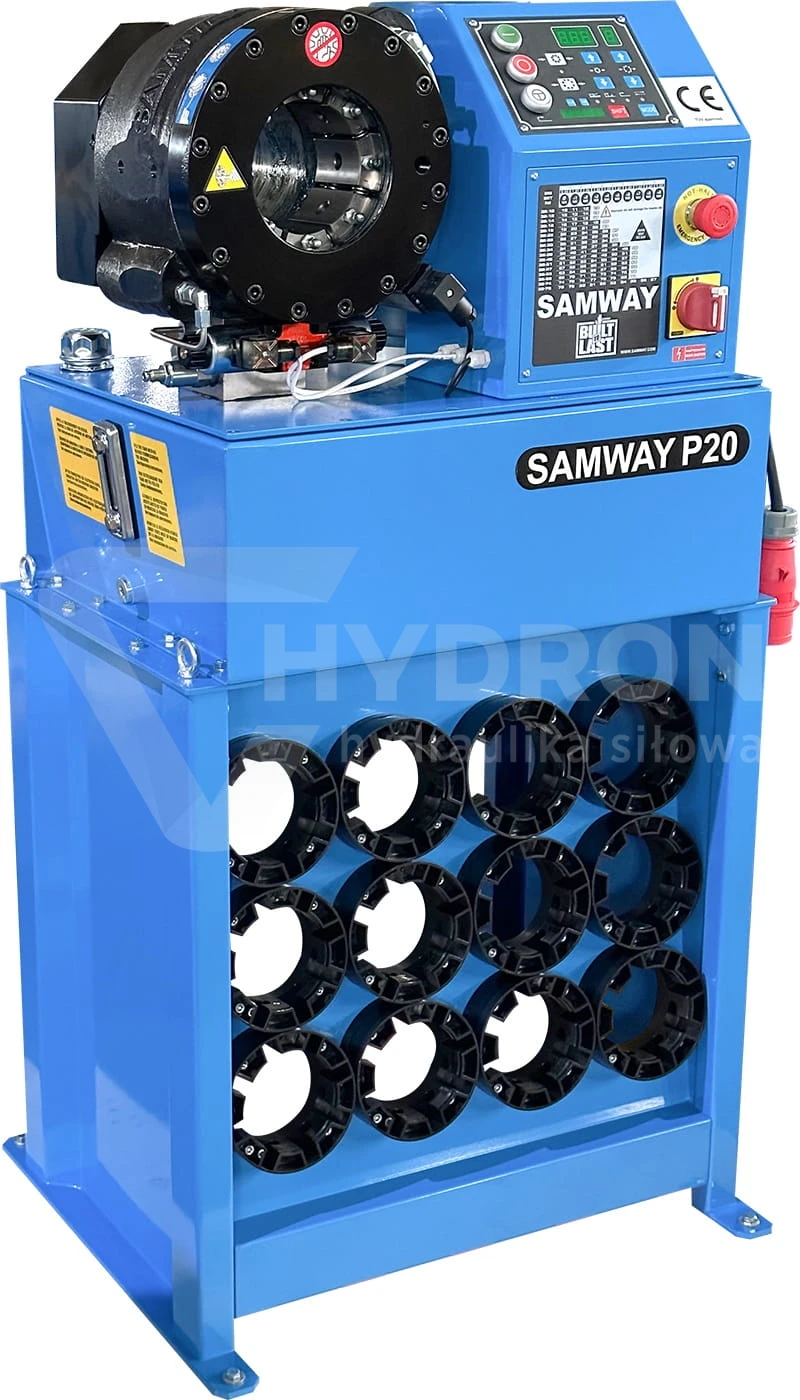

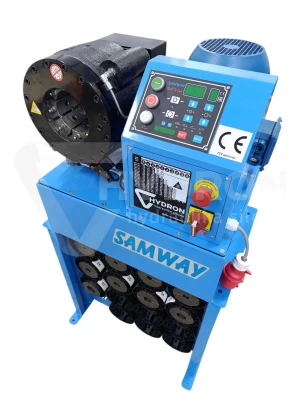

P20D hydraulic hose crimping press fully equipped, filled with oil with crimping dies and a base - ready to connect to power and work. Digital control - very simple and intuitive! Automatic power switch ( energy saving! ) Crimping machine for the demanding - exceptionally easy to operate. The press crimps 1SN and 2SN hoses up to DN 40 diameter. The crimping machine crimps hoses with four steel braids (4SP) up to DN32 diameter. The P20D set includes: crimper, crimping dies, die rack, quick-change tool, foot pedal, and full documentation. When purchasing the machine, transport and training are free! The press is made of the best components for the most demanding! It is possible to purchase the crimper itself without the quick-change die system. The P20D crimper is a digital version of the P20Q crimper - with identical crimping parameters and identical equipment - the only difference is the control method. In the digital version, instead of a micrometer, we have buttons and a display where we see the entered parameters ( crimping diameter ). This version of the crimper also comes in a larger version, with a larger head and thus greater capabilities: check out larger models, namely SAMWAY P32Q and the digital crimping machine SAMWAY p32D. Our offer also includes smaller crimping machines: manual crimpers and pneumatic crimpers powered by compressed air. An ideal machine for agricultural stores and individuals who do not need the largest crimping machines ( P32Q, P32D ).

By purchasing a crimper, you receive free transport and free training as well as a set of instructional materials.

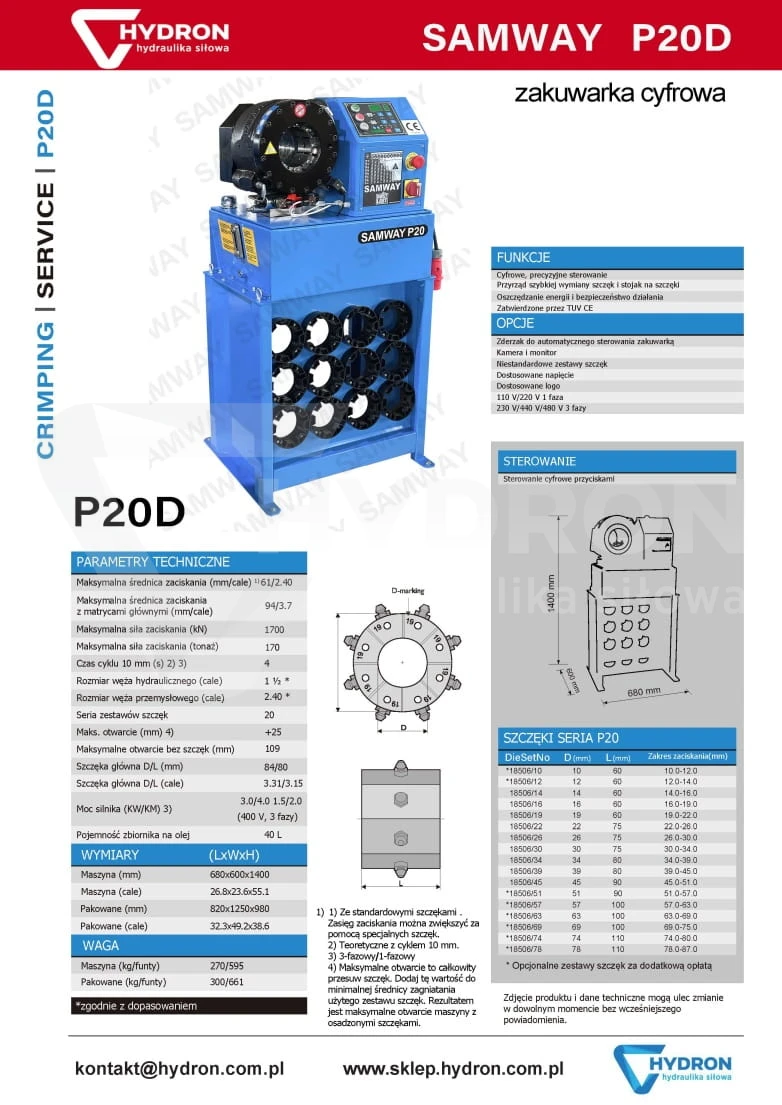

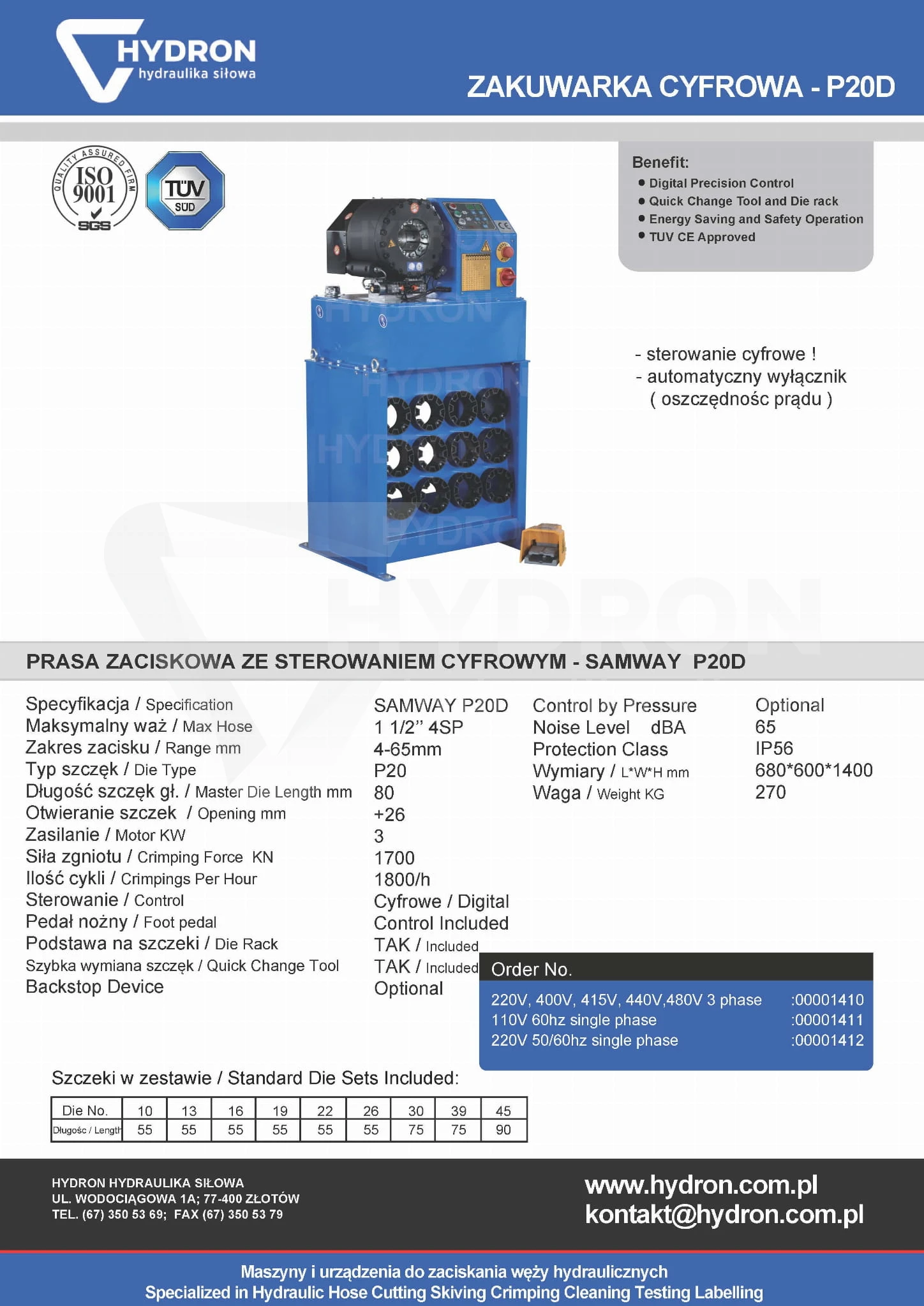

Technical parameters of the crimping machine:

• Crimper model: SAMWAY P20D

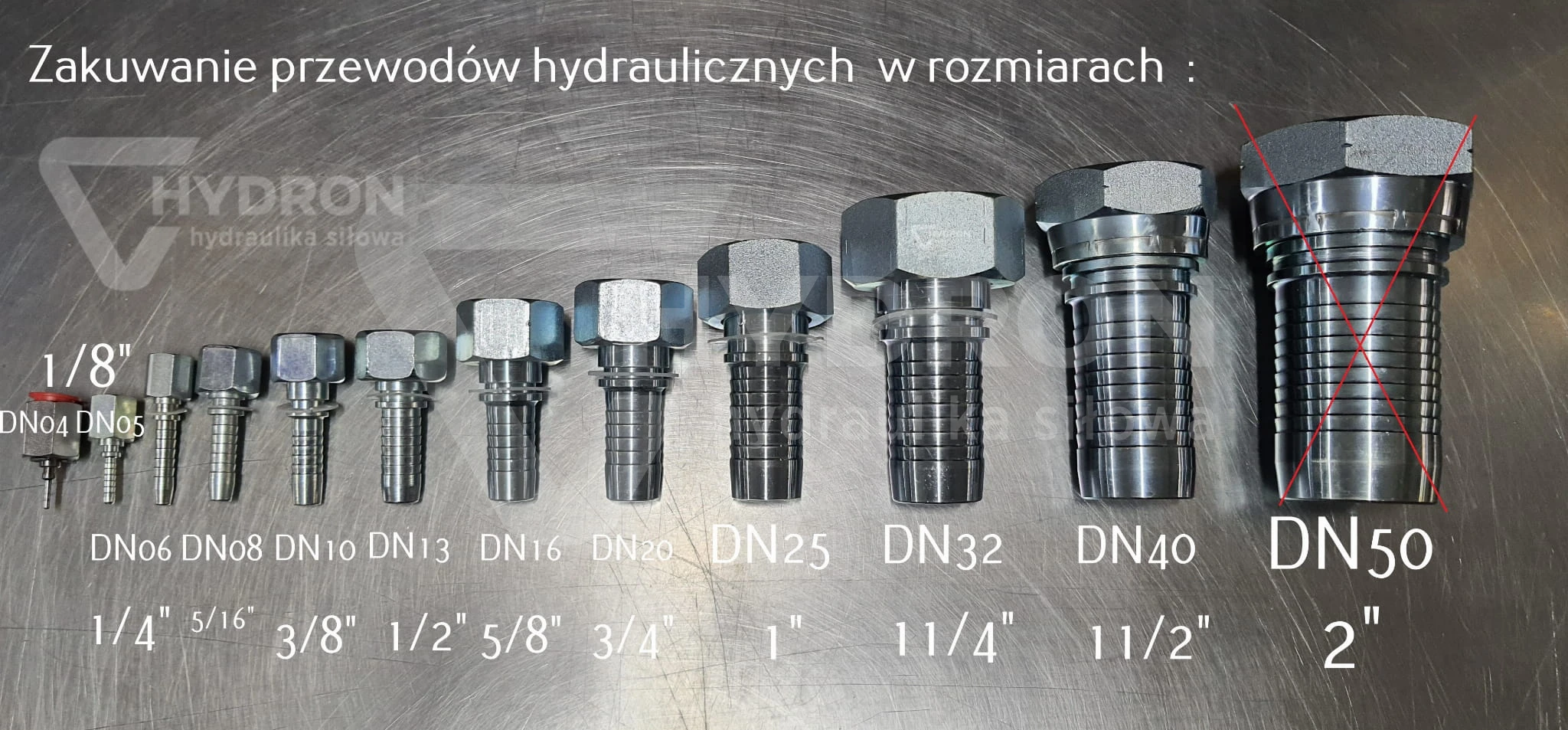

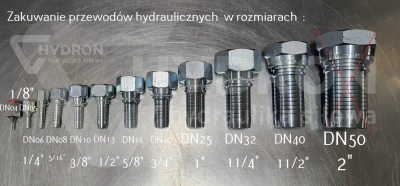

• Maximum hydraulic hose to be crimped: DN40 11/2" 4SP
• Crimp range on replaceable dies: 4-61 mm
• Crimp range on master dies: 94mm
• Maximum opening without dies 109mm
• Die type: 20
• Length of master dies: 80 mm
• Maximum die opening: +26 mm
• Power supply: 3kW motor ( 3-phase power )
• Crimping ( crushing ) force: 1700 kN ( 170 tons )
• Number of cycles: 1800/h
• Oil tank capacity: 40 liters.
• Control: digital panel ( buttons )
• Foot pedal: included
• Die rack: included
• Quick-change tool: included
• Noise level: 65 dBA
• Dimensions: 680mm*600mm*1400mm
• Weight: 270 kg

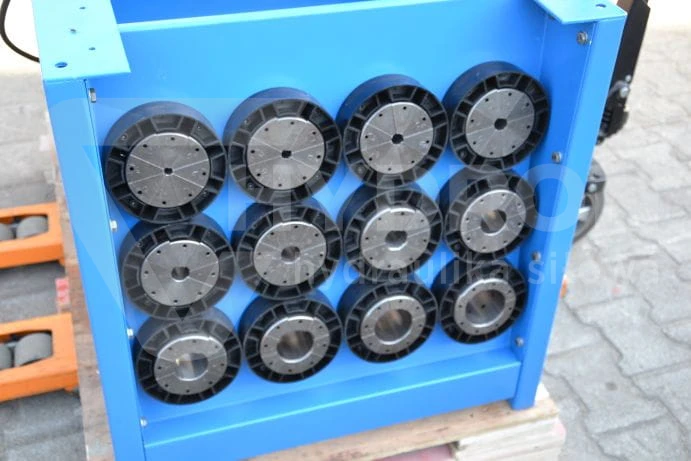

Crimping dies available in the set with the crimper: size/ length

• dies 14 mm (length 60 mm)
• dies 16 mm (length 60 mm)
• dies 19 mm (length 60 mm)
• dies 22 mm (length 75 mm)
• dies 26 mm (length 75 mm)
• dies 30 mm (length 75 mm)
• dies 34 mm (length 80 mm)
• dies 39 mm (length 80 mm)
• dies 45 mm ( length 90mm )

Check what the crimper warranty covers
