Spring for main jaws for Samway P20Q crimping machine (57 mm) – old type

Original steel return spring designed for mounting between individual main jaws (master die) in crimping machines Samway P20Q (older version / old type). It is responsible for efficient expansion and pulling back of the head jaws immediately after pressing the opening button.

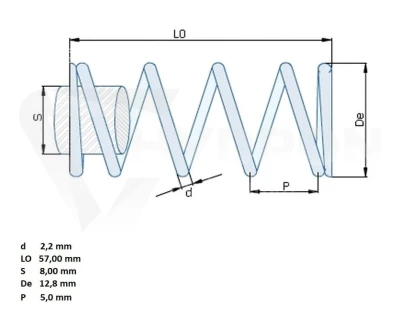

Technical specification:

• Manufacturer: Samway

• Dedicated model: Samway P20Q (version with old type jaws)

• Total length: 57 mm

• Outer diameter: 12 mm

• Material: High-quality spring steel

Key advantages:

• Correct jaw expansion: Ensures smooth and immediate return of the head to the open position after the crimping cycle is completed.

• High mechanical durability: Resistant to repeated bending, compression, and contact with lubricants and hydraulic oil.

• Trouble-free replacement: Factory dimensions guarantee a perfect fit into the seats in P20Q type main jaws.

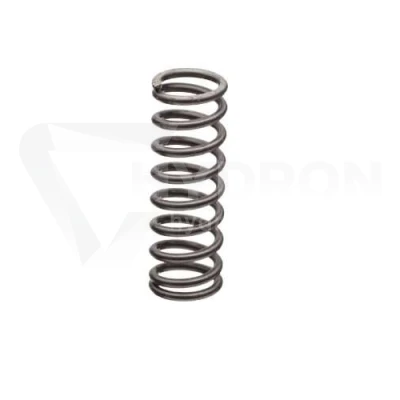

Note: The photo is for illustrative purposes only. Before purchasing, we recommend verifying the length (57 mm) and diameter (12 mm) with the old spring removed from the machine.
