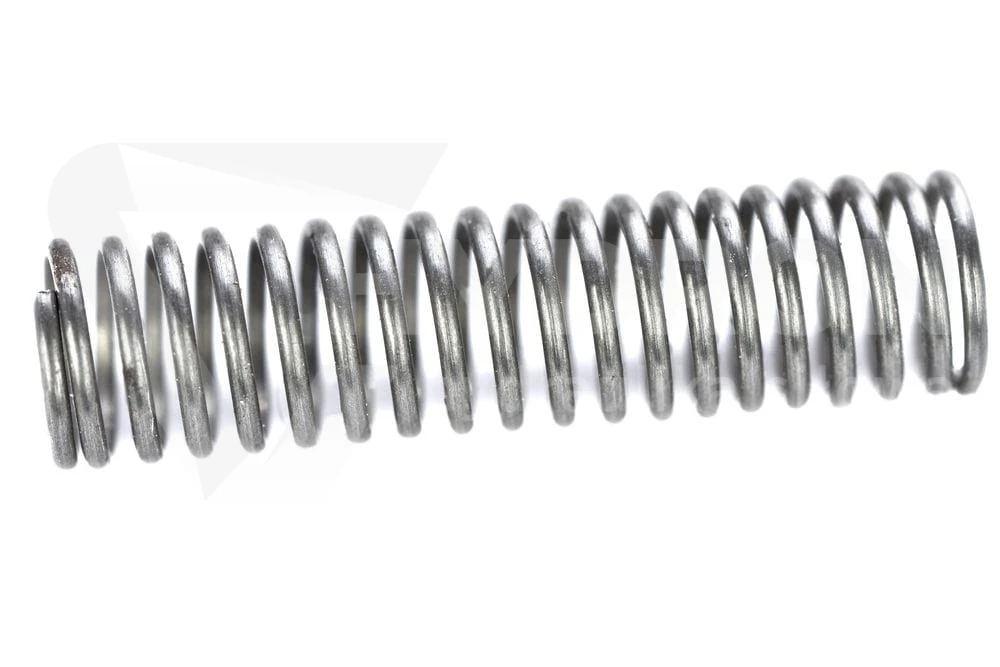

Spring for master dies for Samway P16HP manual crimping machine (14.2 mm / 81 mm)

Original, largest steel head spring designed for installation between individual master dies (master die) in a portable manual crimping machine Samway P16HP. It is responsible for the efficient retraction and expansion of the dies after the pressure is released, which allows for free removal of the crimped hose.

Technical specification:

• Manufacturer: Samway

• Catalog number (SAMWAY Symbol): 90270034

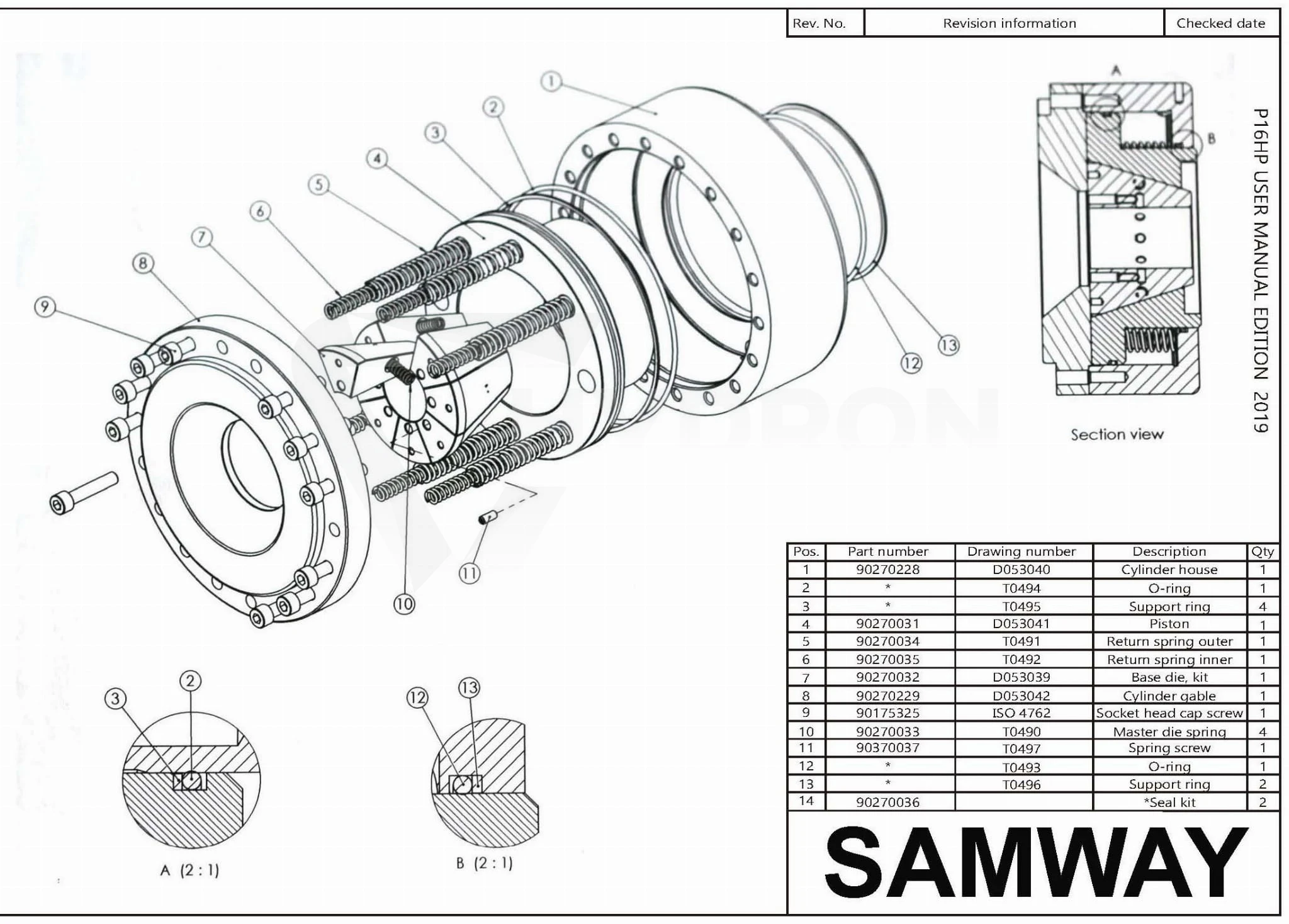

• Dedicated model: Samway P16HP (manual crimping machine)

• Outer diameter: 14.2 mm

• Total length: 81 mm

• Type: Main / largest head spring

• Material: High-grade spring steel

Key advantages:

• Smooth head return: Generates appropriate expanding force, preventing jamming and locking of the master dies when opening the machine.

• Industrial durability: Made of steel resistant to material fatigue, repeated deflections, and regular contact with lubricants and hydraulic oil.

• Original spare part: Dedicated catalog number guarantees a perfect dimensional fit to the sockets in the P16HP head.

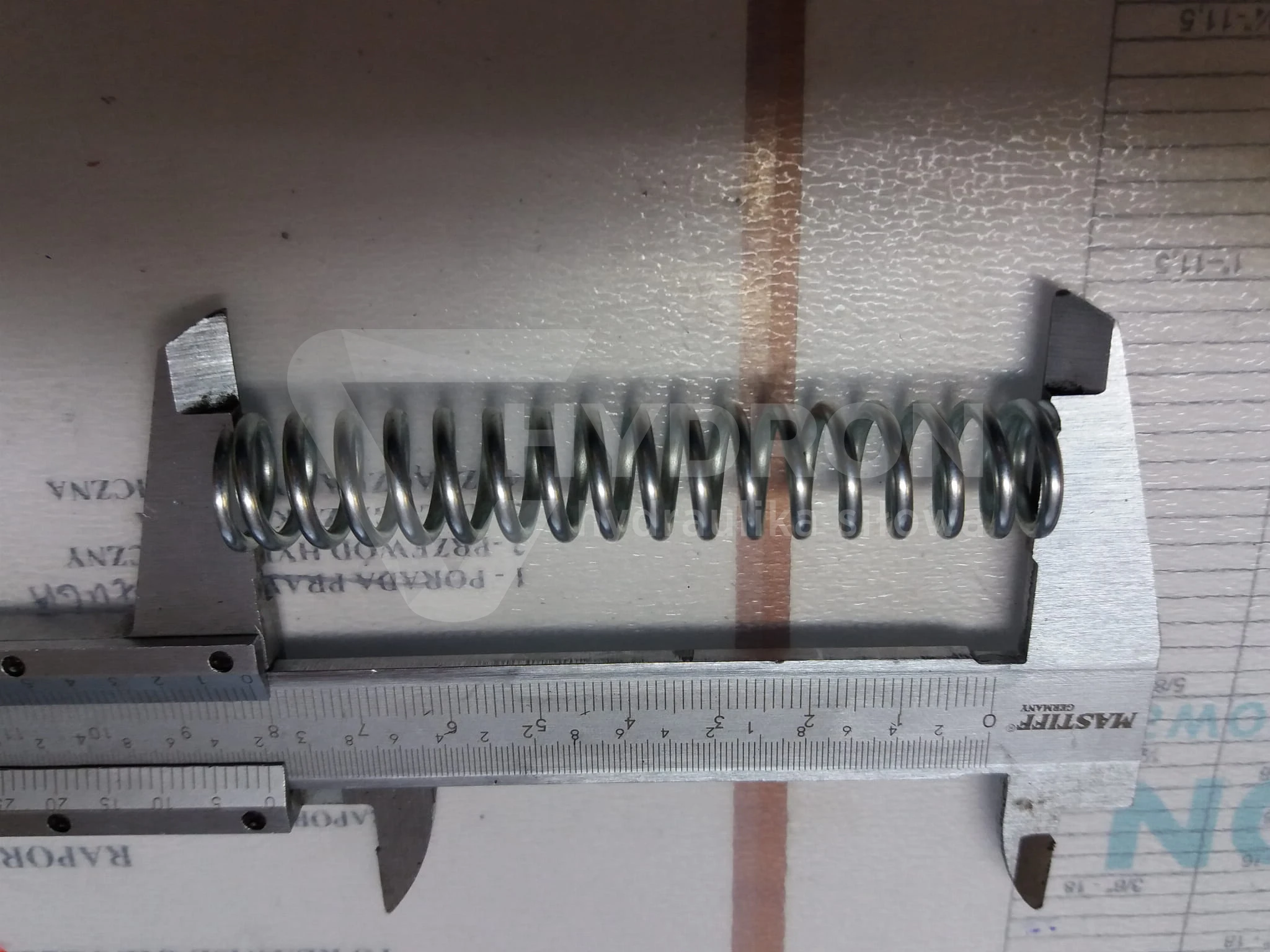

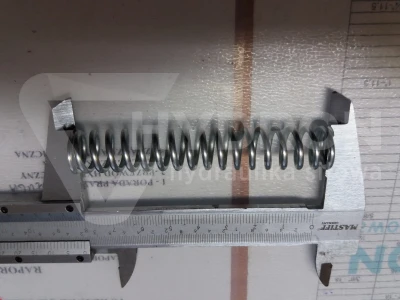

Note: The photo is for illustrative purposes only. We recommend verifying the catalog number (90270034) and dimensions (81 mm x 14.2 mm) with the old spring removed from the device.
