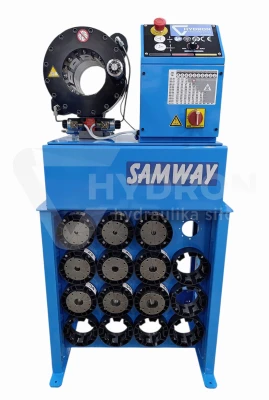

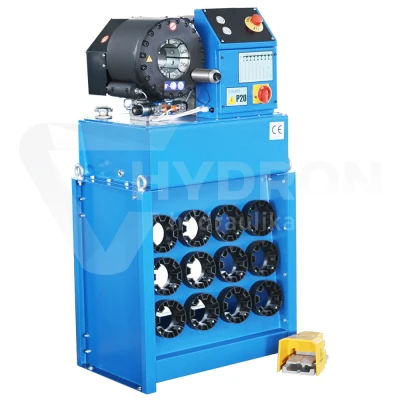

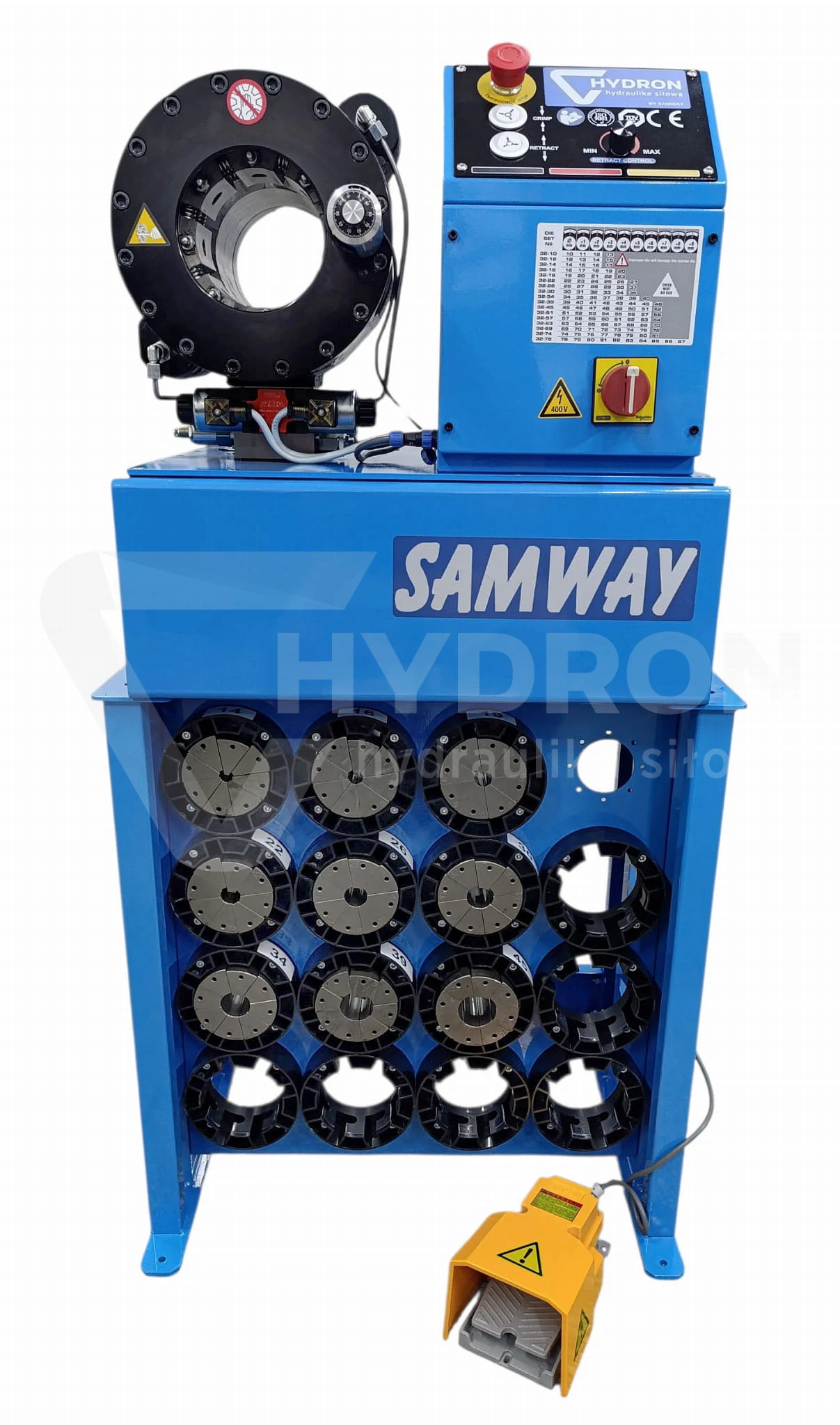

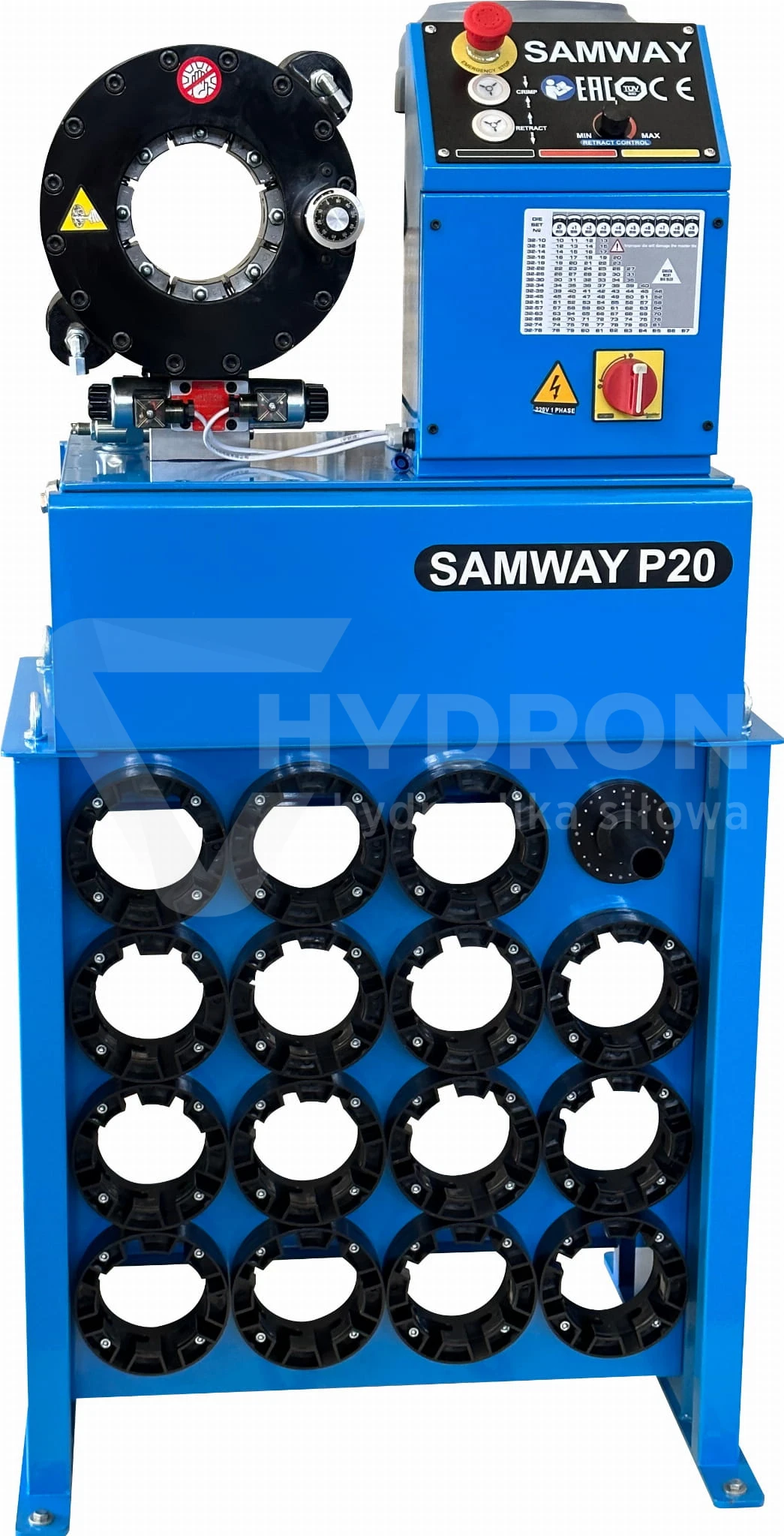

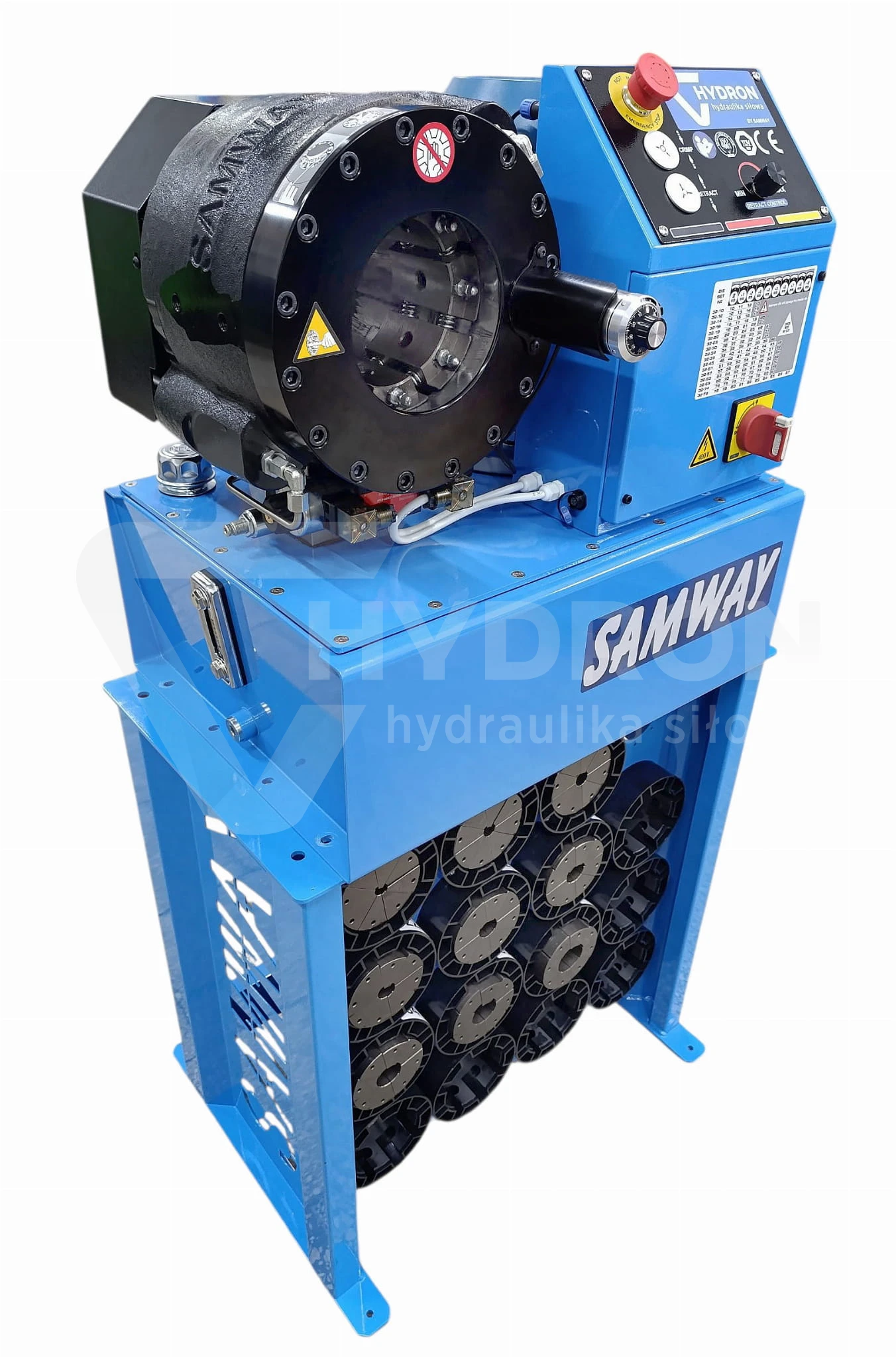

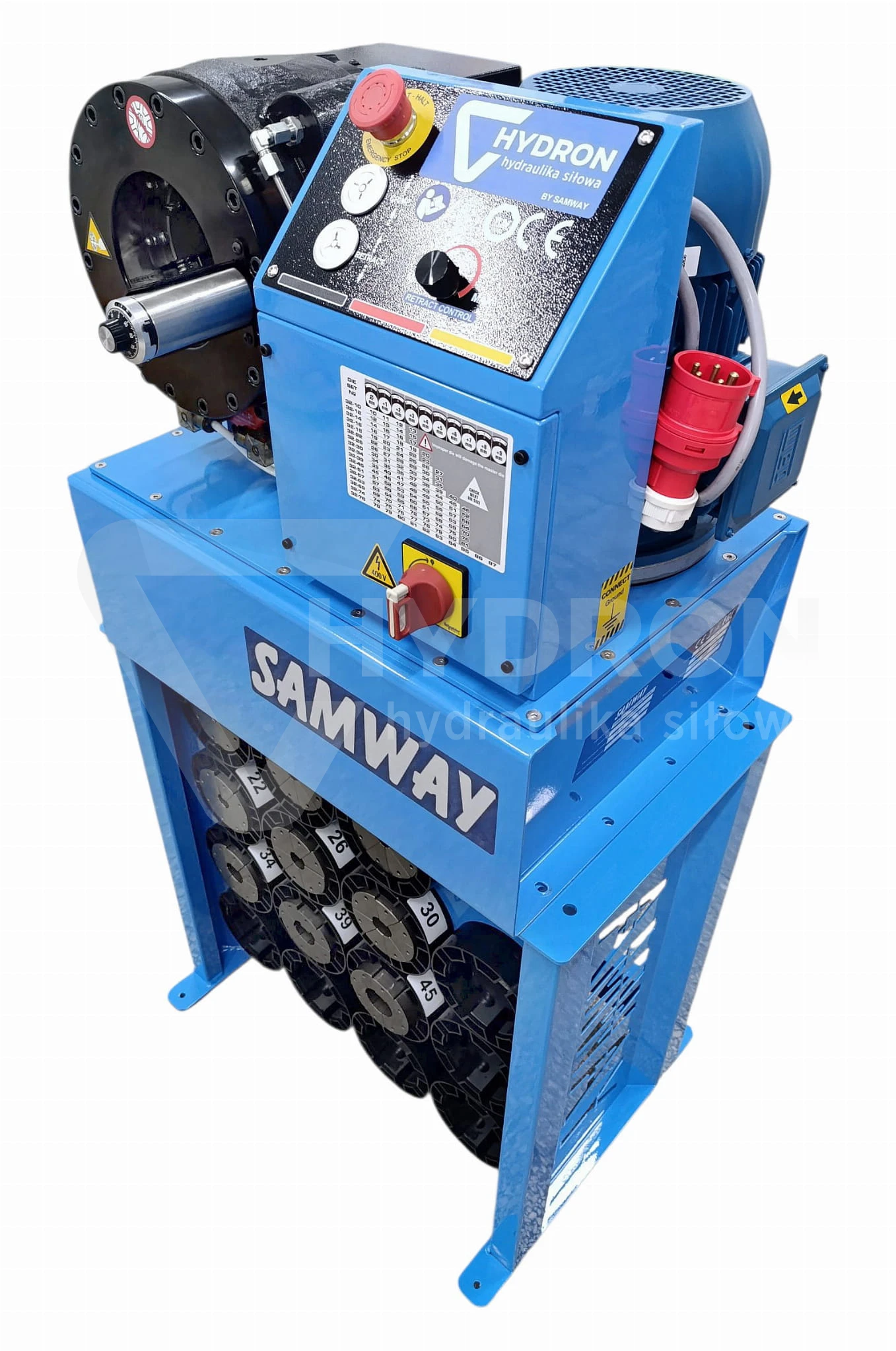

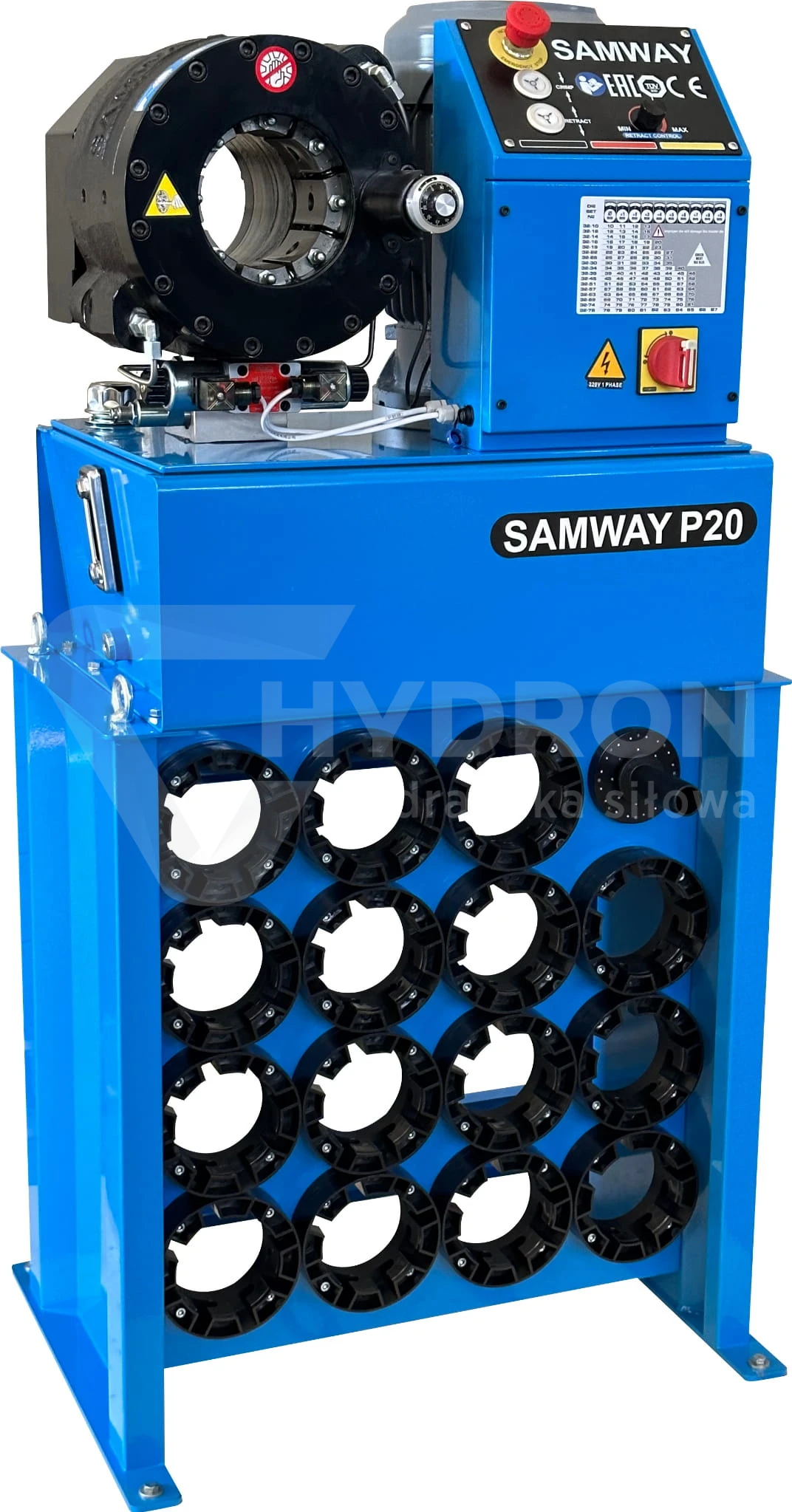

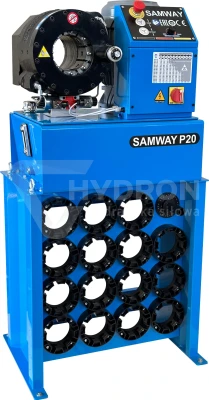

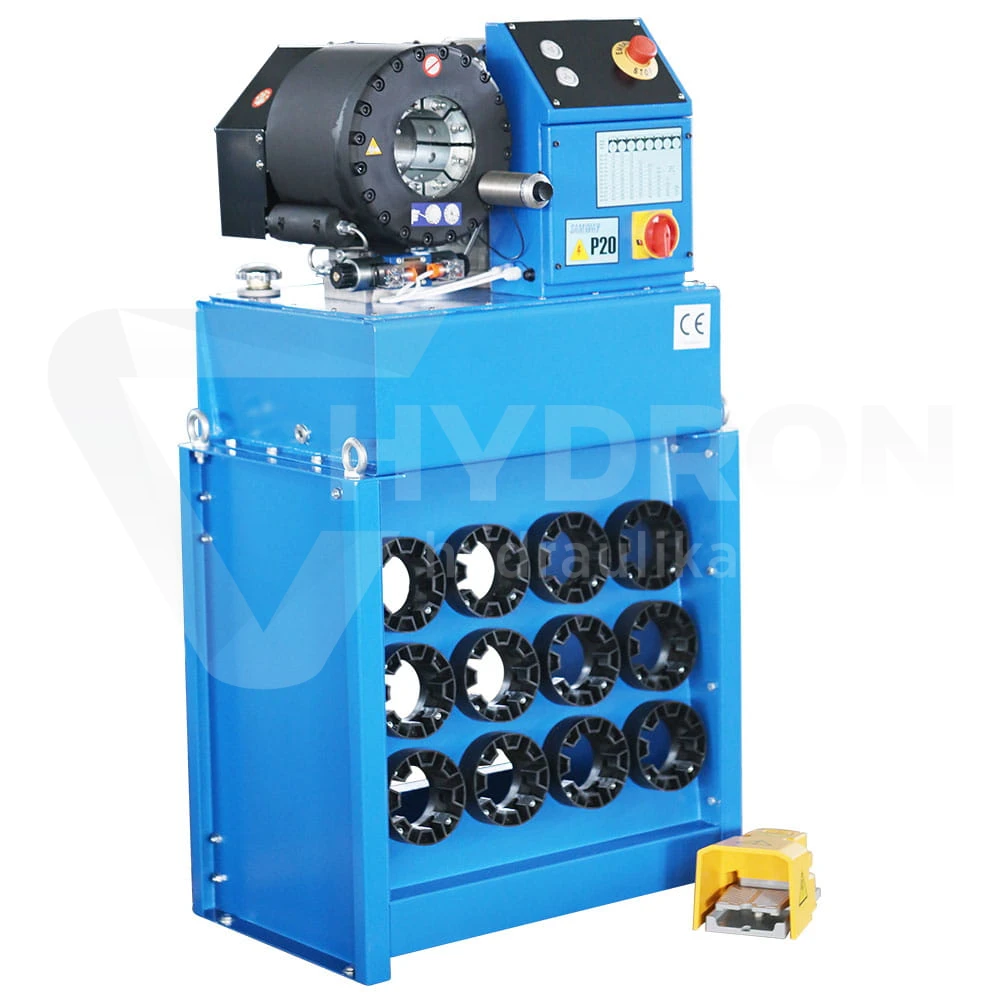

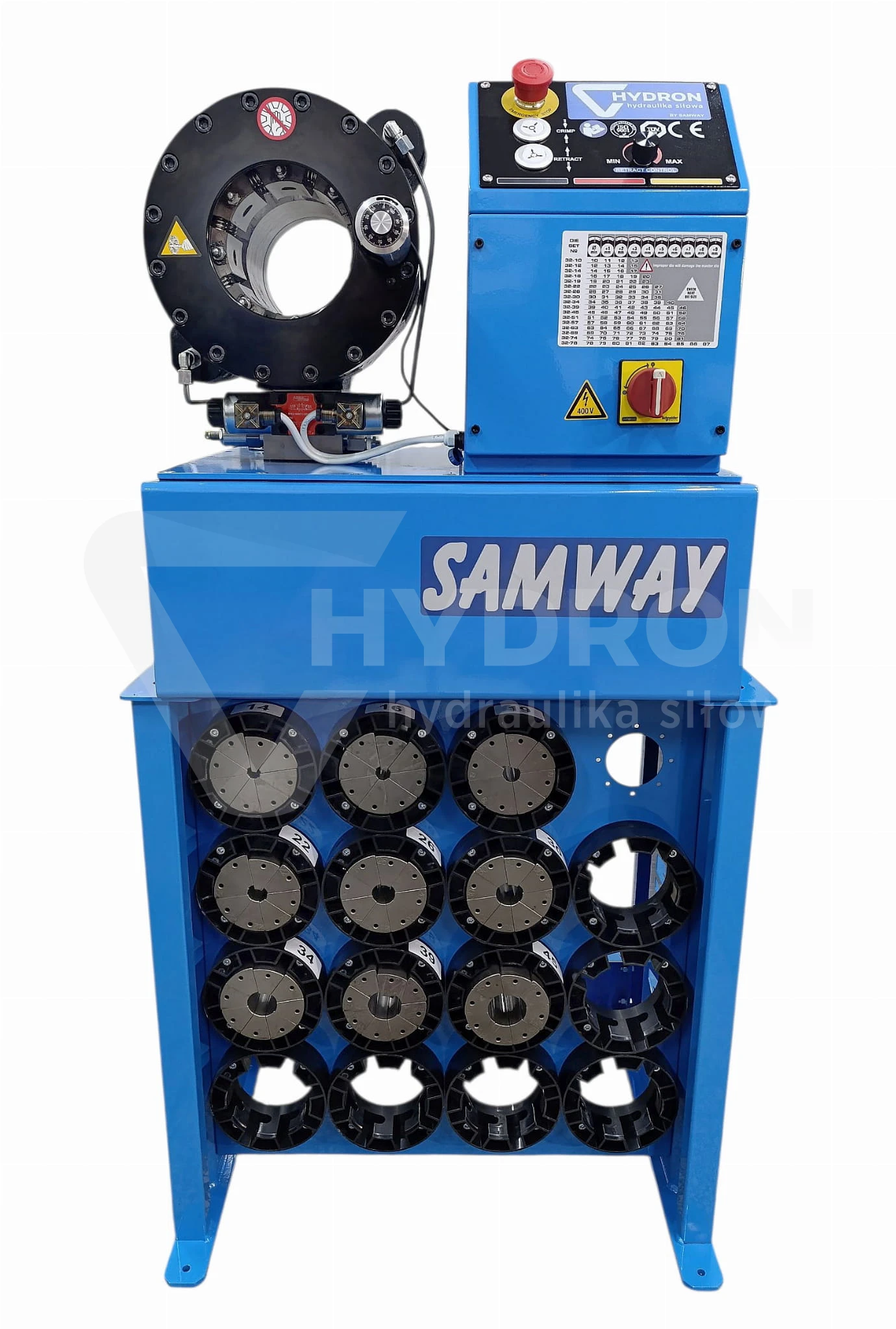

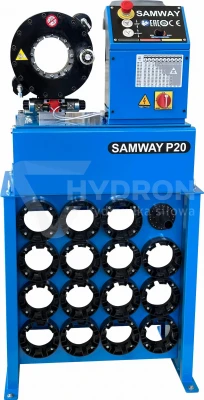

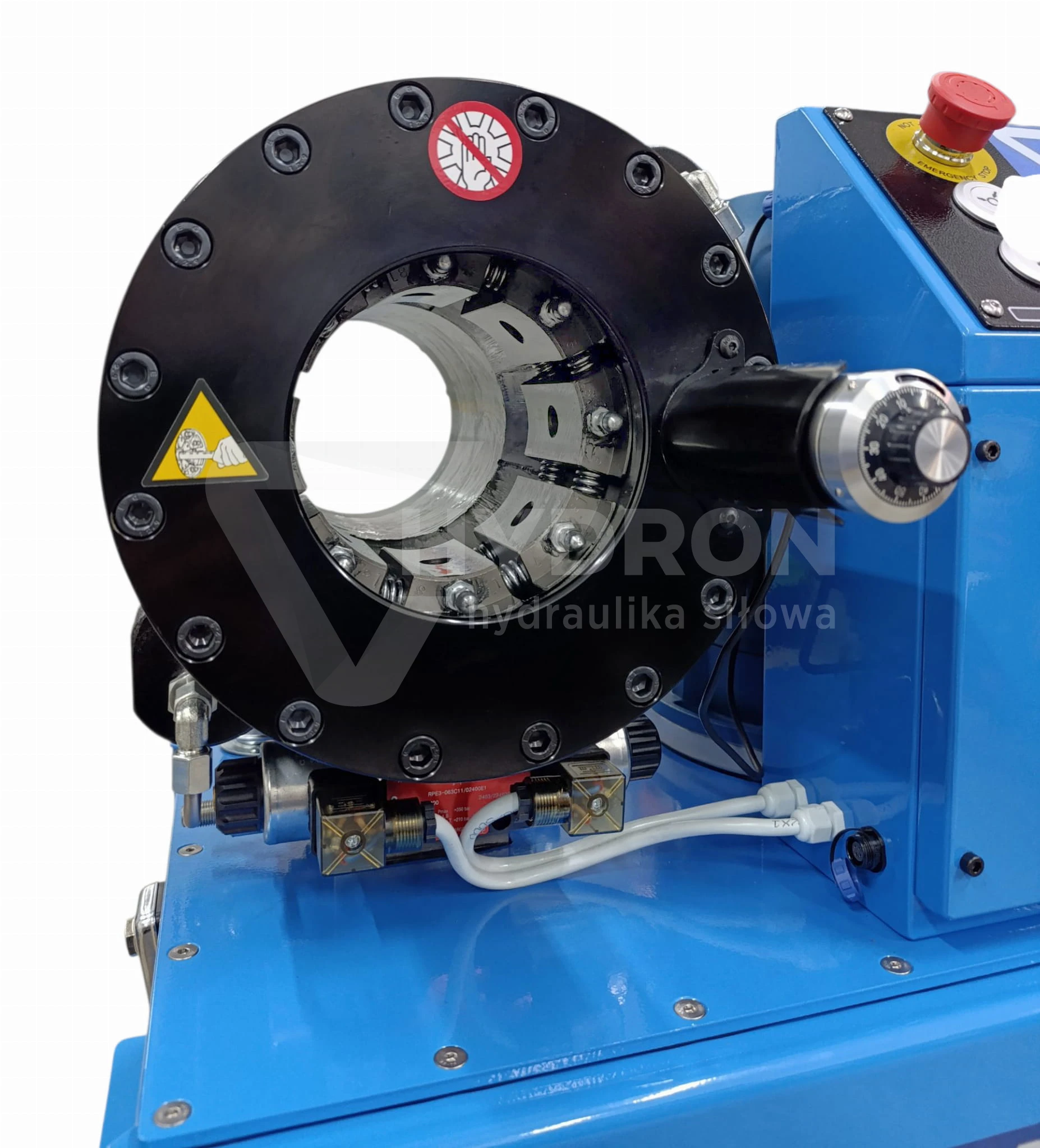

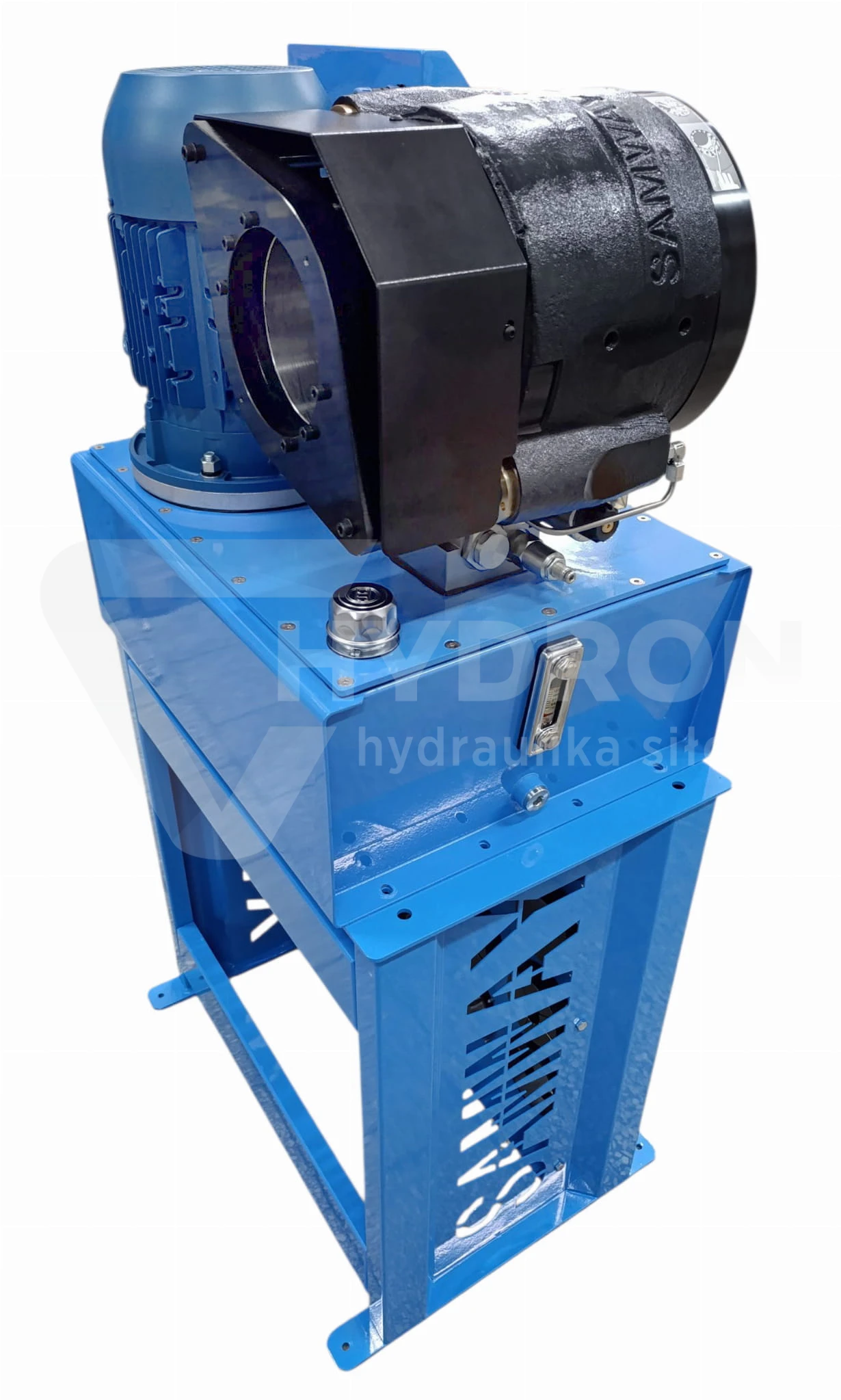

SAMWAY P20Q hydraulic hose crimping press

• Schedule a free meeting and machine presentation
• SAMWAY P20Q crimper user manual
• Free transport and training included in the price

The most popular crimper for agriculture

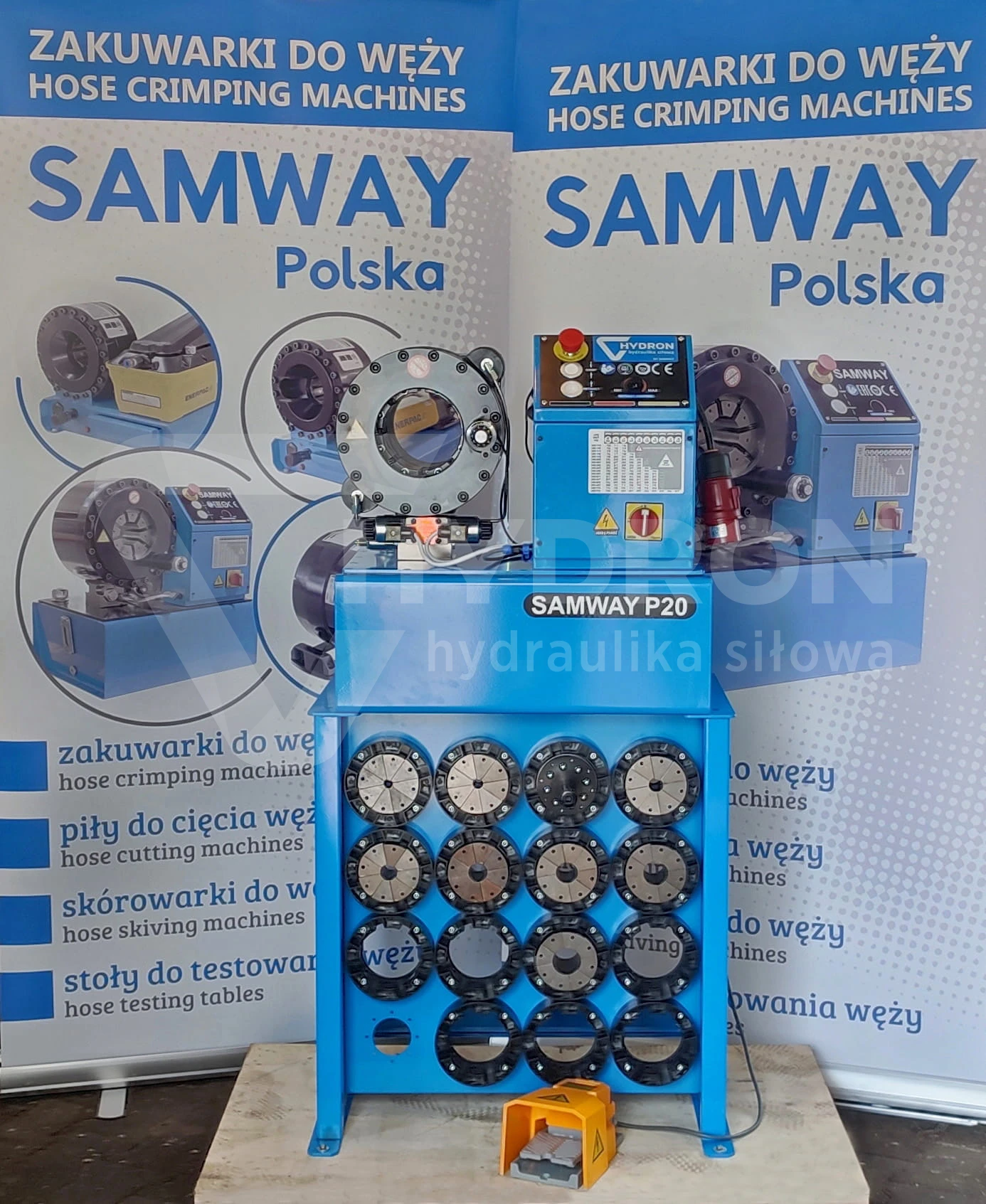

The crimper crimps 4SP hoses up to DN32 diameter. The P20Q set includes: crimper, set of crimping dies, die rack, quick-change die handle. Free transport and training with the purchase of the machine! Press made of the best components for the most demanding users! Note: since 2019, the crimper has dies identical to those in the P32Q model (we offer both p20q and p32q dies). The press allows crimping hydraulic hoses up to size DN 40 in the version with two steel braids. Note: it is possible to purchase the crimper alone without the quick-change die system! Very good price and crimping capabilities. If you need a larger crimper, check the model P32Q crimpers

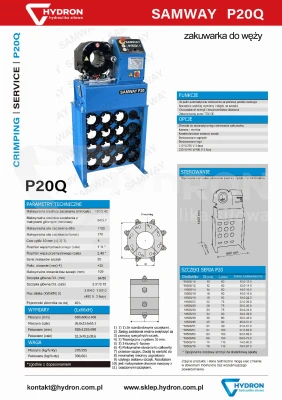

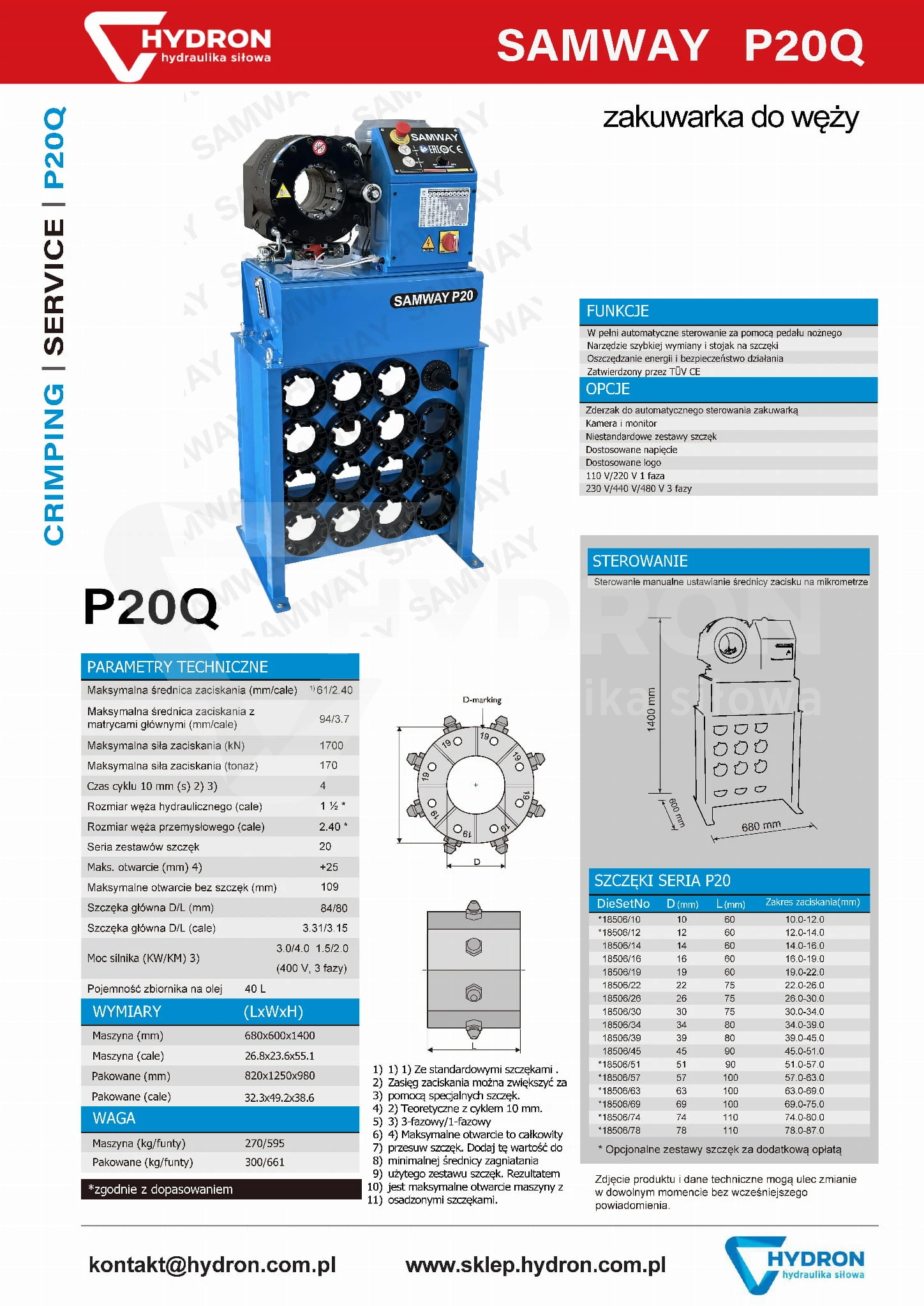

Technical parameters : MODEL SAMWAY P20Q

• Maximum hydraulic hose crimped : 1 1/2" 2SN
• Crimping range : 4-65 mm ( maximum element 65mm on the outside )
• Die type : P32
• Main die length : 80 mm
• Maximum die opening : +26 mm

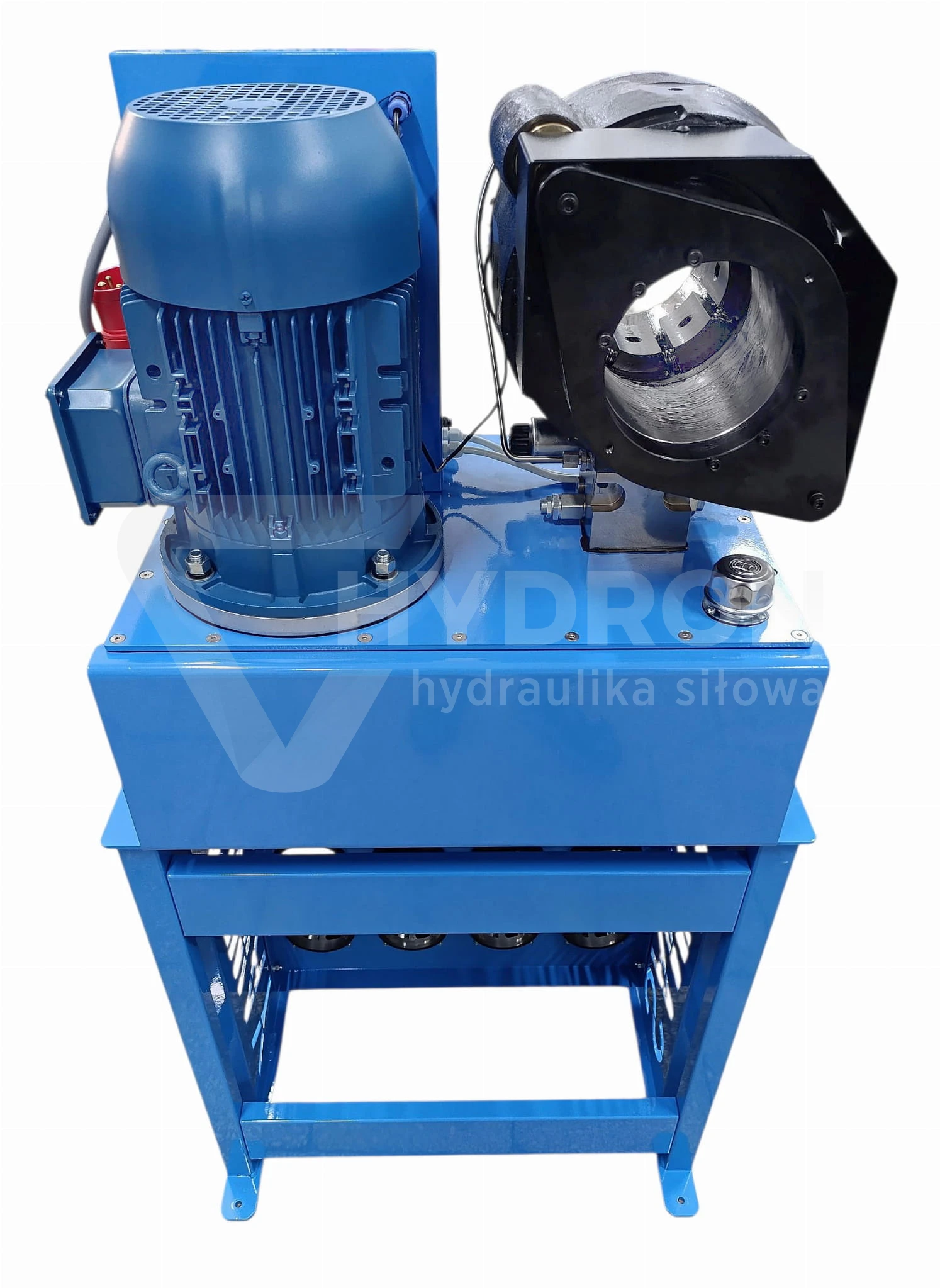

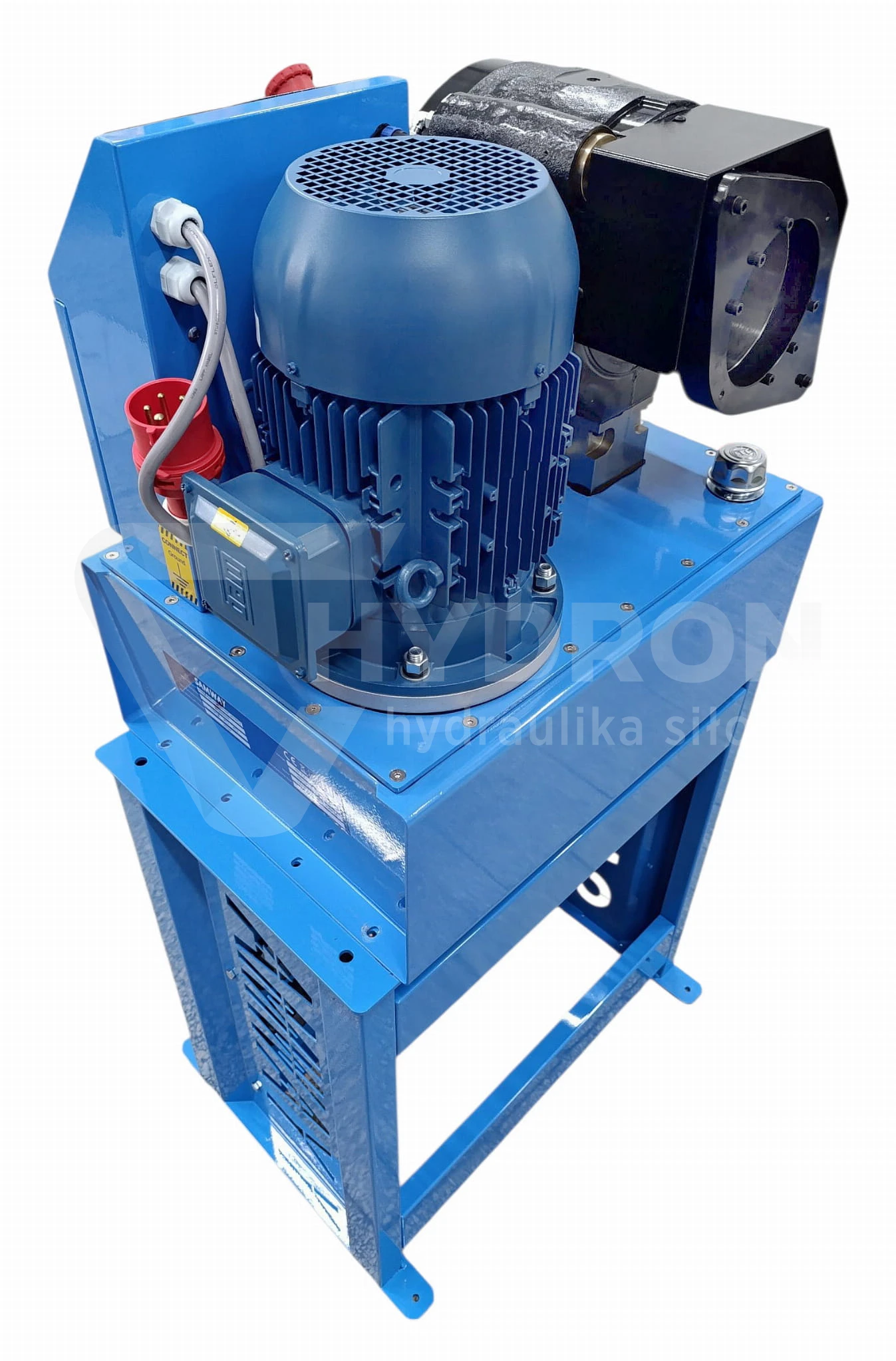

• Power supply : 3 kW SIEMENS
• Crimping force : 1700 kN
• Number of cycles : 1800/h
• Control : micrometer

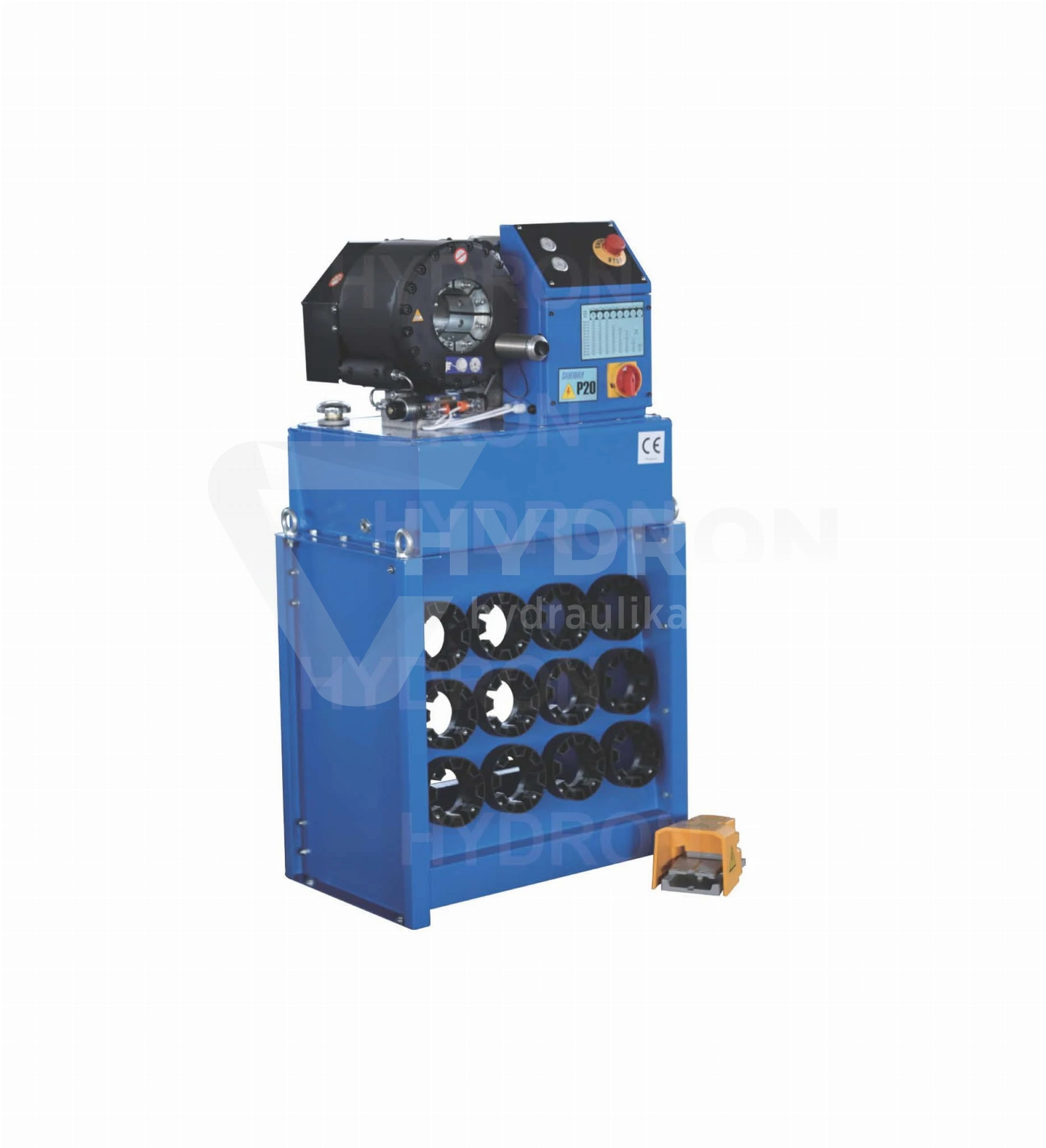

• Foot pedal : included

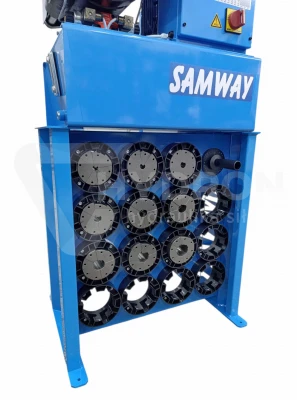

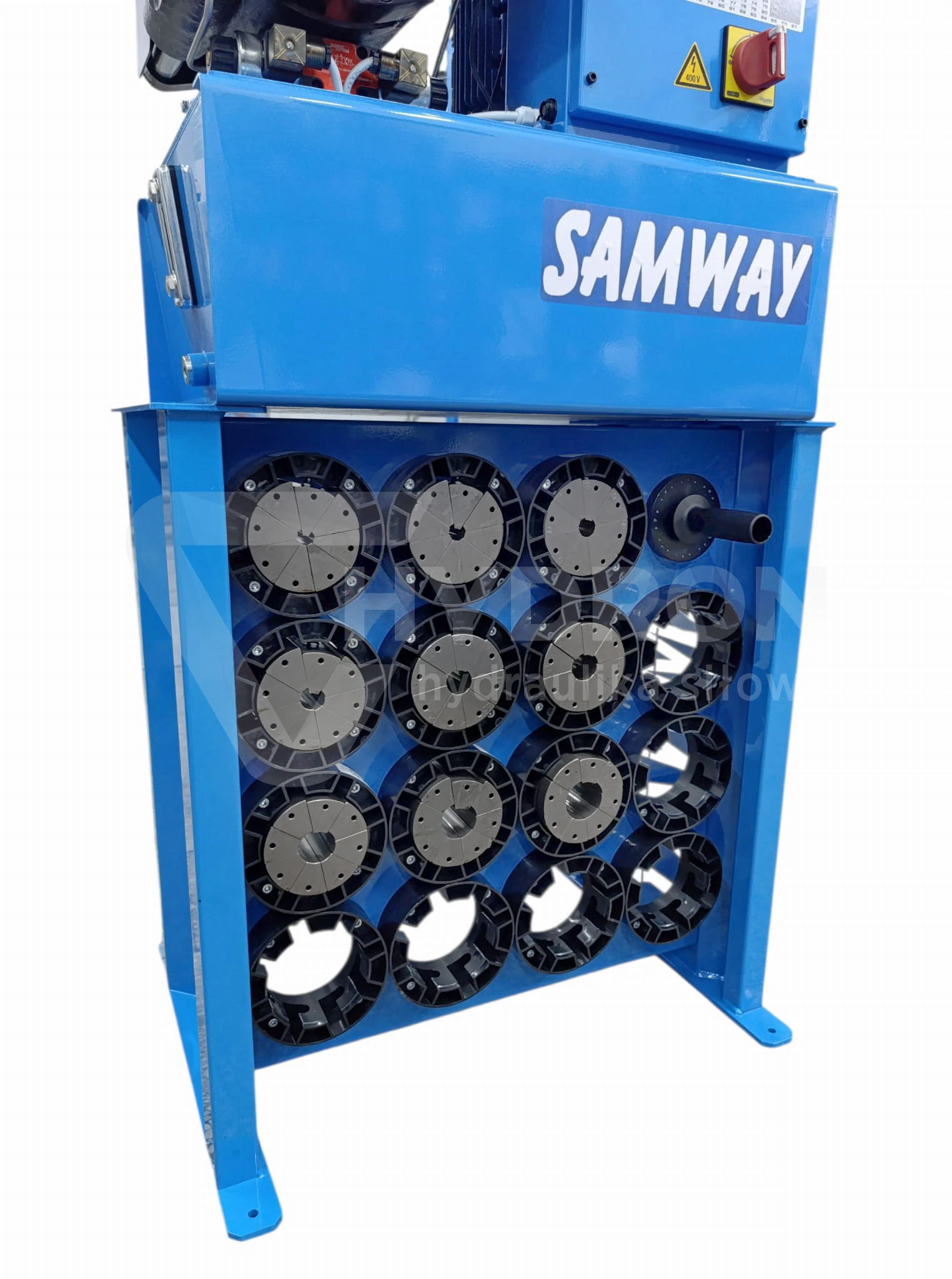

• Die rack : included
• Quick die change : included
• Stopper : optional
• Noise level : 65 dBA
• Dimensions : 680mm*600mm*1400mm
• Weight : 270 kg

Dies included : sizes/length

• 14 mm (length 55 mm)
• 16 mm (length 55 mm)
• 19 mm (length 55 mm)
• 22 mm (length 55 mm)
• 26 mm (length 55 mm)
• 30 mm (length 75 mm)
• 34 mm (length 75 mm)
• 39 mm (length 75 mm)
• 45 mm (length 90 mm)



Alternative crimper designation : SAP20, equivalent to PE28 TECHMAFLEX crimper, HM200 ecoline uniflex, GRANIT G20 Press -400 V
