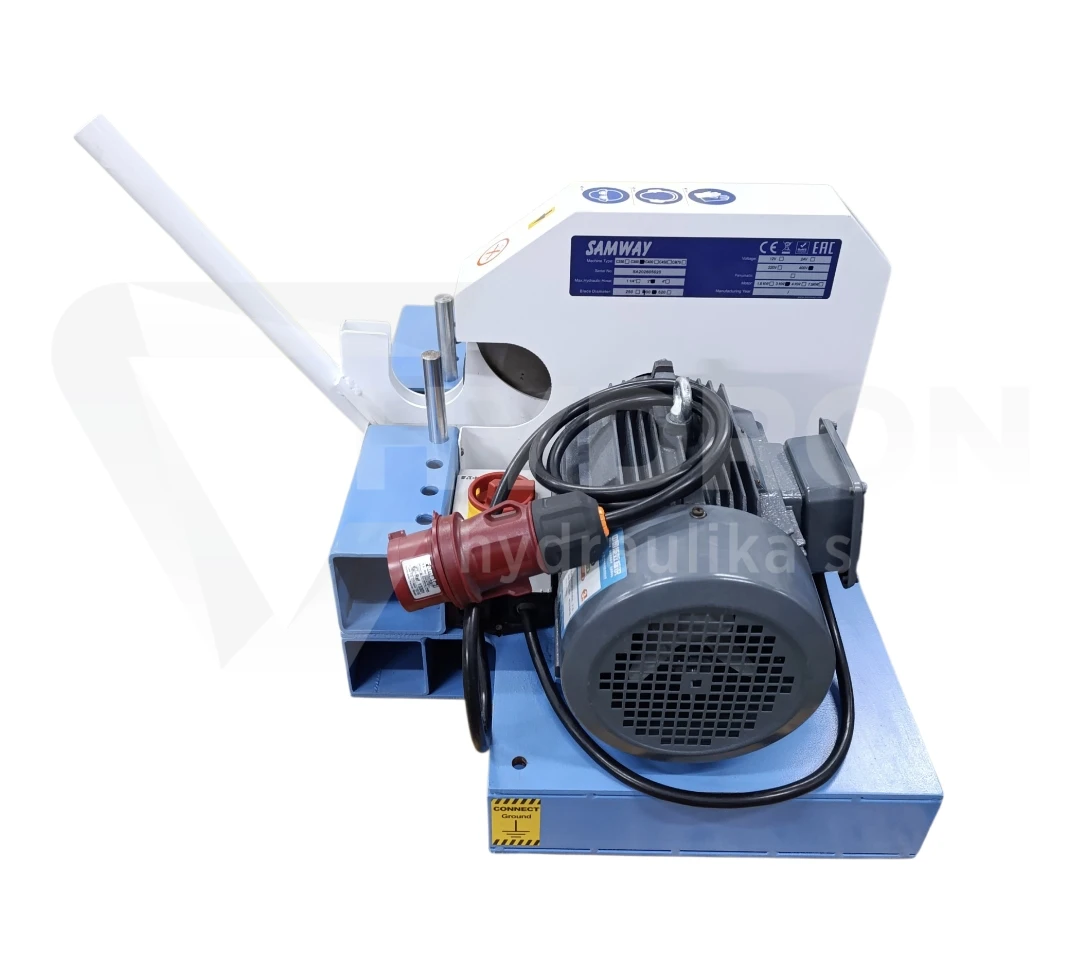

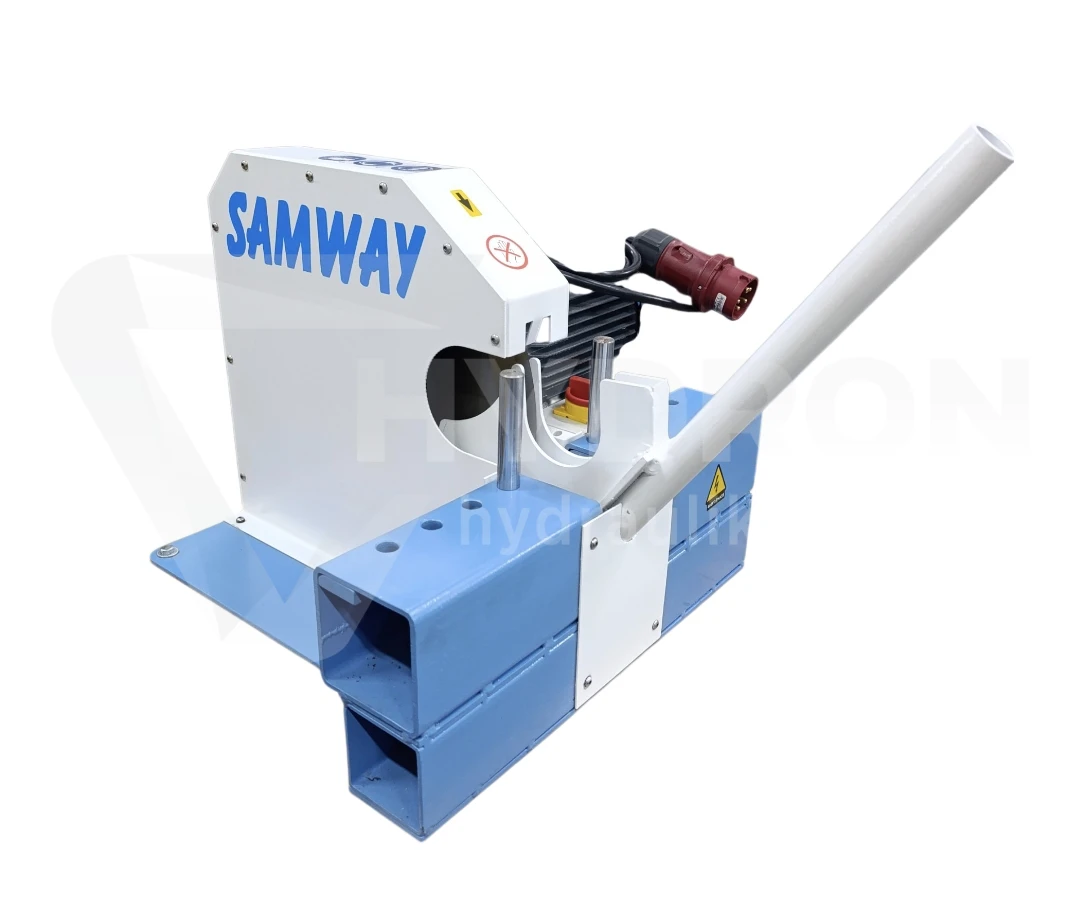

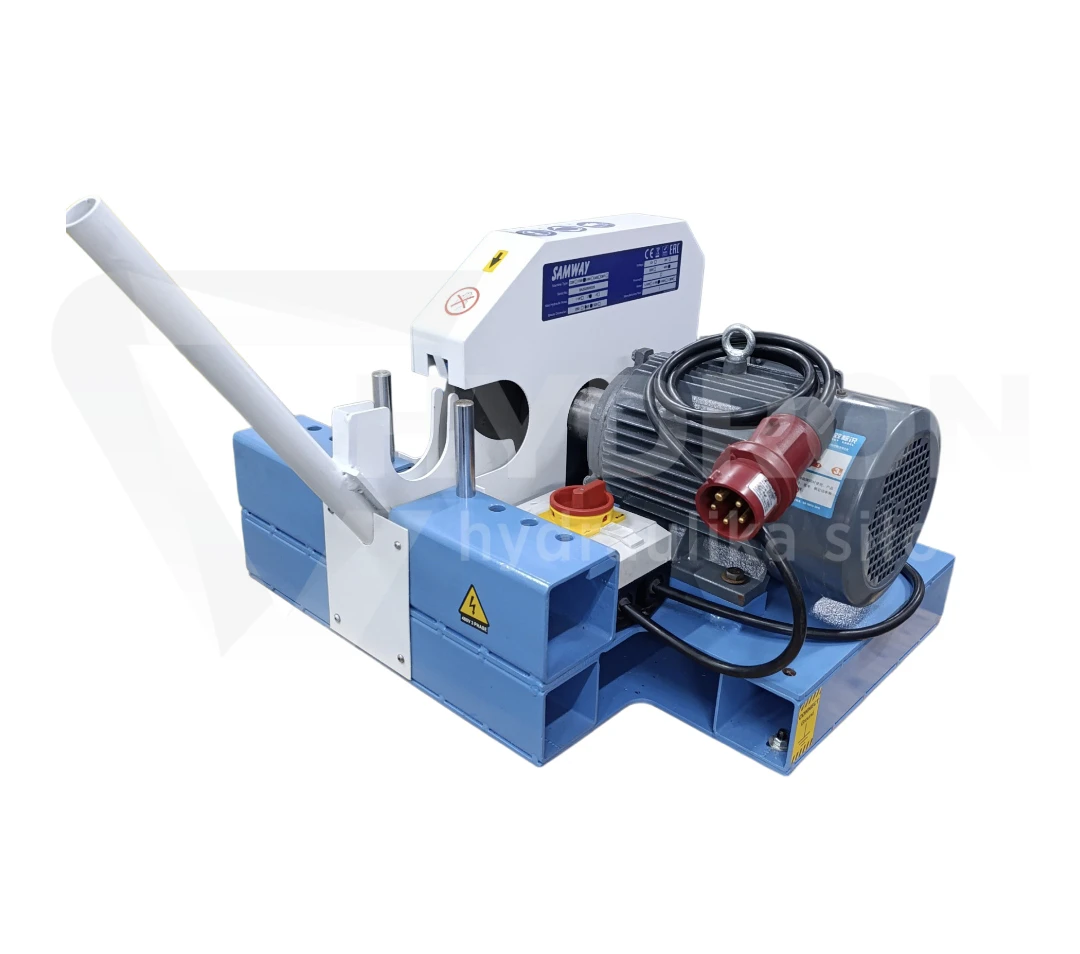

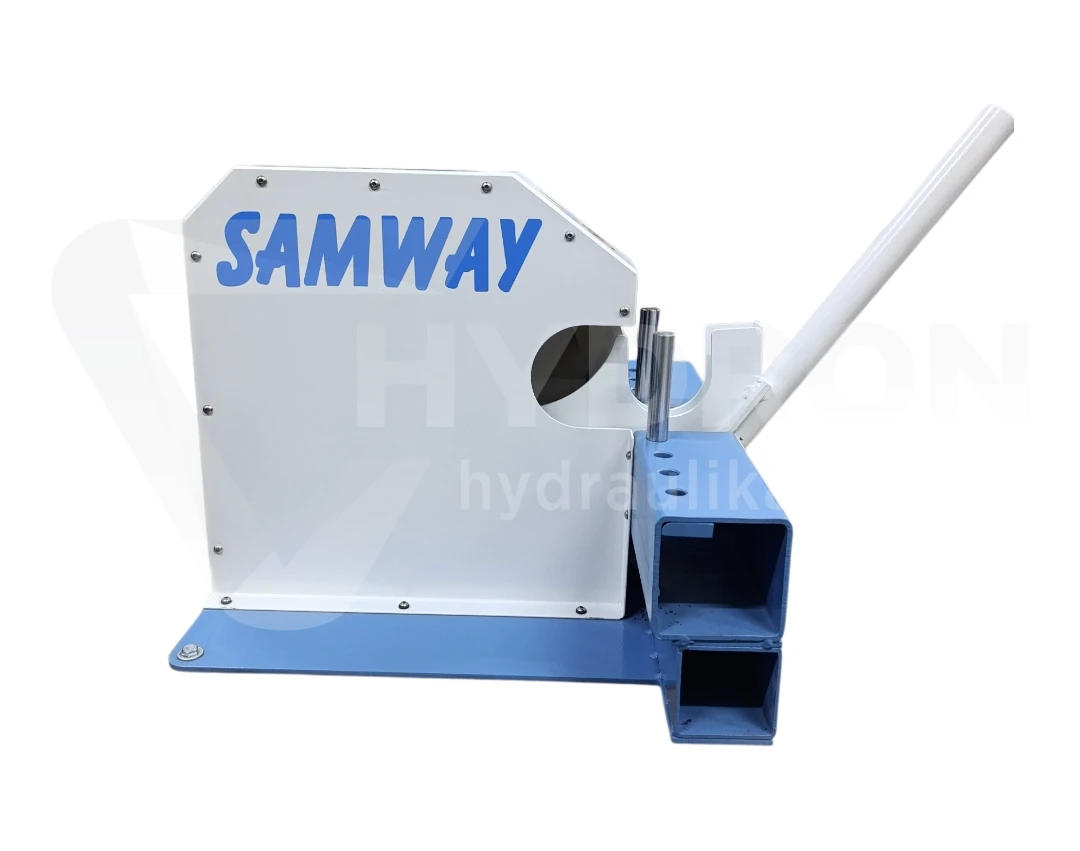

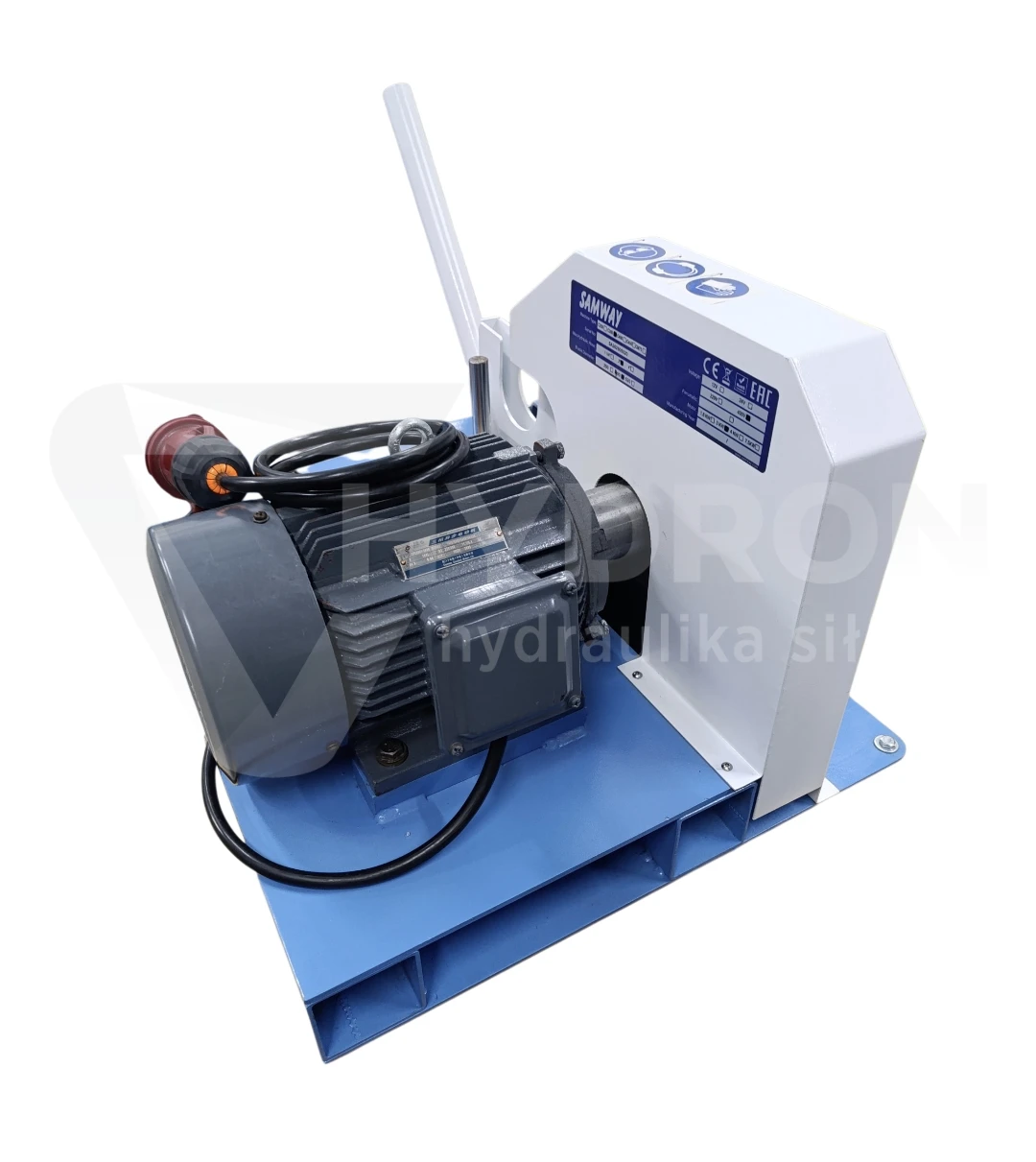

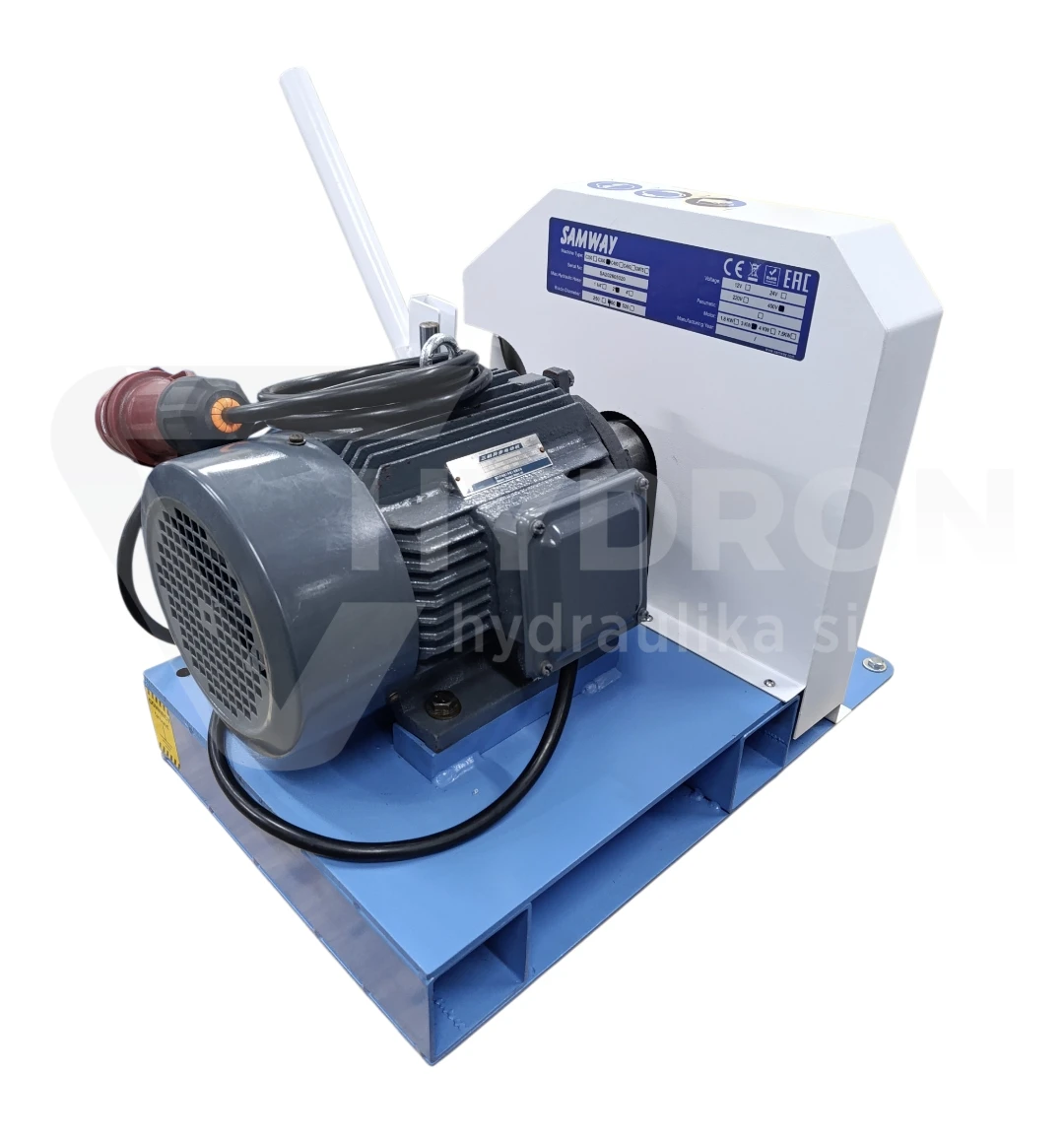

SAMWAY C300 hose cutting saw

The SAMWAY C300 saw is the most popular machine for cutting all types of hydraulic hoses. An essential device in every workshop where hydraulic hoses are crimped. The cutter allows for dust-free and fast cutting of all types of hoses. The device is equipped with a special opening (exhaust outlet) allowing for the connection of an extractor (ventilation to the extraction grid). The presented portable hydraulic hose cutting device is the optimal choice for small and medium crimping shops.

The cutter is suitable for both small and large workshops (it cuts DN50 1SN and 2SN hoses, 4SP-four-wire hoses up to DN32 diameter, i.e., 1 1/4"). Ready to work: standard 16A 5-pin plug. The machine includes a special cutting blade! Our offer also includes more powerful cutters designed for production companies and large service centers (with a better protection class). Together with the machine, we provide: manual in Polish, CE declaration of conformity, OHS workplace instructions. Choose proven solutions!

Technical parameters of the cutter:

• Cutter model: SAMWAY C300 / (alternatively TF2D/E)
• Maximum hose cut: 2″ (DN50) 4SP (from DN05 to DN50)
• Electric motor in the cutter: 3 kW
• Cutting blade used: standard 300 mm serrated
• Cutting blade dimensions: 400 mm x 30 mm x 3 mm
• Cutter color: gray
• Machine dimensions: 840 mm x 550 mm x 1150 mm
• Extraction channel: yes
• Cutter weight: 55 kg

Proven, original cutting saws

We offer only original hydraulic hose cutting devices. We have all spare parts for our machines (smooth or serrated cutting blades). Importantly, the blades used in our cutters are standard blades used worldwide. Recently, counterfeit machines (cheaper equivalents) have appeared on the market, using non-standard (and thus difficult to obtain and very expensive) blades! Apparent savings can end in a headache. It's worth remembering this when choosing a cutter!

What does hose cutting on the cutter look like?

Place the hose you want to cut perpendicular to the cutting blade, then set the width of the supports (depending on the size of the hose, the supports are placed closer or further away). The supports help when cutting hoses – they position the hose at an angle, so the blade does not overheat, and the cut is very fast and simple. After positioning the hose, turn on the cutter and press the arm with the lever towards the cutting blade.

Types of hoses that can be cut on the C300 model

The C300 cutter is a universal tool for cutting all types of hoses, allowing for precise and safe cutting of all hose types, including:

• 1SN and 2SN hydraulic hoses – standard hoses with one or two steel braids, used in most hydraulic systems.
• 4SP and 4SH hoses – high-pressure hoses with four steel braids, used in the most demanding applications.
• Thermoplastic and PTFE hoses – hoses for specialized applications, characterized by high resistance to chemicals and temperature.

Thanks to the use of modern serrated blades, the cutter ensures a clean and precise cut without the risk of damaging the protective layers or steel braids. The device is equipped with an efficient motor that allows cutting even the hardest large-diameter hoses.

Key features of the cutter:

• Versatility: ability to cut all types of hydraulic hoses.
• Precision: accurate cutting thanks to modern design and high-quality blades.
• Efficiency: adaptation for working with hoses of various diameters, from small lines to large-size hoses.
• Safety: stable construction and guards protecting the user during operation.

The cutter will perform well in both power hydraulics workshops and production plants where speed and accuracy of cutting are required. By investing in this tool, you gain reliability, high quality of work, and the ability to adapt the device to any type of hydraulic hose.
