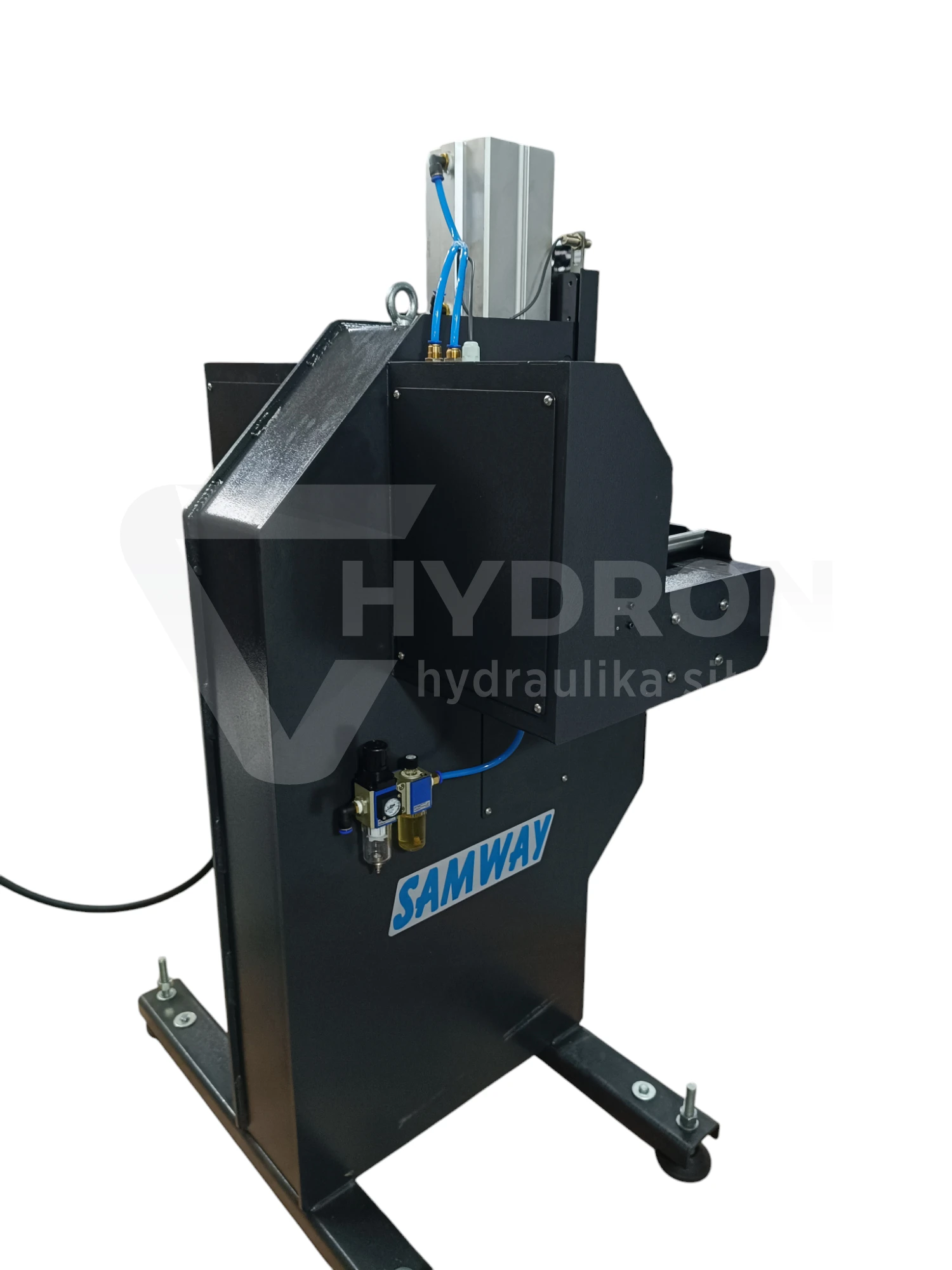

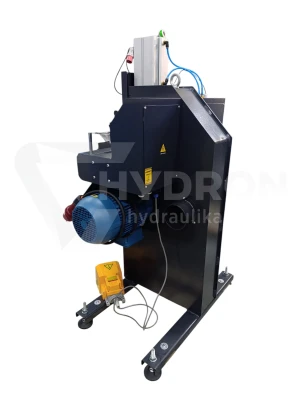

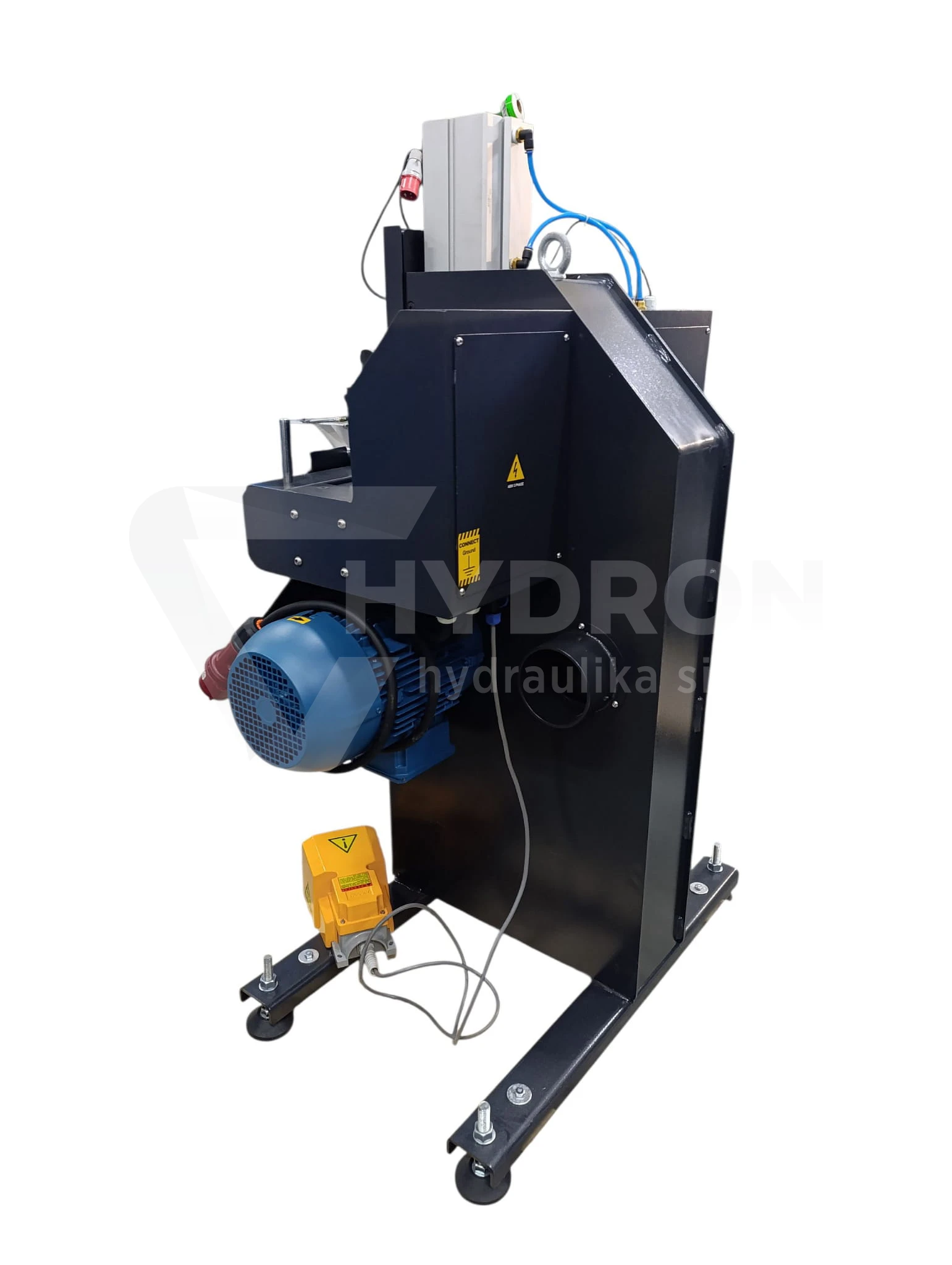

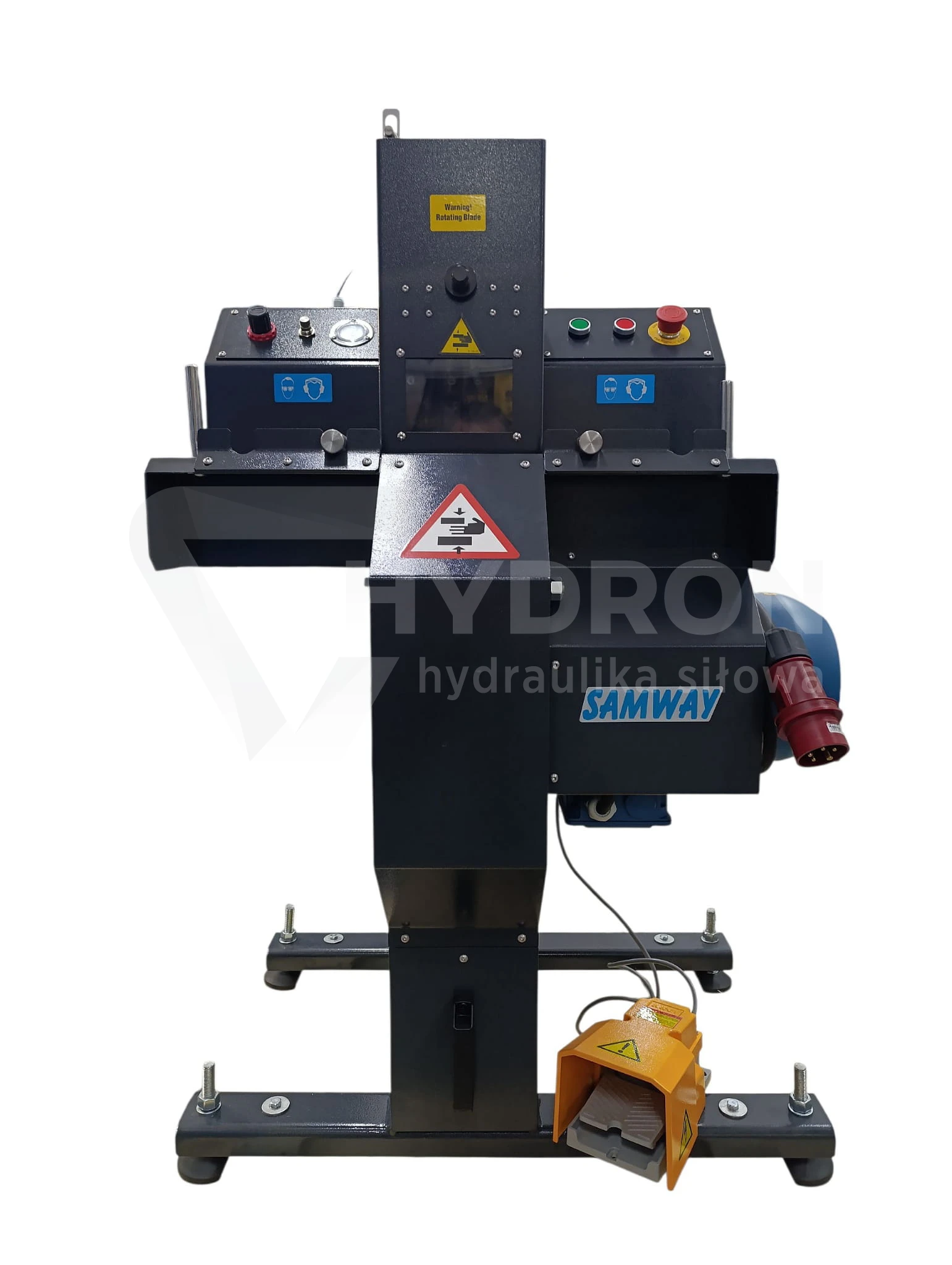

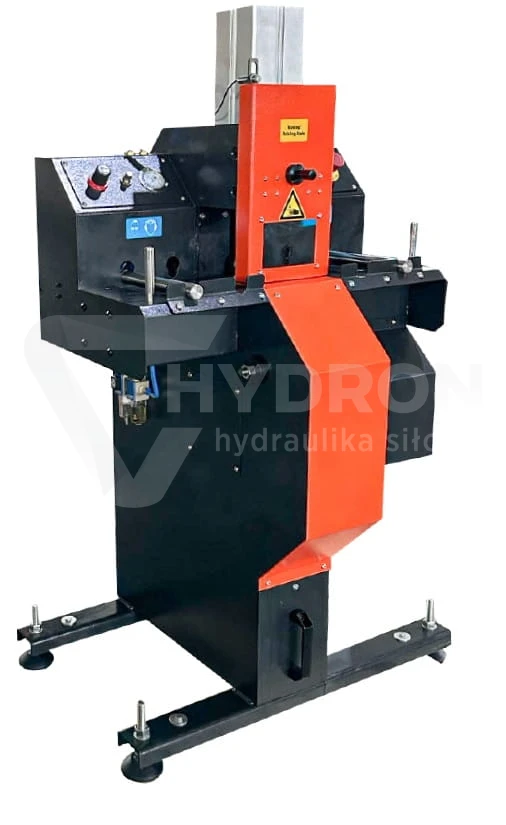

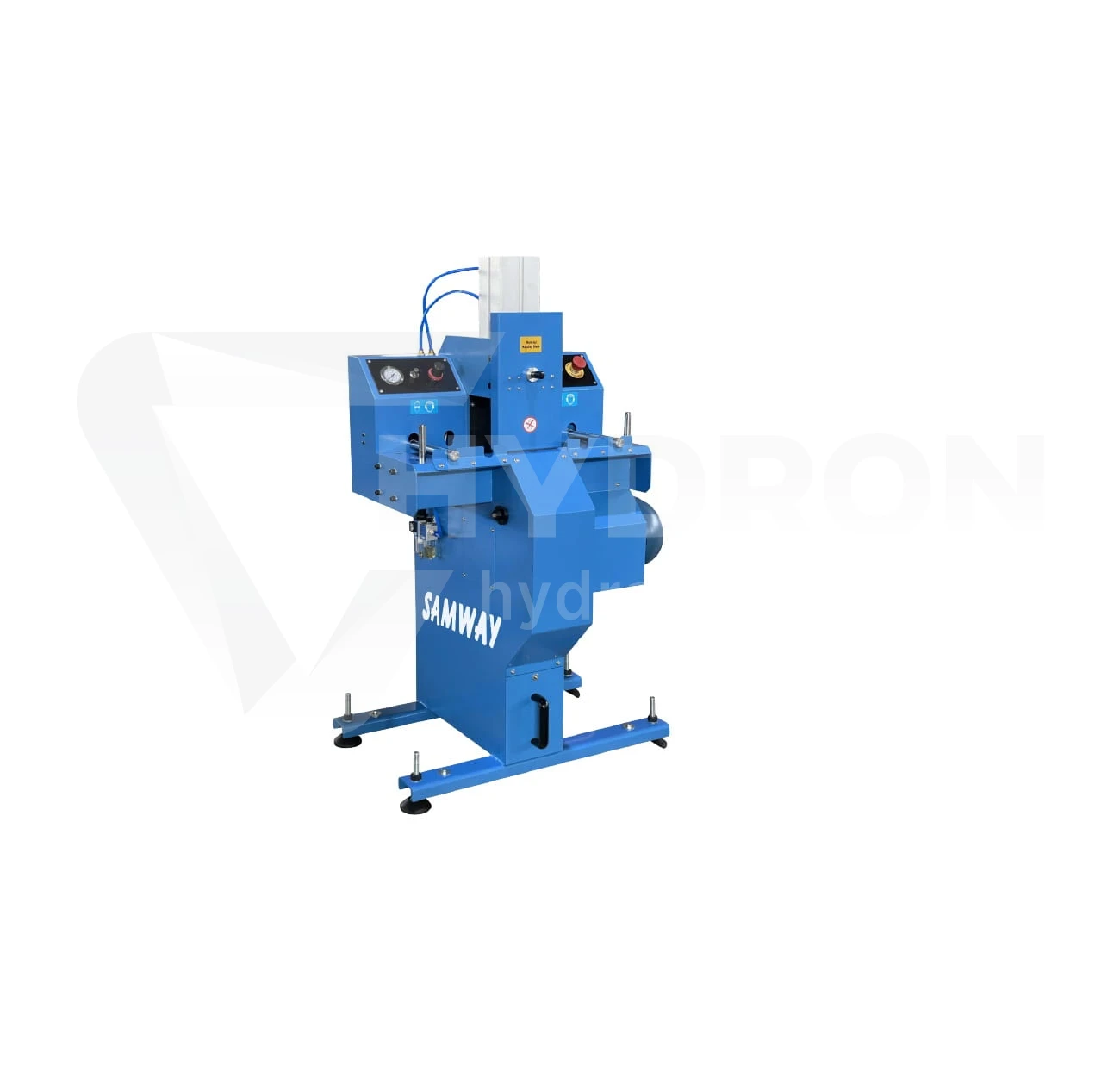

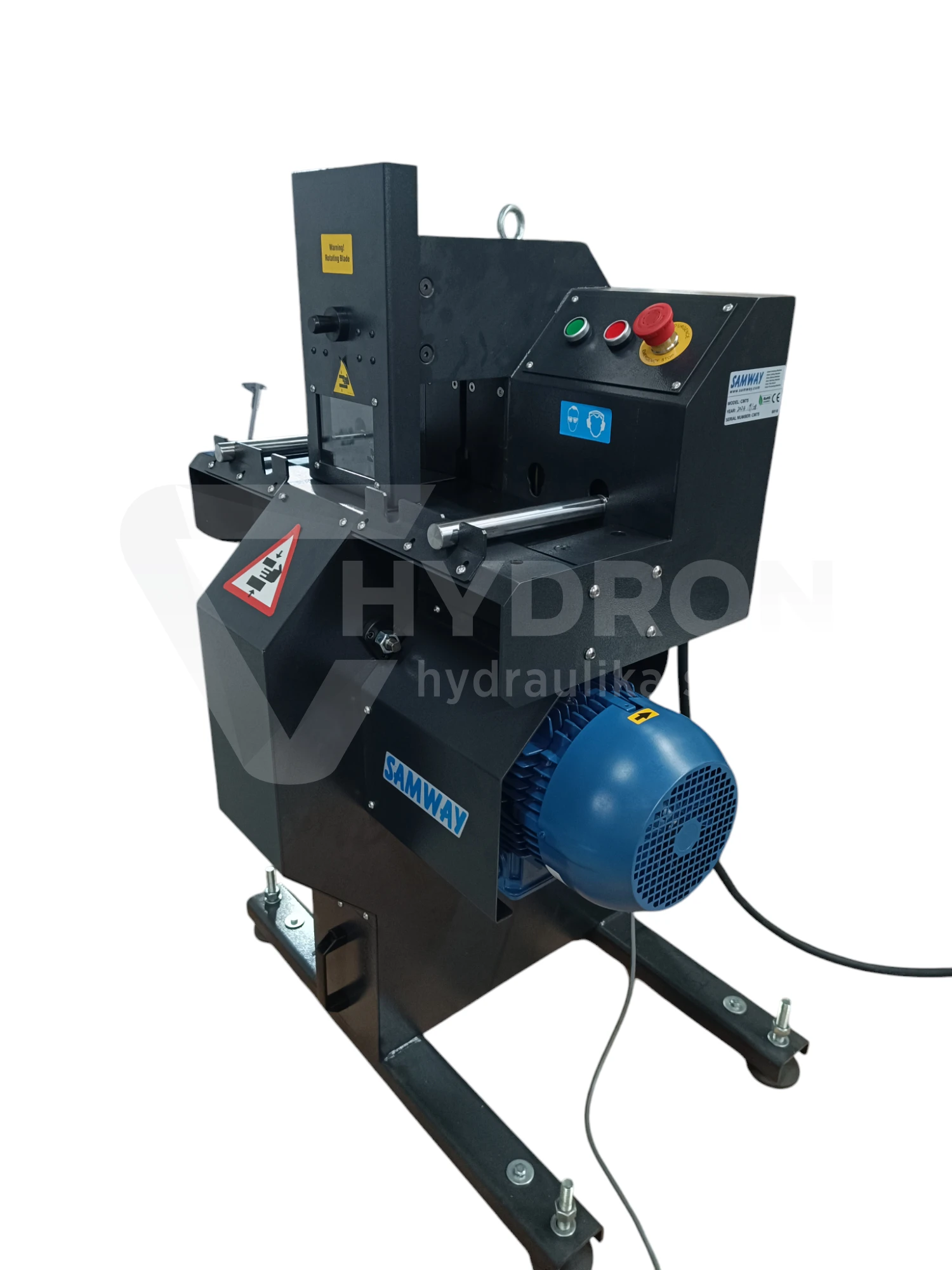

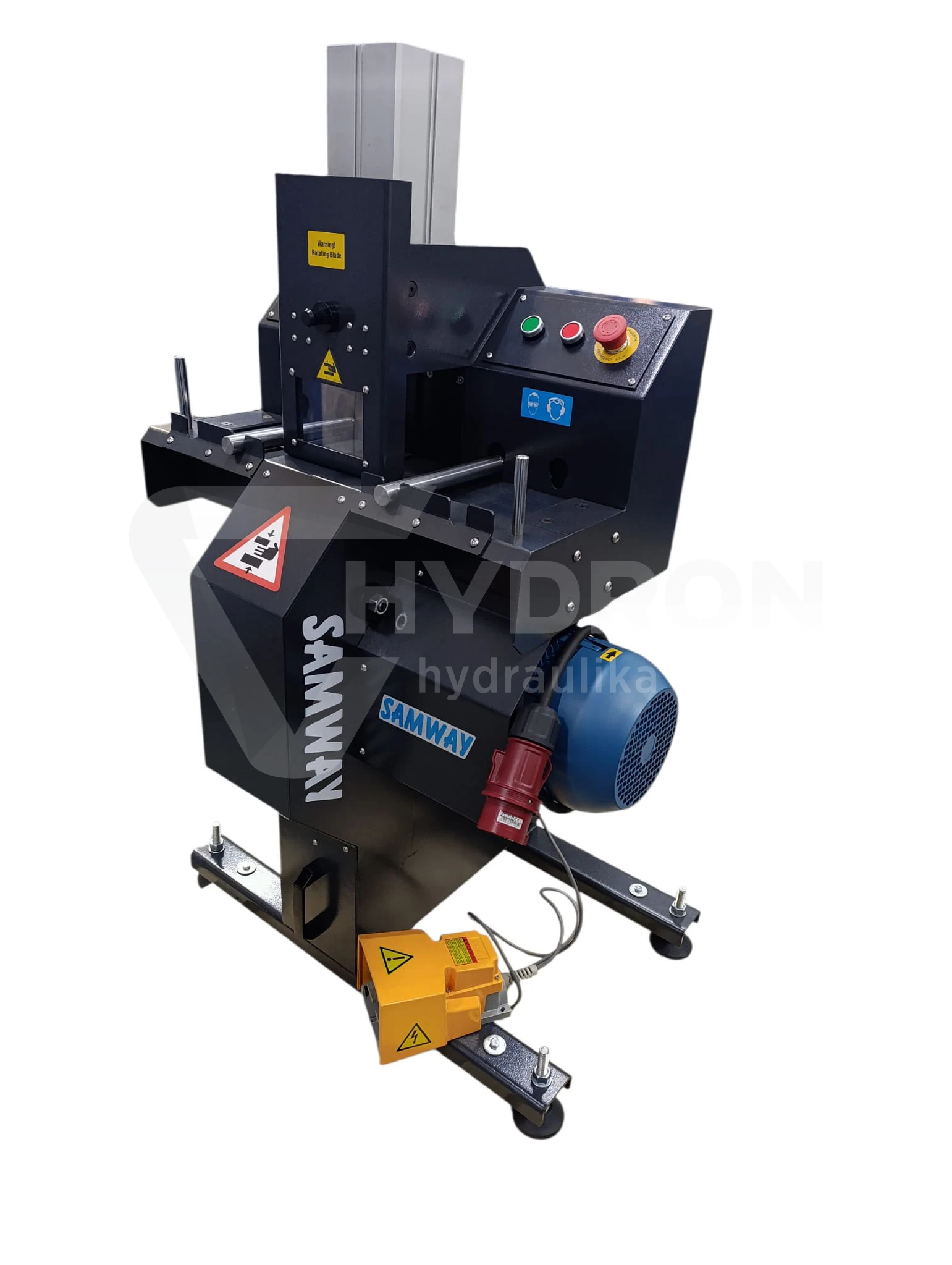

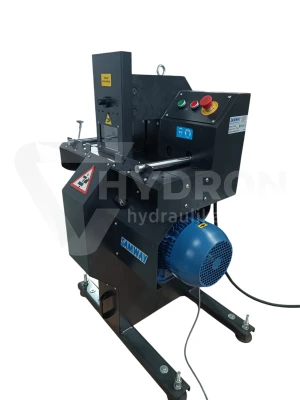

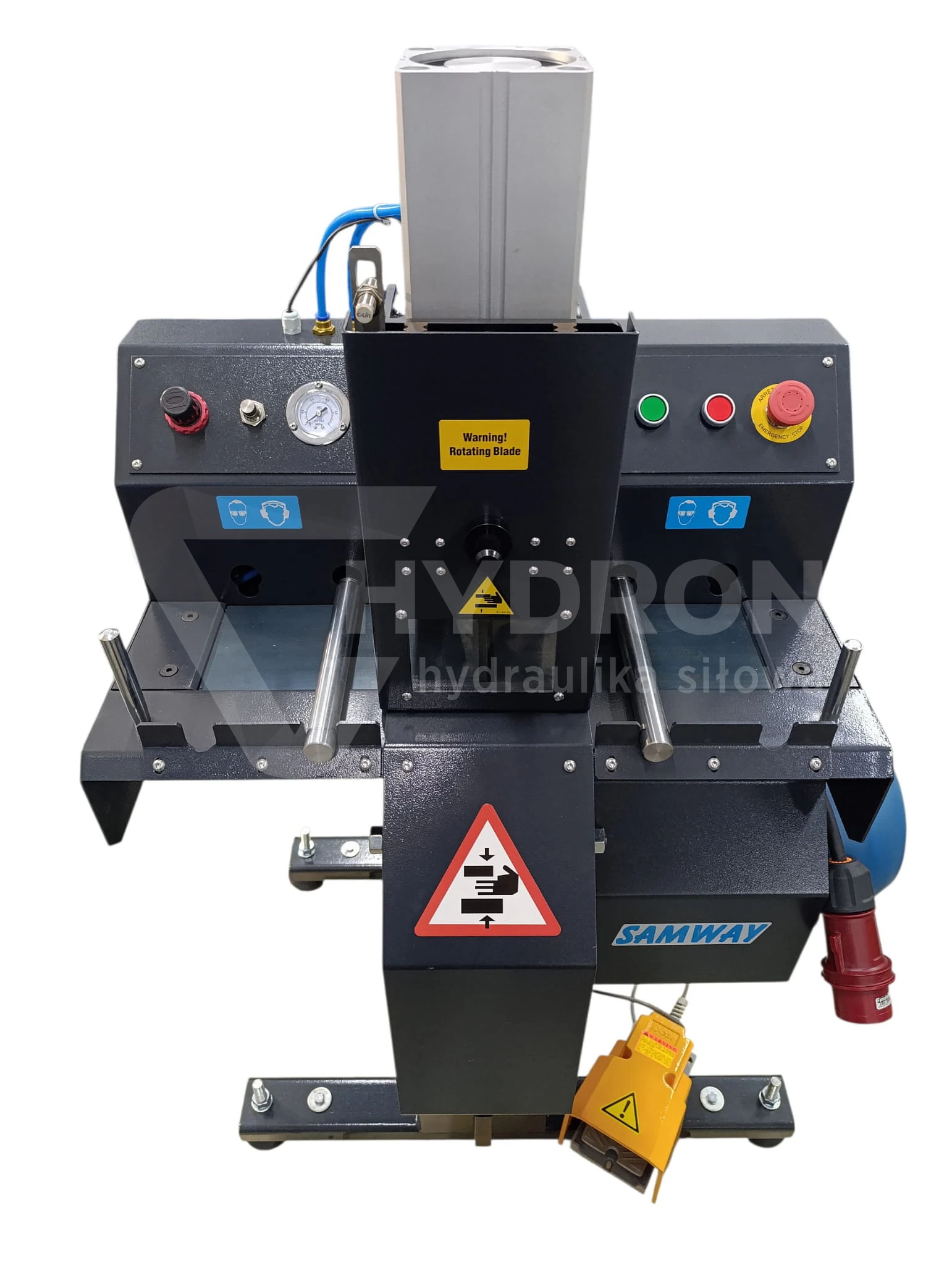

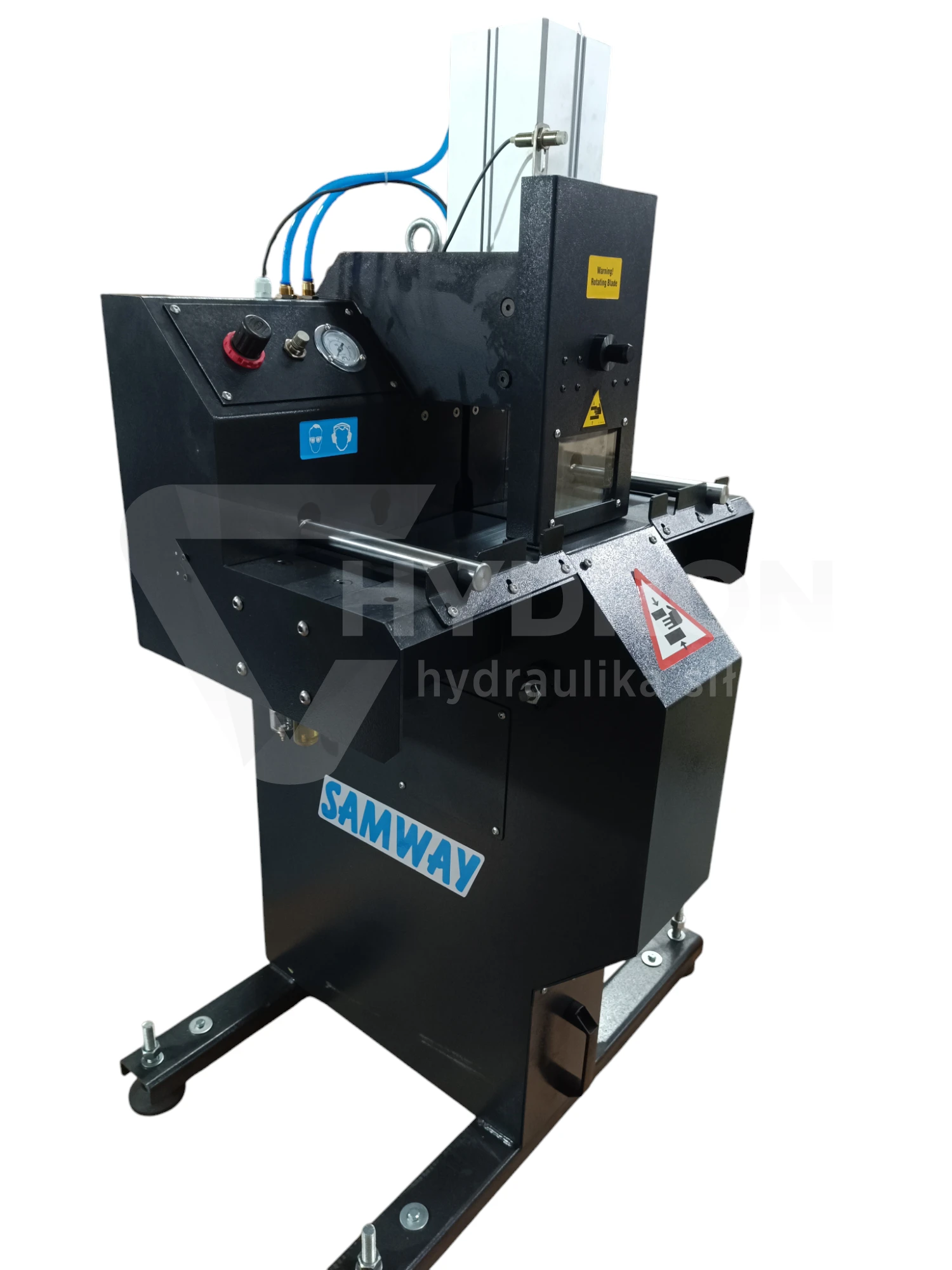

SAMWAY CM75 hydraulic hose cutting machine – 7.5 kW

SAMWAY CM75 is an industrial cutting machine for hydraulic and industrial hoses, designed for cutting large diameter hoses with multi-layer reinforcement. It enables cutting hydraulic hoses up to 2" (DN50), including eight-layer reinforcement constructions, and industrial hoses up to 4". The machine is equipped with a 7.5 kW (10 HP) motor, a 520 mm diameter cutting blade, and a pneumatic feed mechanism. Adjustable cutting speed allows the device's operation to be adapted to the type of hose being processed. Foot pedal control and an adjustable hose support facilitate operation during hose preparation for further processing.

Application and technical characteristics

The SAMWAY CM75 cutting machine is used in preparing sections of hydraulic and industrial hoses. The maximum external diameter of the processed hose is 71 mm. The device allows cutting hydraulic hoses with a nominal diameter up to DN50, including versions with eight reinforcement layers, and industrial hoses up to 4".

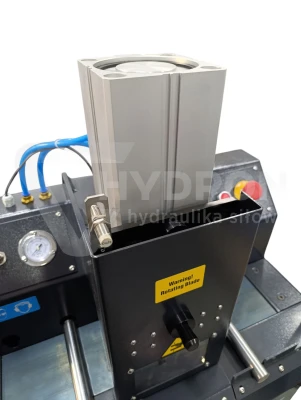

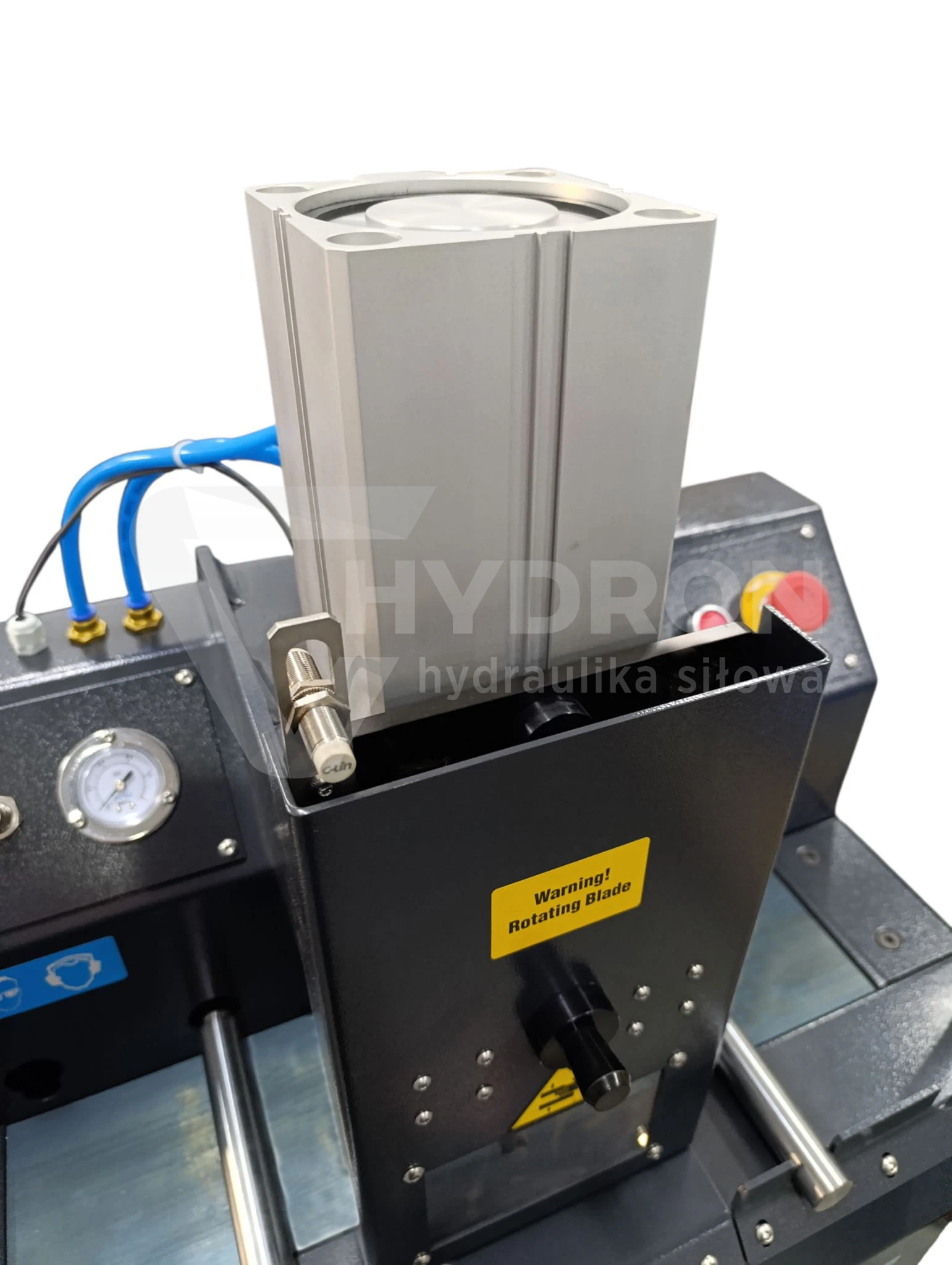

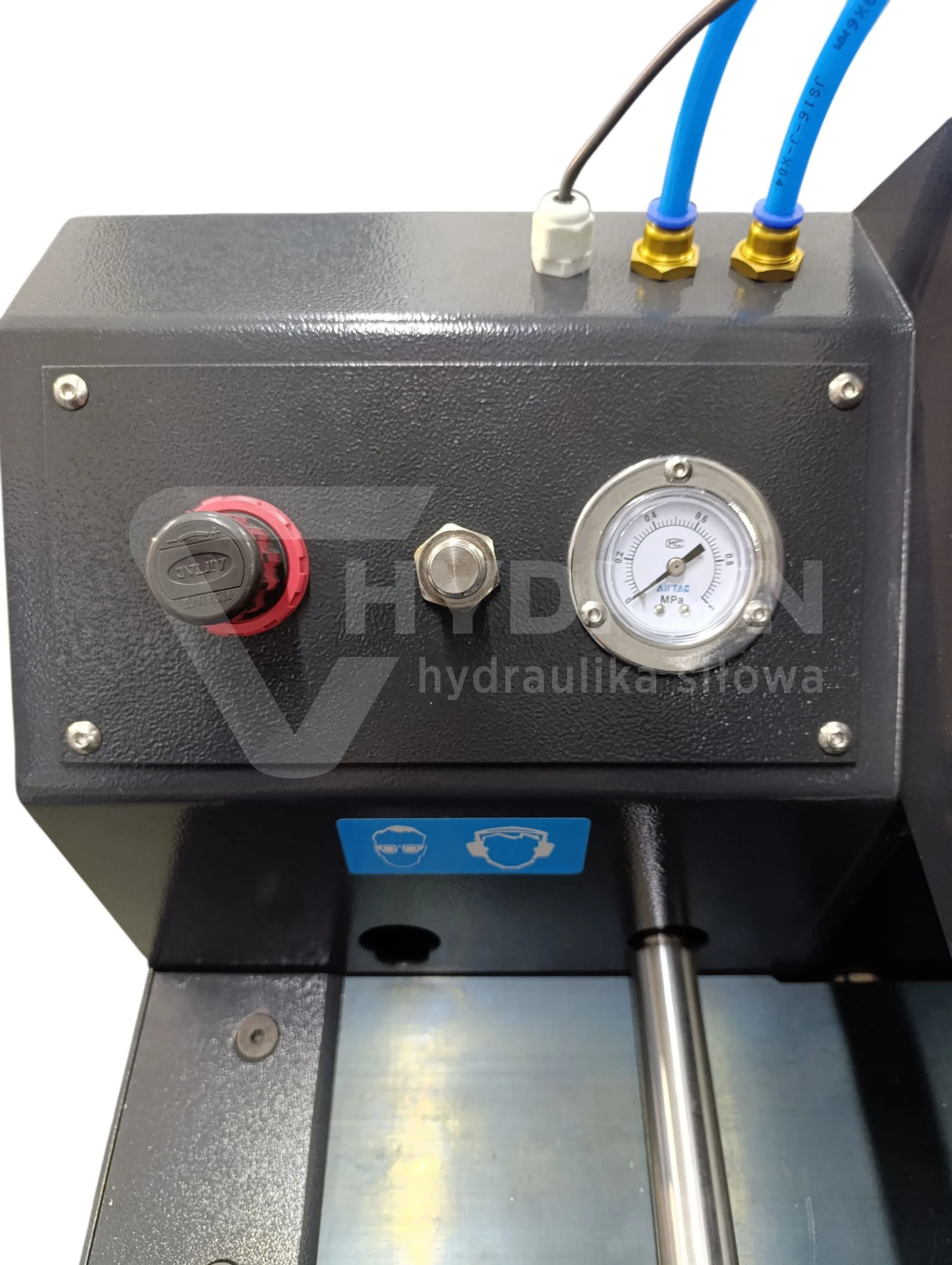

The cutting process is carried out using a 520 × 4 mm blade with a 38 mm mounting hole. The hose is moved towards the blade by a pneumatic feed mechanism. Adjusting the pusher movement speed allows the cutting process to be adapted to the hose's properties. For thicker hoses, a lower feed speed can be used, reducing the risk of blade overheating.

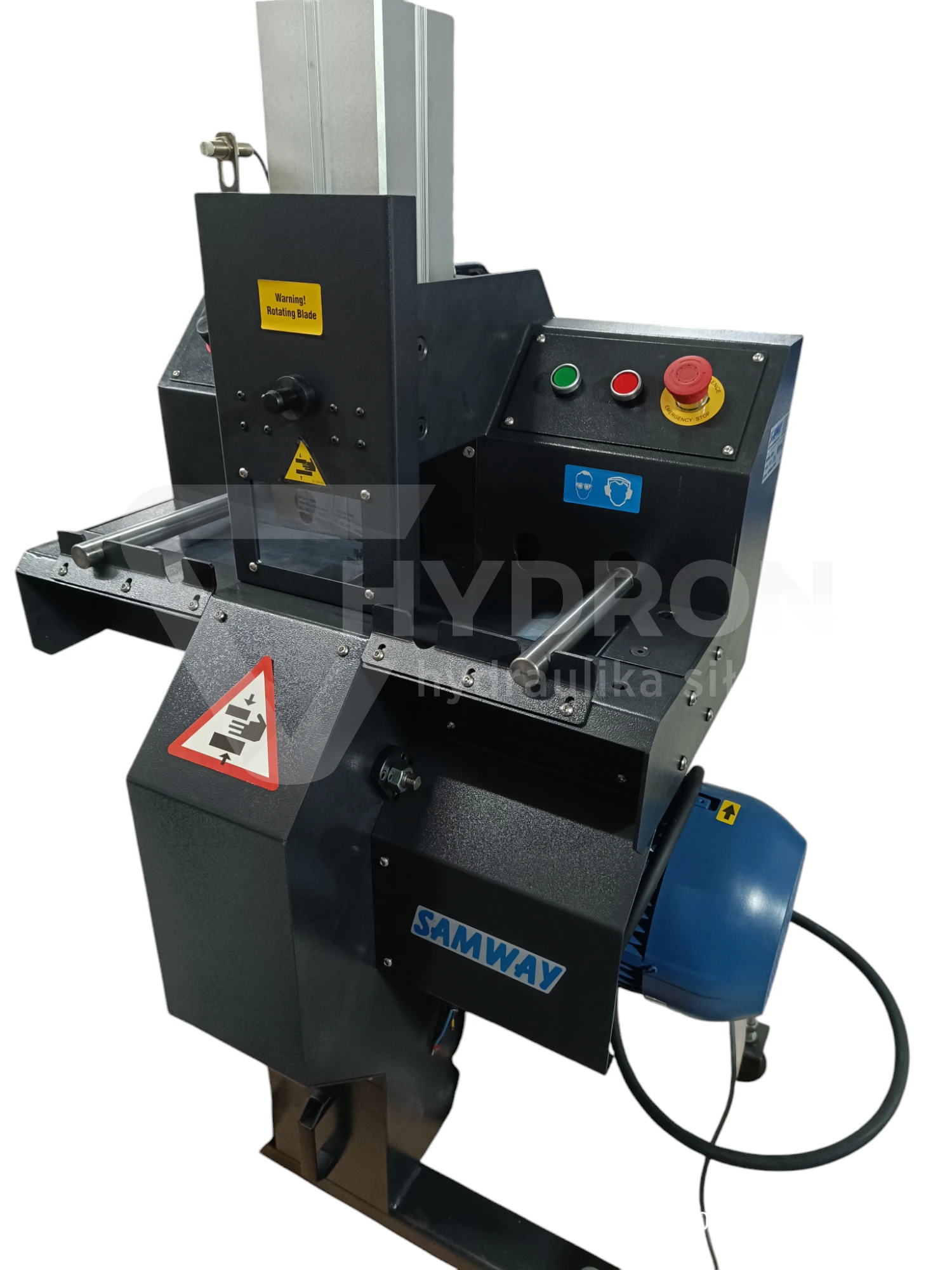

The 7.5 kW (10 HP) motor is powered by 400 V from a three-phase installation. The rotational speed specified in the technical sheet is 2840 rpm at both 50 Hz and 60 Hz. The machine features a cutting blade guard and a container for collecting cutting residues.

Standard and optional equipment

The CM75 cutting machine features solutions for regulating the cutting process and operating the pneumatic hose feeding mechanism.

Standard equipment:

• Serrated cutting blade with a diameter of 520 mm.

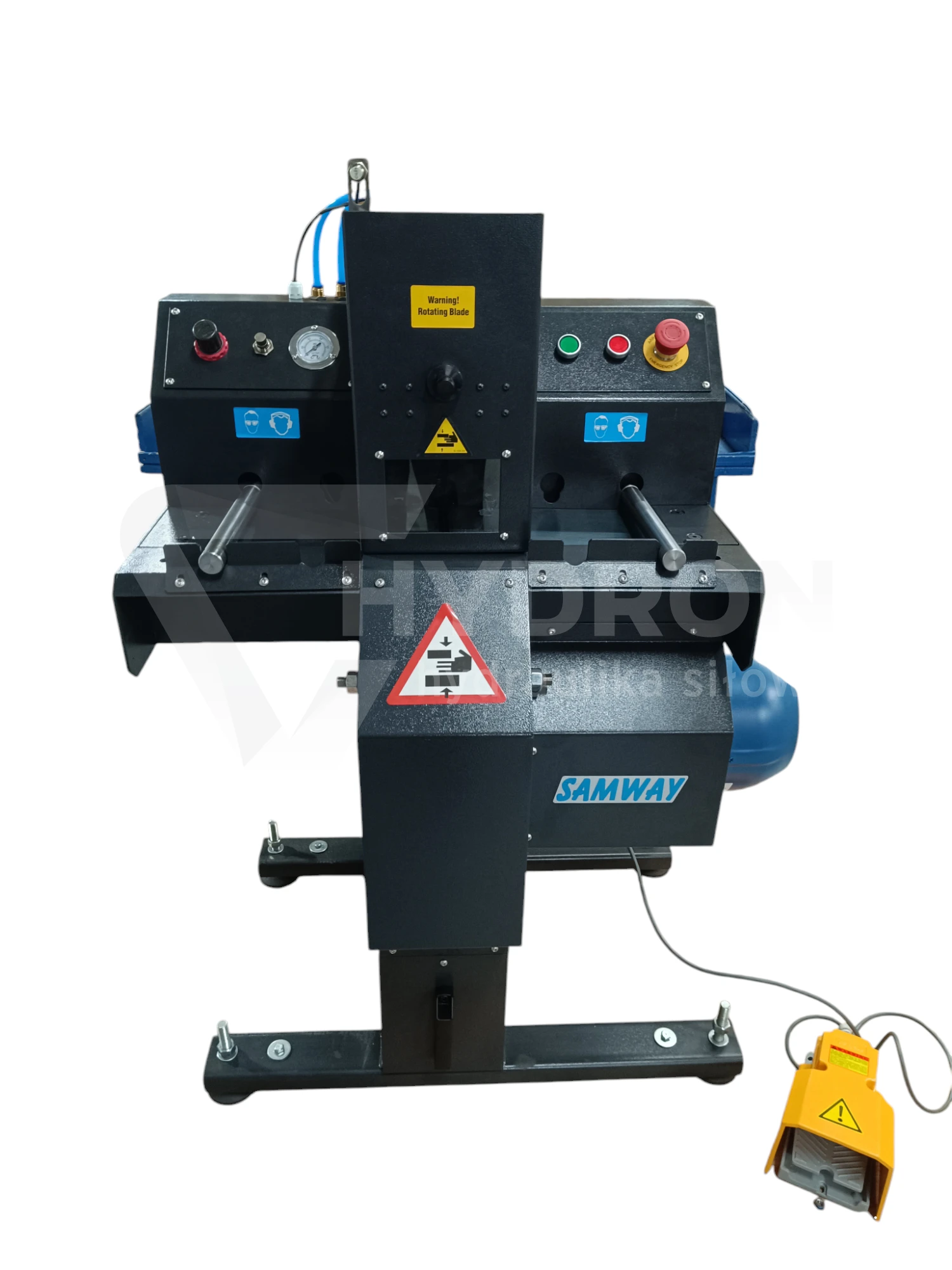

• Foot pedal for cutting process control.
• Pneumatic pusher with adjustable feed speed.
• Adjustable hose support.

Optional equipment and variants:

• Measuring device and measuring table available in versions for right- and left-handed operators.
• Fume extraction system for smoke generated during cutting.
• Three-phase power variants: 230 V, 440 V, and 480 V.

Why choose our components?

• Capability to cut hydraulic hoses up to 2" (DN50) with eight reinforcement layers.
• Support for industrial hoses up to 4".
• 7.5 kW motor and 520 mm diameter cutting blade.
• Adjustable pneumatic hose feed speed.
• Foot pedal control and adjustable hose support.
• Possibility to expand the workstation with a measuring device and fume extraction.

Technical specification

Frequently Asked Questions (FAQ)

What hoses can be cut with the SAMWAY CM75 cutting machine?

The CM75 model allows cutting hydraulic hoses up to 2" (DN50), including those with eight reinforcement layers, and industrial hoses up to 4". The maximum external hose diameter specified in the technical sheet is 71 mm. Before starting work, check the compatibility of the hose dimensions with the device's capabilities.

Does the CM75 cutting machine have automatic hose feed?

Yes. The machine uses a pneumatic mechanism to move the hose towards the cutting blade. The pusher speed can be adjusted, adapting the cutting process to the processed hose. The process is initiated using a foot pedal.

What cutting blade does the SAMWAY CM75 cutting machine use?

The cutting machine uses a blade with an external diameter of 520 mm, a thickness of 4 mm, and a 38 mm mounting hole. According to the technical sheet, a serrated blade is standard equipment.

What is the power supply and motor power of the SAMWAY CM75?

The standard version of the cutting machine is equipped with a 7.5 kW (10 HP) motor, powered by 400 V from a three-phase network. The technical sheet also mentions optional power variants: 230 V, 440 V, and 480 V, 3-phase.
