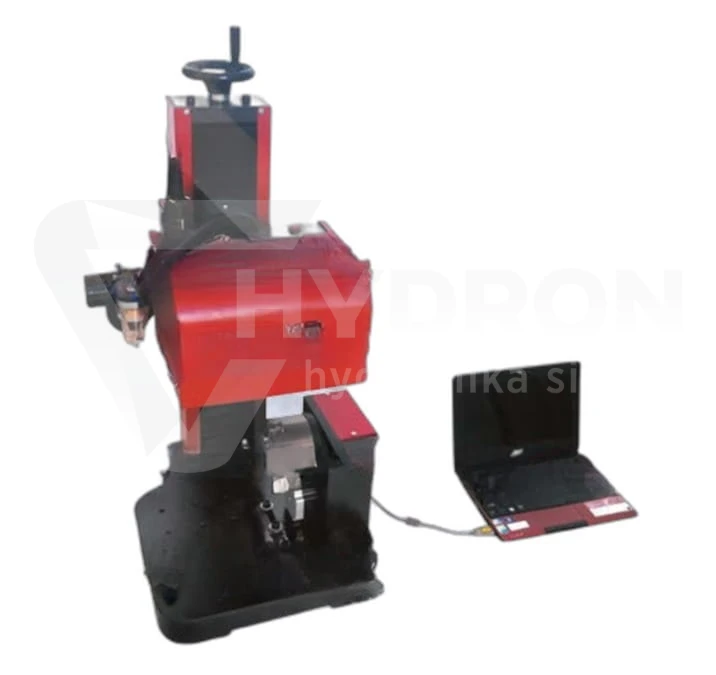

Marking machine SAMWAY M100

Professional marking machine for crimping sleeves. The marking machine is equipped with a laptop on which you can set text or graphics. The marking machine allows setting any language or character. Very fast flat and cylindrical engraving. The marking machine is useful for marking on sleeves - marking of hydraulic hoses, e.g., batch date, hose symbol, production date, etc.

Technical parameters of the marking machine

• Model : SAMWAY M100 MARKING MACHINE
• Marking type : Flat and cylindrical
• Marking area : 150*150 (mm)
• Marking speed : 100 characters per minute (depending on size)
• Marking type : Any form or language and graphics
• Machine size : 300*350*450mm
• Machine weight : 35 KG
• Computer : Included
• Voltage : Single-phase 230V or 110 V, 50/60 Hz ( optional )

Dot peen marking machine, element identification is no longer a problem

A dot peen marking machine is a solution for companies that lose time and money due to the lack of permanent marking of details, hoses or components, especially in power hydraulics and mass production. If elements are unlabeled or markings wear off, assembly errors, complaints, and downtime occur. Model SAMWAY M100 solves this problem in a durable and repeatable way.

What happens in practice without permanent marking

Lack of markings means chaos in the warehouse and on the production floor. Operators must manually identify parts, which increases working time. In hydraulics, the marking of a hose or fitting often determines the correct connection of the system. An error means a leak, pressure drop, or even machine damage. A dot peen marking machine eliminates this problem because it creates permanent marking through micro-impact. It's not a print - it's physical material deformation. Thanks to this, the marking does not disappear even when working in oil, high temperature, or in an abrasive environment.

Where SAMWAY M100 gives the greatest effect

In practice, a dot peen marking machine works everywhere where identification and repeatability matter. In crimping hydraulic hoses you can mark batch numbers, diameters, or fitting types, which later facilitates servicing. If you work with hoses, it's worth combining marking with production immediately, e.g., using hydraulic hoses, where the marking allows you to quickly match the element to the system. In mass production, a marking machine reduces identification time by up to several dozen percent.

Compatibility and real work possibilities

The SAMWAY M100 model works with a laptop, which gives great flexibility-you can create markings directly from files or production systems. This is important when working with serial numbering or codes. Technically, the pin pressure and impact frequency are important. These determine the marking depth. Too shallow a marking will quickly wear off, too deep may weaken thin elements. Therefore, the selection of parameters matters, especially for thin-walled components such as connectors or sleeves. If you mark installation elements, you often simultaneously need assembly components such as hydraulic fittings, which are also worth marking for quality control and identification.

Common mistakes when choosing a marking machine

The most common mistake is underestimating production needs. Users choose devices with too low power or limited working area. As a result, marking is slow or illegible. The second problem is the lack of integration with the production process. The marking machine should be part of a system, not an addition. If you work with hoses, it is worth combining it with the protection process, e.g., using hydraulic hose guards, which protect markings from mechanical damage. The third mistake is the lack of marking standardization. Without an established scheme, marking loses its meaning and does not improve work organization.

The effect of a well-implemented marking

After implementing a dot peen marking machine, the production and service process becomes predictable. Elements are legible, identification is fast, and the risk of errors is minimal. Hoses end up in the right places, components are easy to track, and complaints decrease. This translates into stable system operation, lower component wear, and no downtime resulting from mistakes. If you are interested in this topic more broadly, contact our specialists from HYDRON
