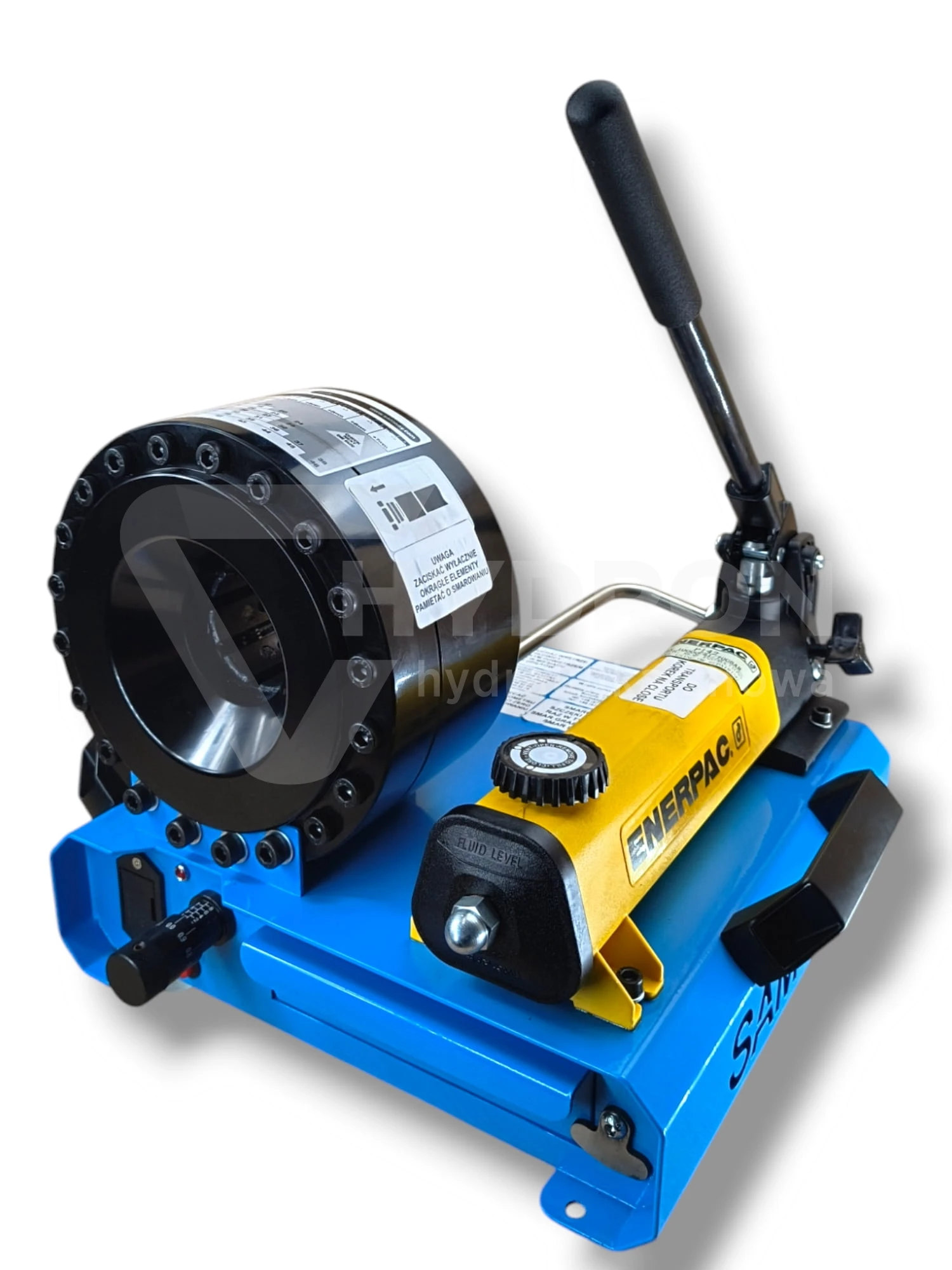

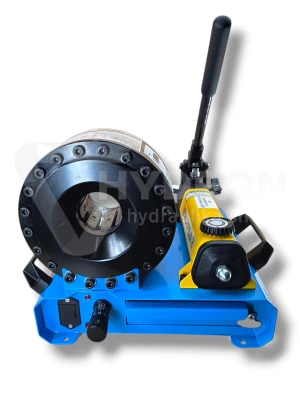

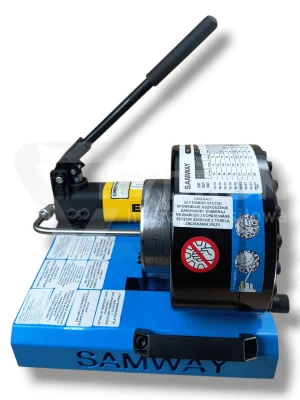

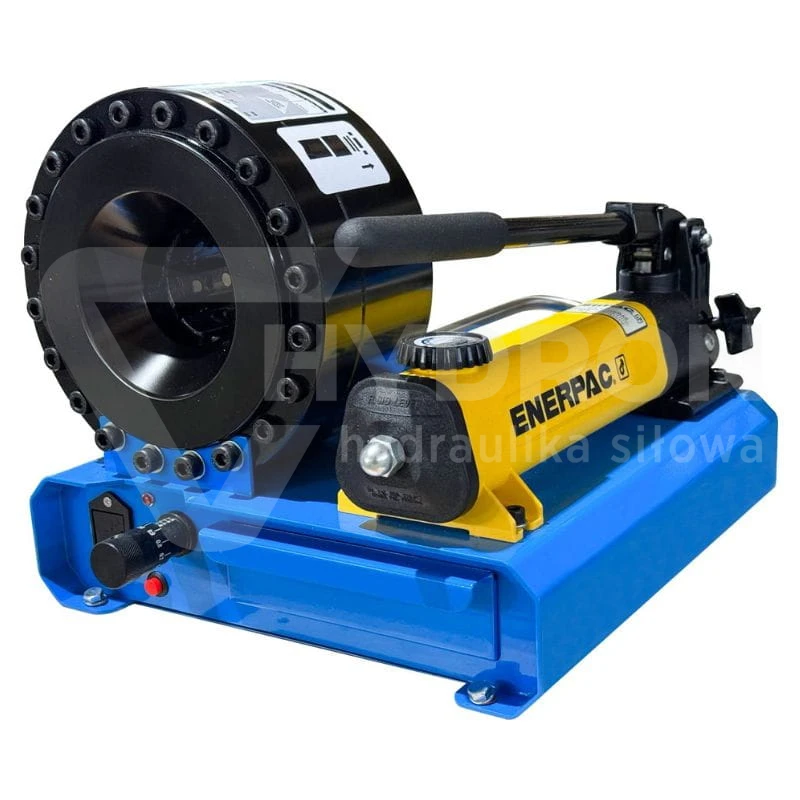

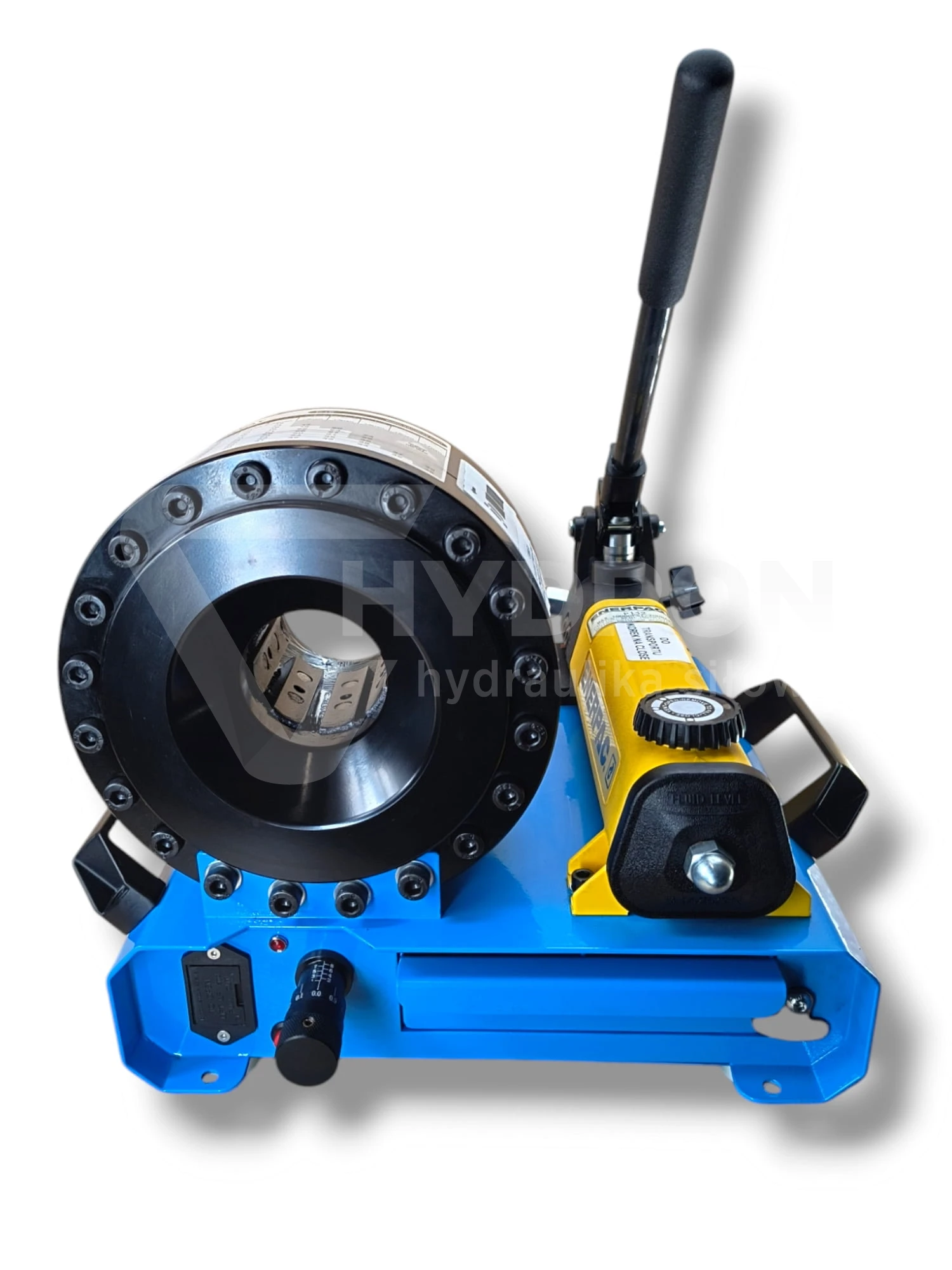

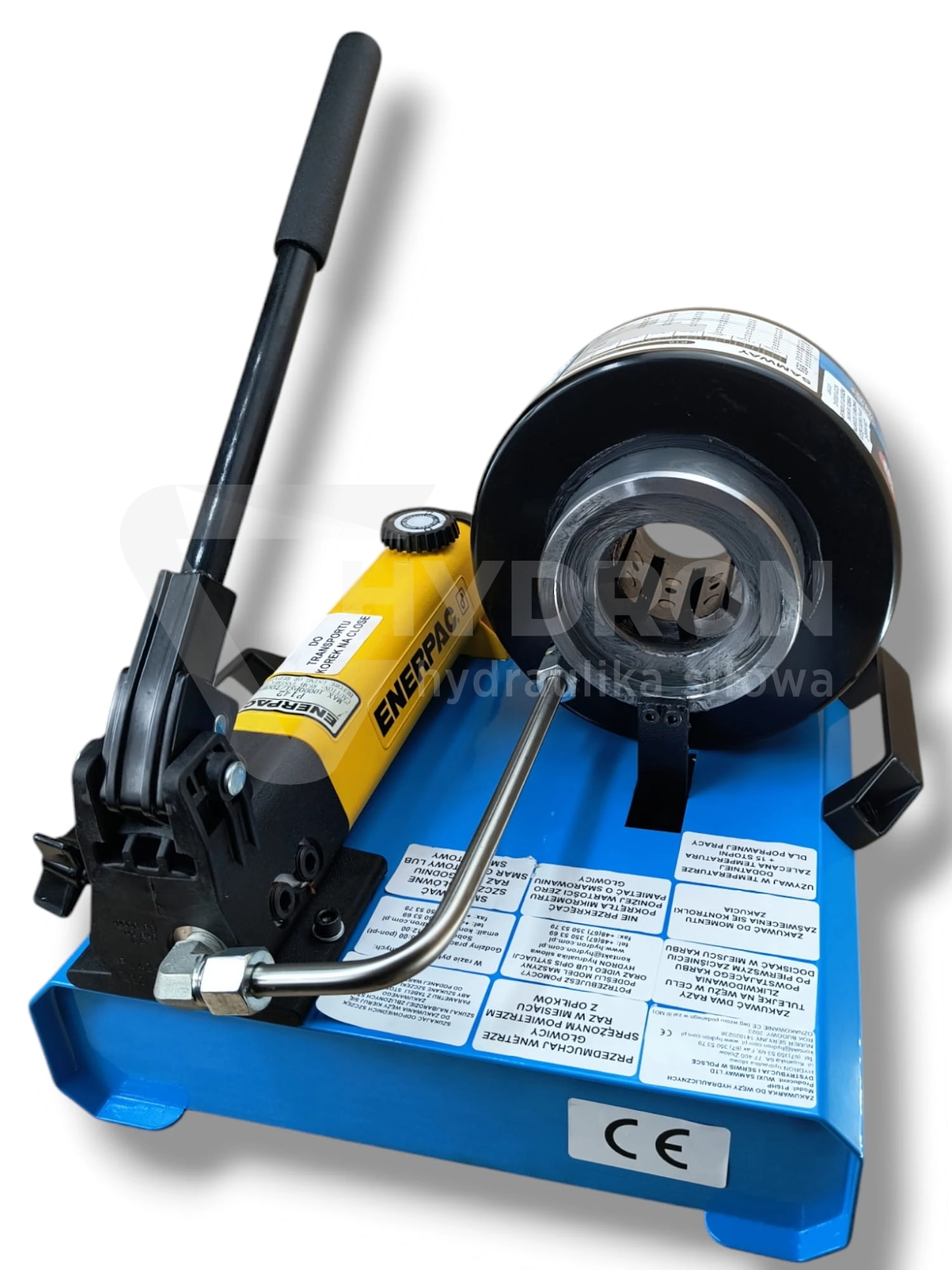

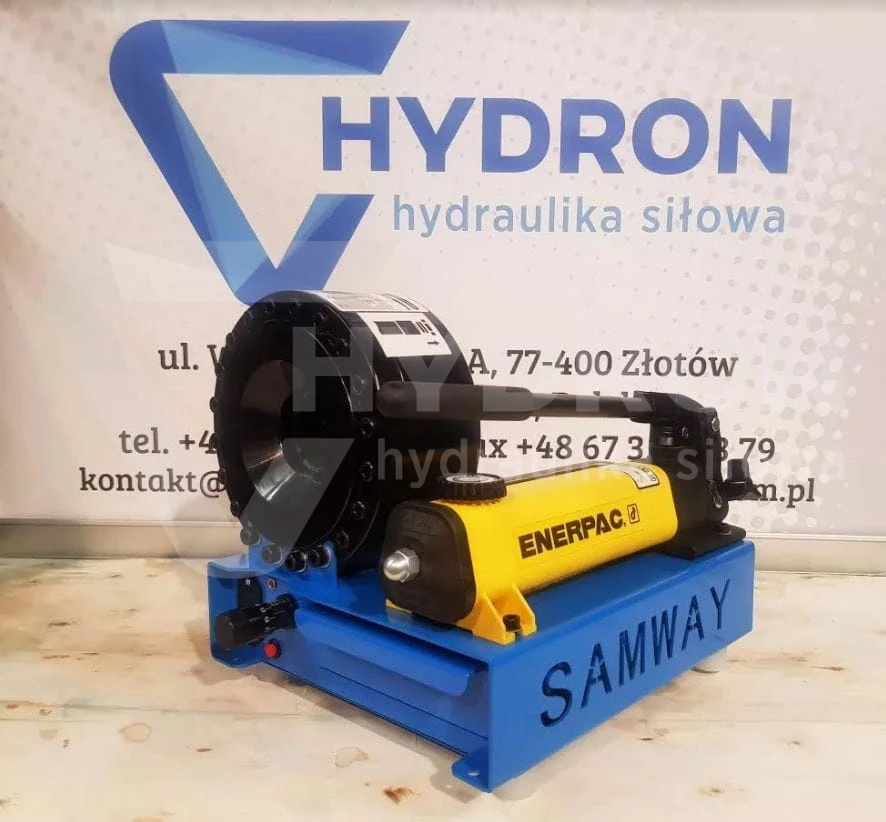

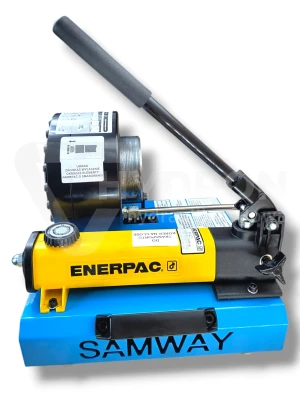

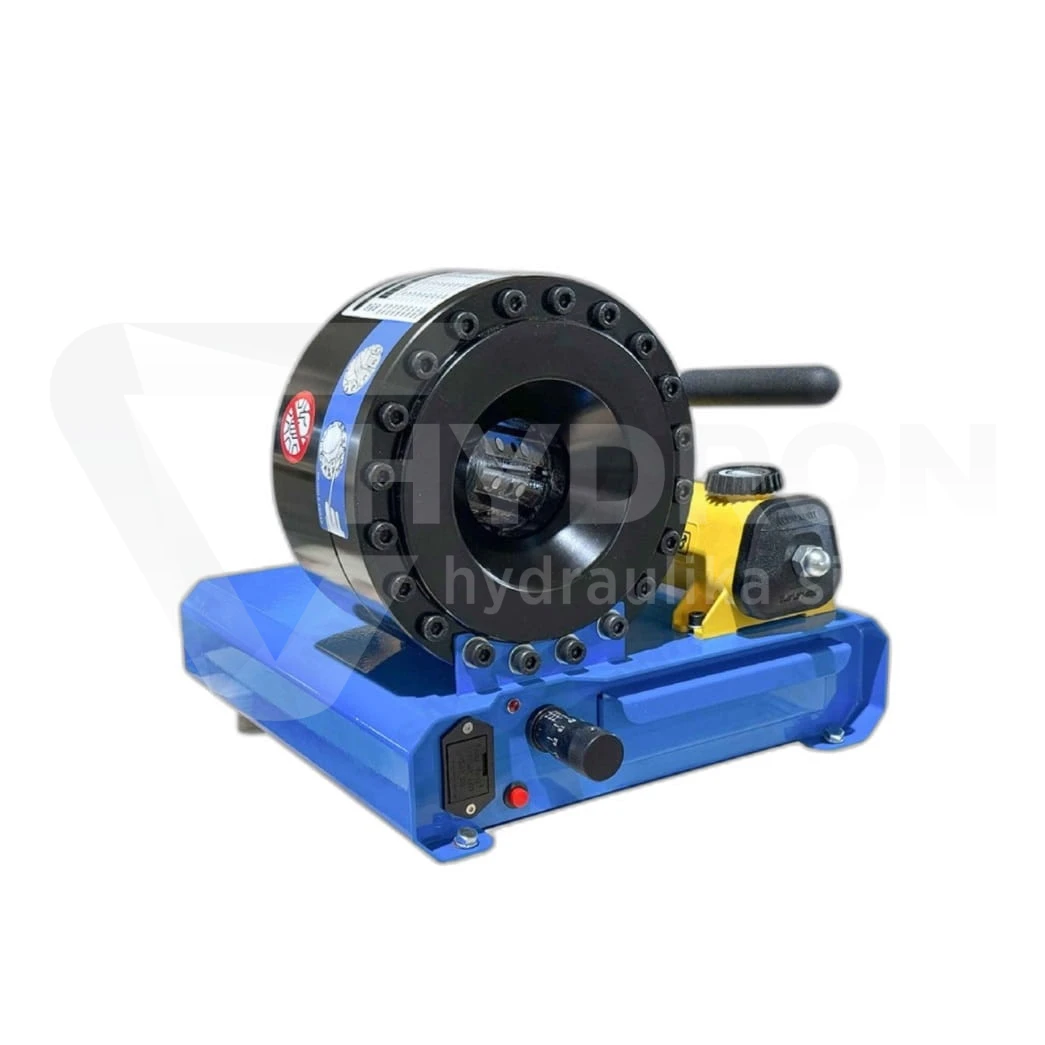

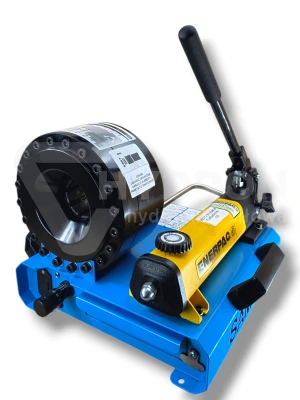

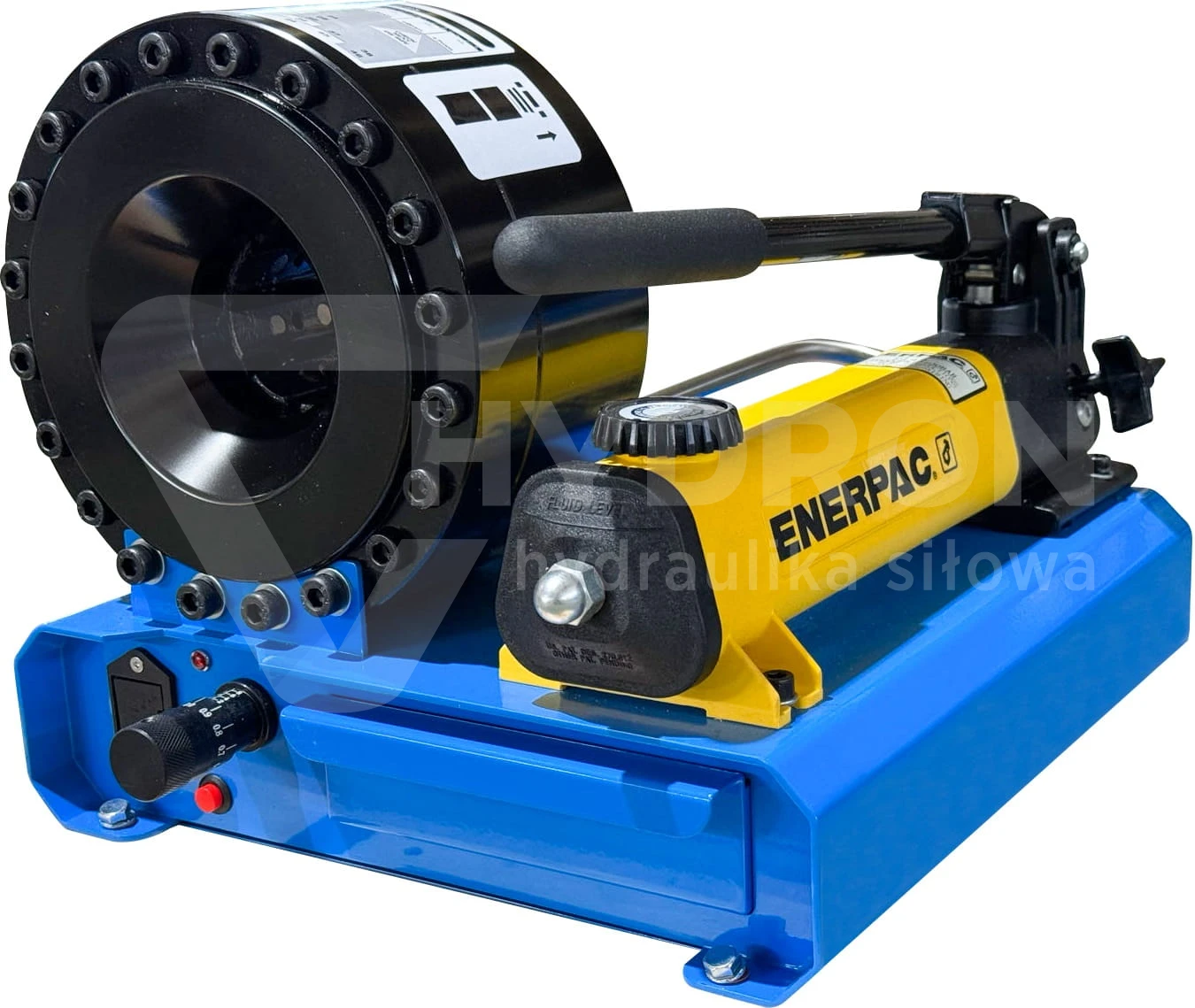

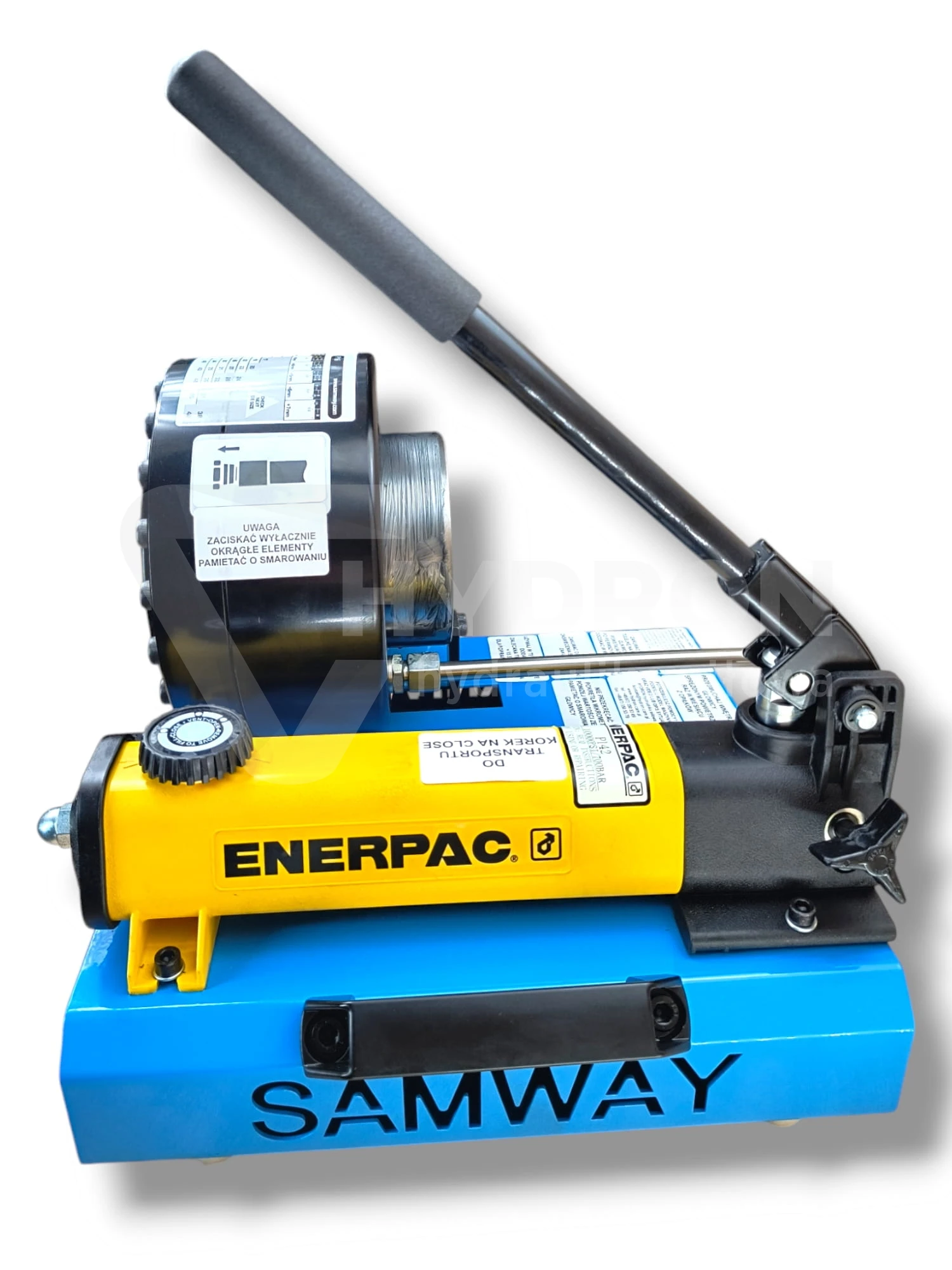

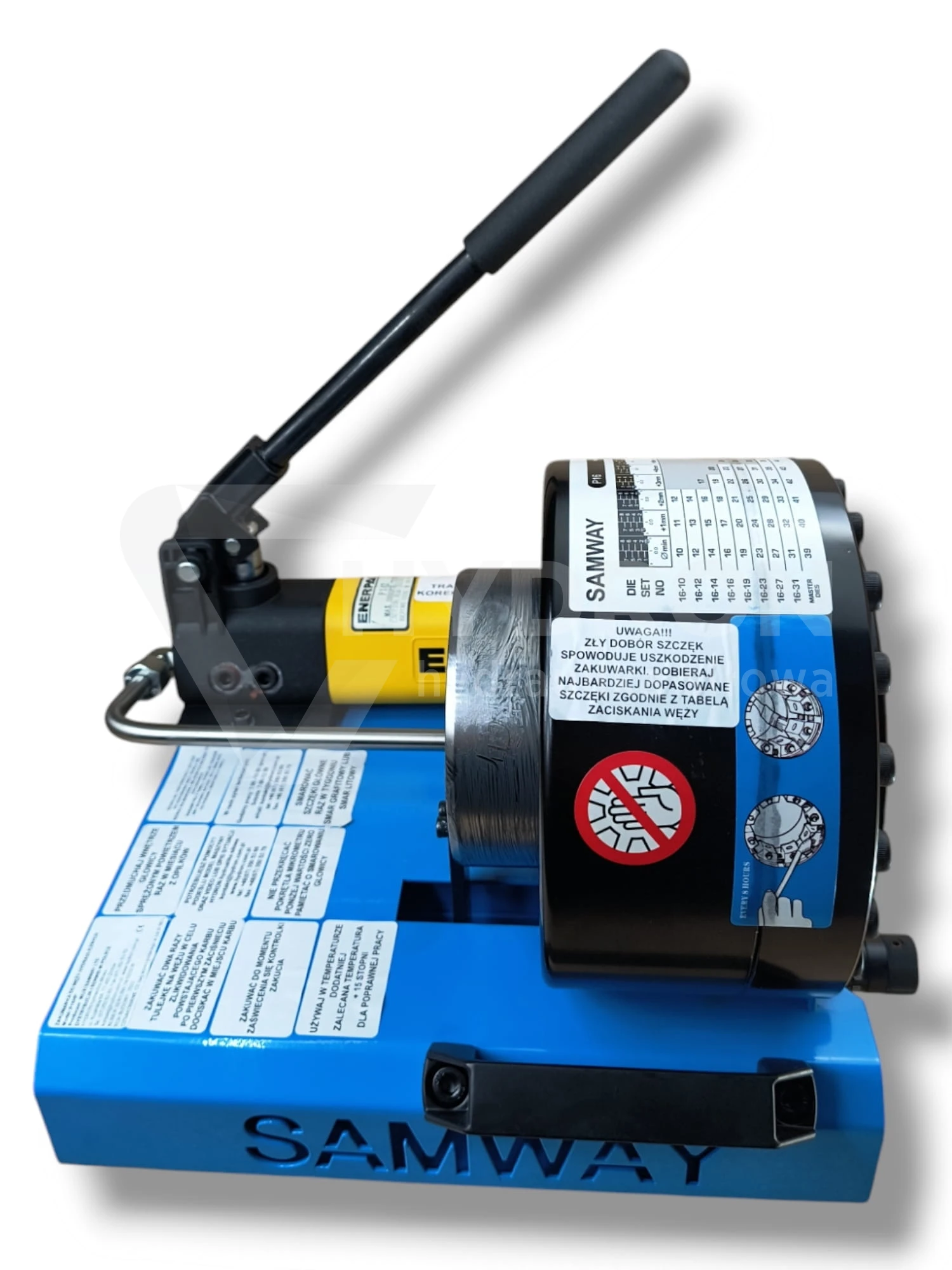

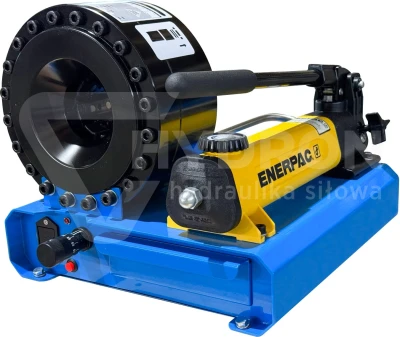

Manual crimping machine P16HP 1"3SN (up to 45mm) SAMWAY

ATTENTION IMPORTANT ! The stated price includes 8 sets of crimping dies + free transport. Press fully equipped and ready for operation !

• Instructional video for operating the P16HP manual crimping machine
• Schedule a free meeting and machine presentation
• Crimping machine leasing

Manual crimping machine for hydraulic, pneumatic, fuel hoses and others

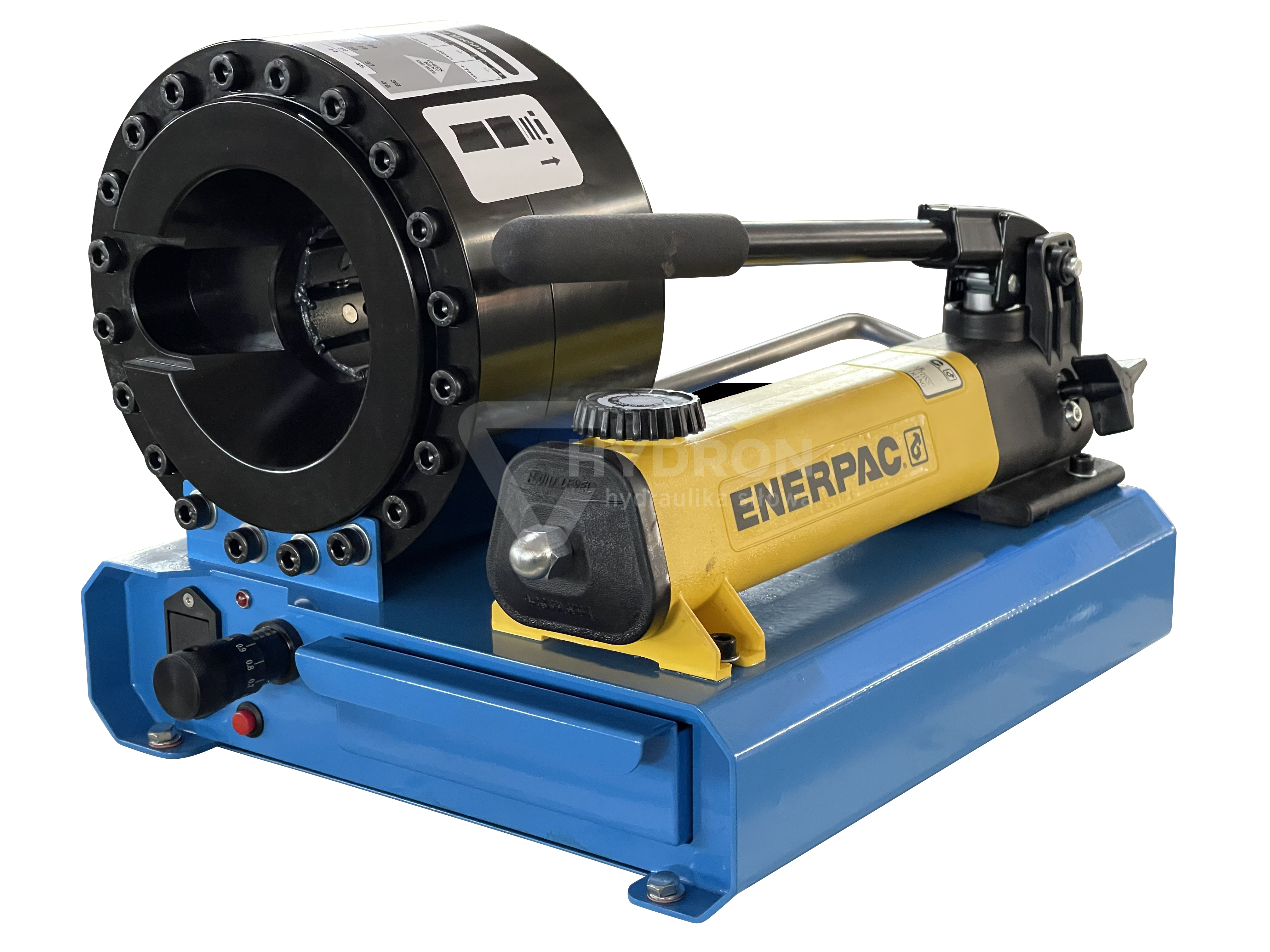

The most popular model of manual crimper designed for crimping hydraulic hoses. Lightweight and ergonomic manual press for crimping all types of hydraulic, pneumatic, low-pressure lines - the crimper enables crimping of hydraulic, pneumatic, air conditioning, technical gas hoses, and pressure washer hoses. The P16HP crimper model allows crimping not only standard high-pressure hoses; all types of hoses can be crimped on the machine - everything that fits through the head (maximum external dimension of the crimped element is 44mm).

Crimper description

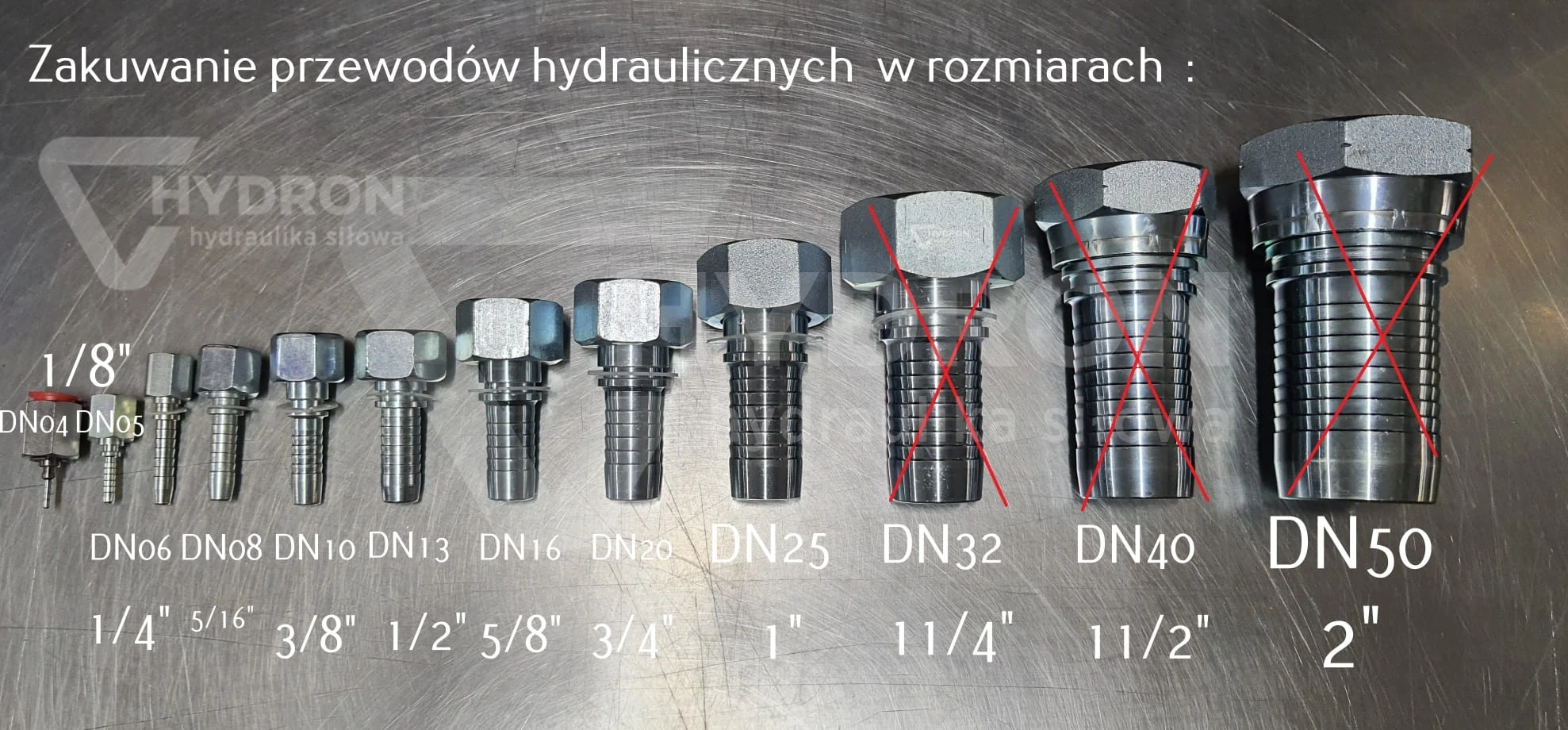

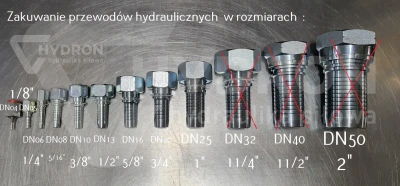

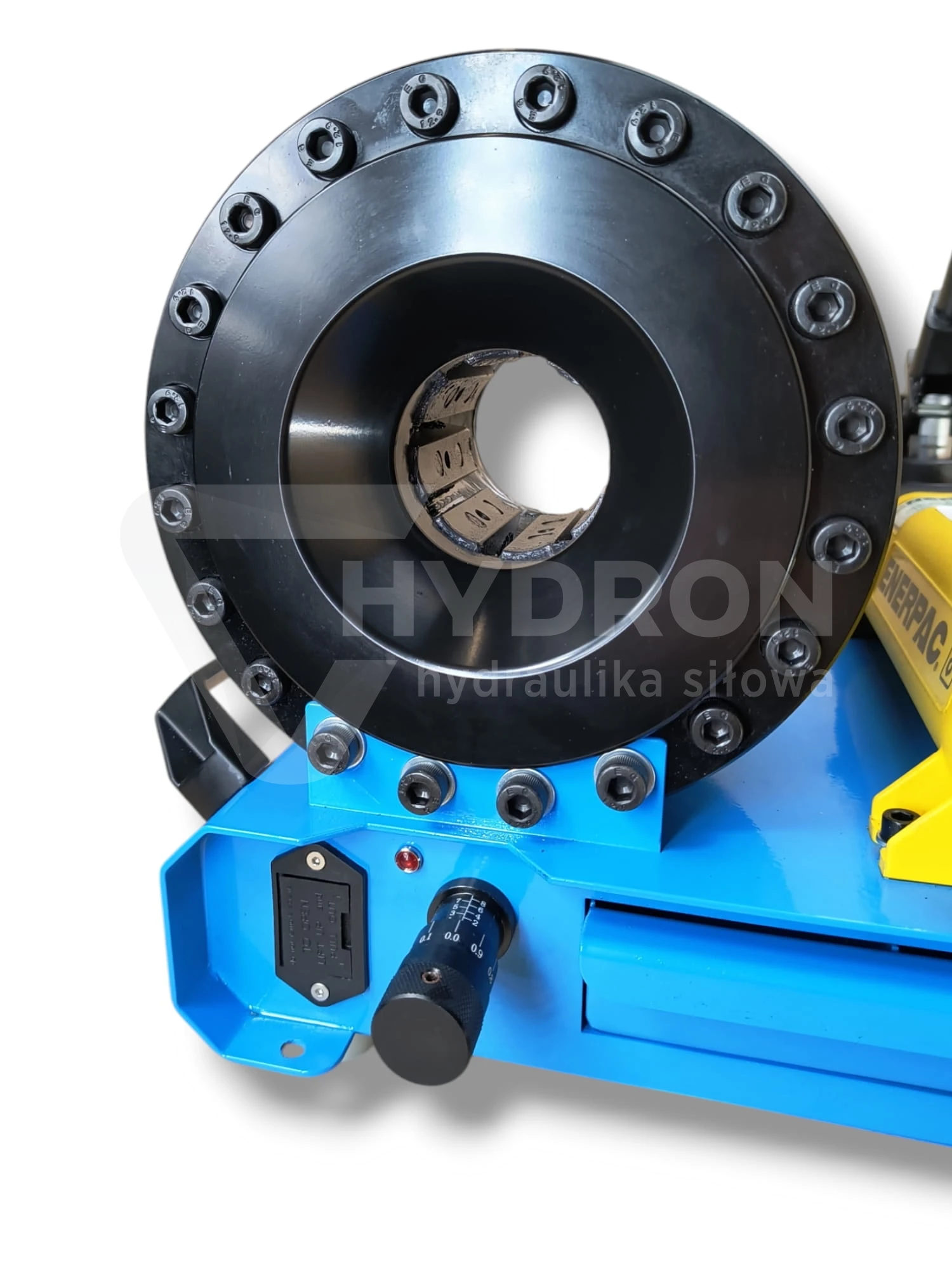

The P16HP SAMWAY manual press comes with 8 interchangeable sets of crimping dies, which allow for the crimping of hydraulic lines in the diameter range from DN06 – DN25 (internal hose diameter). Under the crimper, there is a useful drawer for dies. The press includes detailed instructions for die selection, a crimping table, OHS workstation instructions, and more. The crimper is equipped with a sensor (light) that turns on to inform us that the set crimping diameter has been reached.

Who is the P16HP press for

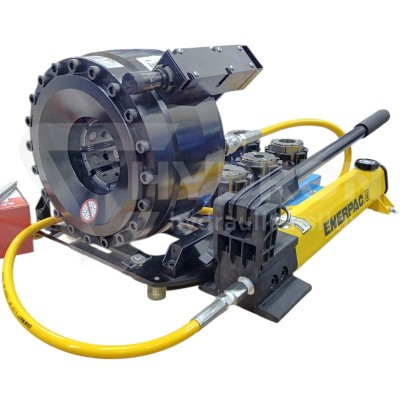

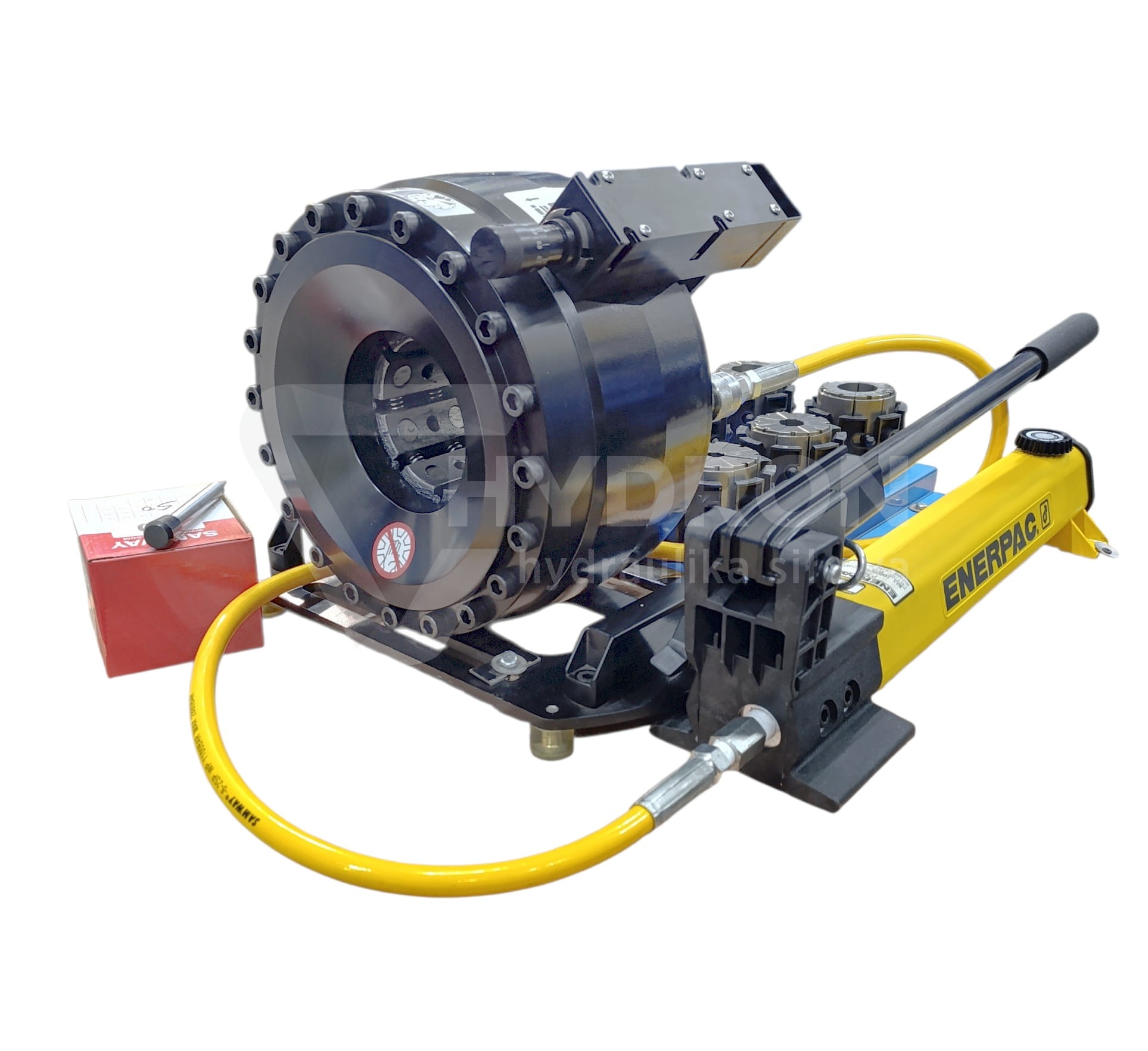

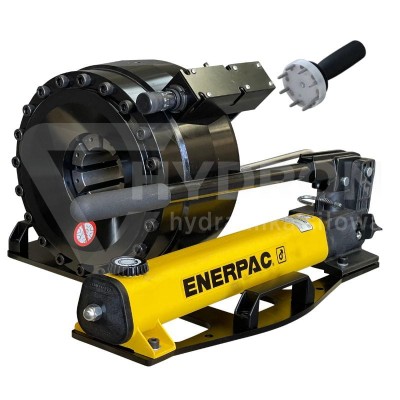

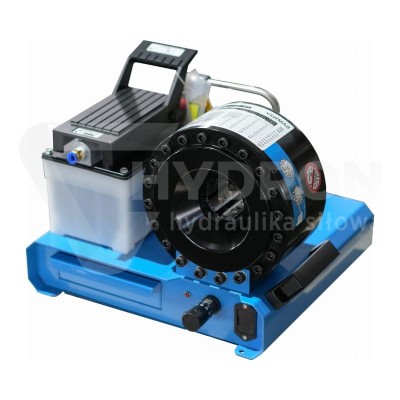

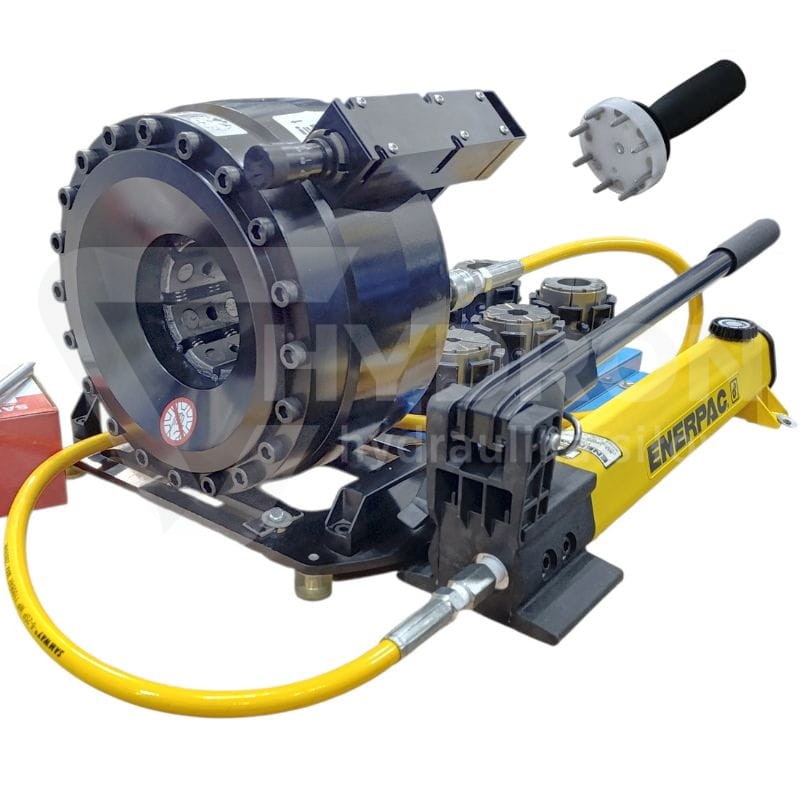

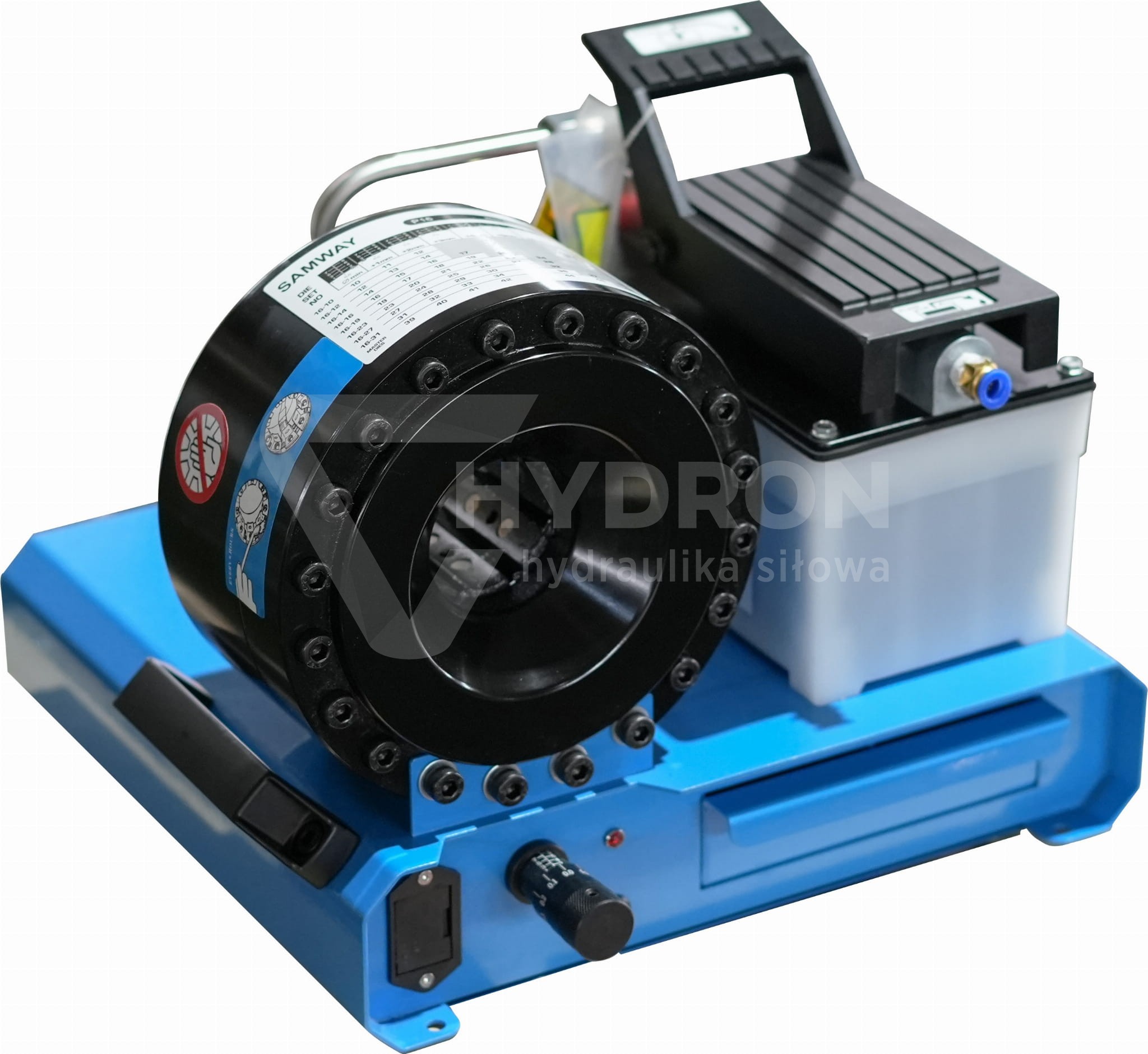

A manual crimper is the ideal solution for small workshops and individuals providing mobile hydraulic power services. The quality-to-price ratio makes this crimper an optimal solution for service points planning to crimp hoses in small quantities. One of the most popular models chosen by car wash manufacturers and farmers. If you do not want to pump using muscle power, check the model P16AP crimper - powered by compressed air. For the machines we offer, we also have additional dies, e.g., 6mm, 8mm, 10mm. All hose crimping machines offered by us come with a warranty. If you need a larger machine, check the models P20HP and P20AP.

Advantages of the P16HP crimper:

• low weight, compact design
• comfortable handles for carrying the crimper
• large crimping capabilities (up to 44mm)
• affordable price

Together with the crimper, Customers receive:

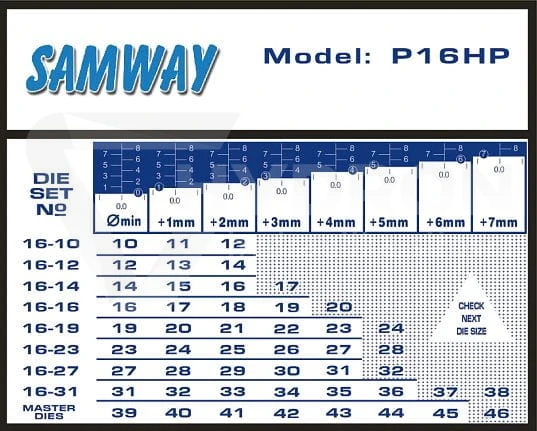

• hydraulic hose crimping tables,
• operating manual for the crimper in Polish,
• OHS workstation instructions for the crimper,
• thread selection table,
• hydraulic hose selection table,
• written 12-month warranty from the date of purchase.

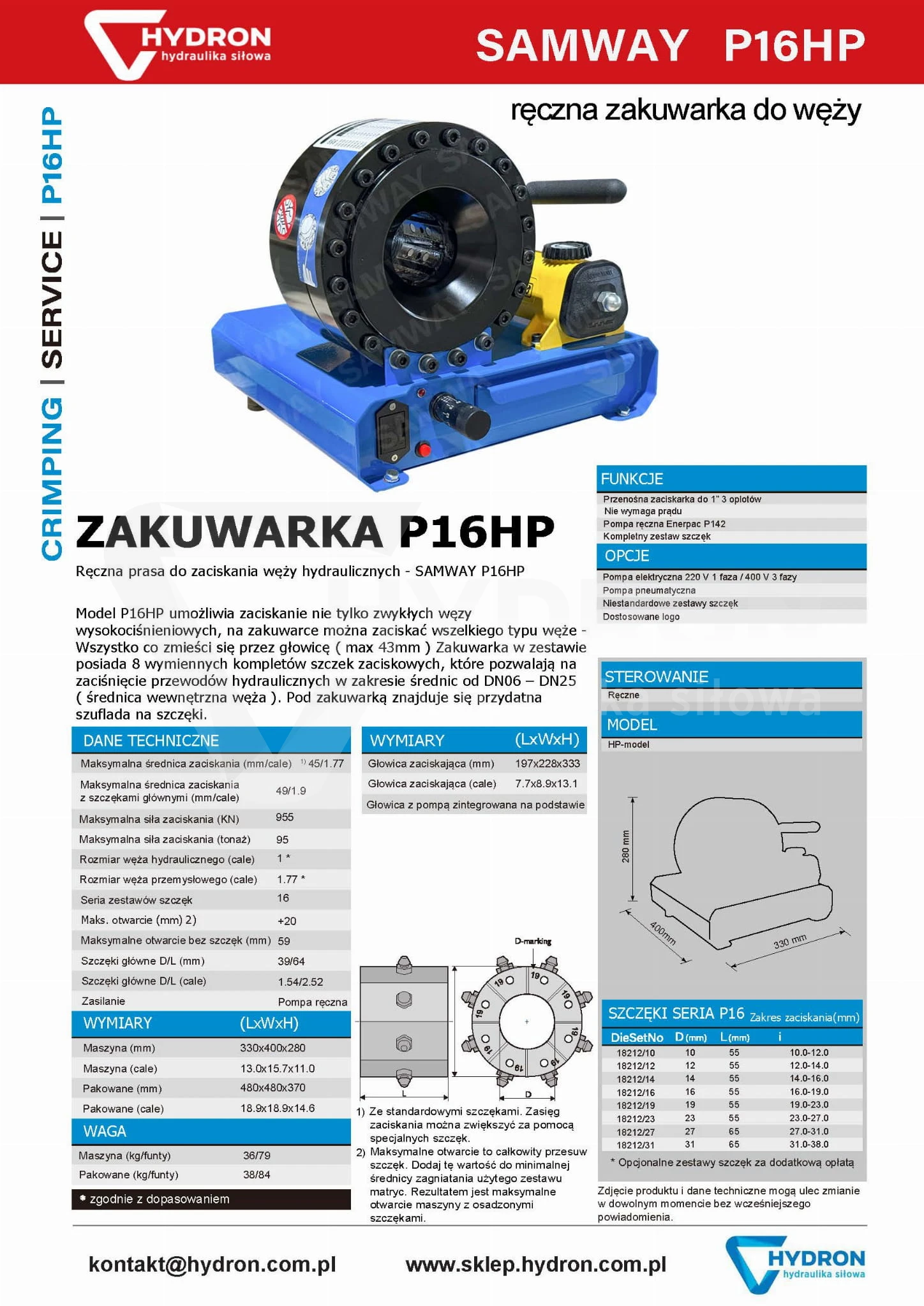

Technical parameters of the manual crimper

• Crimper model: SAMWAY P16HP
• Maximum crimped hose size: 1" with 3 braids
• Crimping range (diameter - size of the crimped element): 4-44 mm
• Die type: P16
• Main die length: 64 mm
• Maximum die opening: +20 mm
• Power supply: none, crimping by muscle power

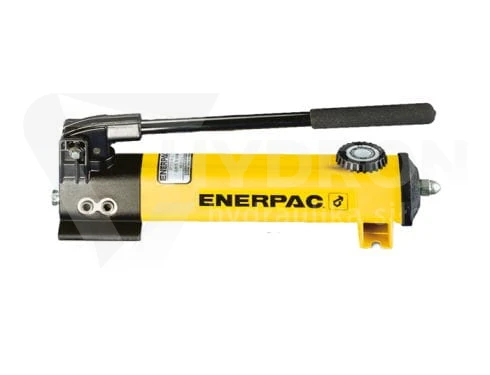

• Two-stage manual pump: 700 bar ENERPAC
• Crimping force: 100 kN (100 tons)
• Control: by micrometer
• Dimensions: 330 mm * 400 mm * 280 mm
• Crimper weight: 25 kg

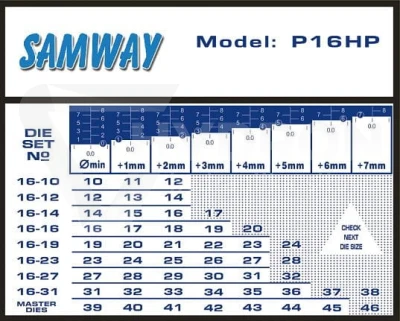

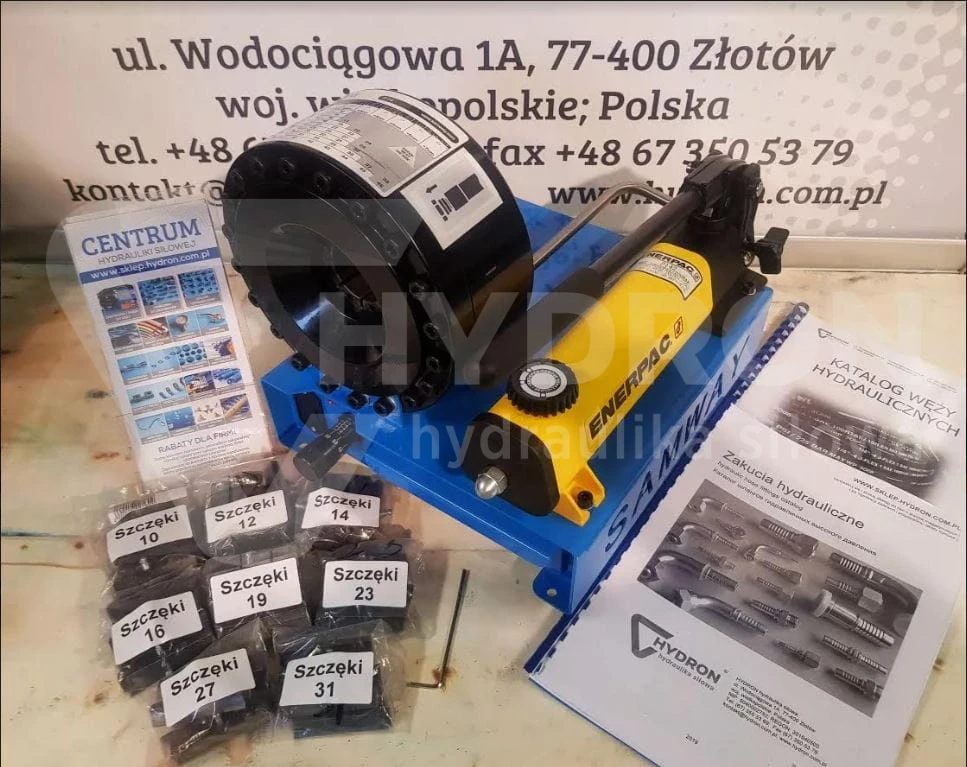

Crimping dies included in the set:

• 10 mm (length 55 mm)
• 12 mm (length 55 mm)
• 14 mm (length 55 mm)
• 16 mm (length 55 mm)
• 19 mm (length 55 mm)
• 23 mm (length 55 mm)
• 27 mm (length 65 mm)
• 31 mm (length 65 mm)
