CPS229 wrench-operated air conditioning crimper with dies

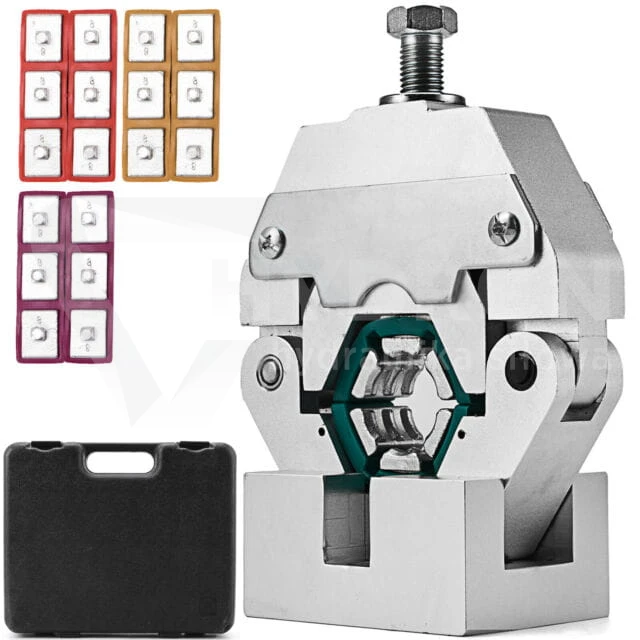

The CPS229 air conditioning crimper is a manual device designed for crimping fittings onto air conditioning hoses. The crimping mechanism is operated using a wrench, without the need for a hydraulic pump. The set includes four sizes of interchangeable dies: #6 (5/16"), #8 (13/32"), #10 (1/2"), and #12 (5/8"). The device is equipped with a base for mounting on a workbench or in a vise. The entire set is delivered in a case designed for storing the crimper and its accessories.

Application and technical characteristics

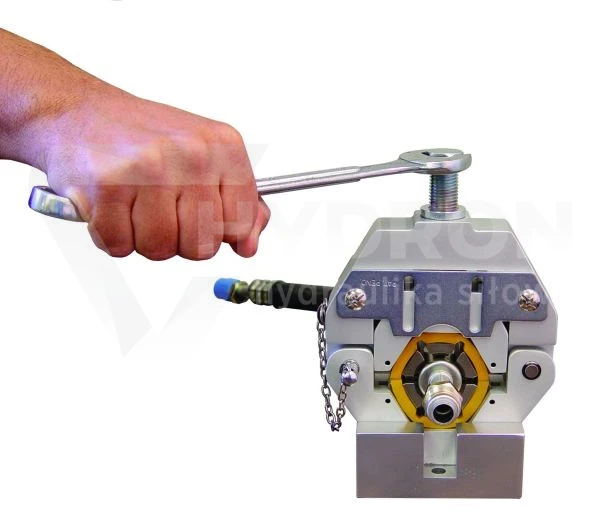

The CPS229 crimper is used for making crimped connections on air conditioning hoses. The crimp is performed mechanically by tightening the jaws with a wrench. The design of the device allows it to be fixed to a workstation using the included base.

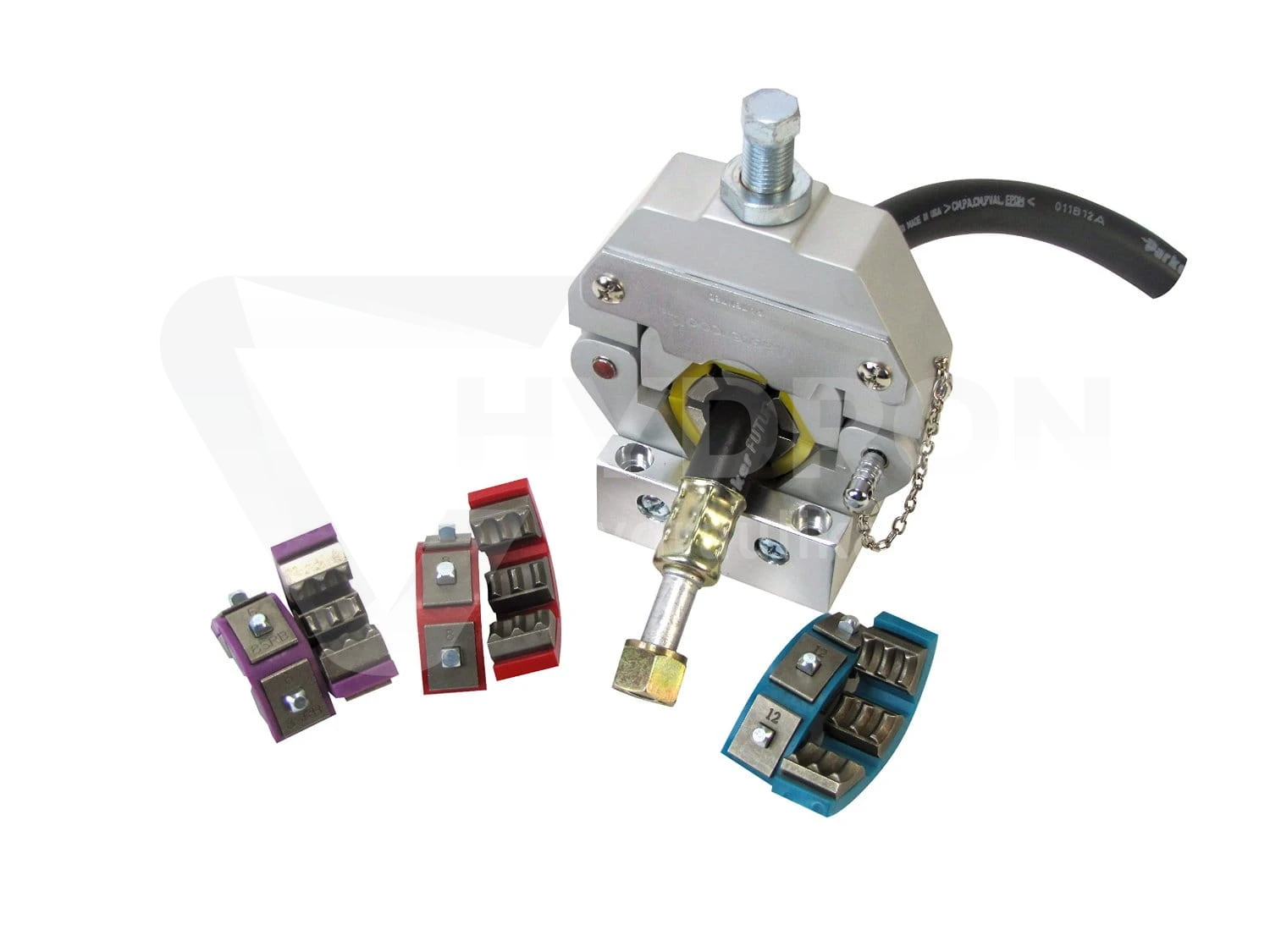

Interchangeable dies allow for selecting the tool size for the specific connection. Their installation in the crimper jaws does not require additional screws or mounting accessories. Before crimping, check the compatibility of the die with the hose and fitting, and follow the required crimping dimensions.

CPS229 crimper equipment

• Manual crimper with a wrench-operated crimping mechanism.
• Base for mounting on a workbench or in a vise.
• Crimping die #6 – 5/16".
• Crimping die #8 – 13/32".
• Crimping die #10 – 1/2".
• Crimping die #12 – 5/8".

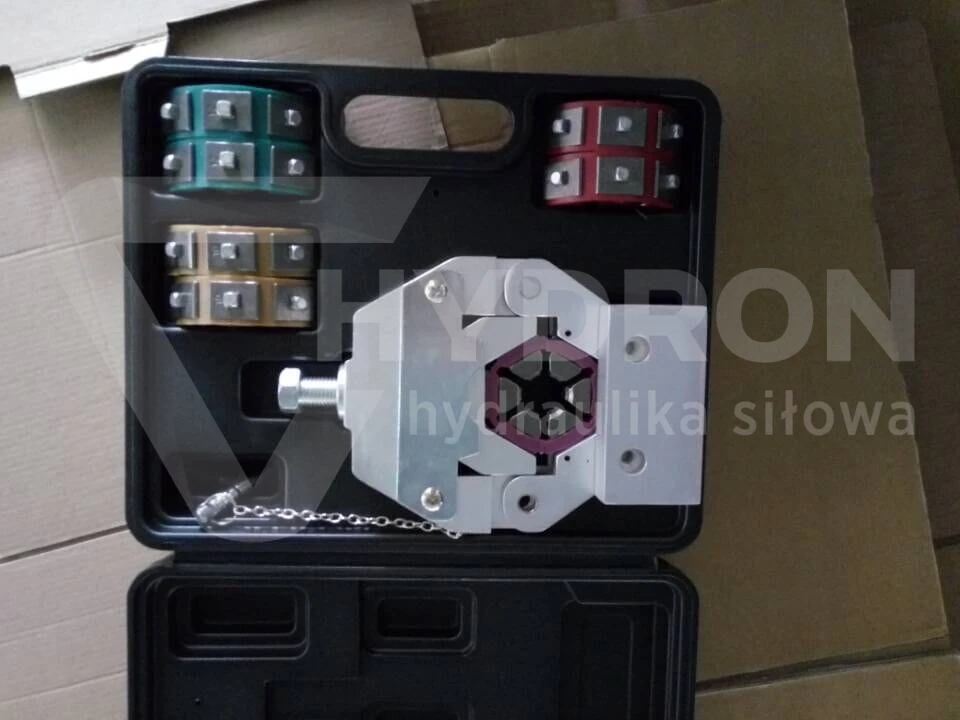

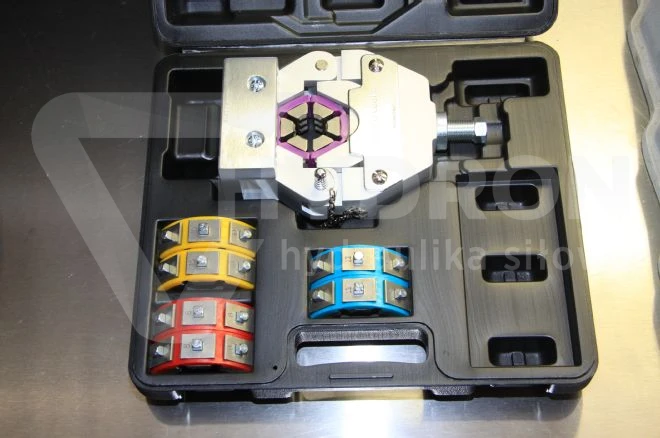

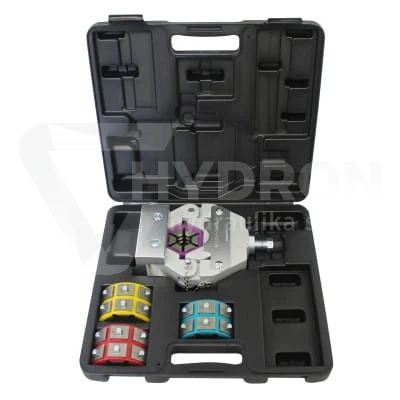

• Carrying case for the device and accessories.

Reduction clamps are available as optional equipment and are not part of the basic set.

Why choose our components?

• Mechanical crimping using a wrench.
• Four die sizes included as standard equipment.
• Die installation without additional mounting screws.
• Ability to securely mount the device at the workstation.
• Possibility to expand the equipment with reduction clamps.

Technical specification

Frequently Asked Questions (FAQ)

Which dies are included in the CPS229 set?

The set contains four die sizes: #6 (5/16"), #8 (13/32"), #10 (1/2"), and #12 (5/8"). Selecting the correct die depends on the hose and fitting used.

Does the CPS229 crimper require a hydraulic pump?

No. The crimper features a mechanical crimping system operated with a wrench. It does not require an external hydraulic pump to perform the crimp.

Can the crimper be mounted in a vise?

Yes. The included base allows the device to be mounted on a workbench or clamped in a vise, which stabilizes the crimper during operation.

Are reduction clamps part of the set?

No. Reduction clamps are optional equipment. The basic set includes the crimper with a base, four die sizes, and a carrying case.

Before first use, please see the air conditioning hose crimping instructions.
