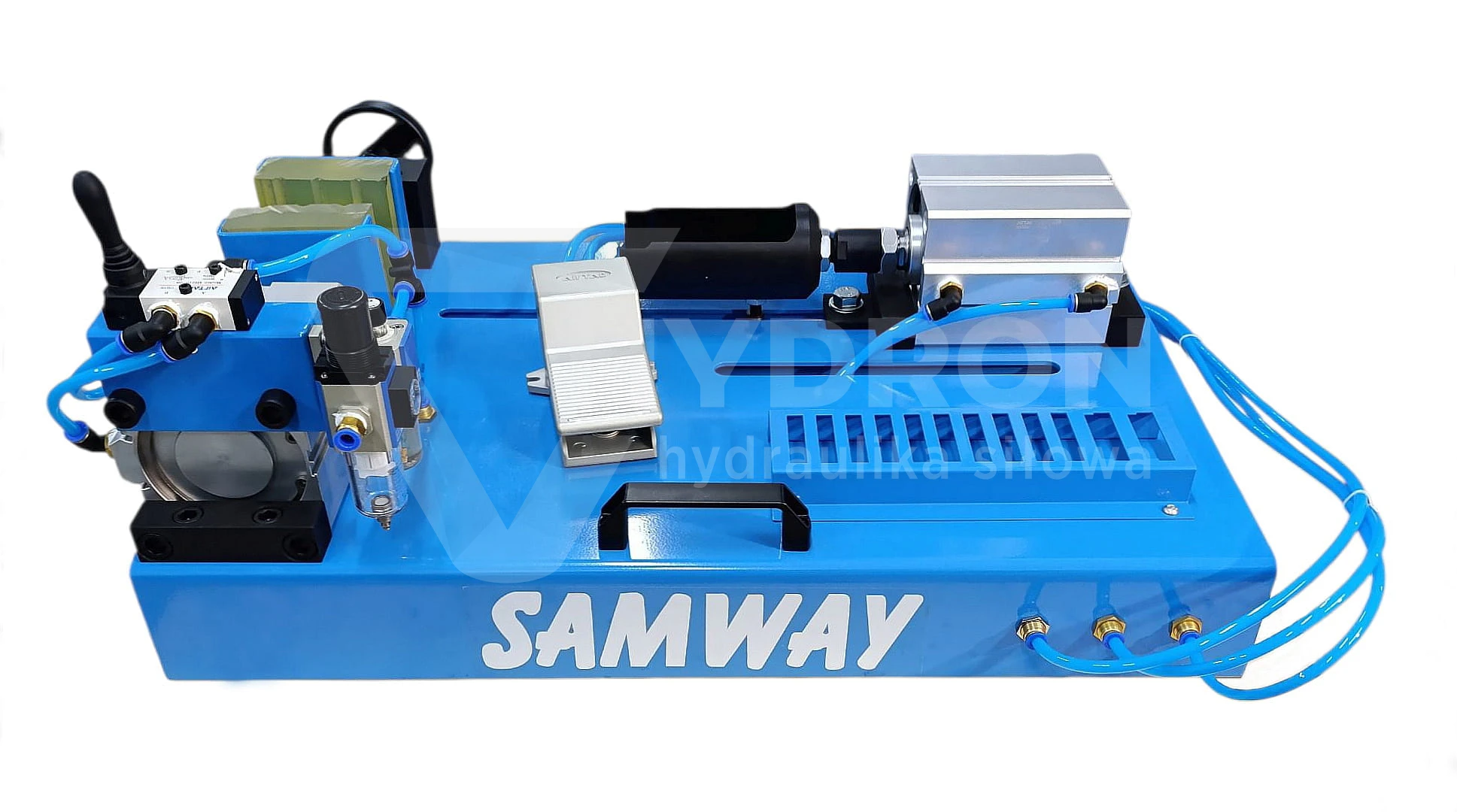

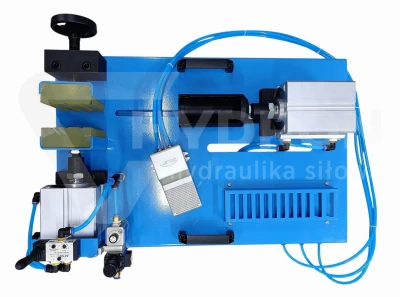

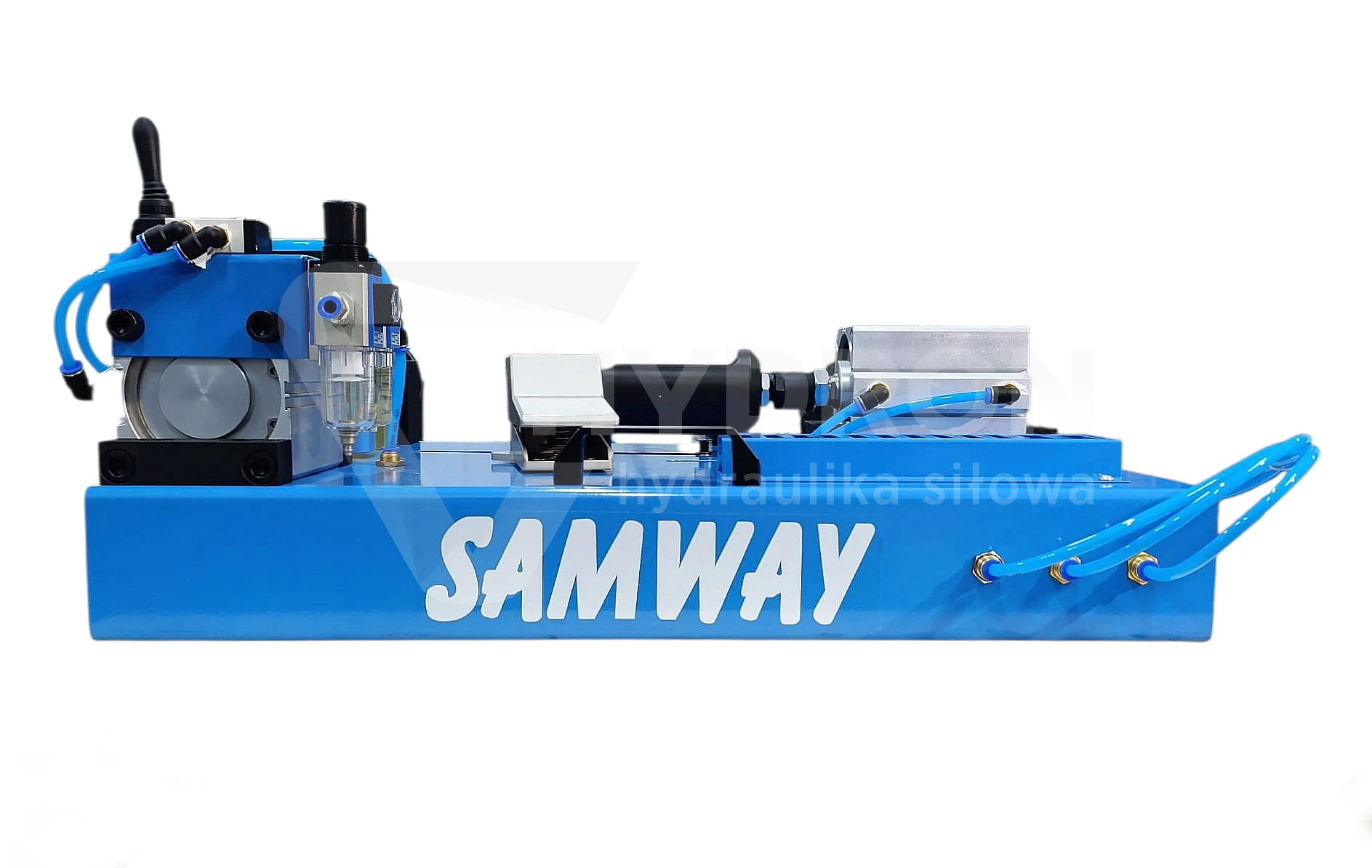

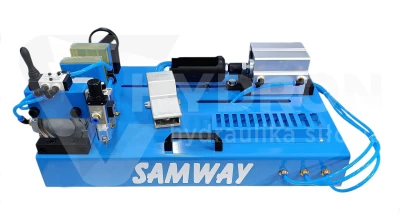

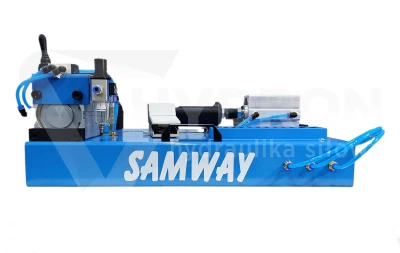

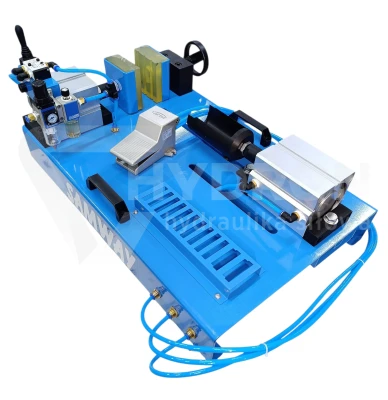

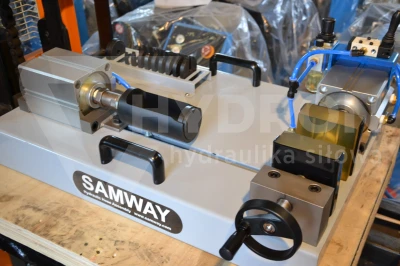

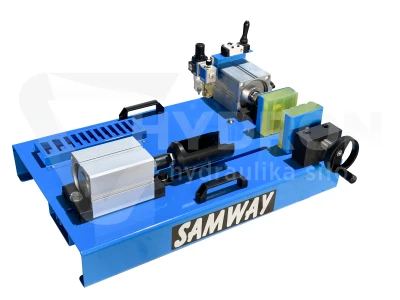

Hose nipple inserter machine 50NSE

More videos

Device for mounting the fitting on the hose

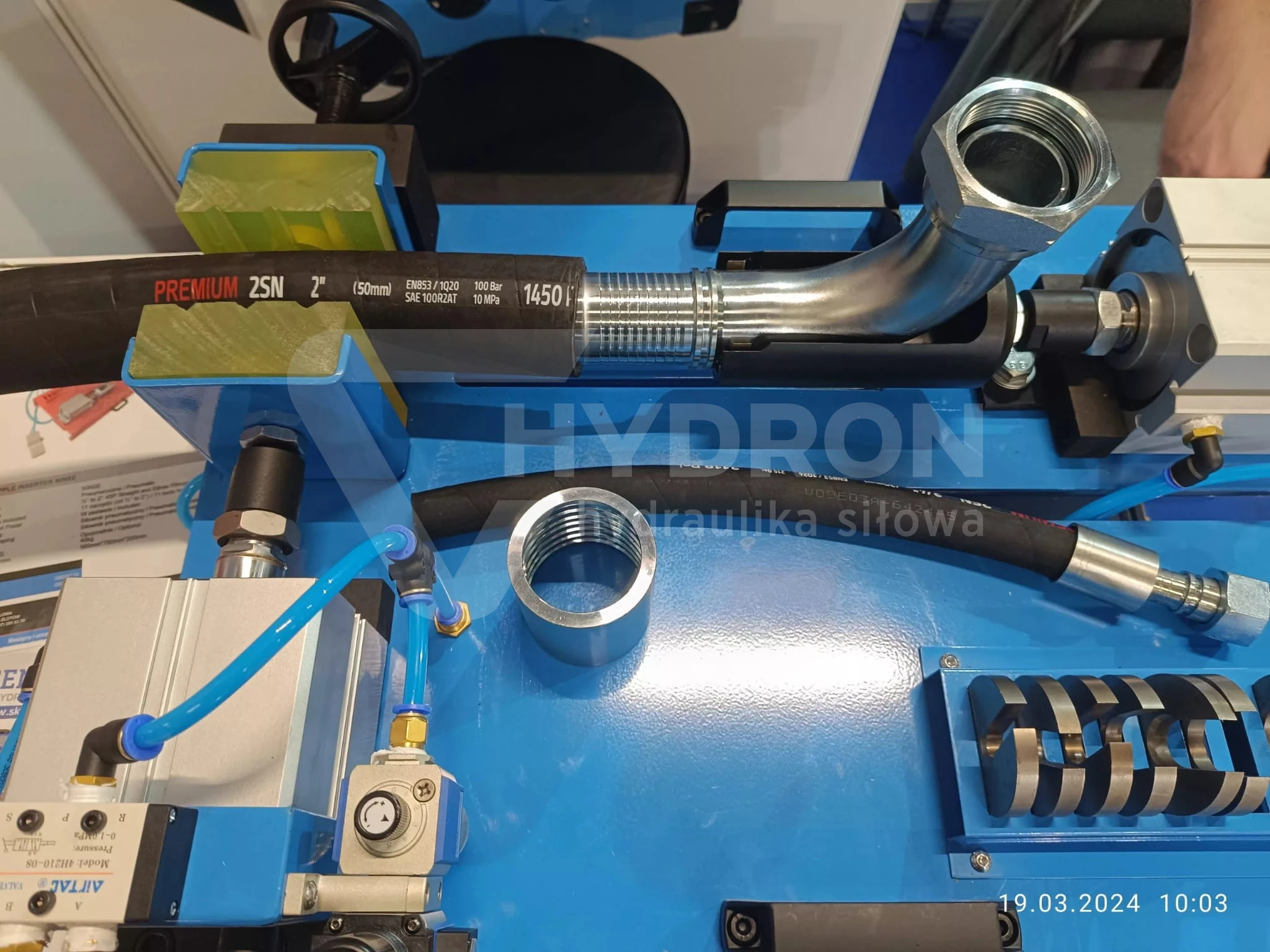

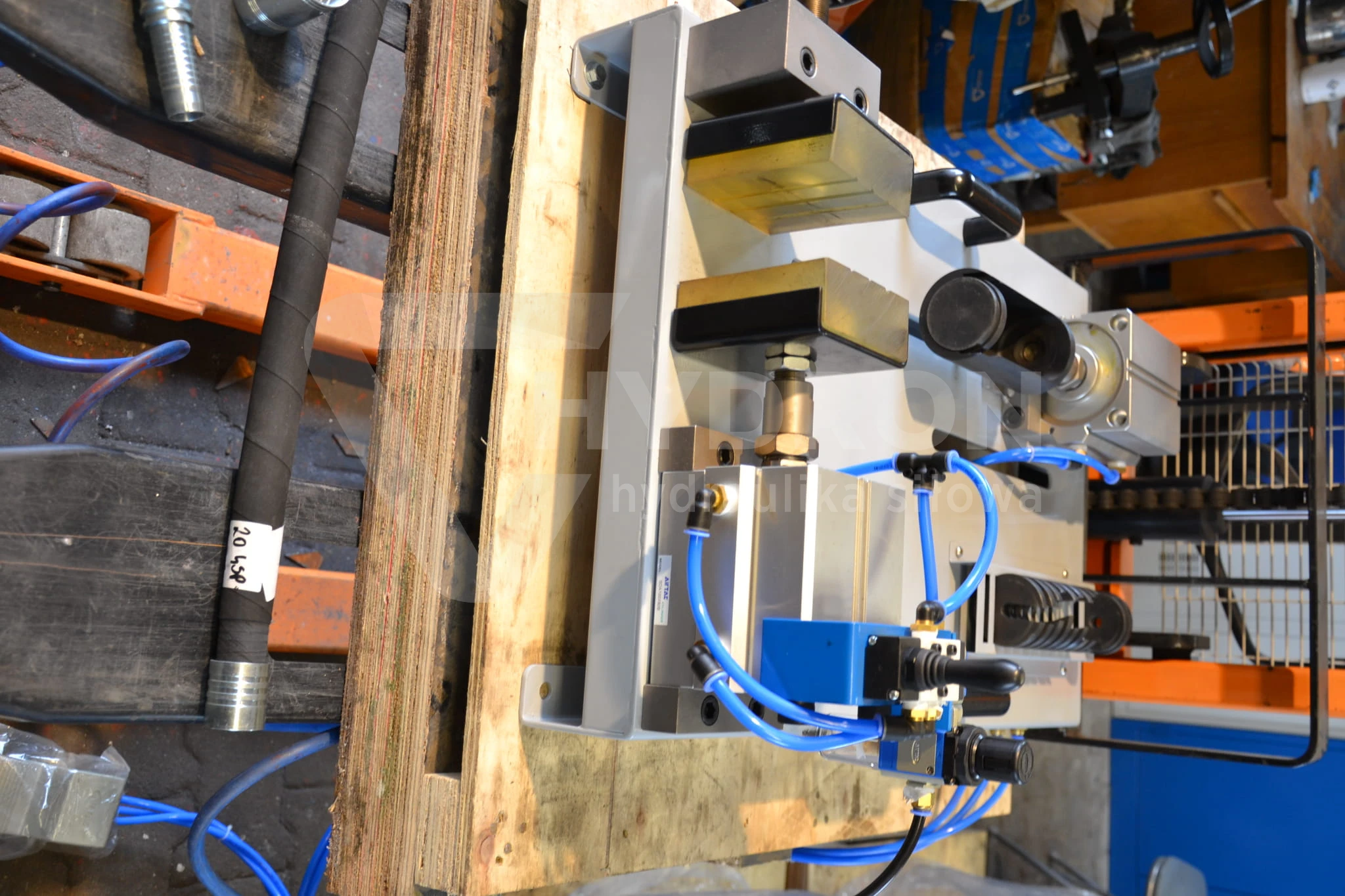

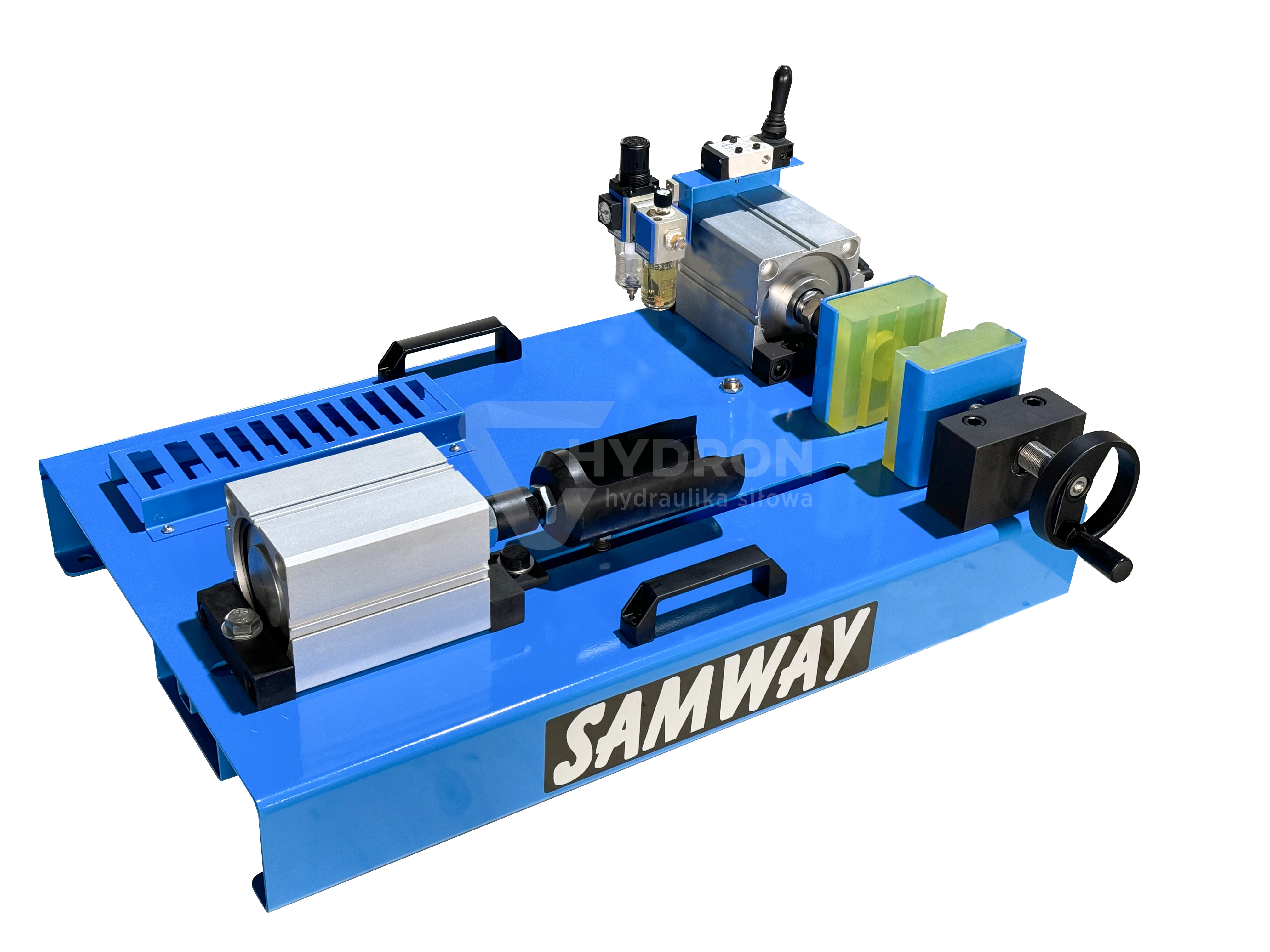

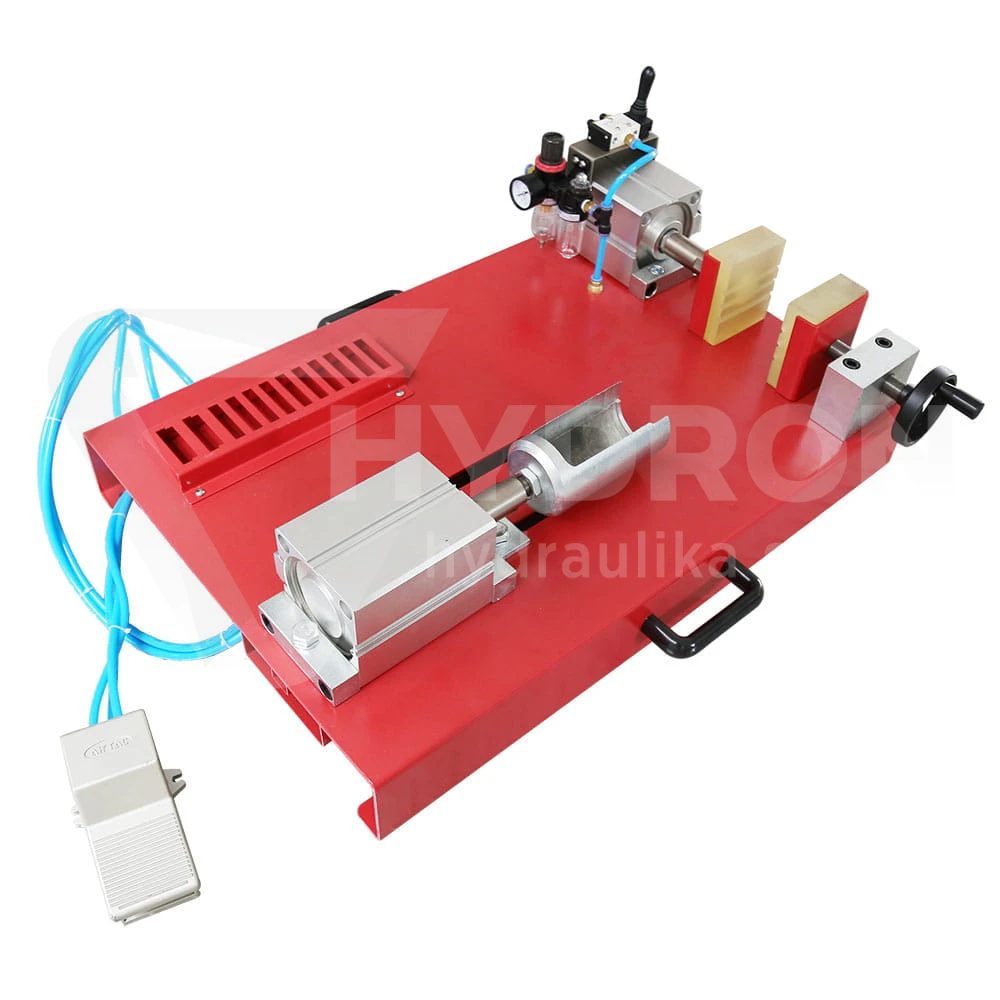

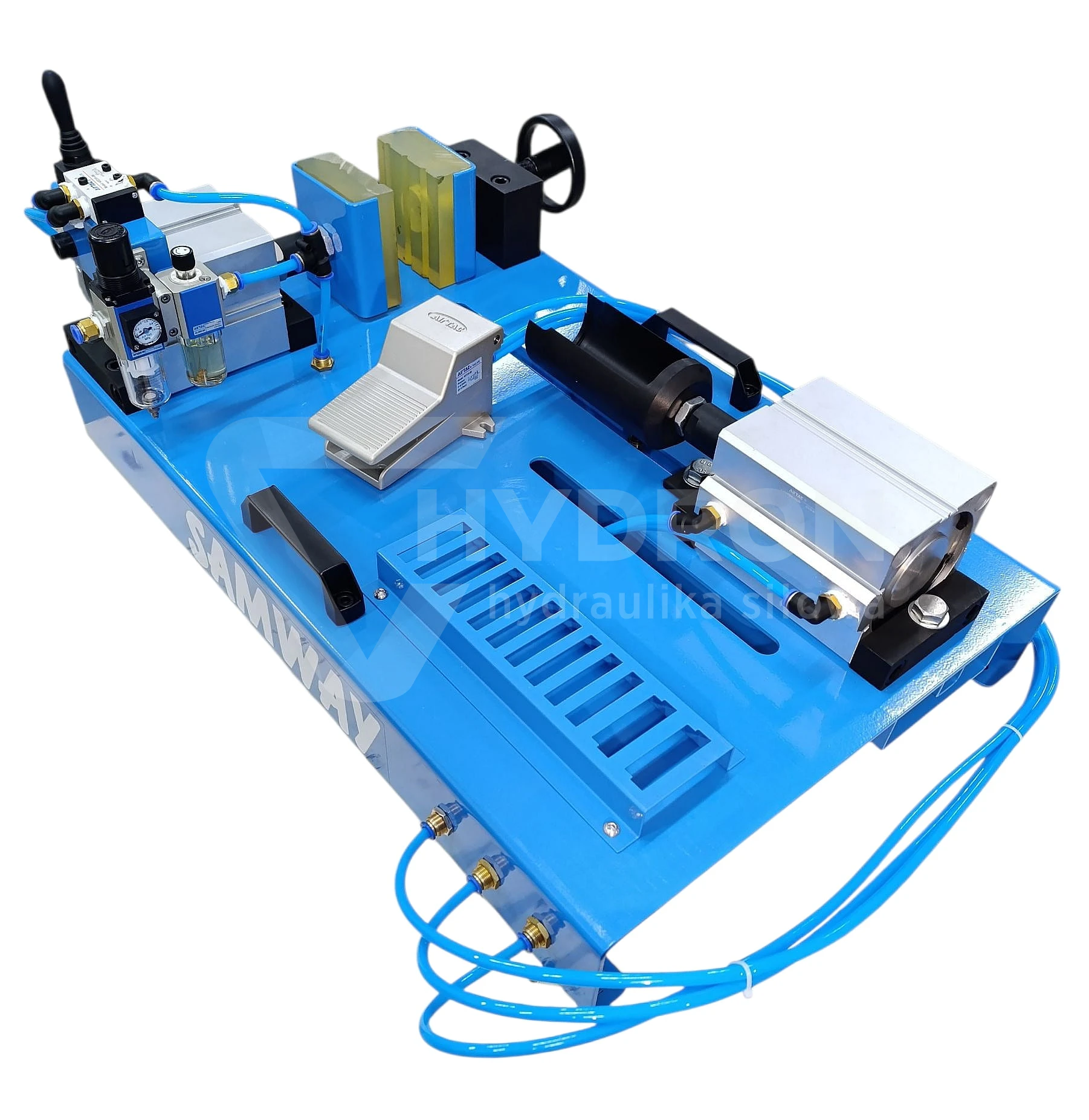

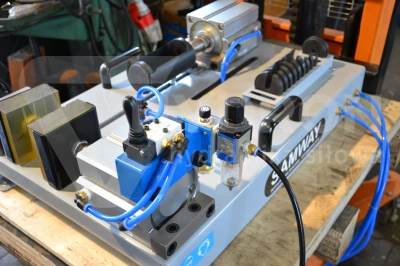

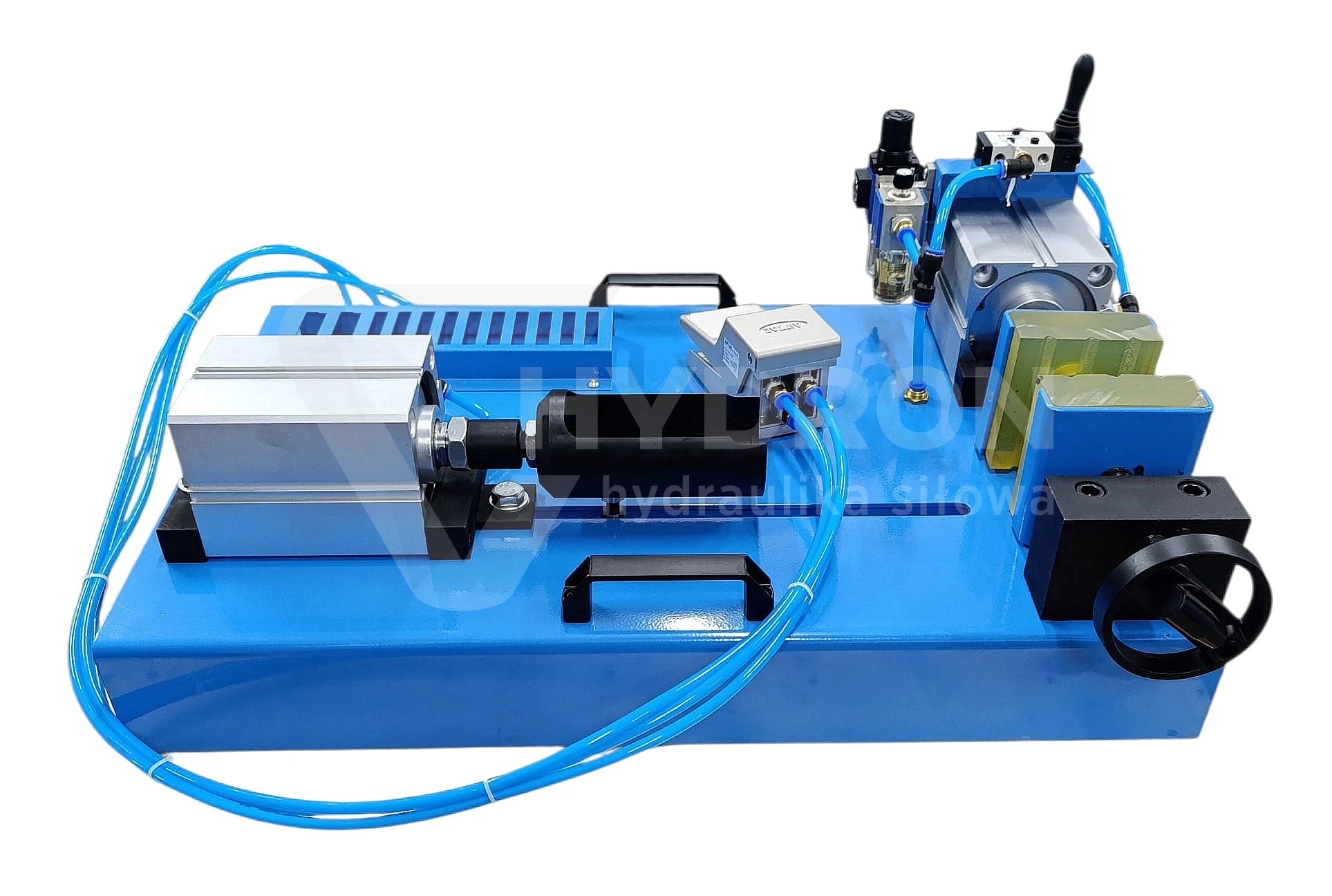

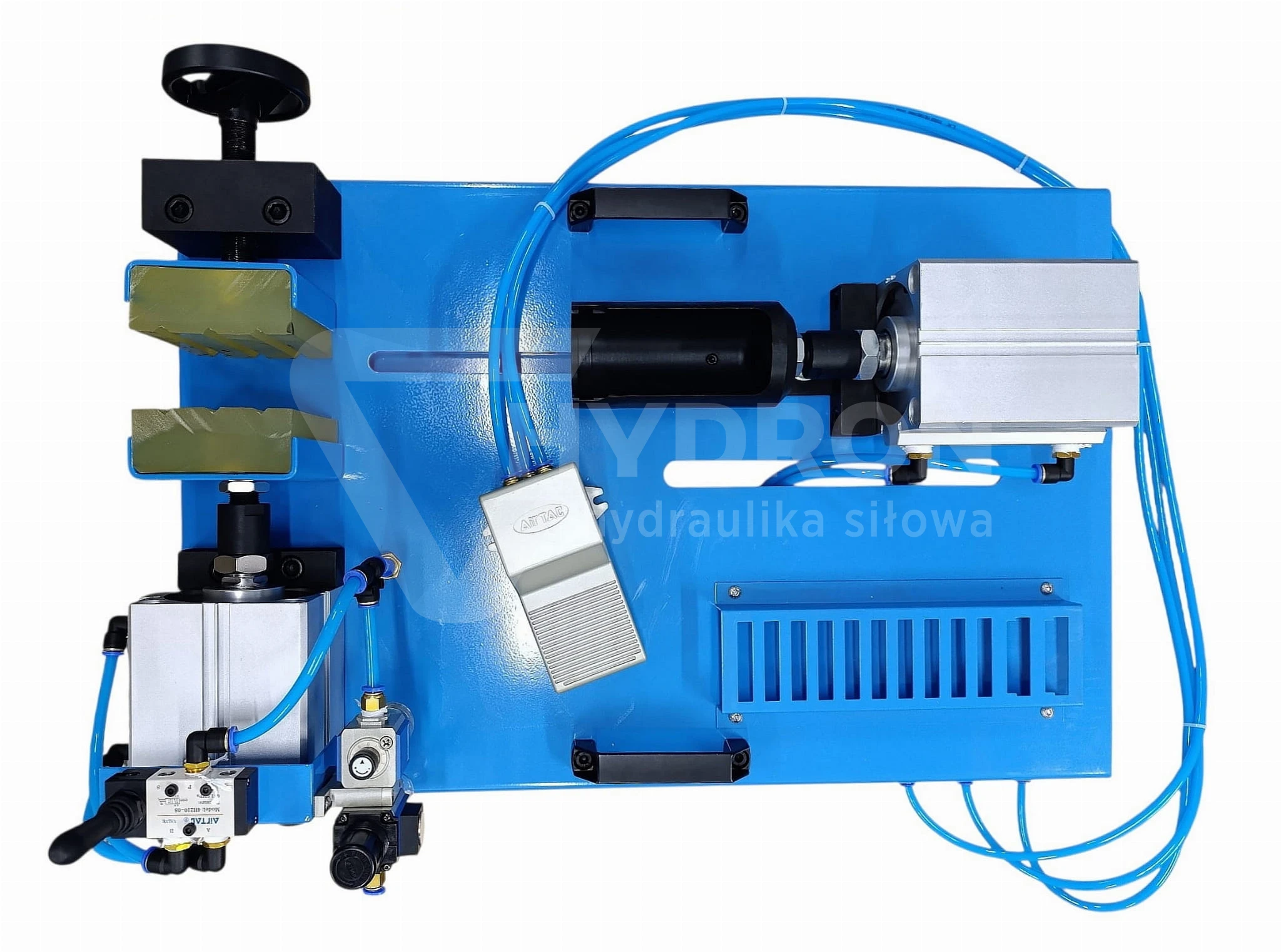

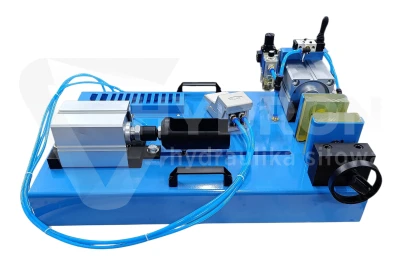

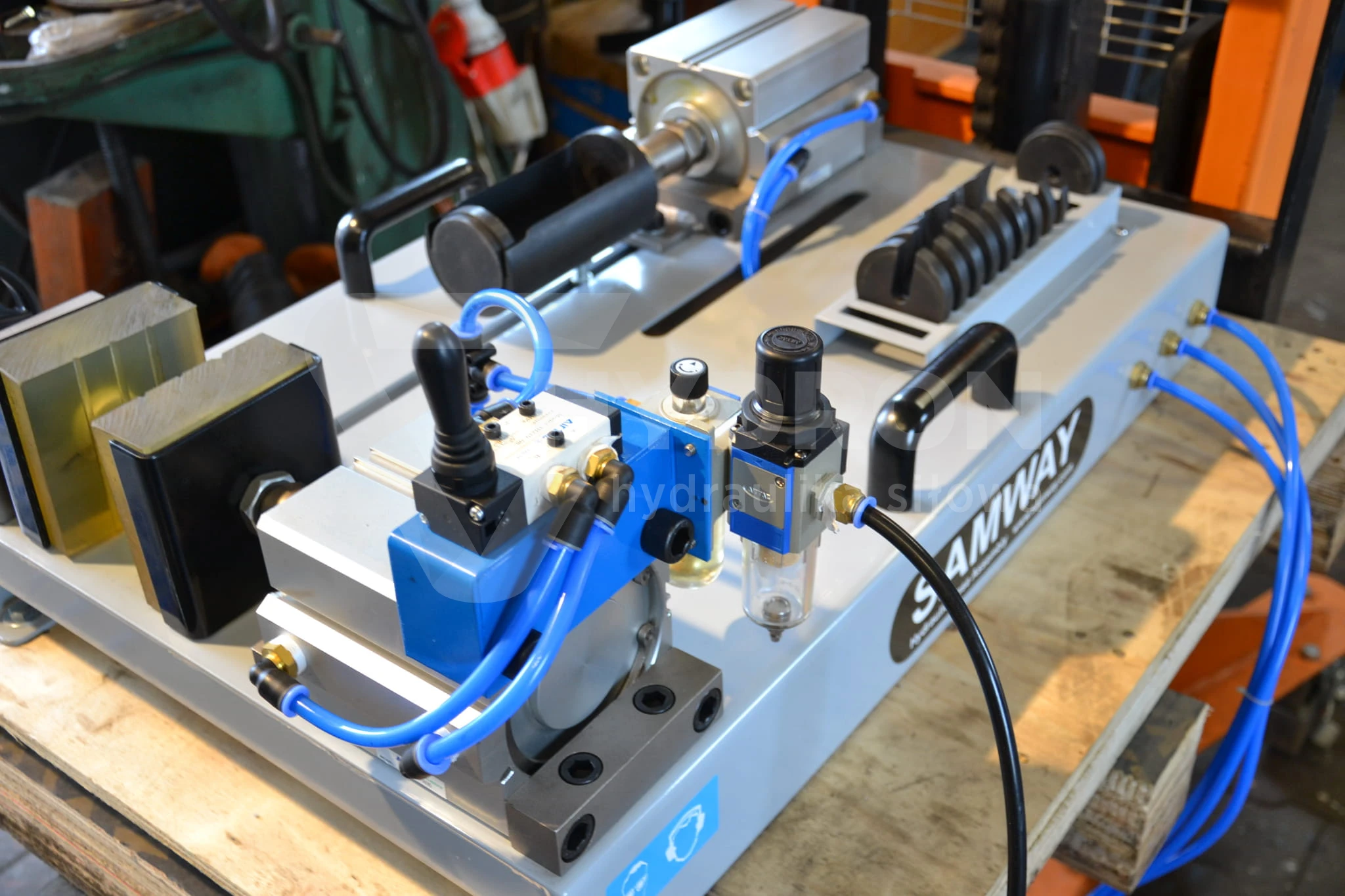

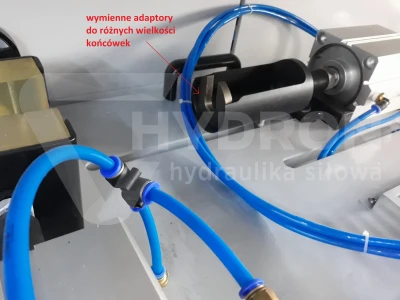

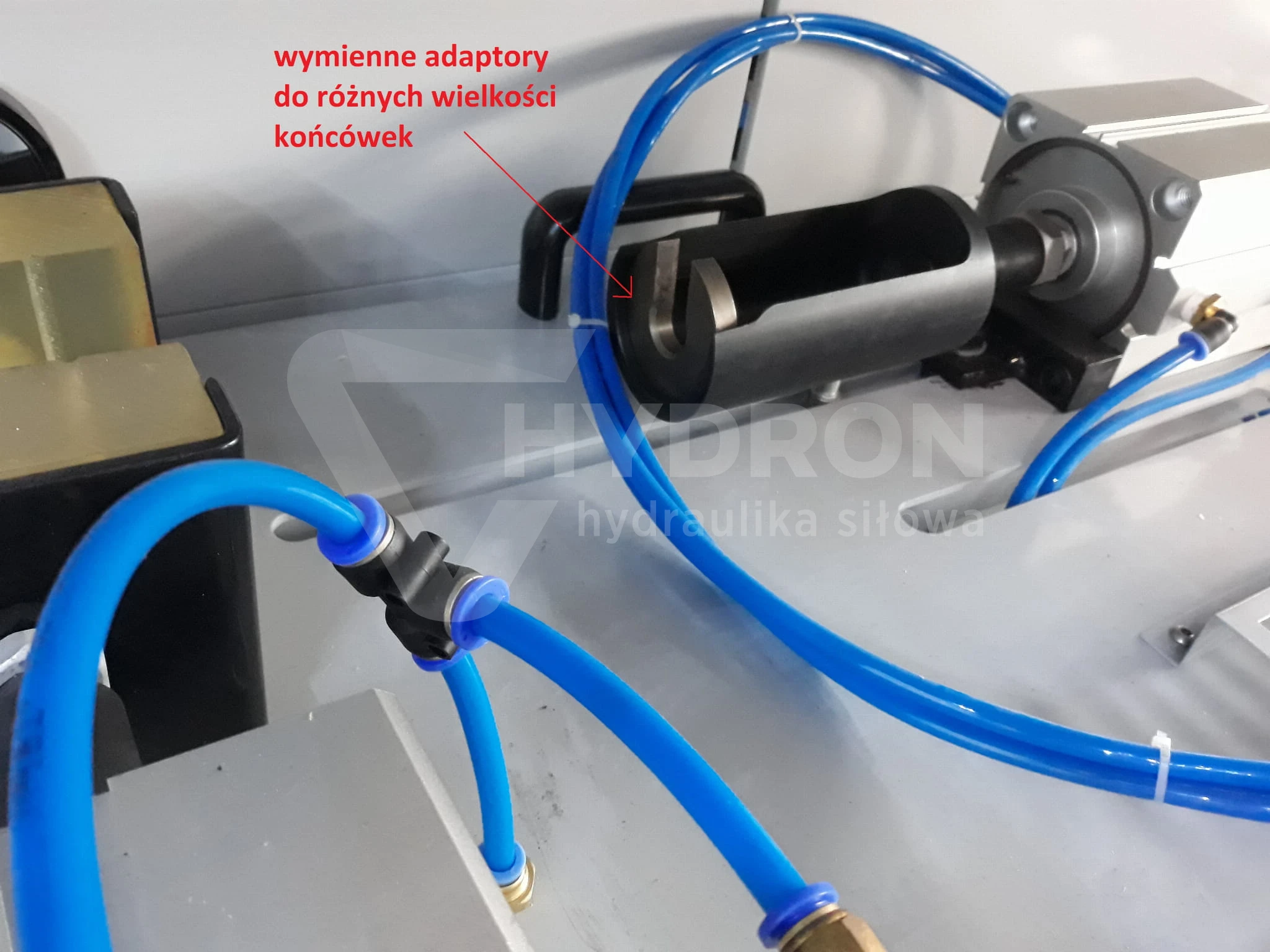

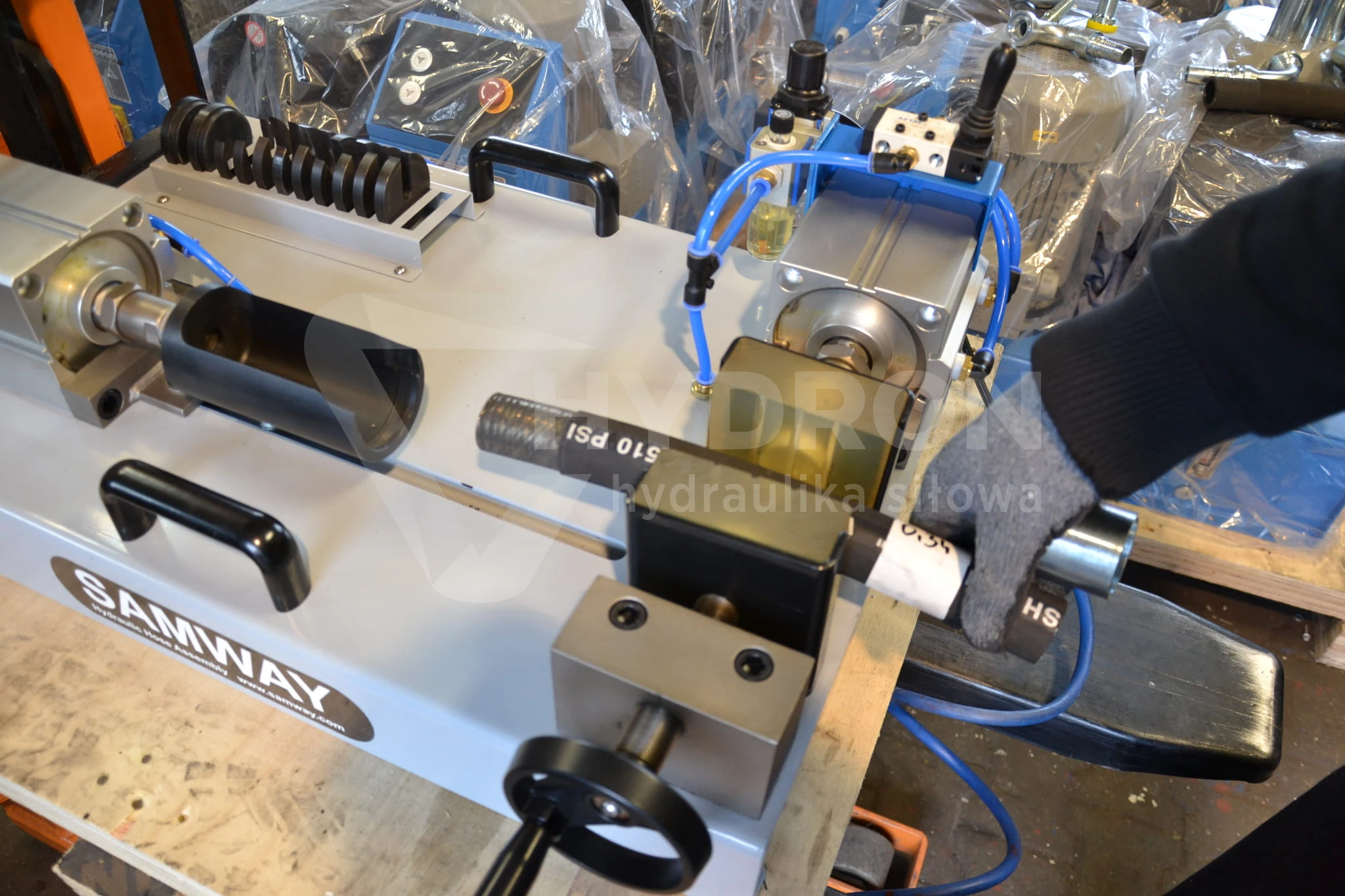

A device that improves hose assembly workshop operations. Samway 50NSE (Nipple Inserter) is a pneumatic device that enables easy, fast, and precise mounting of fittings on hydraulic hoses (pushing and fixing fittings into the hose). The device includes interchangeable elements for mounting fittings depending on the hose size. It features a compact design and is extremely simple and intuitive to use. Operation is controlled via a foot pedal and a valve.

Key features:

• Working range: the device supports fittings in the range from ¼’’ to 2’’ (DN06 – DN50), both straight and elbow (45° and 90°).

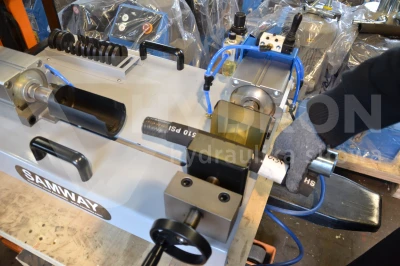

• Pneumatic clamping and pushing mechanism: ensures precise seating of fittings, minimizing the risk of hose damage.
• Mobility and compact dimensions: the small tabletop construction and high durability allow for easy relocation of the device.

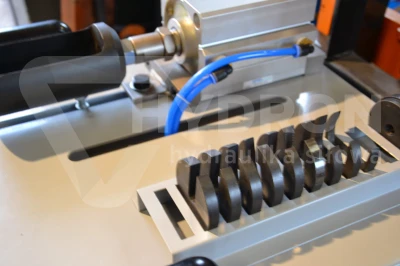

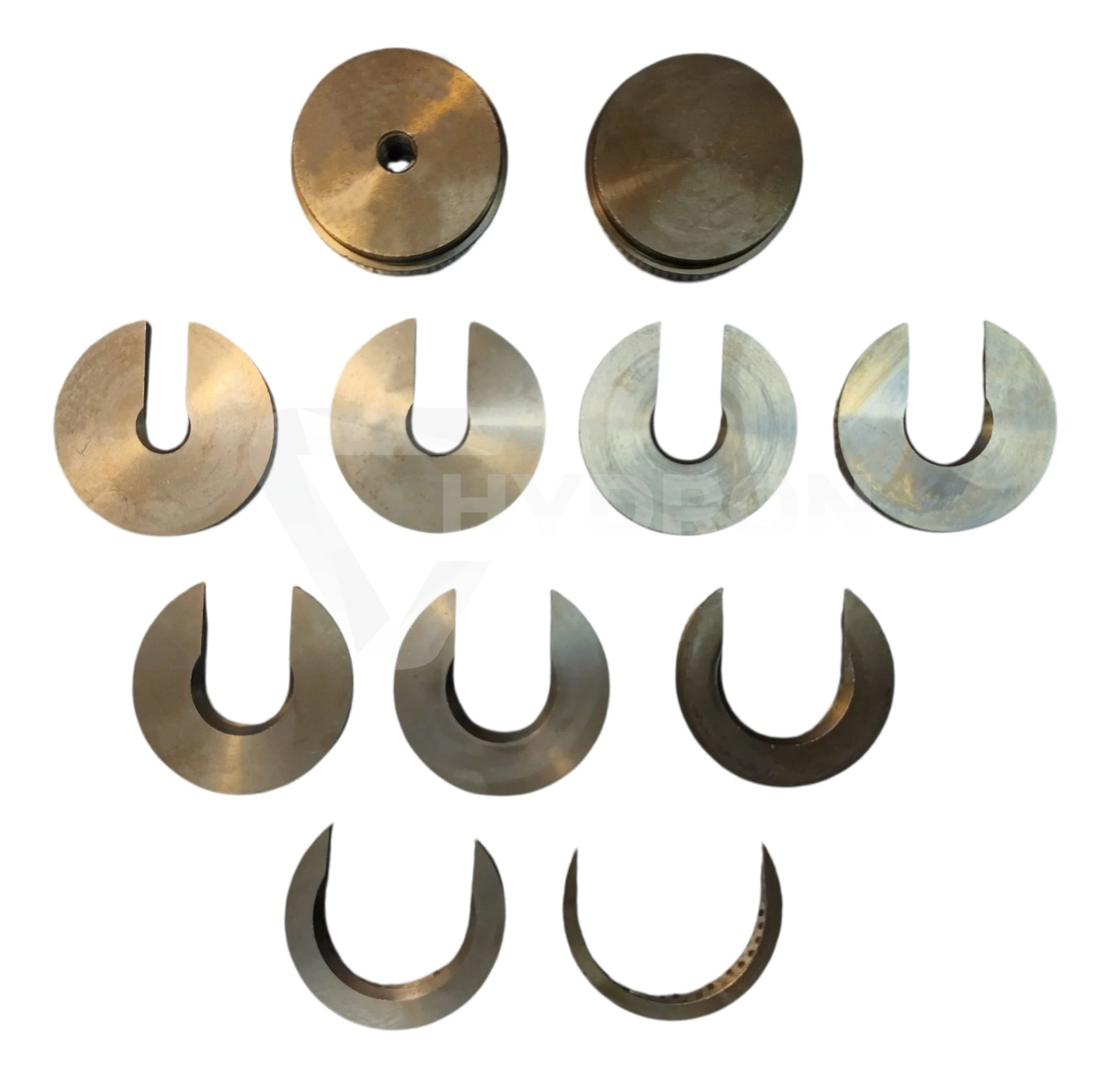

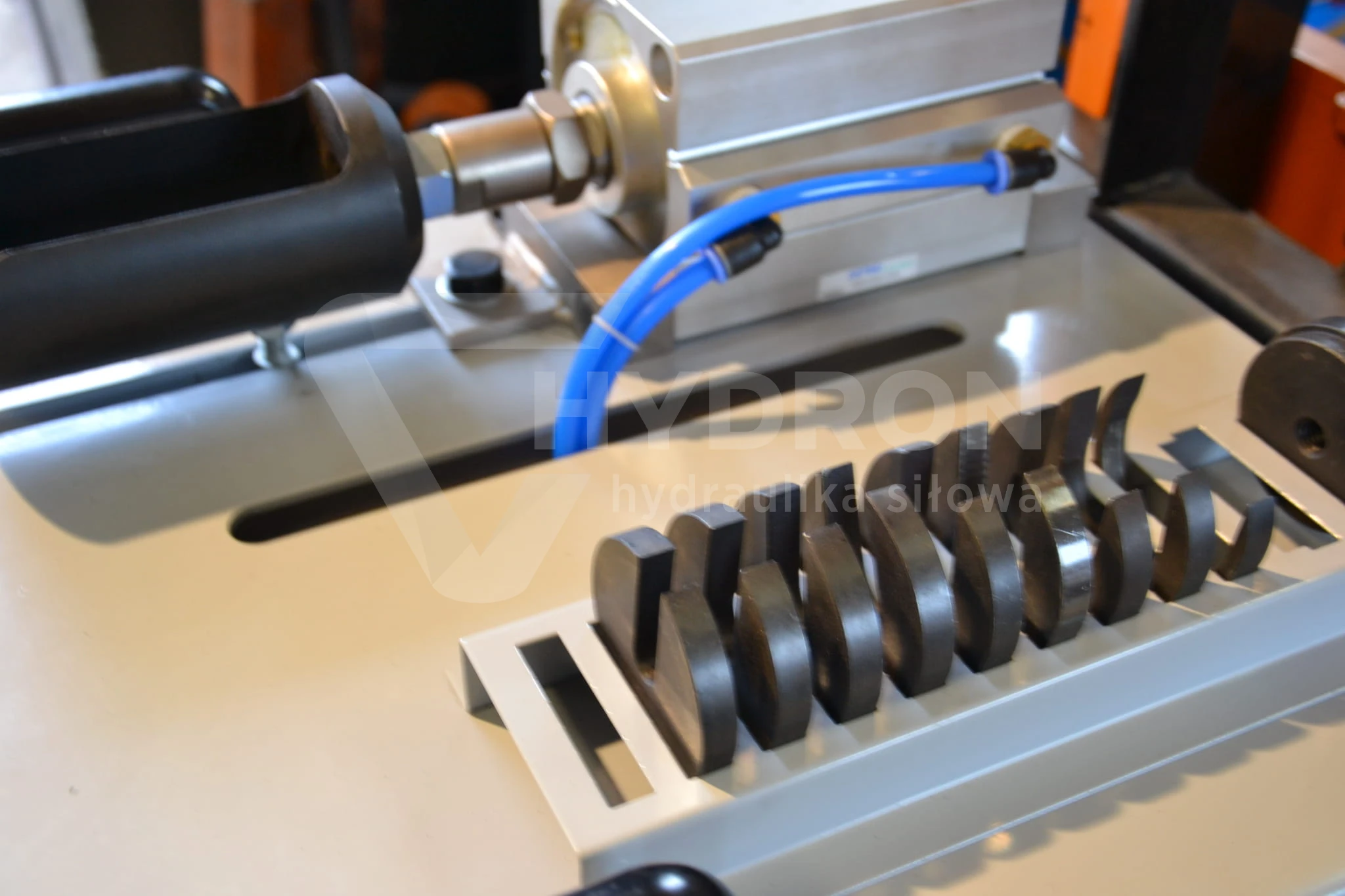

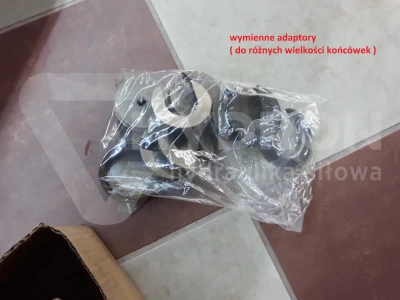

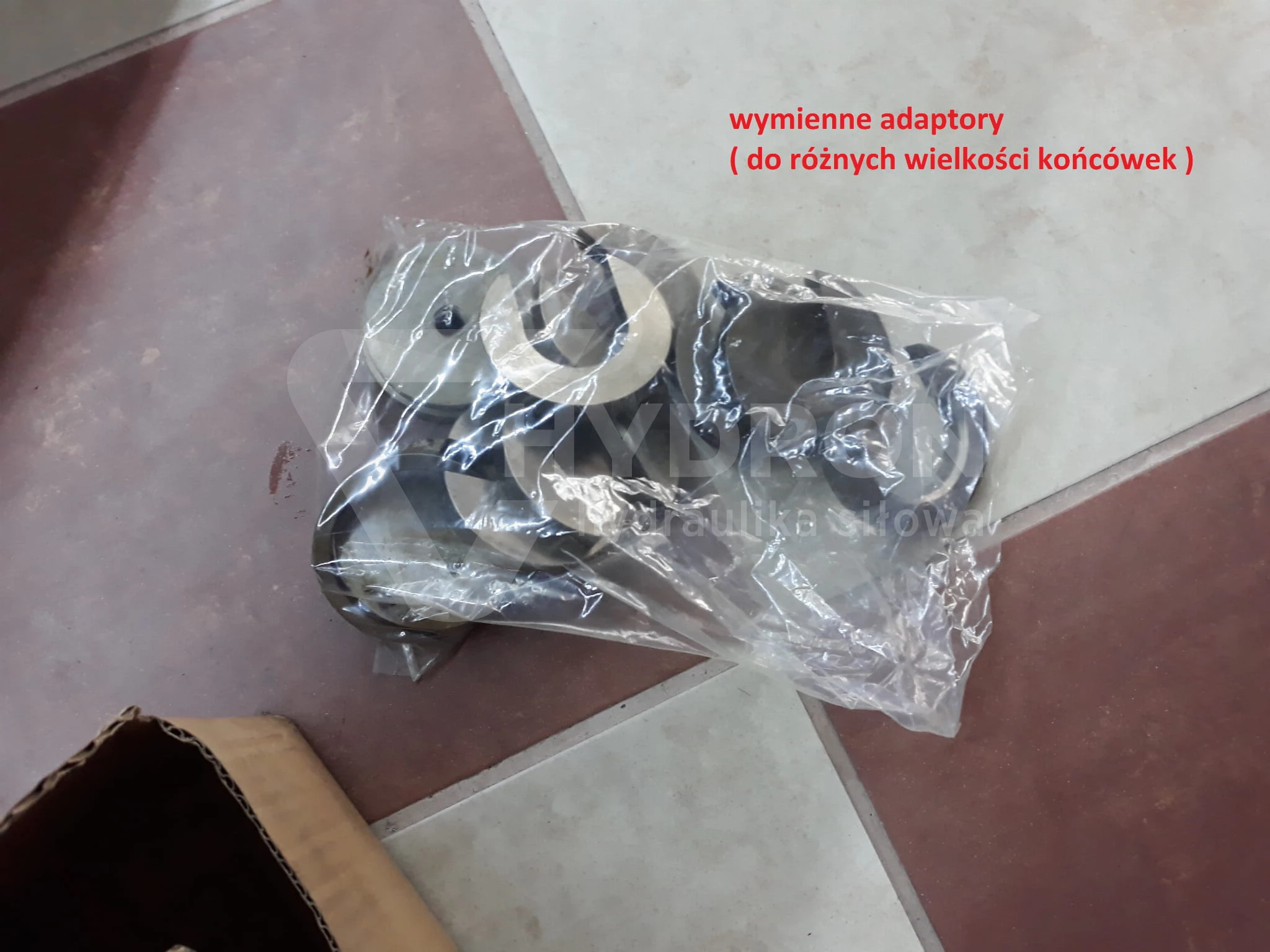

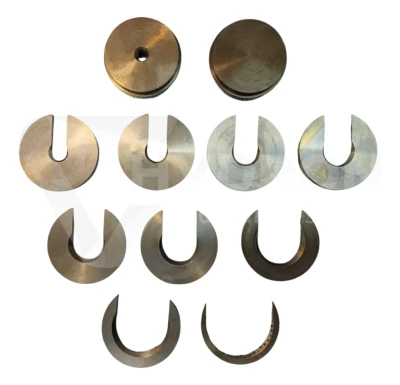

• Equipment: the set includes a complete set of assembly tools (10/11 inserts), allowing for versatile use.
• Convenient operation: foot pedal included in the standard set facilitates control of the assembly process and increases work ergonomics.

Assistance in daily hose assembly workshop work

The 50NSE Nipple Inserter device is ideal for professional hydraulic power workshops where mounting fittings on hoses is a daily task. It facilitates work with large hose diameters and ensures reliable operation in systems requiring high precision.

Thanks to modern technological solutions, the 50NSE Nipple Inserter guarantees time savings and a high standard of assembly. We invite you to check the full offer on the Hydron website.

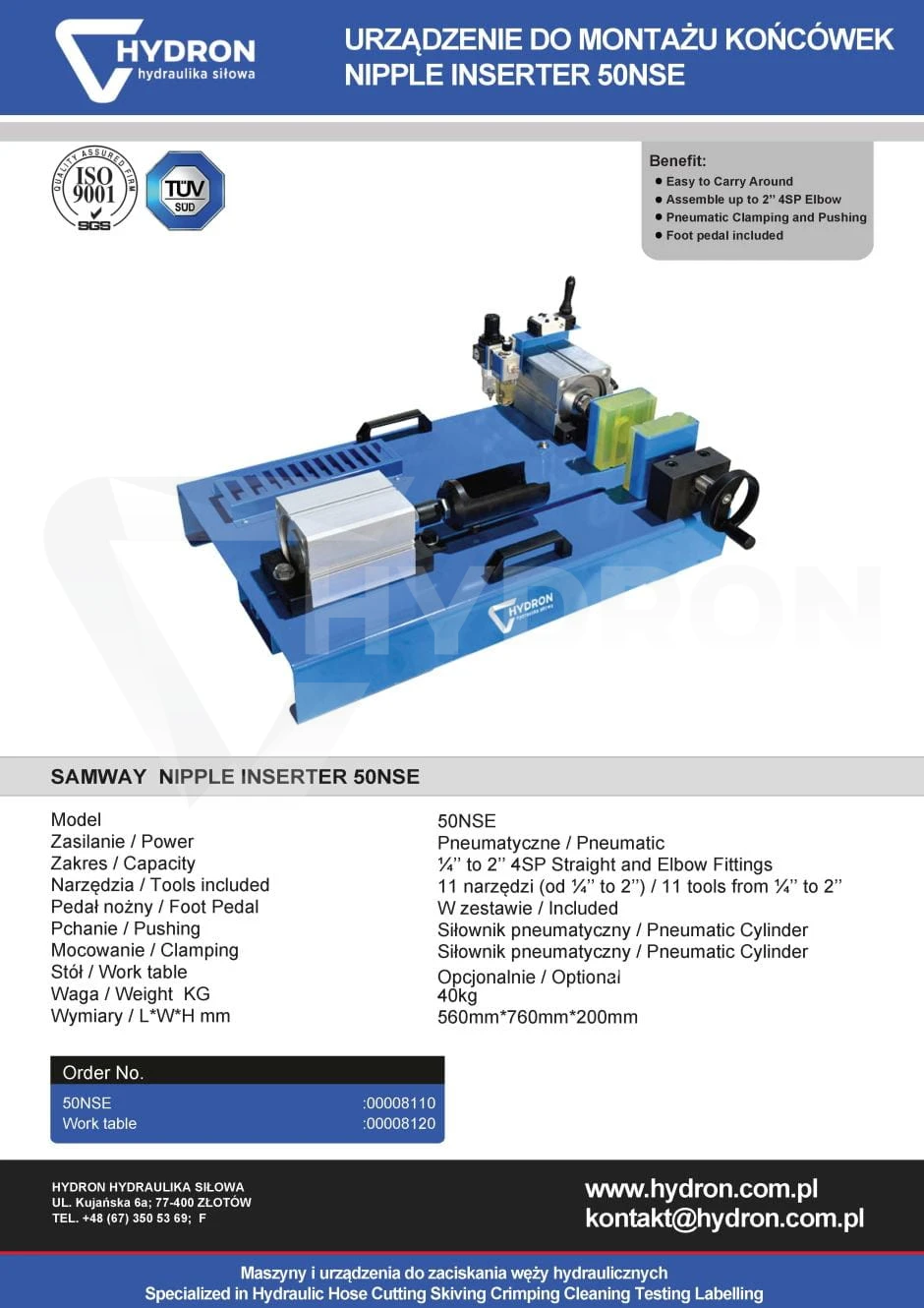

SAMWAY Nipple Inserter 50NSE – Technical Specification

Machine with all 10 inserts included for hose ferrules with bent tubes, suitable for 1/4'' to 2'' hydraulic hoses (straight or bended fittings).

Special advantages:

• Compact tabletop unit
• Easy to use, with minimal effort
• Pneumatic effortless operation with foot pedal as standard
• Robust precision technology
• Safe and quick mounting
• Low maintenance, suitable for mobile applications
• Special pressing dies for thermoplastic and small hoses available on request

Working range:

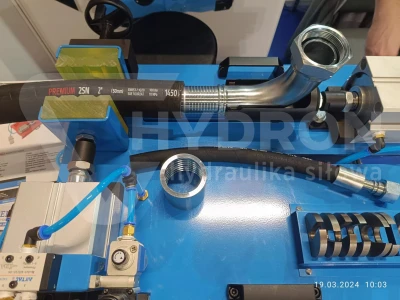

• All hydraulic hoses and fittings from DN 06 (1/4”) up to DN 50 (2”)
• Straight, 45° and 90° elbows
• Standard configuration with universal pressing jaws

Technical data:

• Dimensions (LxWxH): 650 mm x 250 mm x 140 mm

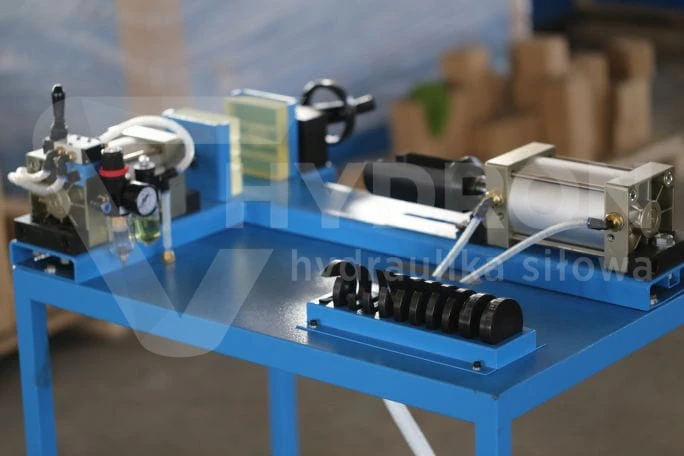

• Workbench table available as an option for Samway 50NSE
• Foot pedal included as standard
