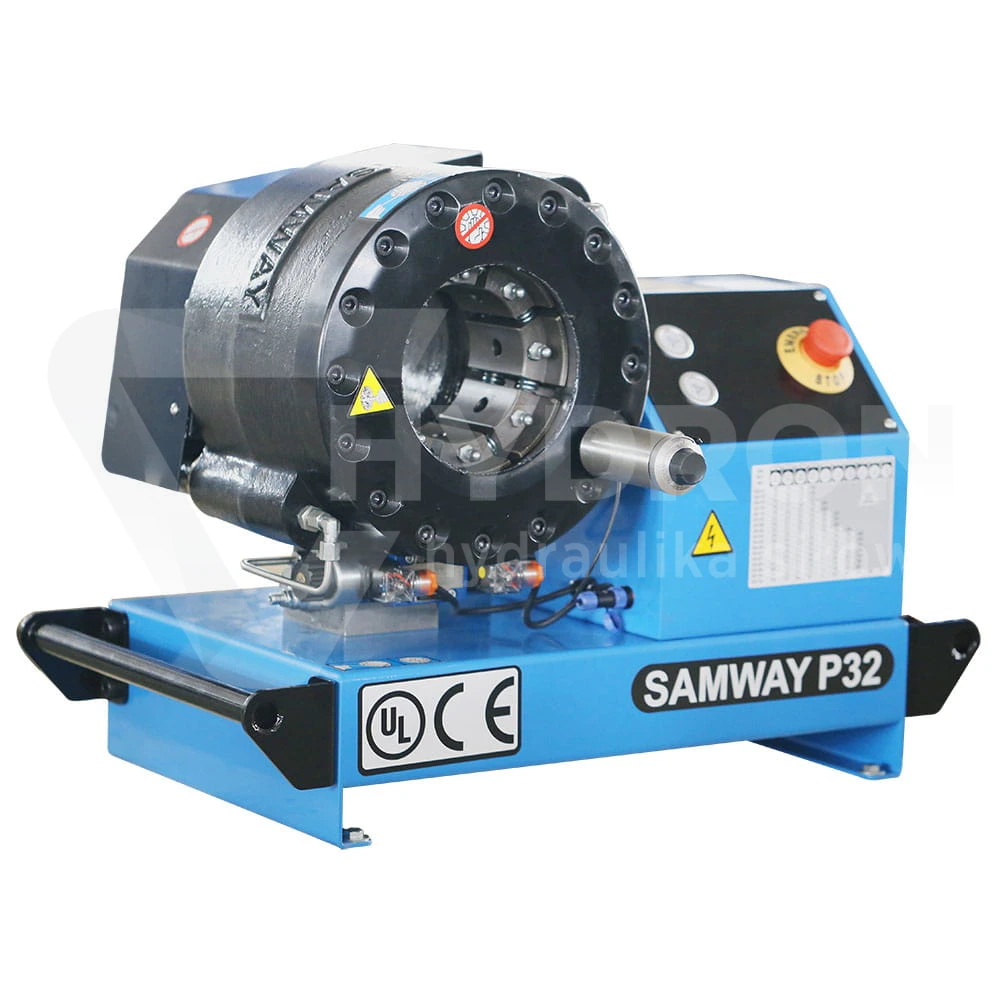

Mobile P32X DC battery-powered crimper

• P32X crimper user manual
• Click to watch video 1
• Click to watch video 2
• Schedule a free meeting and machine presentation
• Check other mobile crimpers in our offer
• Crimper leasing

Ideal crimper for service vehicles!

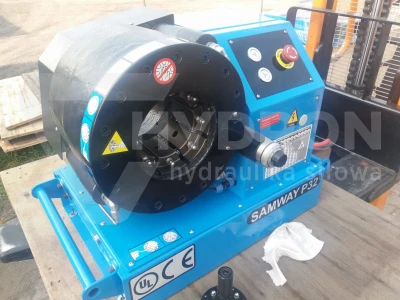

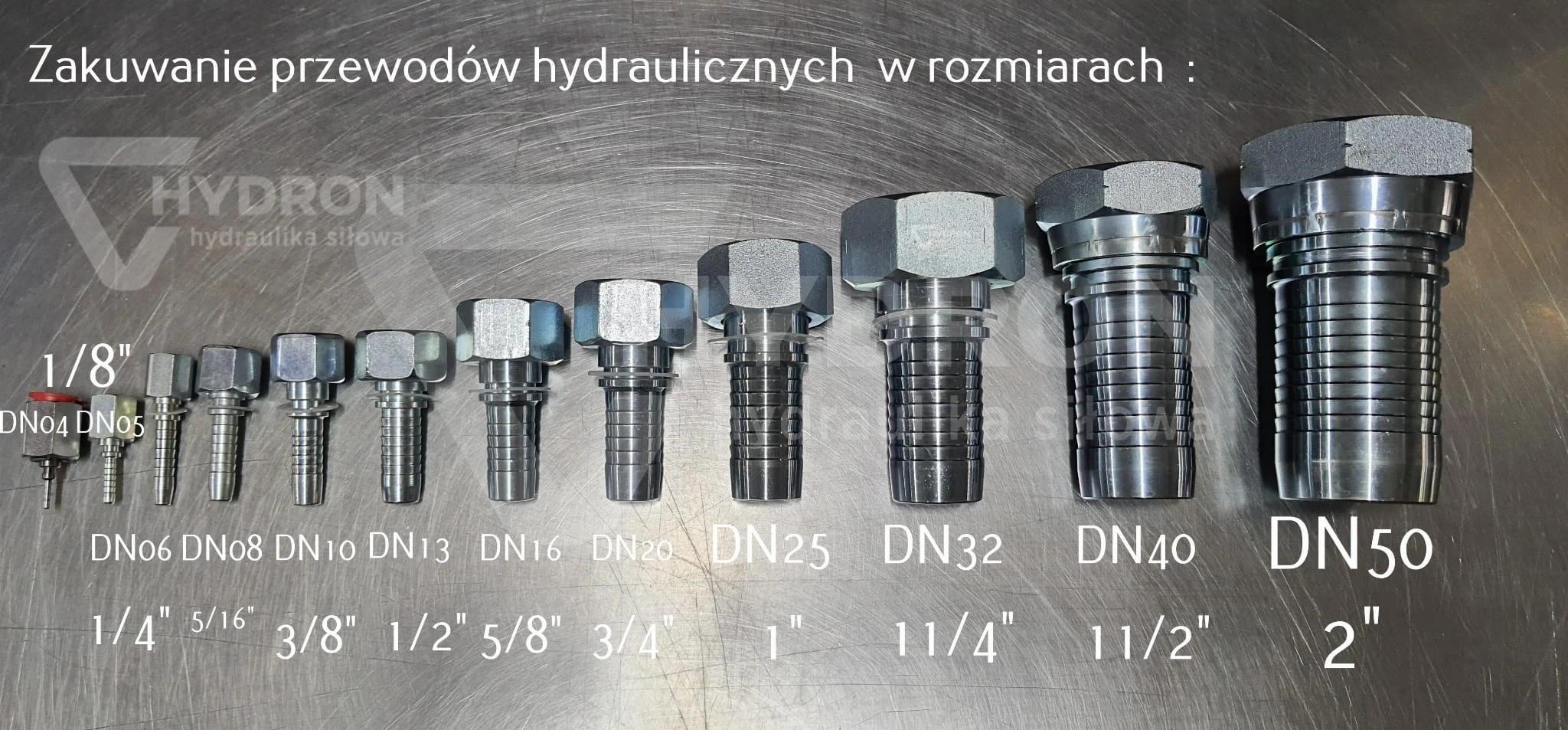

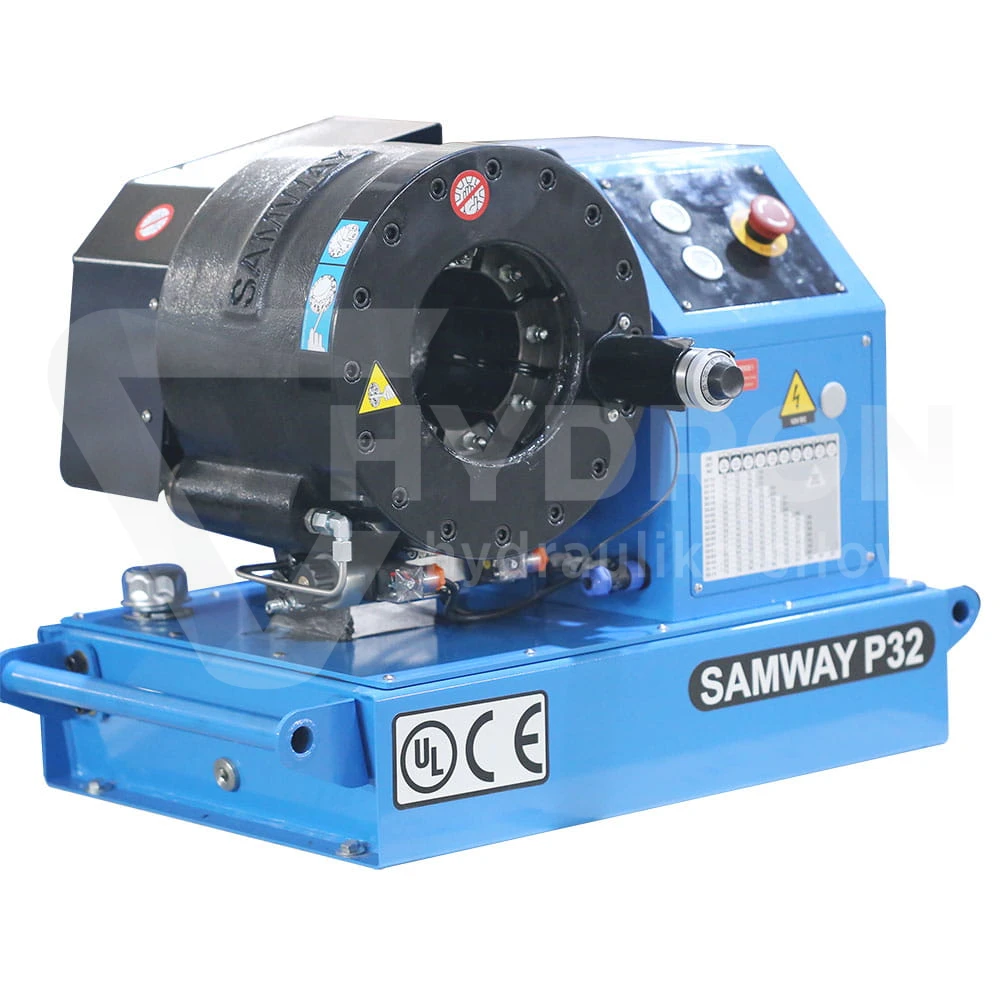

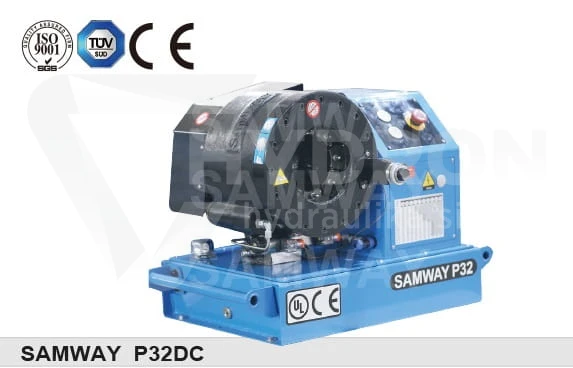

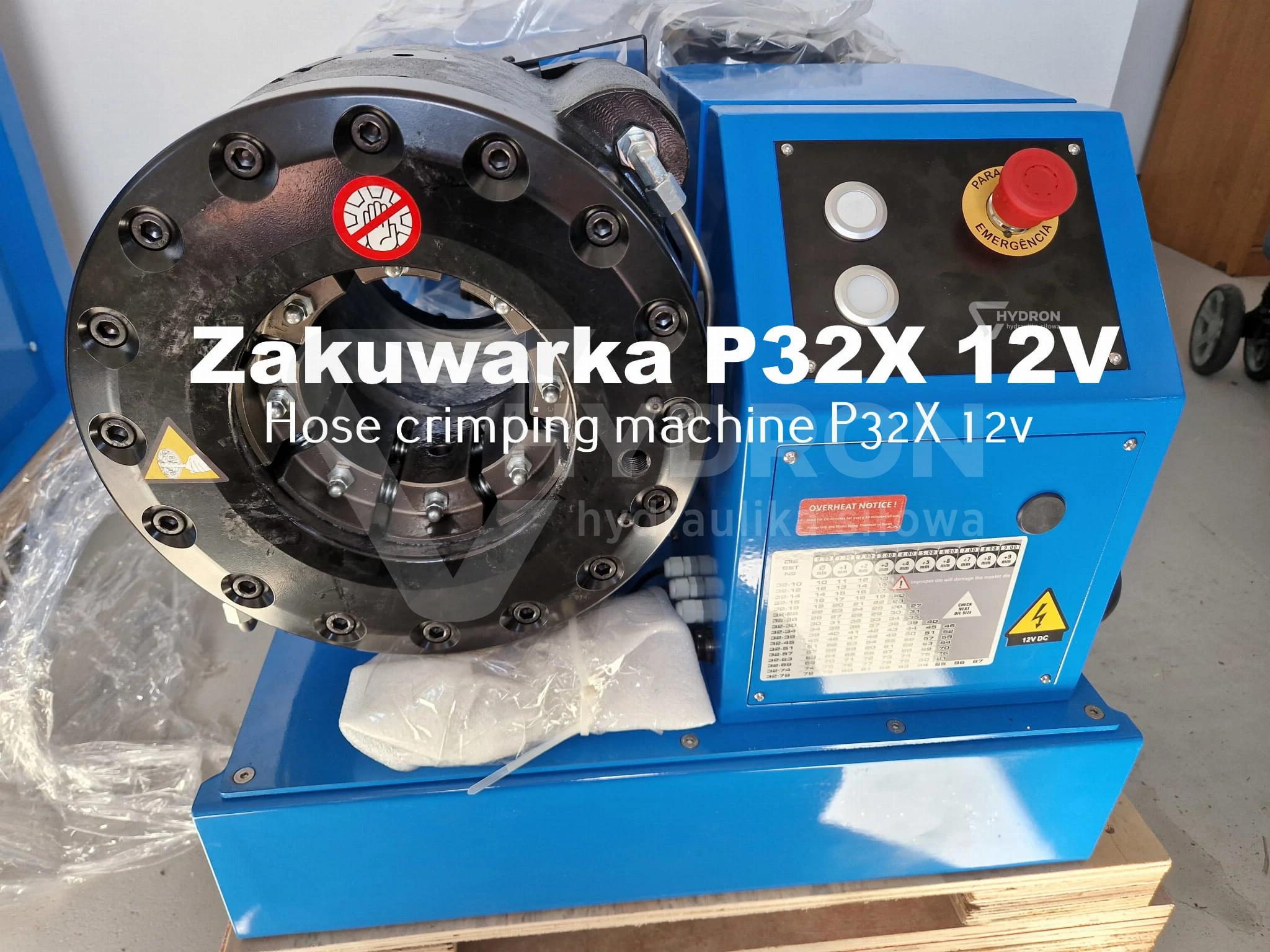

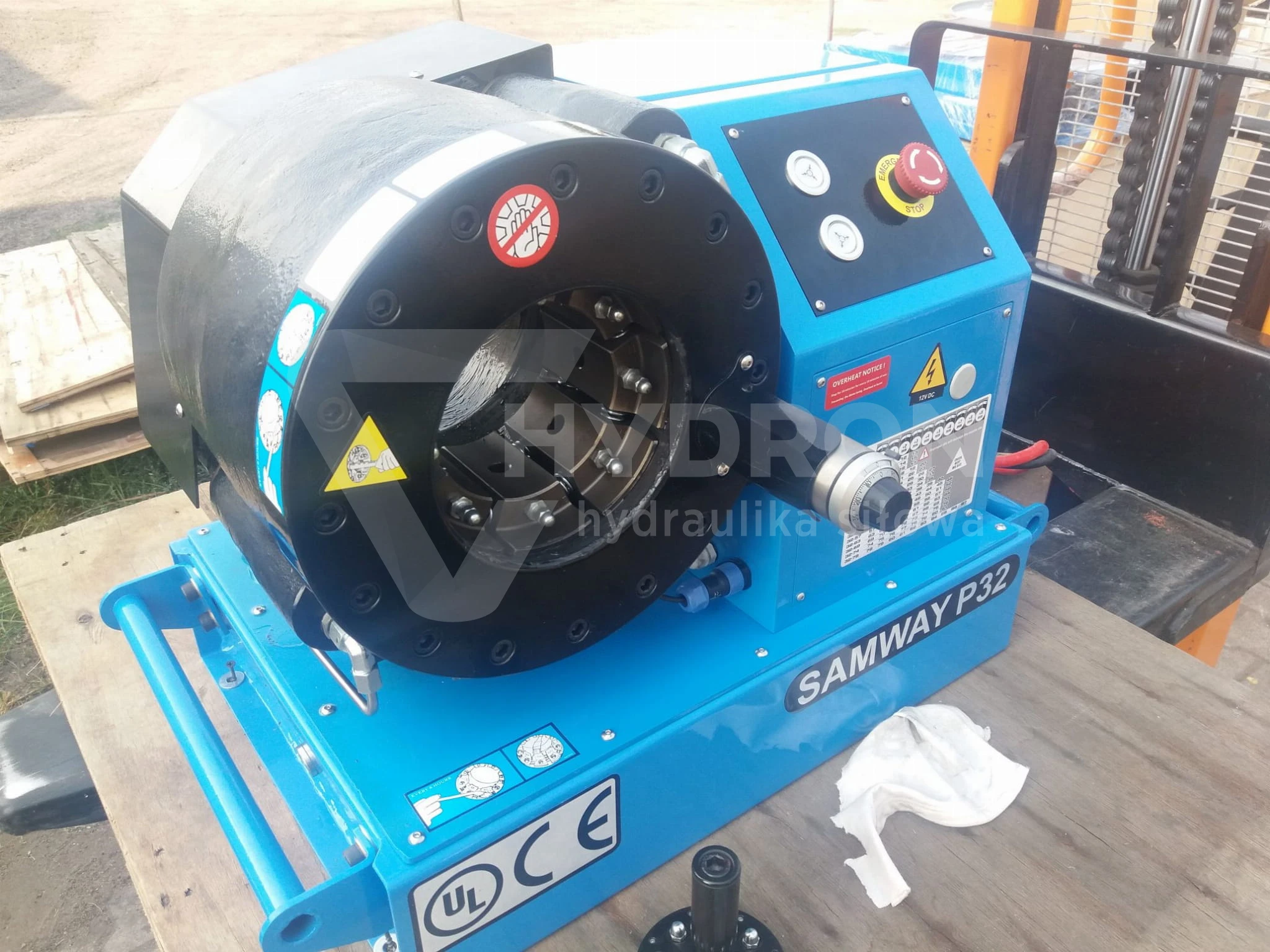

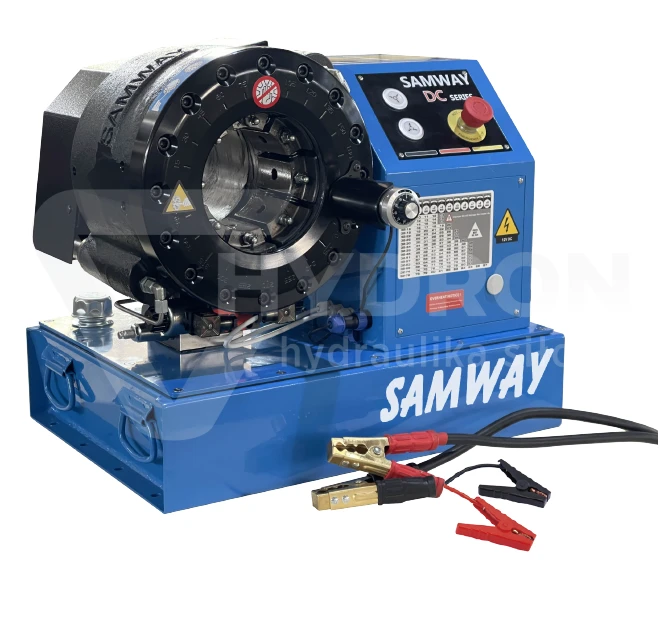

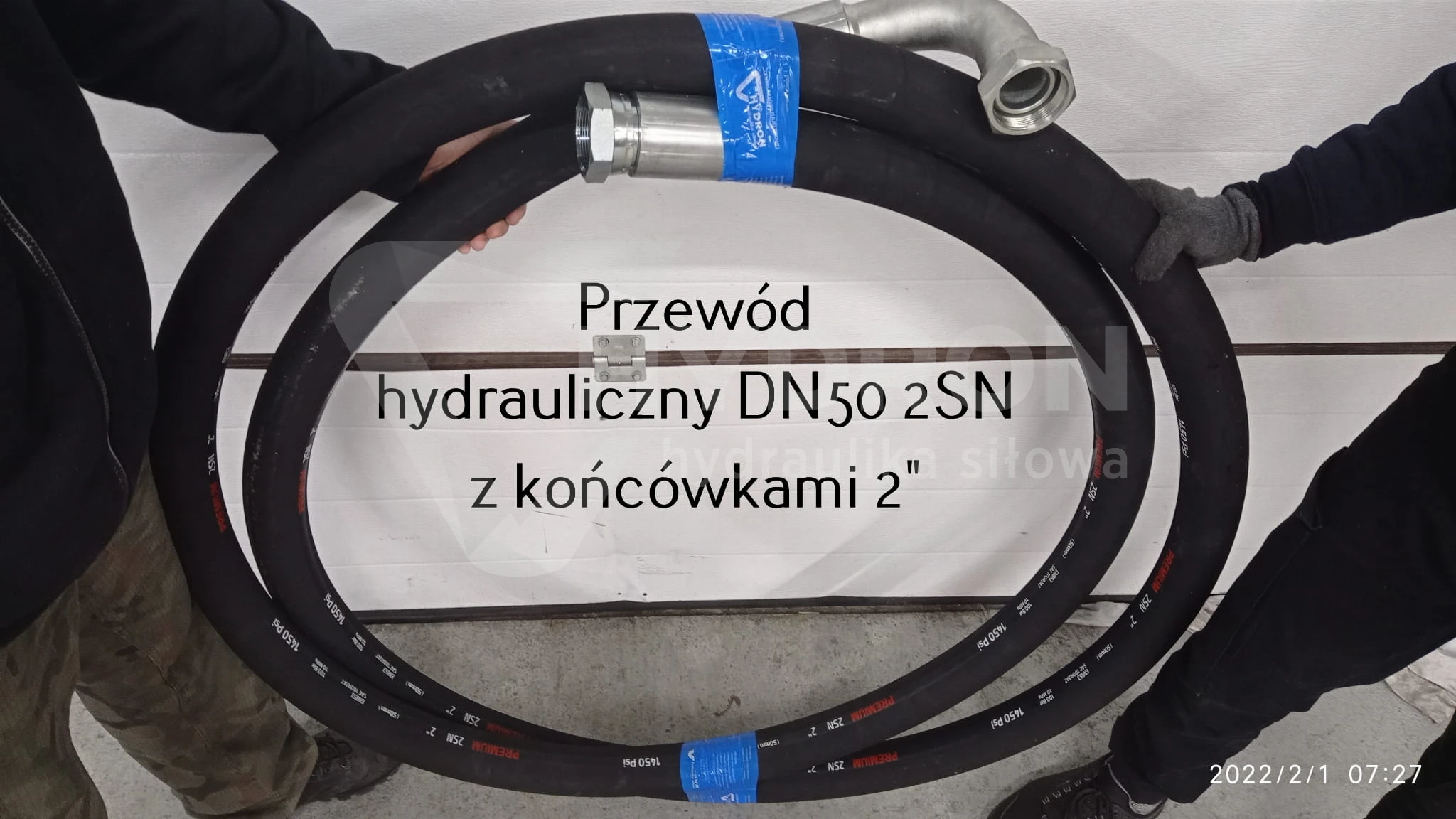

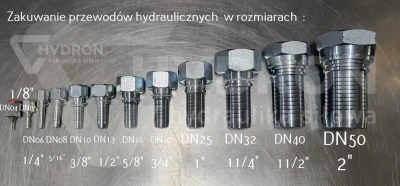

P32X 12V hydraulic hose crimper (powered by vehicle battery) crimps hydraulic hoses up to 2″ in 4SP version (four-wire braided hoses). The crimper is built from the best components (SIEMENS motor, EATON switch, Rexroth pump, precision micrometer). Manual control via high-quality micrometer. The crimper allows crimping of every hydraulic hose from 1/4" to 2" 4SP! A very large head allows easy crimping of large fittings!

The set includes 13 sets of dies, a quick-change tool, and a special die rack. The crimper is the largest 12V battery-powered press available on the market. The crimper is ideal for mobile hydraulic services (hose crimping in the field). Mobile crimpers can be powered by 12V or 24V (12V as standard).

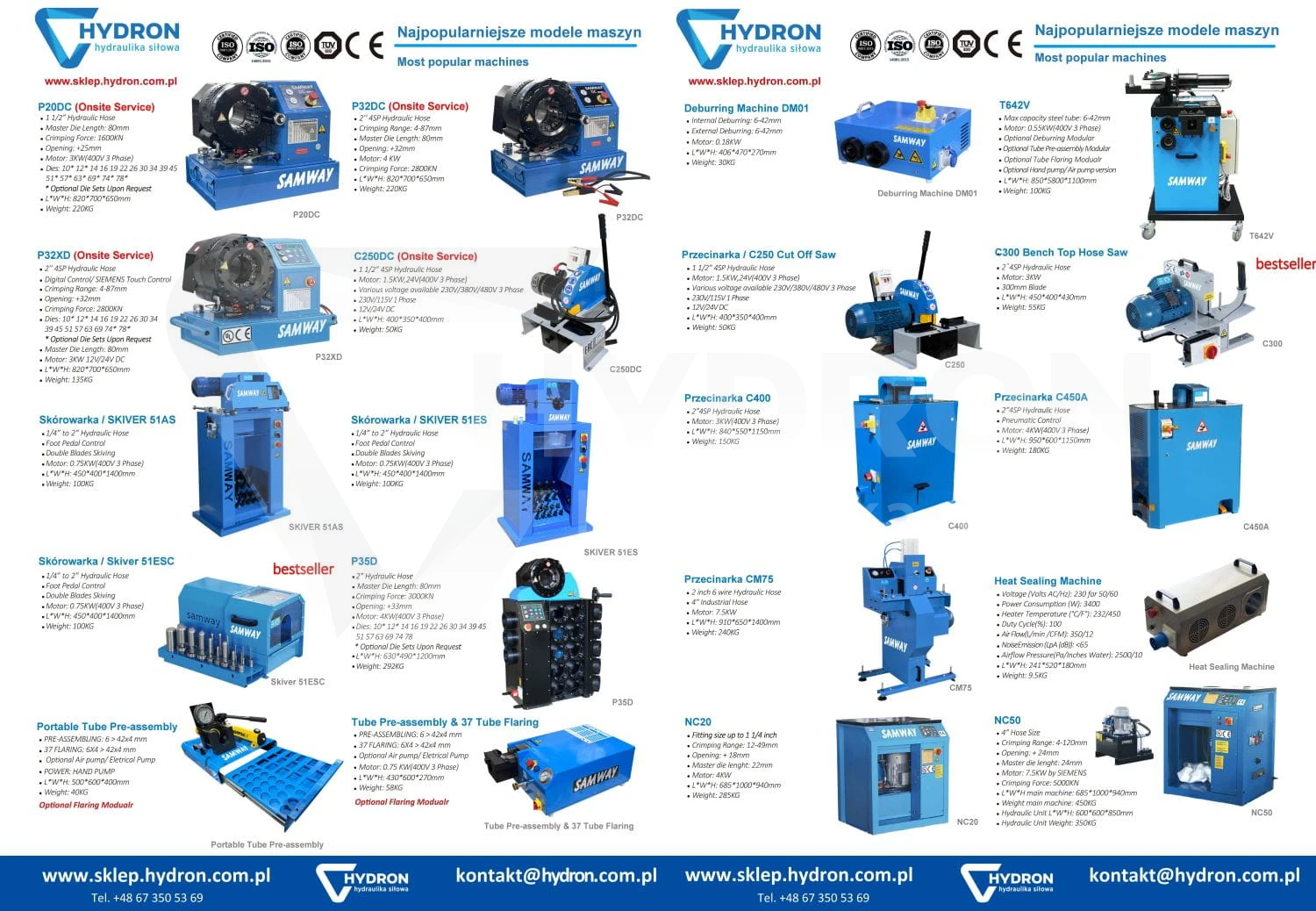

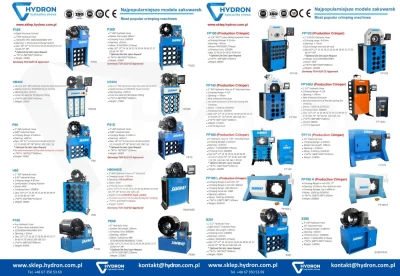

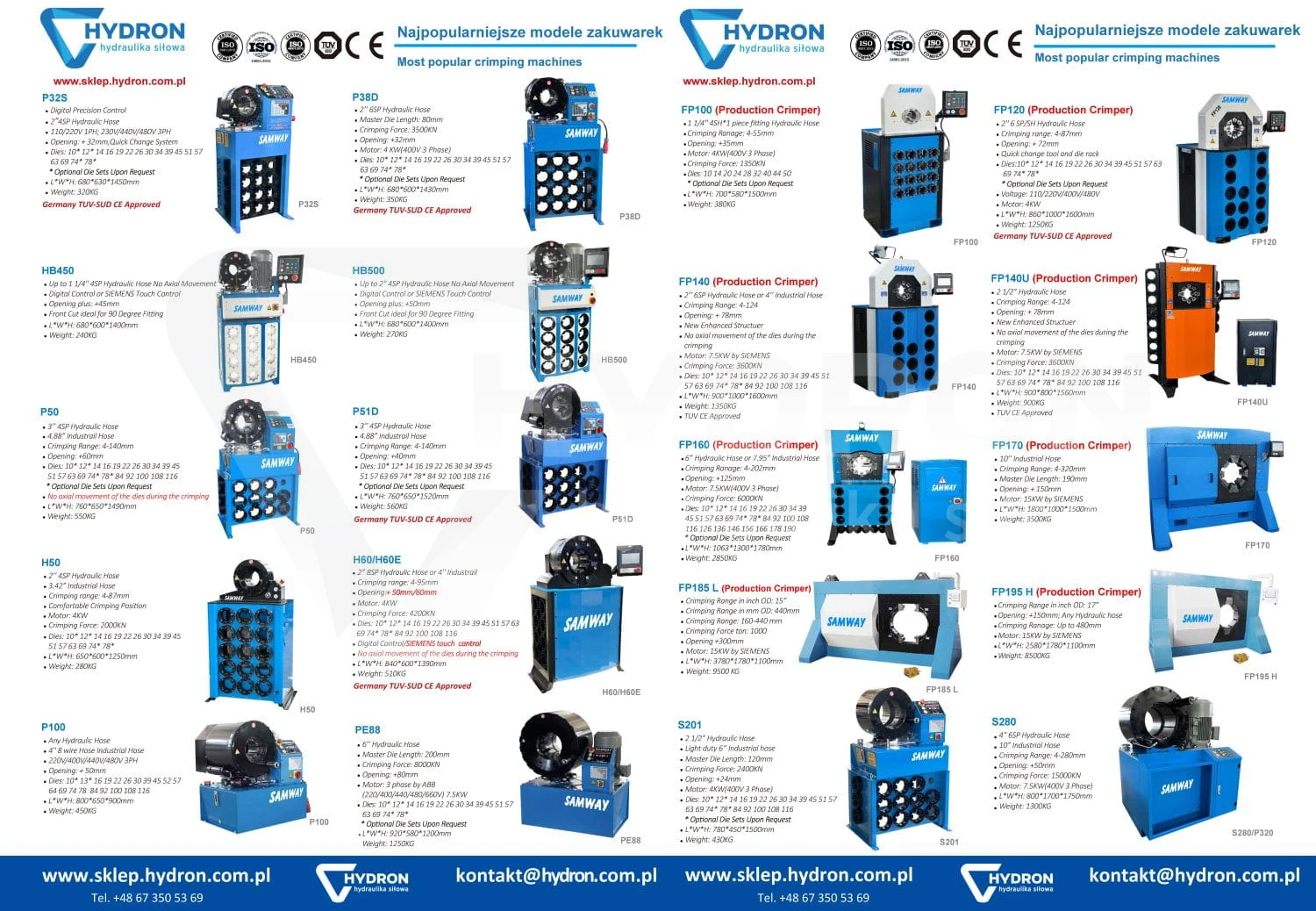

We also offer stationary crimpers with a stand – check models: P20Q, P20D, P32Q, P32D and industrial crimpers: H60, FP145D.

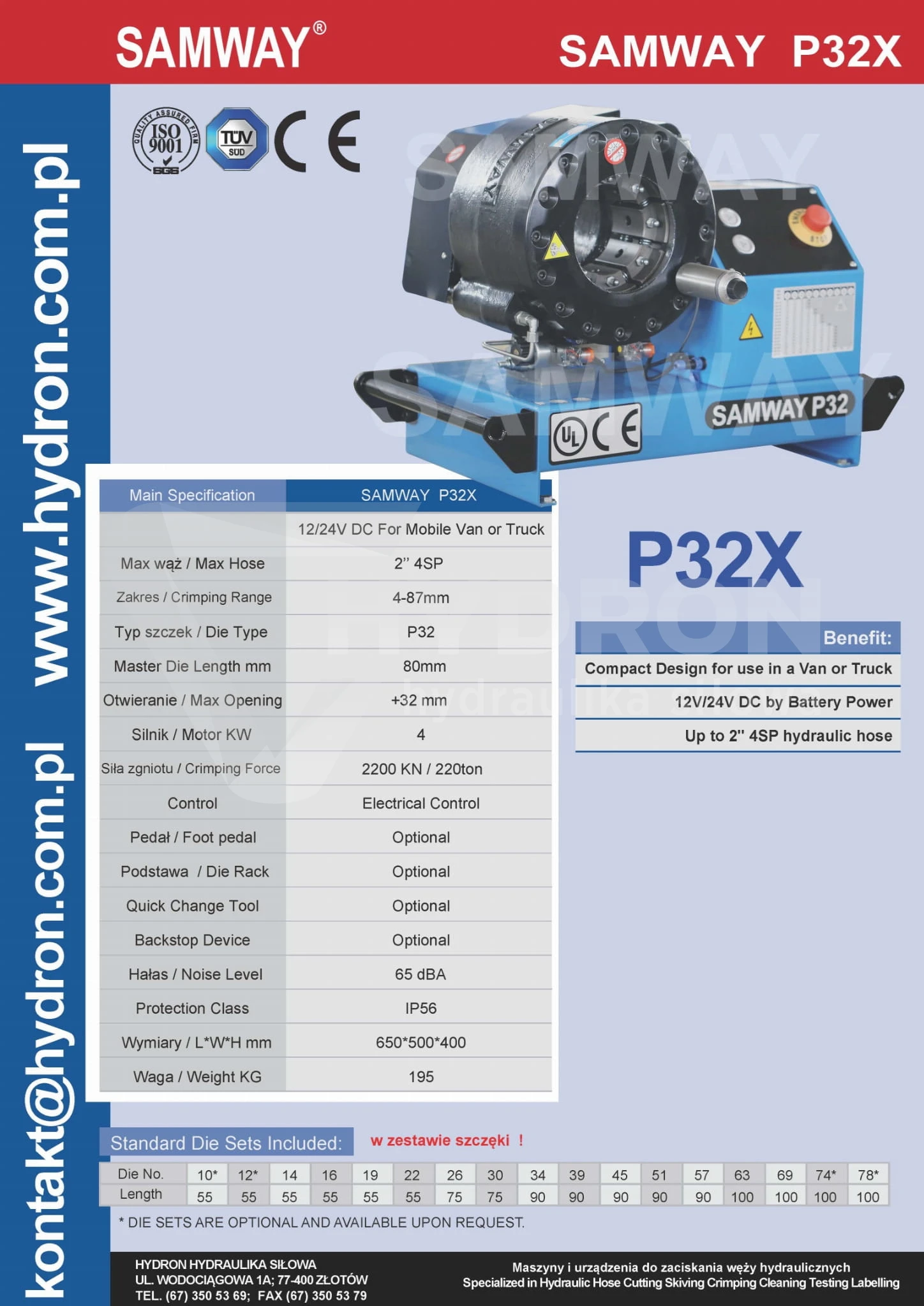

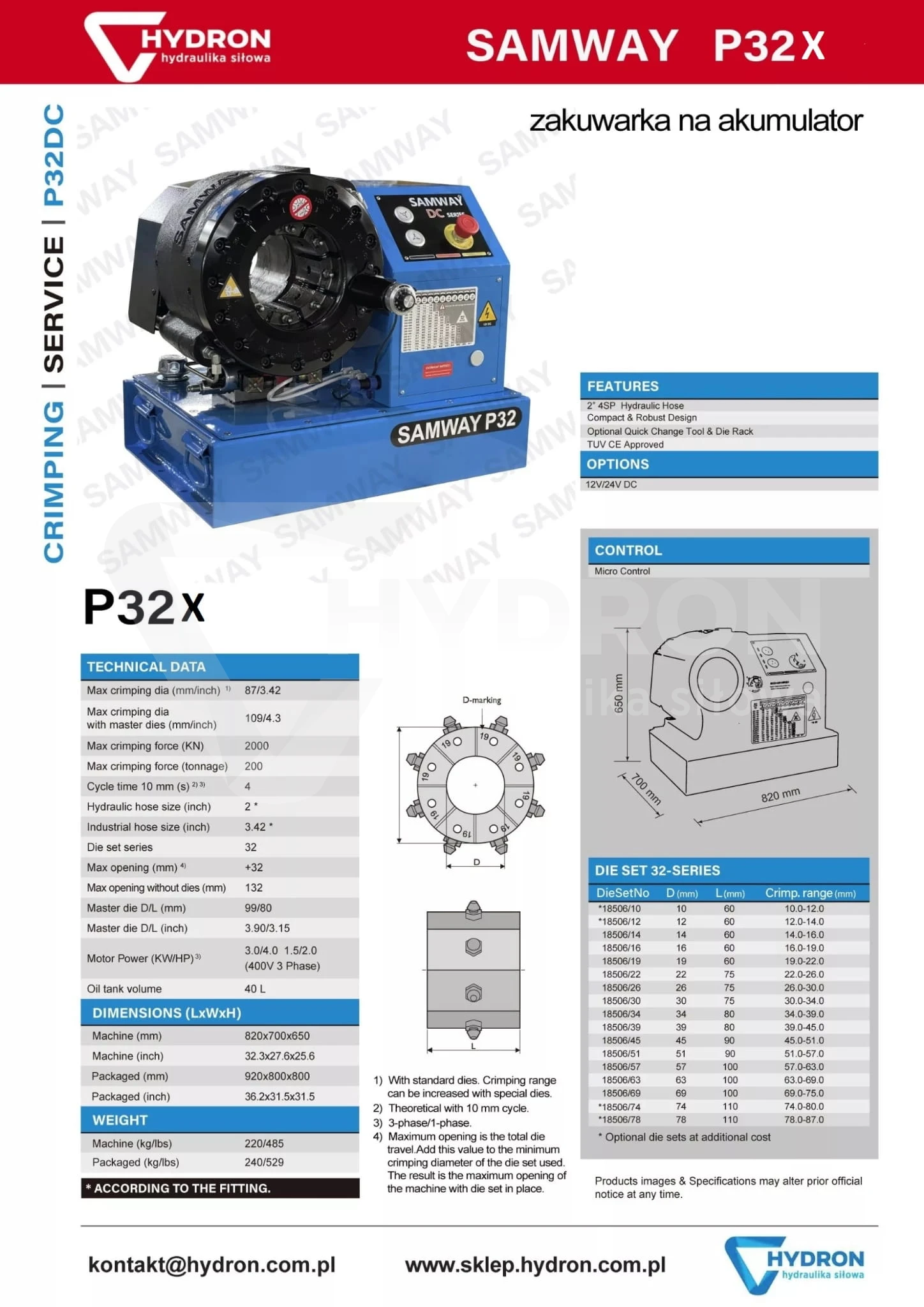

Technical parameters of the mobile crimper:

• Model: SAMWAY P32X 12V
• Maximum crimped hose / Max Hydraulic Hose: 2’’ 4SP
• Maximum crimping diameter on master dies: 109 mm
• Maximum opening without dies: 132 mm
• Crimping range: 4-87 mm
• Die Type: P32
• Master Die Length: 99 mm
• Max Opening: +32 mm
• Motor KW: 4 KW (12 VDC)
• Crimping Force KN: 2800 (280 tons)
• Quick Change: YES / Included
• Die Rack: YES / Included
• Foot pedal: no
• Oil tank: 40 l
• Dimensions (HxWxL): 650 mm x 820 mm x 700 mm
• Machine weight + dies / Weight: 220 kg

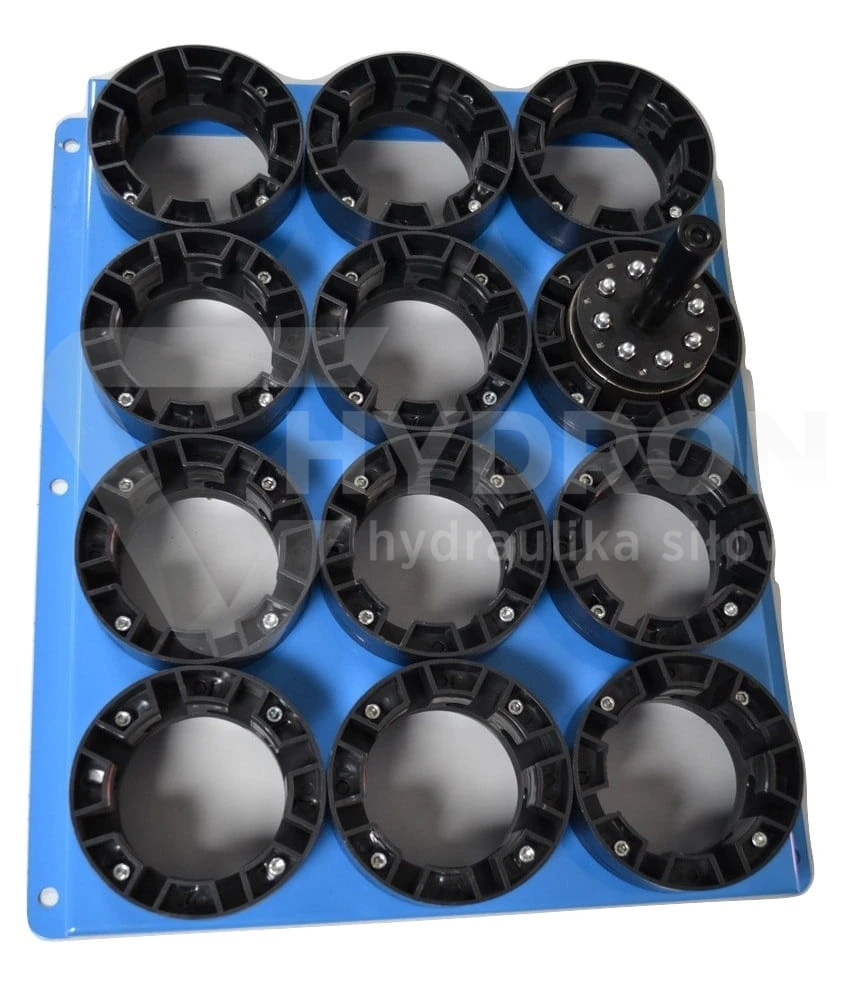

Crimping dies included with the machine (size / length):

• 14 mm (length 60 mm)
• 16 mm (length 60 mm)
• 19 mm (length 60 mm)
• 22 mm (length 75 mm)
• 26 mm (length 75 mm)
• 30 mm (length 75 mm)
• 34 mm (length 80 mm)
• 39 mm (length 80 mm)
• 45 mm (length 90 mm)
• 51 mm (length 90 mm)
• 57 mm (length 90 mm)
• 63 mm (length 100 mm)
• 69 mm (length 100 mm)
• Additional dies can be ordered

What safety protections are provided in the crimper?

A red overheat warning is located on the front of the control panel. The motor will stop in case of overheating (prolonged operation or overload). An overheat / overcurrent protection mechanism is built into the motor, which stops the machine in the event of a short circuit or overload.

How much current does the crimper draw during maximum crimping force?

The machine uses a 3 KW (12 VDC) motor, so current consumption at maximum load can be approximately 250 A.

What rated current does the crimper draw when operating without load?

Without load, current consumption is approximately 50 A. For stable operation, a 24 V DC battery or a high-quality 12 V battery with a low voltage drop during use is recommended. A good quality battery will maintain a voltage of about 20 V (for a 24V system) during operation, while a weaker battery may drop to 15 V or less, causing a loss of motor power and a drastic drop in crimping pressure. Generally, a 24 V DC power supply provides more durable and stable performance compared to a 12 V DC system.
