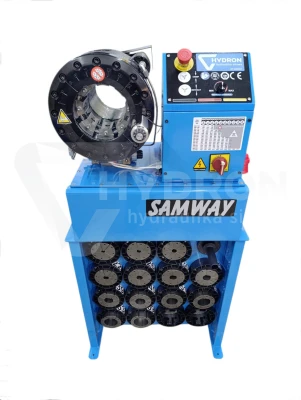

SAMWAY P32Q Hydraulic Hose Crimping Machine

The crimping machine has the prestigious TUV SUD certificate! and ROHS certificate

• Arrange a free meeting and machine presentation
• See what is included in the set with the machine
• Watch the instructional video of the P32Q crimping press
• Crimping machine leasing
• Check what the crimping machine warranty covers

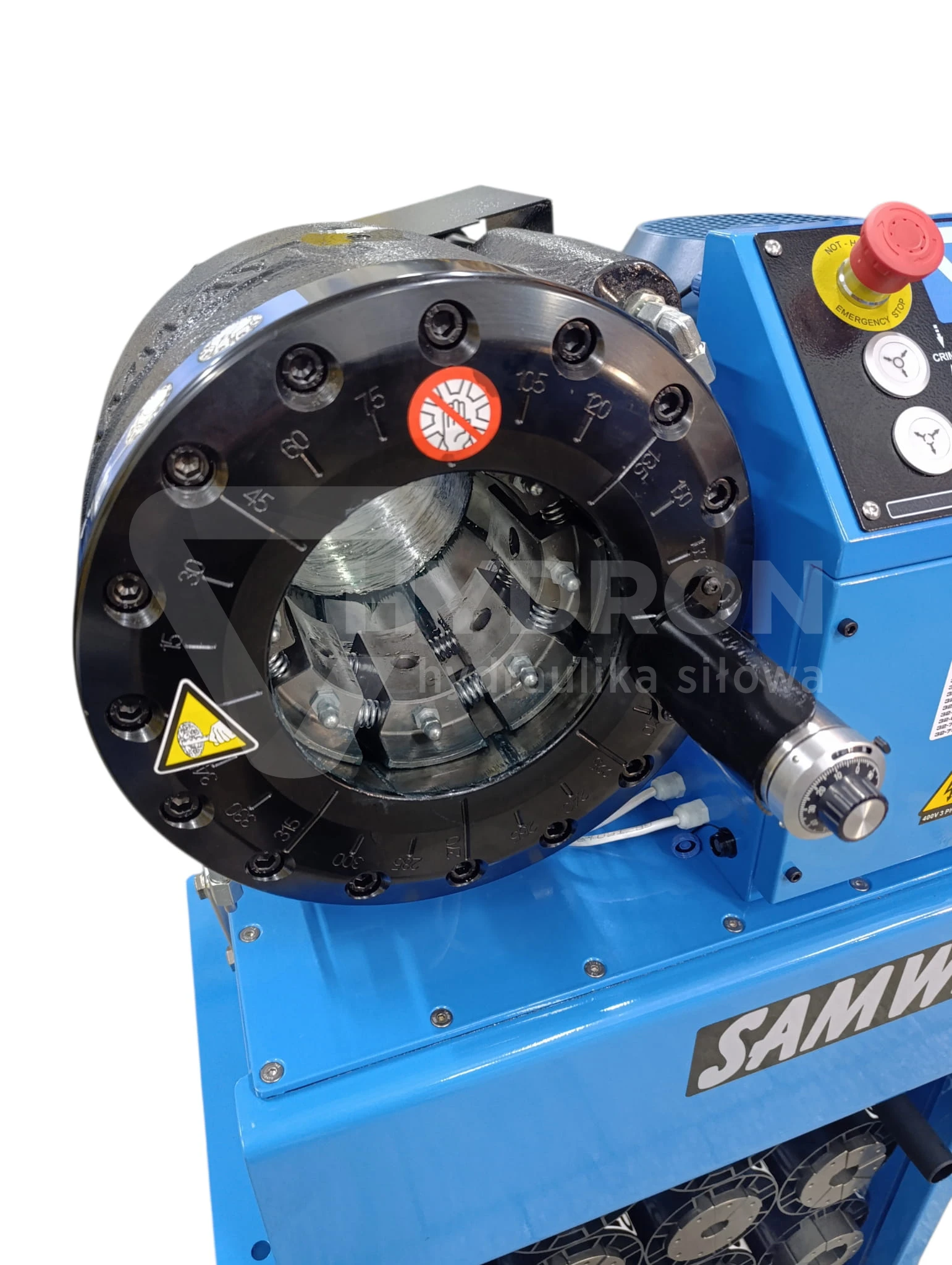

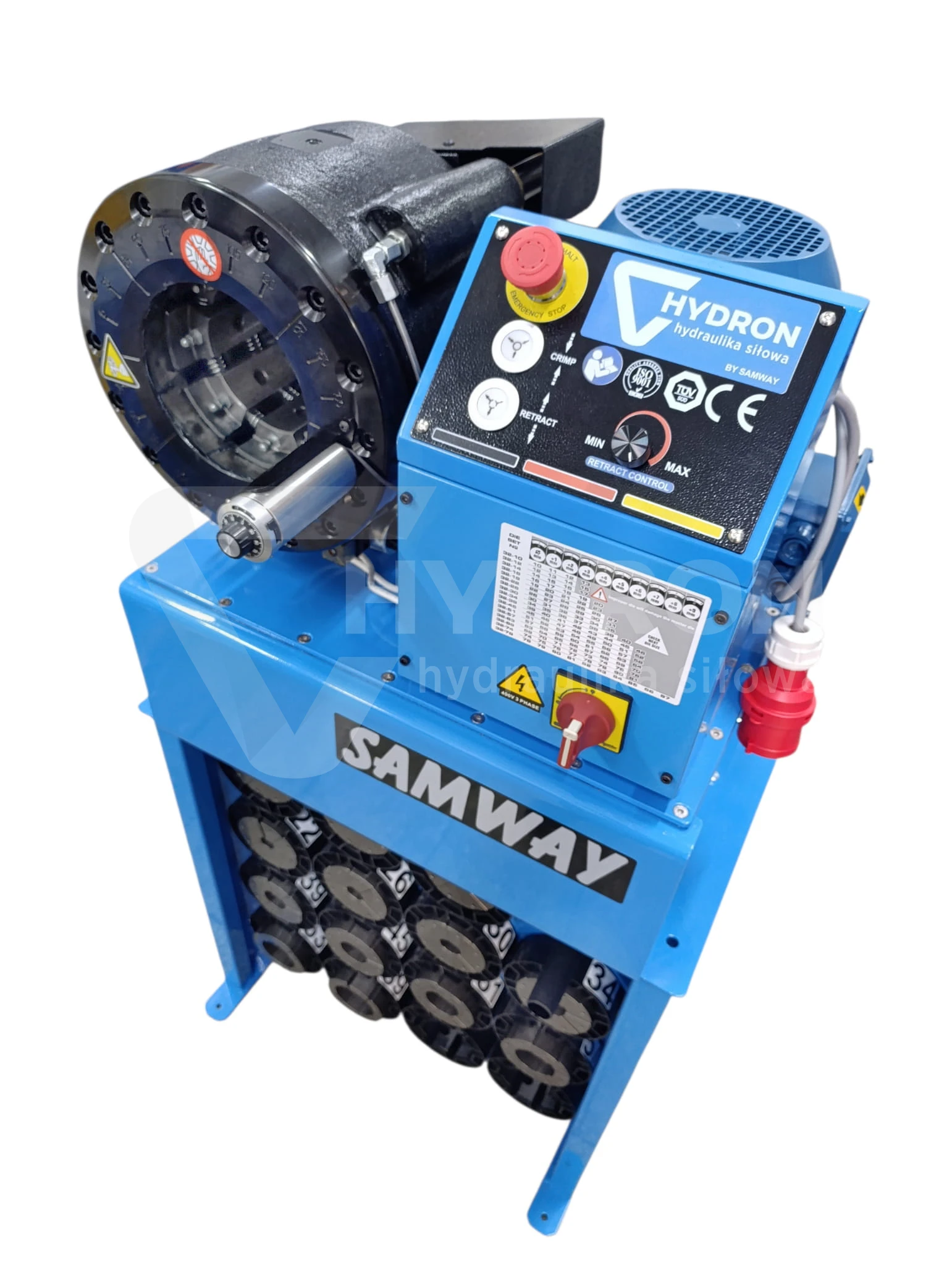

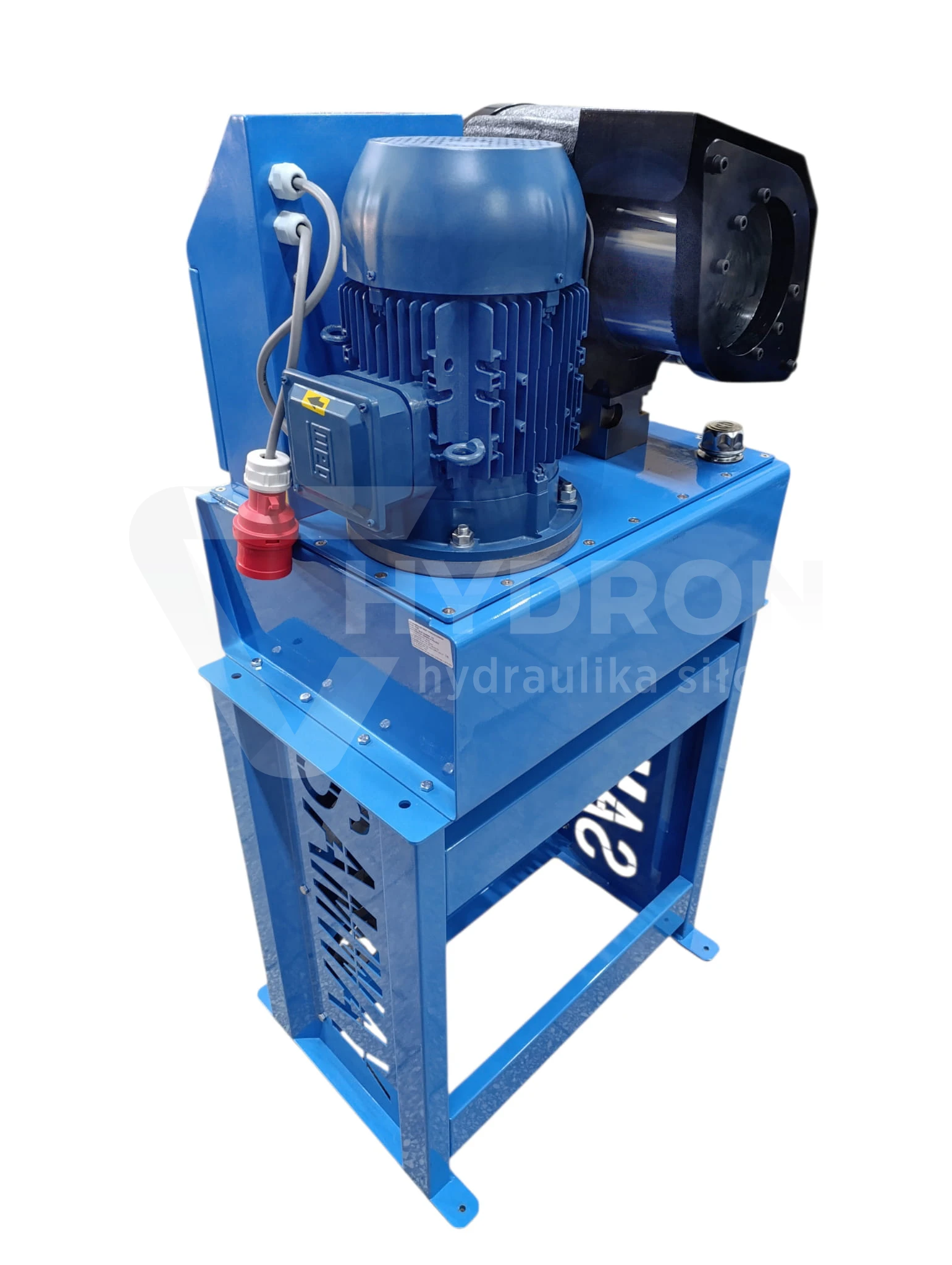

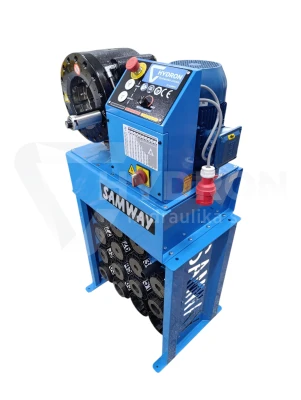

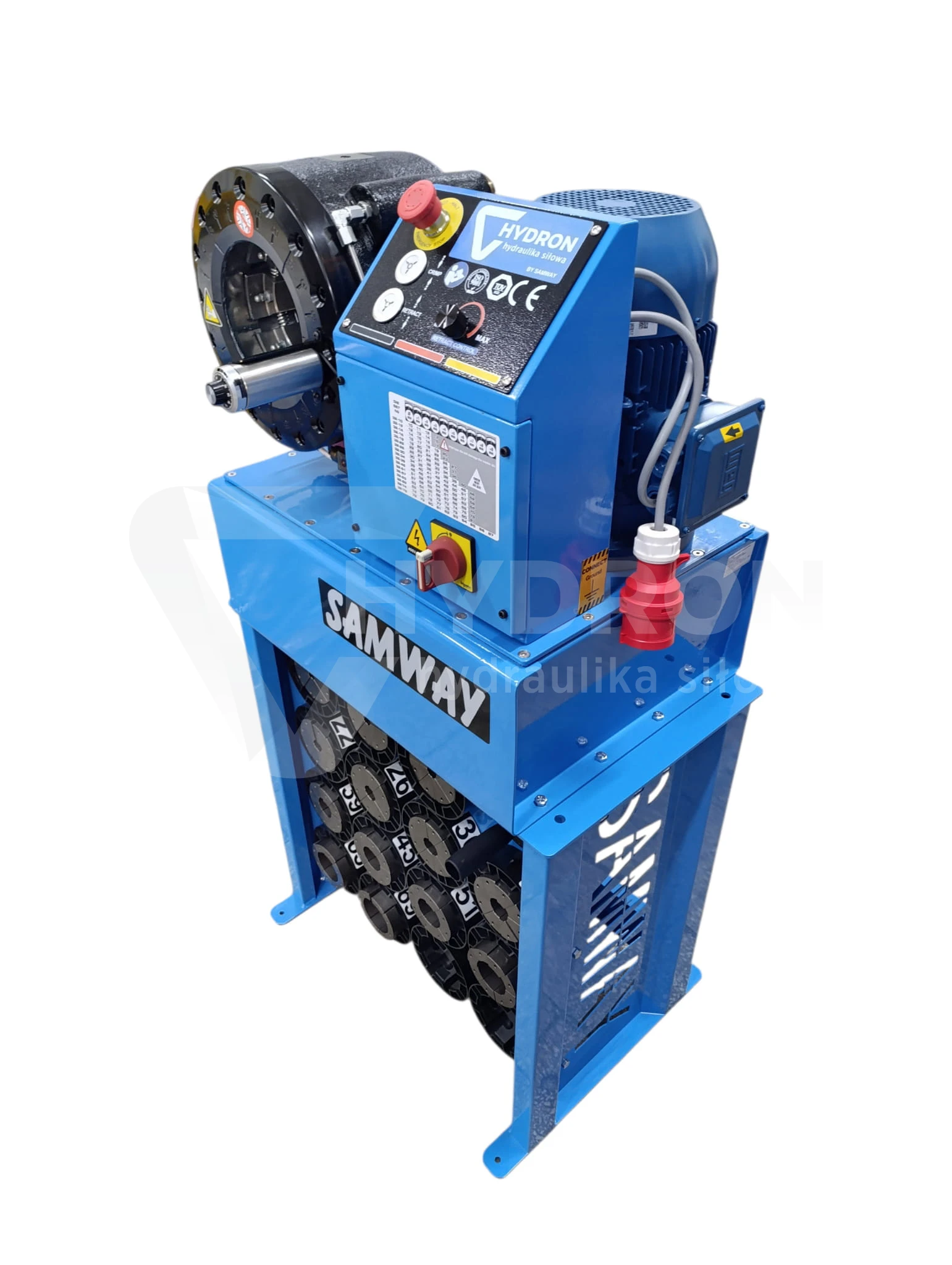

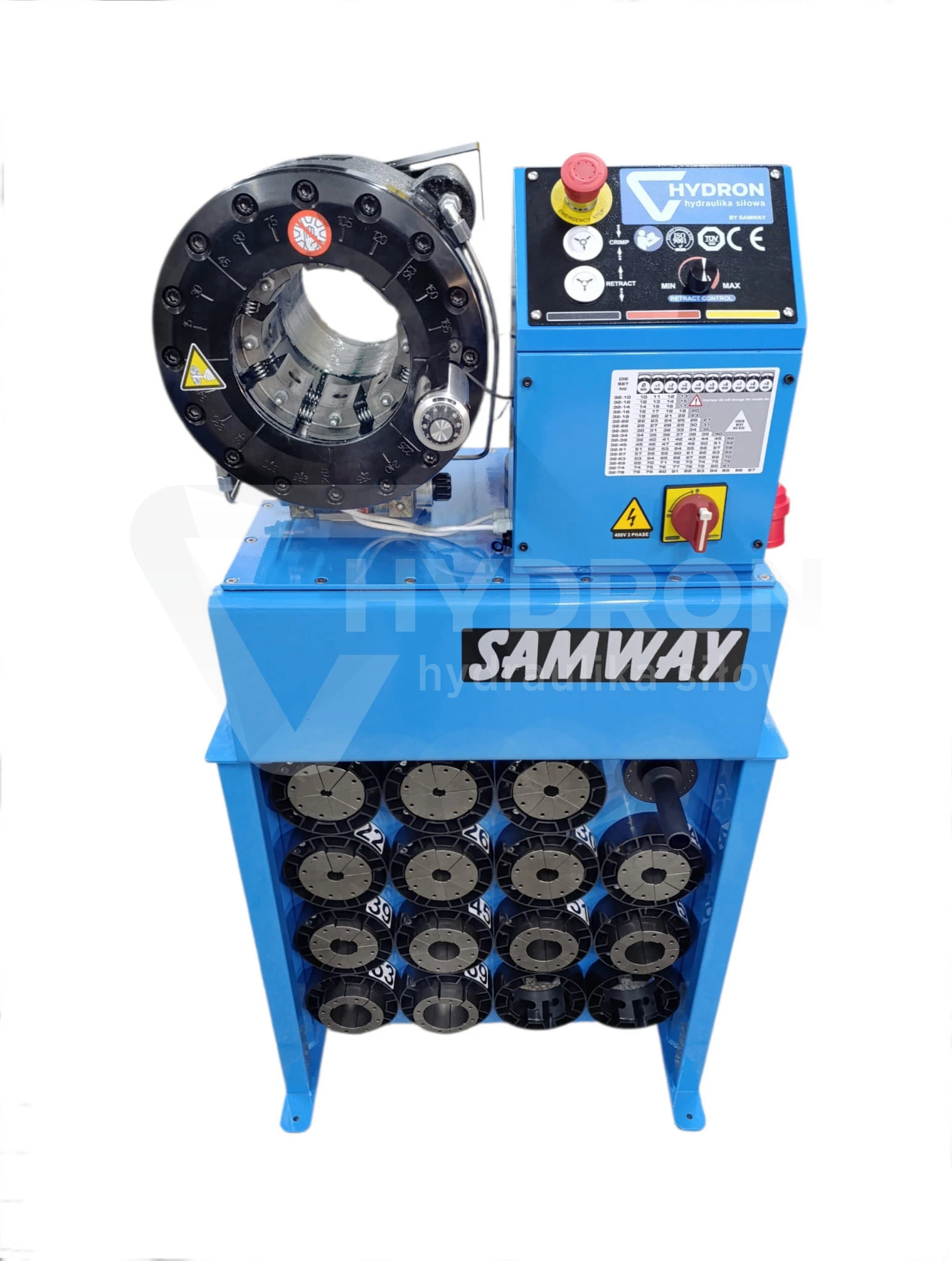

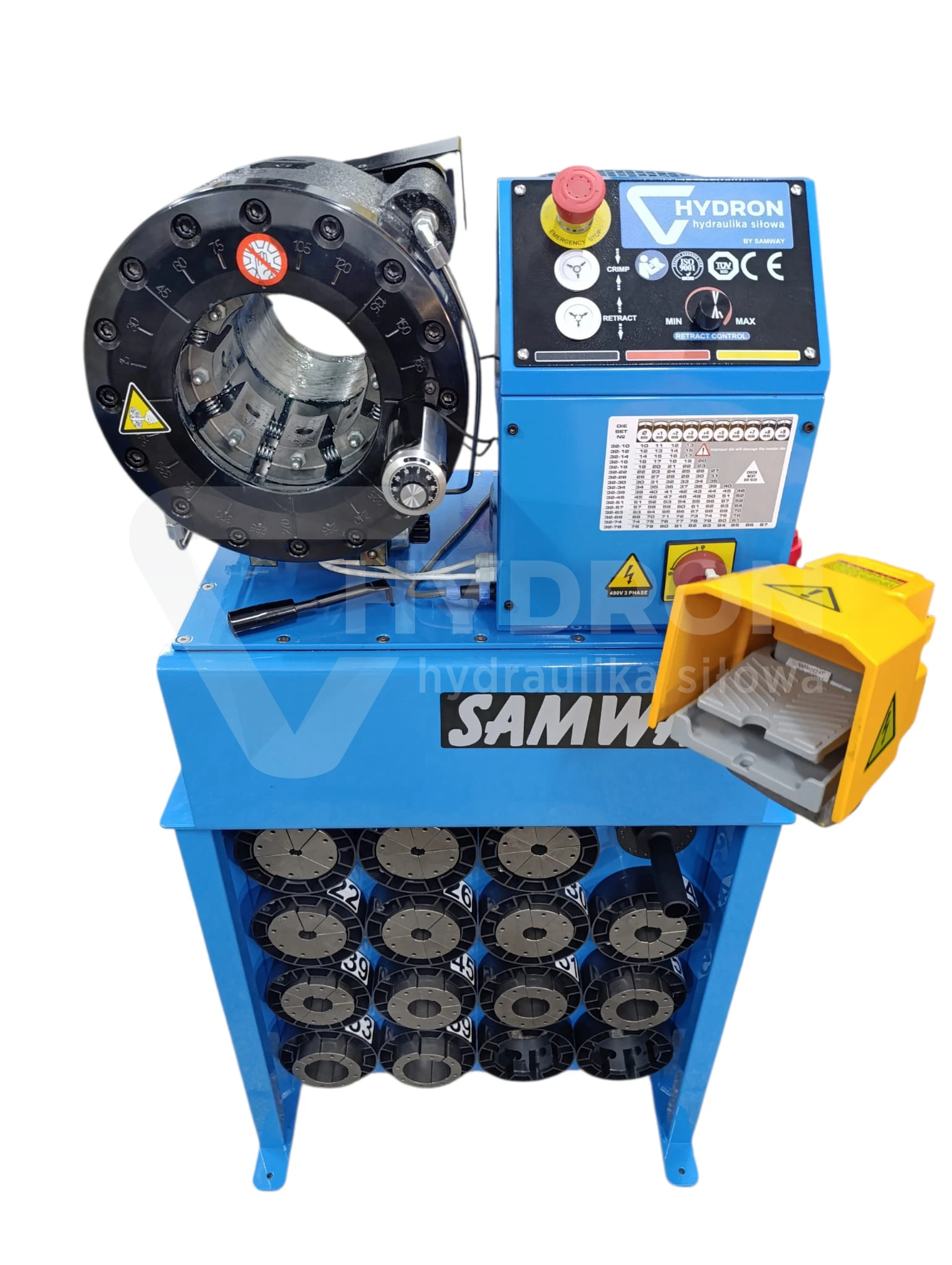

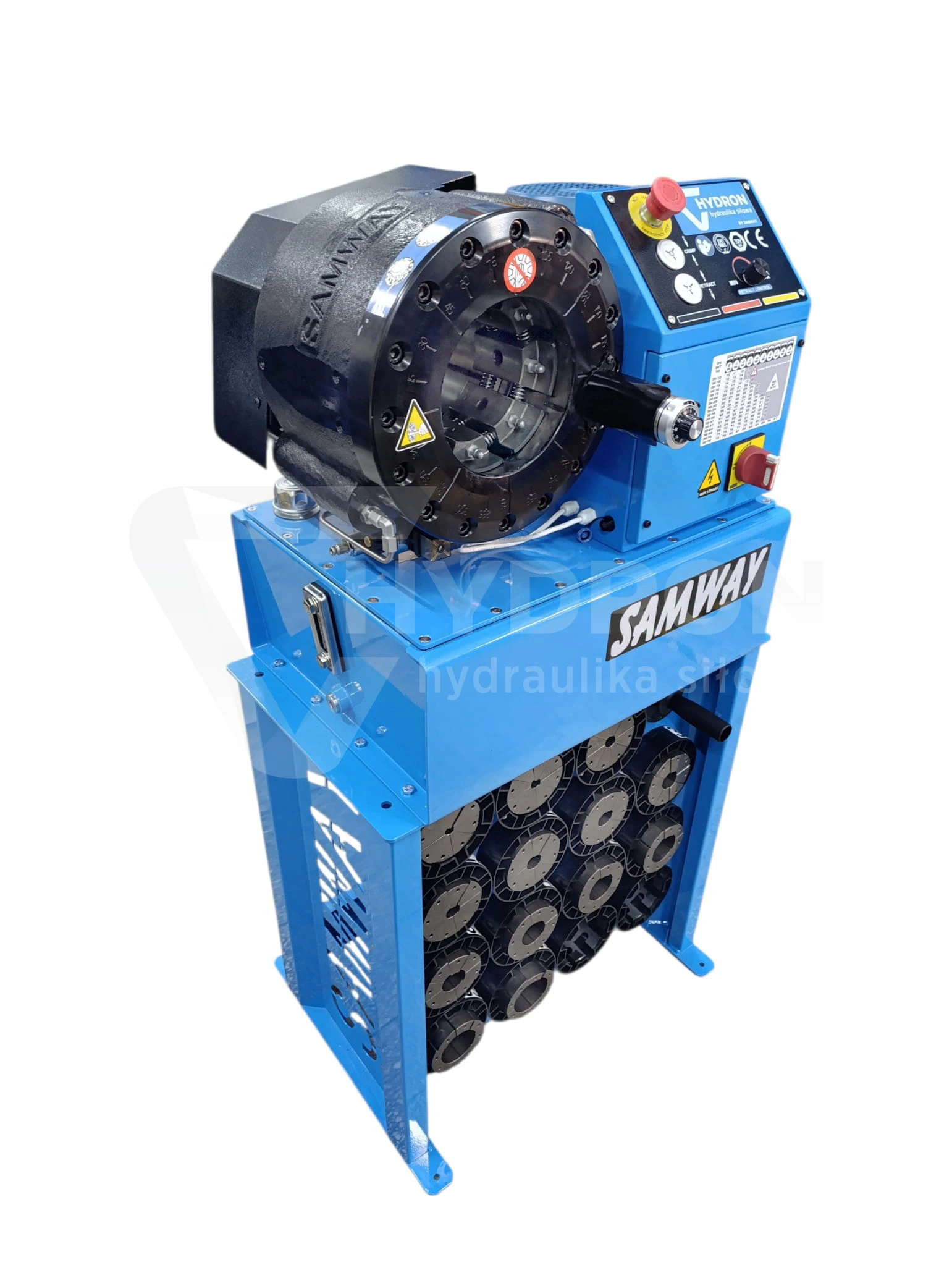

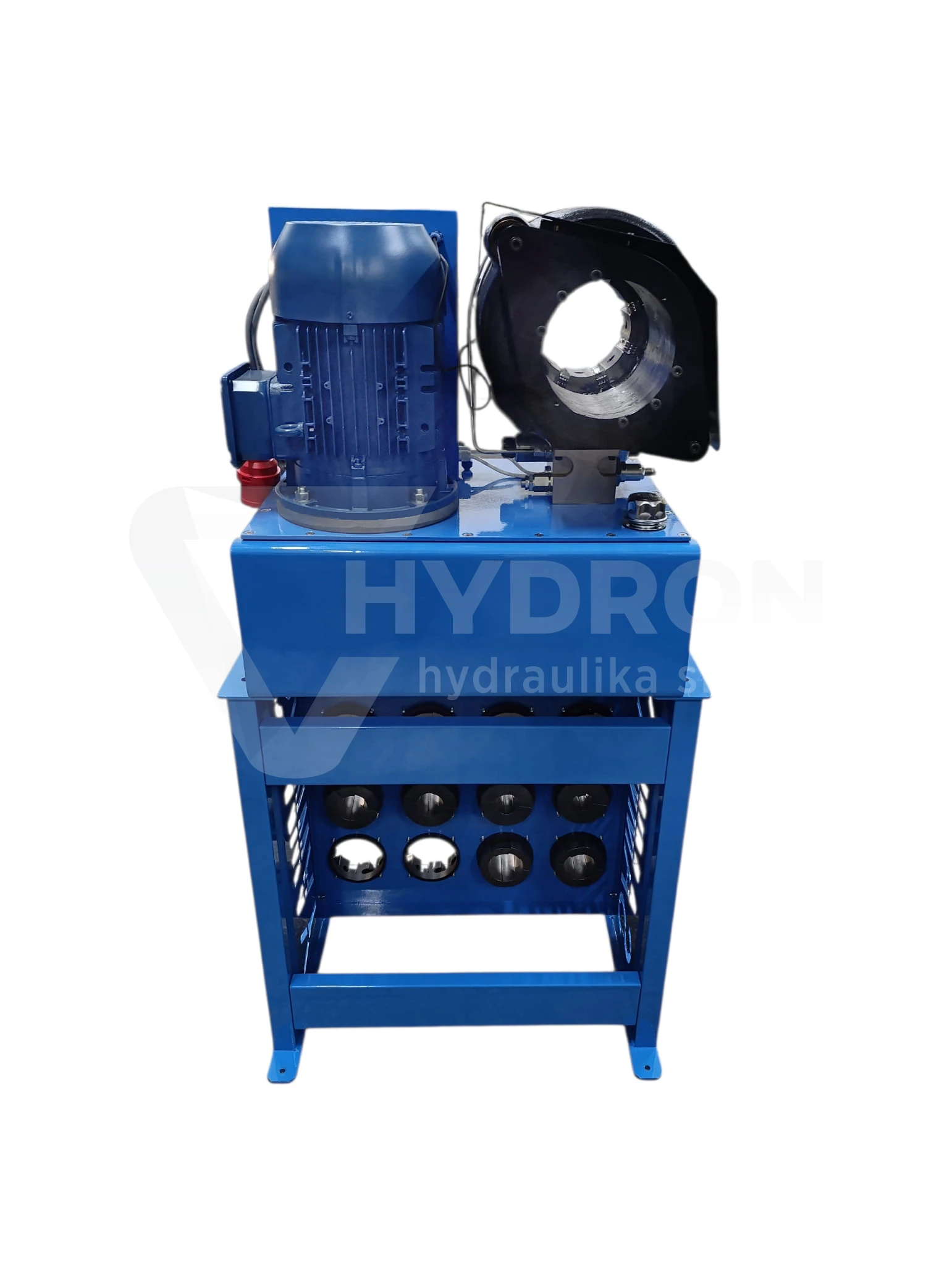

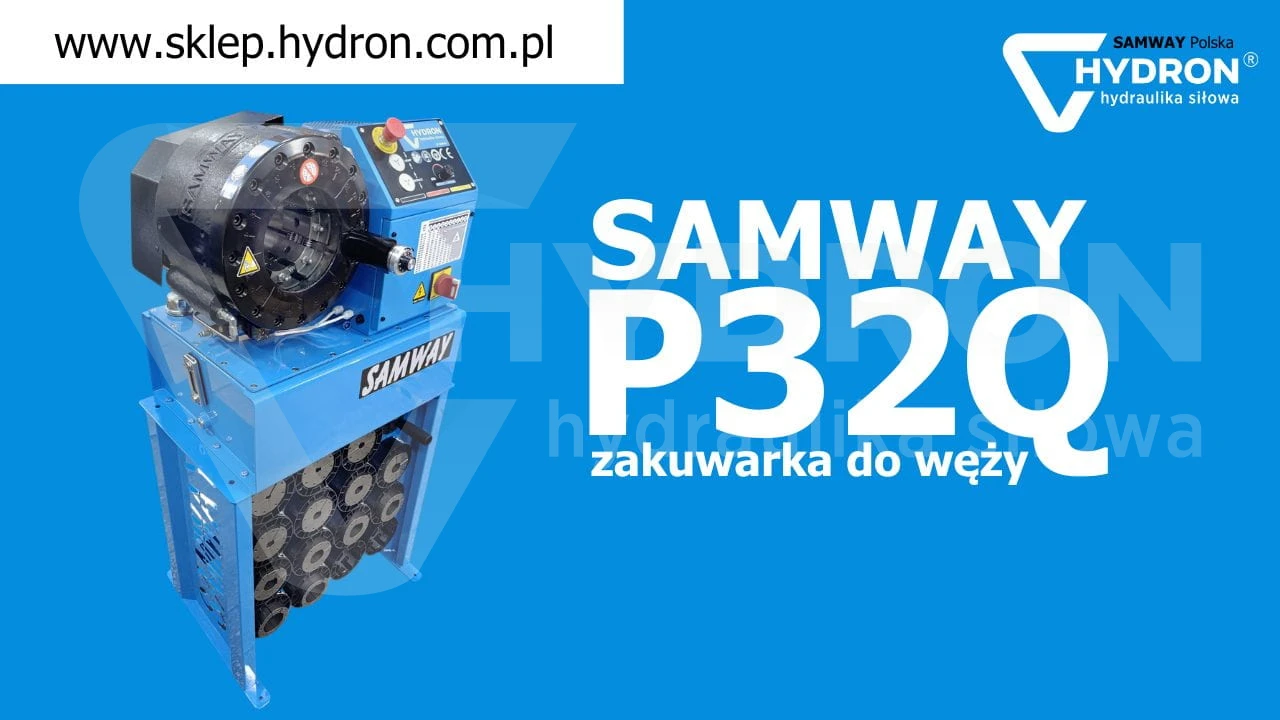

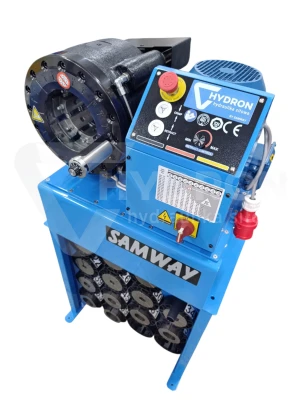

SAMWAY P32Q Electric Hydraulic Hose Crimping Machine

Professional workshop and production crimping machine for crimping hydraulic hoses

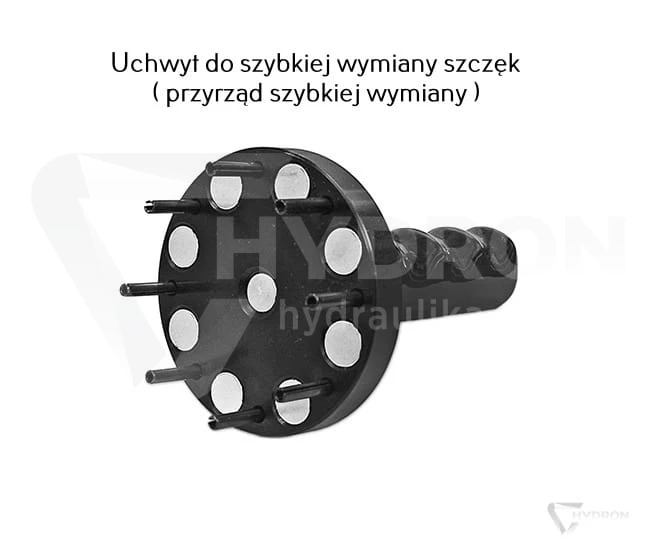

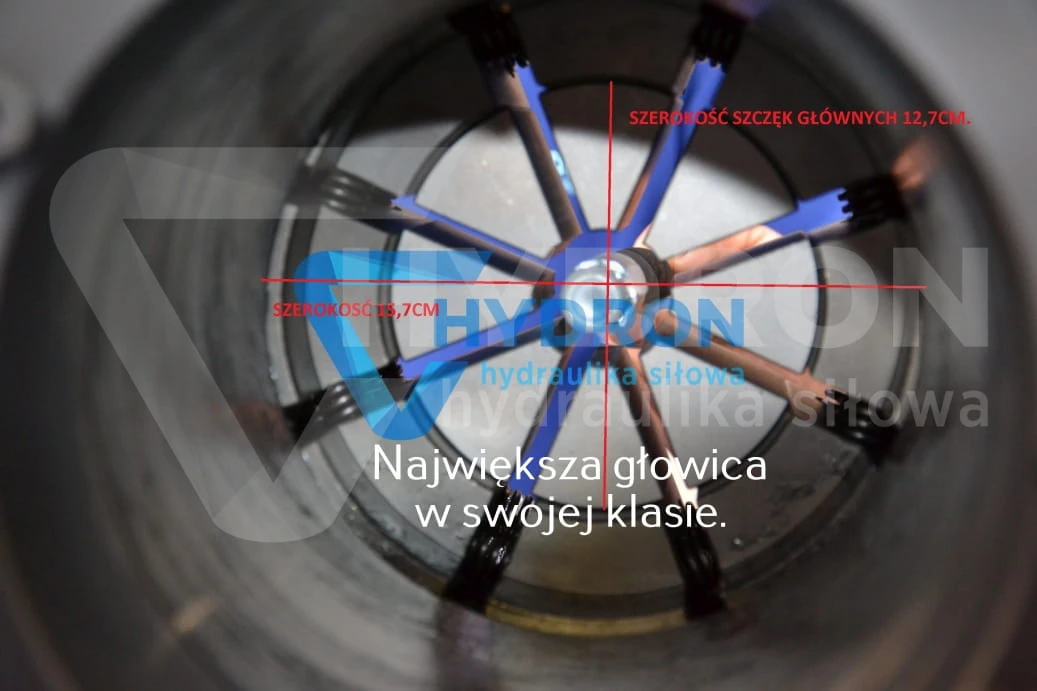

A completely equipped crimping machine designed for crimping all types of hydraulic hoses. The most frequently sold crimping machine – bestseller. A hose crimping machine is an essential tool for professionals dealing with hydraulics, hydraulic hose service or machine maintenance. It allows for precise and durable crimping of fittings from all manufacturers. The P32Q press enables crimping of all hydraulic hoses, even 2" 4SP (with four wire braids). This is the largest crimping machine in its class! Only industrial crimping machines are larger. This crimping machine model is most often chosen by people who plan a service activity consisting of crimping / repairing hydraulic hoses. The crimping machine has a so-called quick die change system, which allows changing 8 crimping dies at once (magnetic tool with which we grab the dies). The crimping machine is intended for professional use, but has been designed in such a way that it is easy to use even for people without prior experience. The crimping machine is designed for crimping 2" 4SP hoses, which means that it can handle various types of hydraulic hoses with different applications and specifications – thanks to this you can crimp hoses of different diameters and pressures. Solid construction – the crimping machine is made of durable materials, the head is a monoblock, i.e., a single steel casting, which ensures its very high strength and long-term usability. The P32Q model is even equipped with an idle sensor – after a minute of operation without any action, the machine automatically turns off, thanks to which the lifespan of components (pump, motor) will be longer. The crimping machine has prestigious certificates of the German TUV SUD confirming compliance with the machinery directive and admitting the machine to work in all types of plants.

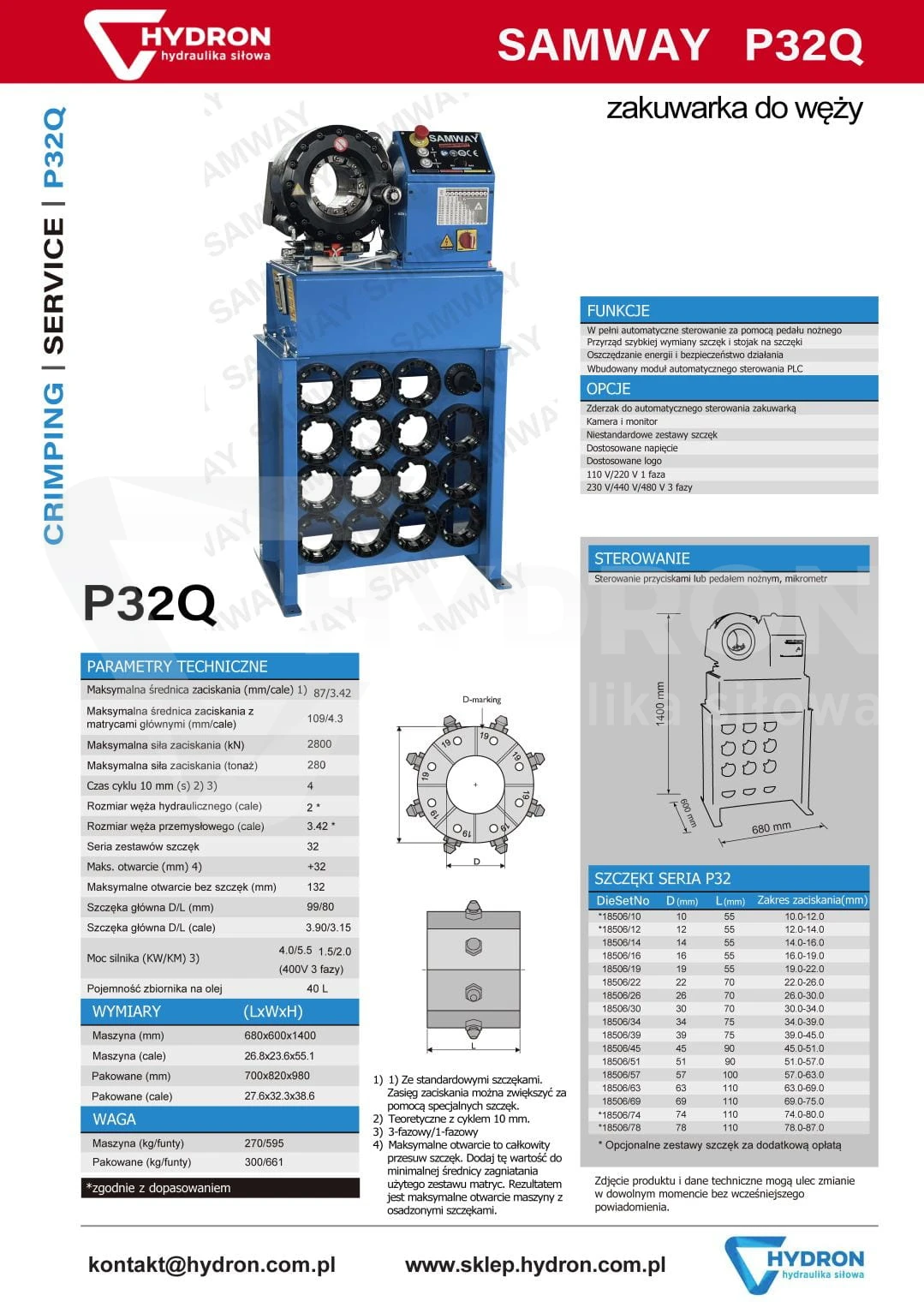

Technical parameters of the SAMWAY P32Q crimping machine:

• Model: SAMWAY P32Q
• Max crimped hose / Max Hydraulic Hose: 2’’ 4SP
• Crimping range / Crimping range: 4-87 mm
• Die type / Die Type: P32
• Master die length / Master Die Length: 80 mm
• Max opening / Max Opening: +32 mm
• Power supply / Motor KW: 4 KW Motor
• Crimping force / Crimping Force KN: 2800 (280 tons)
• Number of cycles / Crimpings Per Hour: 1200 per hour
• Quick die change / Quick Change: YES / Included

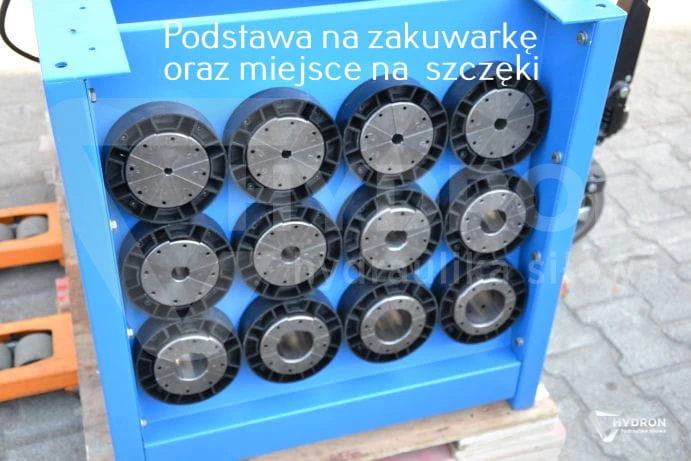

• Die rack / Die Rack: YES / Included

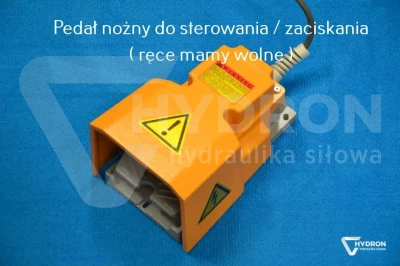

• Foot pedal / Foot pedal: YES / Included
• Dimensions / L*W*H mm: 680 * 600 * 1400
• Pump: Bucher Hydraulics Germany 9cc
• Weight / Weight KG: 300 kg

Best components

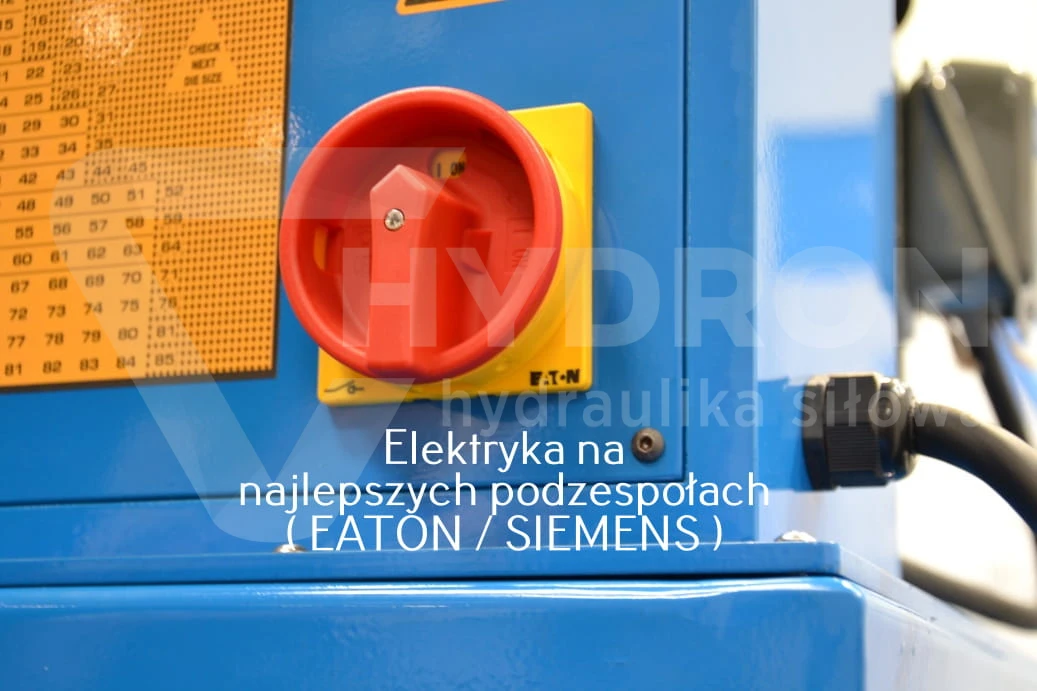

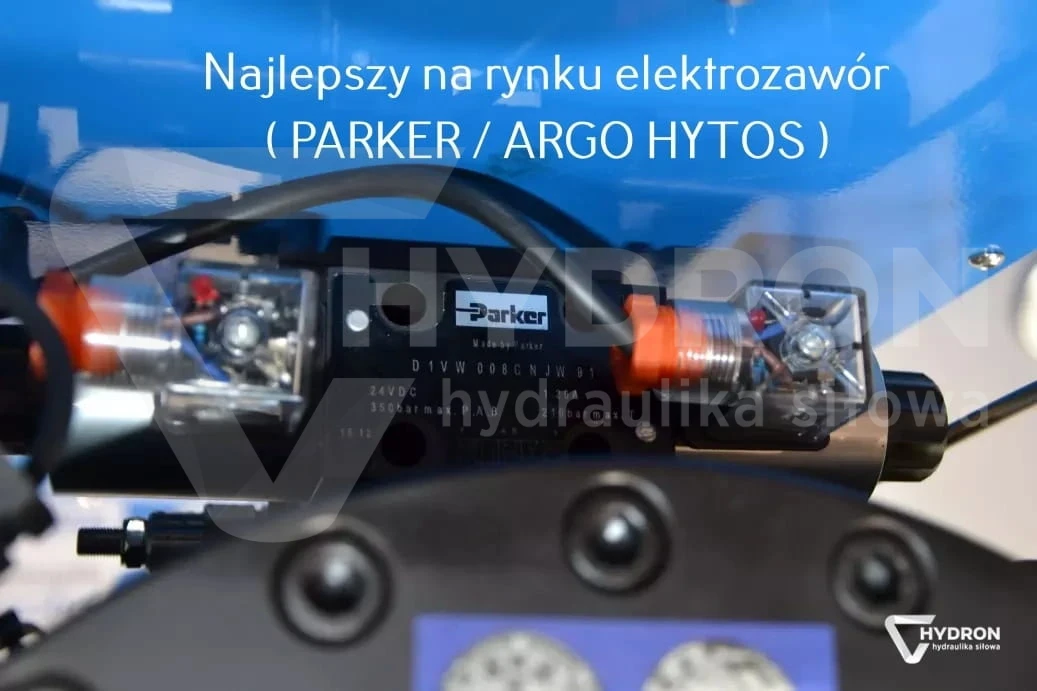

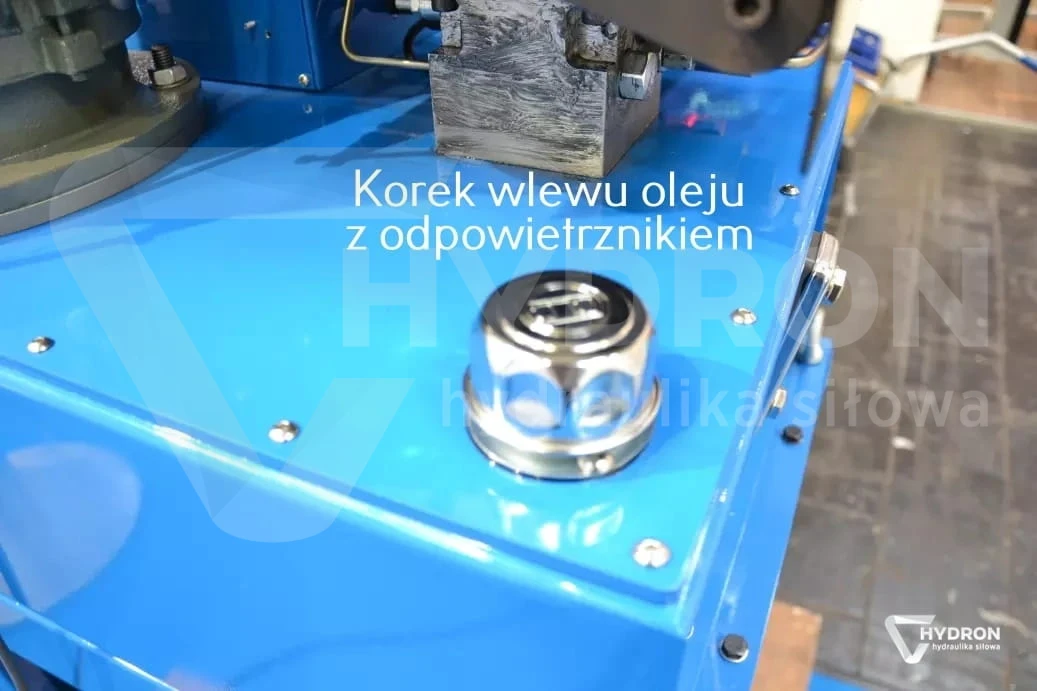

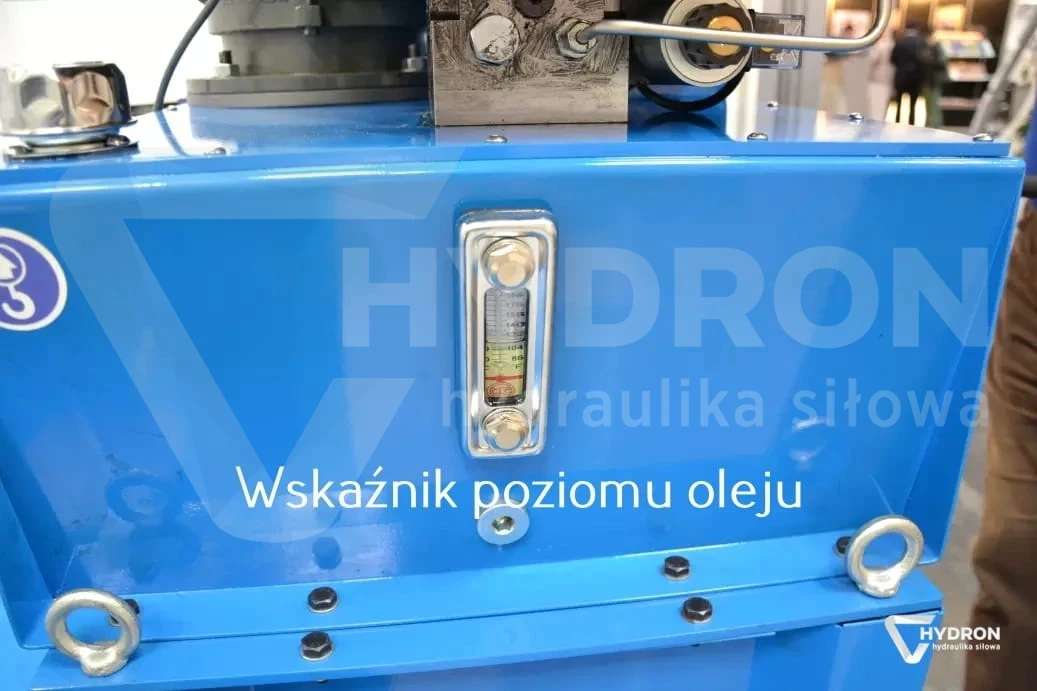

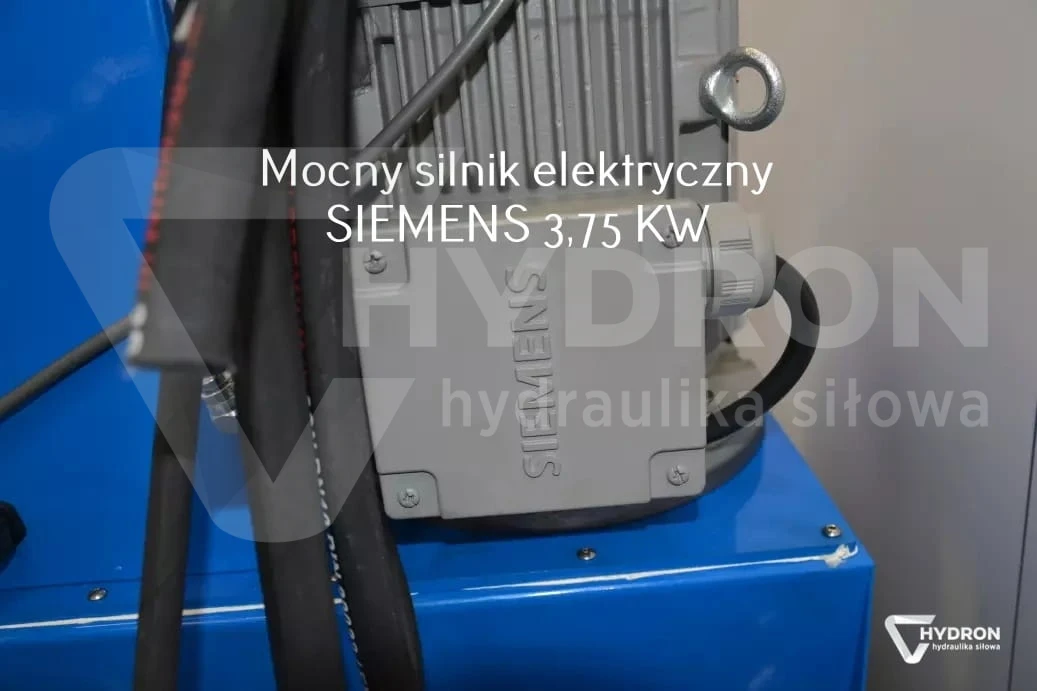

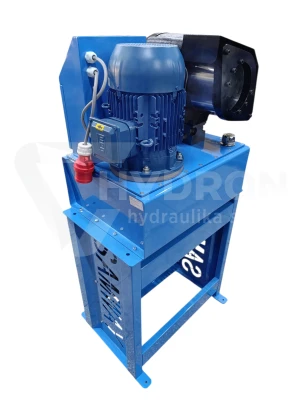

Equipment for those demanding the highest quality. The press is built with the best components (SIEMENS motor, EATON switch, PARKER or BOSCH valve, Rexroth pump, precision micrometer). Manual control using the highest quality micrometer. The press allows for crimping of any hydraulic hose from 1/4" to 2" 4SP! A very large head enables easy crimping of large fittings. The set includes 13 sets of dies, a die rack, and a foot pedal enabling gradual pressing, a magnetic die tool, a key for replacing individual dies. The crimping machine is built with the best components: PARKER / ARGO HYTOS / BOSCH solenoid valve; oil level indicator; SIEMENS motor; EATON / SCHNEIDER electrics; foot pedal for crimping; STOP emergency button; TUV SUD (CE) certificate of conformity; die shelf; external head cover; solid filler cap (venting).

Door-to-door warranty

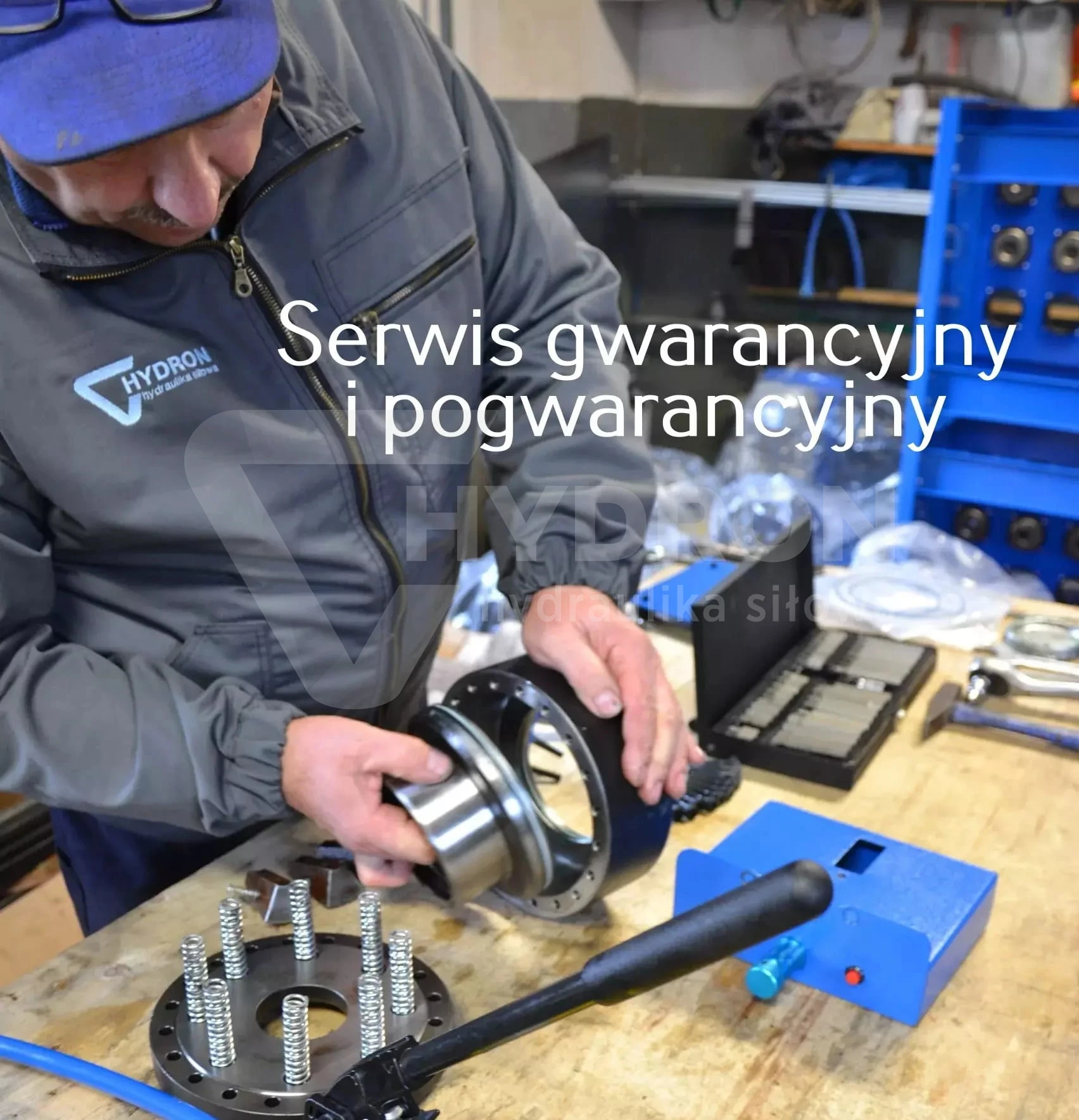

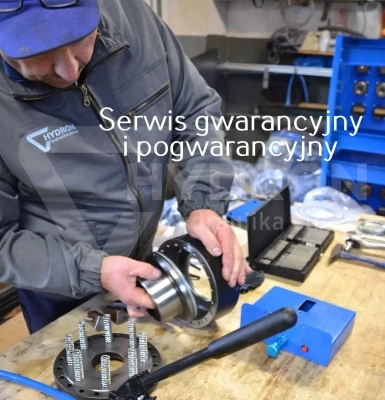

We have a professional warranty and post-warranty service for hose crimping machines. We service machines from all manufacturers. We have all components and spare parts for presses (components, consumables, etc.). The presses sold by us have a written door to door warranty (from door to door).

Free transport, free training + plenty of freebies

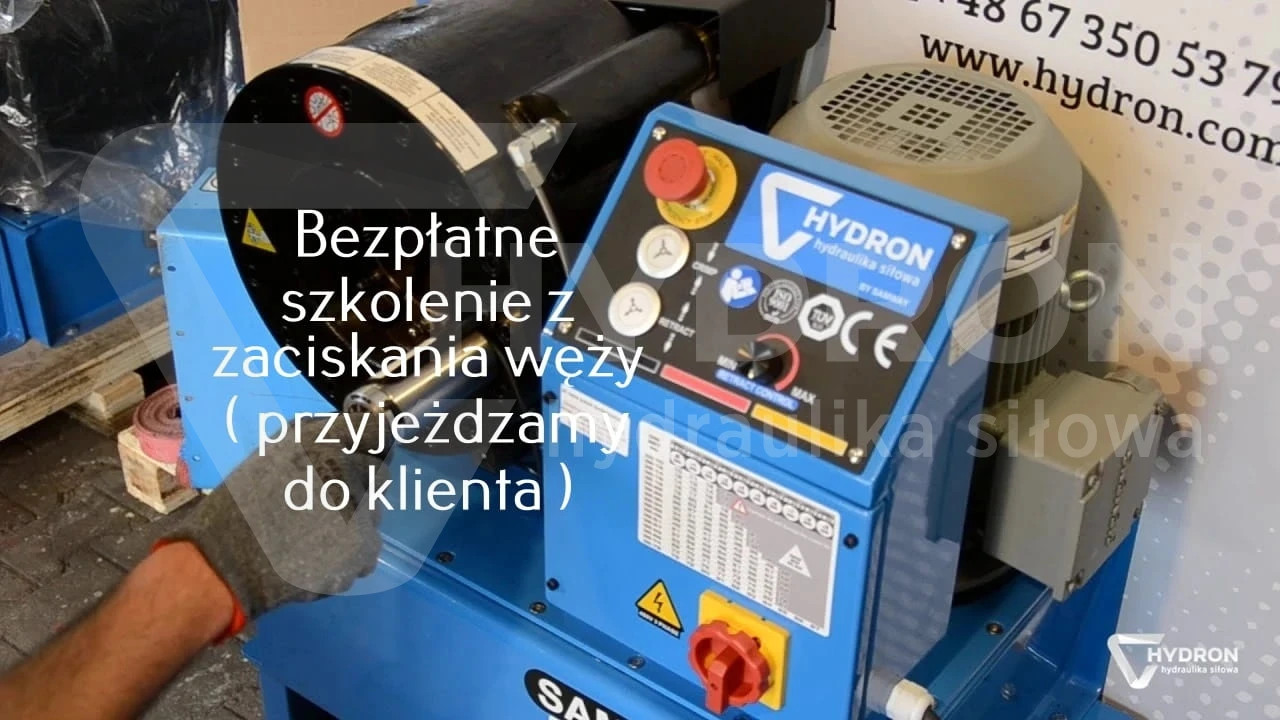

The price includes transport + free training. We bring the machine and conduct training on press operation and hydraulic hose crimping on site at the customer's premises. We offer full technical support and technical assistance to our customers. For people starting a business in hose crimping, we offer professional advertising banner designs (pattern examples 1, pattern examples 2). Along with the machine, we provide all necessary documents, manuals in Polish, OHS workplace instructions, CE declaration of conformity, warranty card, and all kinds of cheat sheets intended for crimping hydraulic hoses, including, among others, hydraulic hose selection tables, thread selection tables, a cheat sheet of basic types of fittings for crimping hydraulic hoses, and a cheat sheet on basic cones and threads used in power hydraulics.

Components of the crimping machine:

• Crimping machine

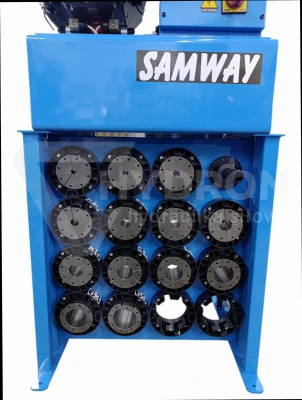

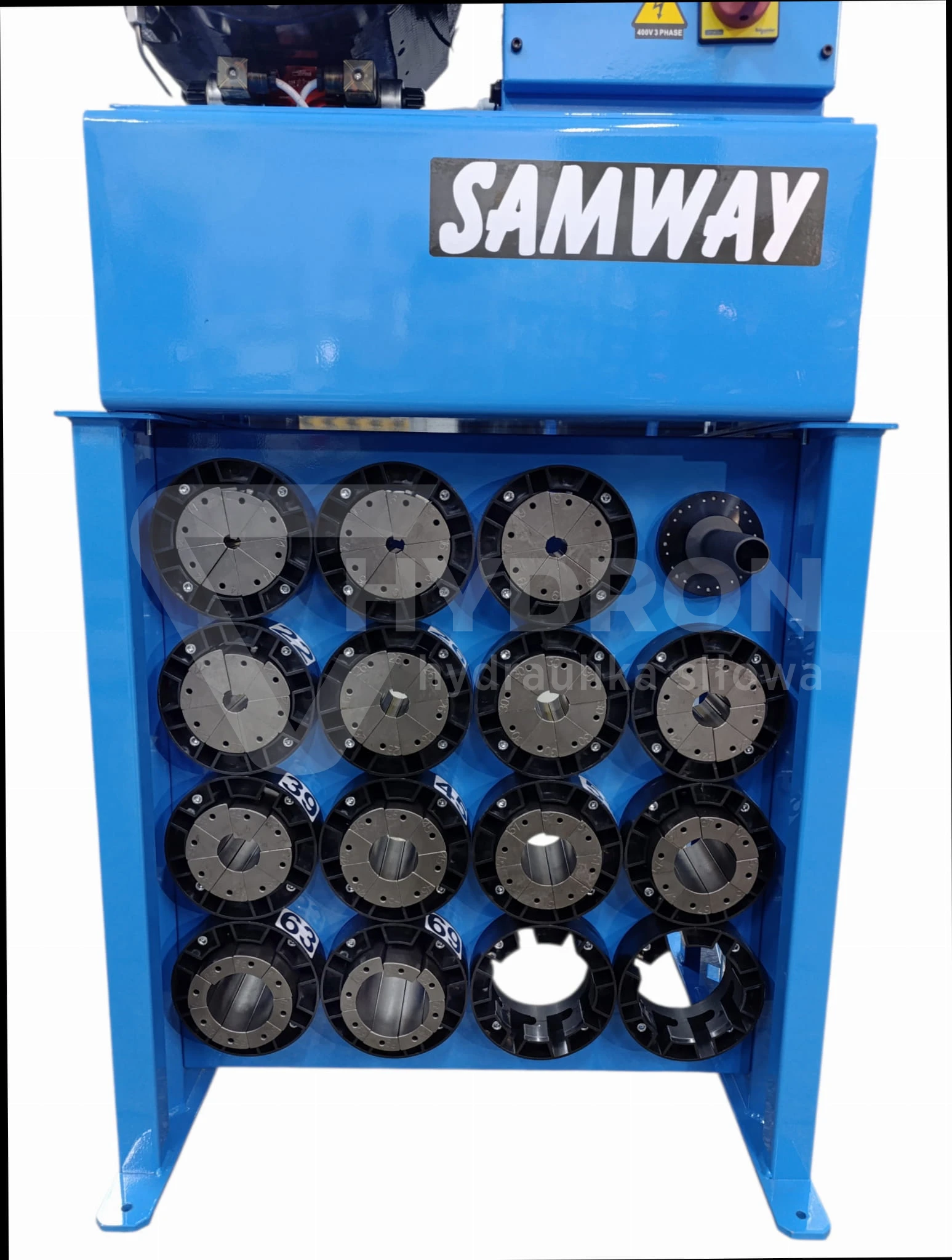

• Die rack
• 13 sets of dies
• Magnetic die tool

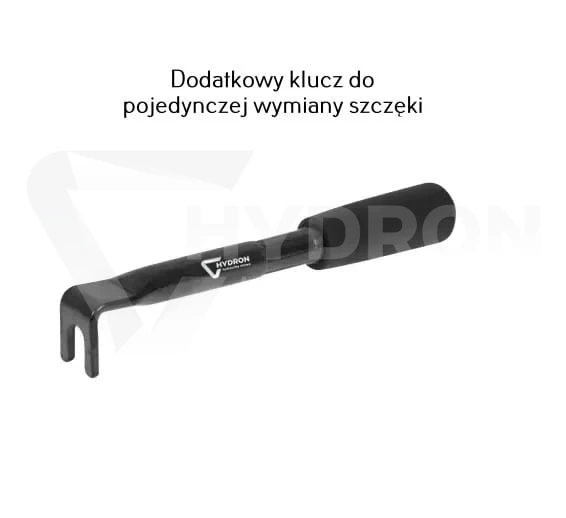

• Key (handle) for die replacement

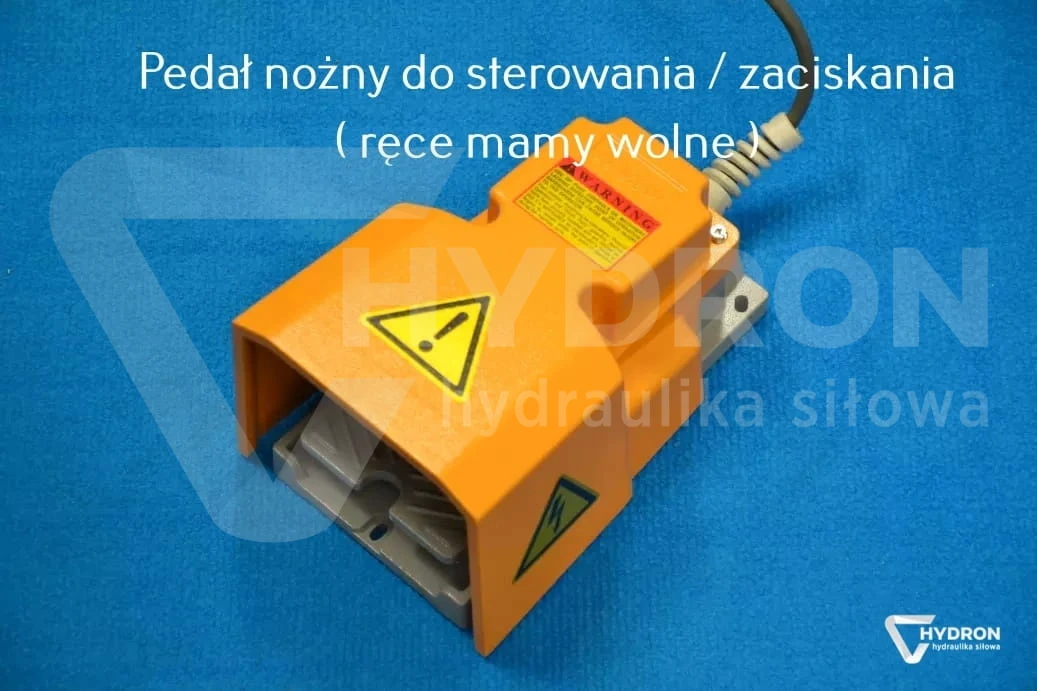

• Foot pedal for crimping

The crimping machine allows:

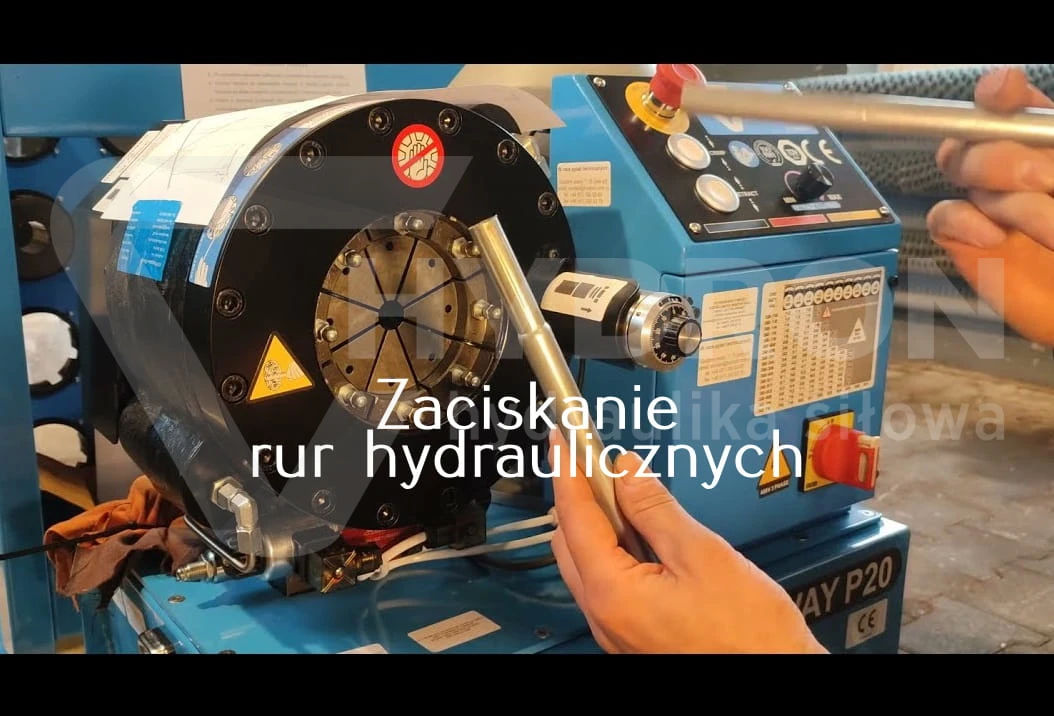

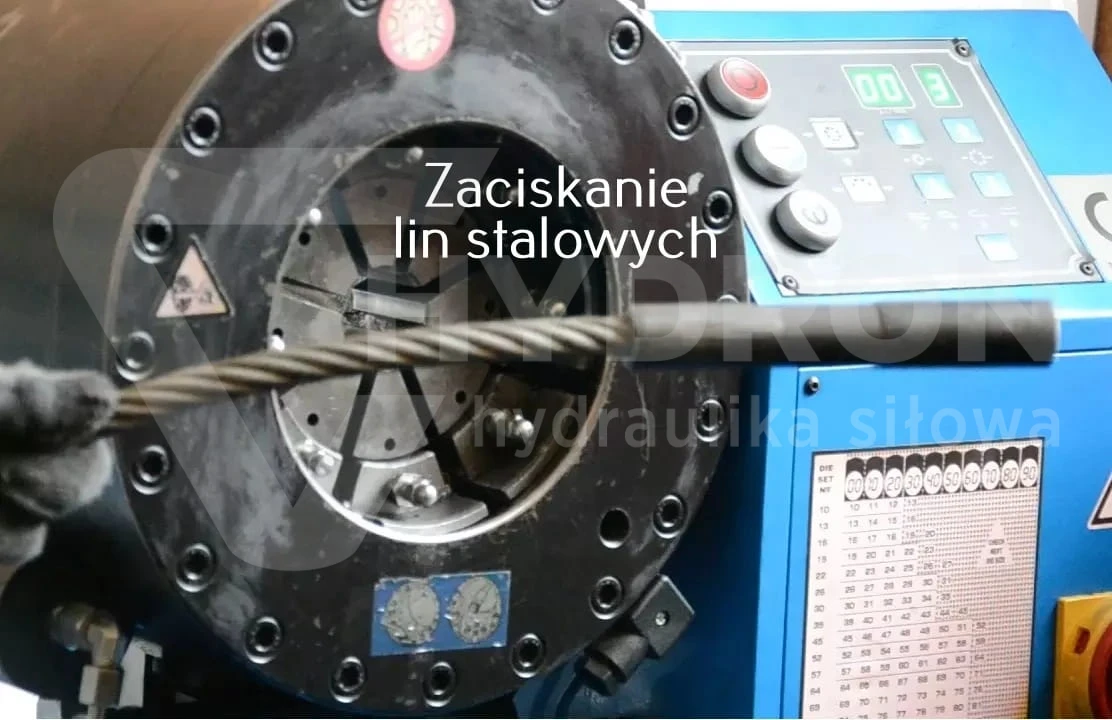

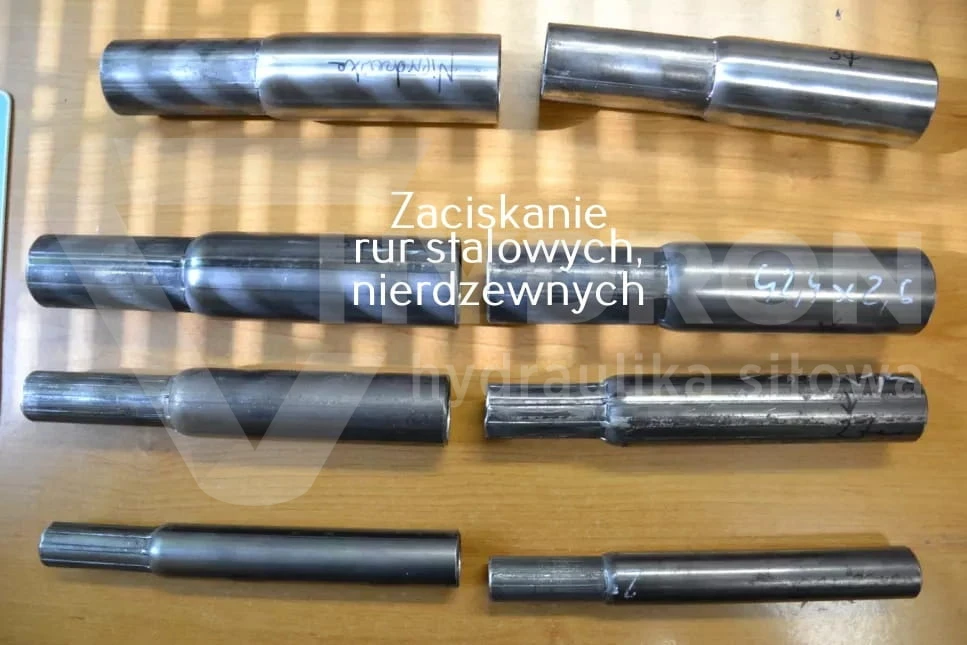

Crimping all hydraulic hoses, crimping air conditioning hoses, crimping steel wire ropes, crimping aluminum and steel pipes, crimping steel pipes, crimping industrial hoses. Check what elements can be crimped on the crimping machine.

Alternative designation of the crimping machine: SAP32

Also check:

• How to lubricate the crimping machine head

The most frequently sold crimping machine model in the world

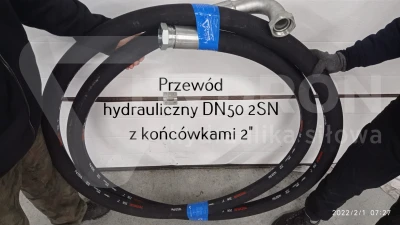

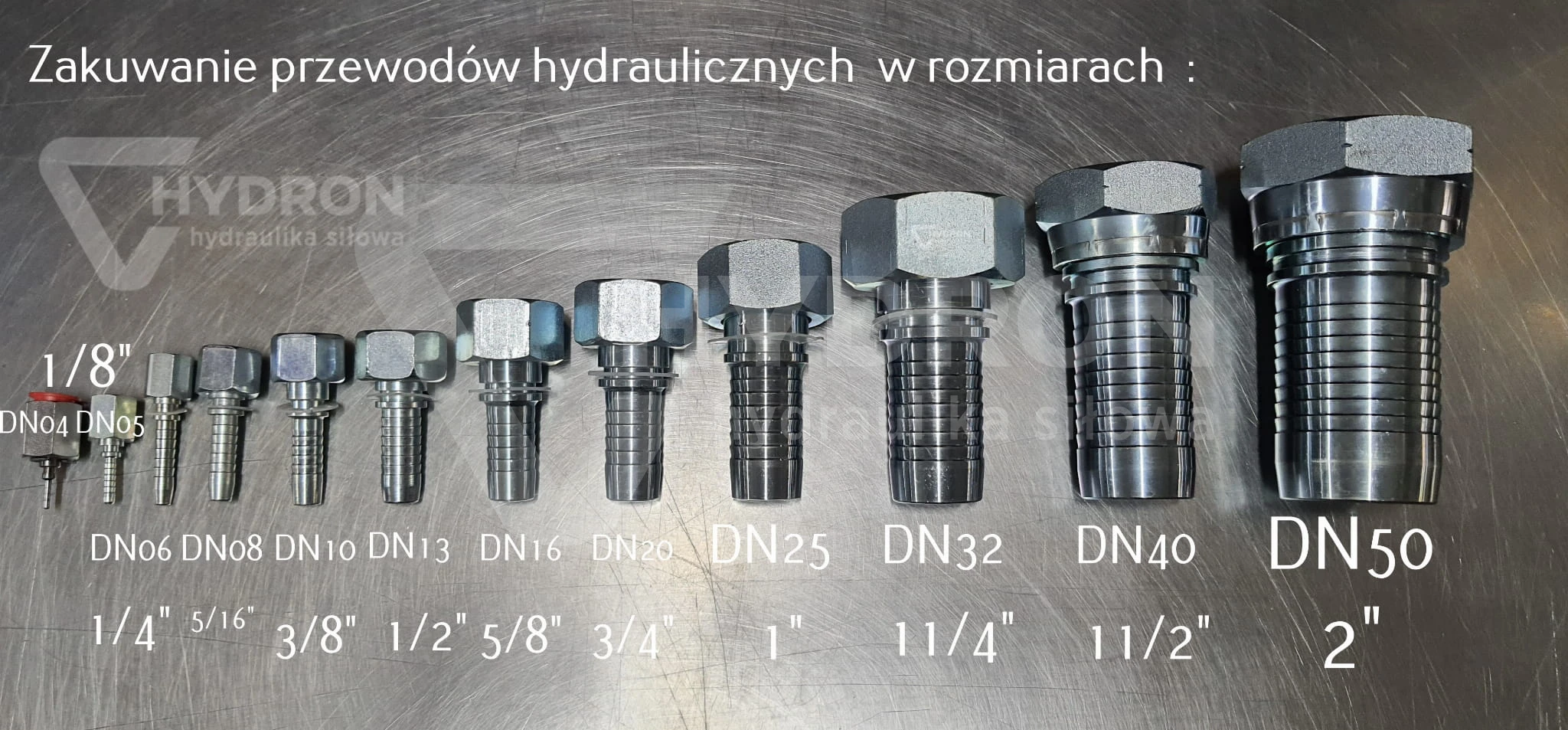

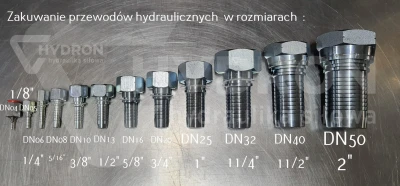

The P32Q crimping machine is the most popular model among electric crimping machines intended for the workshop (for hydraulic hose services). The P32Q press is still the most frequently sold two-inch crimping machine model. 2 inches is the maximum hose occurring in power hydraulics, 2 inches means that the hose has a 50 mm inside diameter. The maximum range the crimping machine can crimp is up to 87 mm (we are talking about the outer diameter of the crimped element here). The crimping machine is very well equipped, has 13 sets of crimping dies, which allow for crimping hydraulic hoses with an inner diameter from 5 to 50 mm. The P32Q crimping machine is compatible with other crimping machines, including, among others, the Finn Power P32Q crimping machine. The crimping dies are the same size, the quick change tool / handle is also the same size, so the dies can be swapped and replaced. The P32Q model is most often sold worldwide due to its capabilities and affordable price.

Wide crimping capabilities

On the crimping machine we can crimp all types of hydraulic hoses with steel wire braid (1SN, 2SN, 4SP, 4SH). The press also allows us to crimp low-pressure hoses, such as fuel, gasoline, oil hoses, water hoses, hoses with stainless steel braid on the outside, pneumatic hoses, EPDM hoses – in a word, everything that will fit into the head, and the head is really large. If you are looking for a machine that is able to crimp practically any hydraulic hose, we sincerely recommend this model.

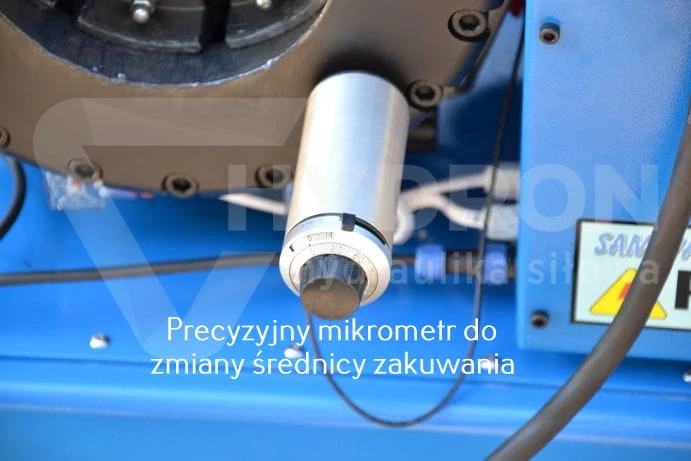

Micrometer control

Control in this crimping machine is done using a micrometer. A micrometer is a micrometer screw, thanks to which we can change the diameter of the crimped element – this means that if we want to crimp, for example, a ferrule to 22 mm, and we have 19 mm dies, we choose the 19 mm dies, and then add the value on the micrometer, i.e., +3 mm, and in this way we obtain the required diameter of 22 mm.

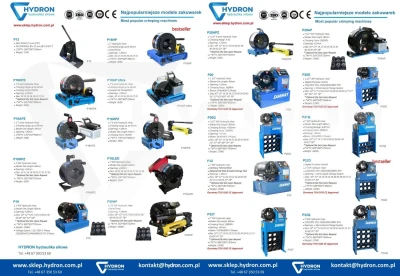

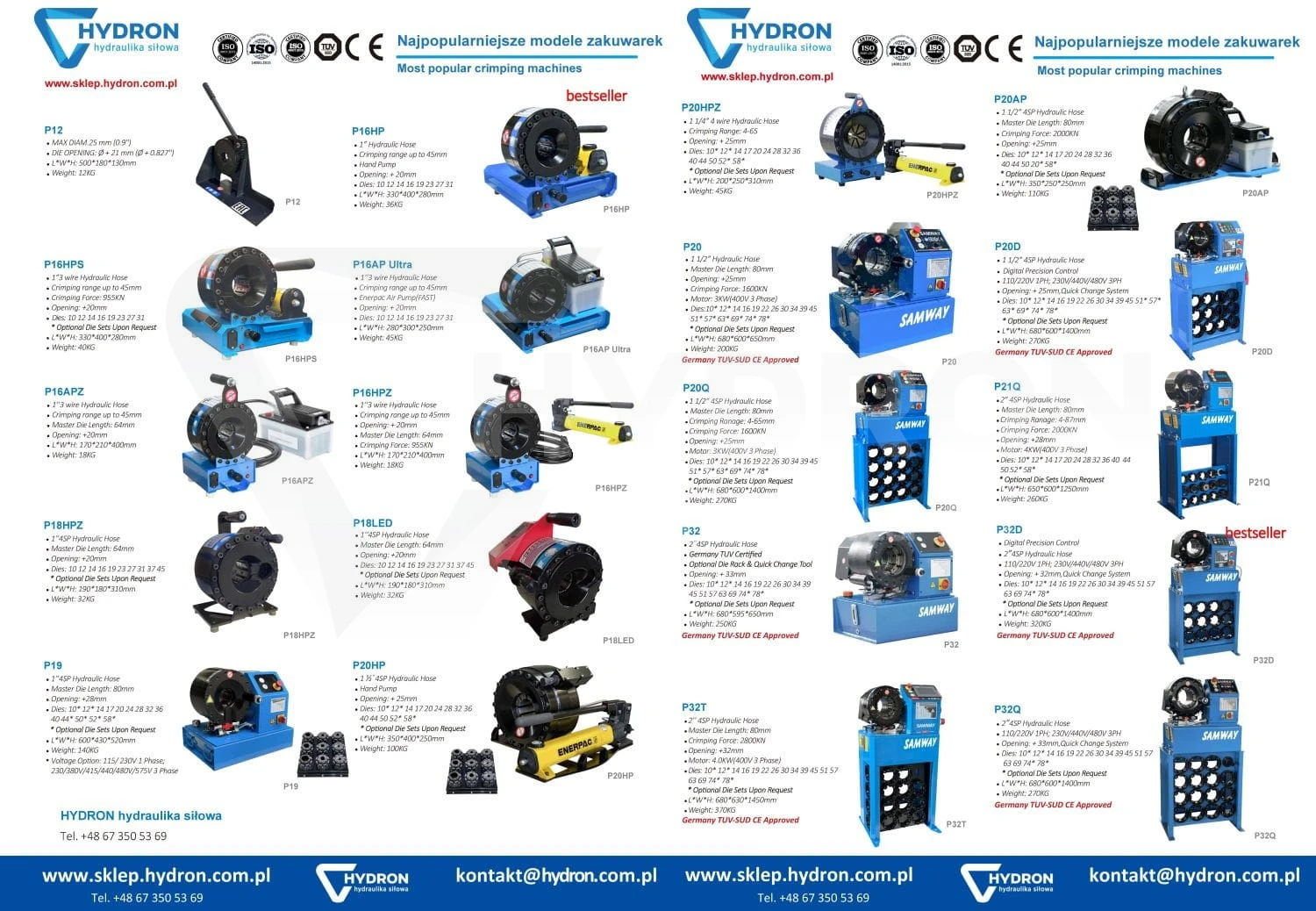

Similar crimping machine models – machine overview

Our offer also includes an identical crimping machine with exactly the same parameters with the only difference being digital control (button control with display) – the SAMWAY P32D model. We also have crimping machines with a larger crimping diameter – we are then talking about industrial crimping machines. Among the larger crimping machines we have, e.g., the model SAMWAY H60 and SAMWAY FP145D, which allows for crimping hoses up to 124 mm in diameter.

Currently, we have the widest assortment when it comes to hydraulic hose crimping machines in Poland. We warmly invite you to Złotów, where you can see all models of offered machines. On site at our company's headquarters, we will show what the difference is between individual models. With the purchase of any electric machine from our offer, you receive free training – we will come to your location in your town, and our employee will conduct training for any group of employees. The training ends with obtaining a certificate.

Trust experience – trust knowledge, take advantage of the HYDRON offer

Have questions? Call

If you have questions regarding the machine or the application of the machine in your business, we encourage you to ask questions – we have many customers who bought this type of machine specifically for their activity: some crimp steel pipes, others crimp steel wire ropes – the range of capabilities of the P32 crimping machine is very large. If you want to check if this type of machine will work in your industry, please contact us.

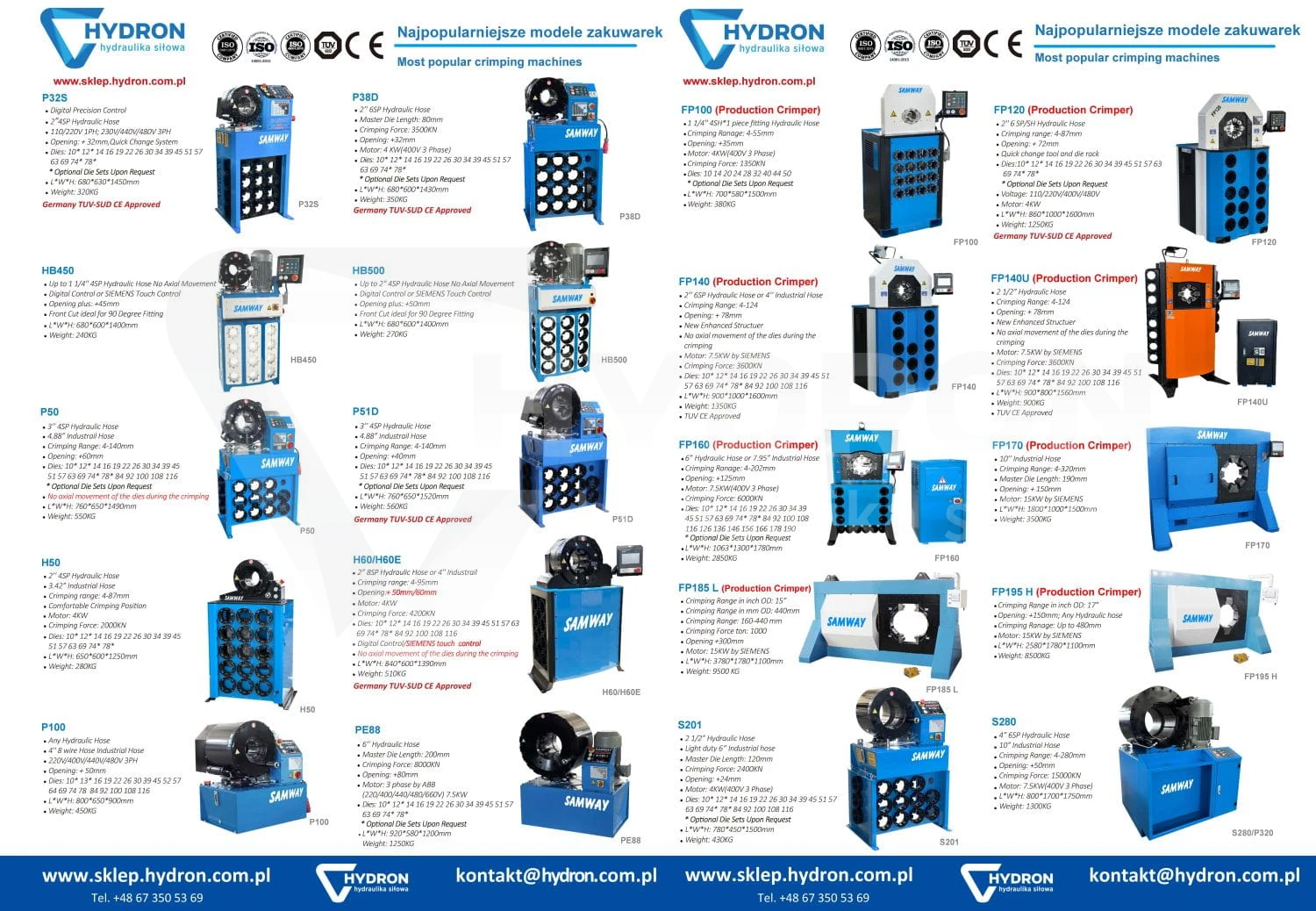

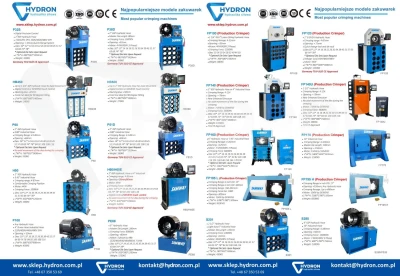

Other recommended crimping machines

If you need a cheaper machine, we encourage you to familiarize yourself with the model SAMWAY S51 (the S51 model is an economical crimping machine), which is a machine with the same capabilities, but without the die rack and the quick die change tool. Our offer also includes smaller crimping machines – the smaller equivalent of the P32 press is the model SAMWAY P20Q. It is an electric crimping machine with a smaller head (crimps hydraulic hoses up to a diameter of DN40 2SN), it does not crimp a two-inch hydraulic hose, i.e., DN50 2SN.

Starter kits for crimping

Our offer also includes fittings and accessories for crimping, including, among others, ready-made starter kits of fittings, connectors and hoses. When deciding to purchase a crimping machine in our company, you receive a wholesale discount (lifetime) on the entire assortment. The HYDRON offer includes over 10,000 items of broadly understood power hydraulics. No minimum quantities, free transport from 100 PLN gross.
