P50 4" hose crimping machine 420-ton crimping force

Go to Product feedback

€12,109.31

Shipping costs are not included in the price.

Quantity

pcs

Availability:

Available

Darmowa przesyłka od 100 zł

Do darmowej dostawy brakuje Ci jedynie 100 zł

Masz darmową dostawę ✓

Manufacturer: HYDRON hydraulika siłowa (go to products)

Shipping time: 24 hours

Shipping

from €0.00 - GLS Courier (Poland)

Our top pick :) Our warehouse packs orders until 3:00 PM, and GLS picks them up at 5:00 PM. It’s our customers’ most popular choice and the courier that works best for us.

Ask about the product

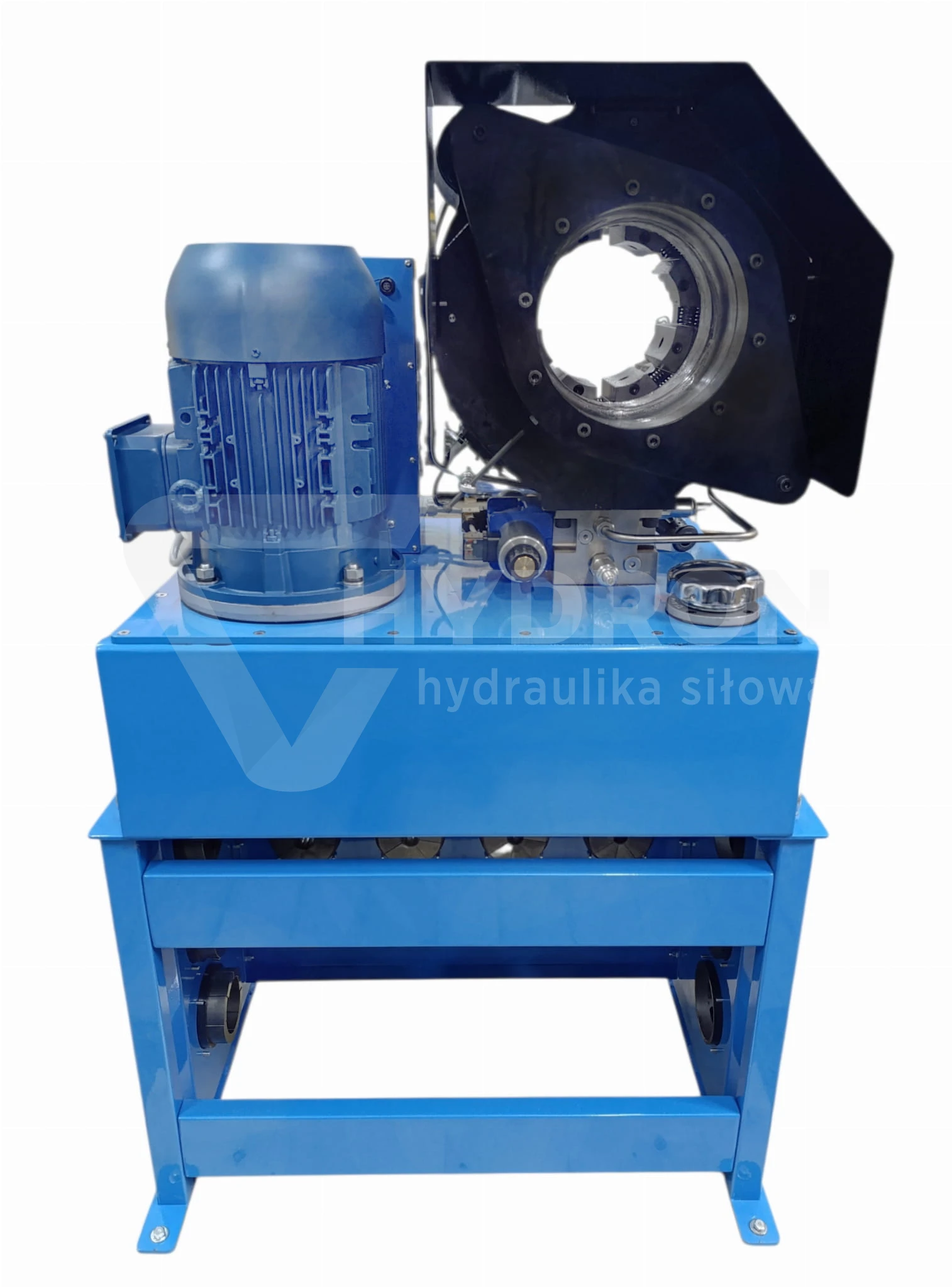

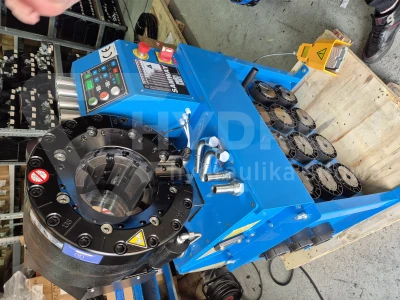

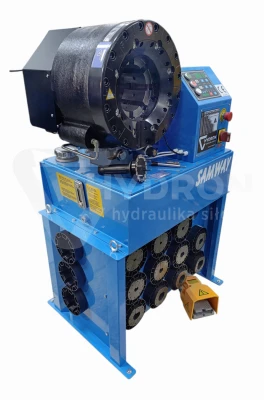

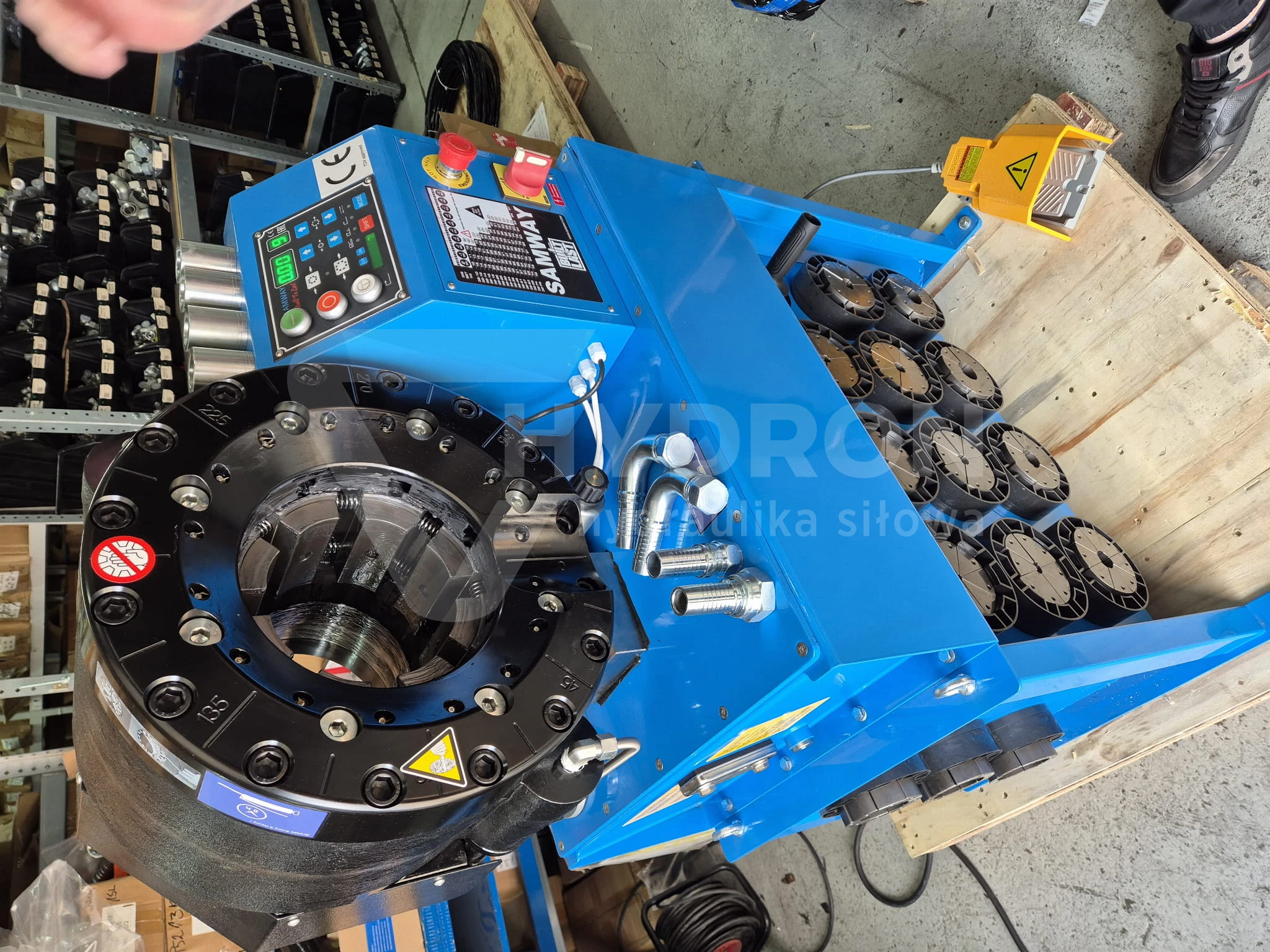

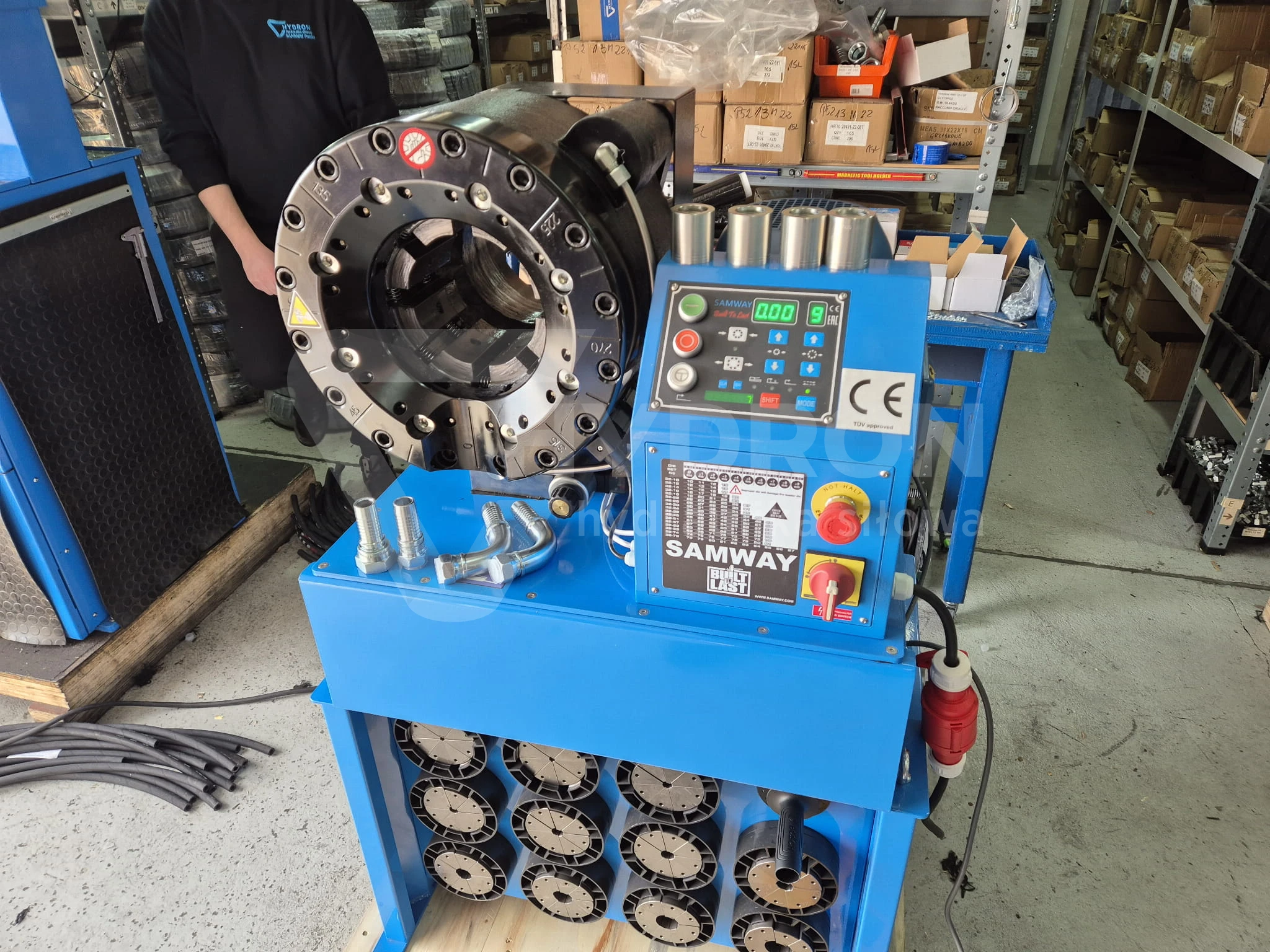

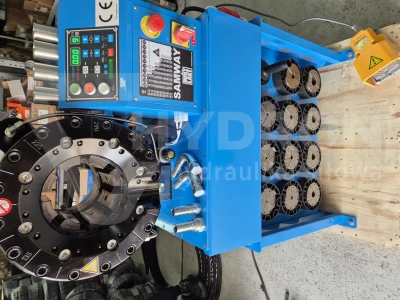

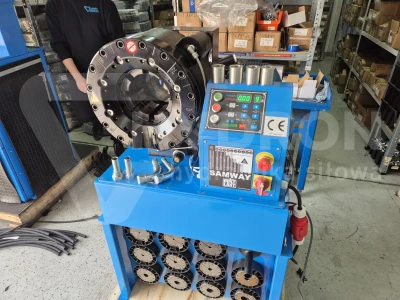

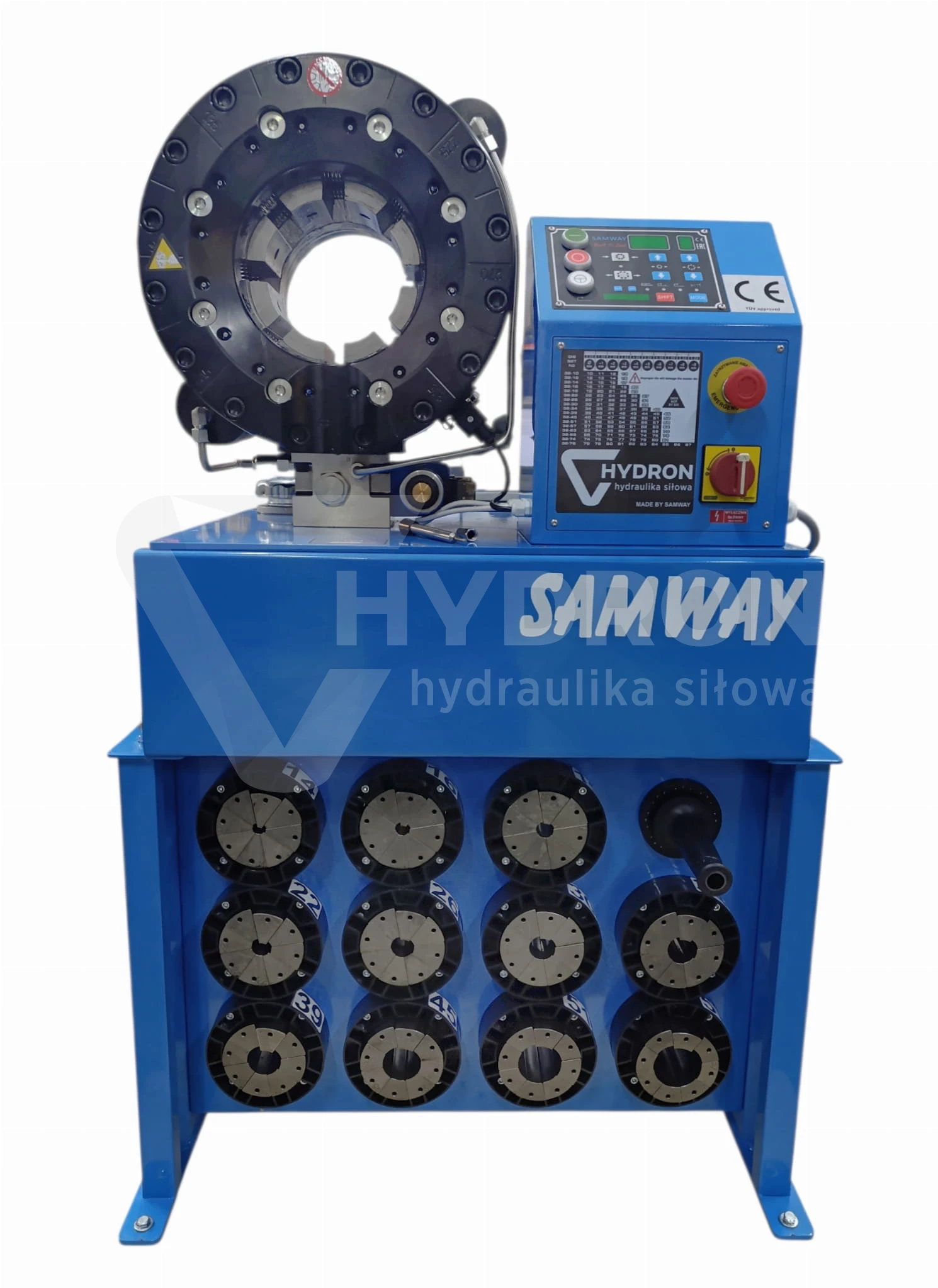

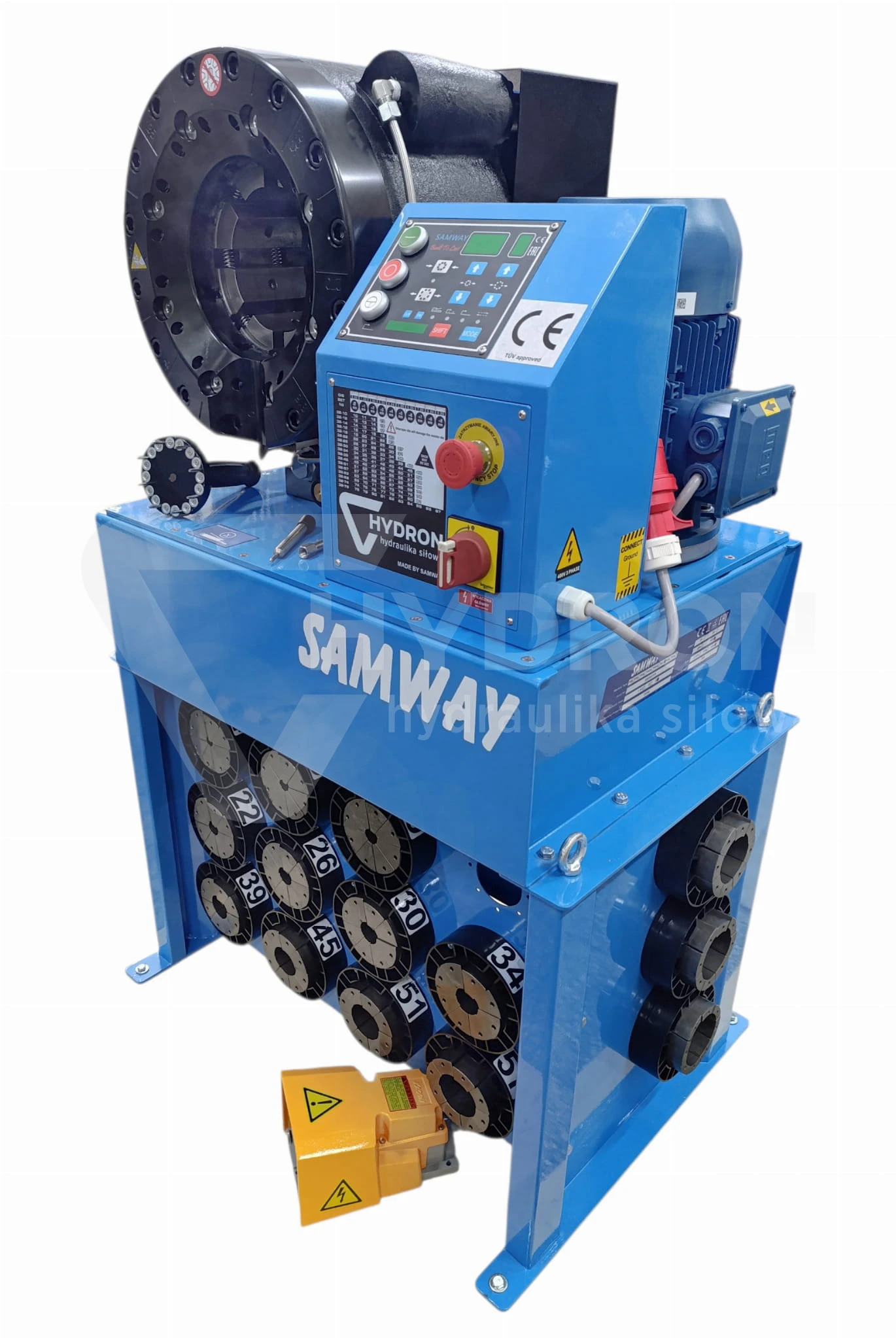

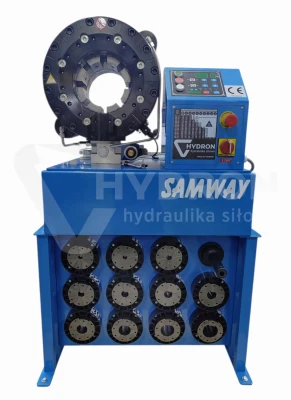

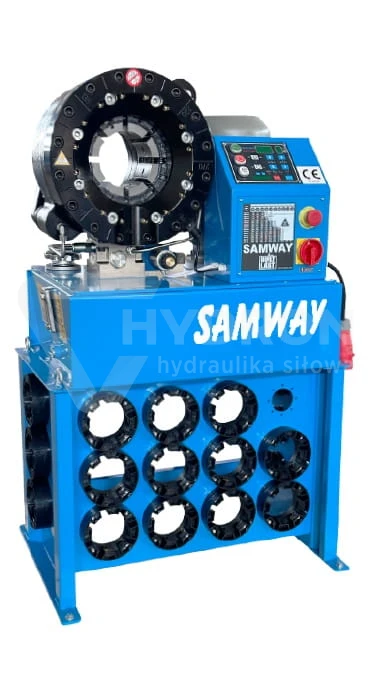

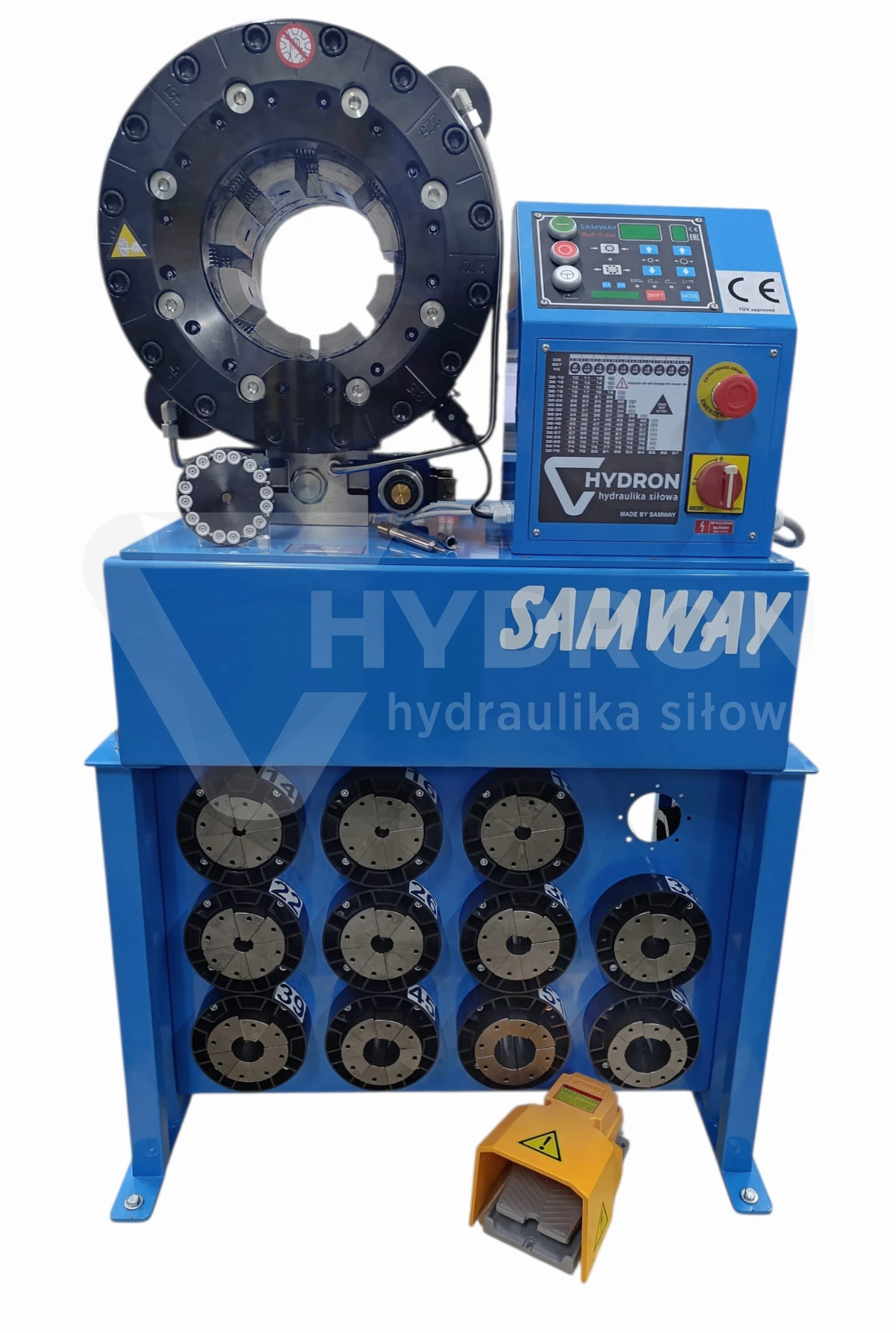

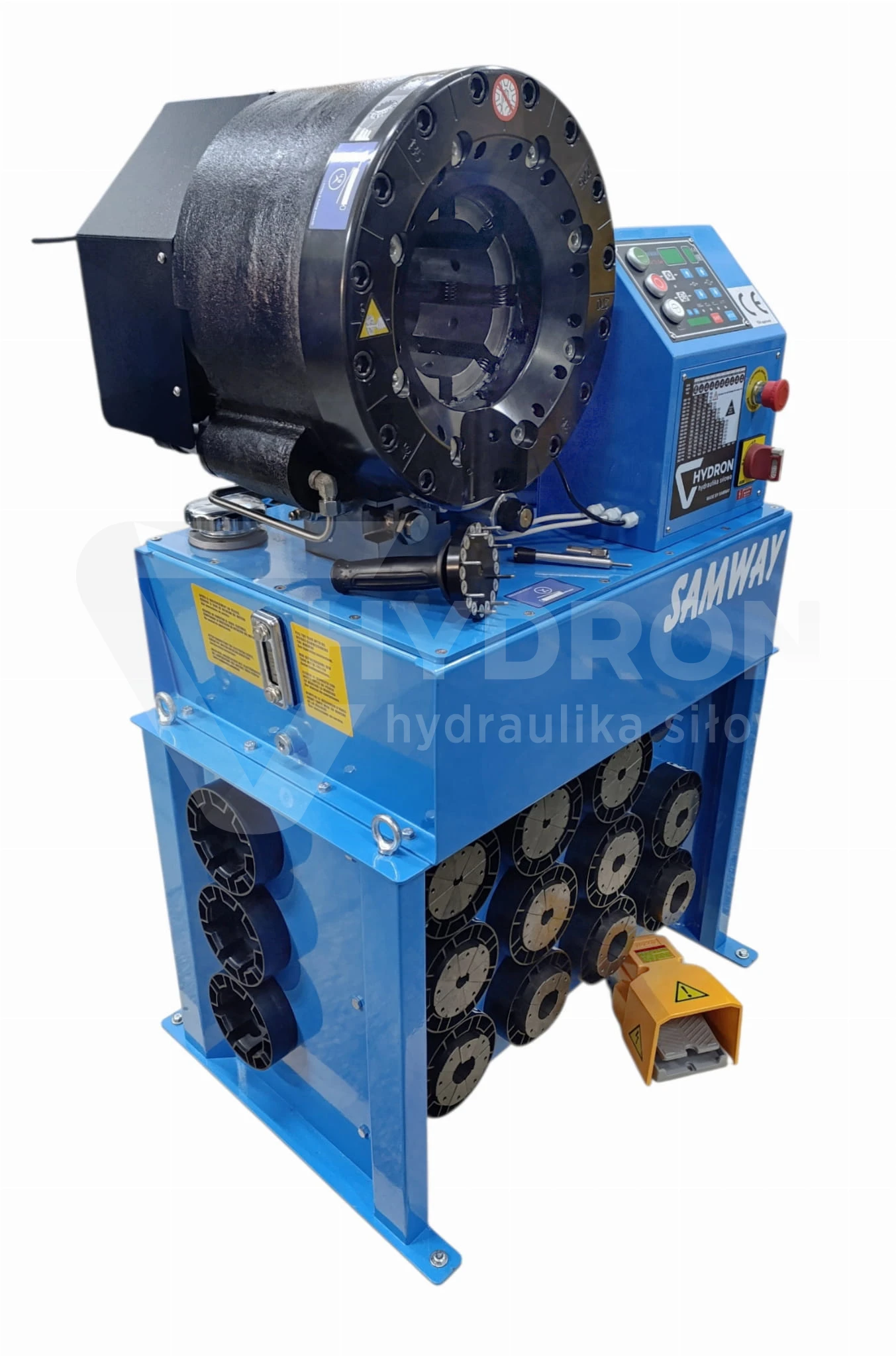

SAMWAY P50 4" hose crimping machine 420-ton crimping force

SAMWAY P50 crimper - a hose crimping press with a large head and high crimping force. SAMWAY P50 crimper. SAMWAY P50 4" Hose crimping machine. Heavy-duty 4" hose crimping machine for all hydraulic hoses up to 4" or industrial hoses up to 4". Digital control makes hydraulic hose assembly easier, simpler, and more accurate. Samway P50 comes with a quick-change tool and die rack along with die sets for hydraulic hoses. Optional die sets for industrial hoses. Samway P50 is a precision workshop hose crimping machine for high-quality assembly of hydraulic hoses and industrial hoses up to 4". SAMWAY P50 is powerful and efficient. It crimps industrial hoses up to 4". Since there is no axial movement of the dies during crimping, positioning is easy and accurate. Digital control brings operation and accuracy to a new level compared to a manual control device. This SAMWAY P50 is efficient and accurate in design. Quick-change tool and die rack included.

Description of basic functions:

● Industrial hose up to 4"
● No axial movement!
● Opening Plus 60mm+
● Digital control
● Quick jaw change and jaw rack

Technical specification of the crimper:

Maximum crimping diameter (mm) 1) : 124
Maximum crimping diameter (inch) 1) : 4.88
Maximum crimping force (kN) : 4200
Maximum crimping force (tonnage) : 420
Cycle time 10 mm 2) : 5.8
Hose size ID (inch) : 2 ½ *
Die set series : 32/140
Maximum opening (mm) 3) : +60
Maximum opening without dies (mm) : 200
Main die D/L (mm) : 140/120
Main die D/L (inch) : 5.52-4.73
Motor power (kW/HP) 3) : 4.0/5.5 1.5/2.0 (400 V 3 phase)
Oil tank capacity : 50 L
DIMENSIONS (L x W x H) : Machine (mm) 760x650x1490
Packaged (mm) : 1040x1020x1560
WEIGHT : Machine (kg/lbs); 550/1213; Packaged (kg/lbs) : 600/1323

1) With standard dies. Crimping range can be increased with special dies.
2) Theoretical with 10 mm cycle.
3) Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with the die set in place.

SAMWAY P50 Crimping Machine

TECHNICAL DATA P50
Max crimping dia (mm) 1)	124
Max crimping dia (inch) 1)	4.88
Max crimping force (KN)	4200
Max crimping force (tonnage)	420
Cycle time 10 mm 2)	5.8
Hose size ID (inch)	2 ½ *
Die set series	32/140
Max opening (mm) 3)	+60
Max opening without dies (mm)	200
Master die D/L (mm)	140/120
Master die D/L (inch)	5.52-4.73
Motor Power (KW/HP) 3)	4.0/5.5 1.5/2.0 (400V 3 Phase)
Oil tank volume	50 L
DIMENSIONS (LxWxH)
Machine (mm)	760x650x1490
Machine (inch)	29.9x25.6x58.7
Packaged (mm)	1040x1020x1560
Packaged (inch)	40.9x40.2x61.4
WEIGHT
Machine (kg/lbs)	550/1213
Packaged (kg/lbs)	600/1323

1) With standard dies. Crimping range can be increased with special dies.

2) Theoretical with 10 mm cycle.

3) Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.
