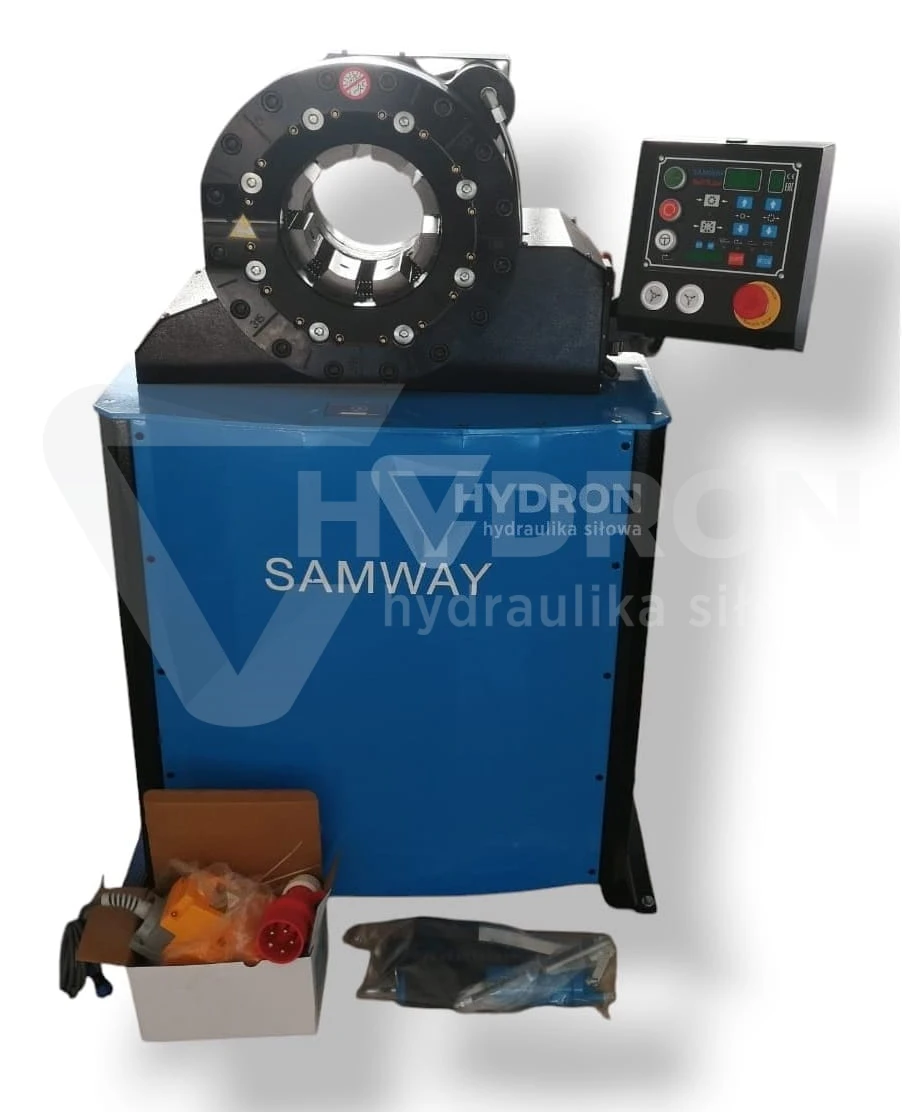

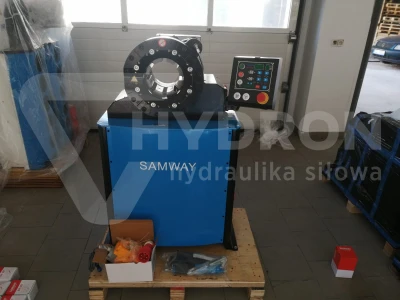

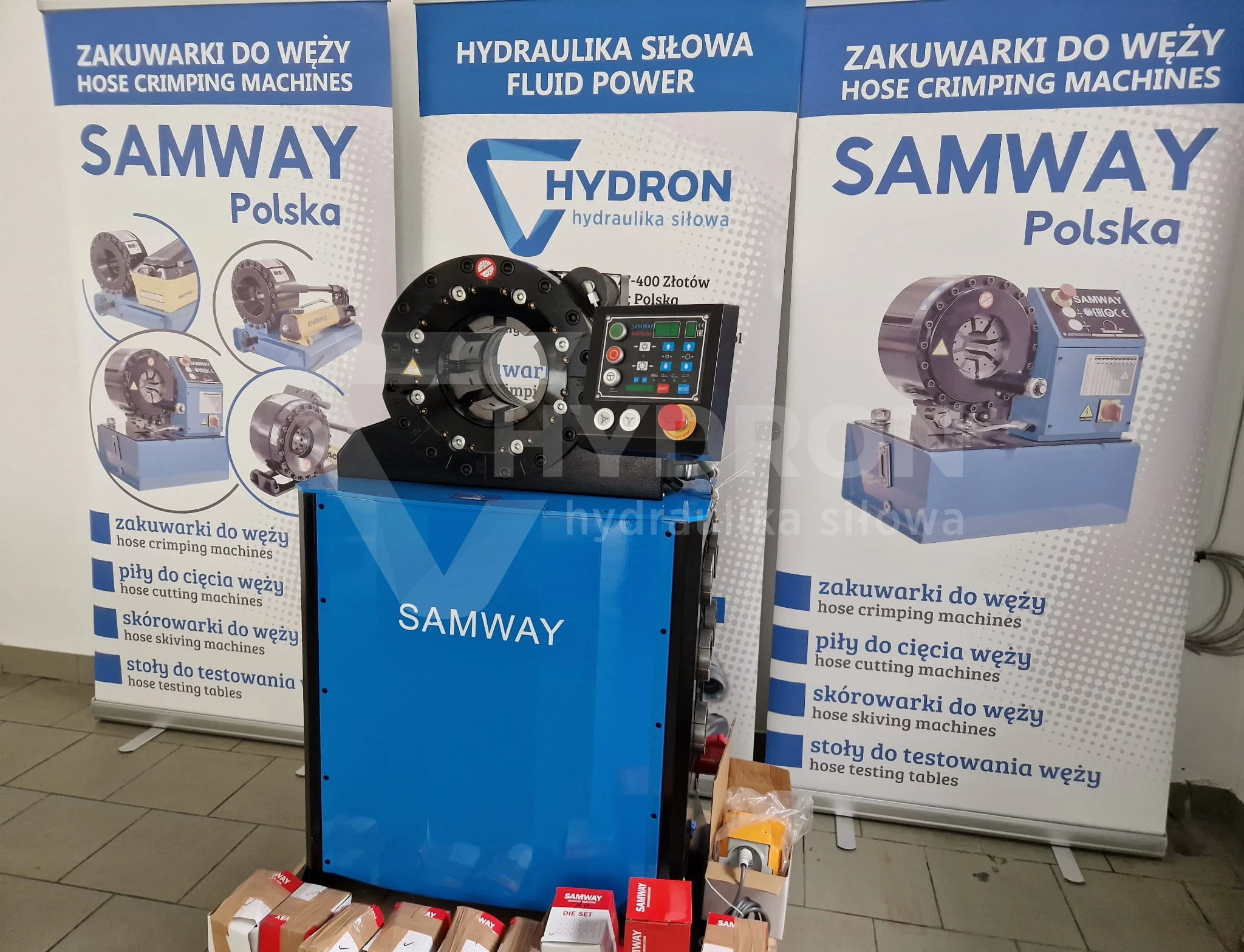

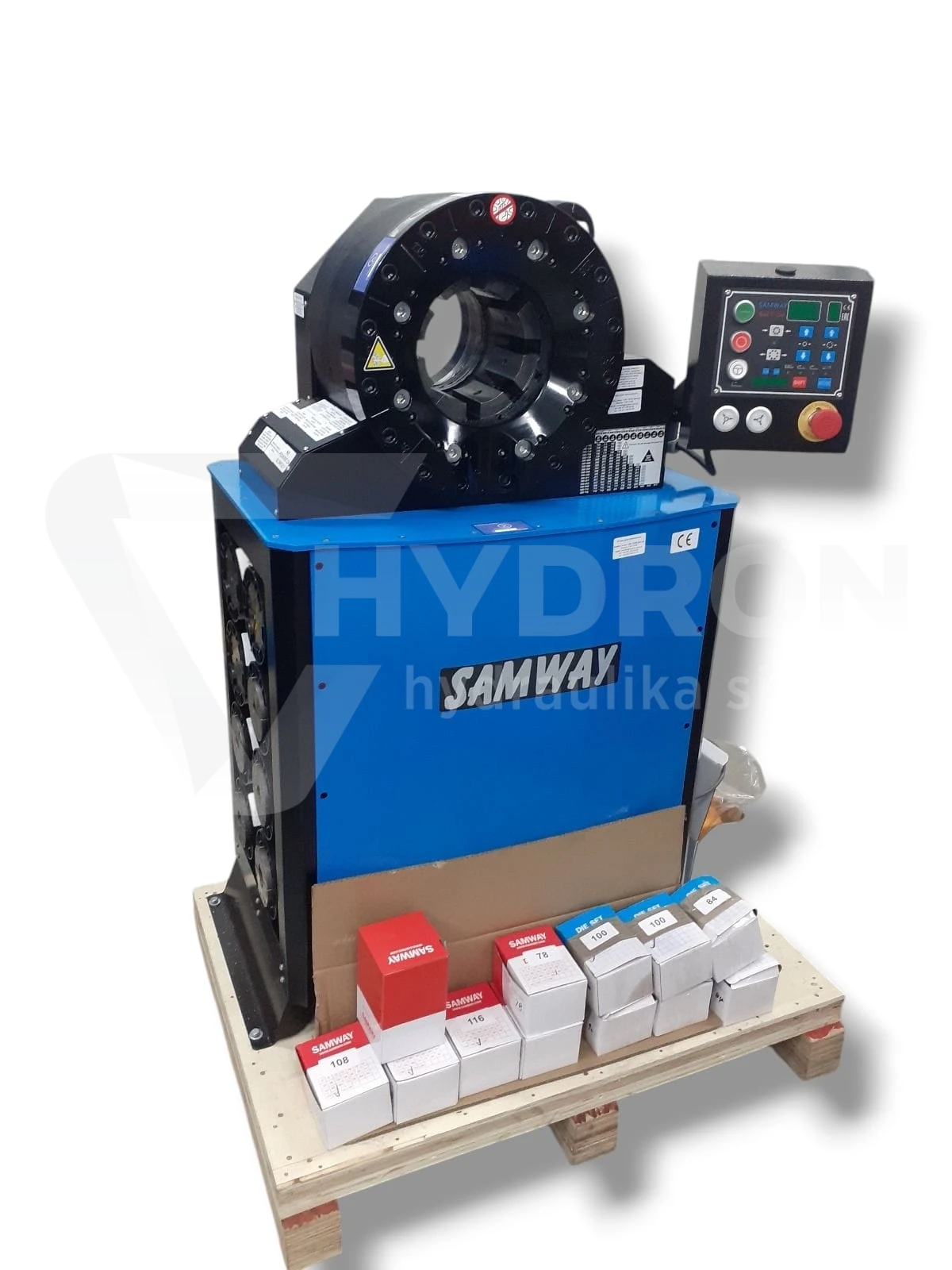

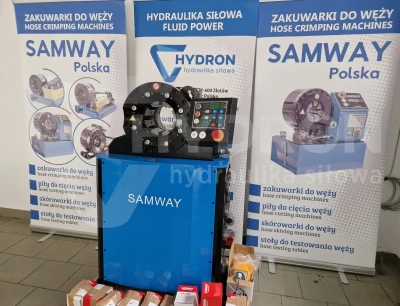

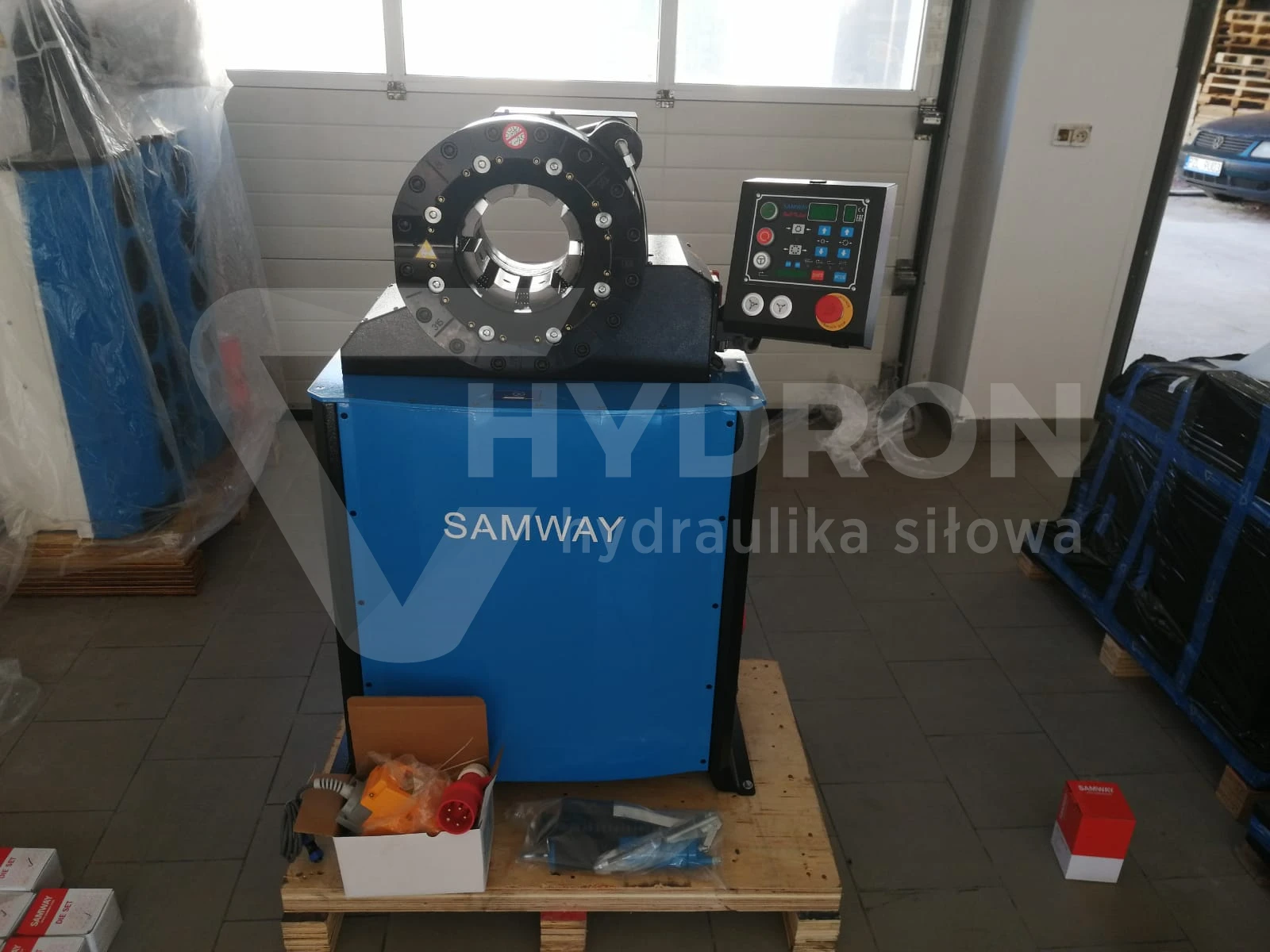

SAMWAY H60 hose crimping machine

Version with digital panel (button-operated)

• Schedule a free meeting and machine presentation

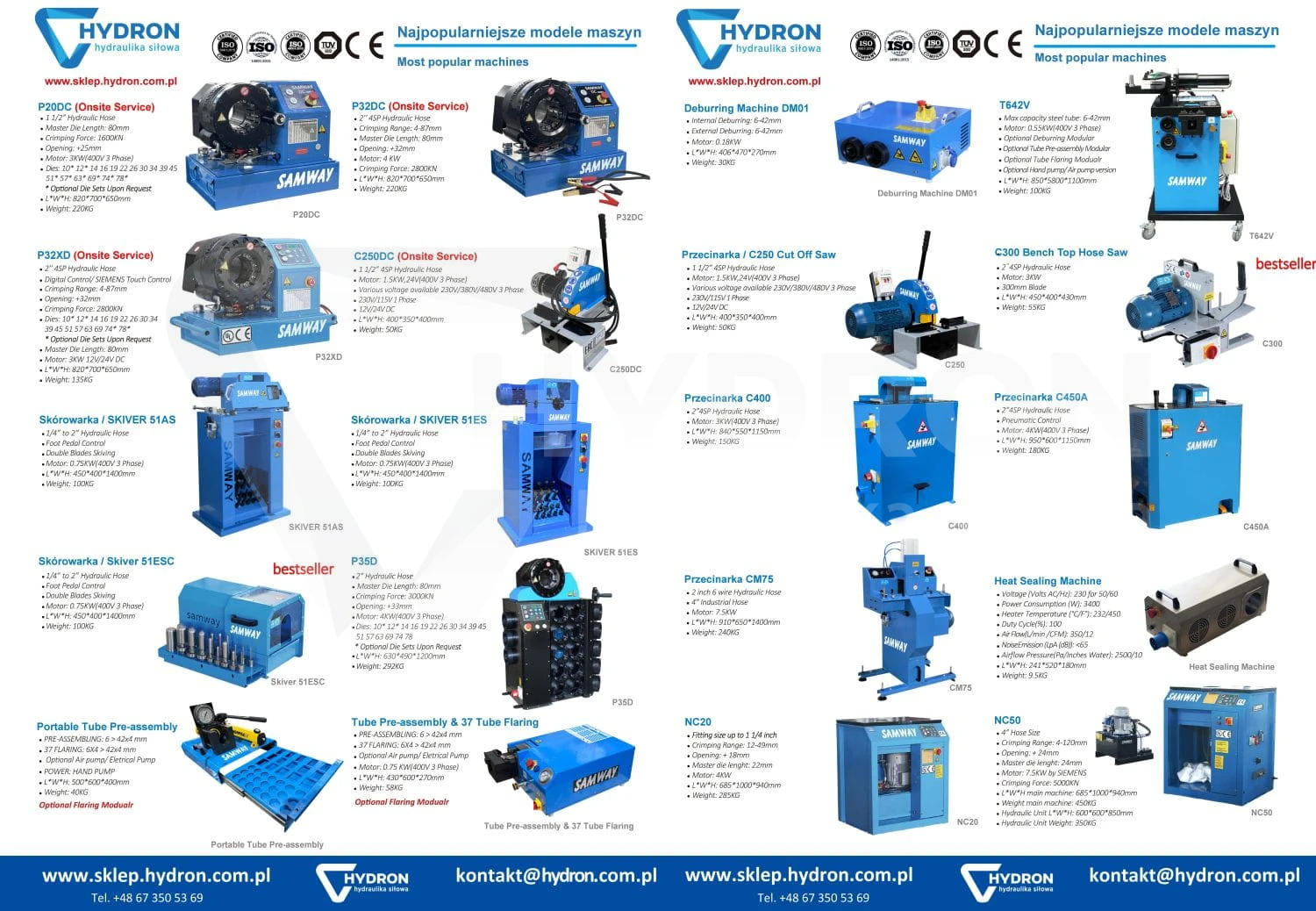

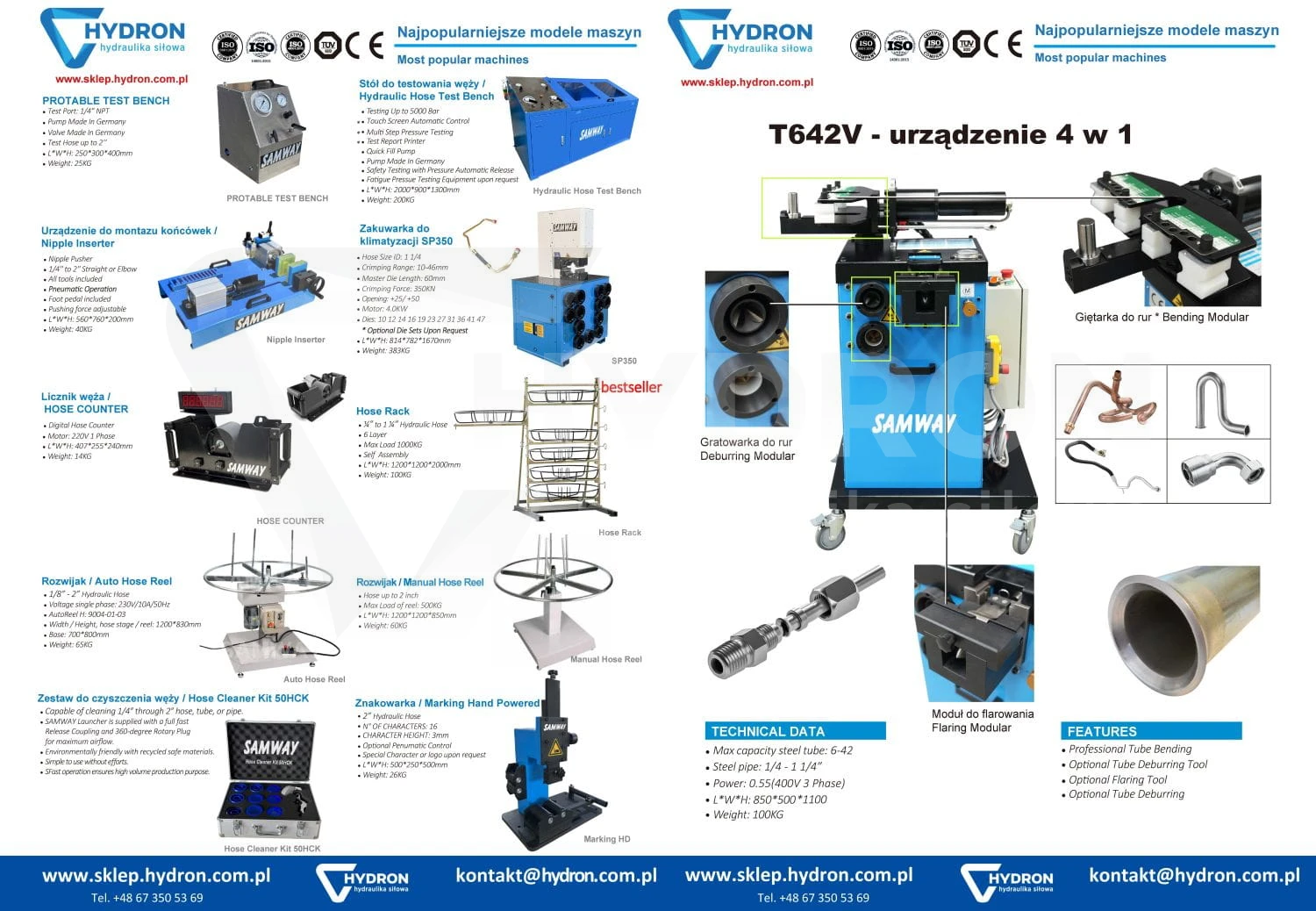

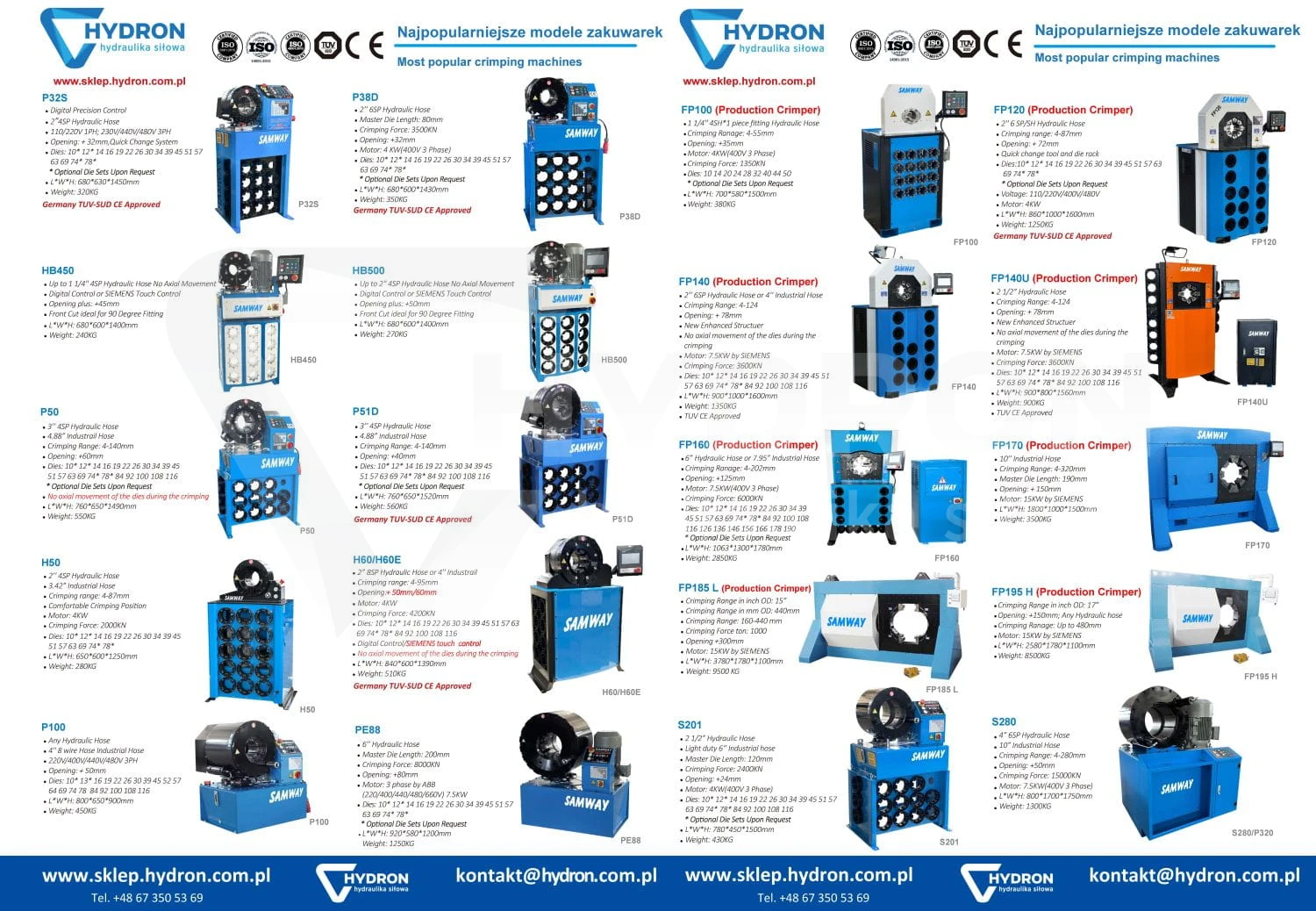

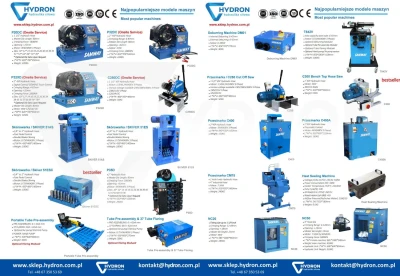

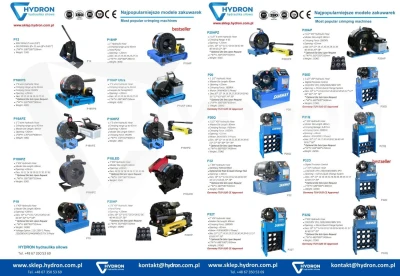

• Check out the most frequently sold crimper models

Hose crimper with a very large head!

• 20 sets of crimping dies included!

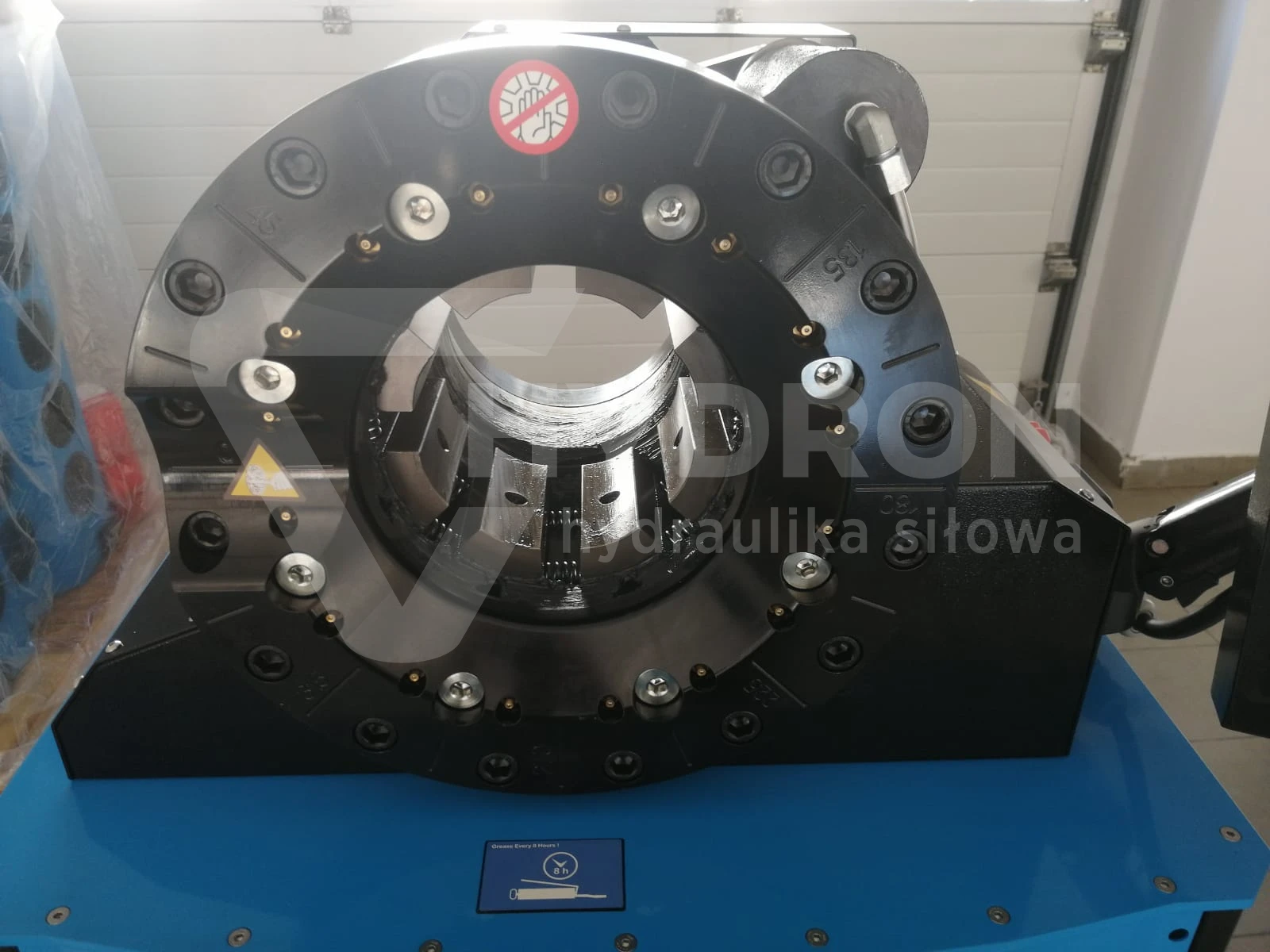

• Very large head!
• Very high crimping force!

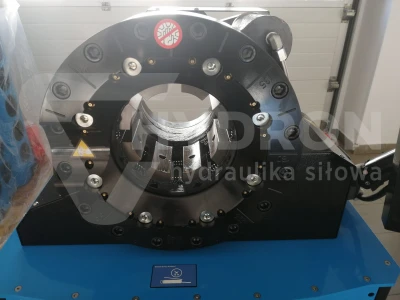

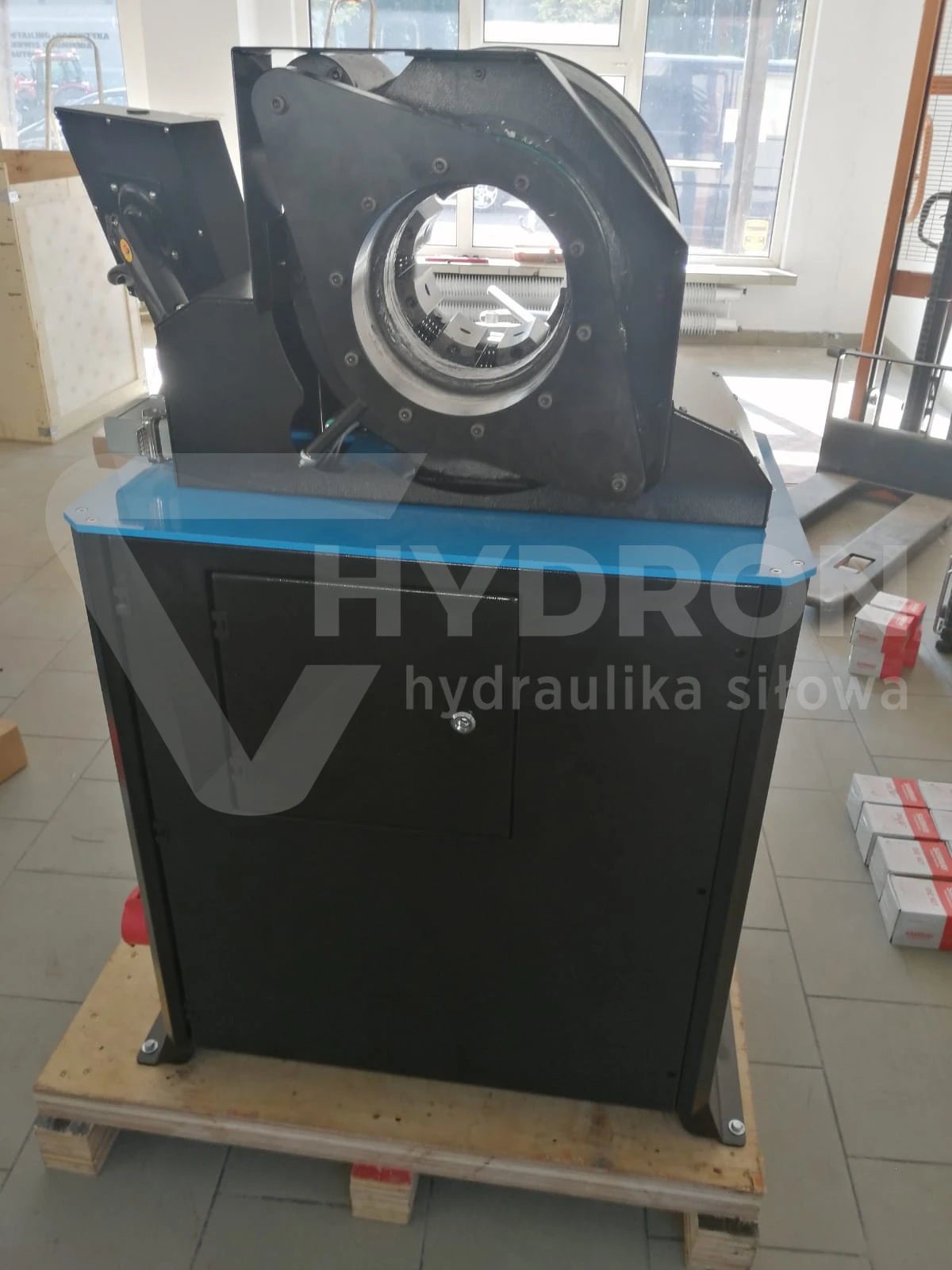

Ideal machine for crimping elbow fittings in the largest sizes. The press has a very large head enabling crimping of elements up to 140 mm outer diameter (industrial hoses up to 4"). No axial movement – easy positioning. The front plate of the head is designed with a cutout ideal for a 90-degree hydraulic hose elbow. On this model, we can crimp every possible elbow (elbow fitting). Our latest H60 crimper model can successfully compete with machines such as the Uniflex S10 (+45 mm opening), Techmaflex S450 (without digital control), or OP TUBOMATIC H144 ES (+45 mm opening). The crimping dies in our crimper open as much as +50 mm. The crimper is designed for customers who need the greatest capabilities, including crimping the largest elbow fittings up to 2" inclusive.

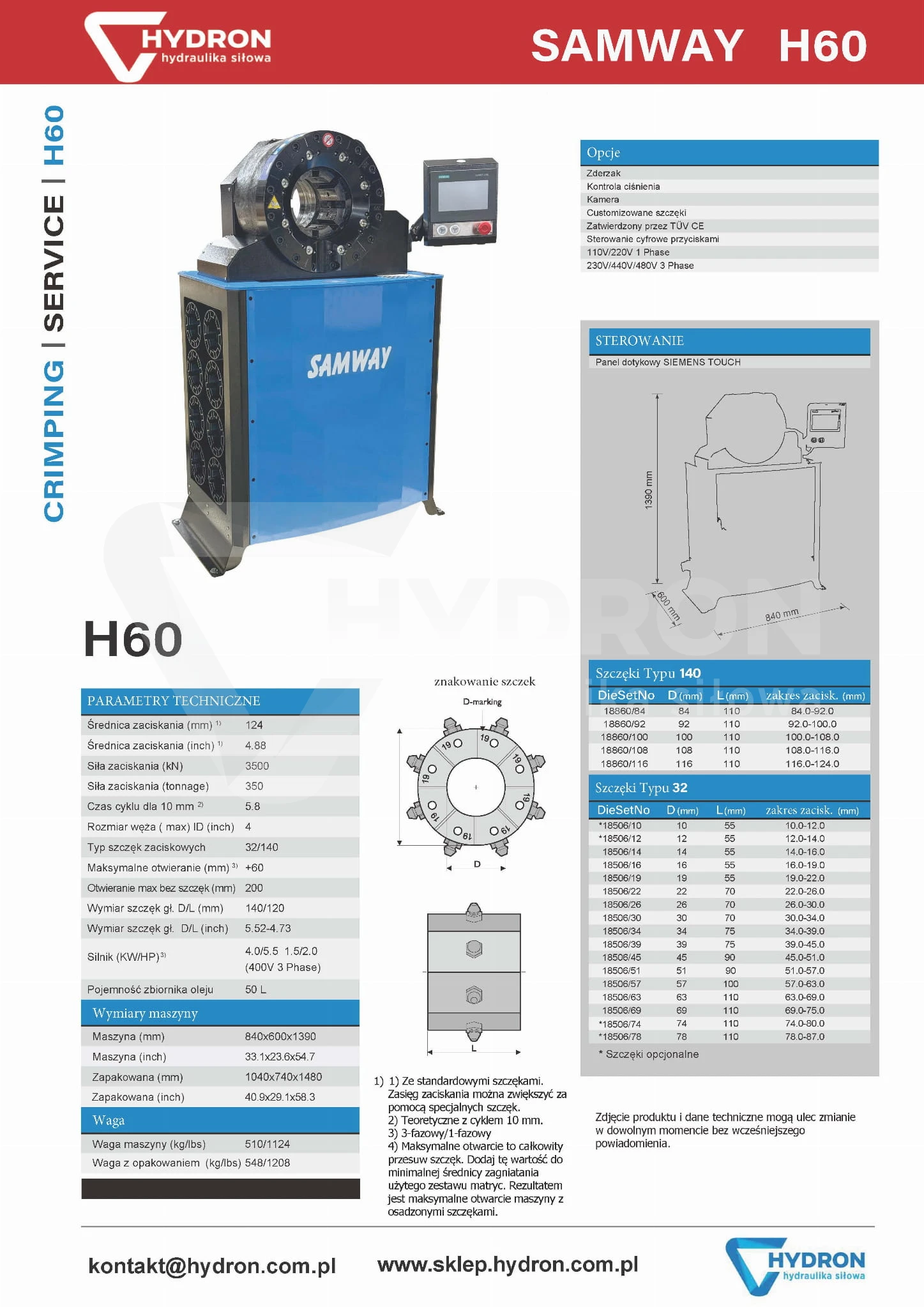

Technical parameters of the SAMWAY H60 crimper:

• Model: SAMWAY H60
• Maximum hydraulic hose size: 3’’ 4SP
• Maximum industrial hose: 4”
• Crimping range: 4 - 140 mm
• Die type: P32
• Master die length: 110 mm
• Maximum opening: +50 mm
• Motor power: 4 KW
• Crimping force: 3500 KN (350 tons)
• Number of cycles per hour: 850

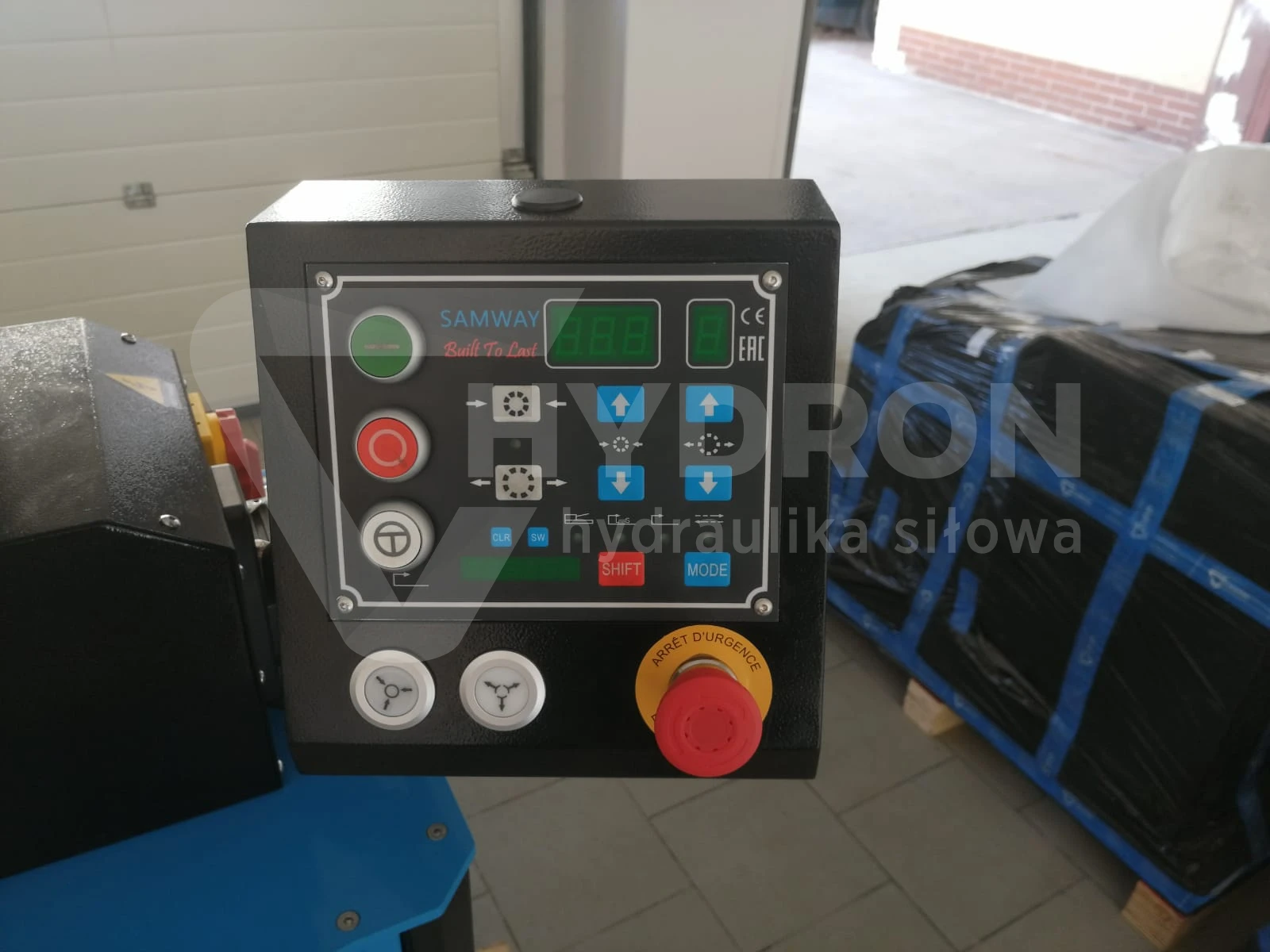

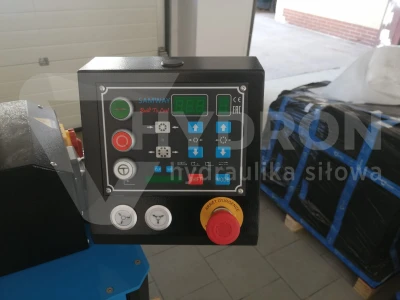

• Control: Digital panel (button-operated with overlay)
• Foot pedal: YES (included)
• Die rack: YES (included)
• Quick-change tool: YES (included)
• Crimping backstop: Optional
• Pressure control: Optional
• Noise level: 65 dBA
• Protection class: IP56
• Dimensions (LxWxH): 840 mm x 600 mm x 1390 mm
• Weight: 400 kg

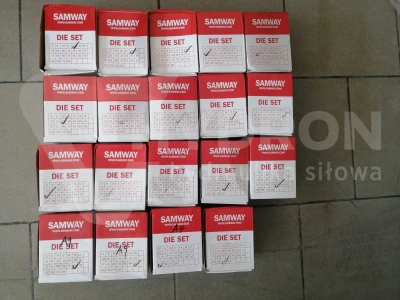

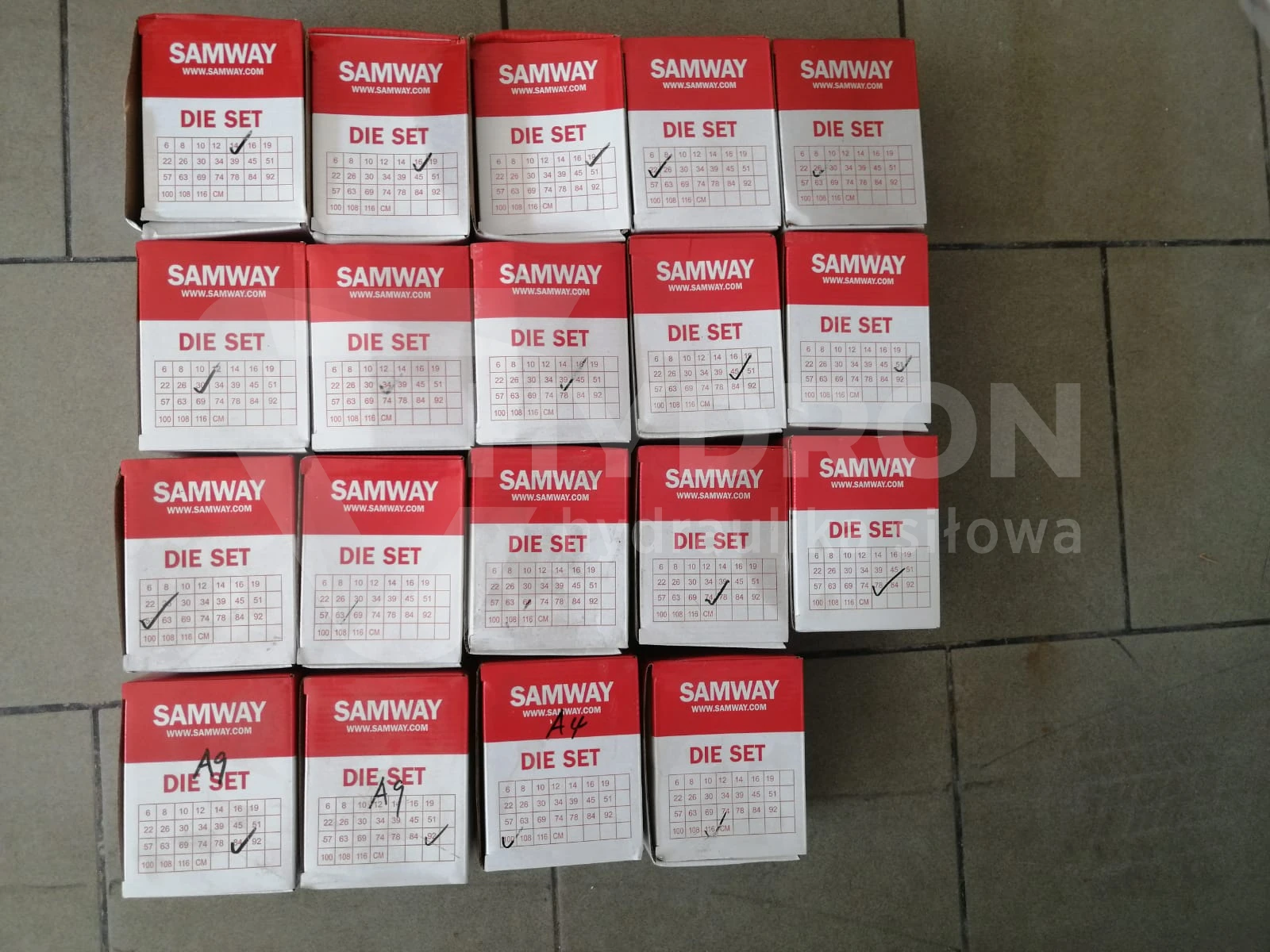

Crimping dies in the set (20 sets):

14 mm, 16 mm, 19 mm, 22 mm, 26 mm, 30 mm, 34 mm, 39 mm, 45 mm, 51 mm, 57 mm, 63 mm, 69 mm, 74 mm, 78 mm, 84 mm, 92 mm, 100 mm, 108 mm, 116 mm.
