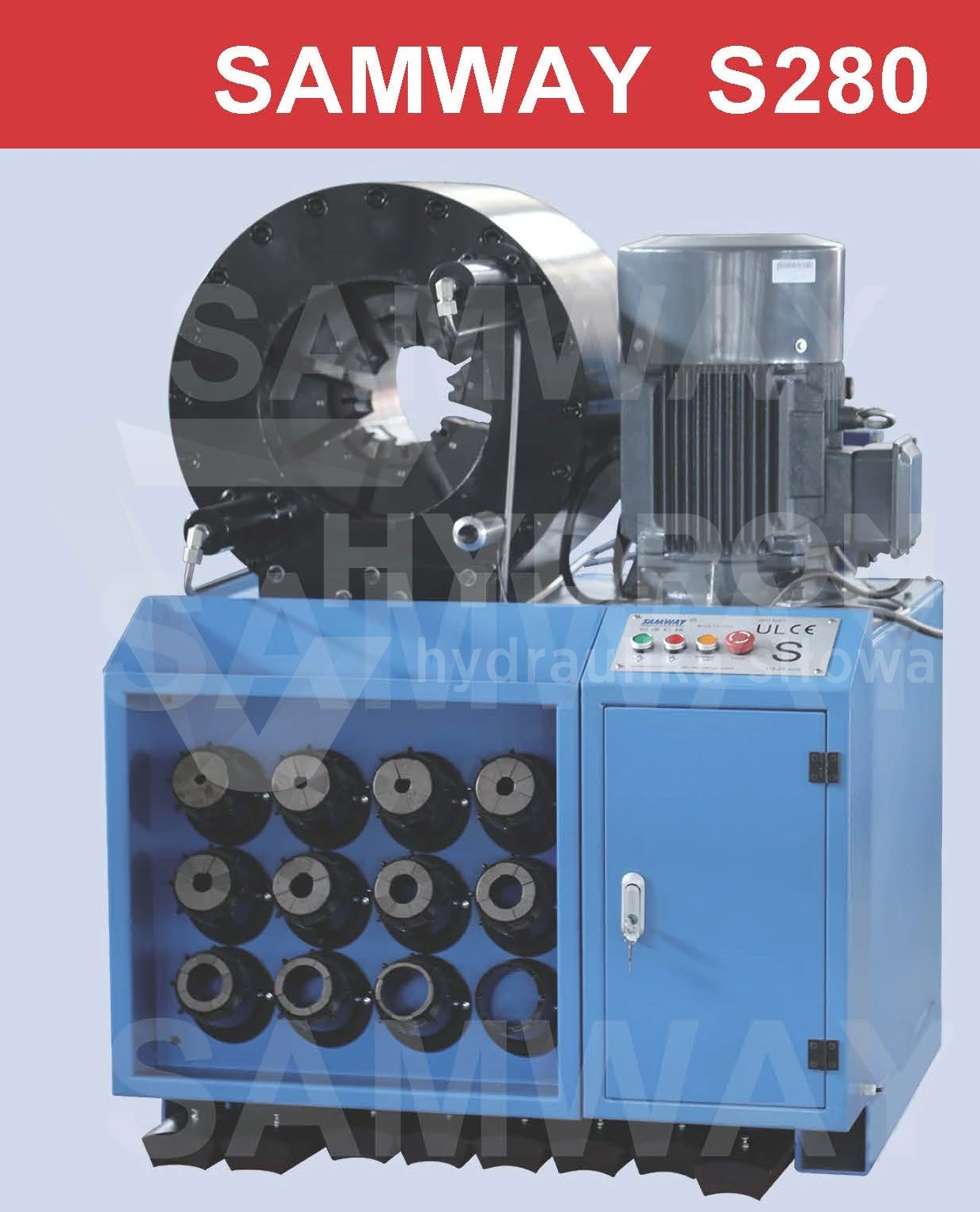

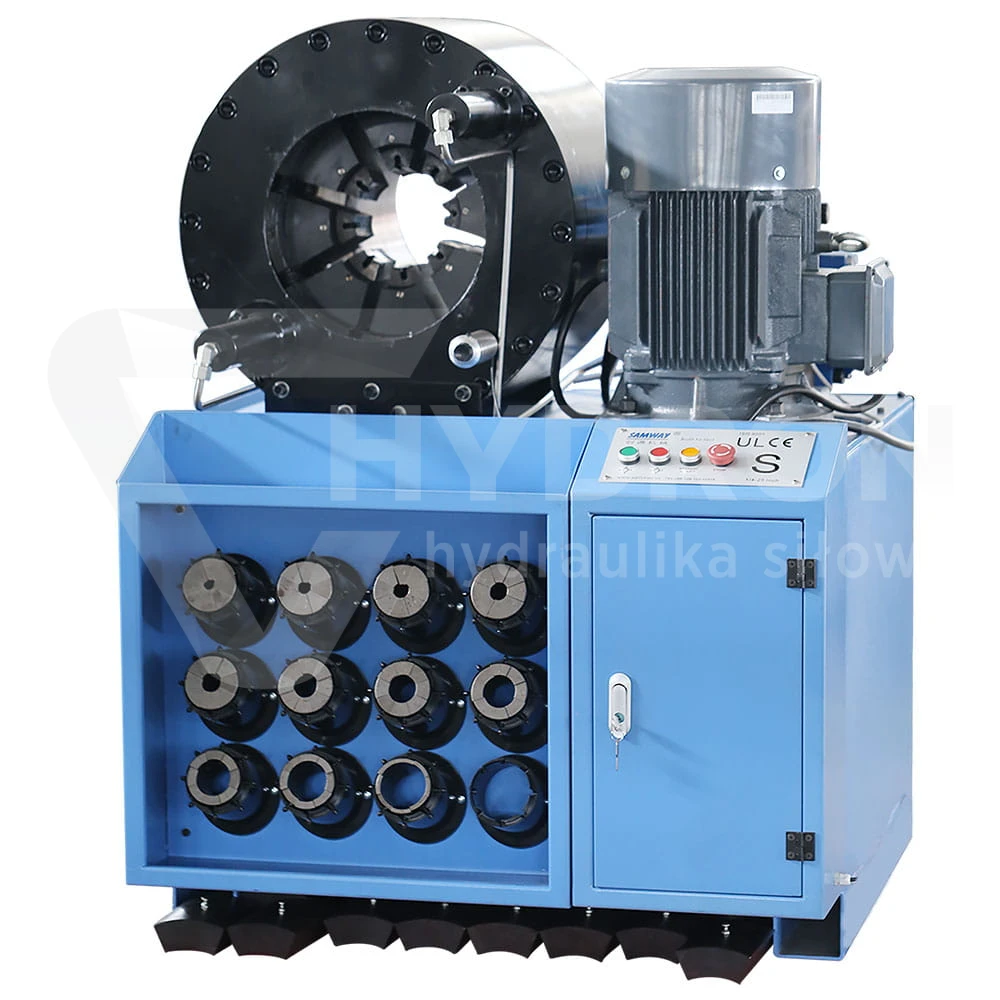

Industrial crimping machine SAMWAY S280

Watch the video presenting the capabilities of the crimping machine

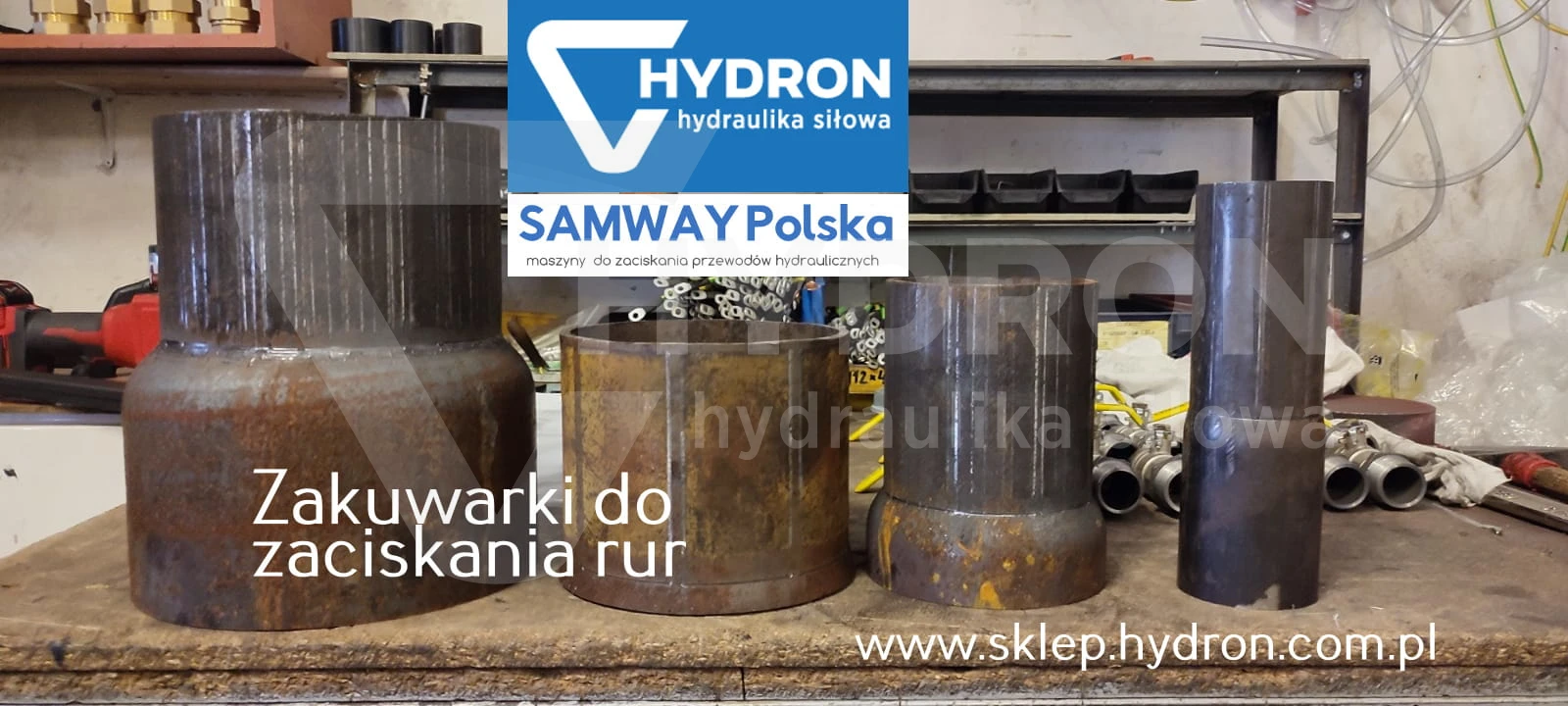

The SAMWAY S280 industrial crimping machine is an advanced device designed for demanding tasks in the power hydraulics and industrial sectors. The S280 model stands out with an impressive crimping force of 15,000 kN, making it ideal for crimping hydraulic hoses, industrial hoses, and large-diameter steel pipes.

Advanced control: A digital control panel facilitates easy operation and precise control over the crimping process. The set includes a foot pedal, allowing for convenient device control during operation.

Application: The SAMWAY S280 crimping machine is an indispensable solution for companies involved in the production, servicing, and distribution of hydraulic and industrial components. The device is perfectly suited for crimping large-diameter hoses and steel pipes in industrial, construction, and energy applications.

The SAMWAY S280 crimping machine is the perfect solution for professionals seeking a device with maximum performance and durability. Check out the offer on our website and learn more!

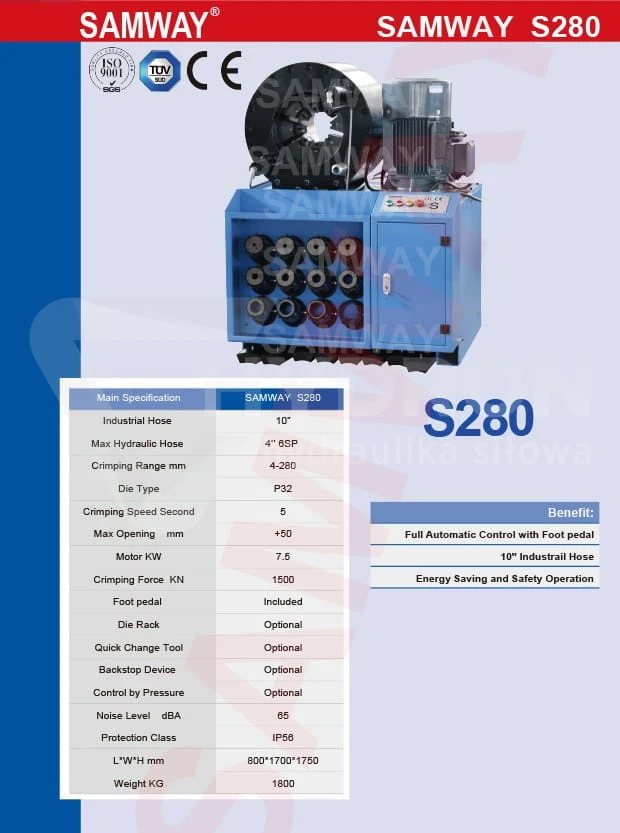

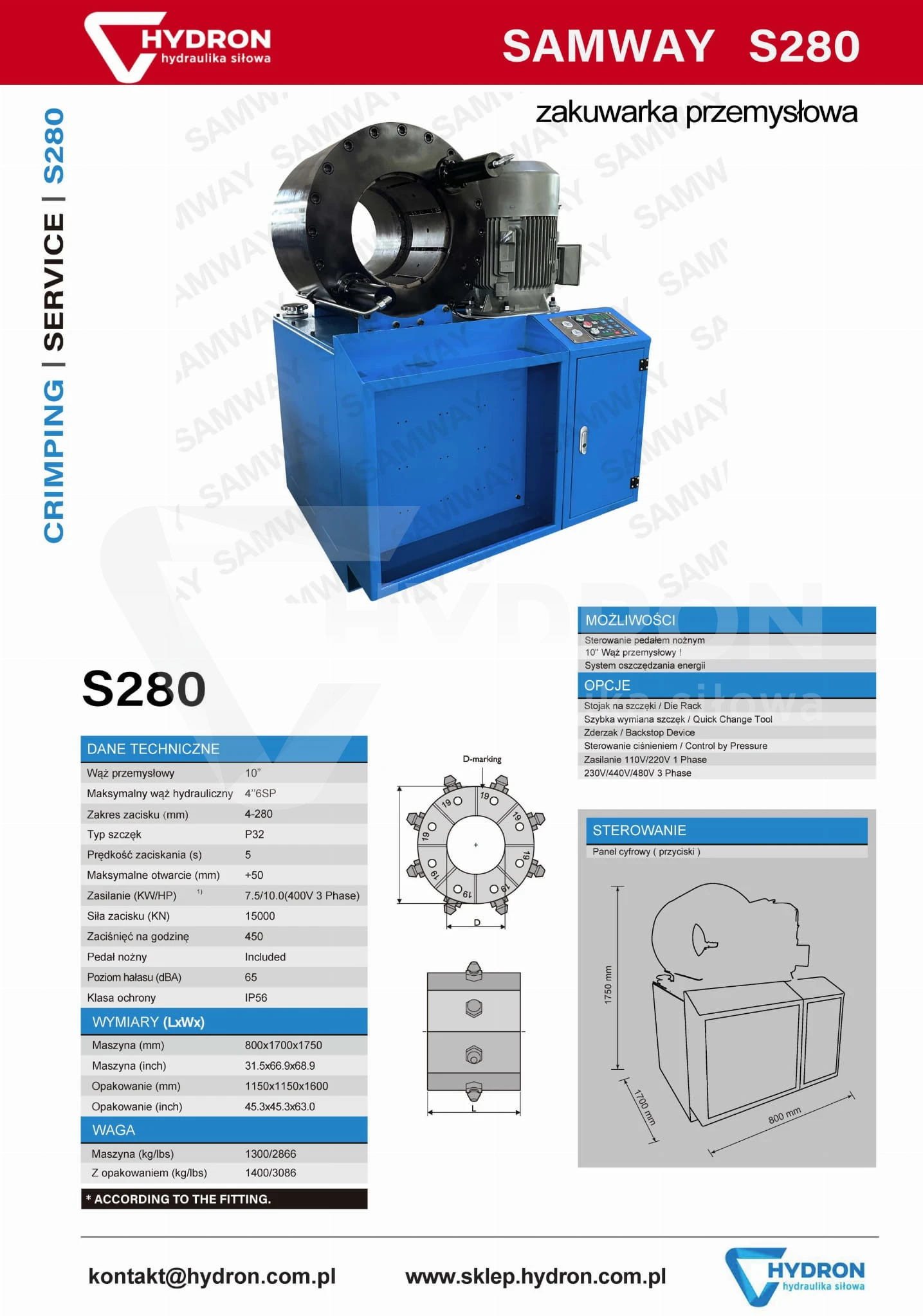

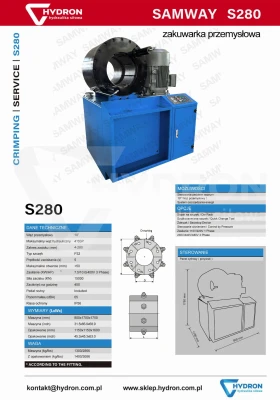

Technical parameters:

• Wide crimping range: from 4 mm to 280 mm, which allows for handling industrial hoses up to 10” and hydraulic hoses up to 4” 6SP.
• High working speed: crimping time is just 5 seconds, enabling up to 450 crimps per hour.
• Maximum opening: +50 mm, providing flexibility when working with various components.
• Low energy consumption: thanks to the built-in energy-saving system.
• Quiet operation: noise level is only 65 dBA.
• High durability: the device features an IP56 protection rating, guaranteeing resistance to harsh environmental conditions.

Optional features:

• Quick Change Tool system.
• Die Rack for better workstation organization.
• Backstop Device to increase crimping precision.
• Various power options: 110V/220V 1 Phase or 230V/440V/480V 3 Phase.

Dimensions and weight:

• Machine dimensions: 800 x 1700 x 1750 mm
• Device weight: 1300 kg
• Packaging dimensions: 1150 x 1150 x 1600 mm

Why choose the SAMWAY S280?

• Professional technical support and fast order fulfillment.
• Ability to customize the device to individual needs thanks to a wide range of options.
• Proven quality and reliability.
