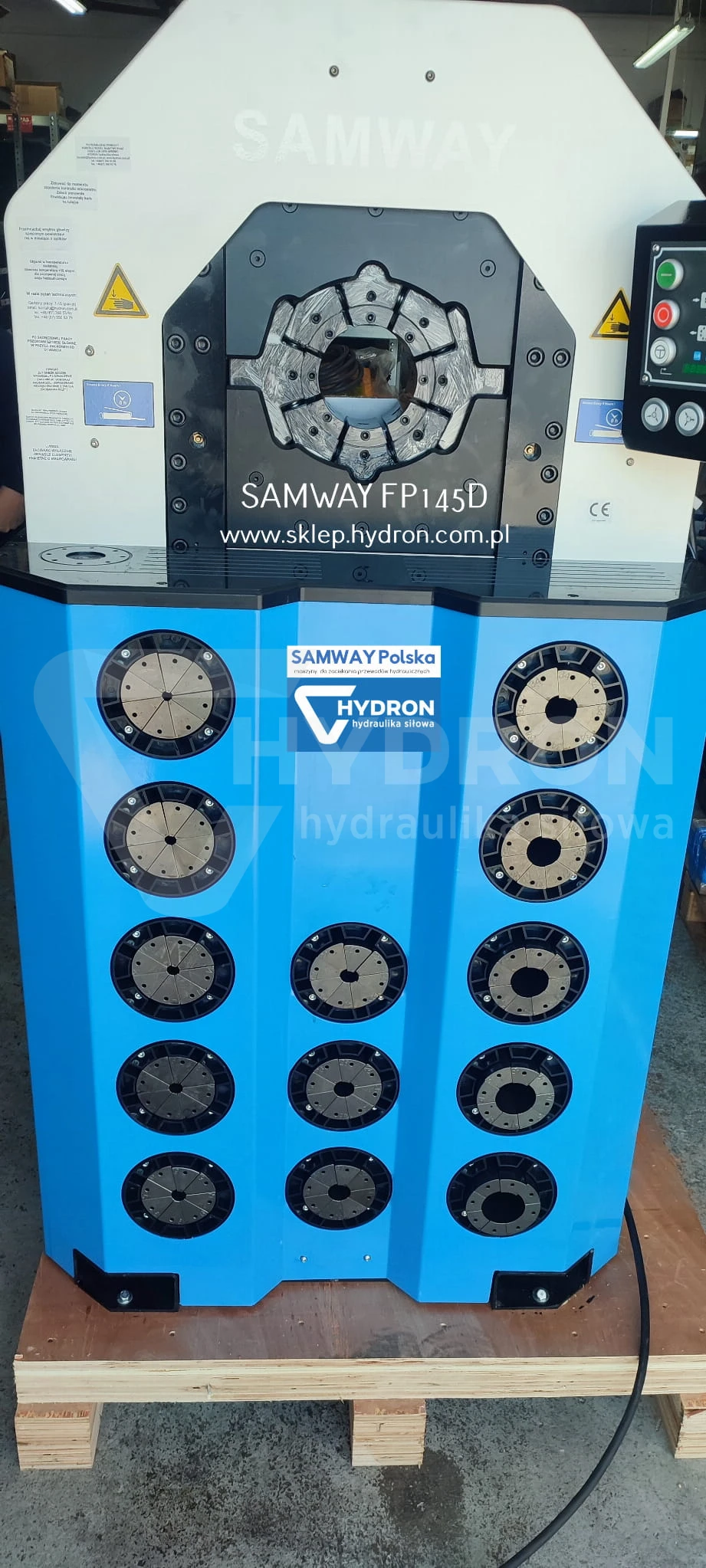

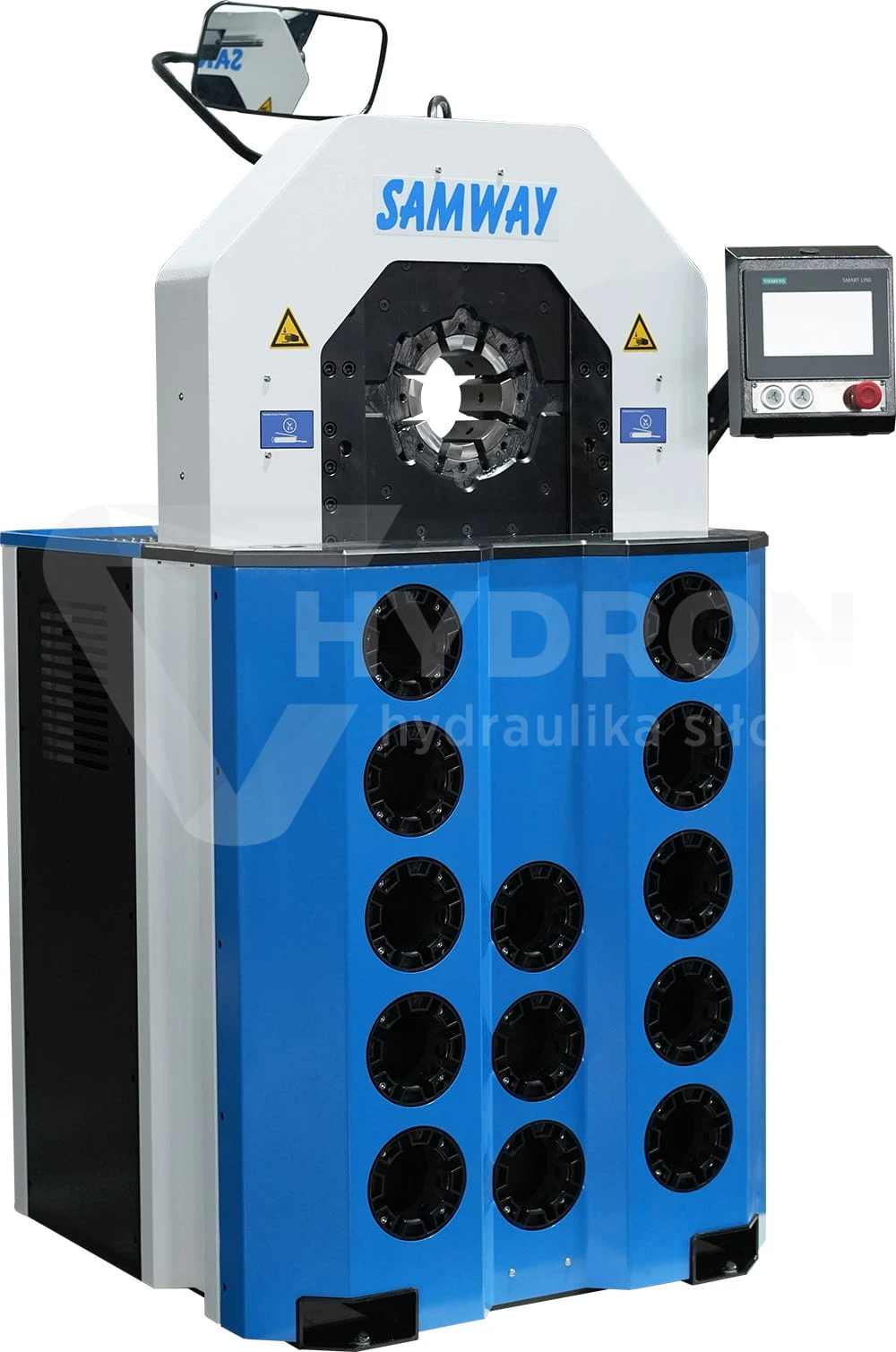

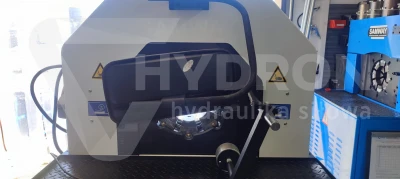

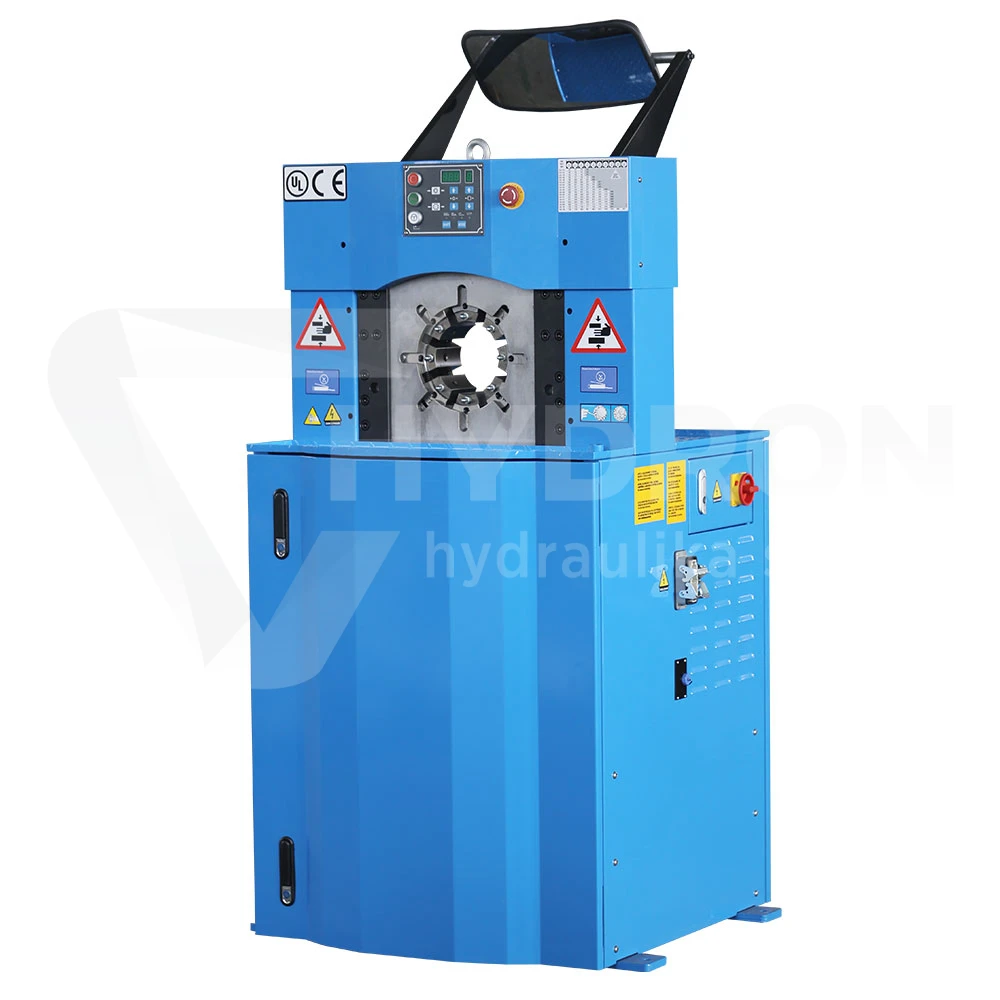

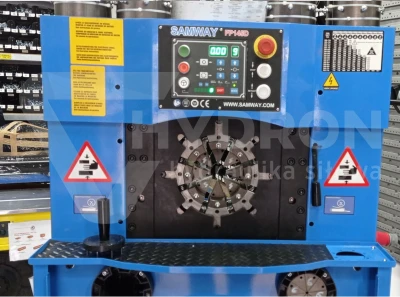

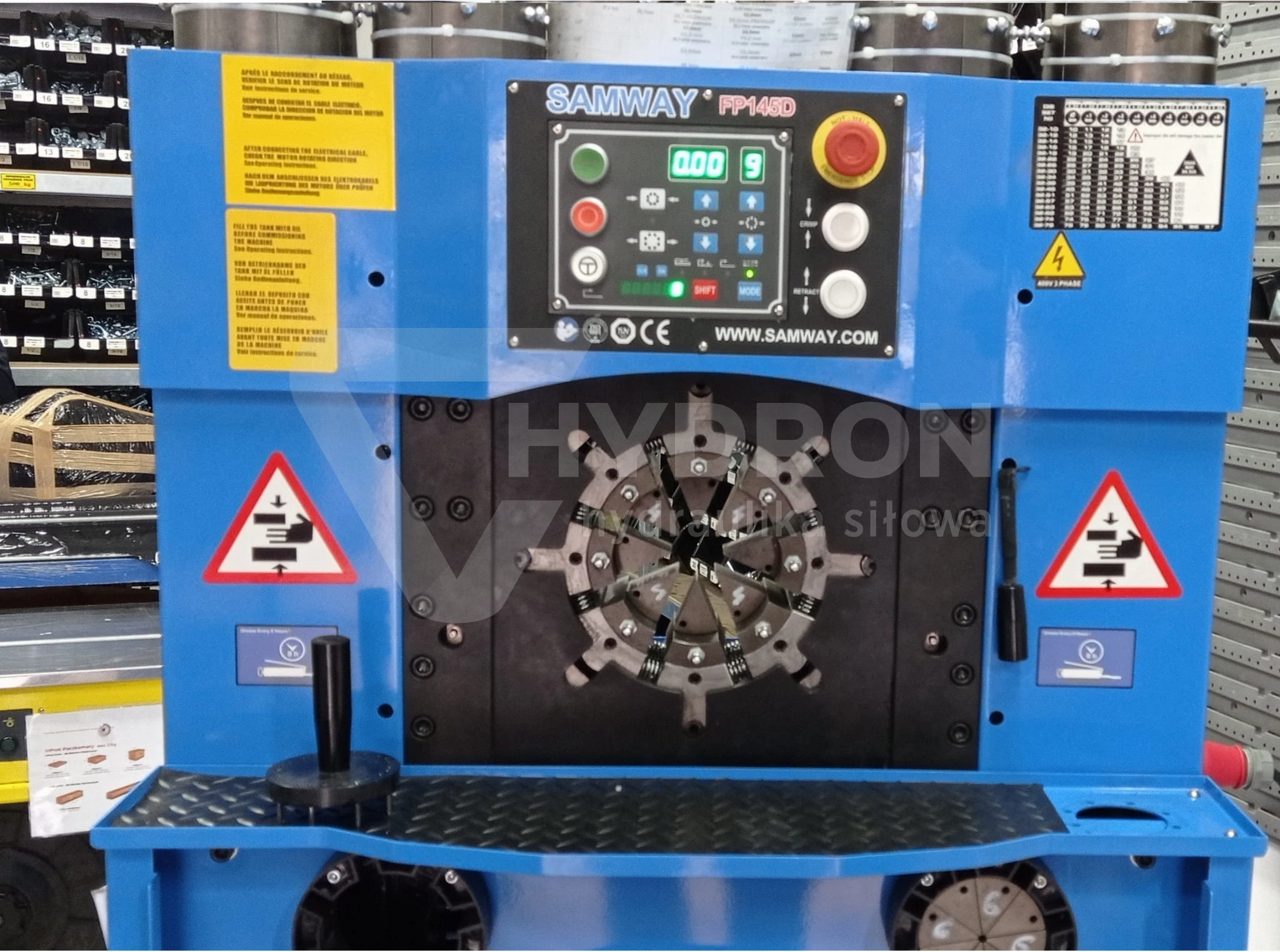

SAMWAY FP145 industrial crimping machine for up to 4" with digital control

• book a free meeting and machine presentation
• comparison of the most frequently sold crimpers
• how to lubricate the FP145D crimping machine
• check what the warranty for the crimper covers

Example crimper capabilities :

• Narrowing steel pipes
• Changing the diameter of a steel pipe

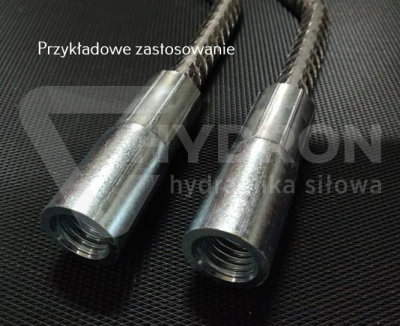

• Crimping steel ropes

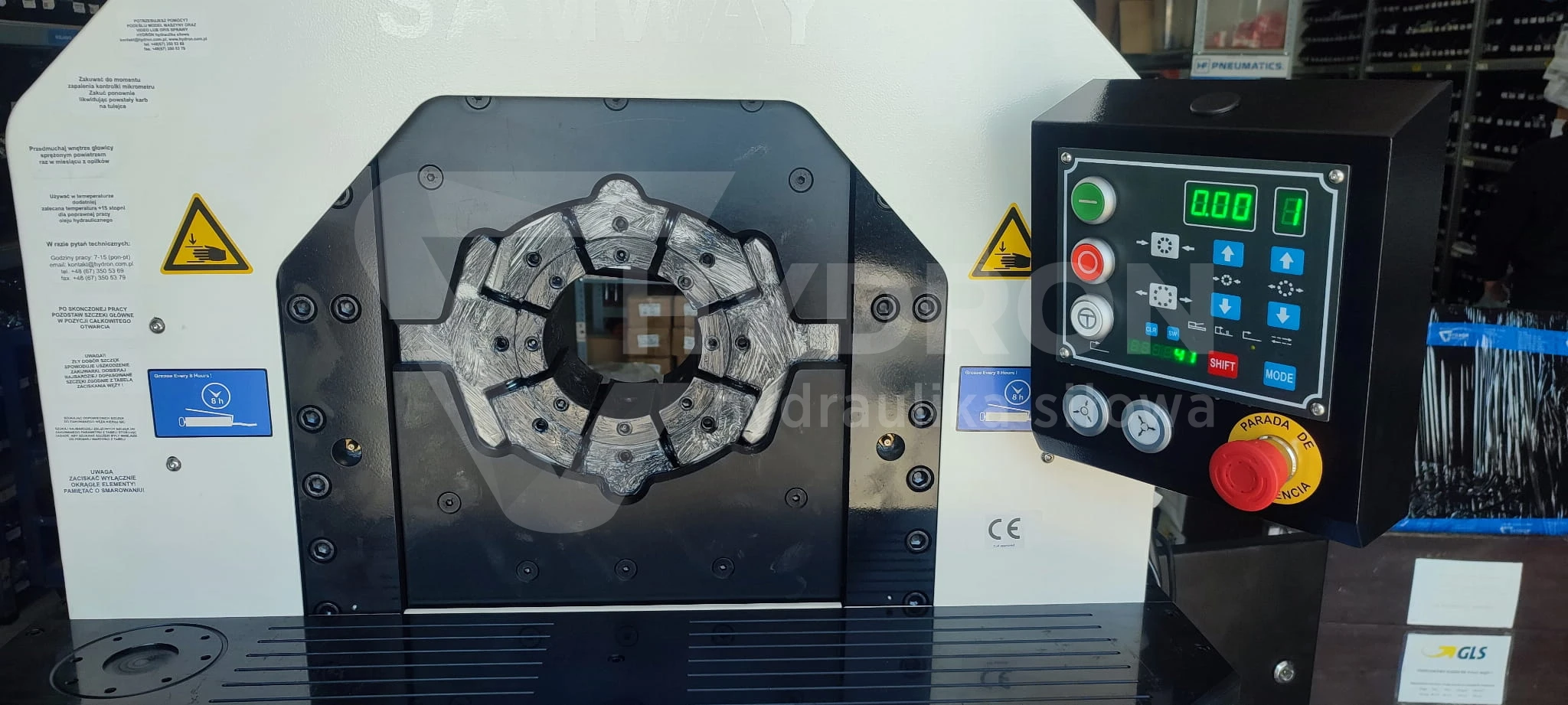

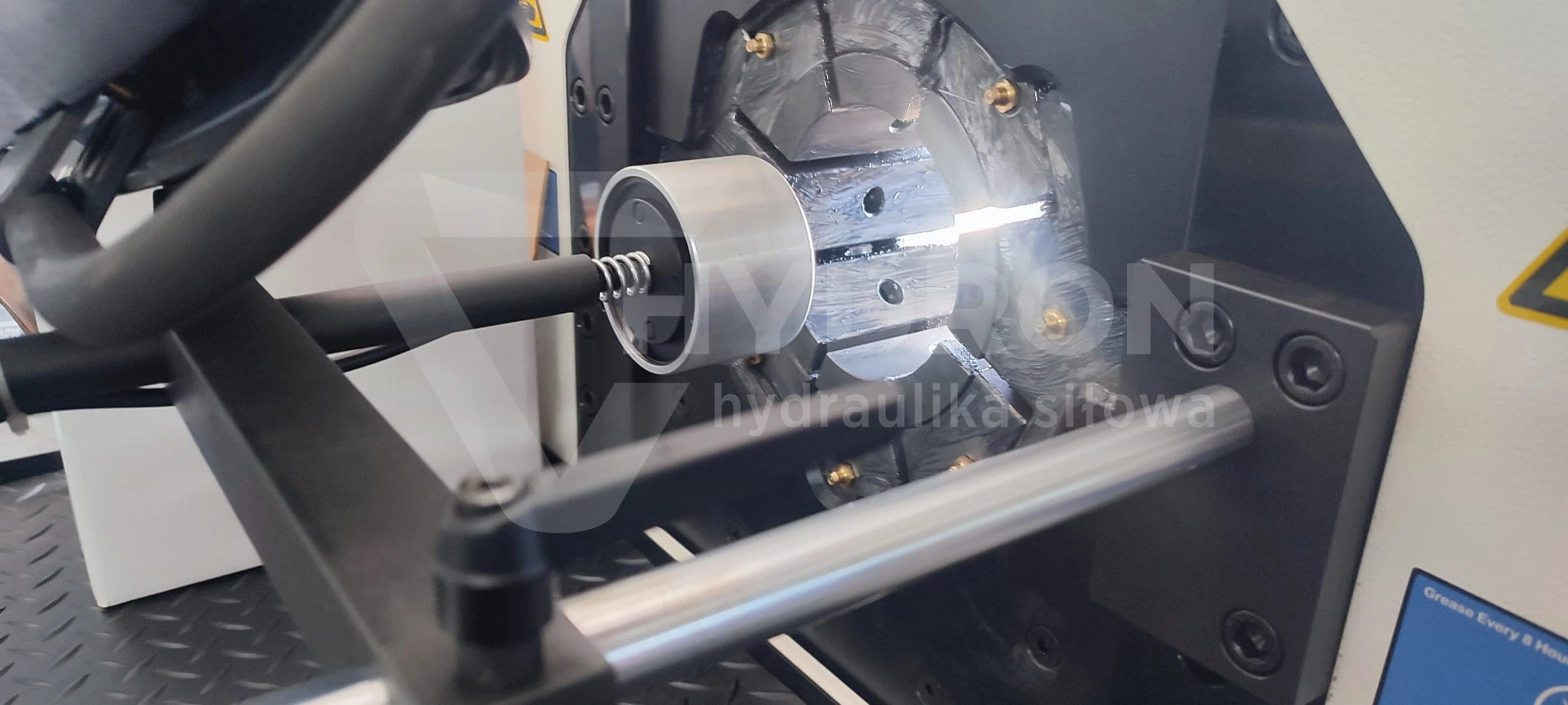

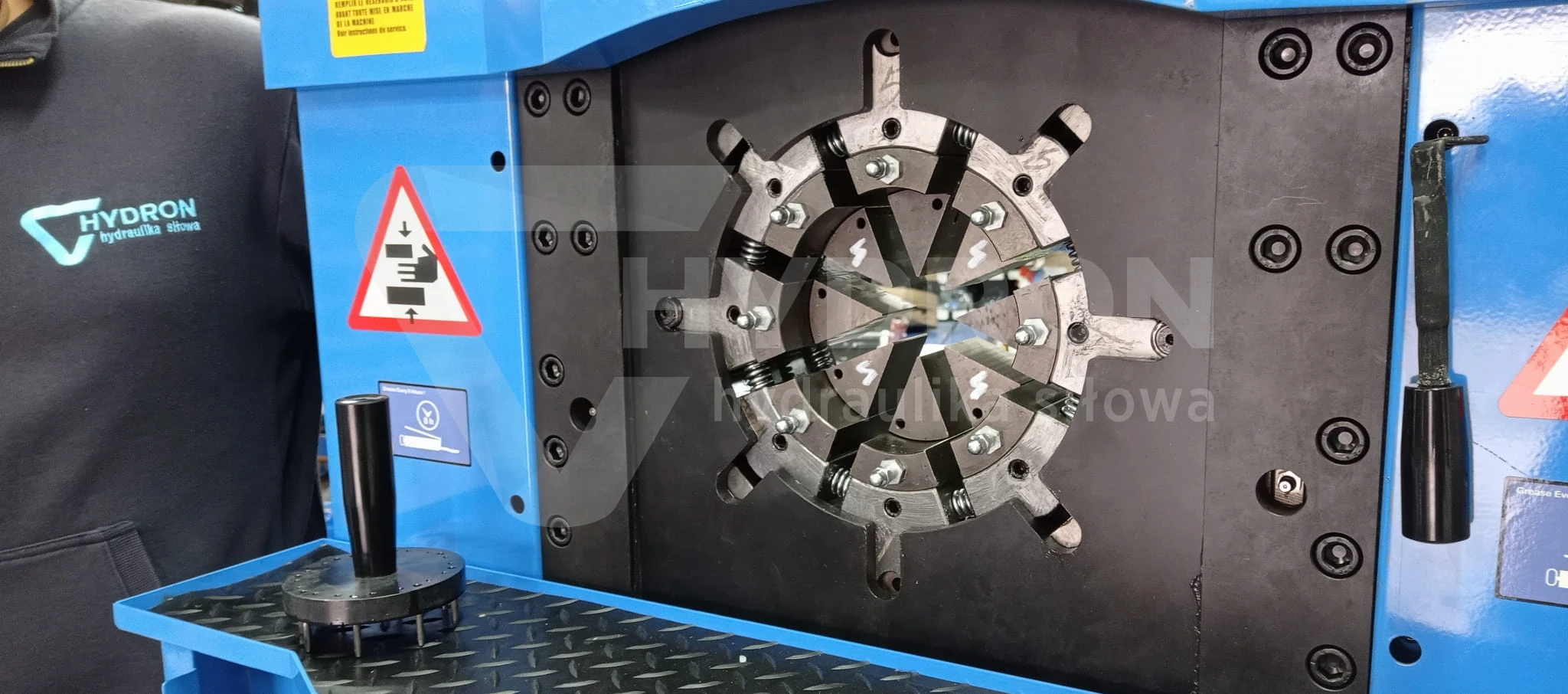

A crimper with a very large jaw opening (80mm). Useful where a large head is essential. Includes 20 sets of dies from 10mm to 116mm. If a crimper with a large head is needed without the need for a large opening range, check the SAMWAY S102 crimper model (cheaper version). The FP145D model is the successor to the FP145, which is the most popular industrial crimper. New improved digital control significantly simplifies work. Read more about digital panel.  Crimping machine designed for crimping hydraulic and industrial hoses. Who is a large crimper suitable for? production companies, large hose services, industrial companies.

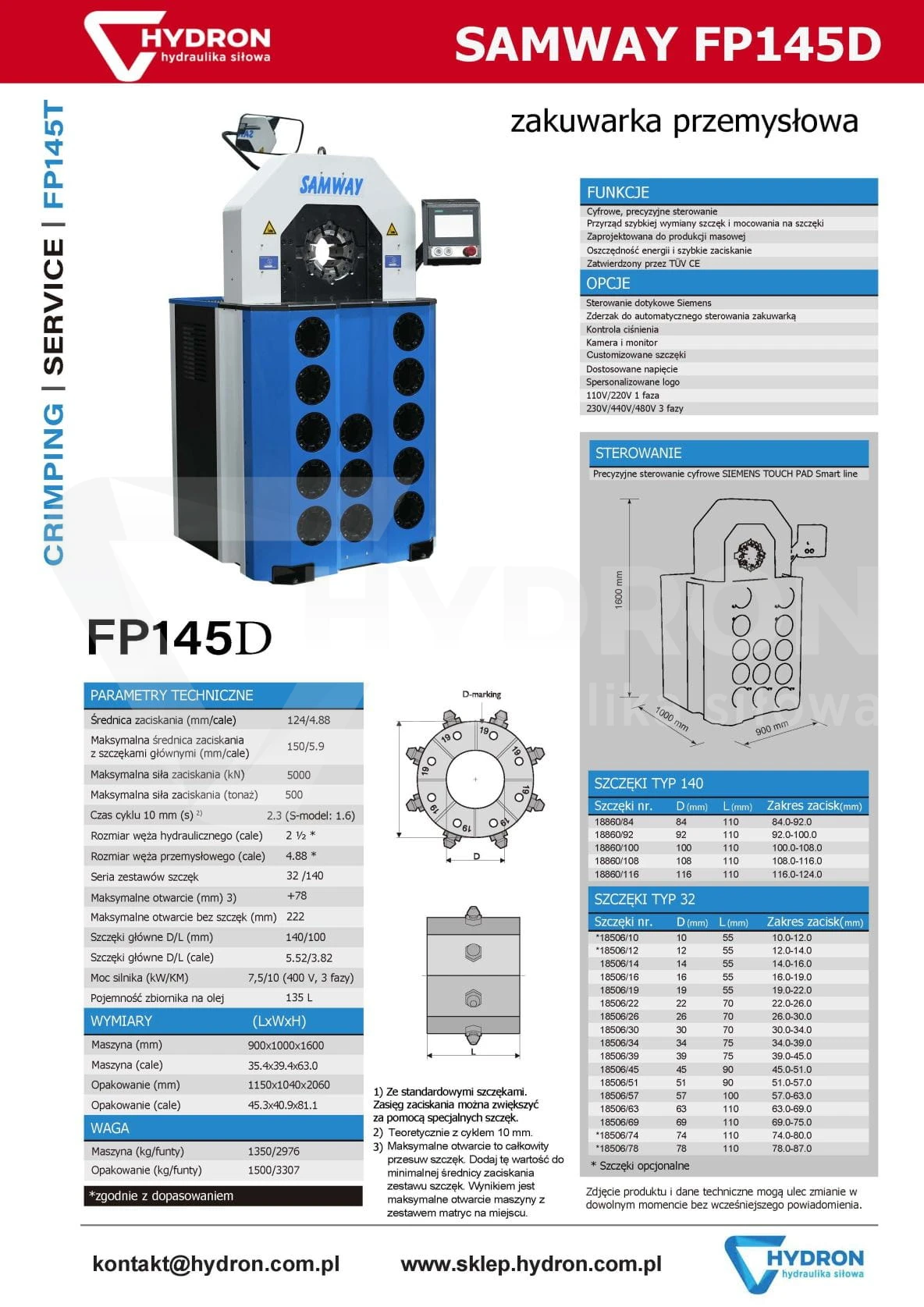

Technical parameters of the crimper :

• Model : SAMWAY FP145D
• Maximum crimped hose : 2’’ 6SP or 4’’ industrial hose
• Hydraulic hose size : 2 1/2"
• Industrial hose size : 4.88"
• Maximum crimping range on main dies : 150mm
• Crimping range : 4mm-124mm

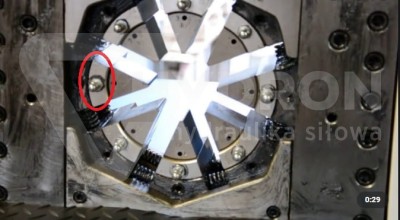

• Die type : P32 / 140
• Main die length : 100 mm
• Opening : +78mm

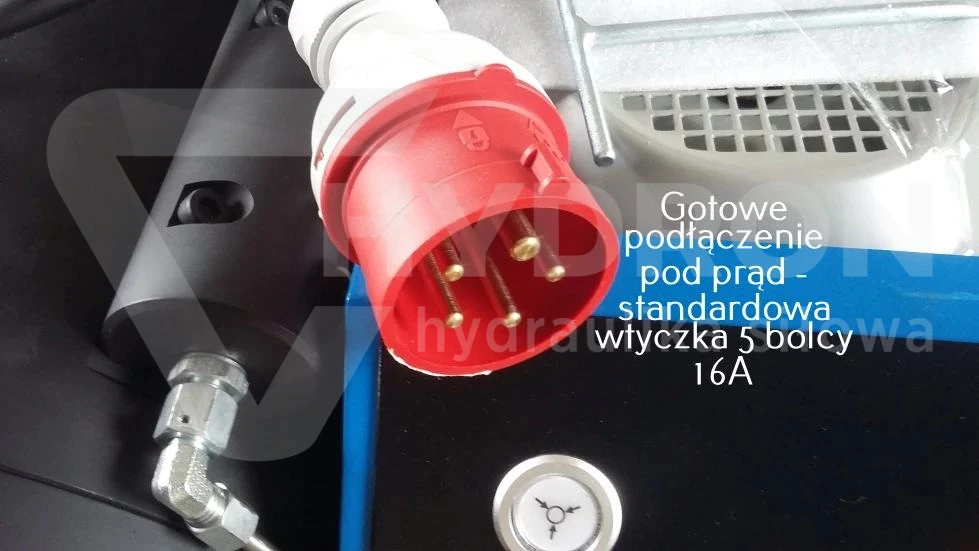

• Power supply : 9.2 kW SIEMENS (400V, 3 phases)
• Crimping force : 50000 kN ( 500 tons )
• Cycle time 10mm : 2.3s

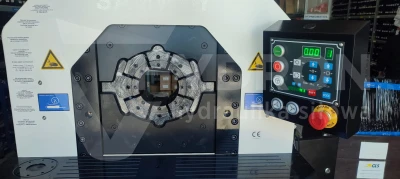

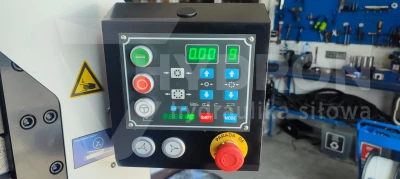

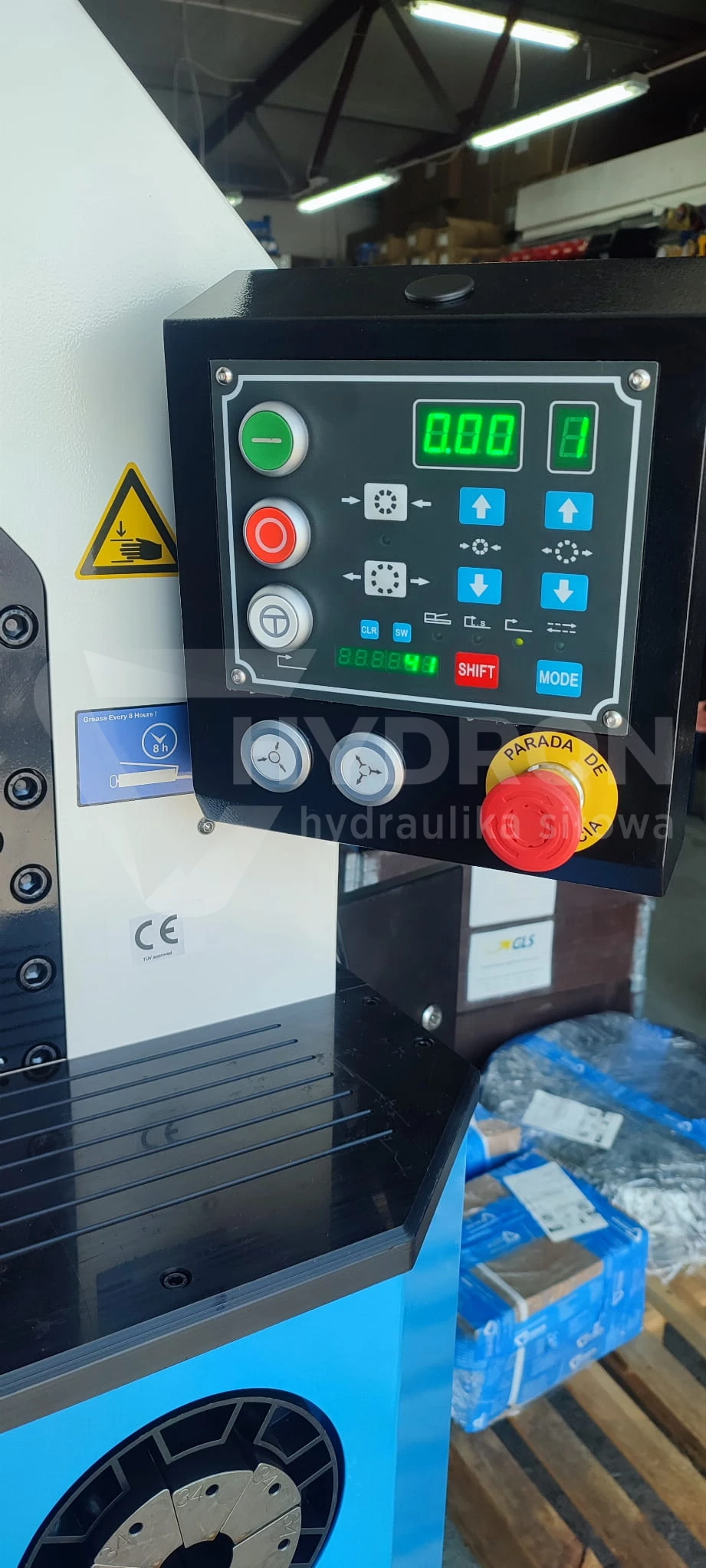

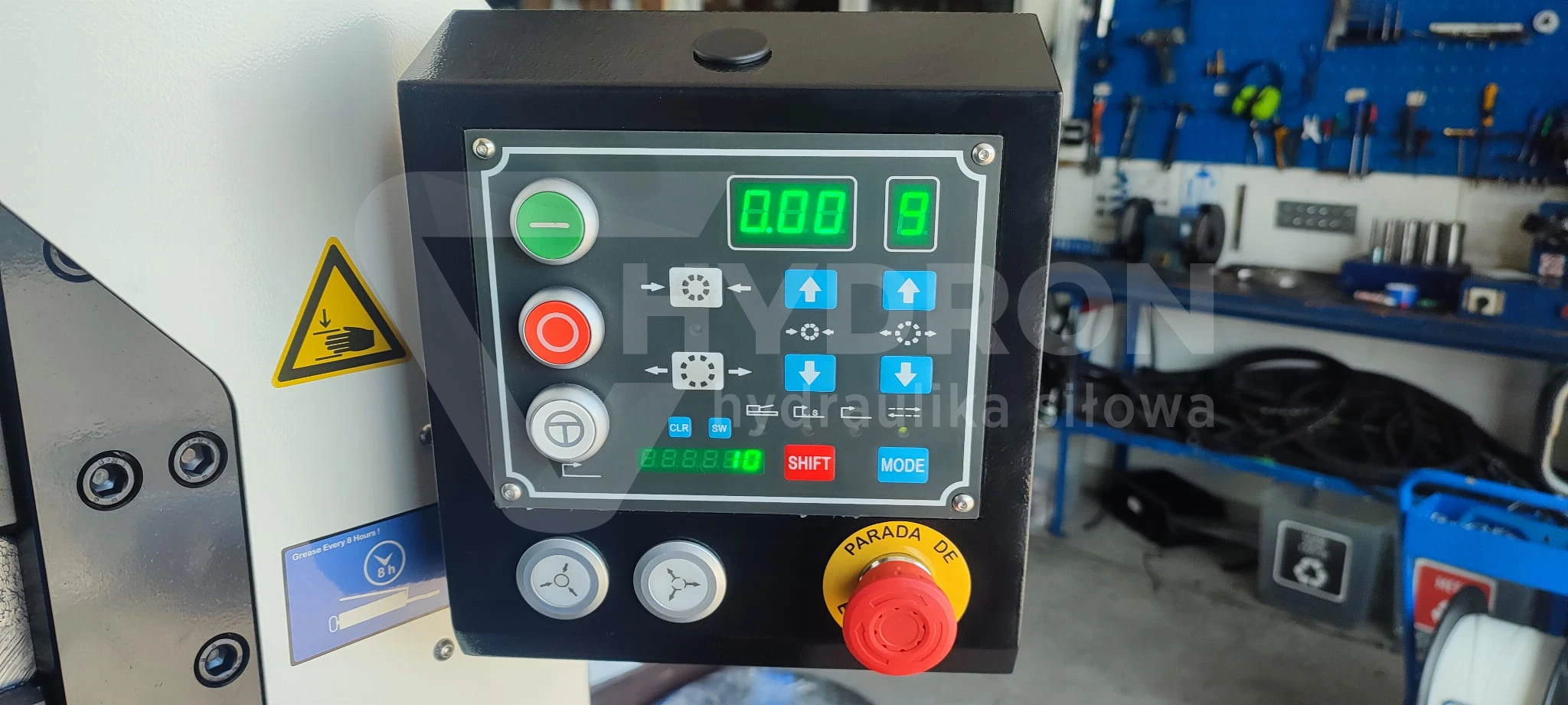

• Control : digital SIEMENS Precision Digital Control

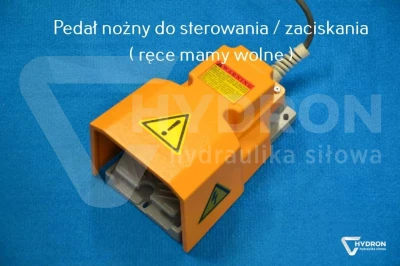

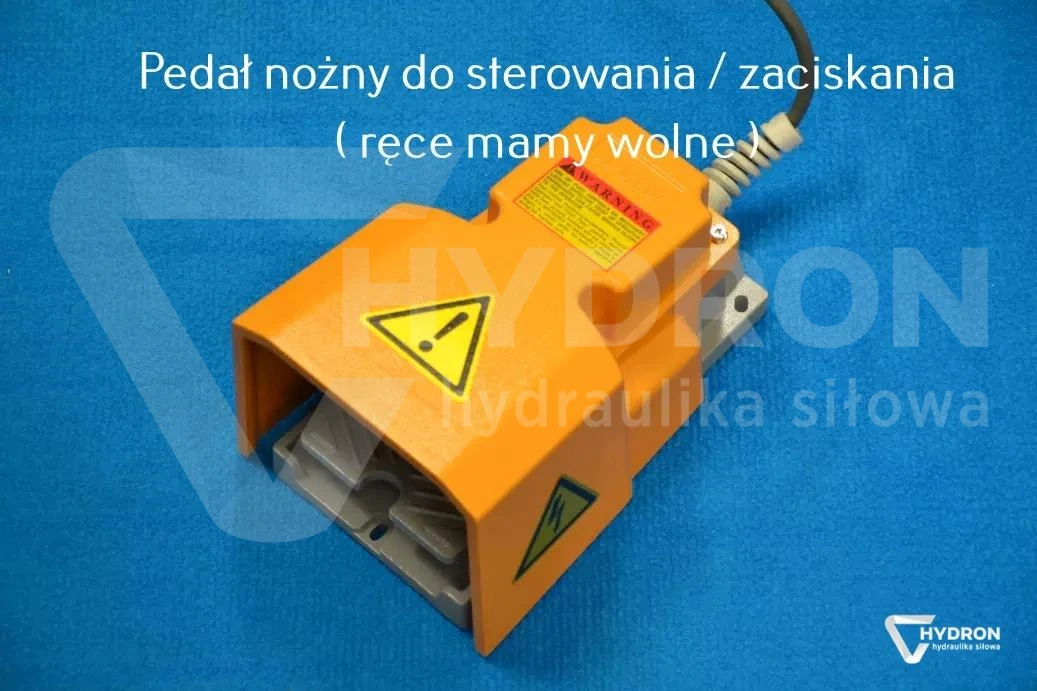

• Foot pedal : included
• Die base : included

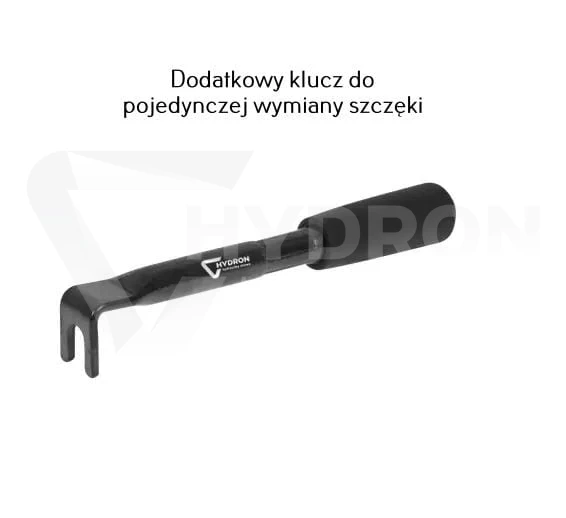

• Quick die change : included

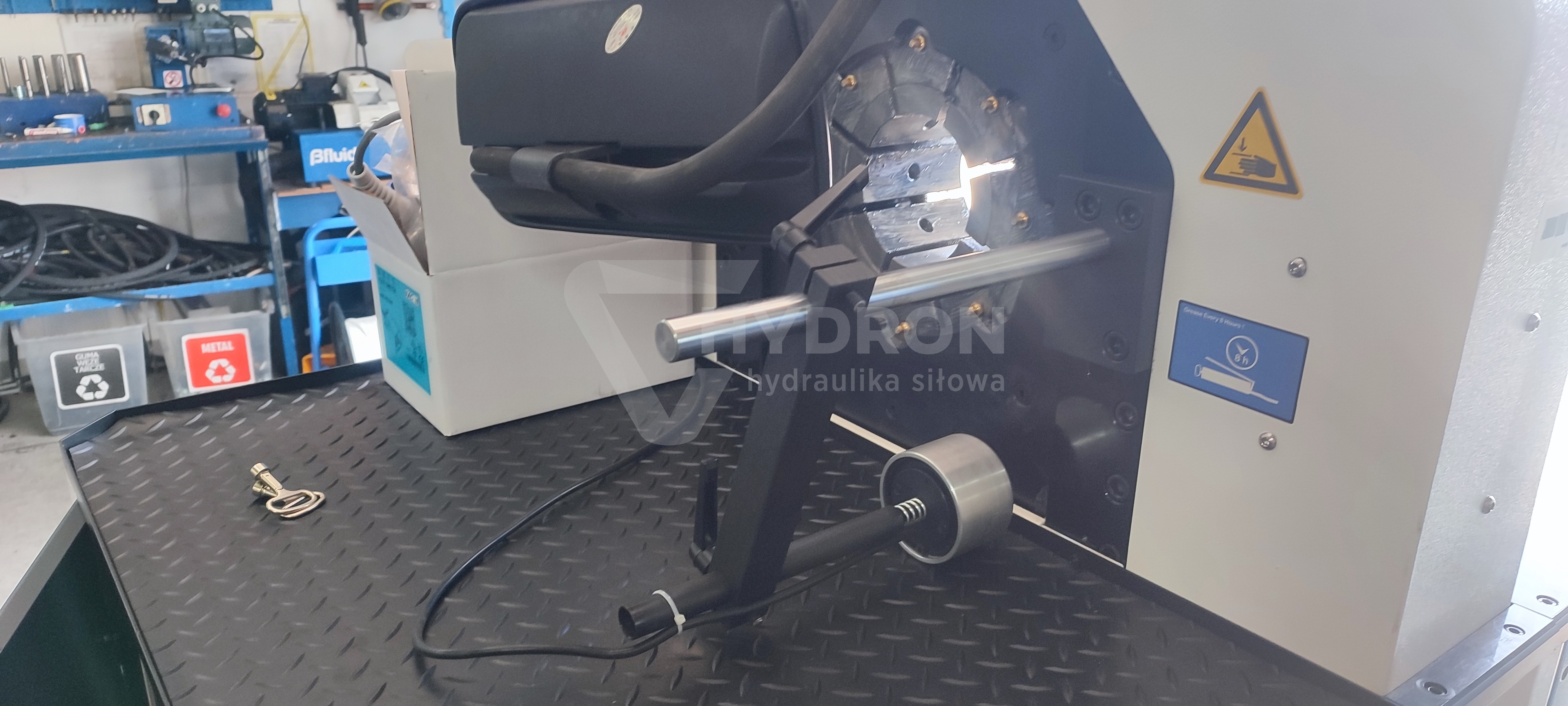

• Backstop : optional

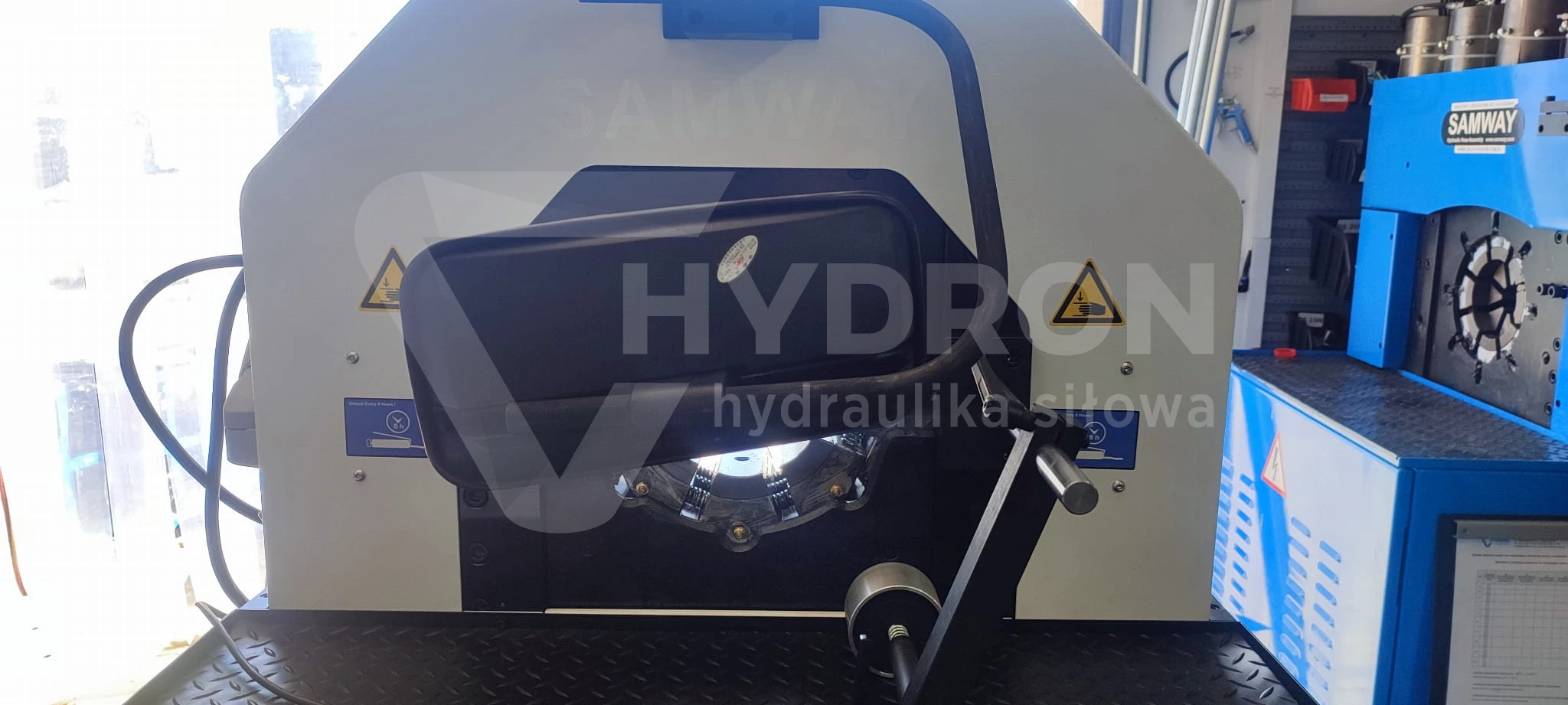

• Mirror : optional
• Noise level : 70 dBA
• Oil tank capacity : 135L
• Dimensions mm : 900mm*1000mm*1600mm
• Weight : 1350 kg

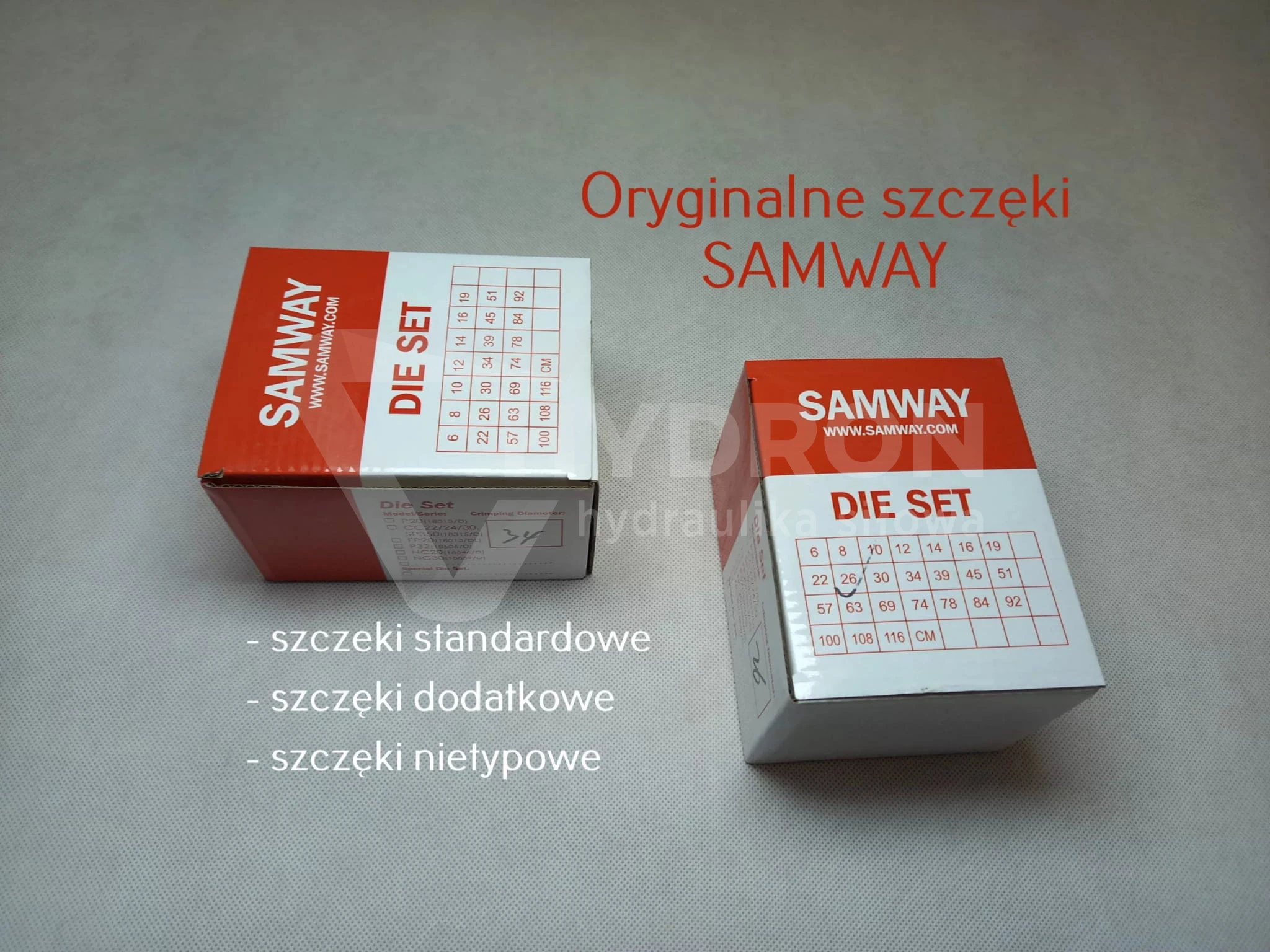

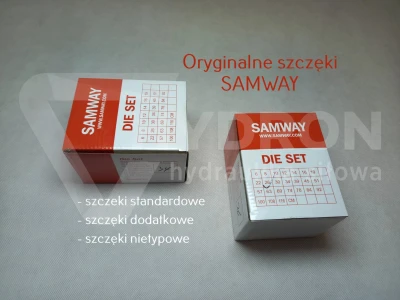

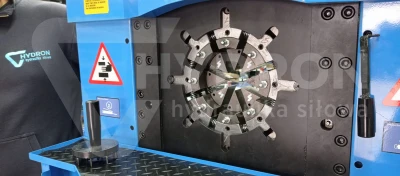

Crimping dies in set : (size / length)

• dies 14mm (length 55 mm)
• dies 16mm (length 55 mm)
• dies 19mm (length 55 mm)
• dies 22mm (length 55 mm)
• dies 26mm (length 55 mm)
• dies 30mm (length 75 mm)
• dies 34mm (length 75 mm)
• dies 39mm (length 75 mm)
• dies 45mm (length 90 mm)
• dies 51mm (length 90 mm)
• dies 57mm (length 90 mm)
• dies 63mm (length 90 mm)
• dies 69mm (length 90 mm)
• dies 84mm (length 120 mm)
• dies 92mm (length 120 mm)
• dies 100mm (length 120 mm)
• dies 108mm (length 120 mm)
• dies 116mm (length 120 mm)

Crimping force of the machine - 500 tons !

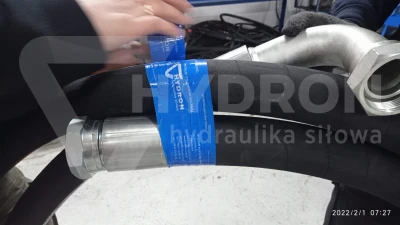

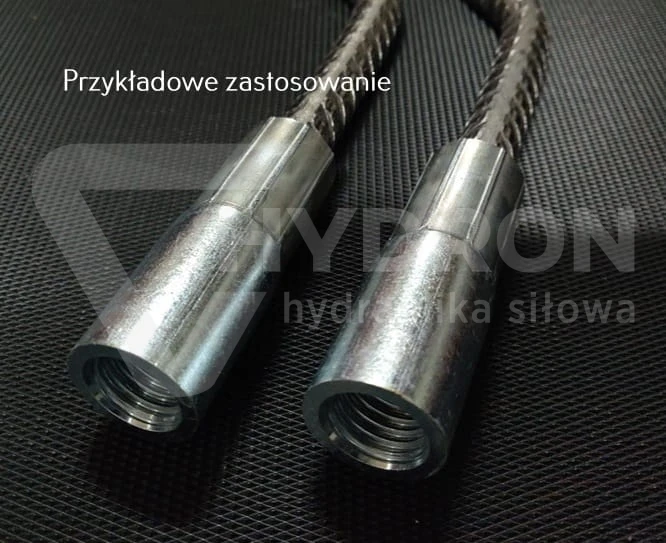

The FP145 crimper belongs to the industrial class of crimping machines. The press has almost 500 tons of crimping force, making it suitable for: crimping all types of hydraulic hoses, even six-braid versions R15, R16, occasional crimping of steel ropes and crimping of bars for construction needs, crimping industrial hoses (suction hoses, concrete hoses and others).

Example applications:

The FP145D crimper is ideally suited for industries such as:

• Production of hydraulic hoses for construction and industrial machinery.
• Energy and mining industry.
• Production of hoses for fluid, gas, and fuel transfer.

Full technical support:

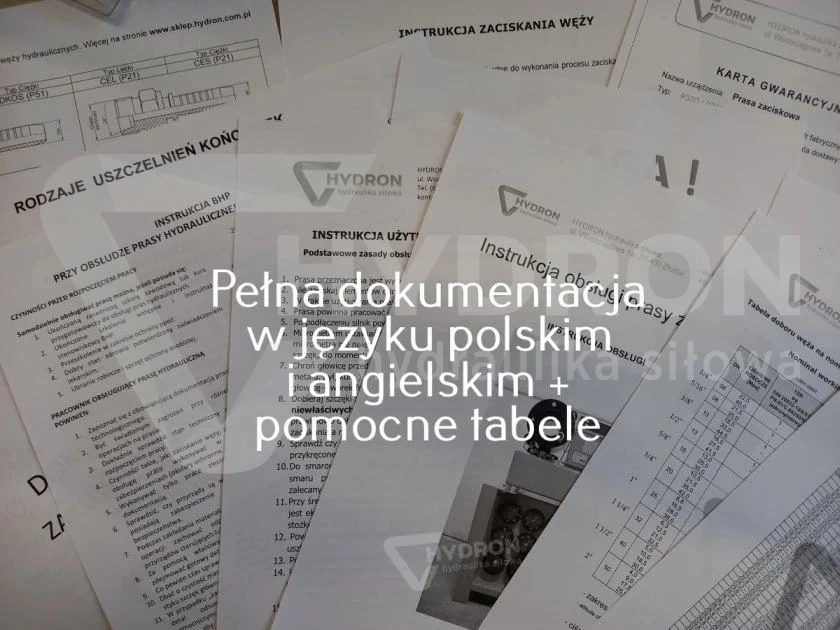

By purchasing the Samway FP145D crimper at Hydron, you gain not only a high-quality machine but also comprehensive technical support. We offer: Professional operation training. Certificates and user manuals. Constant availability of spare parts and accessories. The Samway FP145D digital hose crimper is a technologically advanced device designed for mass production and demanding industrial applications. Thanks to precise Siemens Touch Pad digital control and the highest quality components, the machine guarantees reliability and excellent results in crimping hydraulic and industrial hoses.

Why choose the FP145D crimper model?

• Precision and digital control: The built-in Siemens Touch Pad control system ensures easy operation and precise settings, tailored to a wide range of applications.
• High efficiency: A maximum crimping force of 500 tons and a cycle time of just 2.3 seconds make the FP145D perfectly suited for intensive working conditions.
• Versatility: Compatibility with a wide range of dies (from 10 to 124 mm) enables crimping of hoses of various diameters, both hydraulic and industrial.
• Energy efficiency: Modern technological solutions guarantee energy savings while maintaining high operational efficiency.
• Quality certificates: The crimper holds TÜV and CE certificates, confirming its compliance with the highest safety and quality standards.

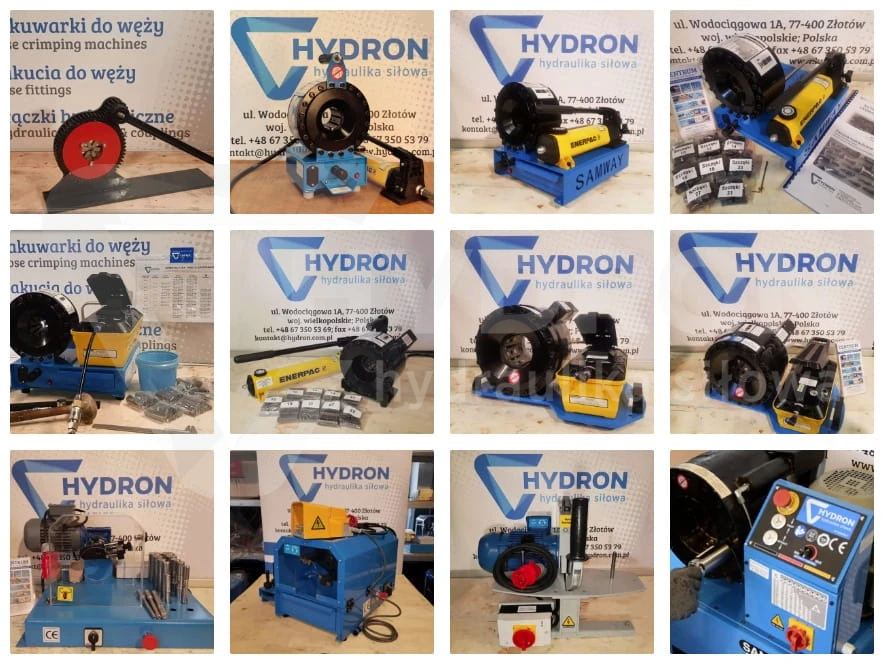

Full range of crimping machines
