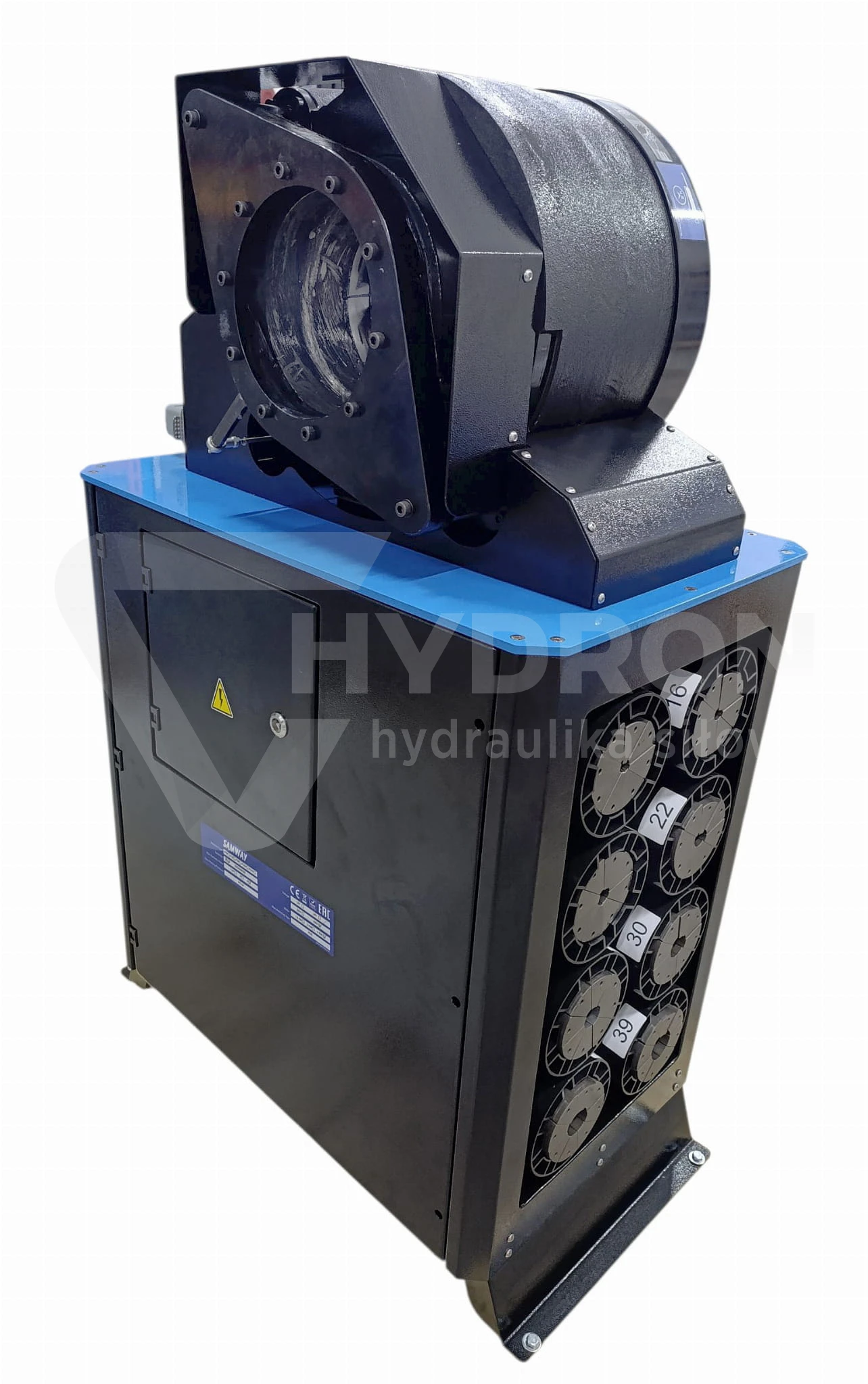

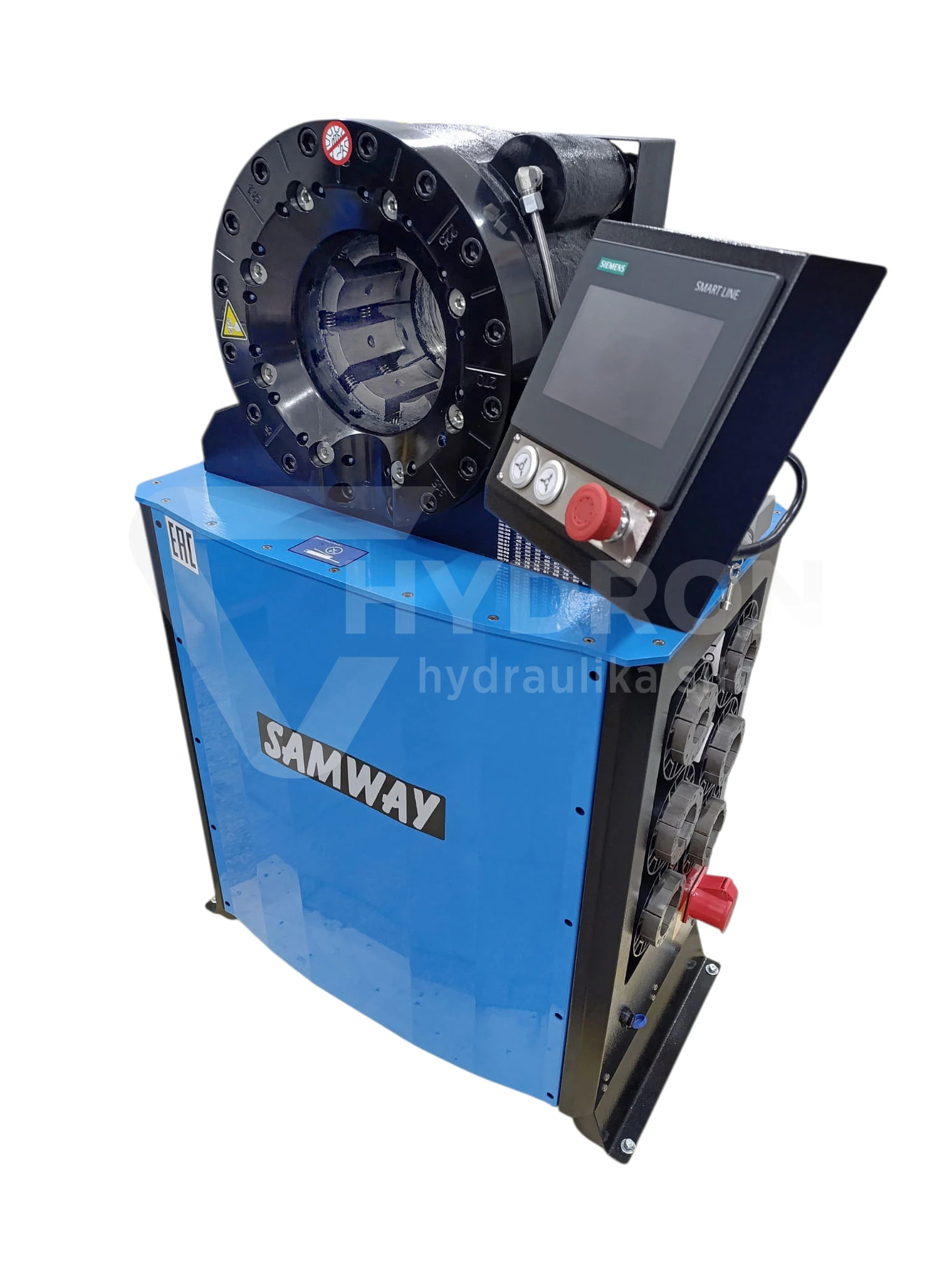

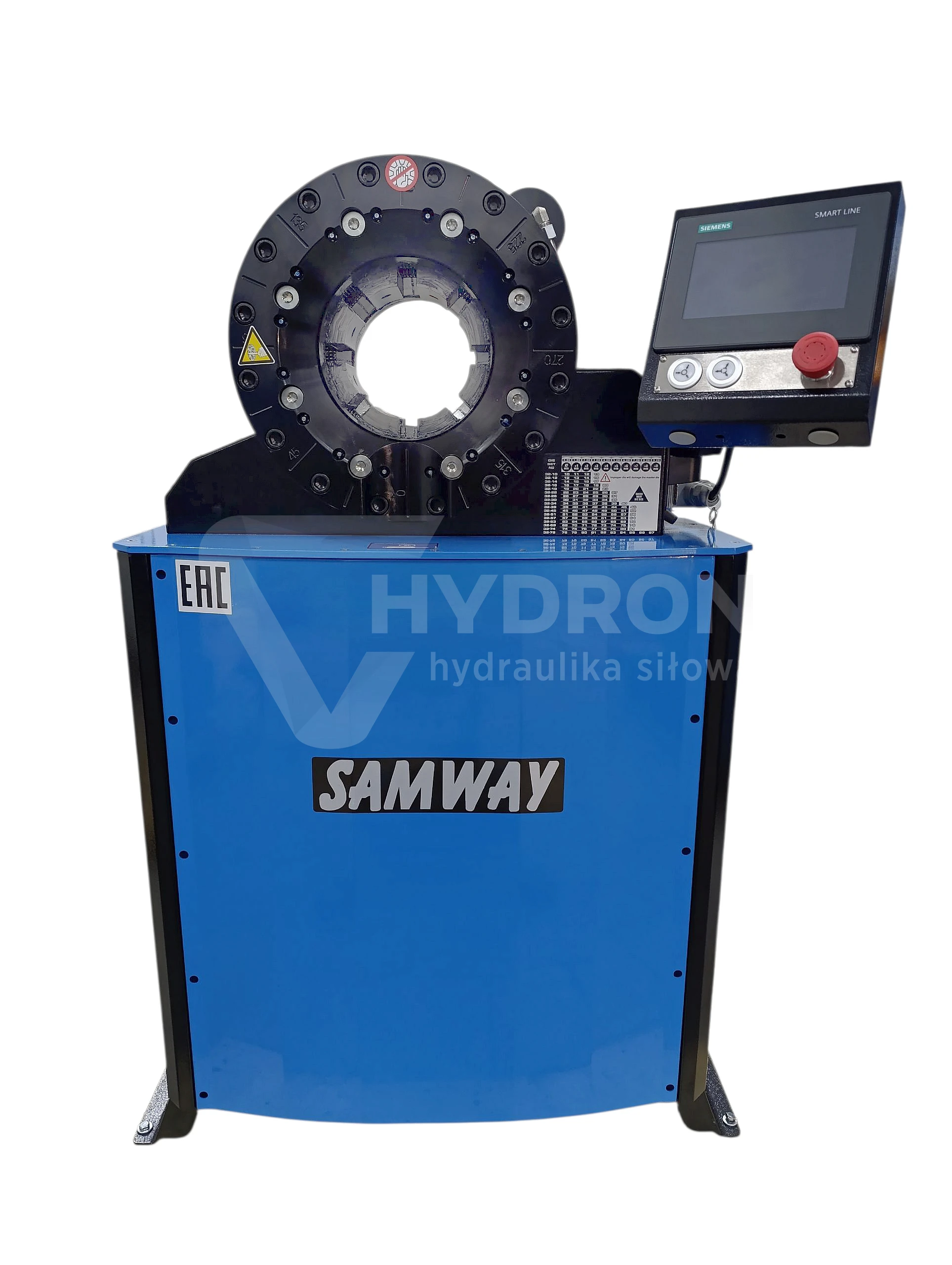

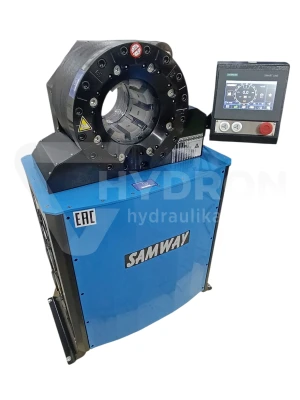

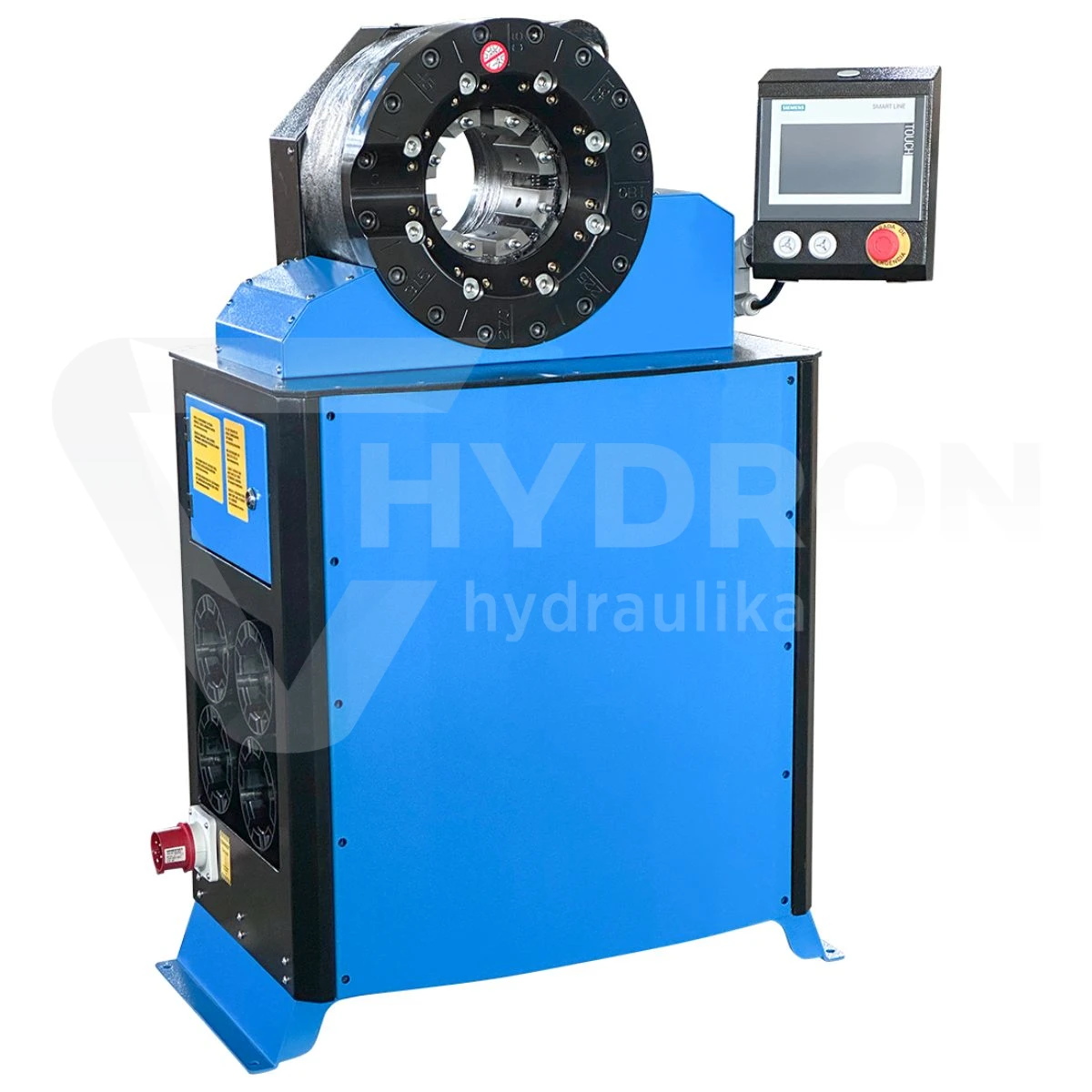

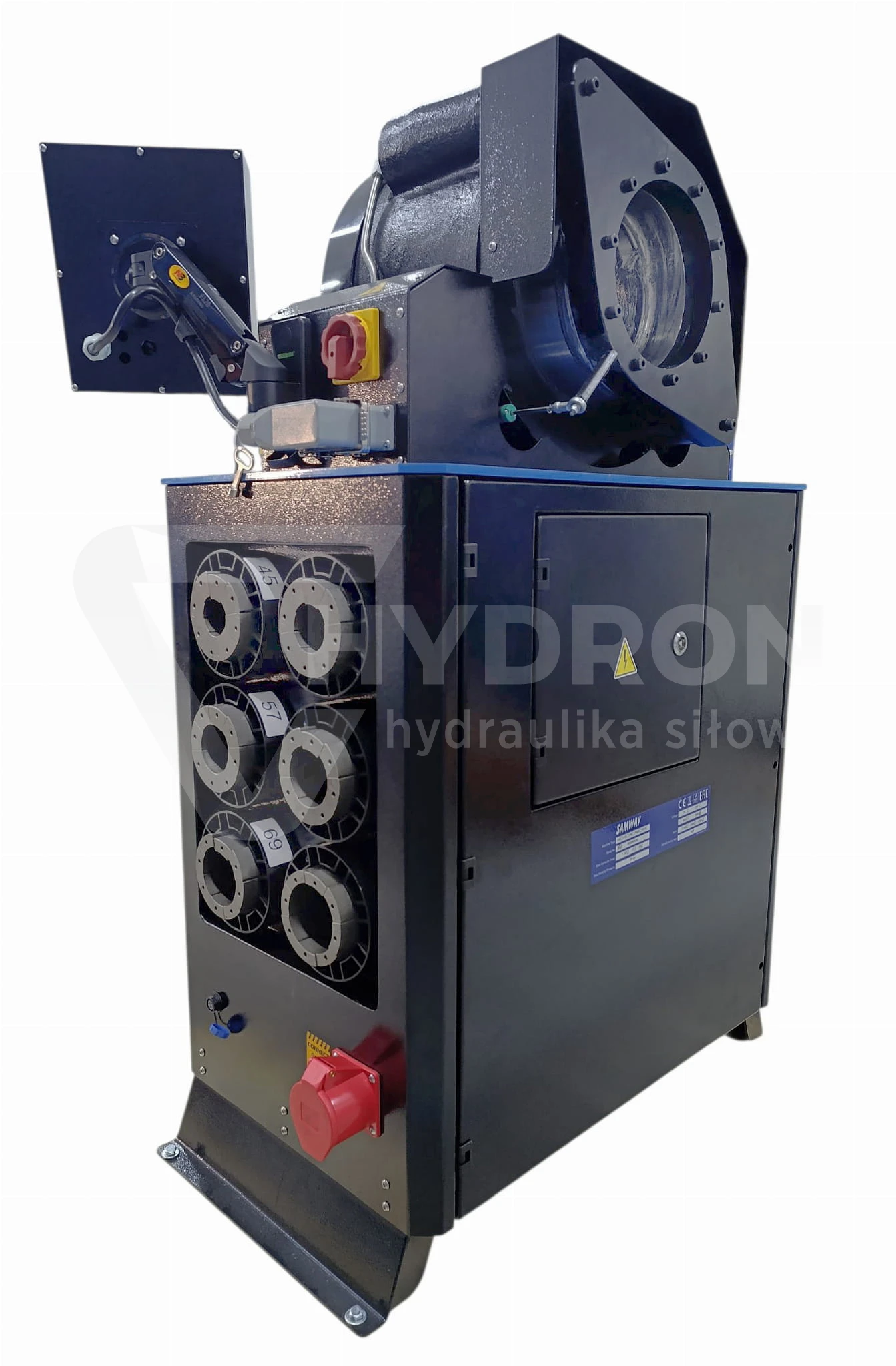

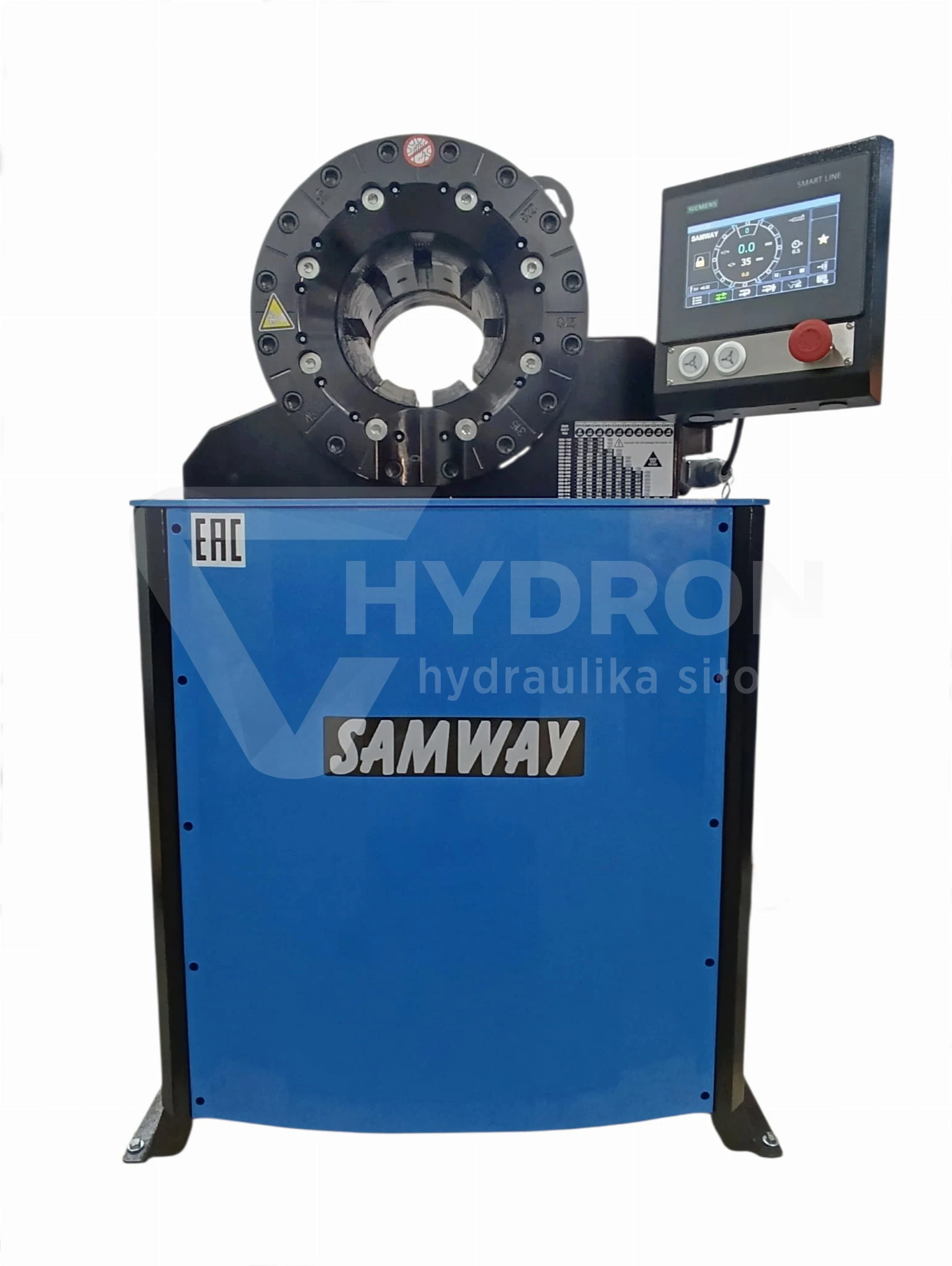

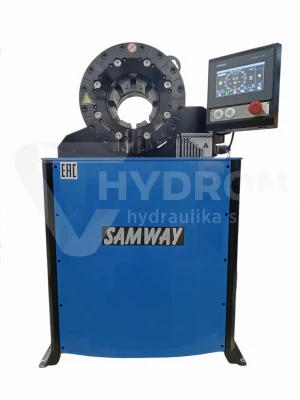

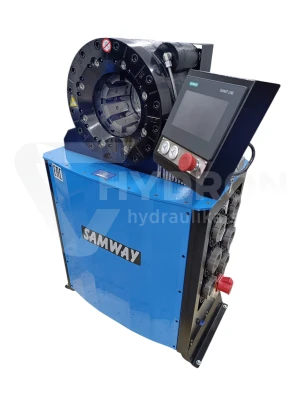

Large SAMWAY H60 hose crimping machine

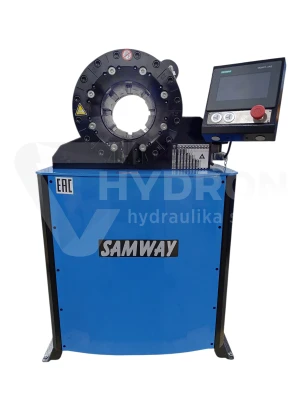

SAMWAY H60 hose crimping machine with a very large head !  version with SIEMENS TOUCH PAD touch panel

20 sets of crimping dies !

Book a free meeting and machine presentation

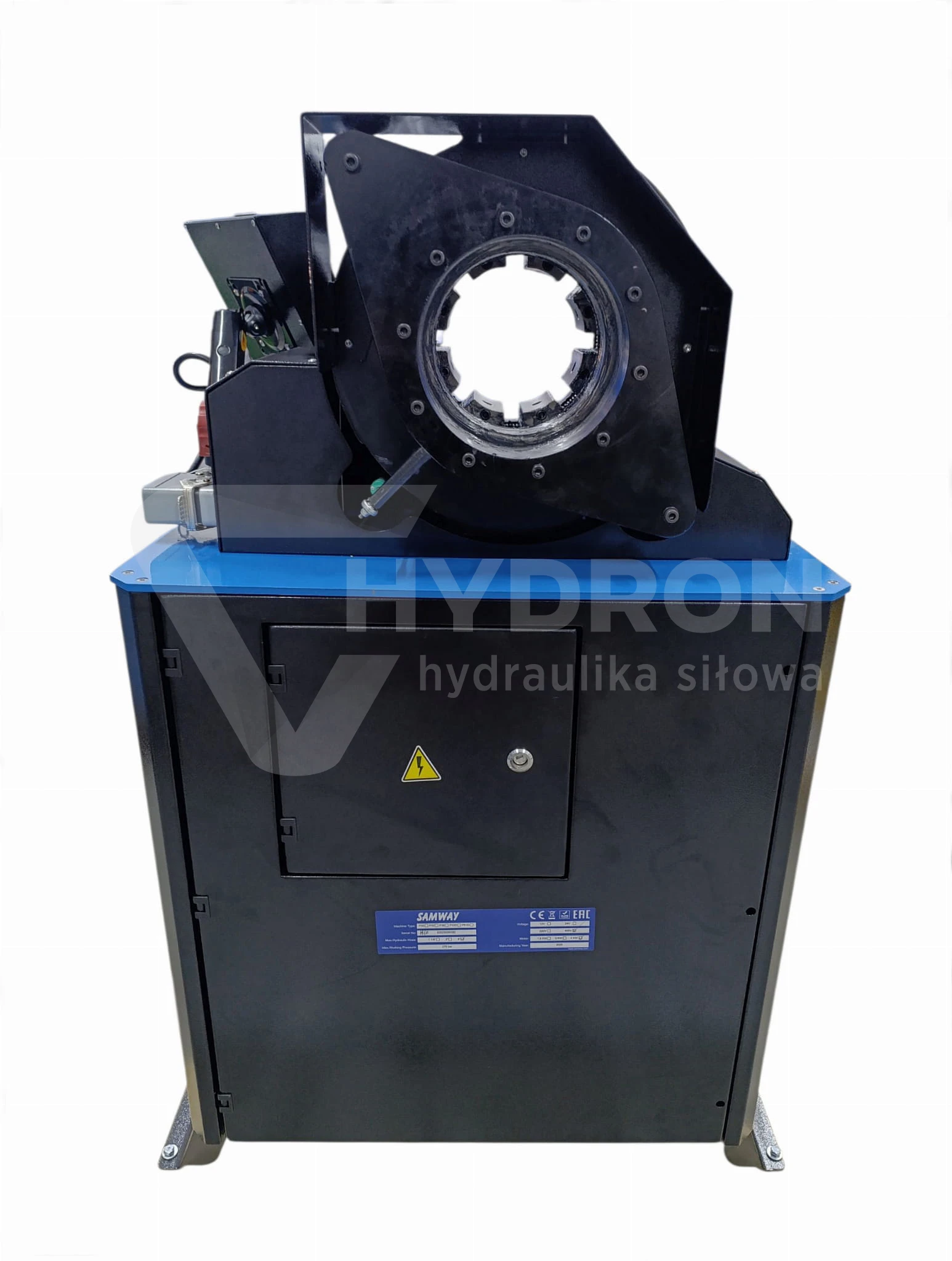

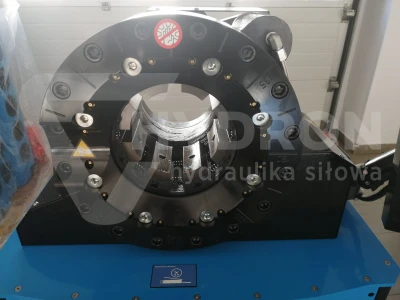

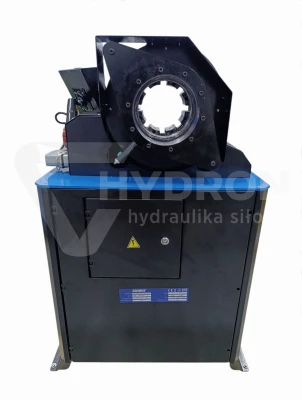

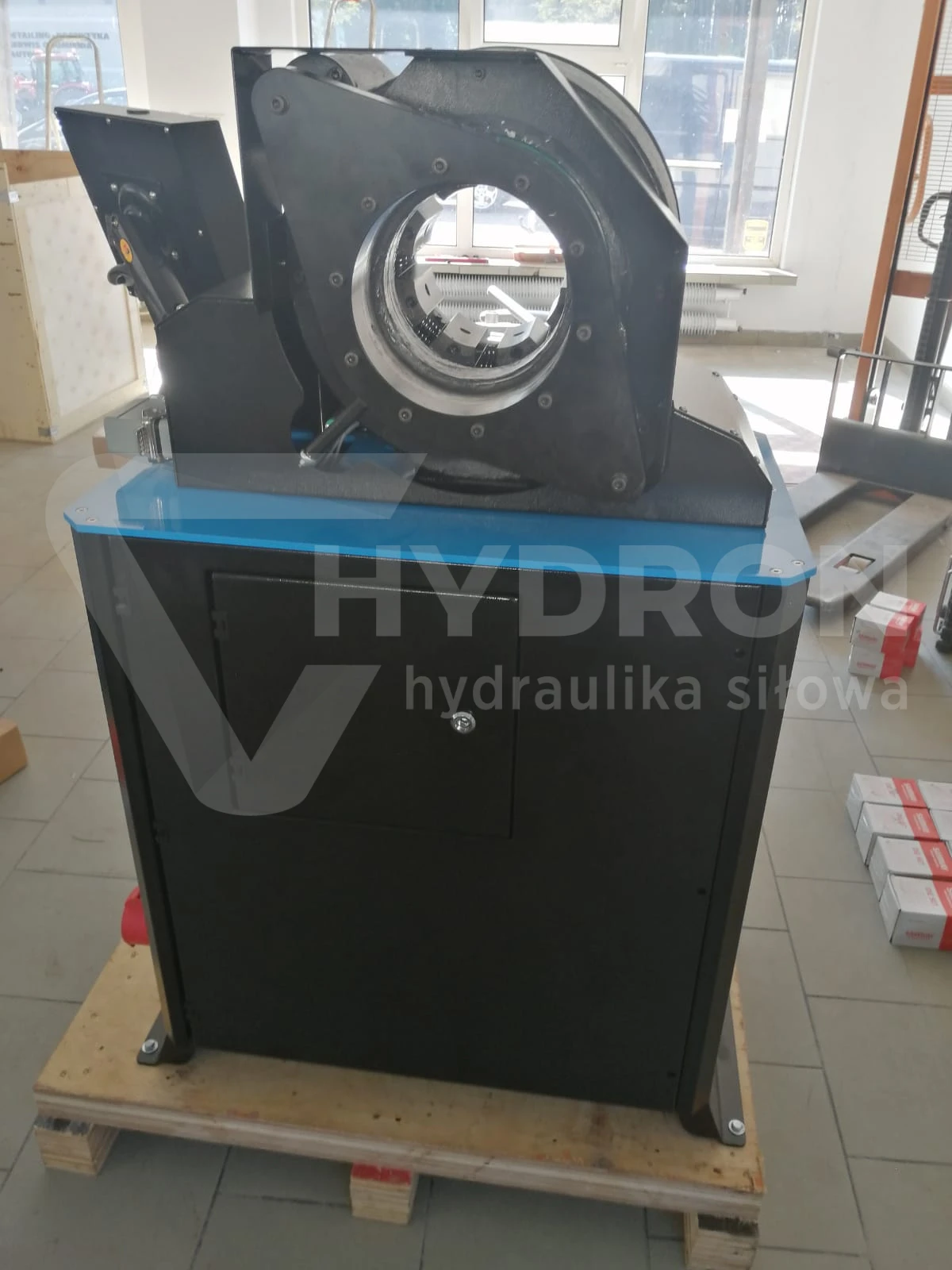

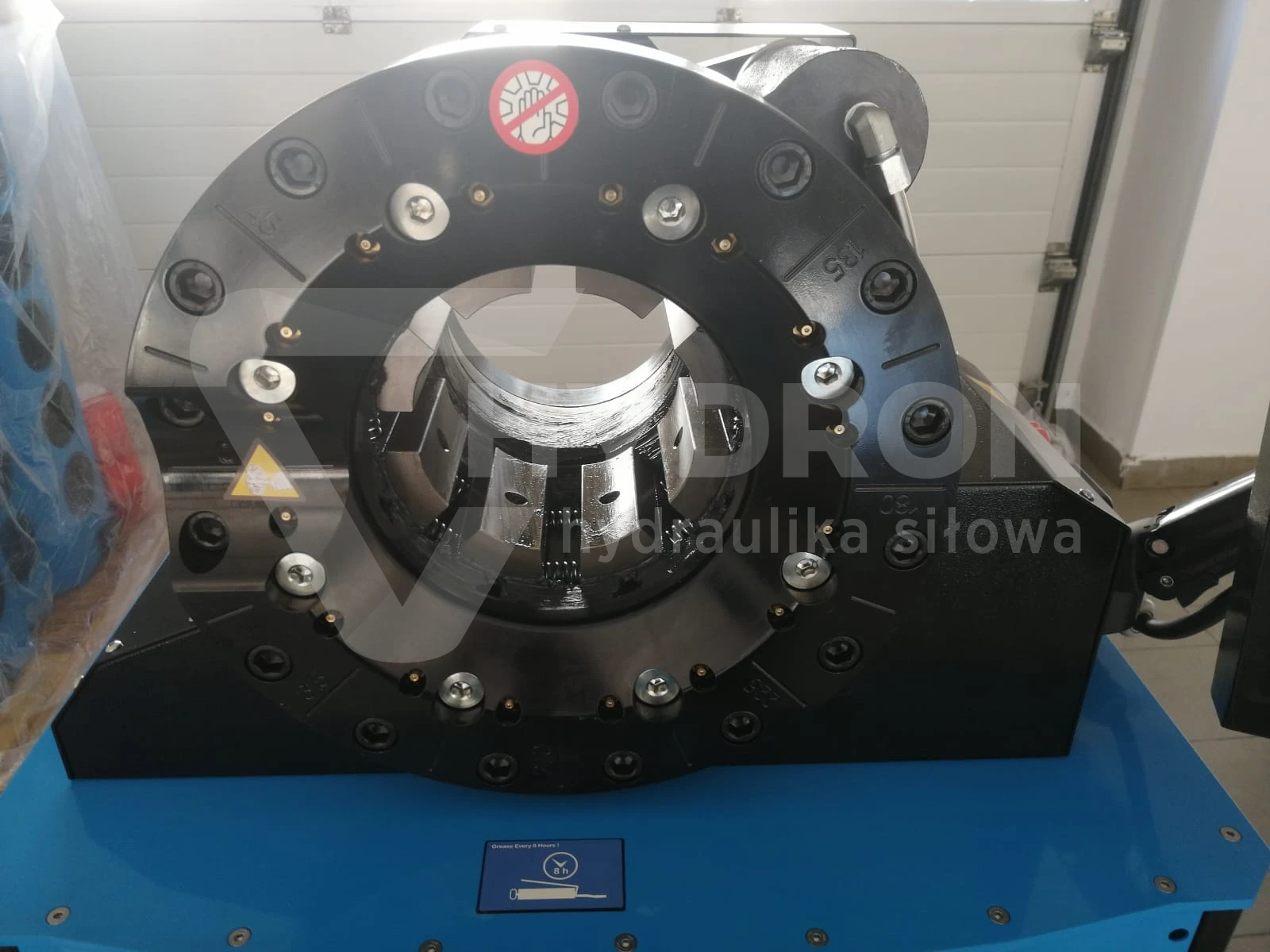

Ideal machine for crimping elbow fittings in the largest sizes. The press has a very large head enabling the crimping of elements up to a 140mm outer diameter (up to 4" industrial hoses). No axial movement! Easy positioning. Head front plate with a cutout- ideal for 90-degree hydraulic hose elbows. On this model, we can crimp every possible elbow (elbow fitting). Our latest H60 crimper model can successfully compete with machines such as Uniflex S10 (opening +45mm), Techmaflex S450 (without digital control), OP TUBOMATIC H144 ES (opening +45mm). The crimping dies in our crimper open +50mm. The crimper is designed for customers who need the greatest capabilities, including crimping the largest elbow fittings up to 2" inclusive.

Technical parameters of the crimping machine

• Model : SAMWAY H60
• Maximum hydraulic hose size : 3’’ 4SP
• Maximum industrial hose : 4”
• Crimping range in mm : 4-140
• Die type : P32
• Master die length in mm : 110
• Maximum opening in mm : +50
• Motor KW : 4
• Crimping force KN : 3500 ( 350 tons )
• Number of cycles per hour : 850
• Control : SIEMENS TOUCH panel (touch panel)

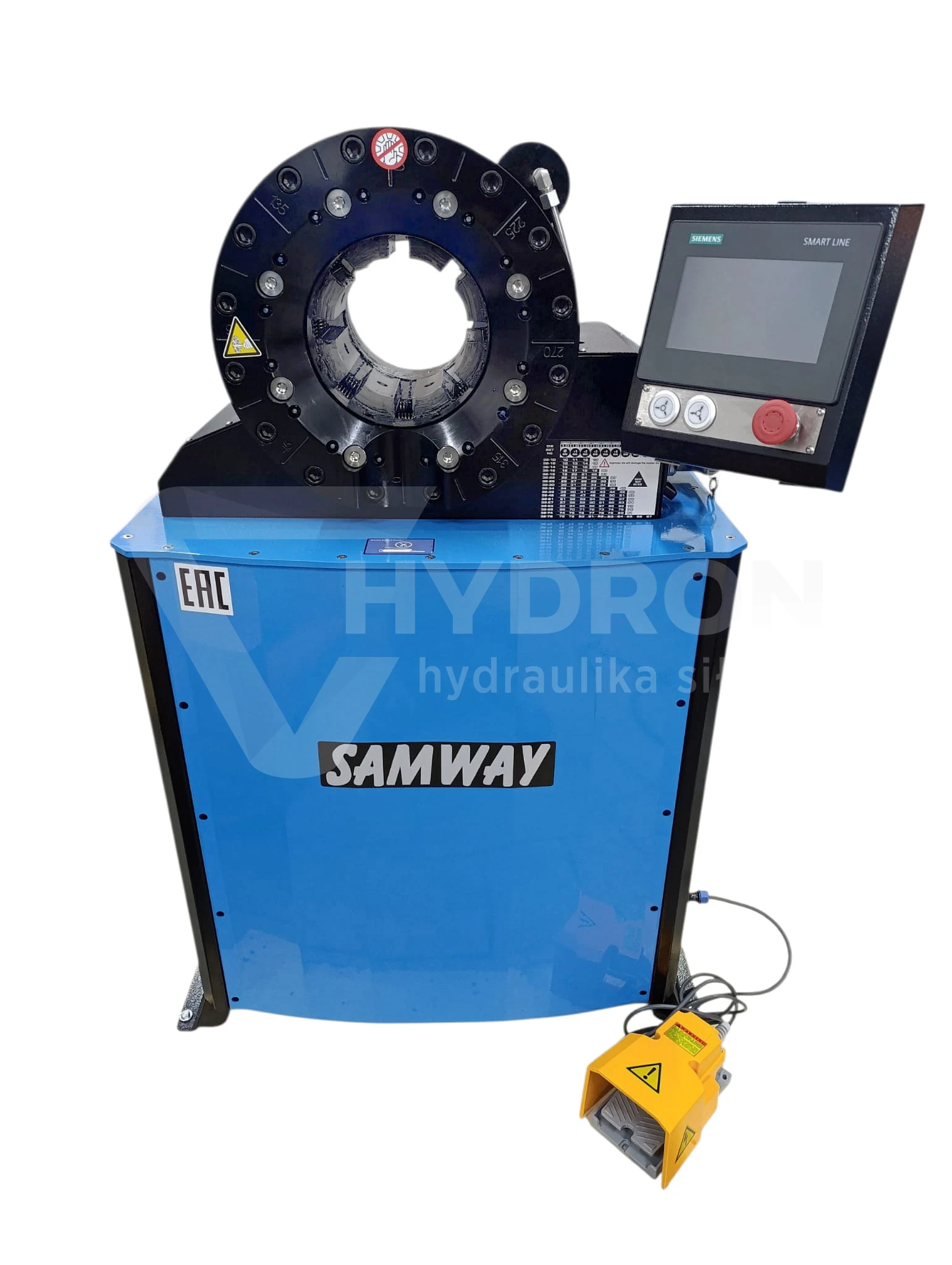

• Foot pedal : YES included

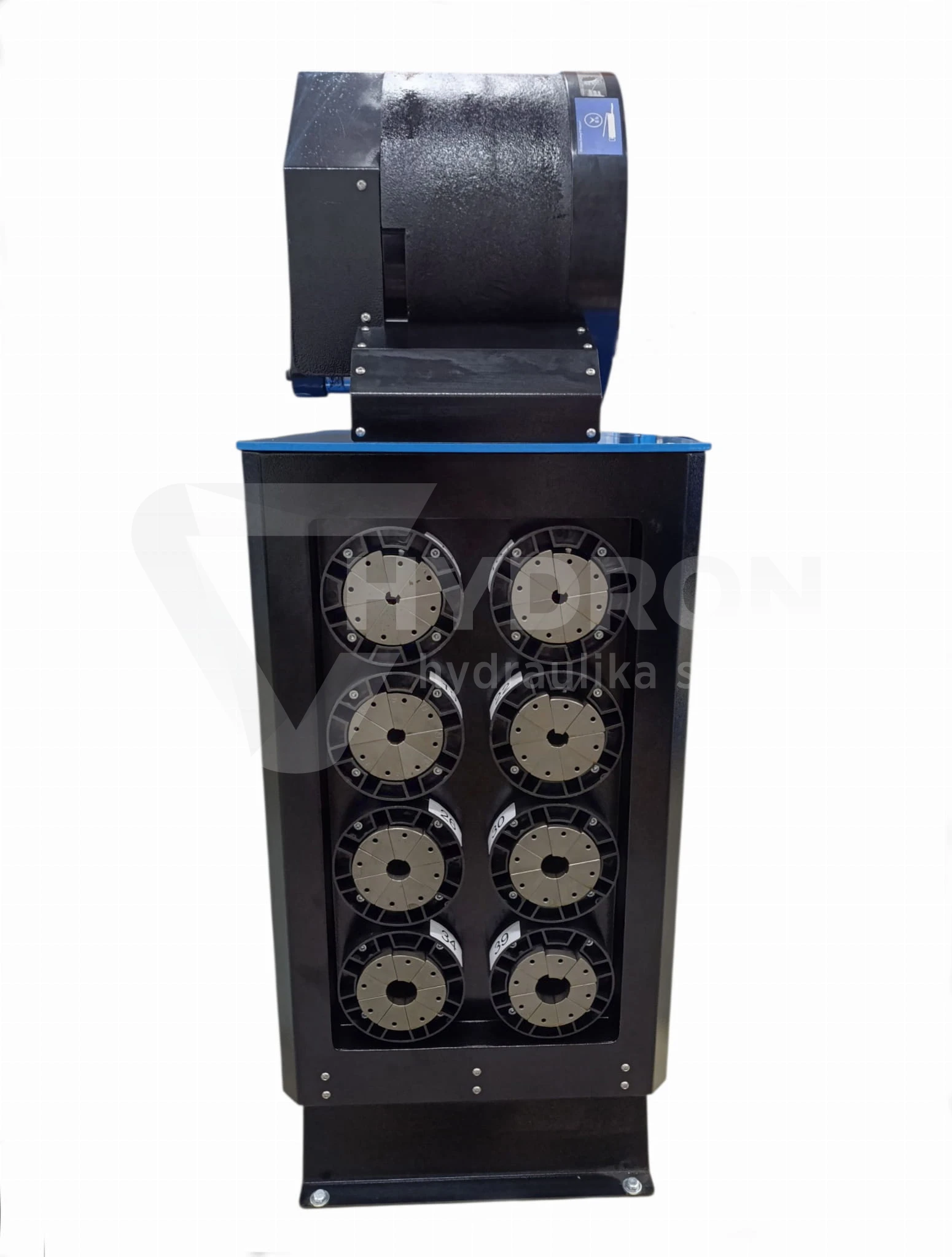

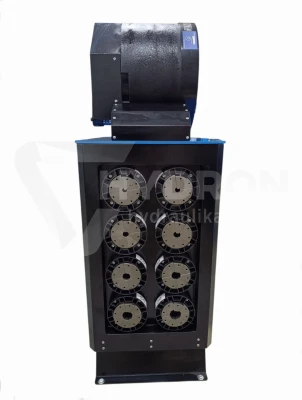

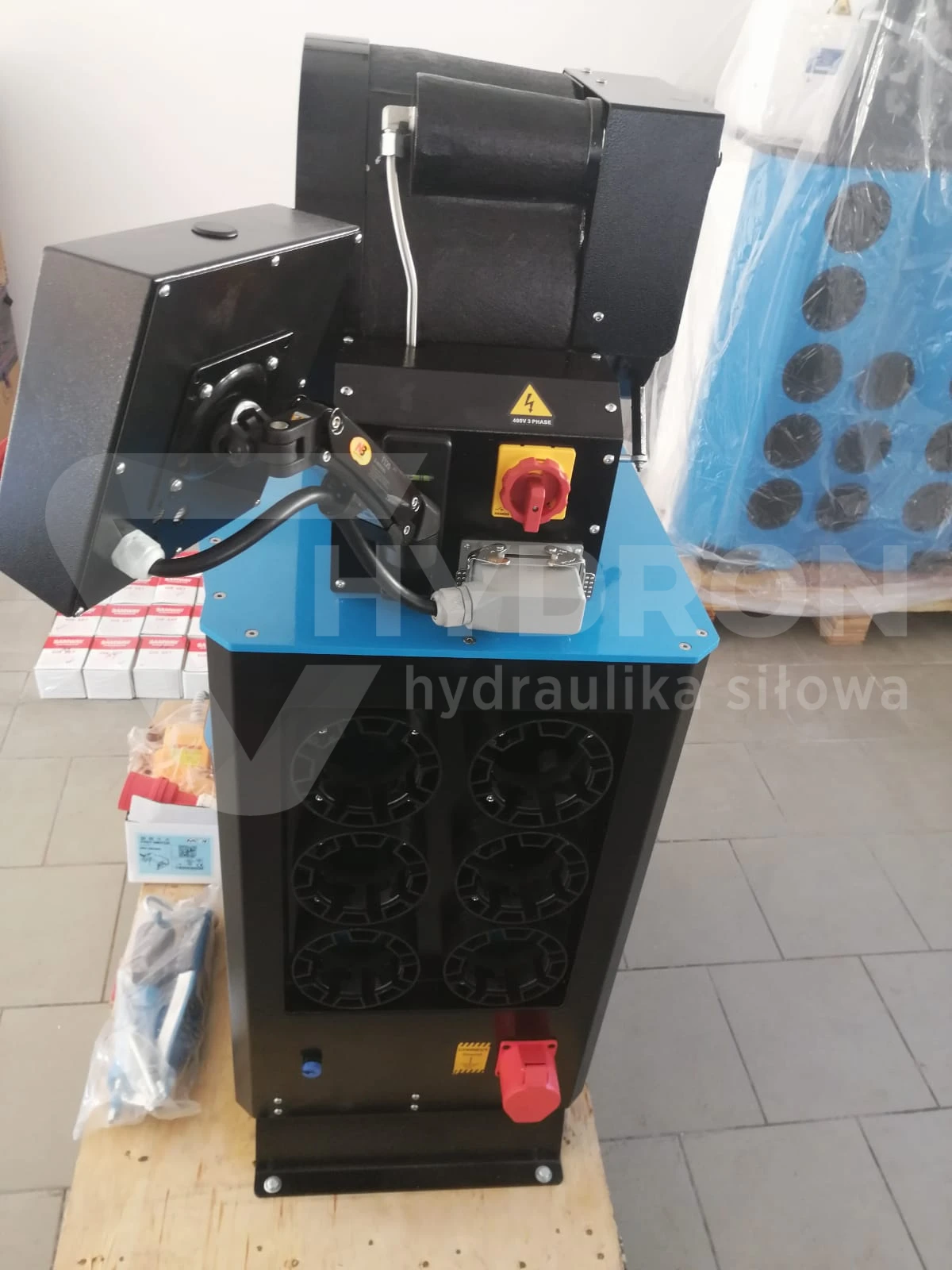

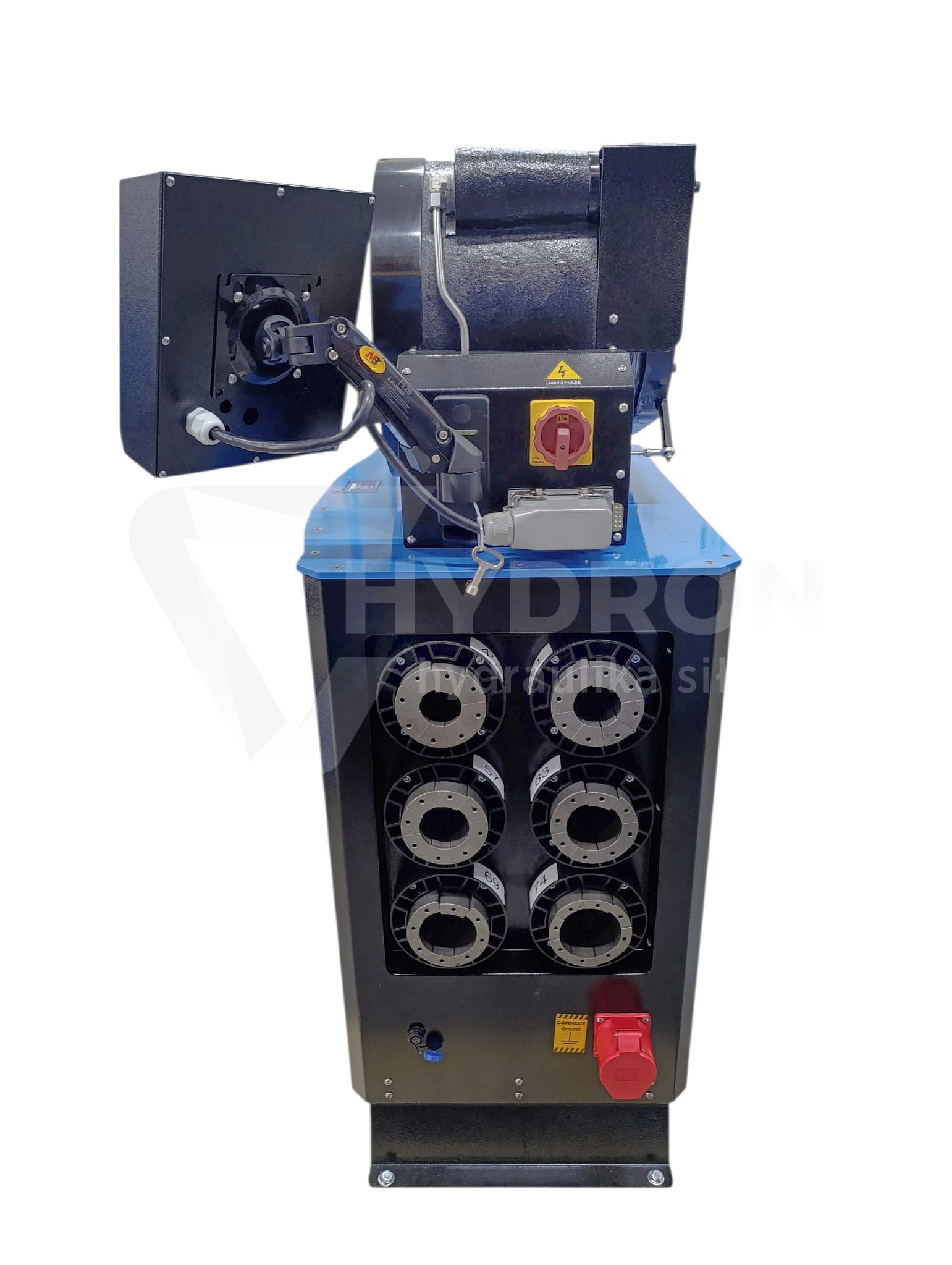

• Die rack : YES included
• Quick-change tool : YES included
• Backstop device : Optional
• Control by pressure : Optional
• Noise level (dBA) : 65
• Protection class : IP56
• Dimensions : L*W*H mm : 840*600*1390
• Weight : 400 kg

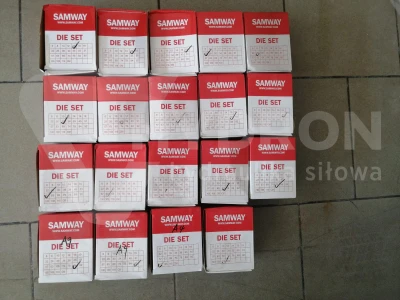

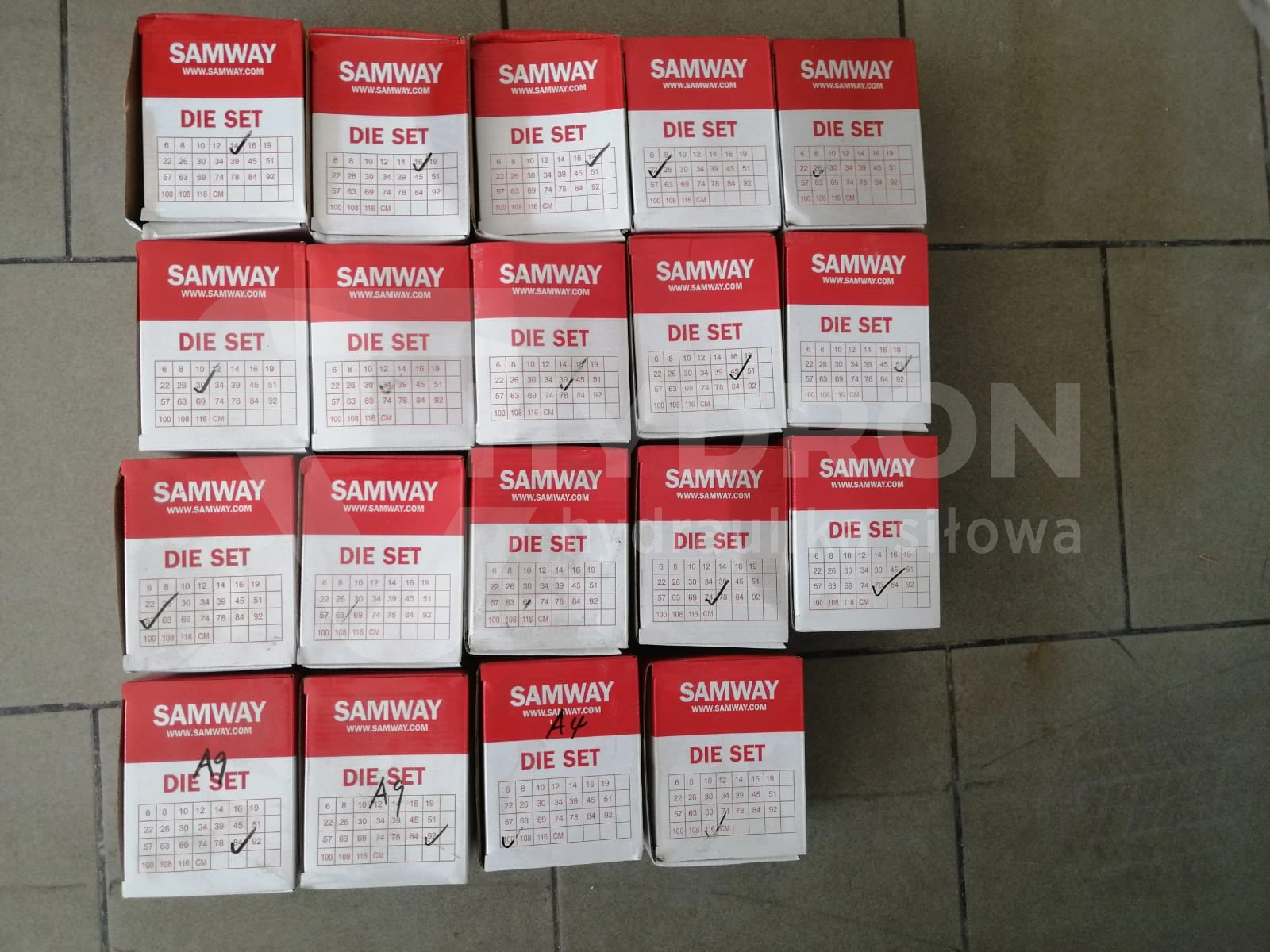

Crimping dies included with the crimper

• 14mm,
• 16mm,
• 19mm,
• 22mm,
• 26mm,
• 30mm,
• 34mm,
• 39mm,
• 45mm,
• 51mm,
• 57mm,
• 63mm,
• 69mm,
• 74mm,
• 78mm,
• 84mm,
• 92mm,
• 100mm,
• 108mm,
• 116mm

Professional device for the production of high-pressure hoses

The SAMWAY H60 hydraulic hose crimper is a modern, high-performance machine designed for intensive work in production plants and professional power hydraulics services. It is a large, industrial crimper that allows for the crimping of hydraulic hoses up to 4 inches in diameter, making it perfect for the production of hoses for the industrial, construction, mining, and agricultural sectors.

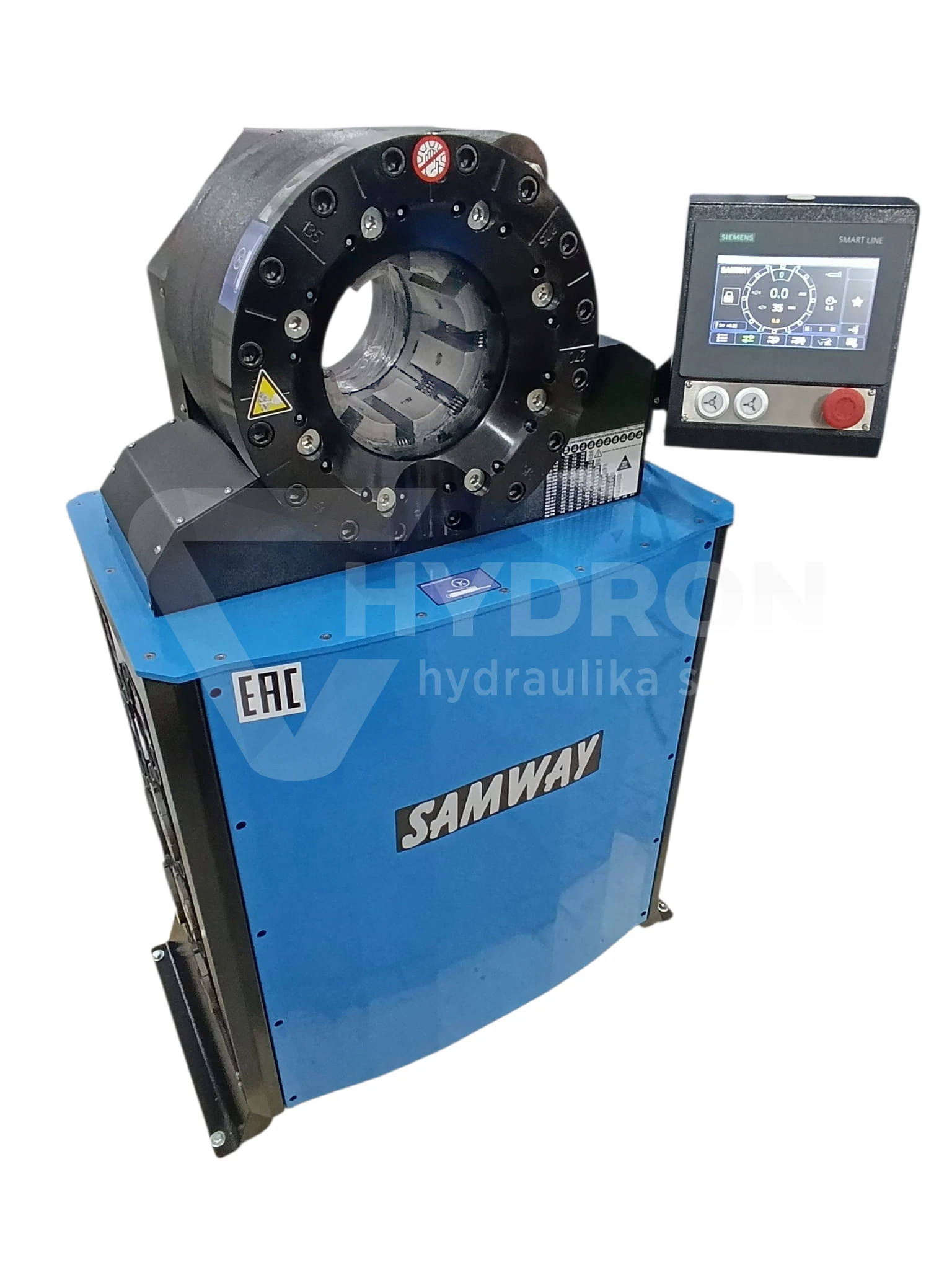

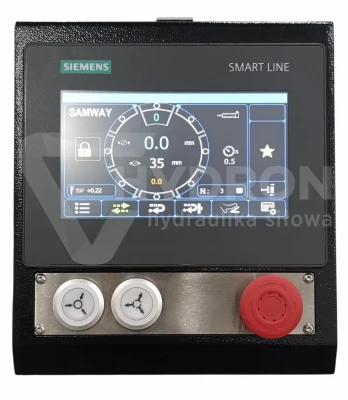

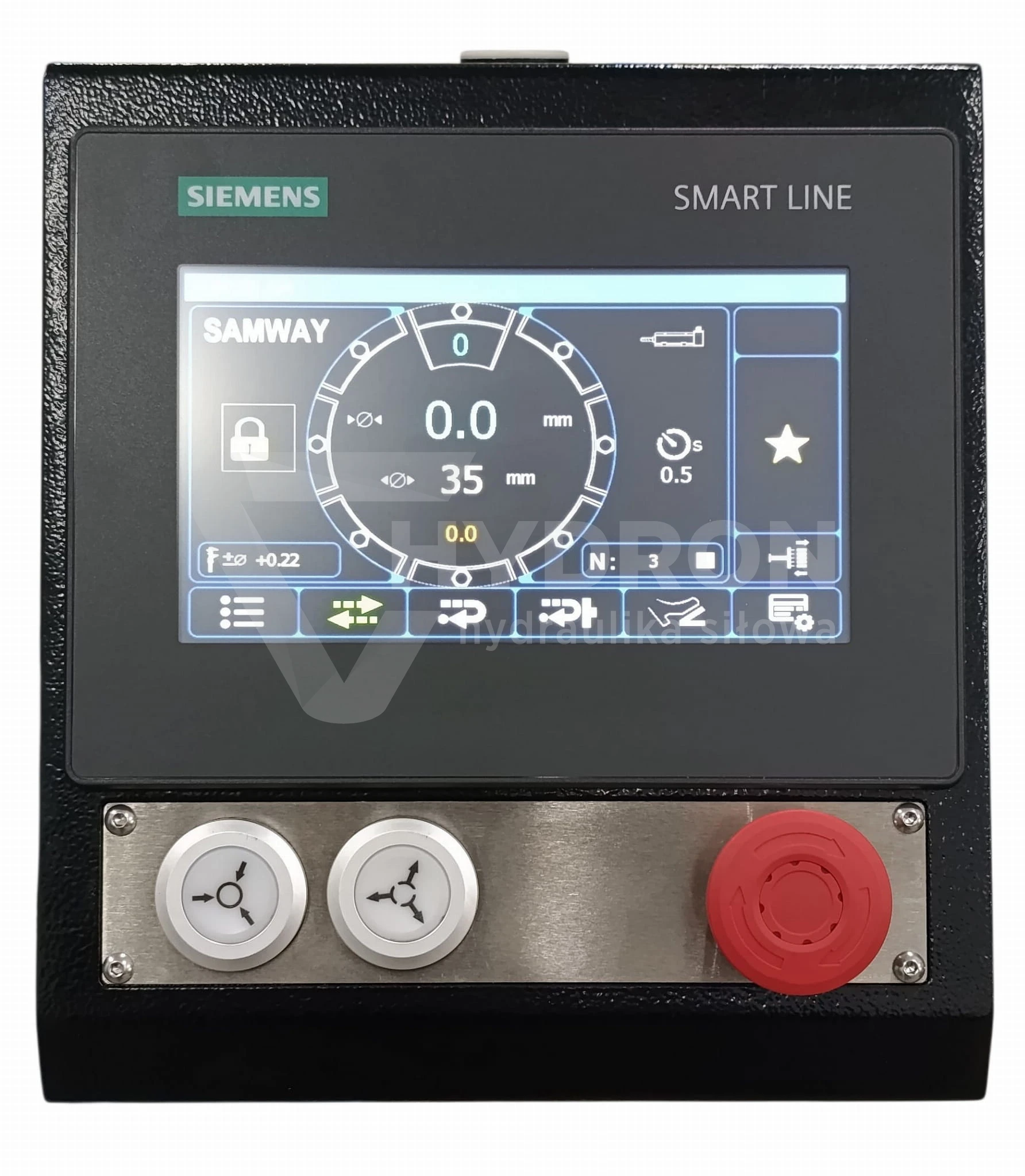

Modern touch panel and automatic control

The H60 model is equipped with an intuitive touch panel that allows for full control over the crimping process. The user interface has been designed to be clear and easy to use, enabling the operator to quickly set the appropriate working parameters, save programs, and instantly change production settings. The SAMWAY H60 crimper allows for operation in automatic and semi-automatic modes, which significantly increases efficiency during serial production of hydraulic hoses. Process automation minimizes the risk of errors, shortens cycle time, and allows for repeatability and high quality of every crimp.

Large hose crimping machine

The machine design has been adapted to work with large hose diameters – the H60 easily handles hoses with a diameter of up to 4 inches (DN100). A powerful hydraulic system and precisely designed dies ensure even pressure, which guarantees the tightness and durability of the connection. The H60 crimper is industrial-grade equipment developed for multi-hour, continuous operation. Robust construction, a modern control system, and high-quality workmanship make it one of the most reliable devices in its class.

Application and advantages of the SAMWAY H60 crimper

The SAMWAY H60 crimper is the ideal solution for:

• hydraulic hose manufacturers, who conduct serial production,

• repair shops involved in the regeneration and manufacture of hoses,

• maintenance companies that service industrial and construction machinery,

• power hydraulics enterprises requiring precise and repeatable crimps.

Key advantages of the H60 model:

• large working range – hose crimping up to 4”,

• modern touch panel with an intuitive menu,

• possibility of automatic and semi-automatic operation,

• high precision and clamp repeatability,

• ideal for serial production of hydraulic hoses,

• solid, stable construction for industrial work,

• fast and safe operation.

Why choose the SAMWAY H60 crimper from the Hydron store

Hydron – the Polish branch of the SAMWAY brand – has specialized for 15 years in providing professional machinery and components for power hydraulics. We offer full technical support, training on machine operation, warranty and post-warranty service, and access to spare parts and accessories. By purchasing from the Hydron store, you can be sure of buying original equipment with a quality certificate and professional technical advice at every stage of cooperation. If your company needs an efficient, large hose crimper with the possibility of automatic operation – the SAMWAY H60 model is the best choice. Check out the offer in the store Hydron – SAMWAY Poland and see for yourself why the H60 is one of the most frequently chosen machines for professional hydraulic hose production.

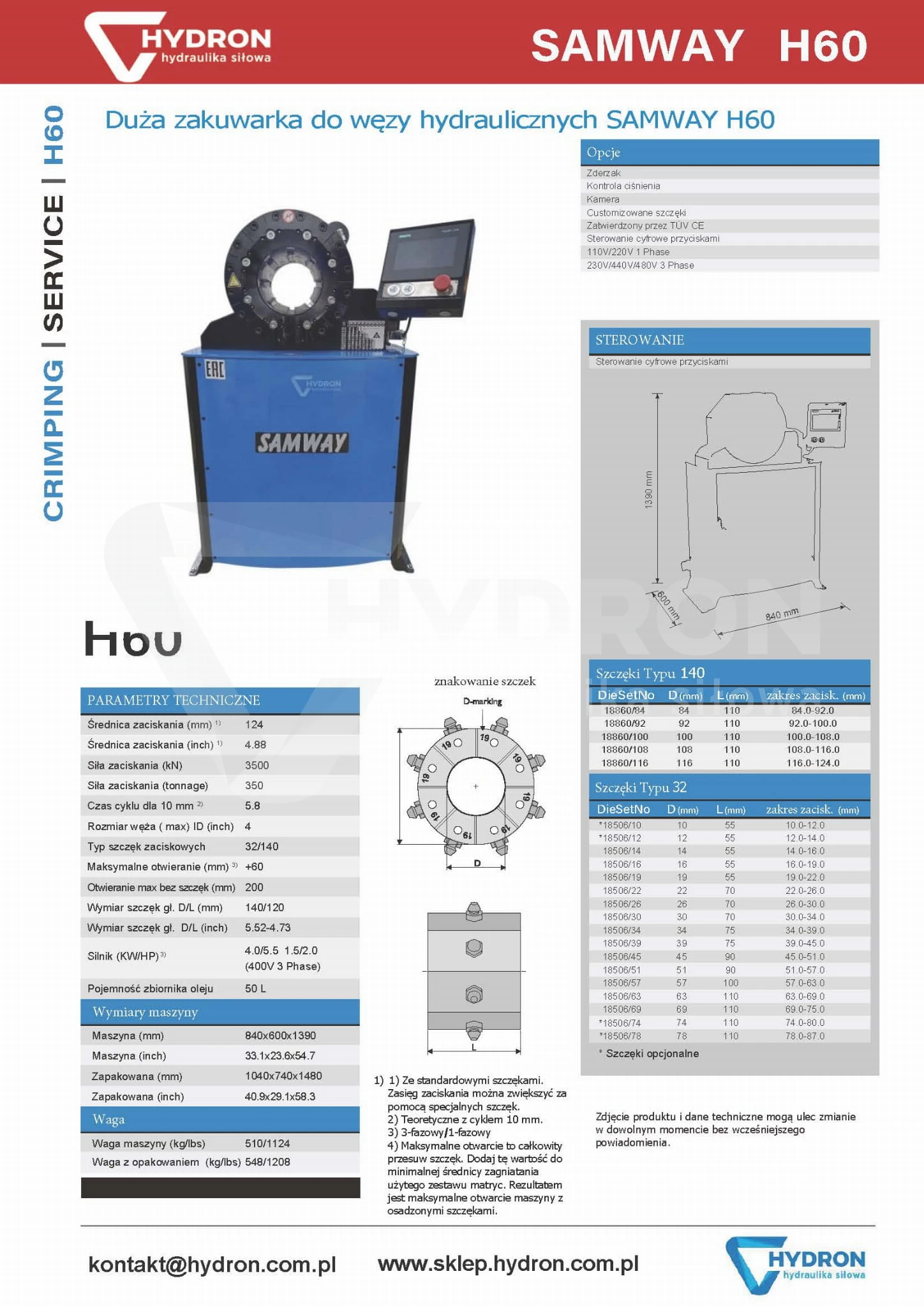

SAMWAY H60 crimping machine.

Technical details

• Main Specification : SAMWAY H60
• Max Hydraulic Hose : 3’’ 4SP
• Industrail Hose : 4”
• Crimping Range mm : 4-140
• Die Type : P32
• Master Die Length mm : 110
• Max Opening mm : +50
• Motor KW : 4
• Crimping Force KN : 3500
• Crimpings Per Hour : 850
• Control : SIEMENS TOUCH / button touch panel
• Foot pedal : Included
• Die Rack : Included
• Quick Change Tool : Included
• Backstop Device : Optional
• Control by Pressure : Optional
• Noise Level dBA : 65
• Protection Class : IP56
• L*W*H mm : 840*600*1390
• Weight KG : 400

 SAMWAY H60 CRIMPING MACHINE

Feature description：

● Up to 4" Industrial Hose
● No axial movement!
● Production Crimper

● SIEMENS Touch Screen

● Quick Change tool and die rack
