Hydraulic hose skiving machine 51ESC

Professional electric skiving machine for hydraulic hoses.

• Video - skiving machine overview
• Video - setting the blades in the skiver
• Video - skiving a 4SP hydraulic hose
• Skiving machine manual
• Which hydraulic hoses should be skived

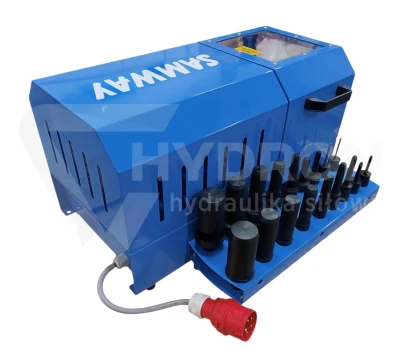

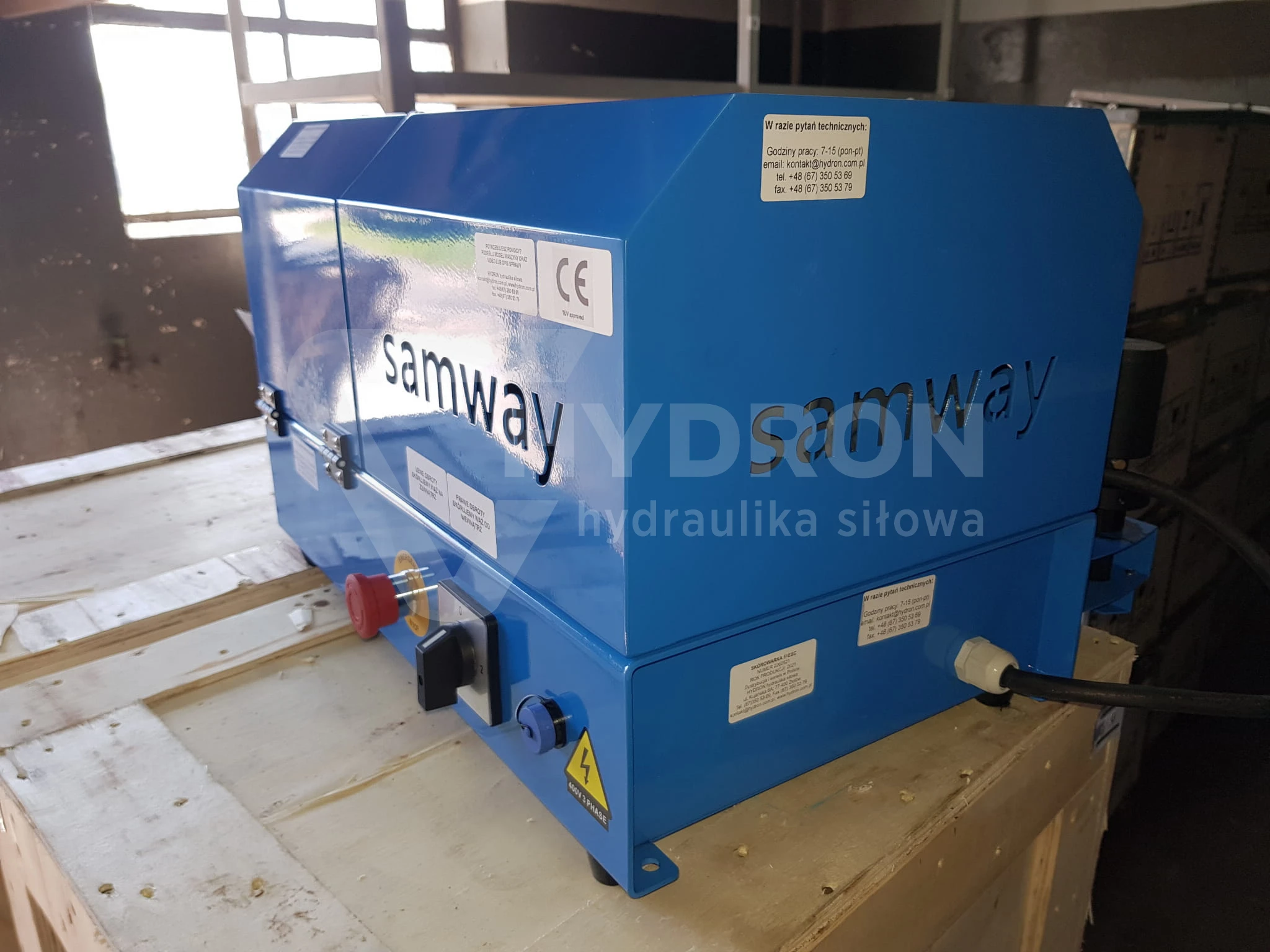

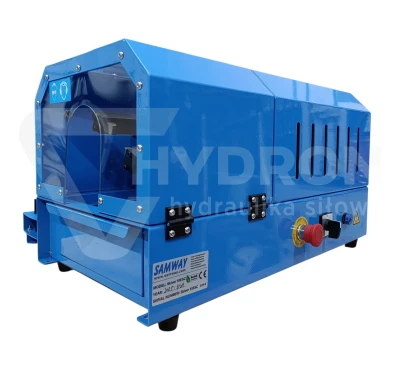

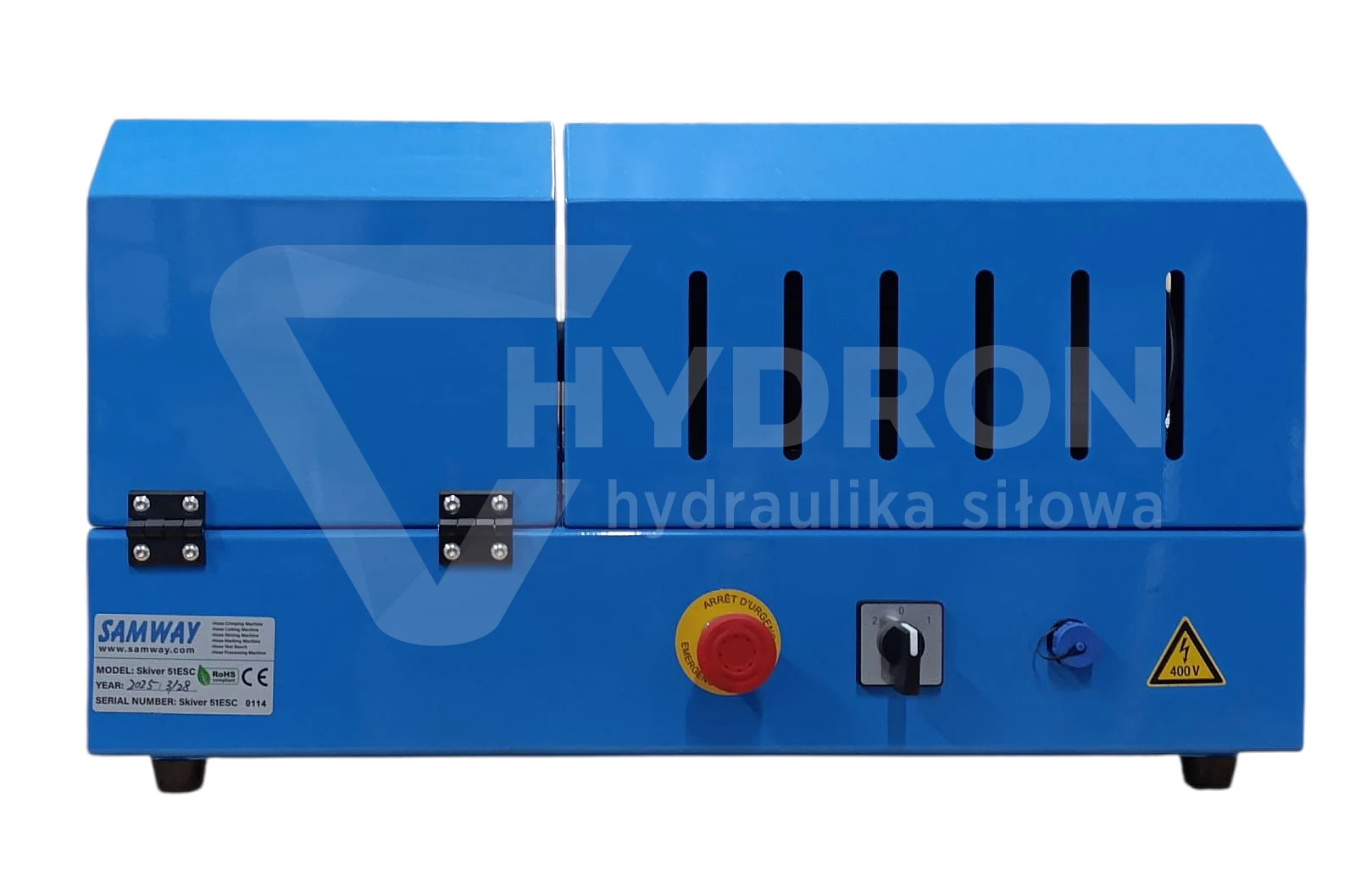

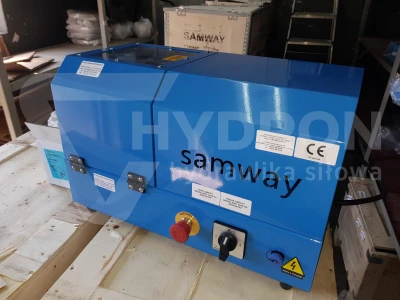

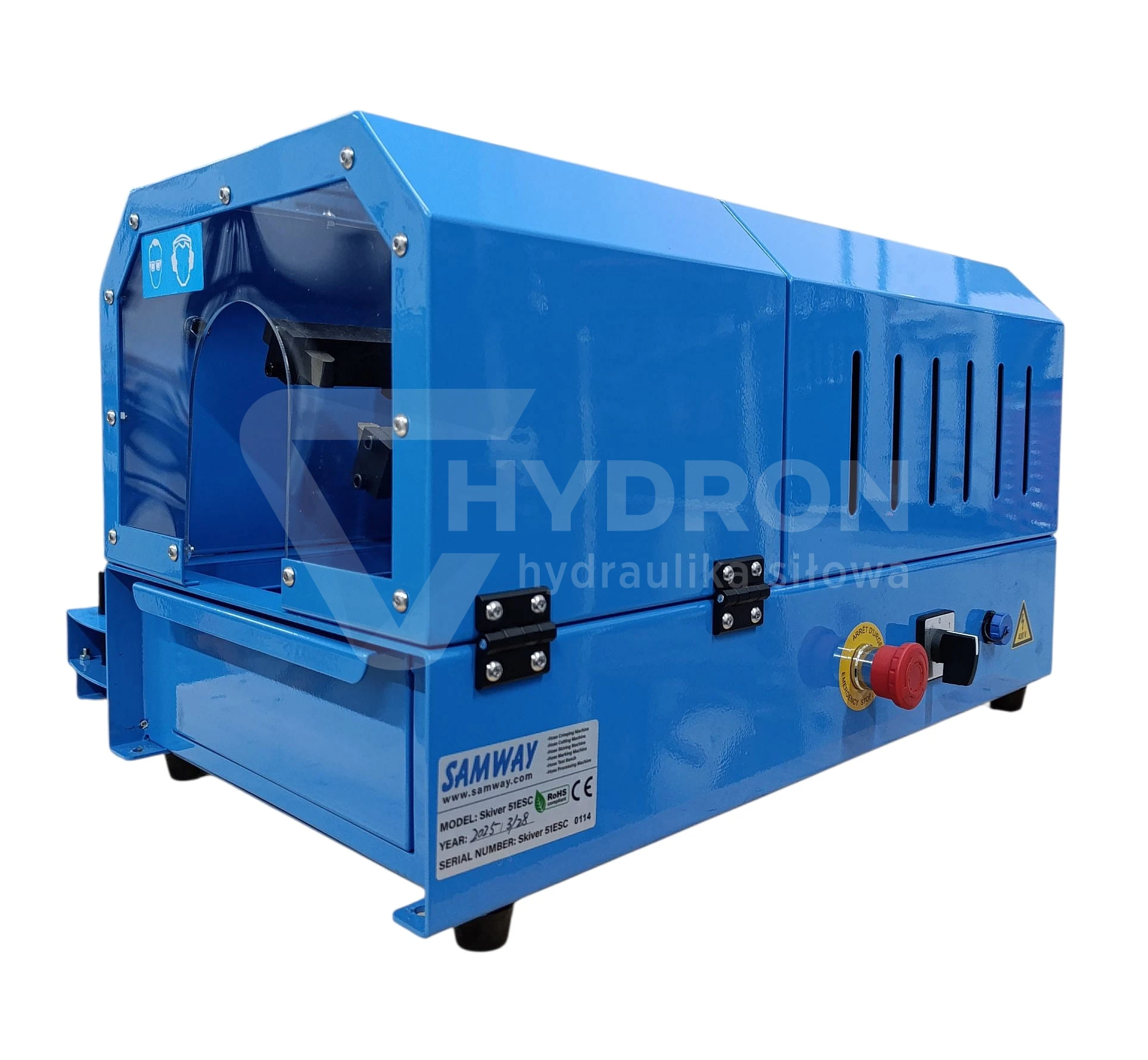

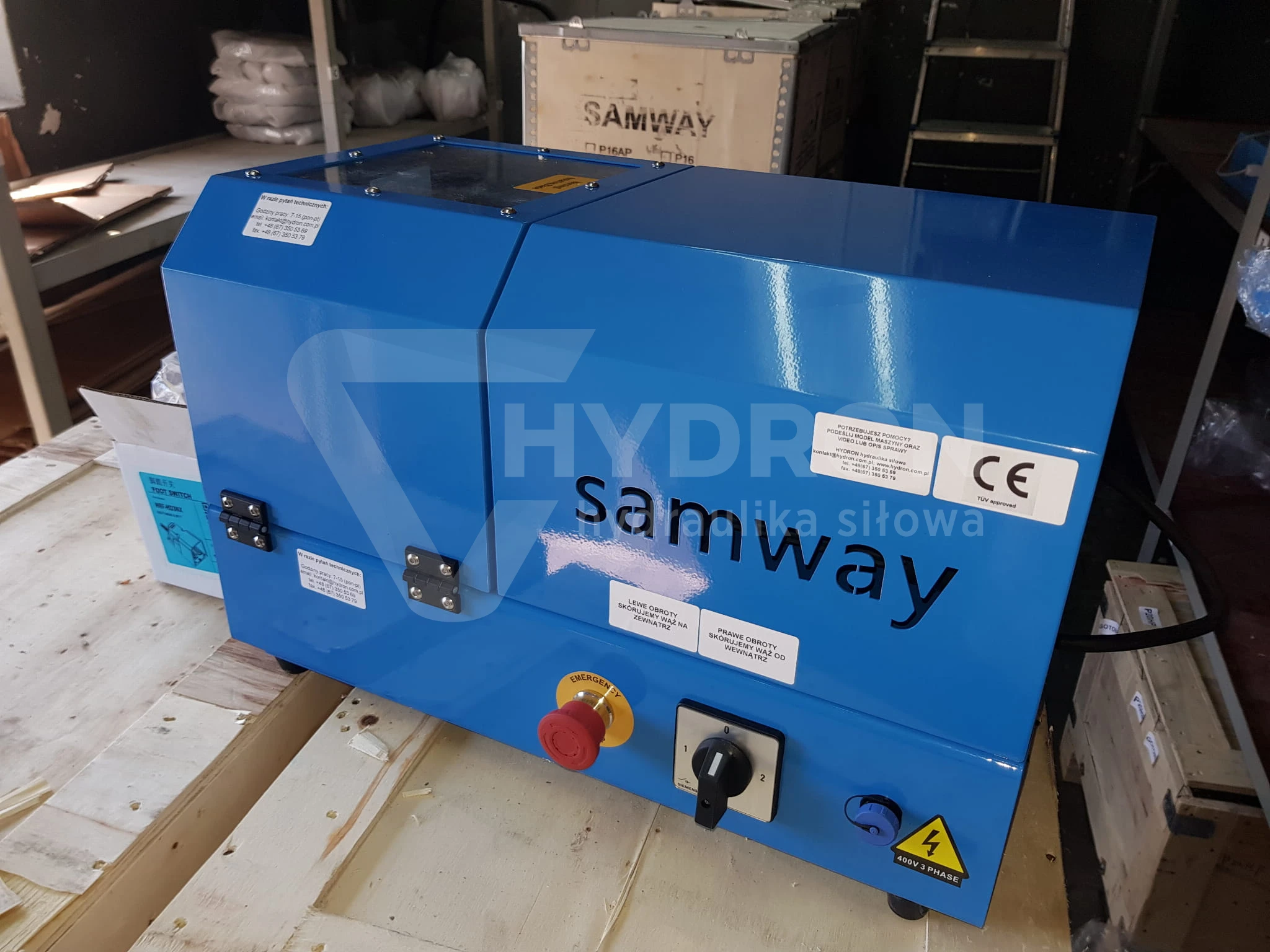

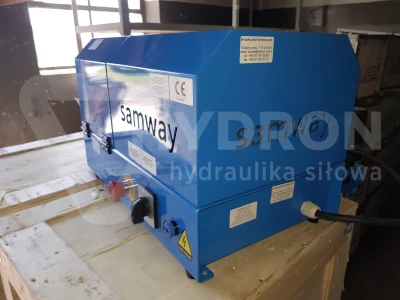

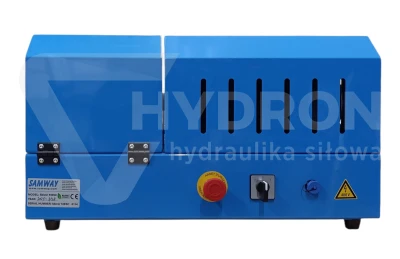

SAMWAY 51ESC hose skiving machine

The best-equipped skiving machine model available on the market! The highest standard and full equipment included! The device is equipped with the latest health and safety protections – a special sensor automatically disconnects the machine from power after opening the skiving cover. The device meets all health and safety requirements. Along with the device, we provide a manual in Polish, health and safety workplace instructions, and a warranty card. The machine is designed for the most demanding users. The 51ESC model is the most advanced device meeting rigorous safety requirements. We have warranty and post-warranty service of all machines offered by us!

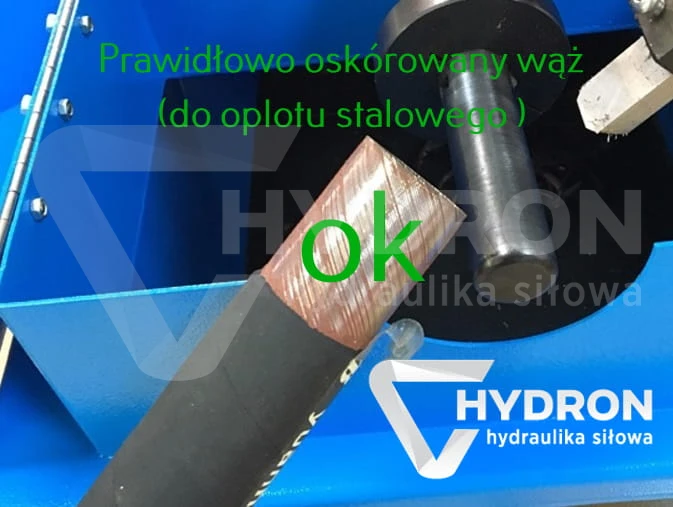

What is hydraulic hose skiving

Internal and external skiving of hydraulic hoses are processes that prepare the hose for proper crimping. External skiving involves removing the outer rubber layer to expose the hose braid and allow better adhesion of the ferrule. Internal skiving while internal skiving removes the inner rubber layer, which is necessary in some applications to ensure better medium flow or improve the quality of the connection between the fitting and the hose. Both processes guarantee the tightness and durability of the assembly.

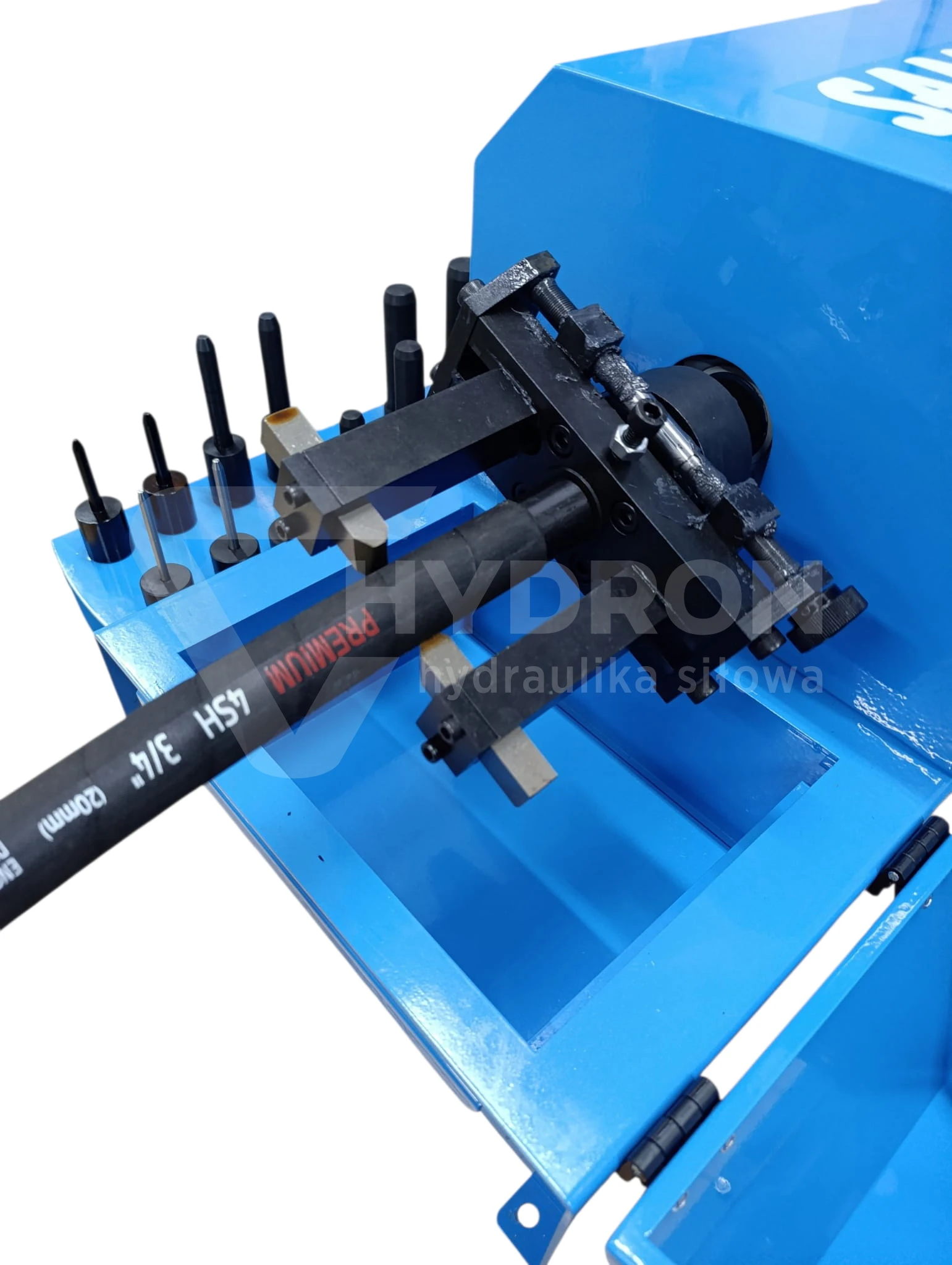

Internal and external hose skiving

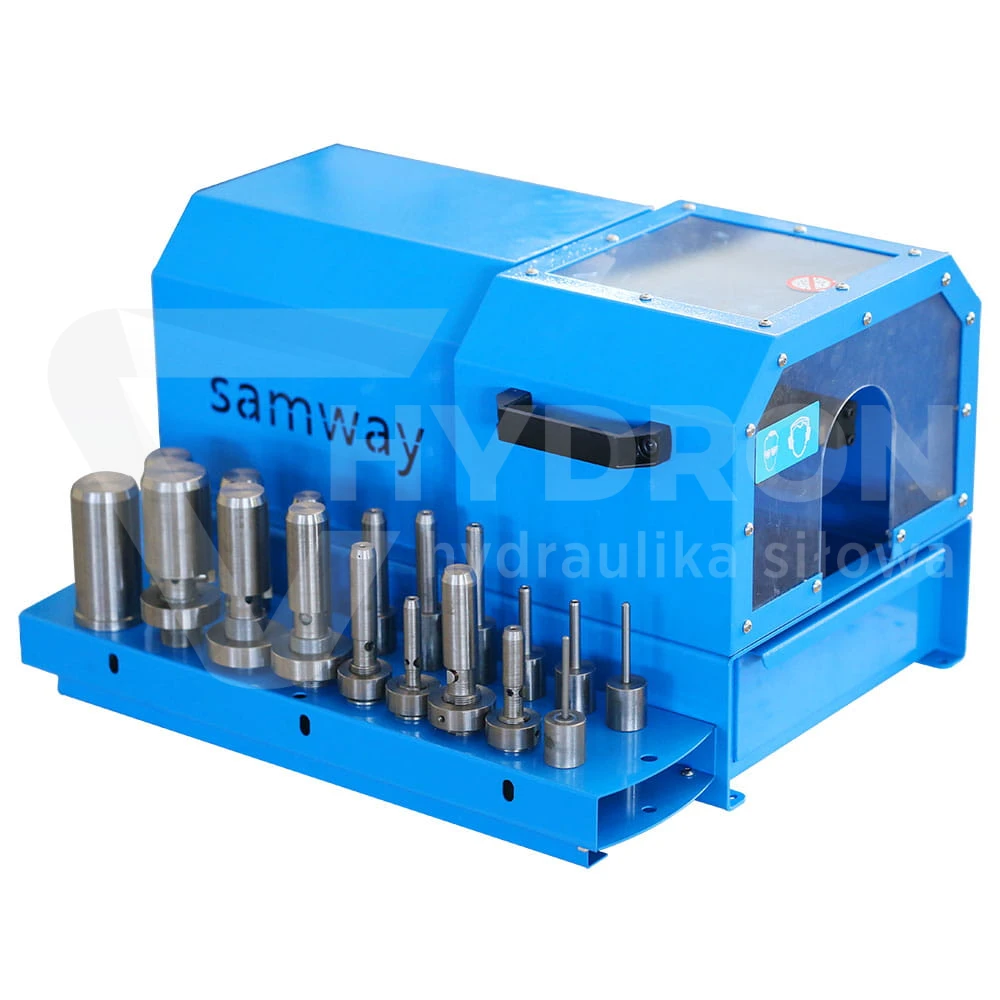

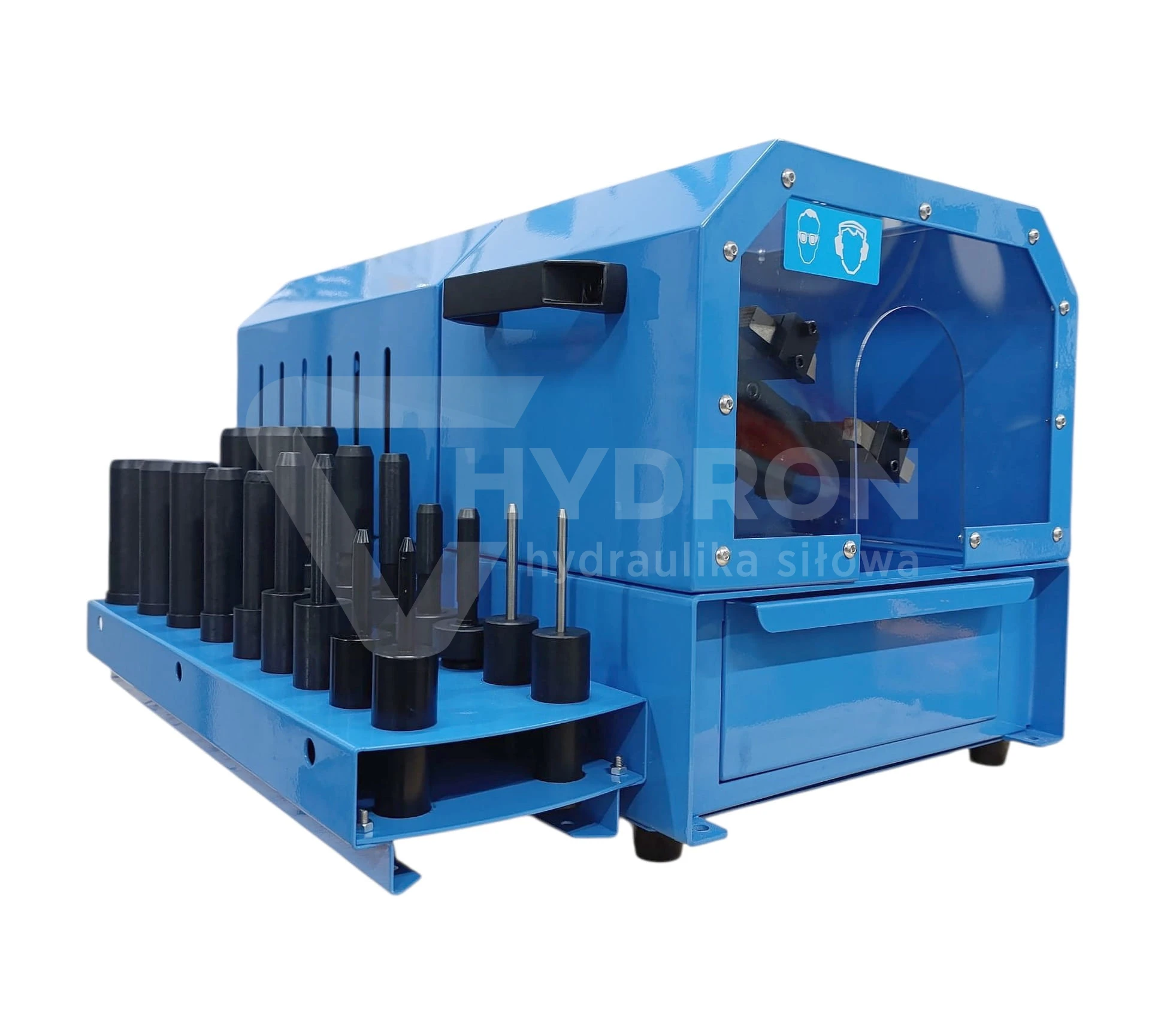

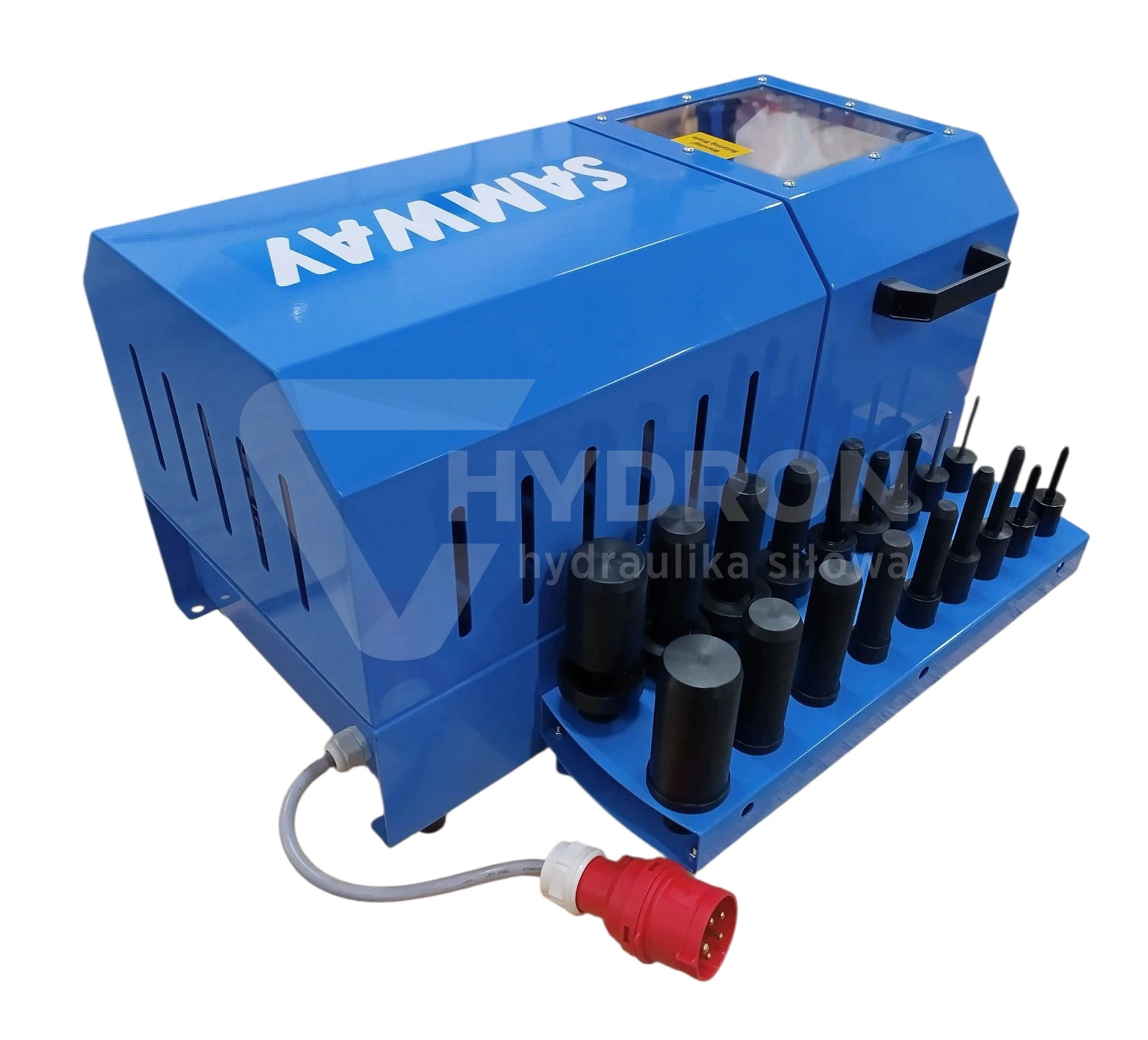

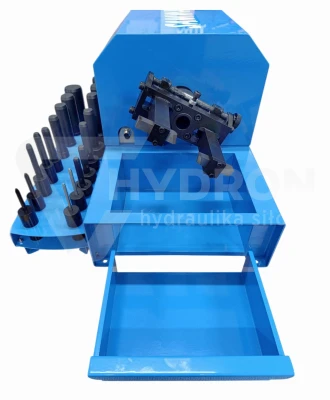

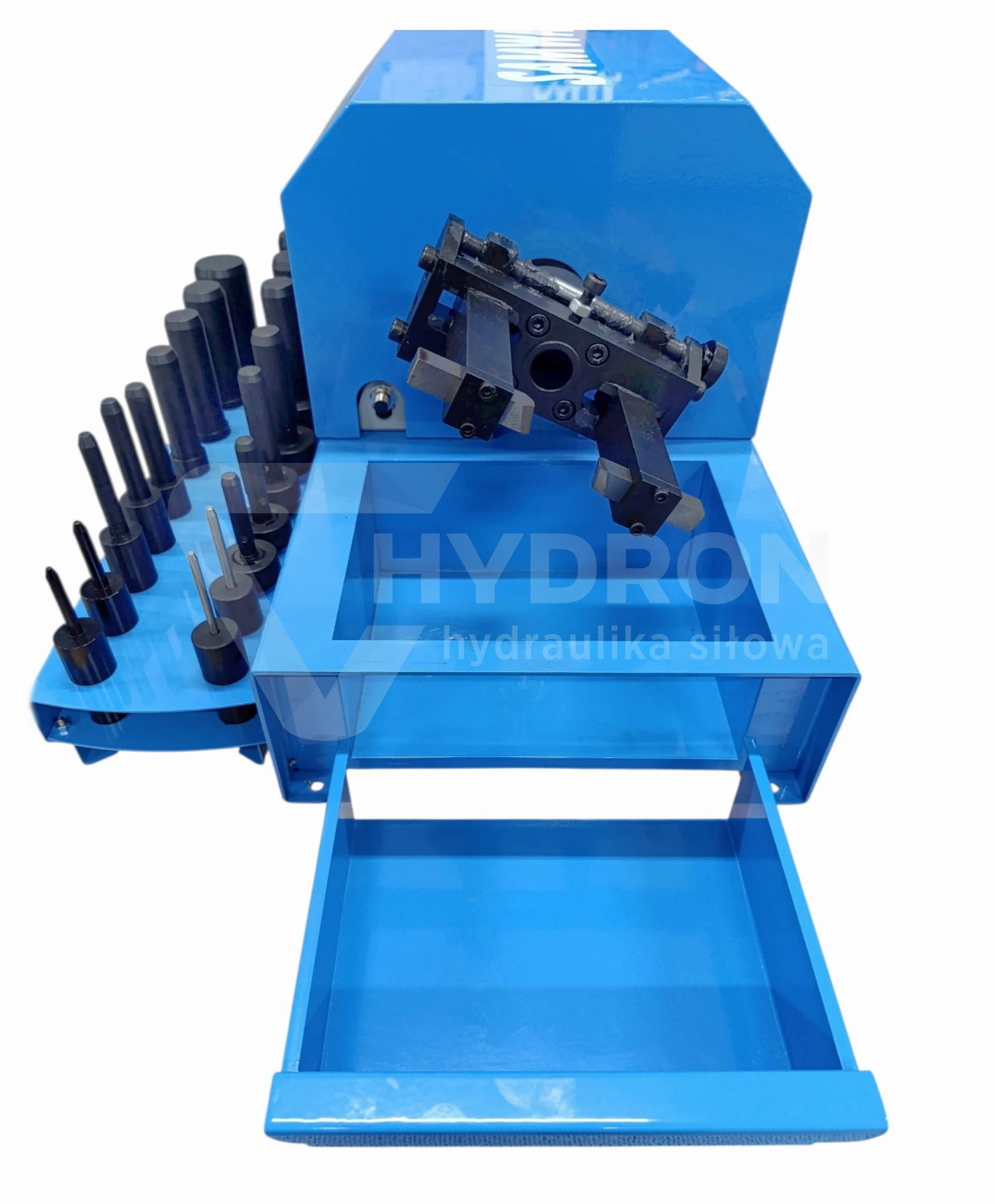

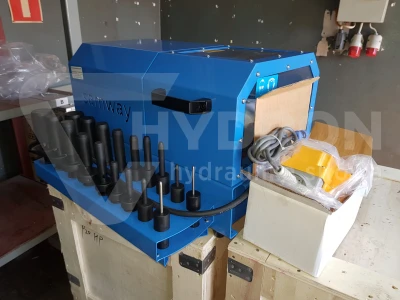

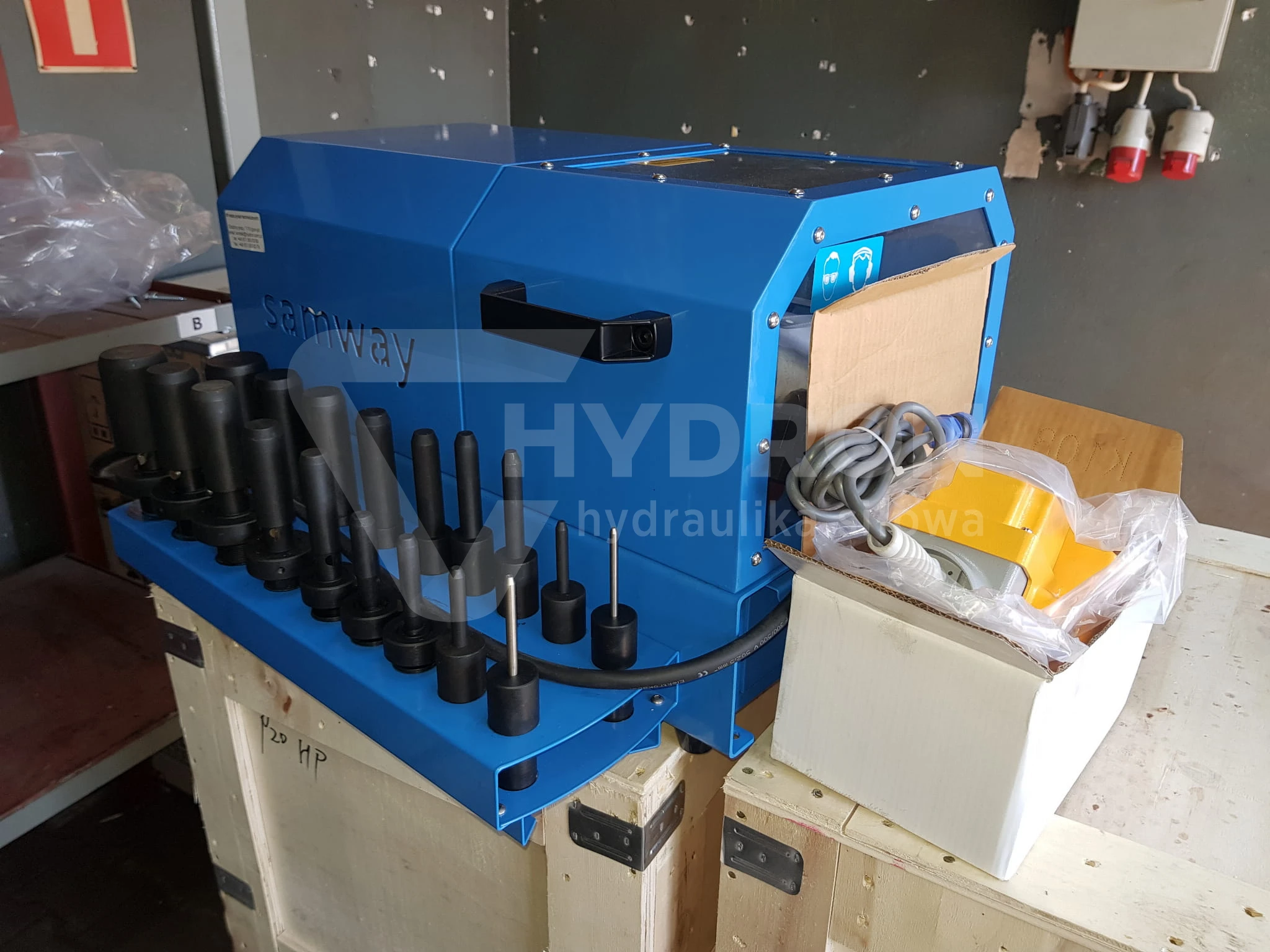

Skiving machine for all types of high-pressure hydraulic hoses. The 51ESC model is the best electric skiving machine model designed for external and internal skiving. Included with the machine, you will find a full range of skiving pins (internal and external). The set includes pins from ¼” to 2”. In the case of internal skiving pins, sizes for the following hoses are included: DN 16, 19, 25, 32, 38, 51.

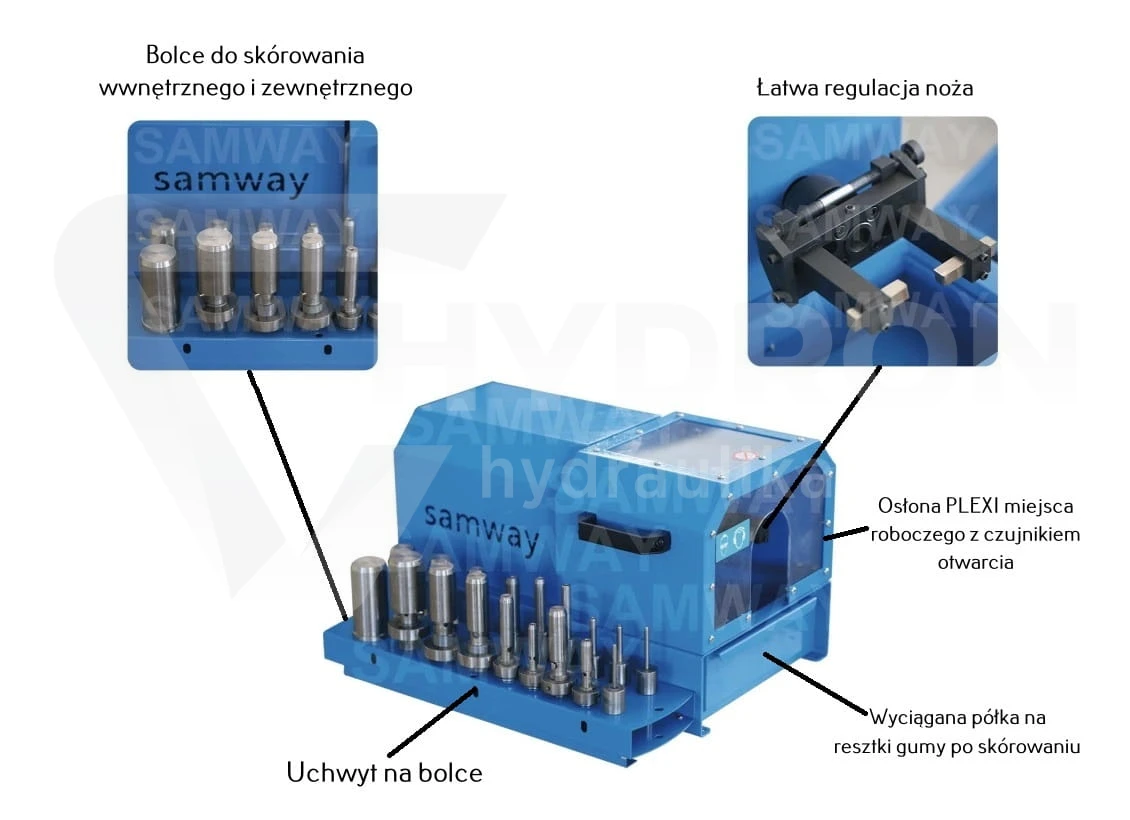

Skiving machine features:

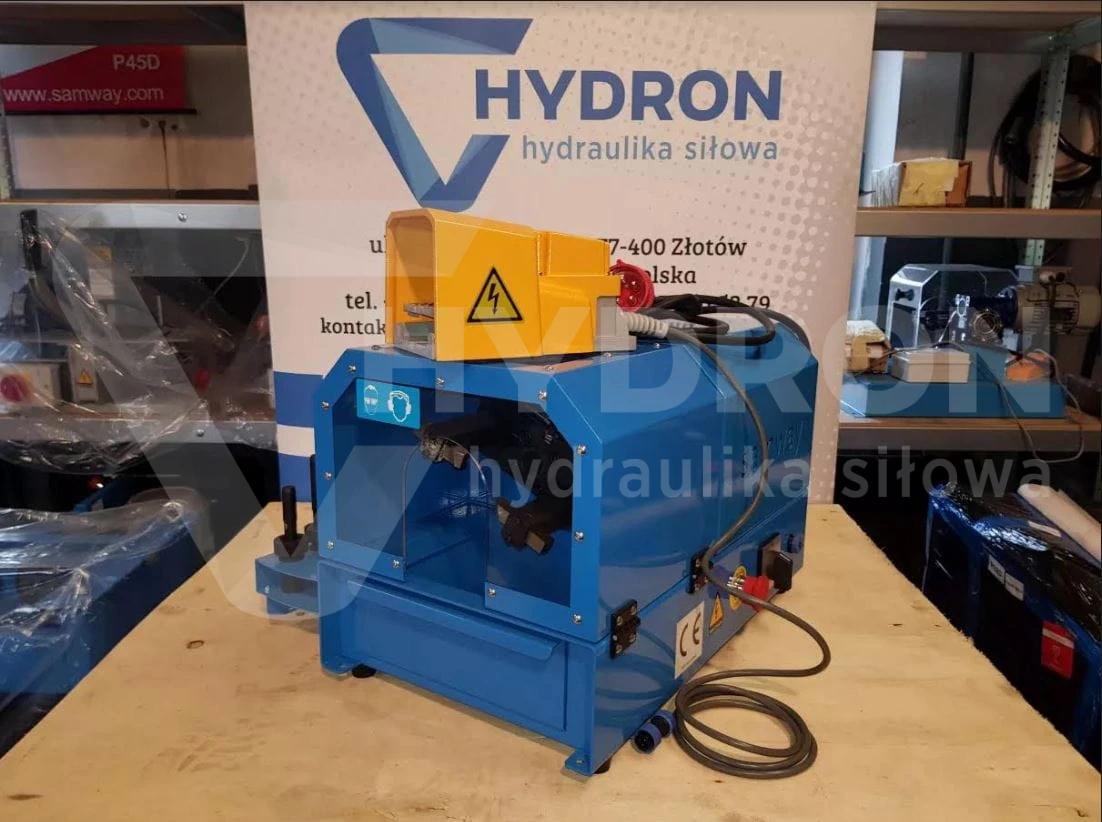

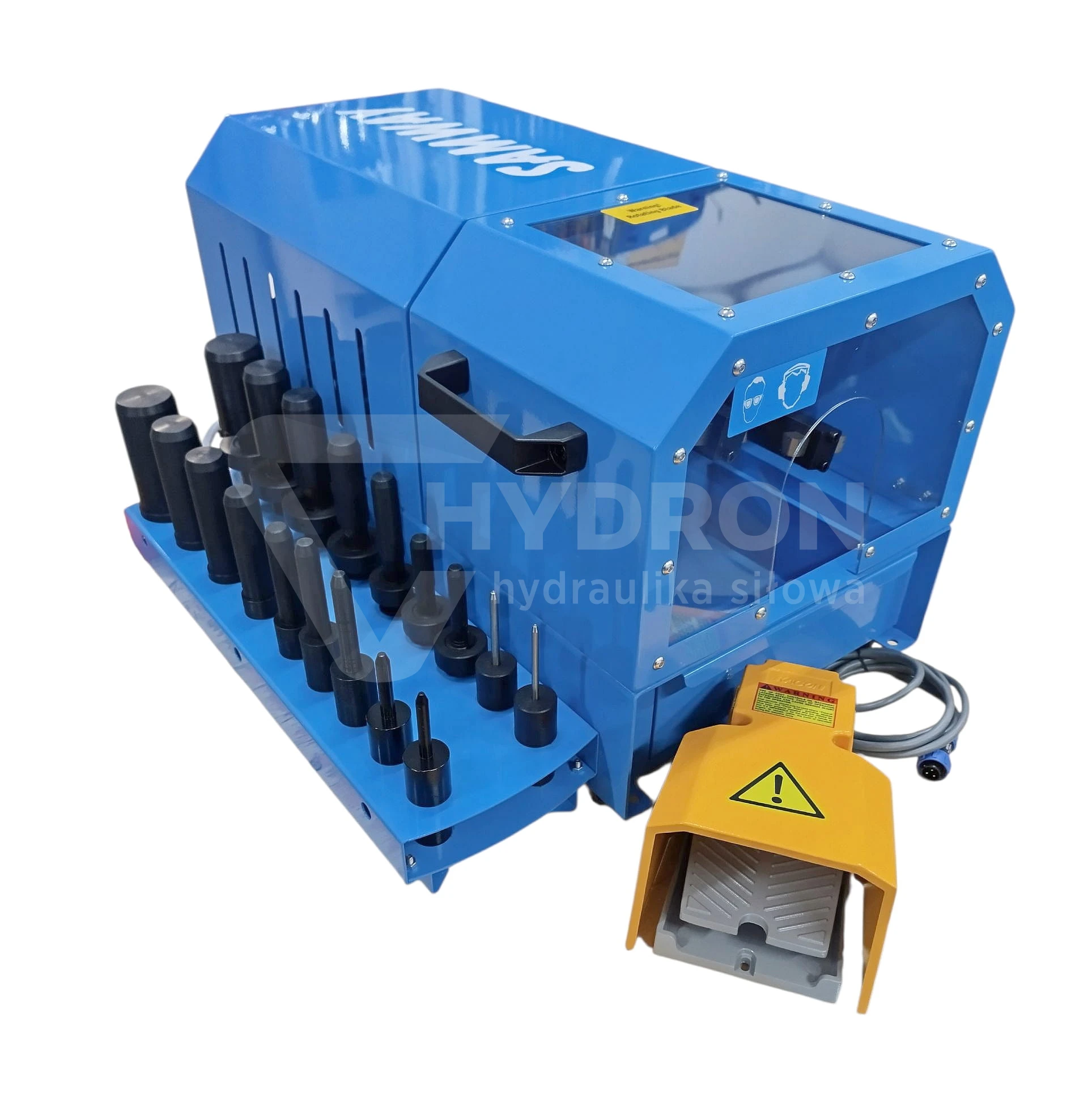

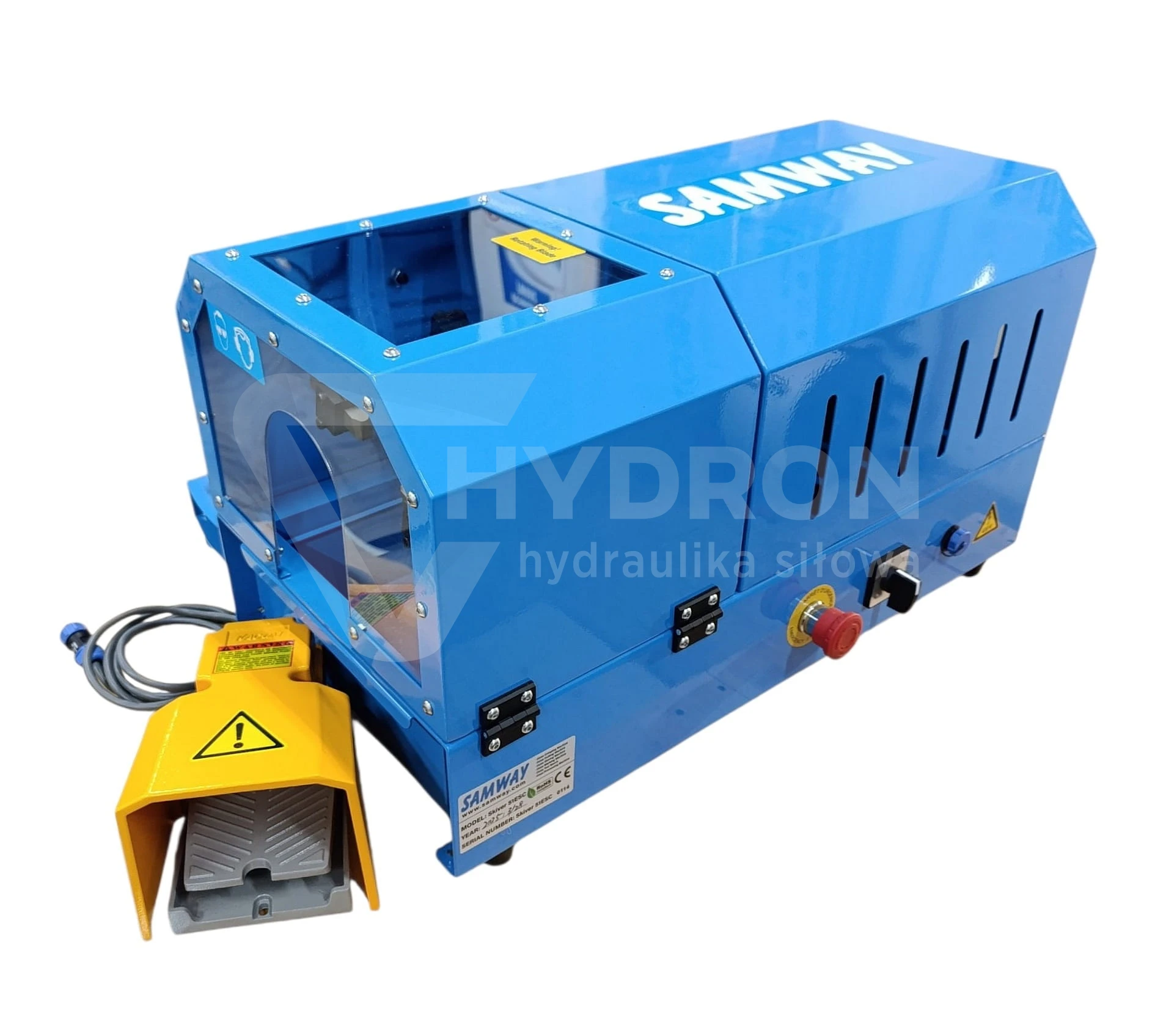

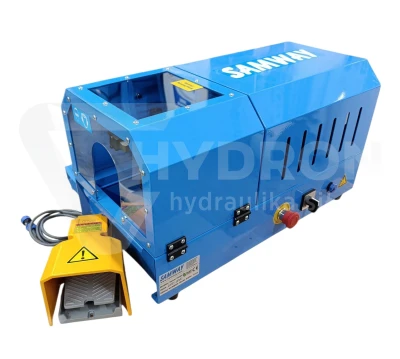

• Foot pedal control
• 2 rotation directions (internal skiving, external skiving)
• Possibility of skiving hoses: 1SN, 2SN, 4SP, 4SH, R15, R16
• CE certificate
• Compact design

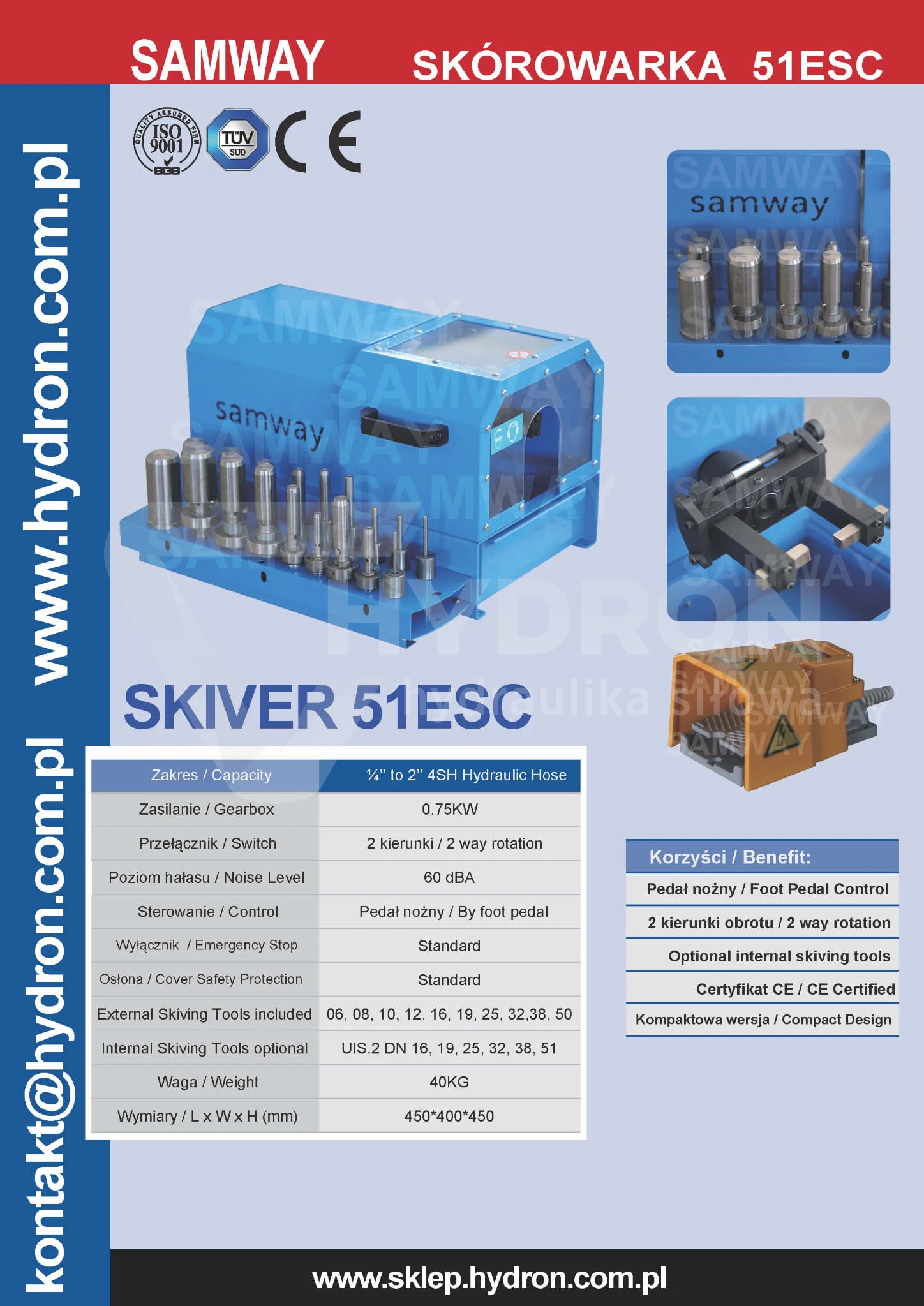

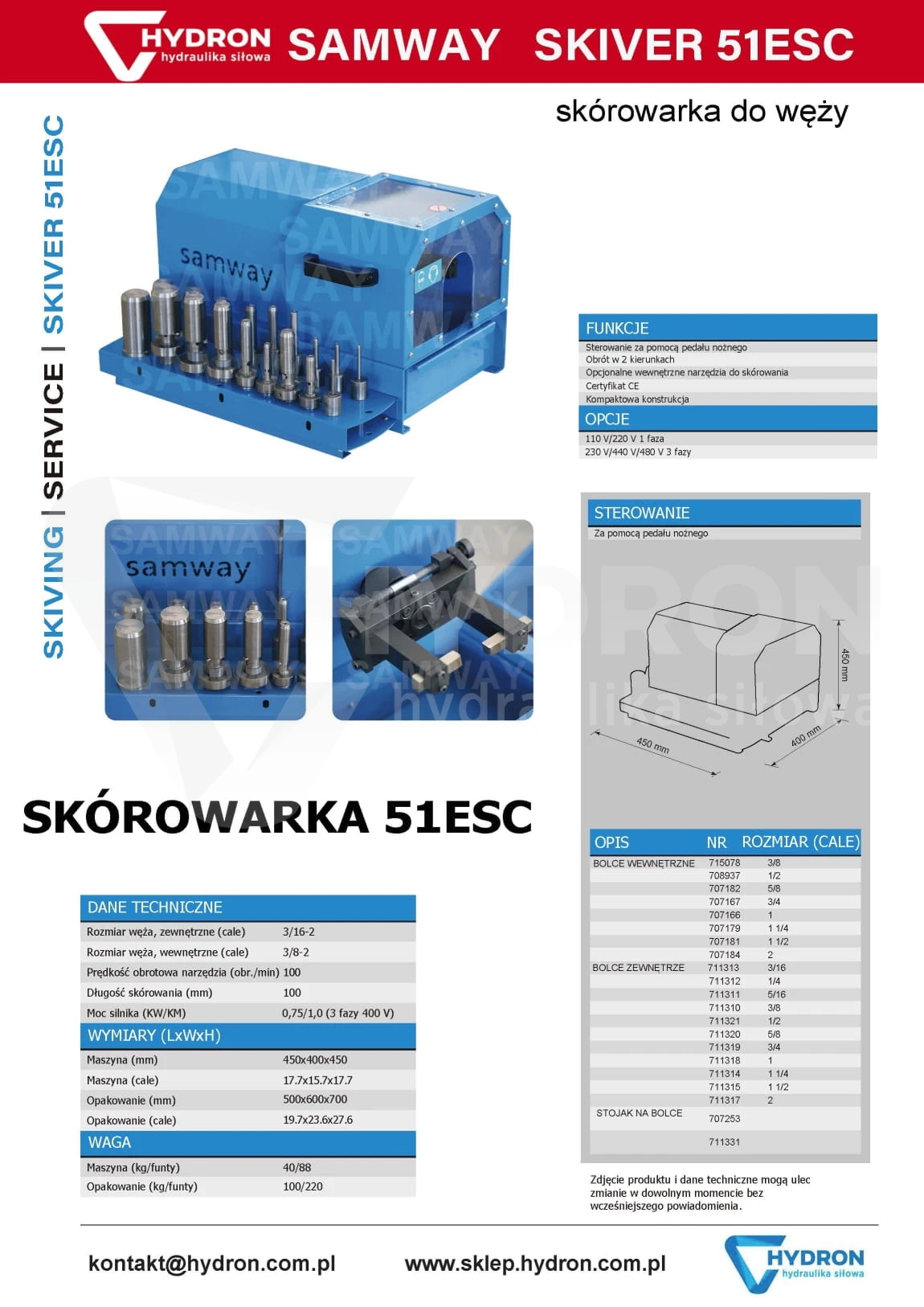

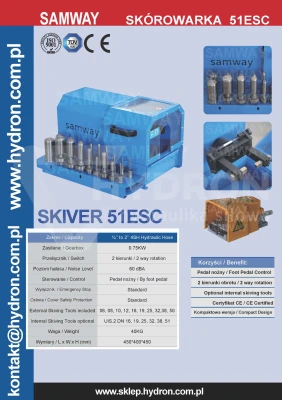

Technical parameters of the hose skiving machine:

• External skiving range: skiving hoses from 1/4" to 2"
• Internal skiving range: skiving hoses from 3/8" to 2"
• Electrical power supply: motor power 0.75 KW, 3 phases 400V
• Switch: 2 rotation directions
• Skiving length: 100 mm
• Skiving machine rotation speed: 100 rpm
• Noise level: 60 dBA
• Safety switch: YES

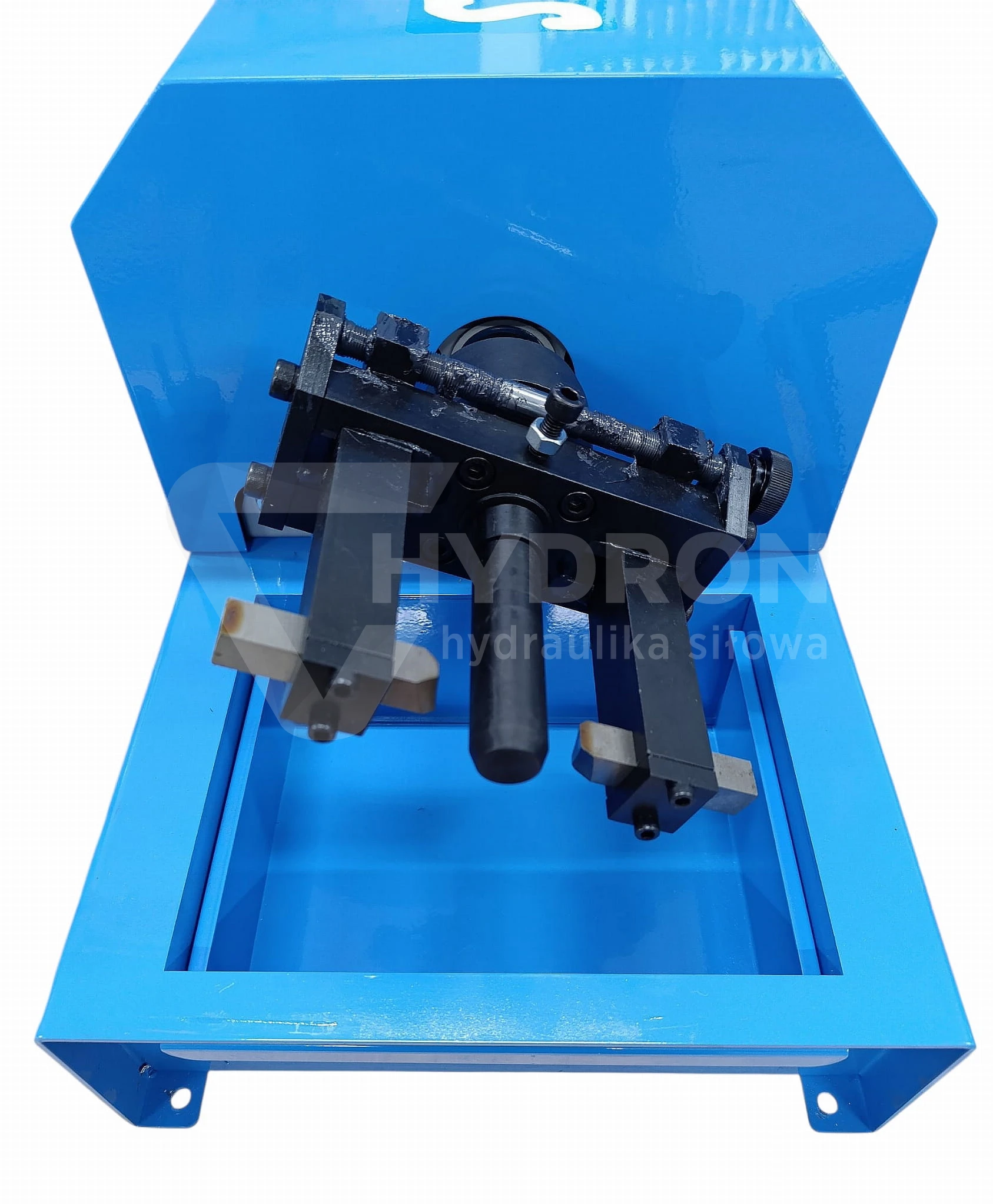

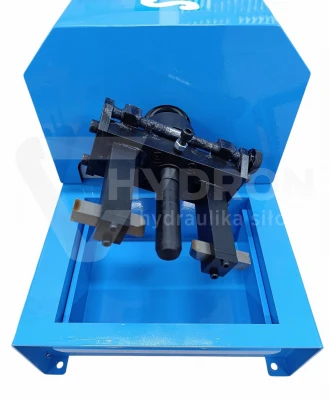

• Skiving area guard: YES
• External skiving pins for DN hoses: 5, 06, 08, 10, 12, 16, 19, 25, 32, 38, 50
• Internal skiving pins for DN hoses: 10, 13, 16, 19, 25, 32, 38, 51
• Machine weight: 40 kg
• Machine dimensions (LxWxH): 450 mm x 400 mm x 450 mm

The skiving machine meets health and safety requirements

The hydraulic hose skiving machine available in the Hydron offer meets the safety requirements resulting from health and safety regulations and the Machinery Directive 2006/42/EC. The device was designed in such a way as to provide maximum protection for the operator during work – the applied work guard and safety system prevent access to the rotating blade while the machine is running. Thanks to this, the user can be sure that the skiver is prepared for safe operation, meets current safety standards, and can be used in accordance with health and safety inspection requirements.
