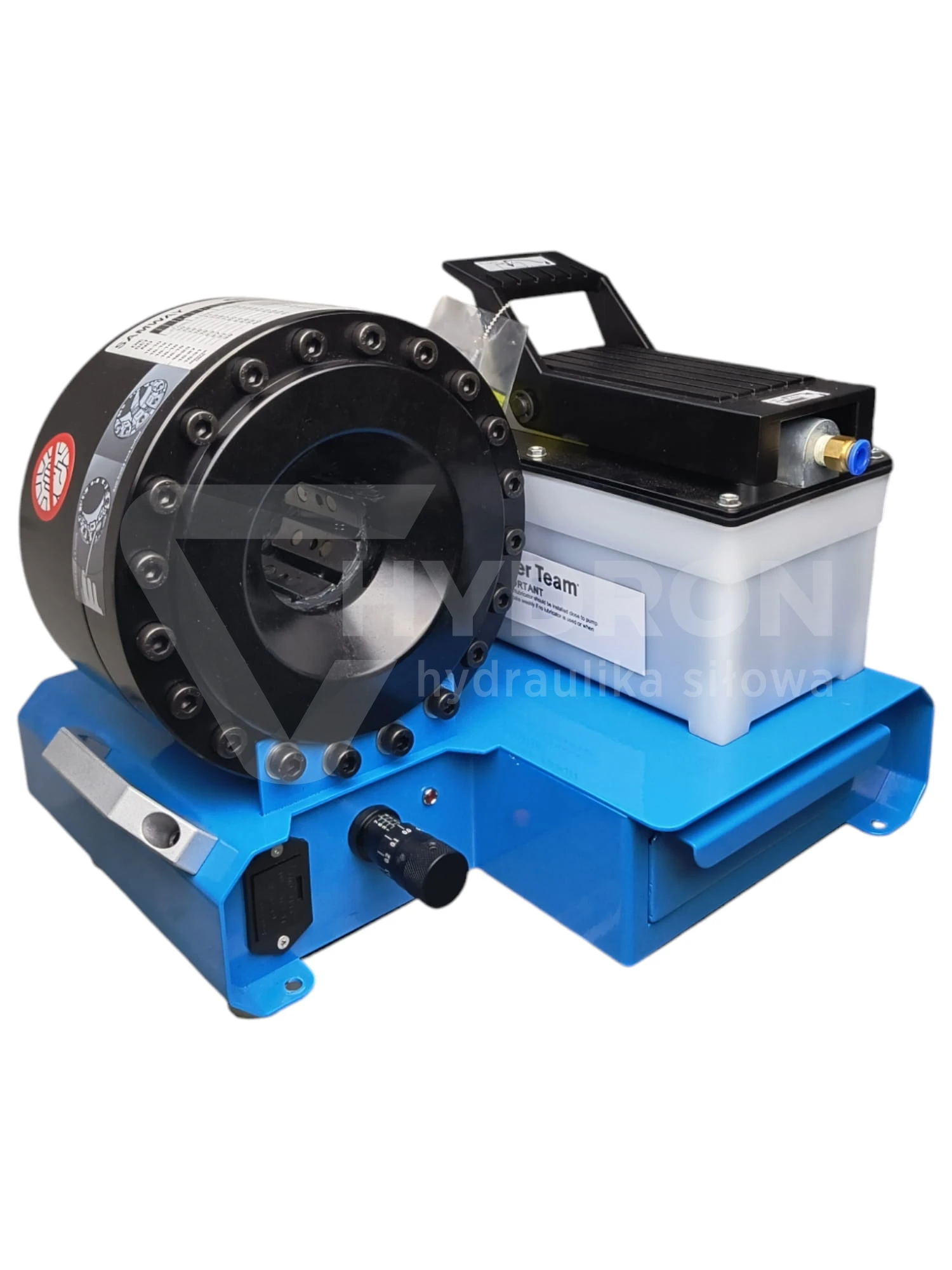

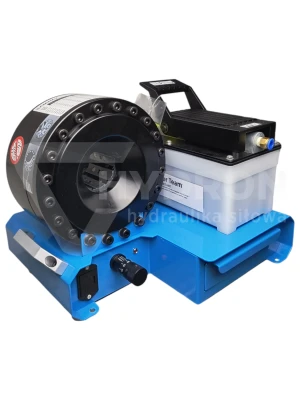

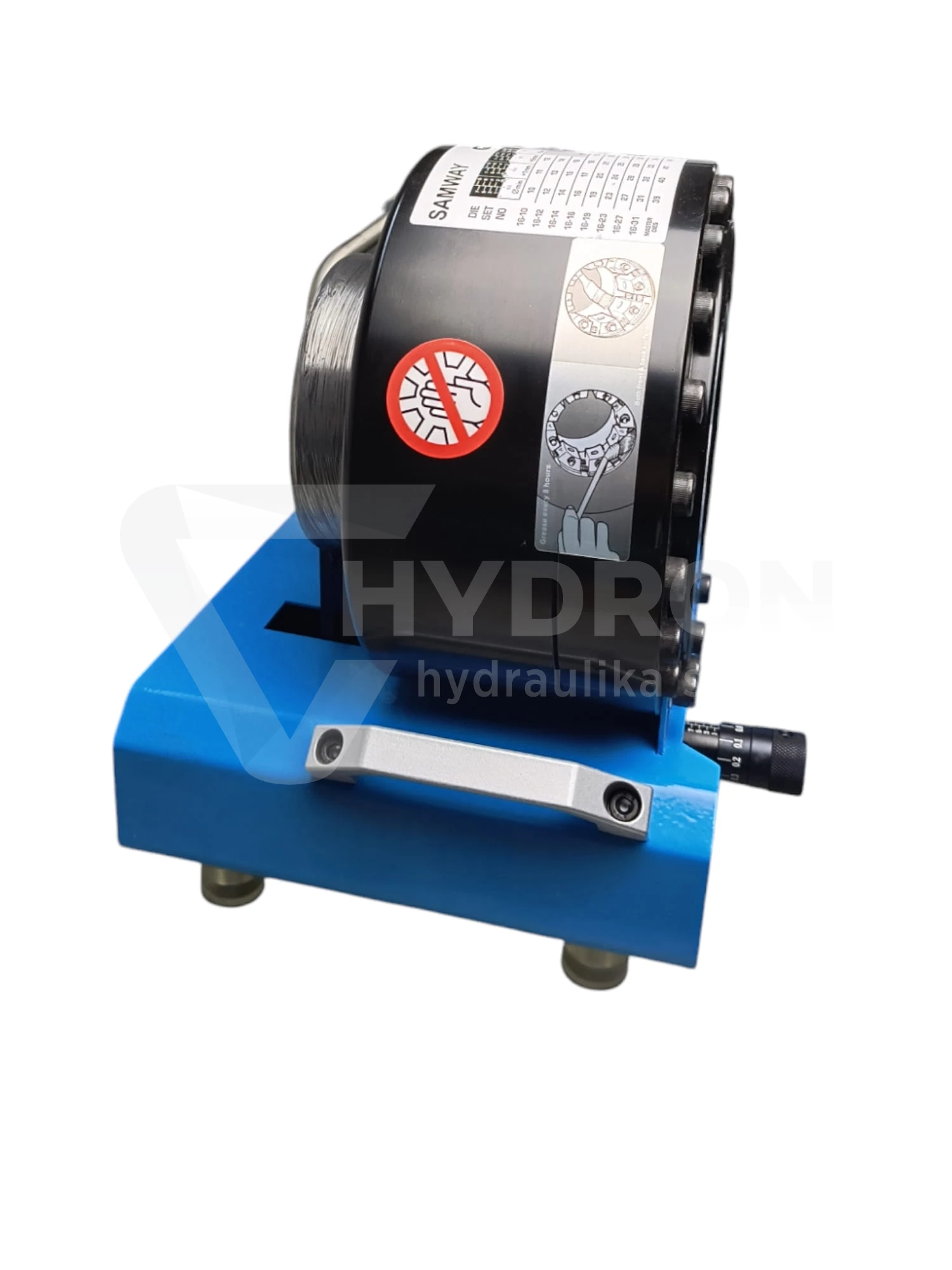

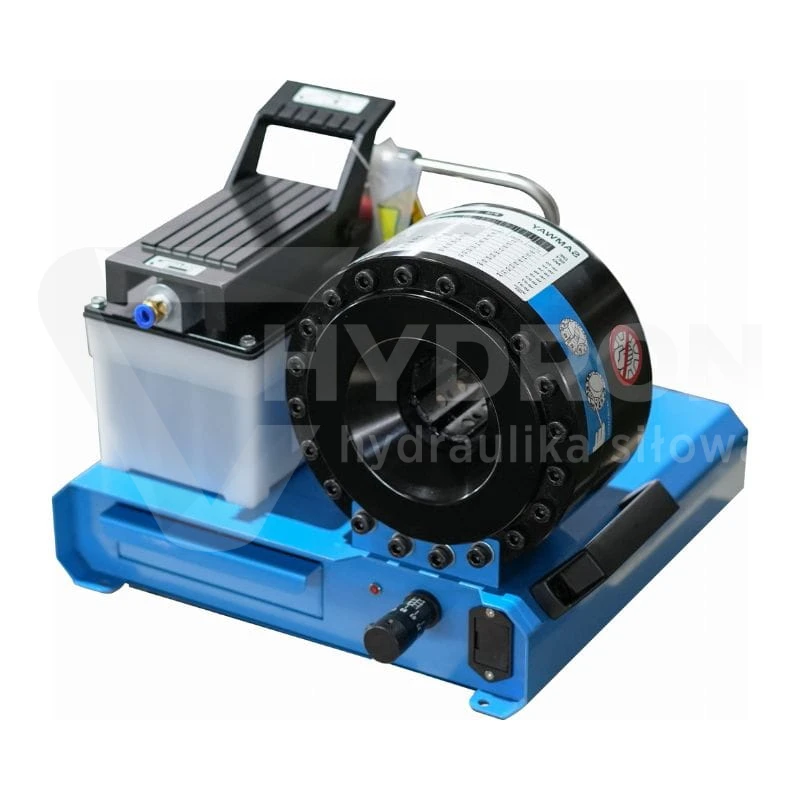

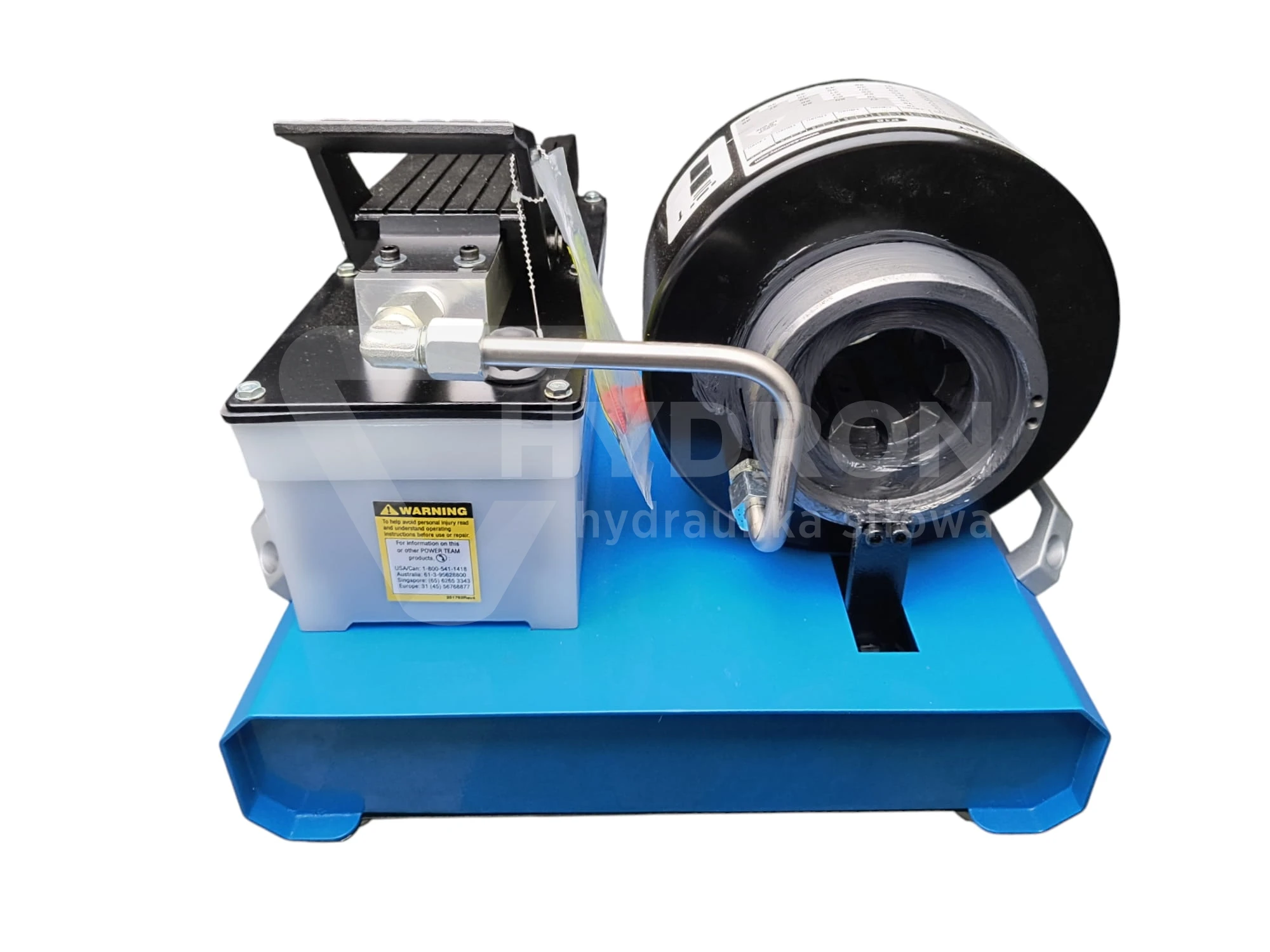

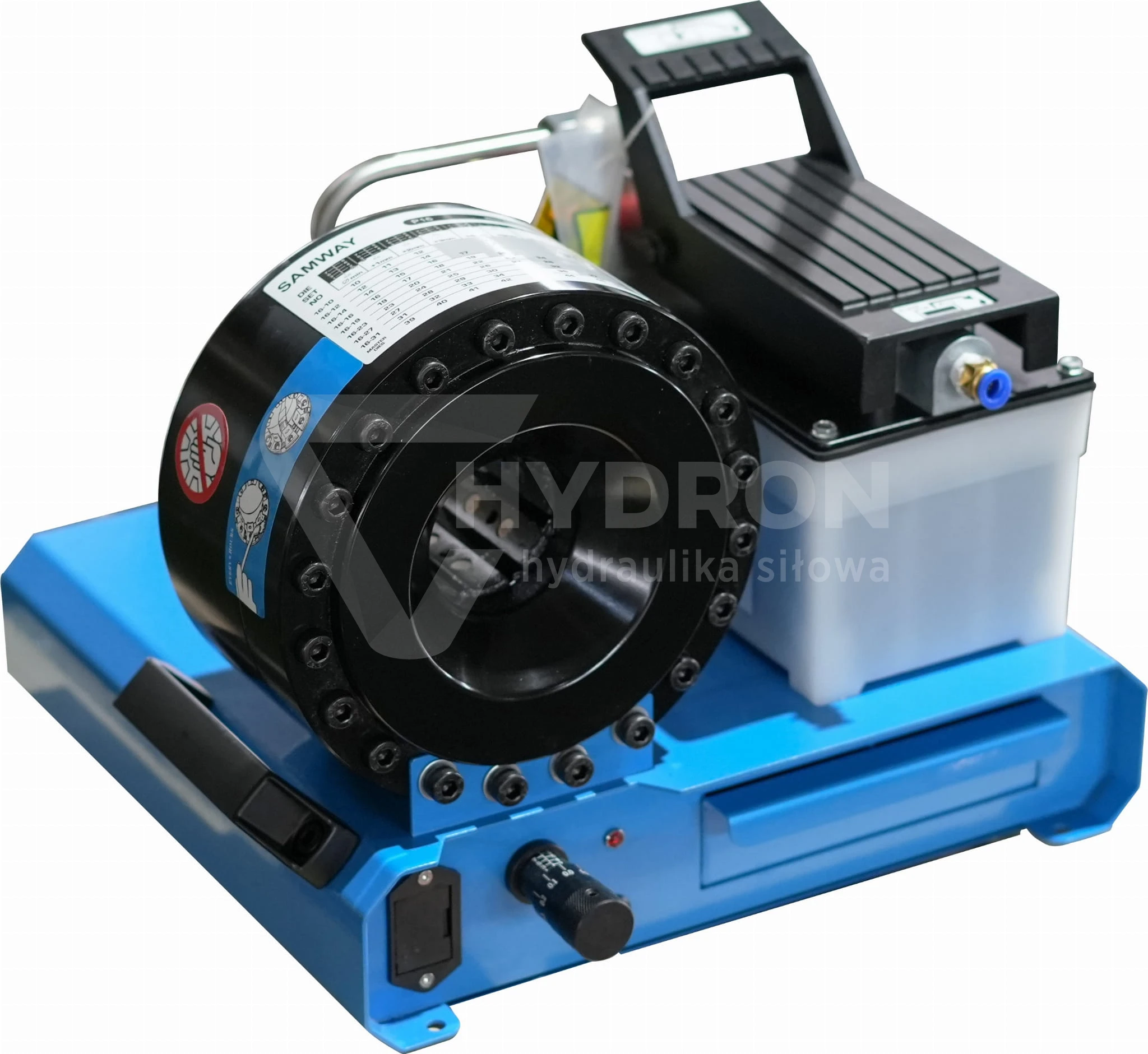

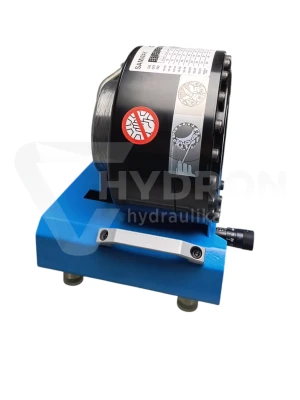

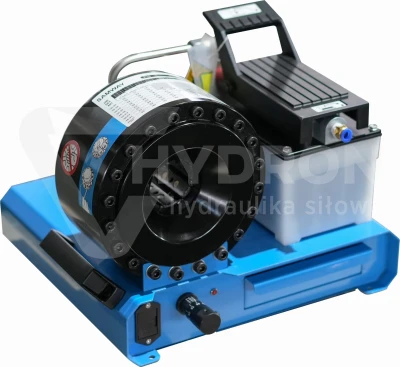

Pneumatic crimping machine SAMWAY P16AP - hydraulic hose crimping press

• Instructional video on operating the P16AP pneumatic crimping machine
• Schedule a free meeting and machine presentation
• Check the topic : crimping machine leasing

Characteristics of the compressed air powered crimping machine :

Lightweight pneumatic crimping machine for crimping hydraulic hoses. The crimping machine allows for the crimping of all types of hoses, with textile or steel braid - the only limitation is the diameter of the crimped element, which cannot exceed 45mm on the outside. The press gives us the ability to crimp low-pressure, high-pressure, hydraulic, oil, air hoses, etc. This model of crimper is also available with a larger head : P20AP crimping machine

Crimping machine equipment

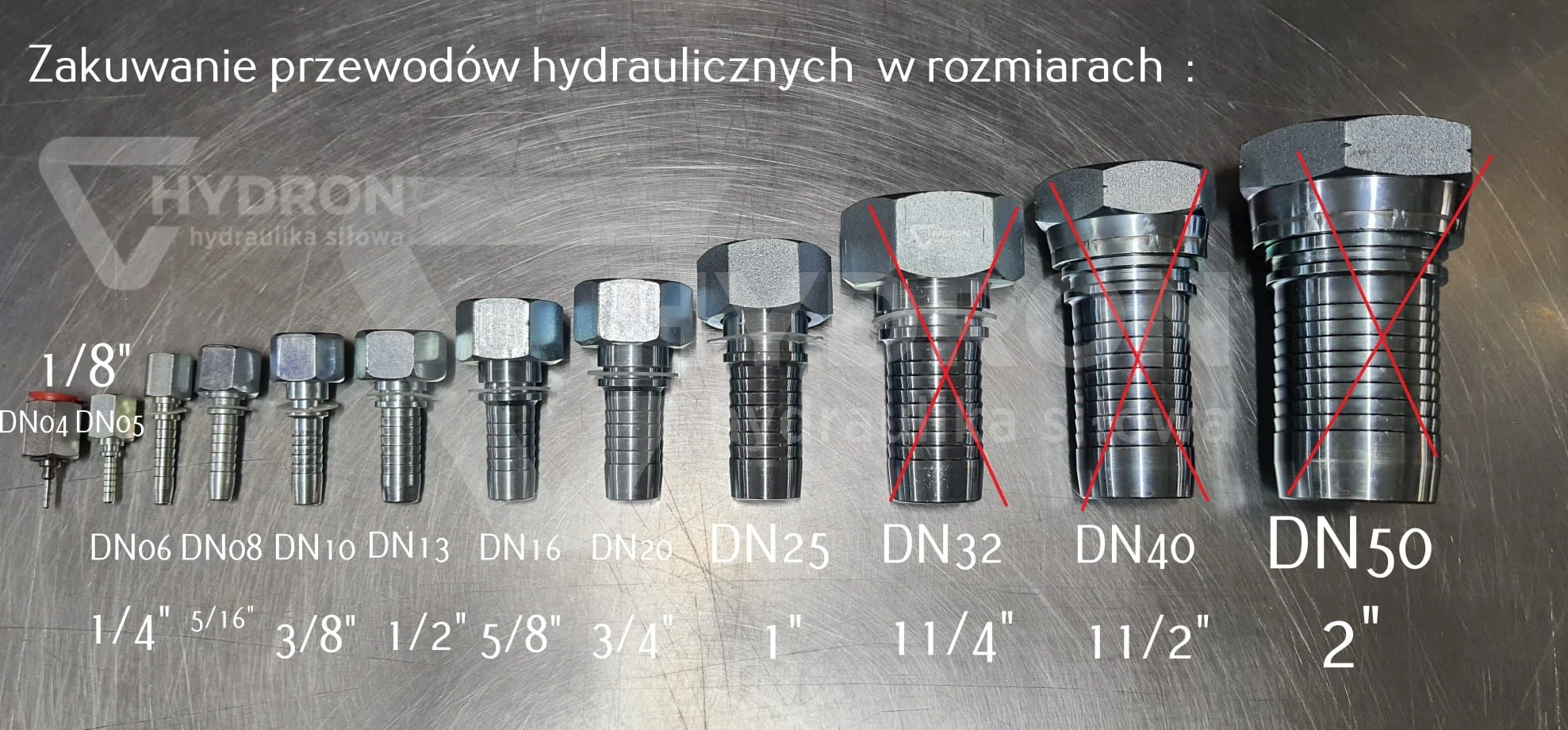

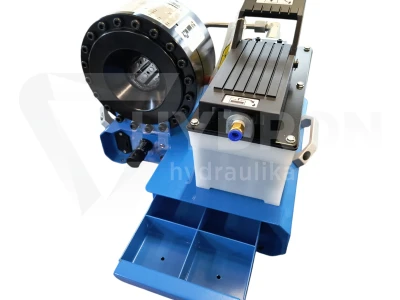

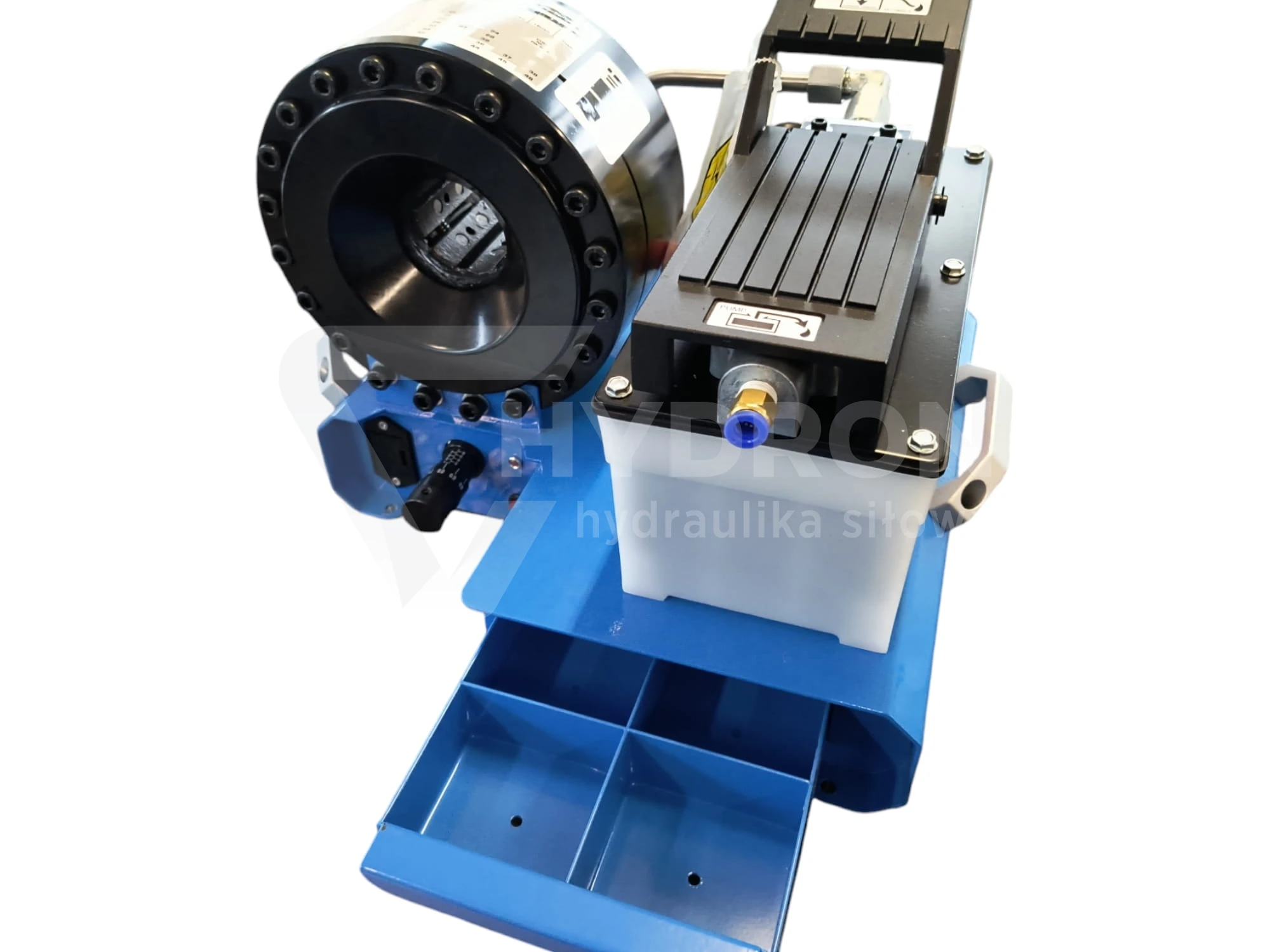

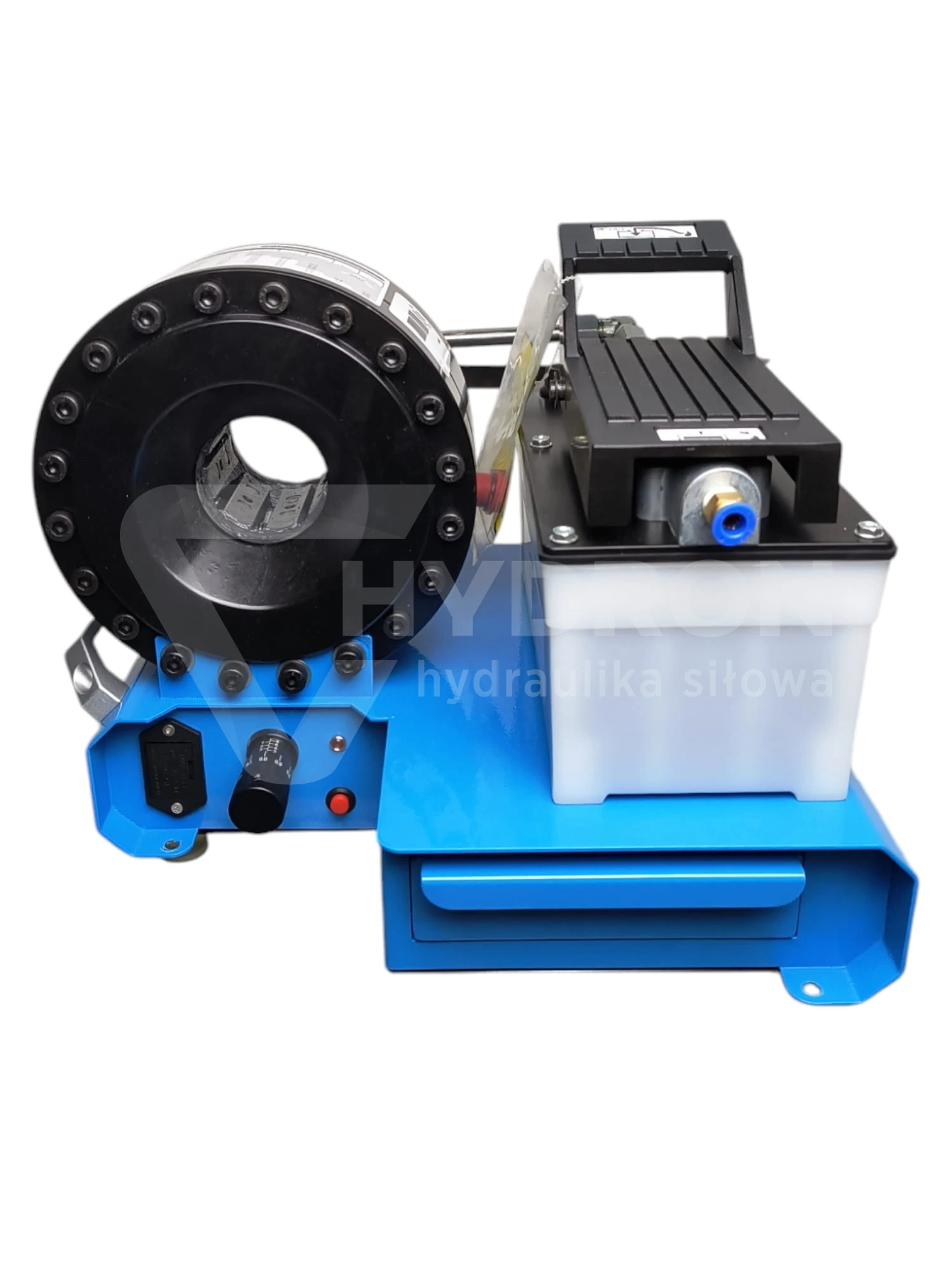

The crimping machine has a set of 8 interchangeable dies that allow for the crimping of hydraulic hoses in the internal diameter range from DN06 – DN25. Under the crimping machine there is a useful drawer for dies. The press has detailed instructions for die selection. The pneumatic crimping machine is an ideal solution for small workshops and individuals providing mobile hydraulic service ( simply connect to a compressor with 4.5bar pressure, a standard supermarket compressor is sufficient ) How to crimp on this machine ? simply press the button on the pump to start crimping, the button in the opposite direction for the dies to open. Complete machine ready for work. This is the smallest crimper in our offer - we have all types of crimping machines from small low-pressure ones through pneumatic and electric models to large industrial crimpers.

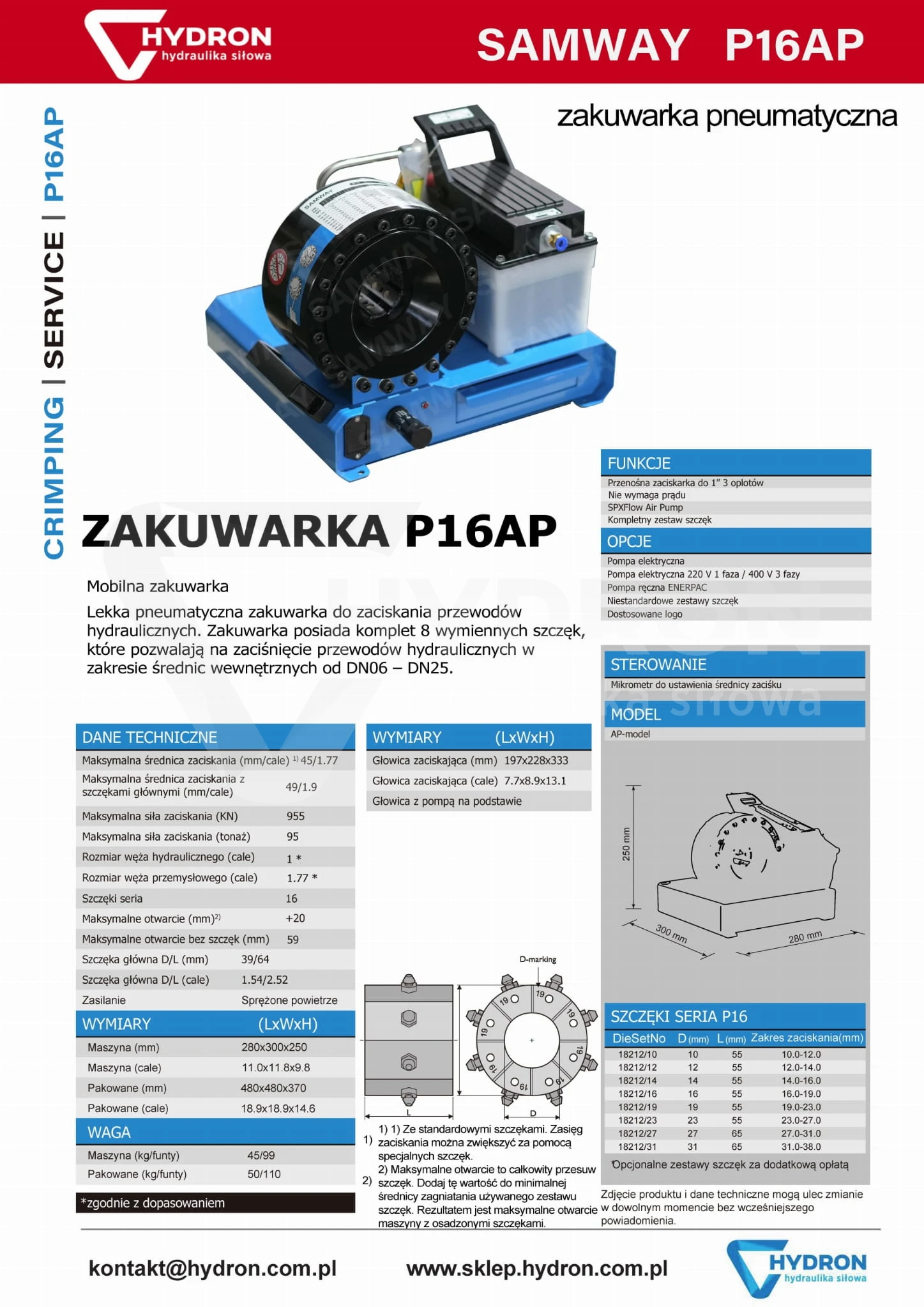

Technical data of the SAMWAY P16AP crimping machine :

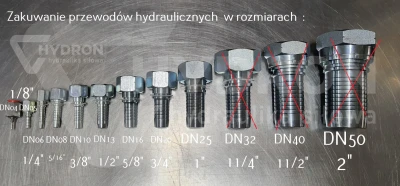

• Maximum crimpable hydraulic hose: 1" 3SN (DN 25)
• Crimping range of the machine : 4-45 mm
• Die type used in the press : P16
• Main die length : 64 mm
• Maximum head opening : +20 mm

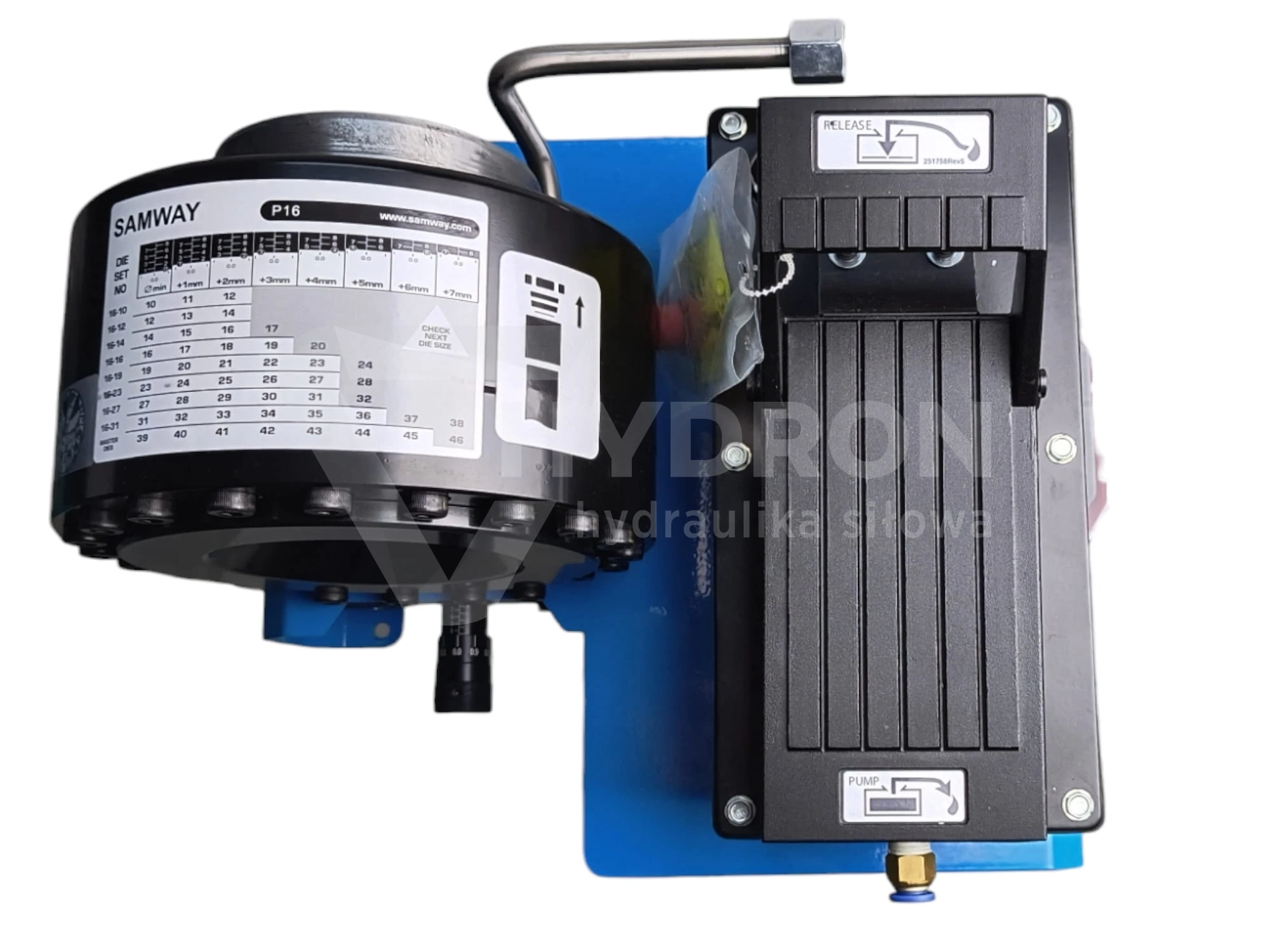

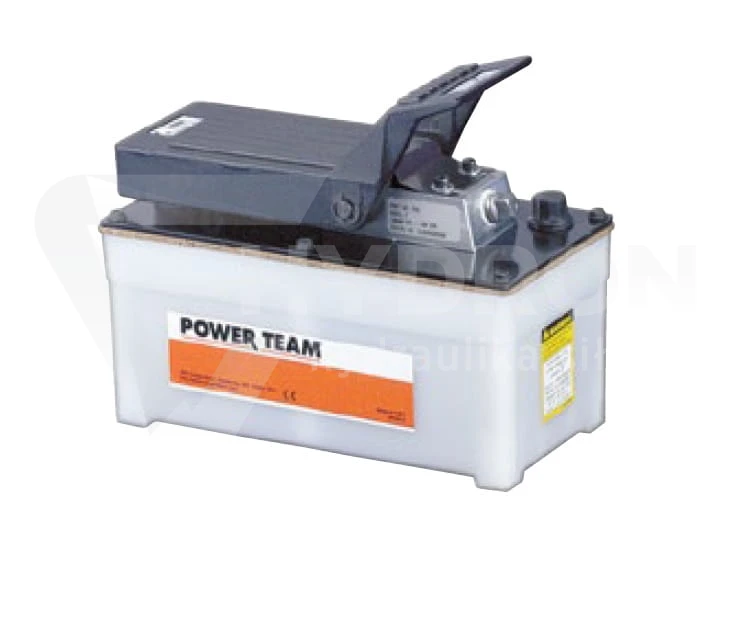

• Crimping machine power supply : 700 bar pneumatic pump
• Crimping force of the machine : 1000kN (112.4 Tons)

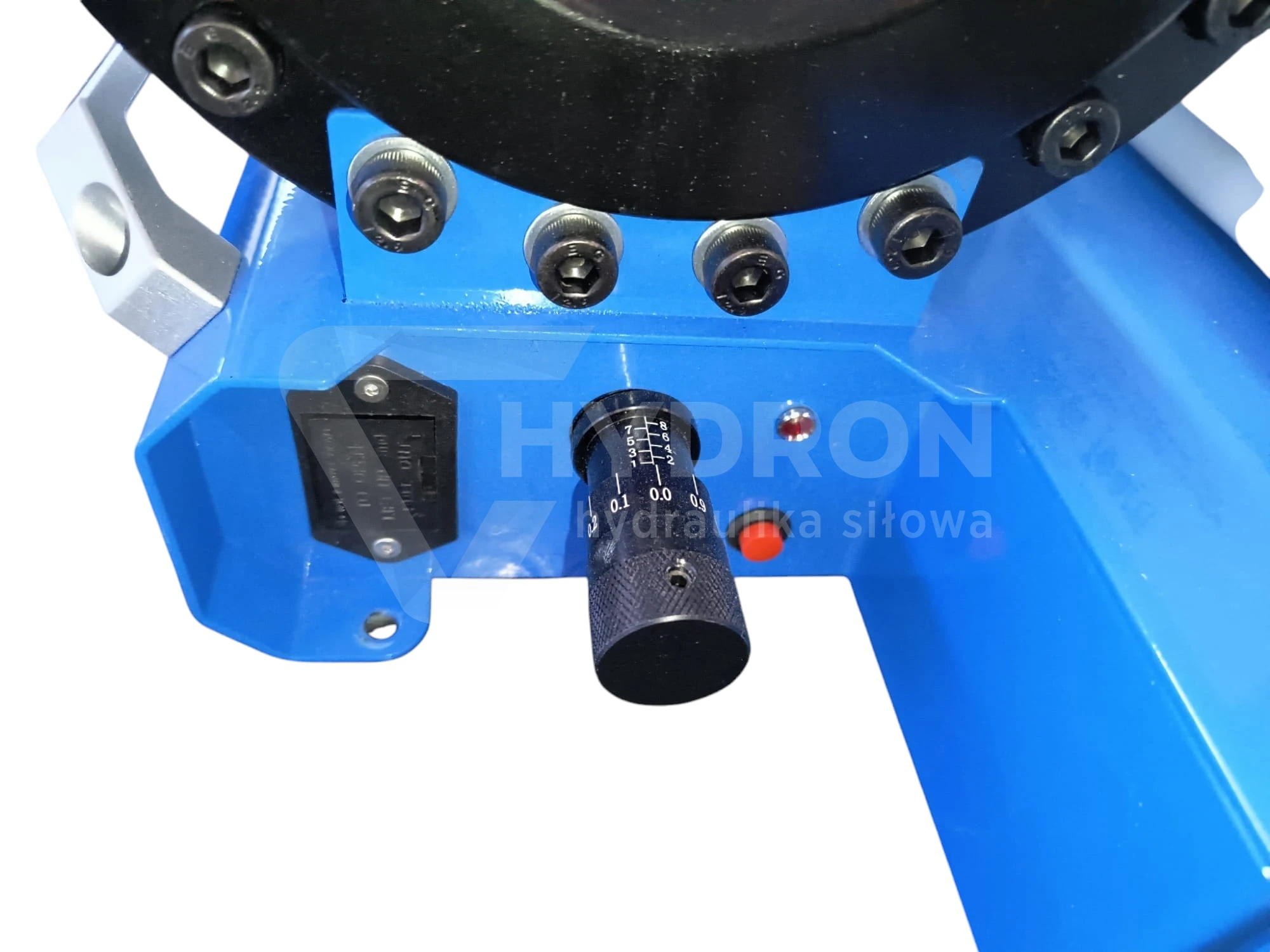

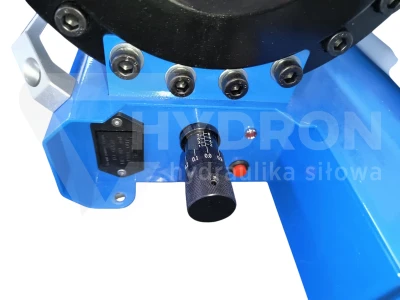

• Control : micrometer
• Dimensions : 330mm*400mm*280mm*
• Weight : 45 kg ( together with packaging - crate )

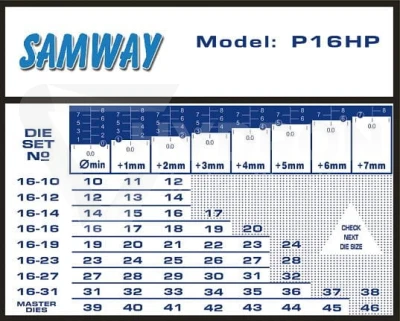

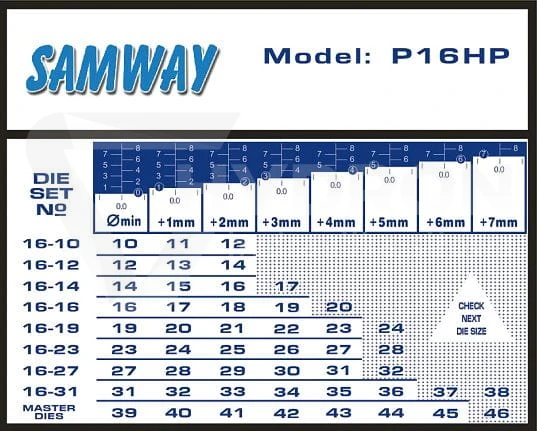

Crimping dies included in the set :  size / length

• dies 10 mm (length 55 mm)
• dies 12 mm (length 55 mm)
• dies 14 mm (length 55 mm)
• dies 16 mm (length 55 mm)
• dies 19 mm (length 55 mm)
• dies 23 mm (length 55 mm)
• dies 27 mm (length 65 mm)
• dies 31 mm (length 65 mm)

Pneumatic hose crimping machine

A pneumatic hose crimping machine is a specialized press used to crimp fittings onto hydraulic and industrial hoses. It uses the power of compressed air to drive a hydraulic-pneumatic pump, which allows for more efficient and faster crimping.

Advantages of a pneumatic crimping machine

Work efficiency and speed – Pneumatic power allows for automatic and continuous crimping, which is more effective than in manual crimping machines where we are forced to pump manually until a specific diameter is reached. In the case of a pneumatic crimper, simply turn on the pneumatic pump until the indicator light turns on, which informs us that the diameter we set has already been reached. Our crimping machines are equipped with precise micrometers that allow for precise setting of the diameter depending on the type / category of the hose - according to the crimping table. Time and cost savings – Pneumatic crimping machine models are definitely faster than manual ones, speeding up the production process and reducing downtime.

Examples of pneumatic hose crimping machine applications :

Pneumatic crimping machines are popular in small workshops and production plants where speed and process repeatability matter. Pneumatic hose crimping presses are an excellent choice for crimping hydraulic hoses used in the construction industry, agriculture, and heavy machinery.

Wide range of machines for crimping, cutting, skiving :

Our range includes a variety of crimping machines, including manual crimpers, which are ideal for simple and less demanding applications, workshop crimpers providing the efficiency and precision necessary in professional workshops, and mobile crimpers – excellent for field work where mobility and reliability are key. Thanks to this variety, our machines can meet the requirements of various industries, offering reliability, versatility, and convenience of use.

Pneumatic crimping machine user manual

Important information

It is not recommended to crimp stainless steel fittings ( very hard material ) - when crimping large stainless steel fittings and sleeves, seals, springs inside the head, and the pump can wear out very quickly. For stainless steel fittings, we recommend a larger and stronger P20HP hose press or P20AP pneumatic crimping machine
