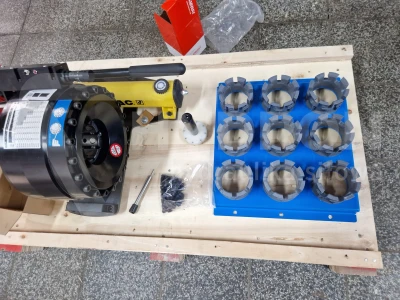

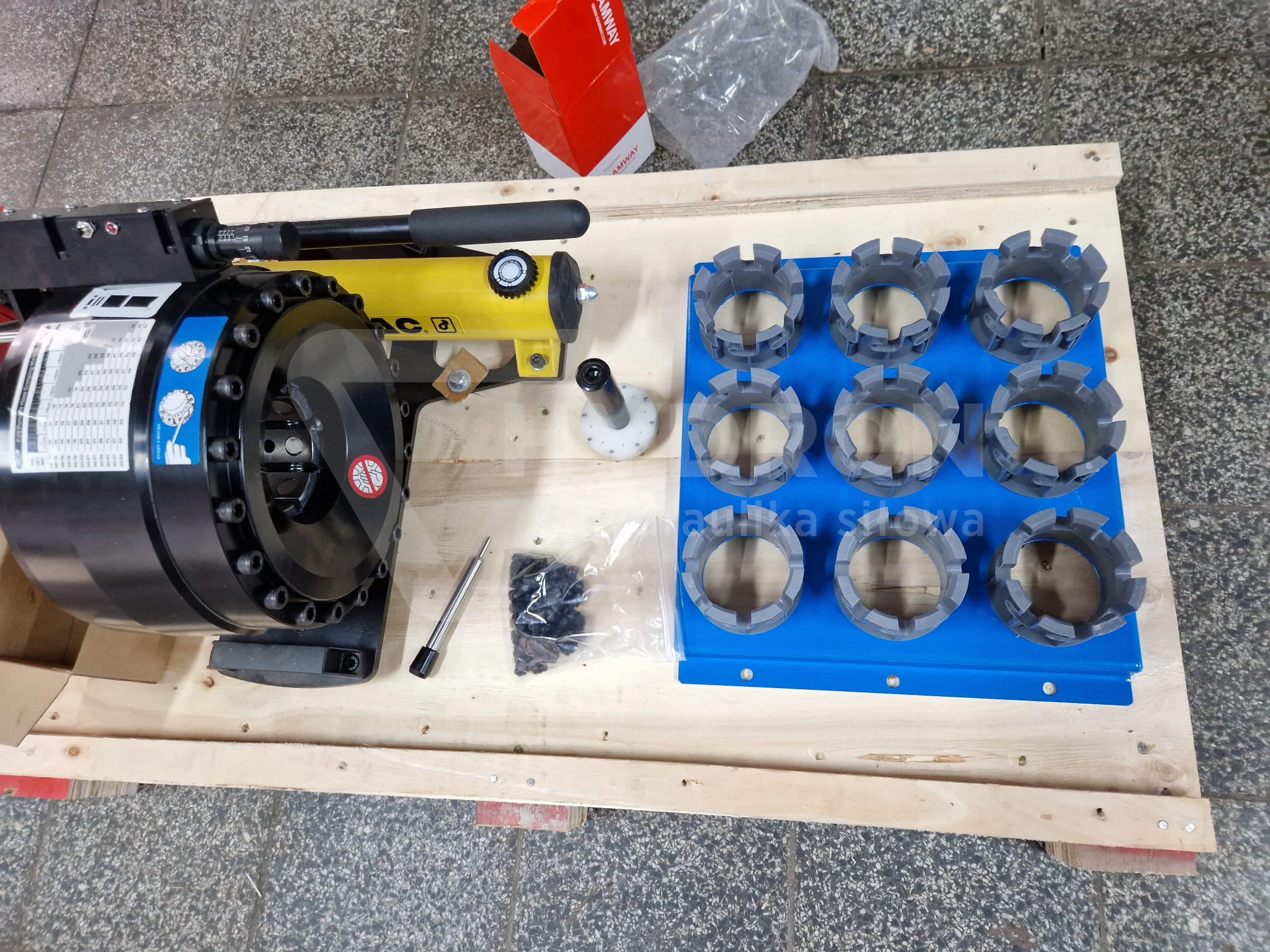

SAMWAY P20HP manual hose crimping machine

Manual hydraulic hose crimping press. Crimper for hose size DN50 (2") 2SN + dies + quick change die tool / handle + die storage rack

The press crimps four-wire hoses – 4SP up to 1 1/2″ diameter (DN40 inside the hose). The crimper crimps 2SN hoses up to DN50 maximum! Lightweight and easy to use, ideal for mobile services. We also offer pneumatically powered crimping machines (just connect to a compressor). If you need a smaller press, check model P16HPZ. Due to its capabilities, the P20HPZ press is ideal for large mobile hose services (construction machinery service etc.).

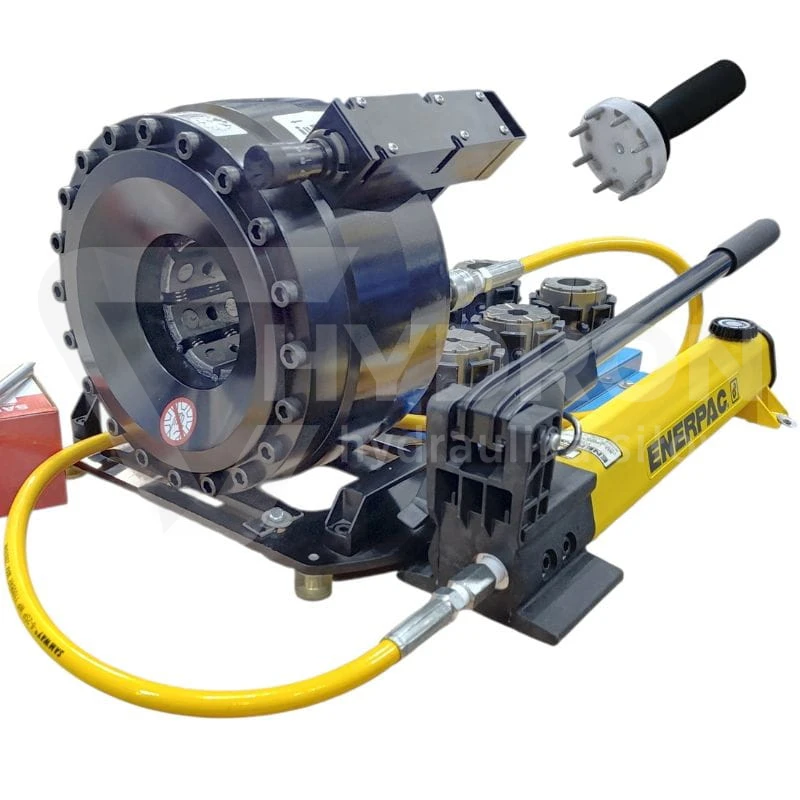

Hydraulic hose crimping machine P20HP + QCT

• Portable crimper with a large crimping diameter: 1 1/2”.
• No electricity required
• Powered by manual pump or Enerpac pneumatic pump
• Complete set of dies
• Ready to work!

Technical specification of the crimper:

• model: SAMWAY P20HP
• Maximum hydraulic hose: 1 1/2” 4 wires
• Crimping range mm: 4-65
• Die type: P20
• Main die length mm: 64
• Maximum opening mm: +25
• Manual pump (optional): Manual pump
• Crimping force KN: 2100
• Control: Micro Dial
• L*W*H mm: 200*250*310
• Weight (kg): 45

Standard die sets included: size / length

• 14 mm dies (length 60 mm)
• 17 mm dies (length 60 mm)
• 20 mm dies (length 60 mm)
• 24 mm dies (length 60 mm)
• 28 mm dies (length 75 mm)
• 32 mm dies (length 75 mm)
• 36 mm dies (length 75 mm)
• 40 mm dies (length 75 mm)
• 44 mm dies (length 75 mm)
• 50 mm dies (length 75 mm)

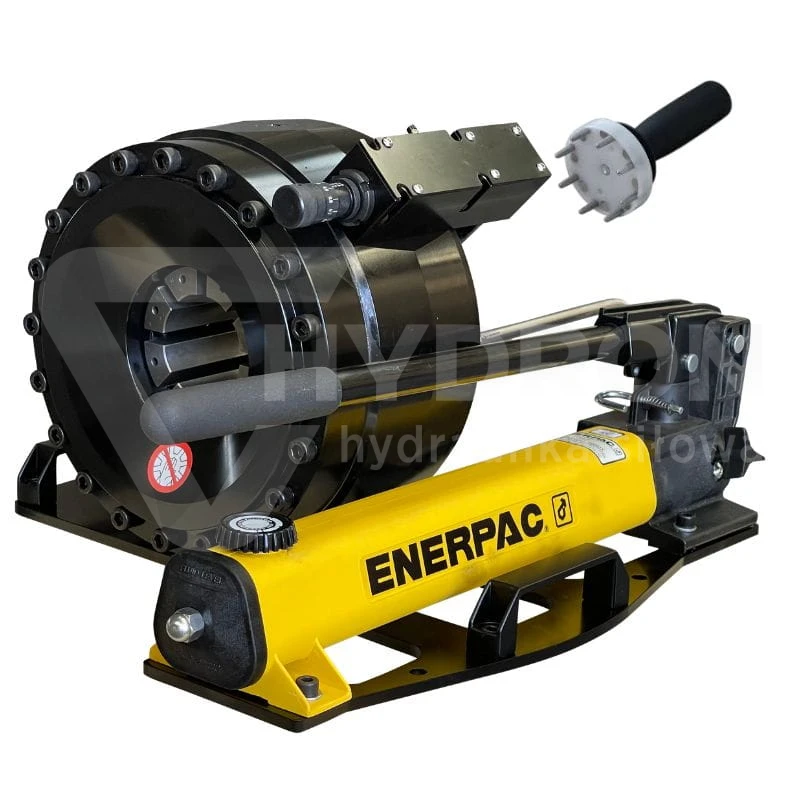

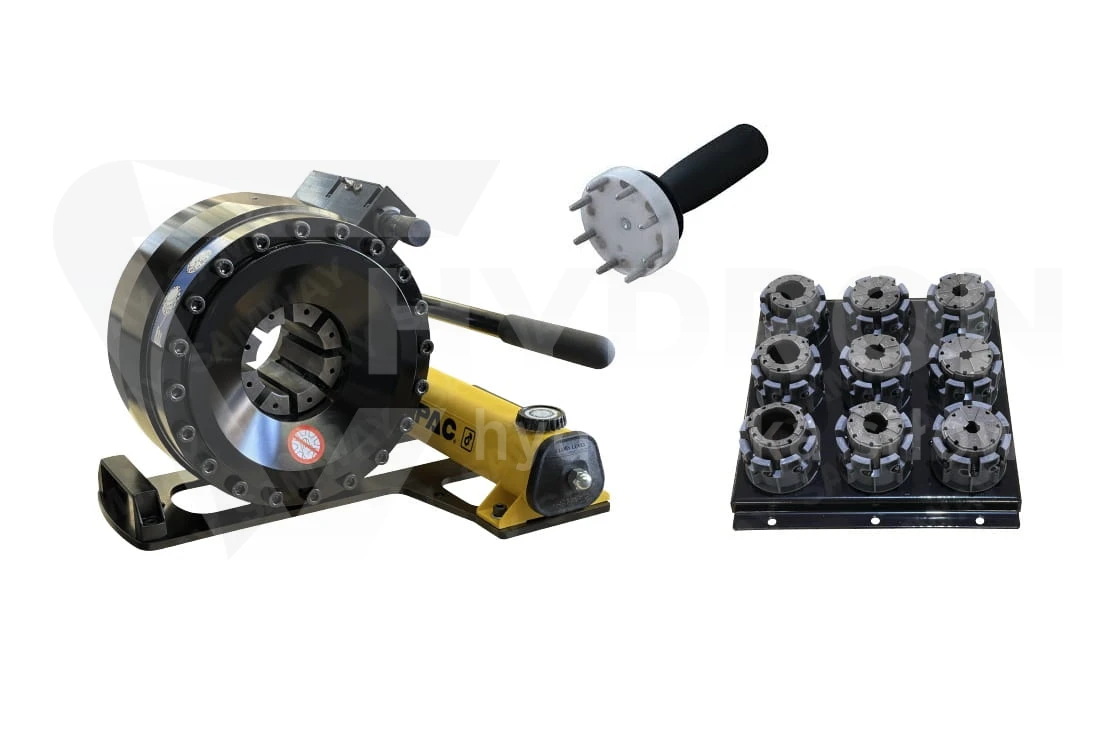

Hydraulic hose crimping machine with quick-change die system (die handle)

Very high crimping capabilities

The P20HP crimper is one of the largest available manual crimpers designed for crimping hydraulic hoses. Because the crimper head is very large, it has a very wide range of applications; you can crimp all types of hydraulic hoses on it, as well as pneumatic hoses, fuel hoses for gasoline and oil, air conditioning hoses, low-pressure hoses - in short, everything that fits into the crimper head. The crimper has a very high crimping force and can therefore also be used for crimping textile or steel ropes.

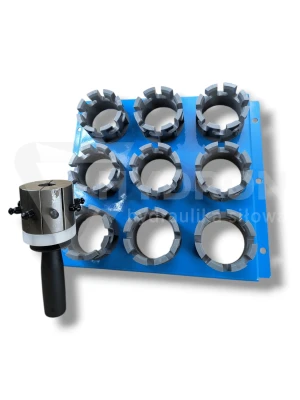

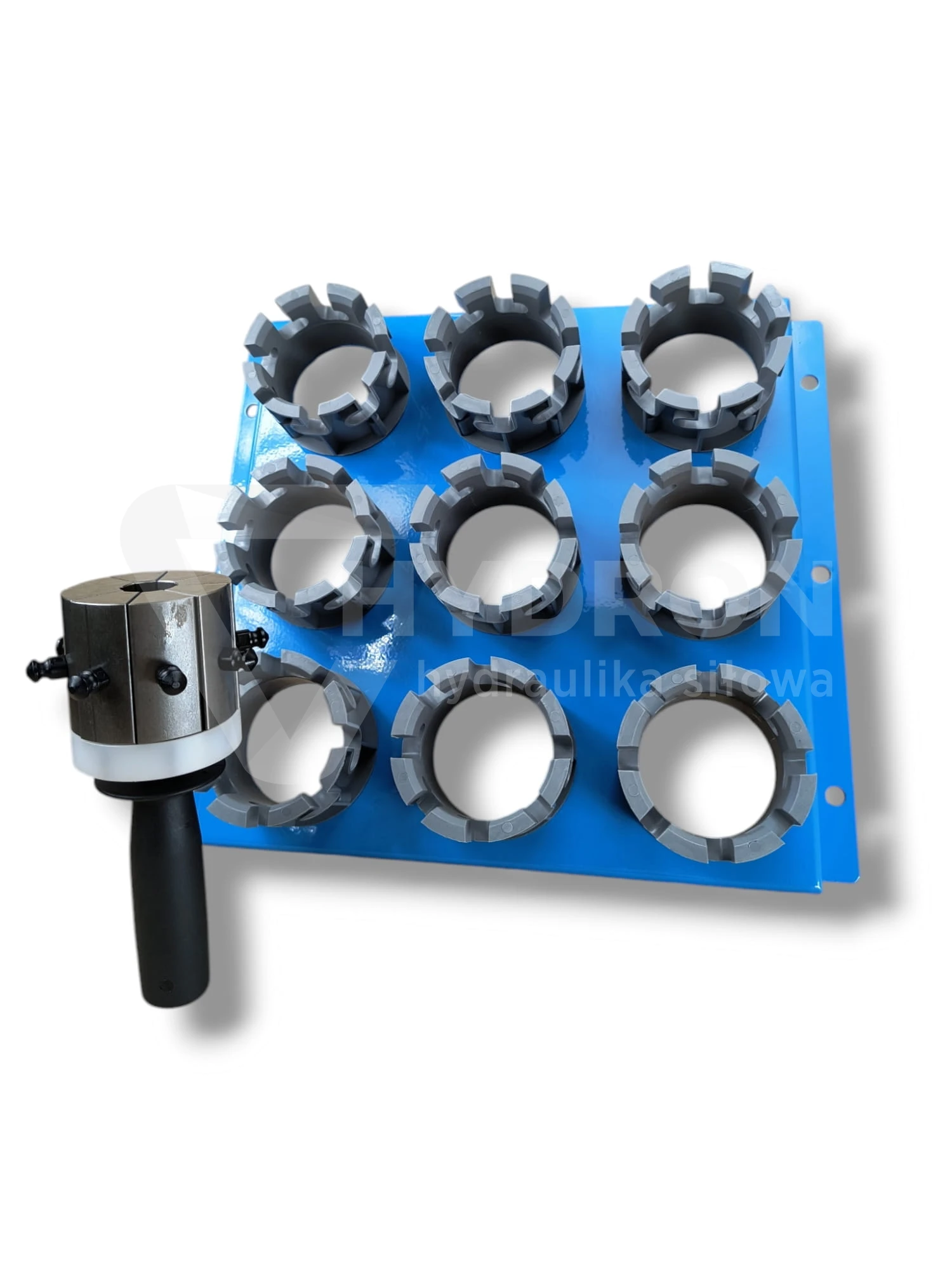

Quick-change die system and die storage racks

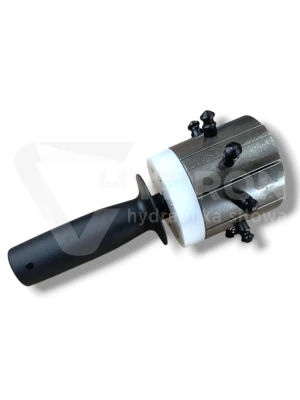

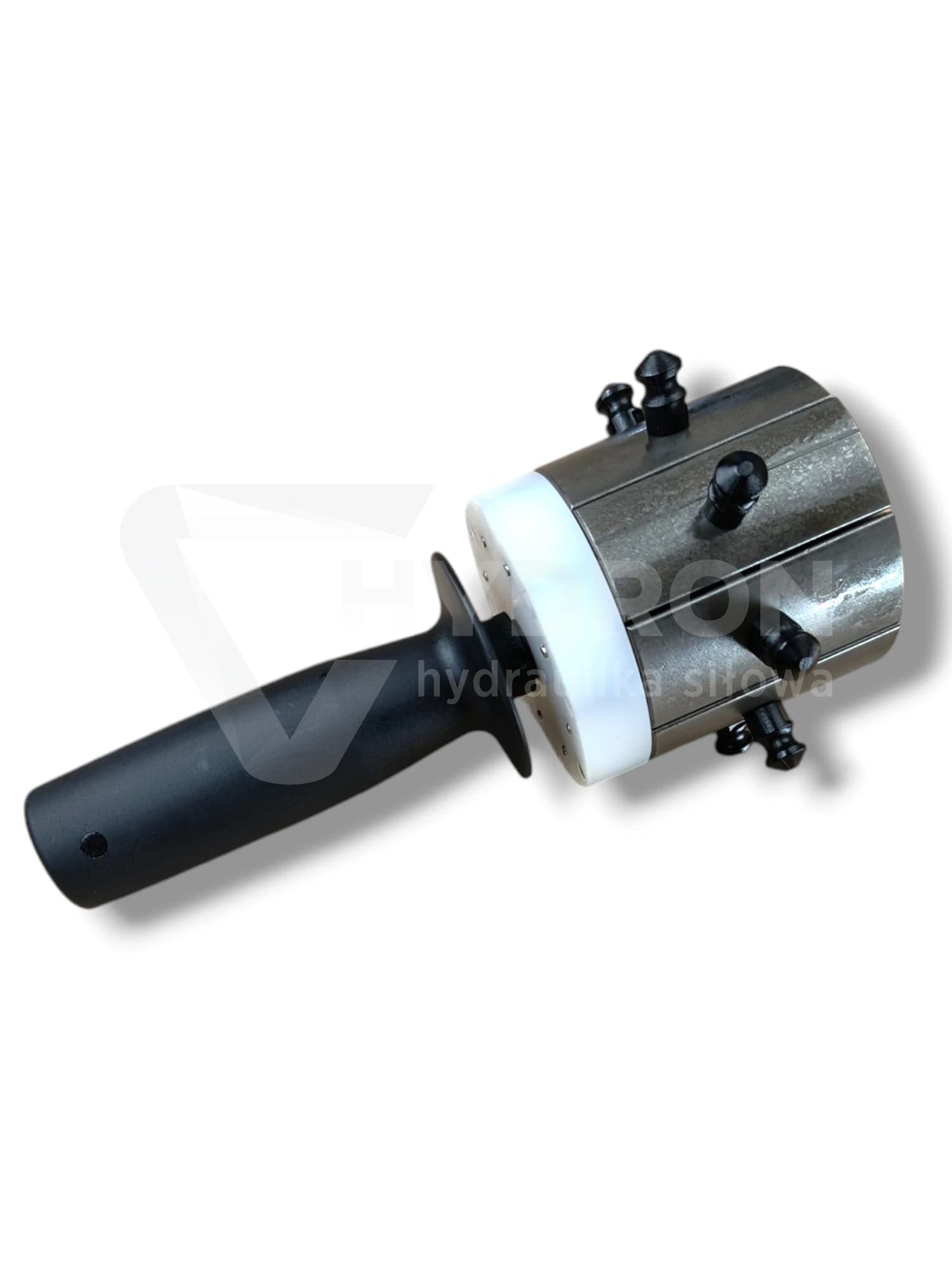

As of 2024, the crimper is available in a version with a die rack and a quick-change handle. This quick-change system works by using a special handle to place 8 dies on the handle and then fixing all dies into the crimper head at once.

Ideal solution for service vehicles, mobile service

This type of crimper is very popular among companies in the construction industry. Among others, road construction companies own this crimper. The press has great capabilities and at the same time a low weight, hence it is an ideal solution for mobile services (service vehicles). The P20AP also comes in a compressed air version (model P20AP)-this is a model powered by compressed air where you just need to connect a pneumatic hose and the hydraulic-pneumatic pump pumps so you do not have to do it manually.

What hose size does the P20HP model crimp?

Hose sizes the crimper crimps (inner hose diameter): 6 mm, 8 mm, 10 mm, 13 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, which is the equivalent of 1/4 inch, 5/16 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch hoses. The P20HP manual press is equipped with interchangeable die sets (crimping dies), and the dies are included with the machine. The crimper and the entire set also include an Enerpac manual pump. The press is ready to work.

Supporting materials with the crimper

Our customers receive all materials necessary to start work: instructions in Polish, CE declaration of conformity, written warranty, OHS workstation manual, hydraulic hose crimping table (so that we know what size to crimp a specific hose to).

Technical support, warranty and post-warranty service

Customers can count on full technical support and warranty and post-warranty service.

Hose crimping accessories - fittings, hoses, ferrules

We also offer crimping fitting sets, the so-called starter packs. The sets include hydraulic hoses, ferrules, and fittings for crimping hydraulic hoses. Our offer includes standard packages (most popular fittings, hoses, connectors), and we can also adapt the package to the customer's specific activity.

Largest selection of hose crimping machines in Poland

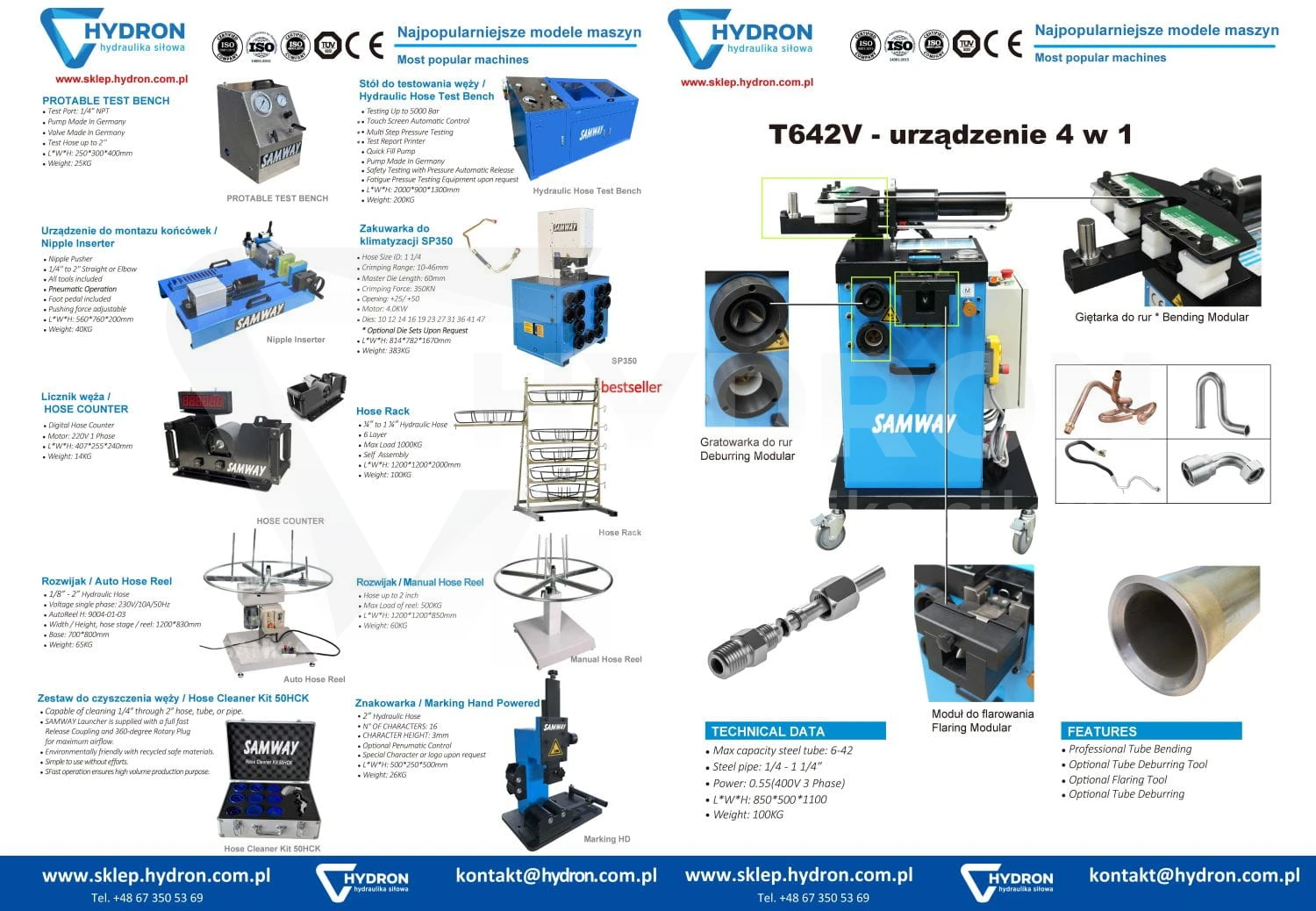

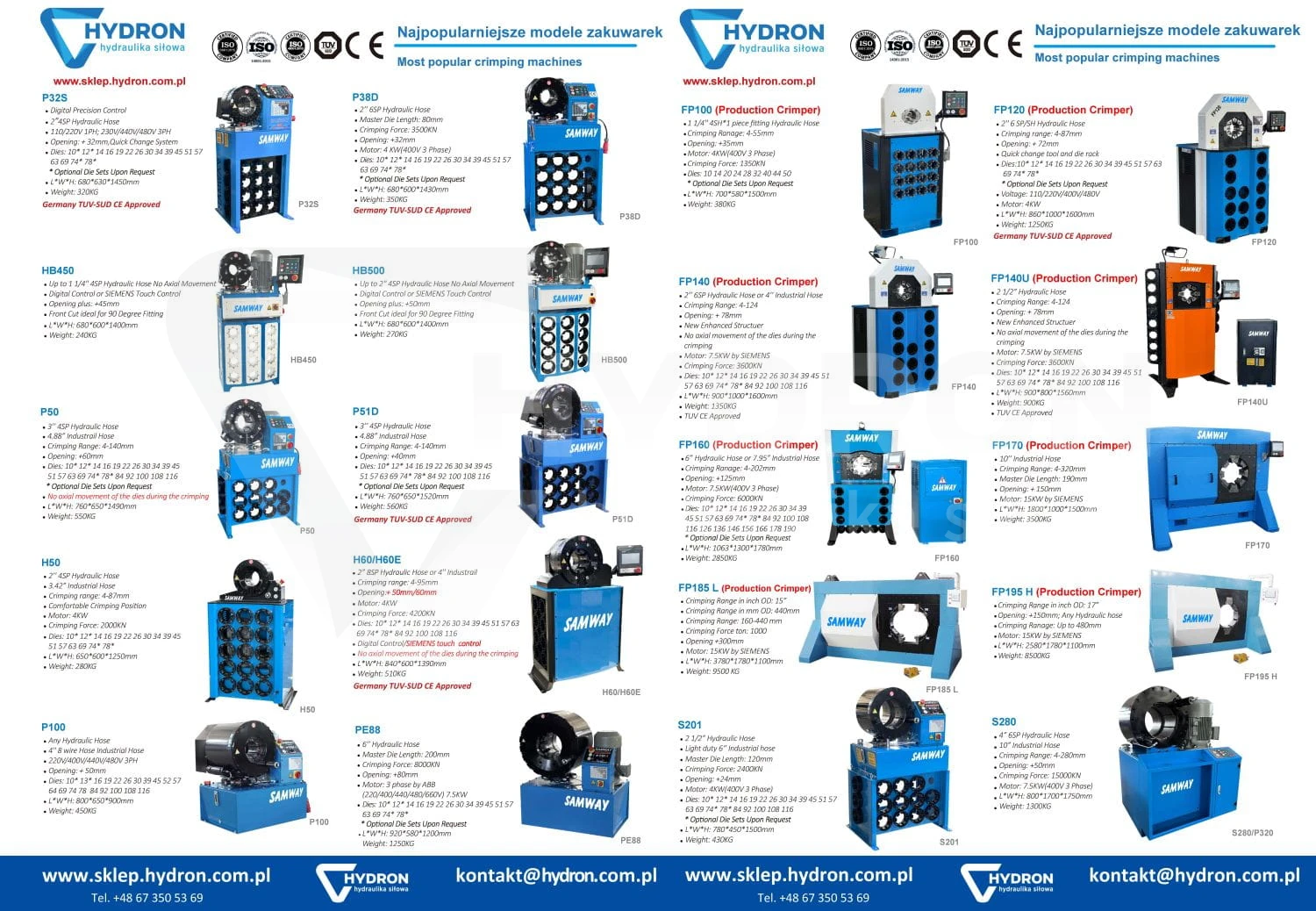

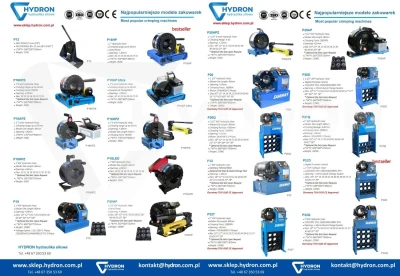

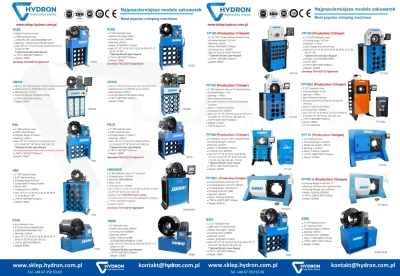

In our offer, you will find the largest selection of machines designed for crimping hydraulic hoses. We have low-pressure crimpers, small mobile crimpers, large crimpers, electric workshop crimpers, as well as industrial crimpers. If you have questions regarding crimping machines, contact the sales department, which will answer all your questions.

How to crimp hydraulic hoses on a manual crimping machine?

How to crimp hoses on a manual crimper? The answer is very simple: take the crimping table and see which hose needs to be crimped, what hose diameter with how many braids we need to crimp - look at the table and check the dimension the crimping ferrule should have after crimping. Once the crimping diameter dimension is known, select the appropriate crimping dies available with our crimper. The rule is simple - choose the dies closest in size to the size we want to crimp and then use
