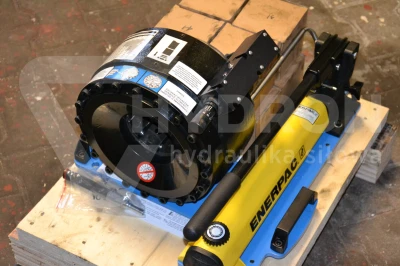

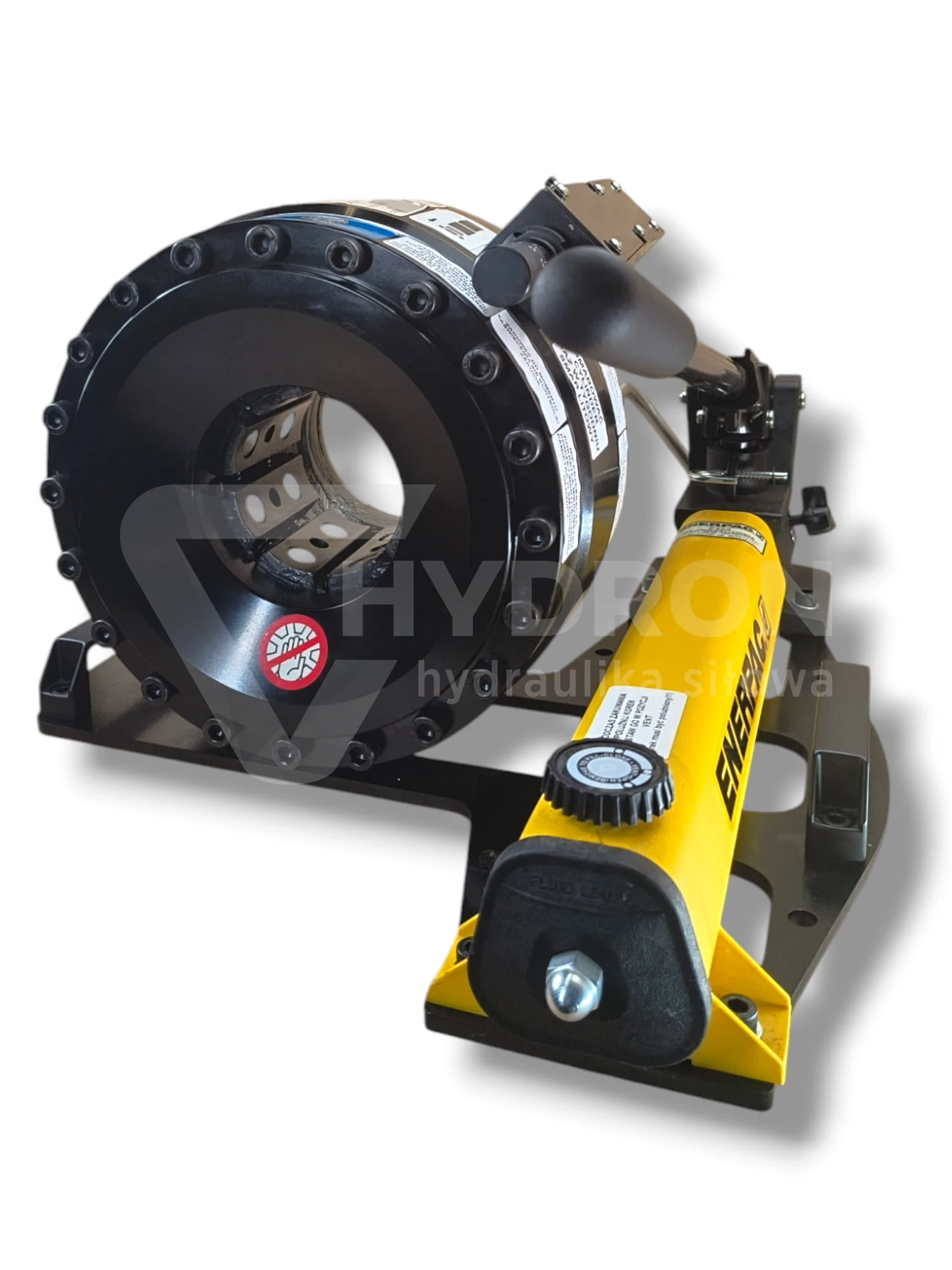

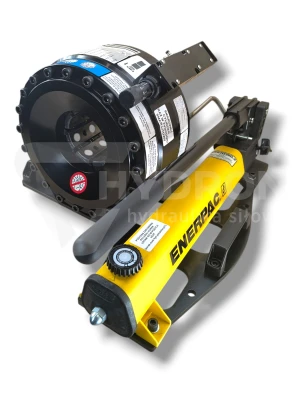

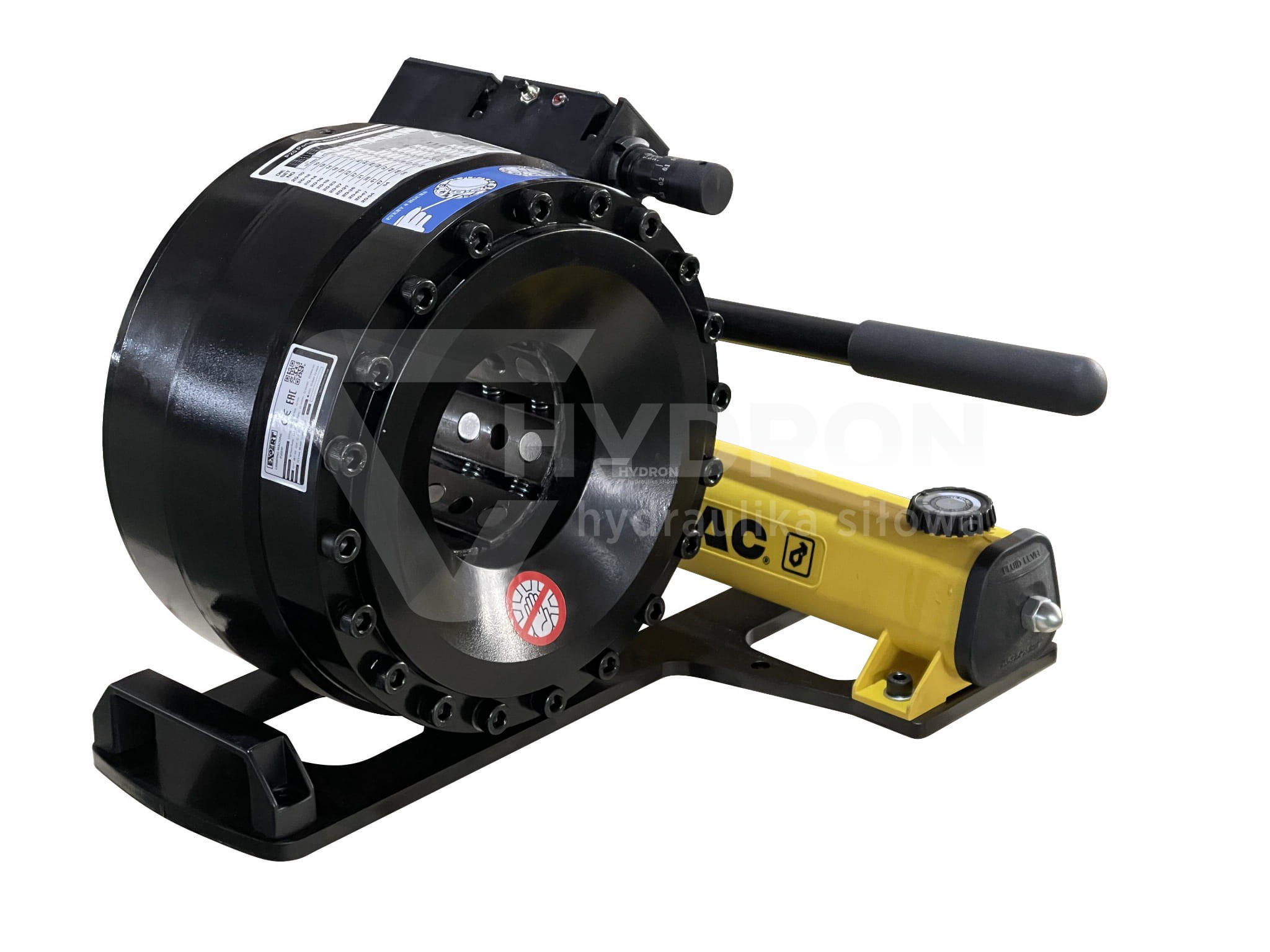

SAMWAY P20HP manual hose crimping machine

The largest manual hose crimper available on the market

• Instruction manual for the P20HP manual hose crimper
• Schedule a free meeting and machine presentation
• Comparison of the most frequently sold crimpers
• Crimper leasing

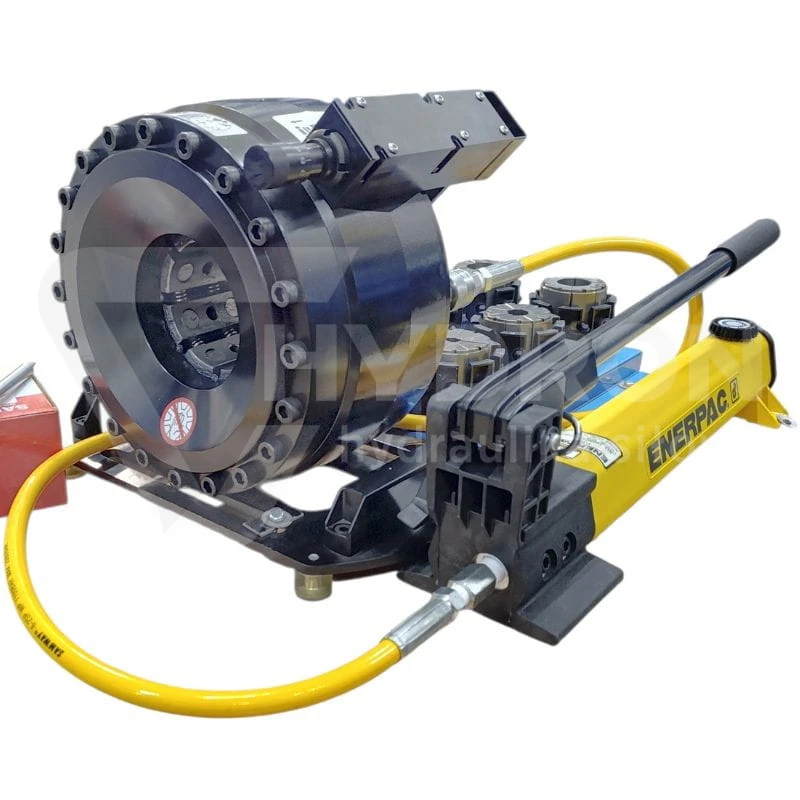

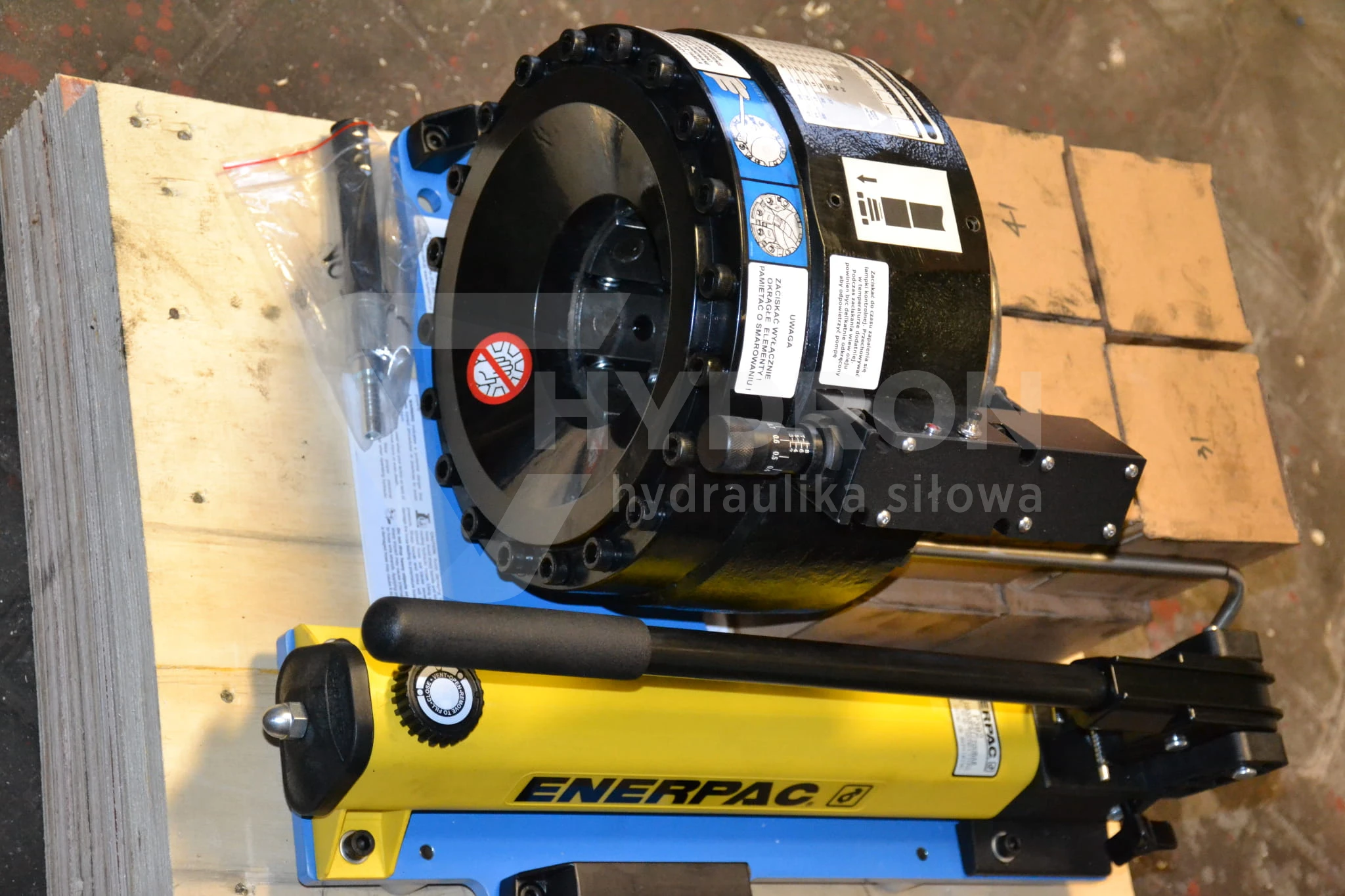

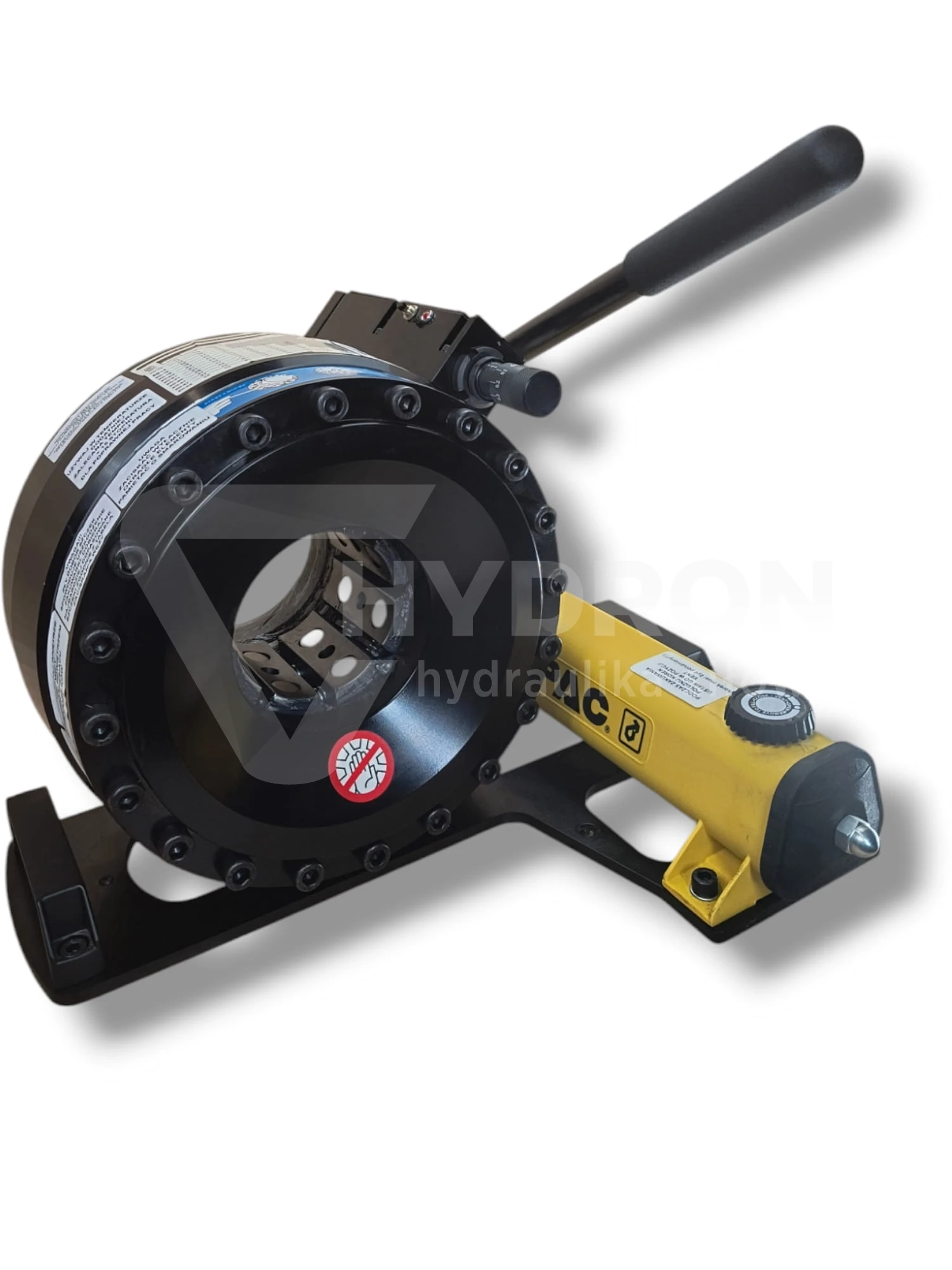

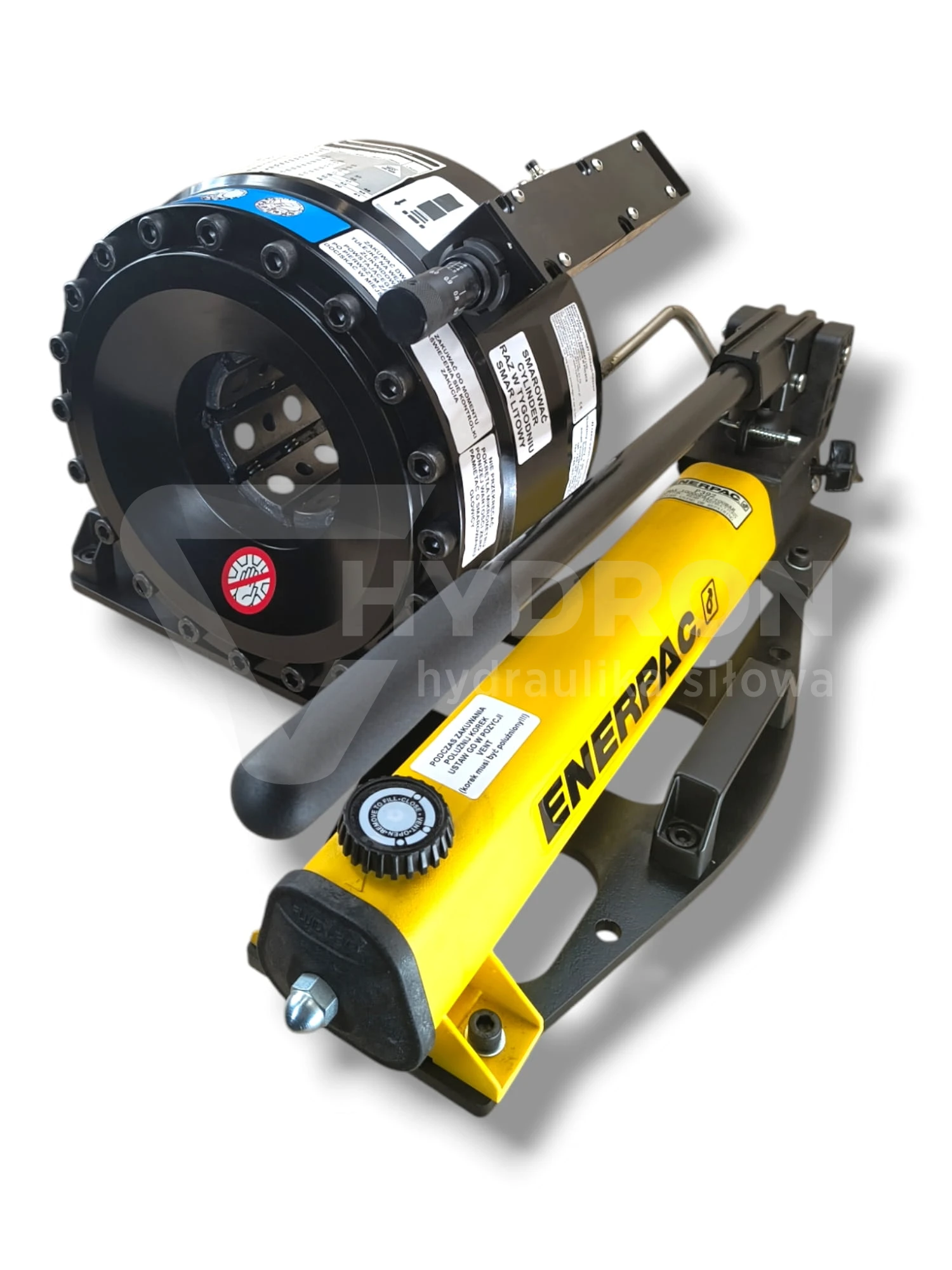

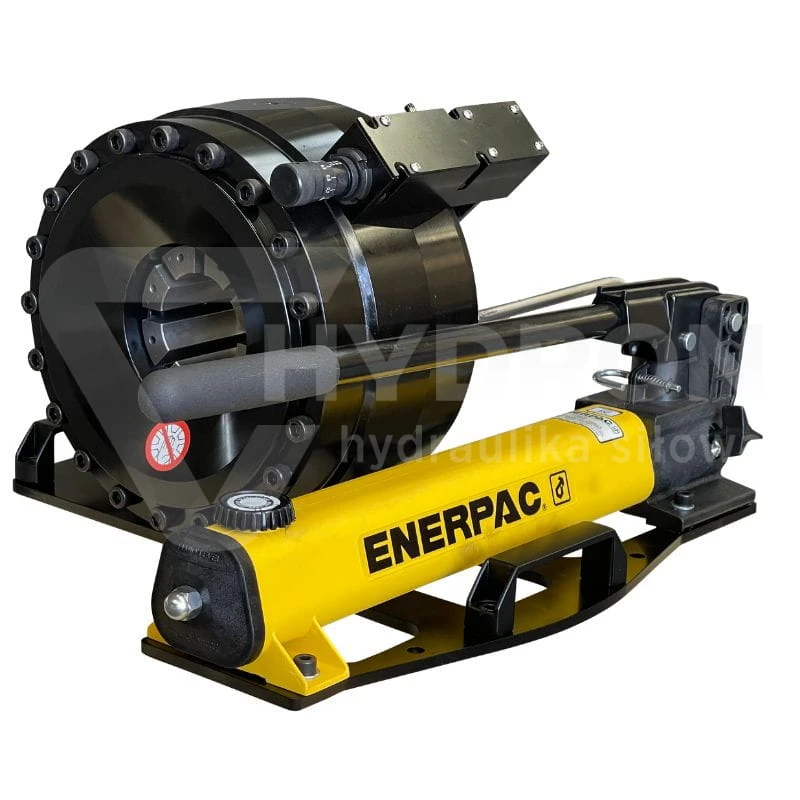

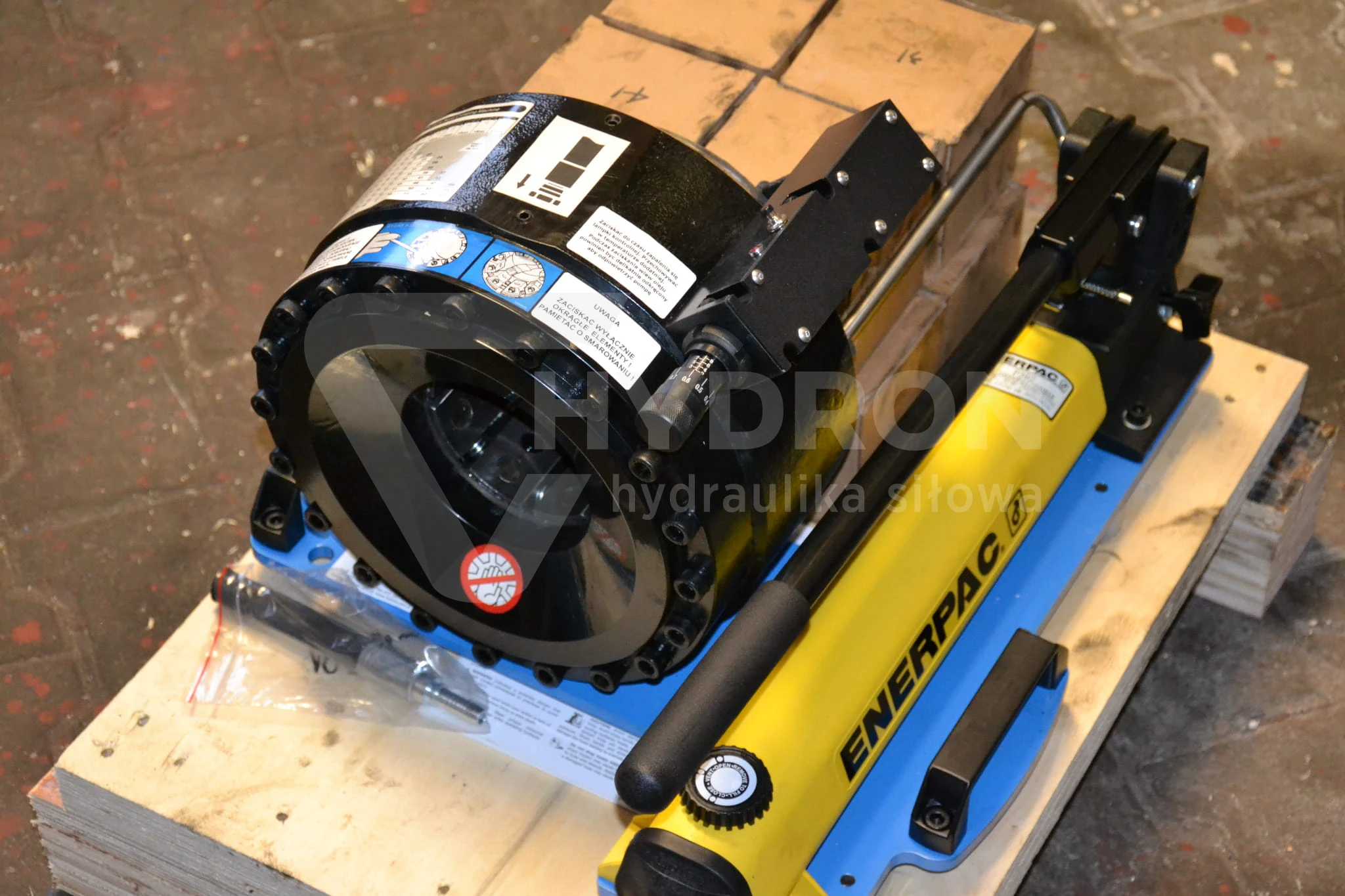

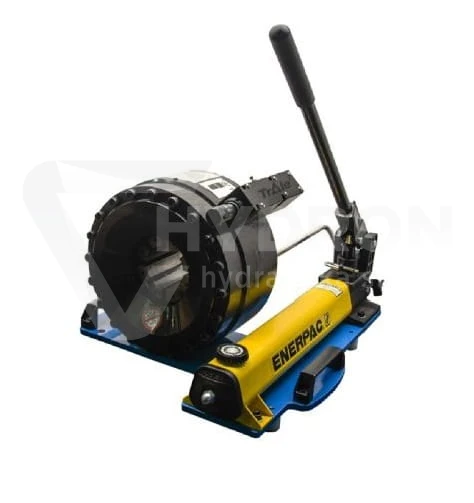

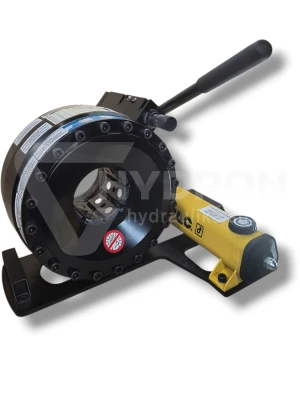

Manual hose crimping machine

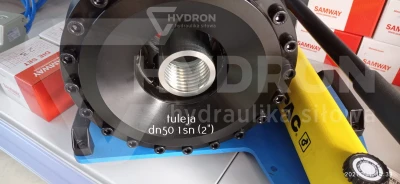

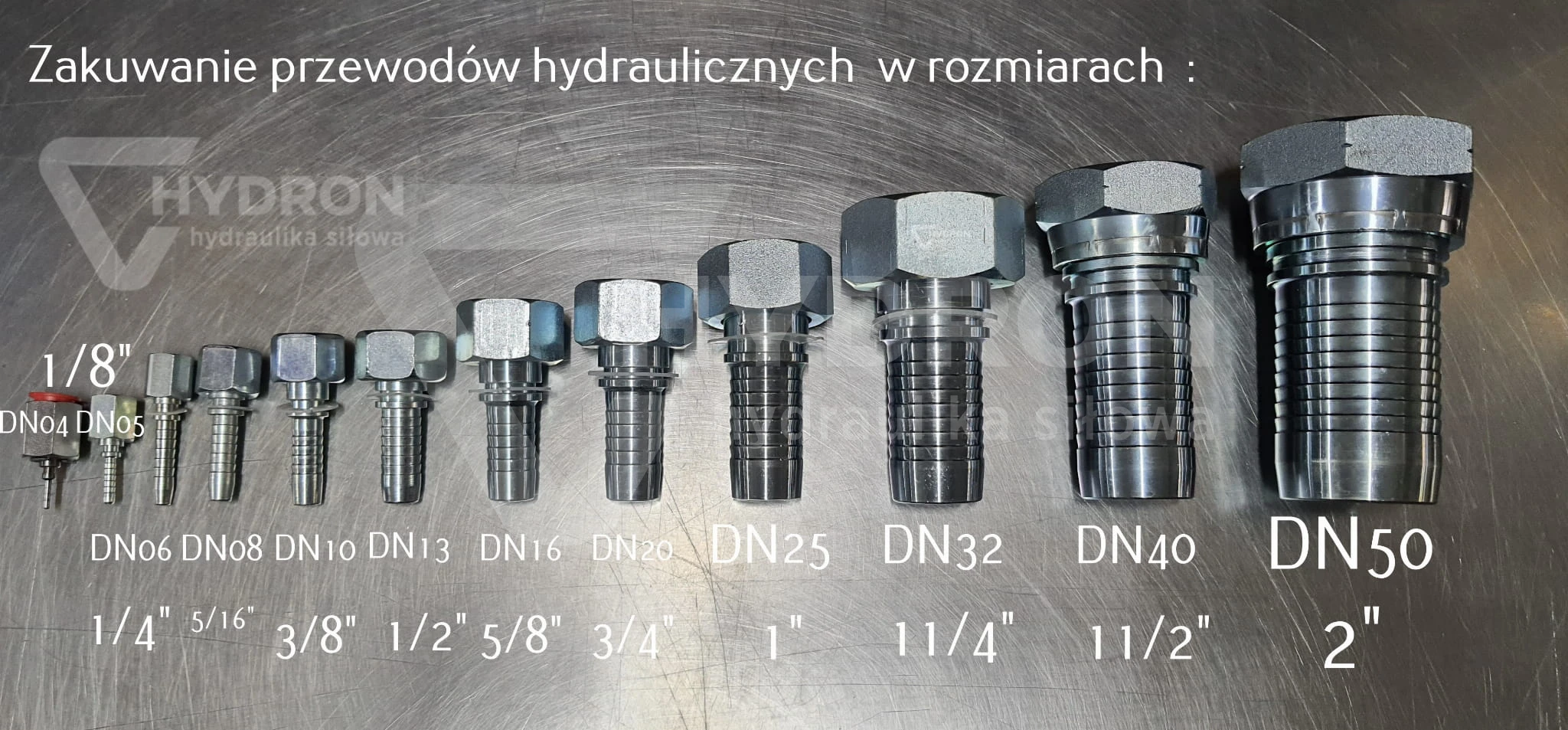

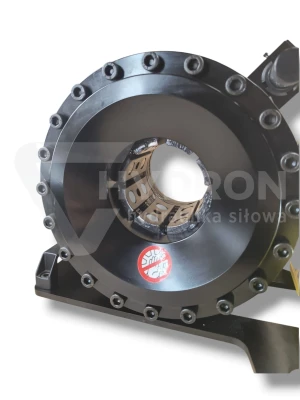

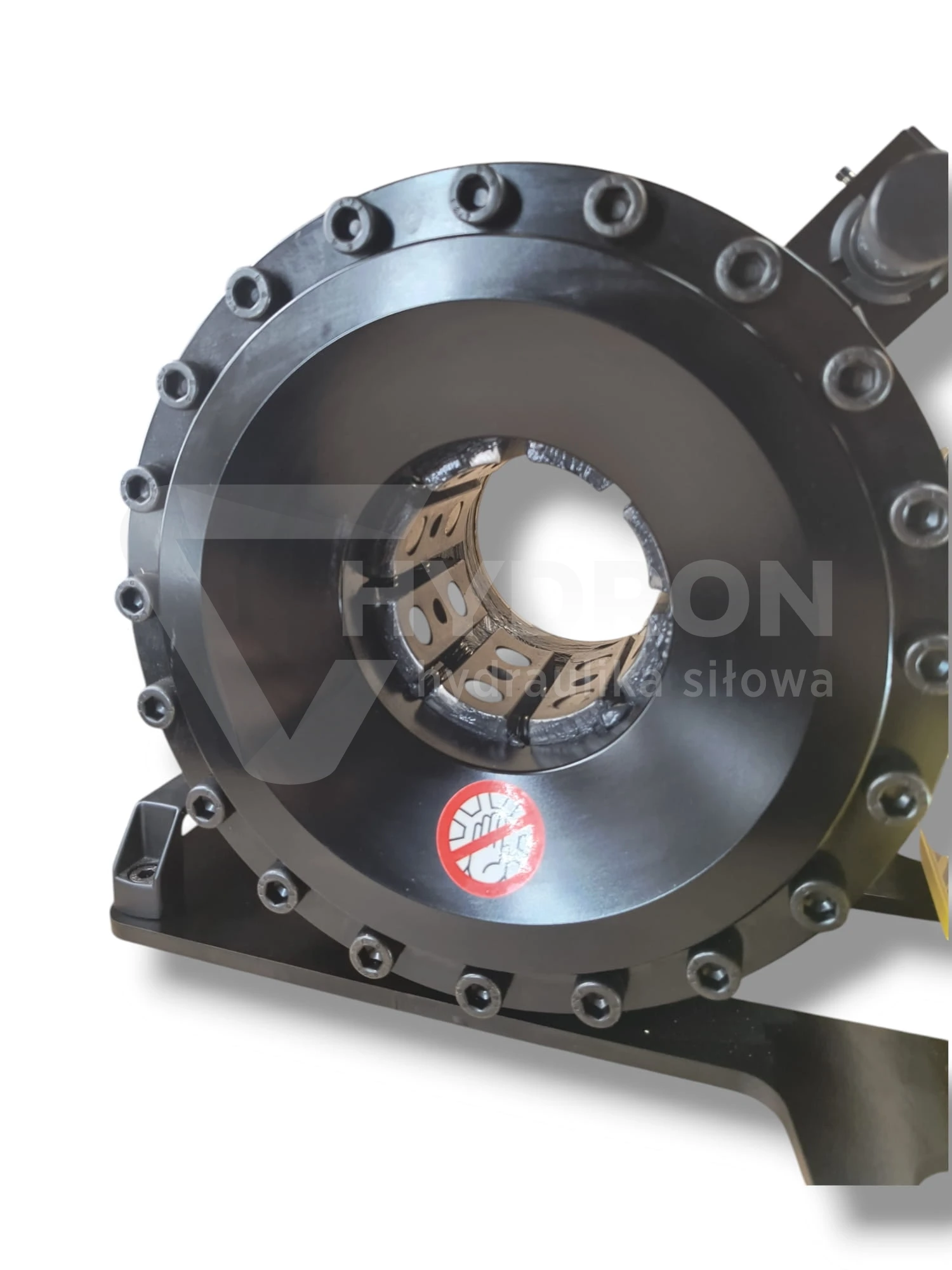

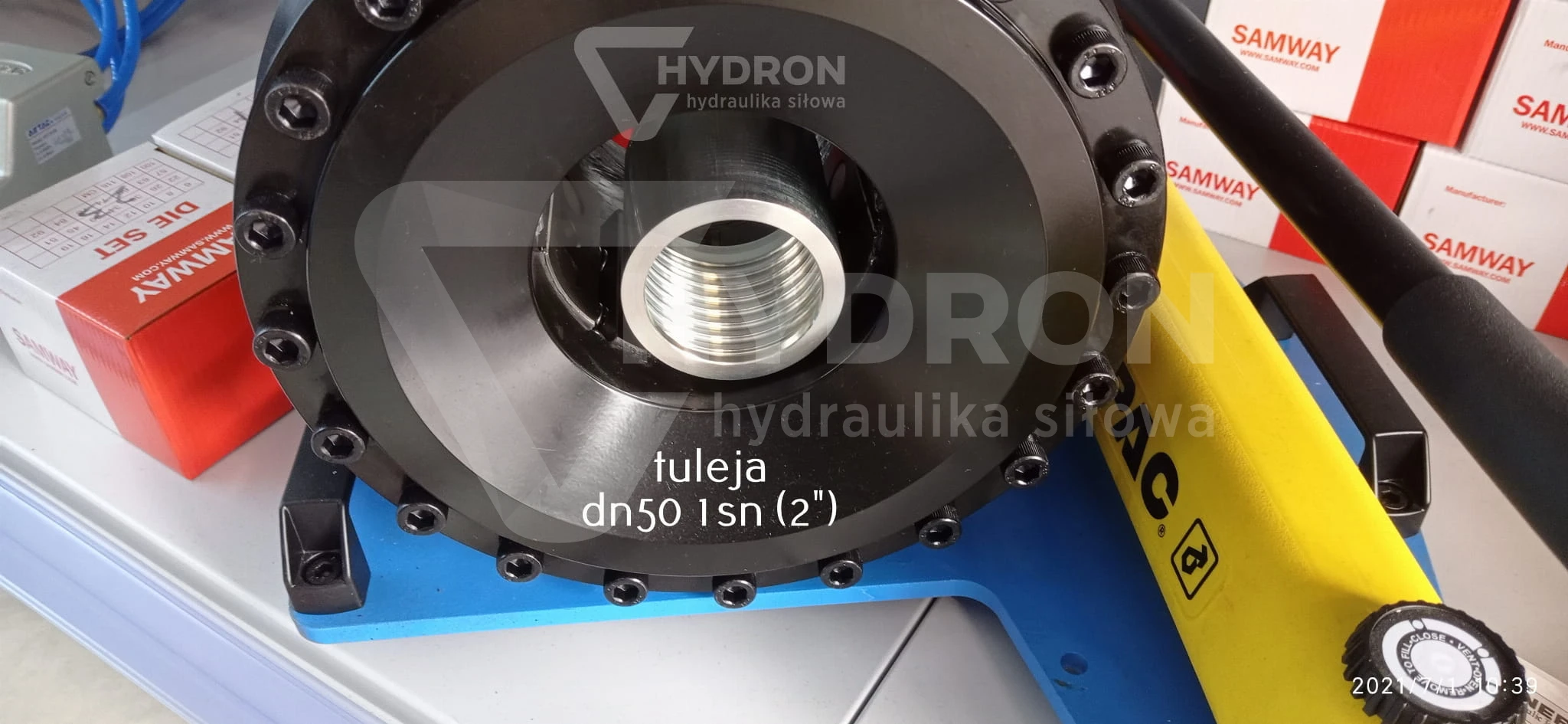

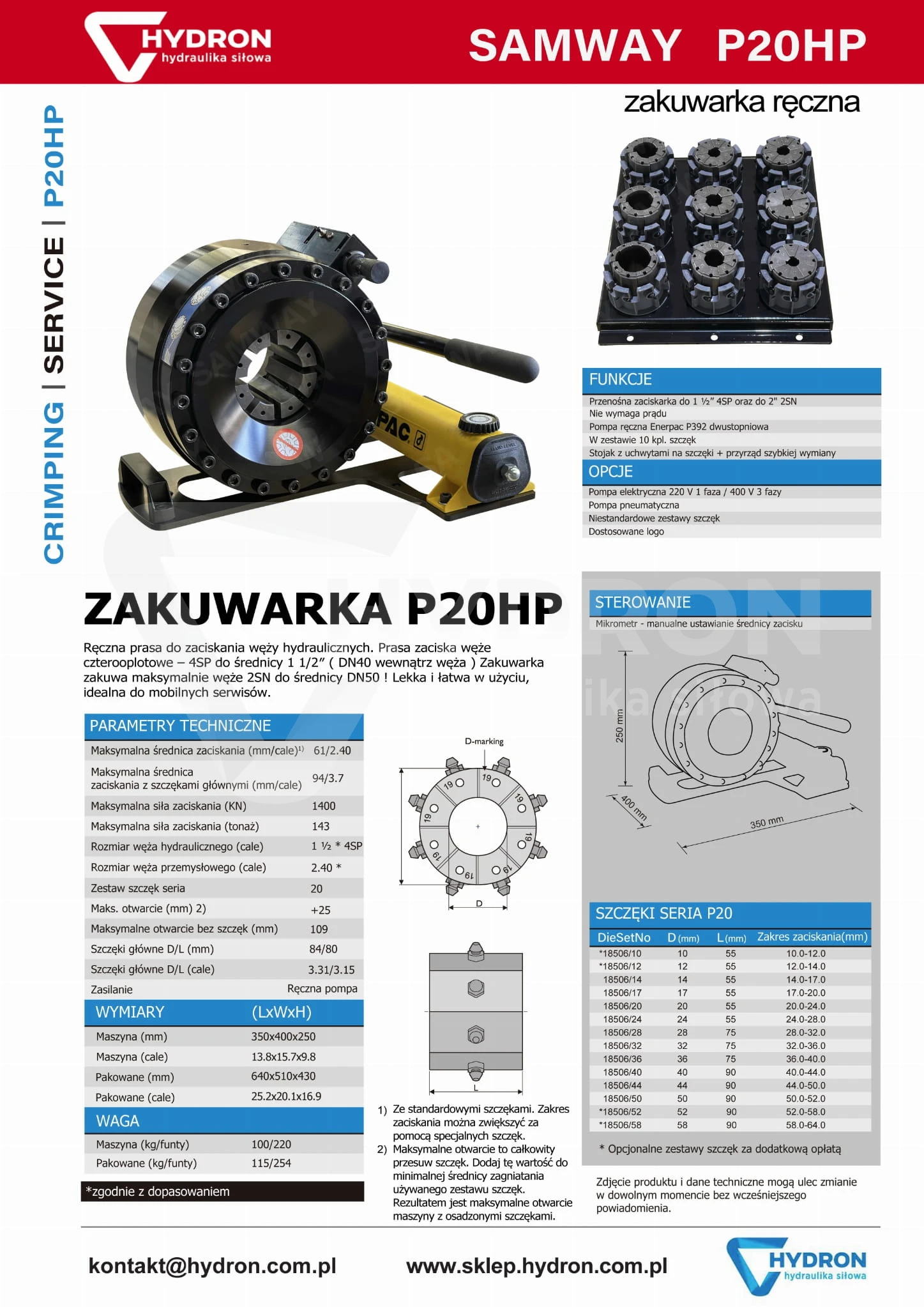

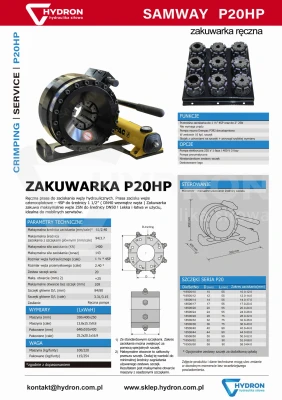

Manual crimper for crimping hydraulic hoses. The press crimps four-wire hoses – 4SP up to a diameter of 1 1/2″ (DN40 inside the hose). The crimper crimps a maximum of 2SN hoses up to DN50 diameter! The crimper has a very large head, which allows for crimping practically all sizes of hydraulic hoses, easy to use, ideal for mobile services. We also offer crimpers with pneumatic drive (model P20AP - just connect it to a compressor). If you need a smaller press, check model P16HP. P20HP press due to its capabilities is ideal for large mobile hose services (construction machinery service etc.). The crimper is a great choice for those who need a crimper with a large crimping diameter and relatively small dimensions. Full technical data is available at the bottom of the page in the latest catalog sheet. The largest elbow fitting that will fit in the head of this crimper is the fitting 90 degree elbow DN32 1 1/4".

Technical parameters of the crimper

• Model: SAMWAY P20HP
• Maximum crimped hose size: 1 ½’’ (DN40mm) 4SP
• Crimping range: 61 mm
• Crimping range on main dies: 94mm
• Maximum opening without dies: 109mm
• Die type: series 20
• Main die length: 80 mm
• Maximum die opening: +25 mm
• Power supply: manual

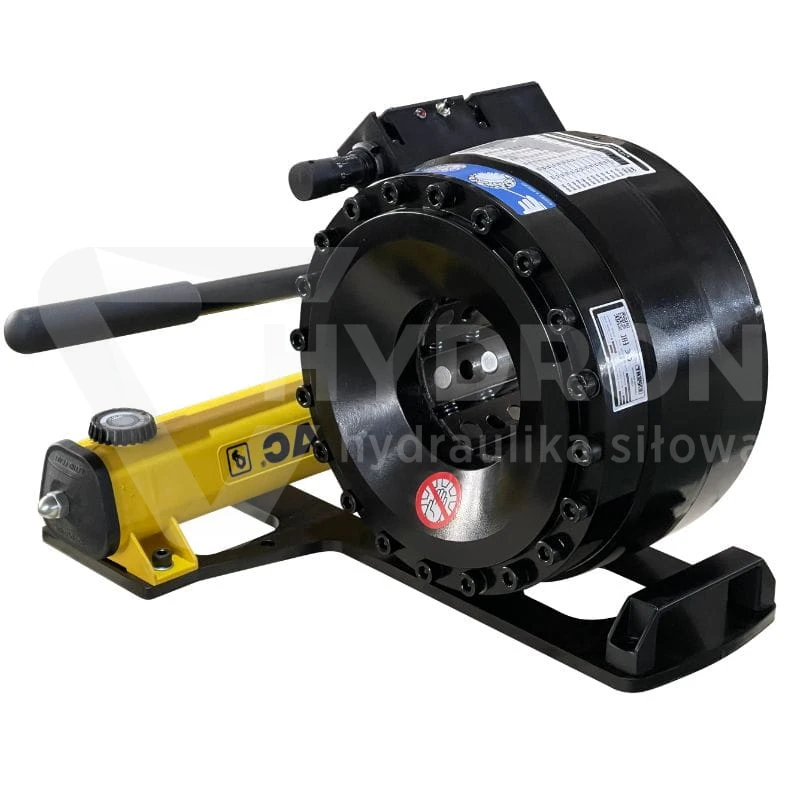

• Manual pump: Two-stage Enerpac: 700 bar
• Crimping force: 1400 KN / 140 tons

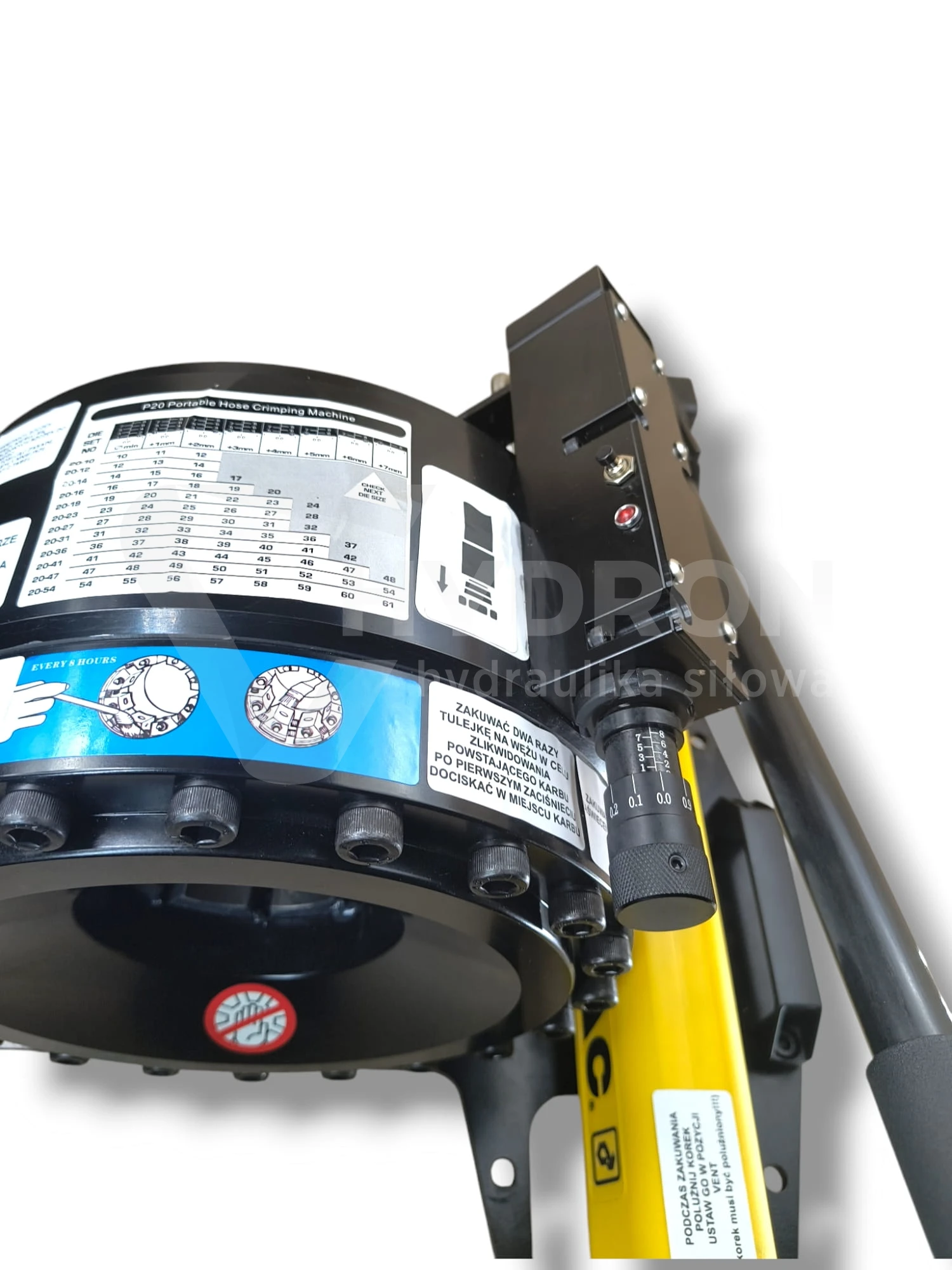

• Control: Micrometer
• Crimper dimensions LxWxH: 350mm*400mm*250mm
• Weight: 100KG

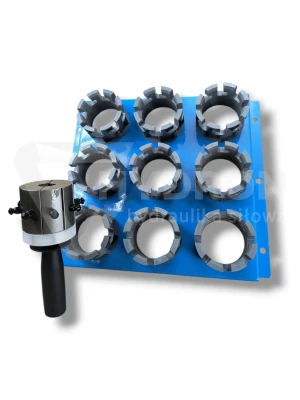

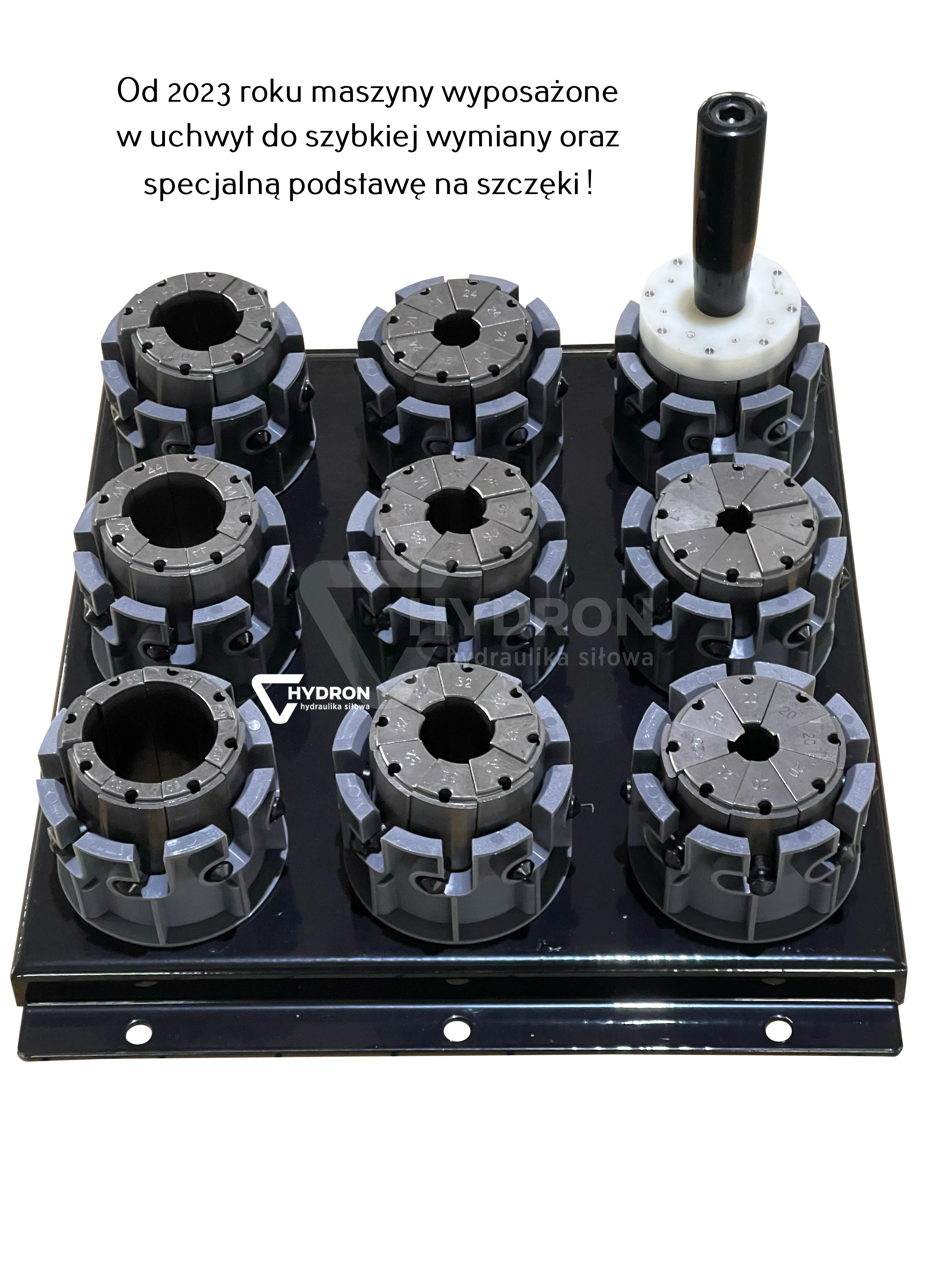

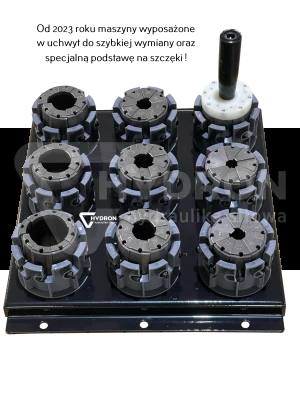

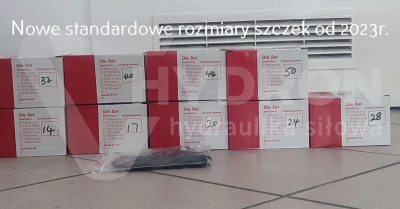

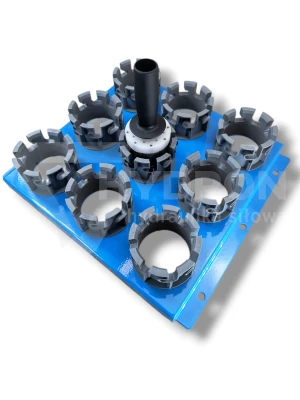

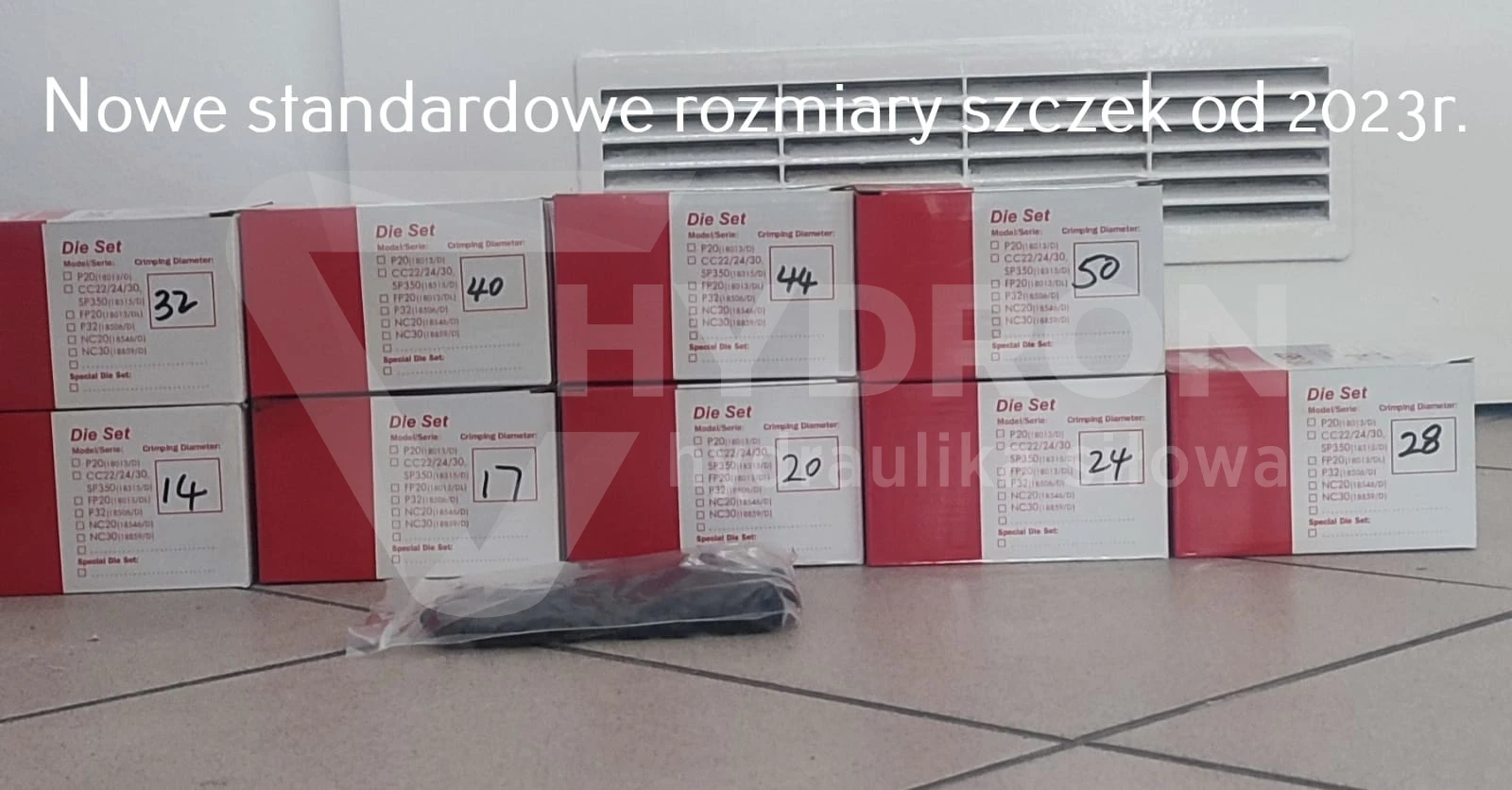

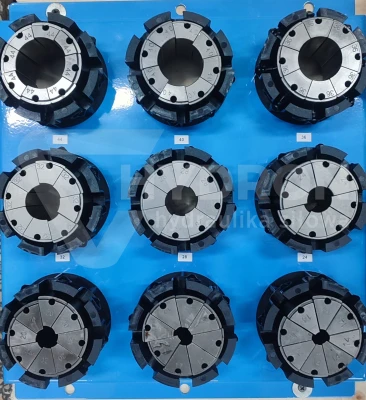

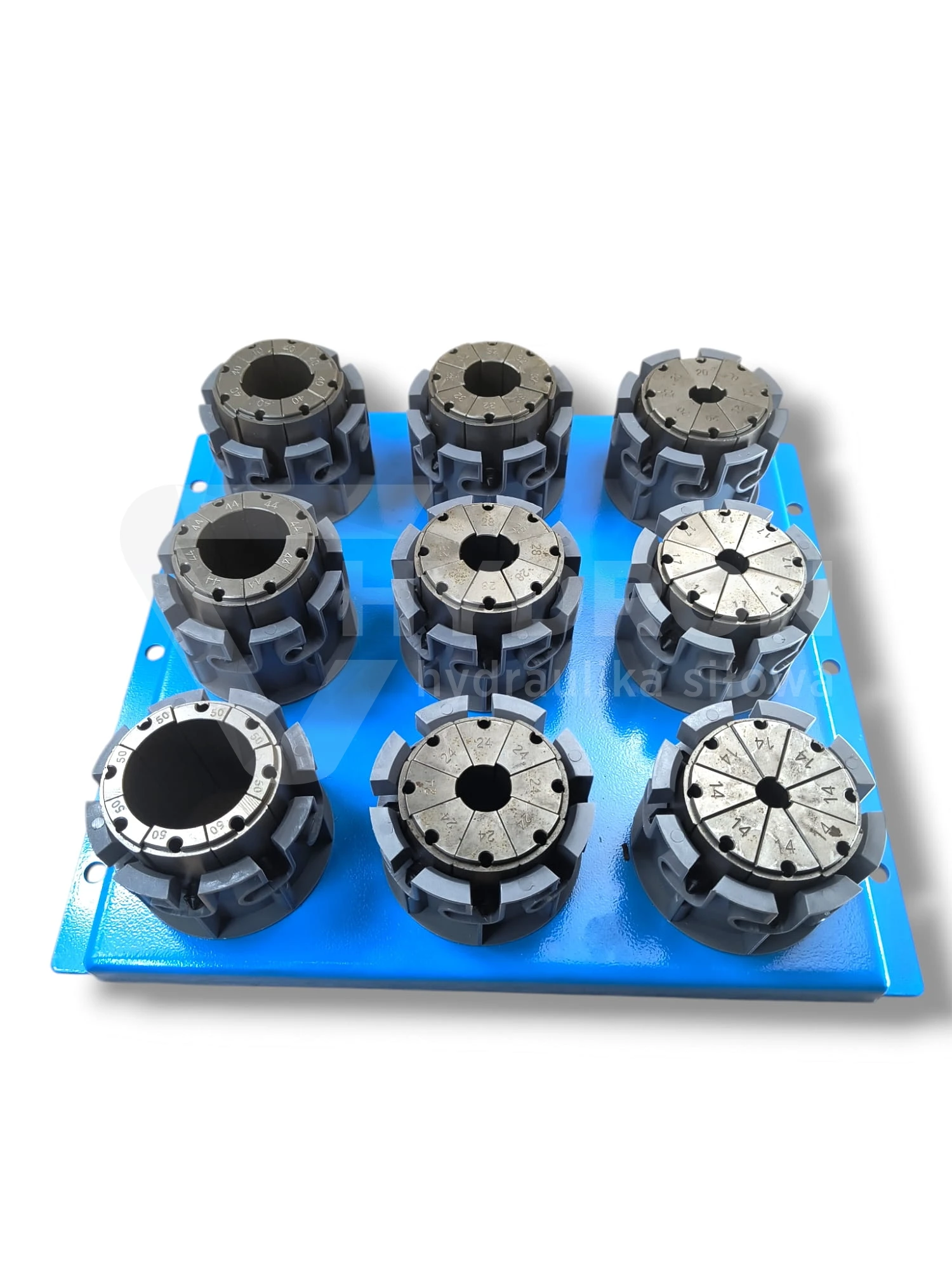

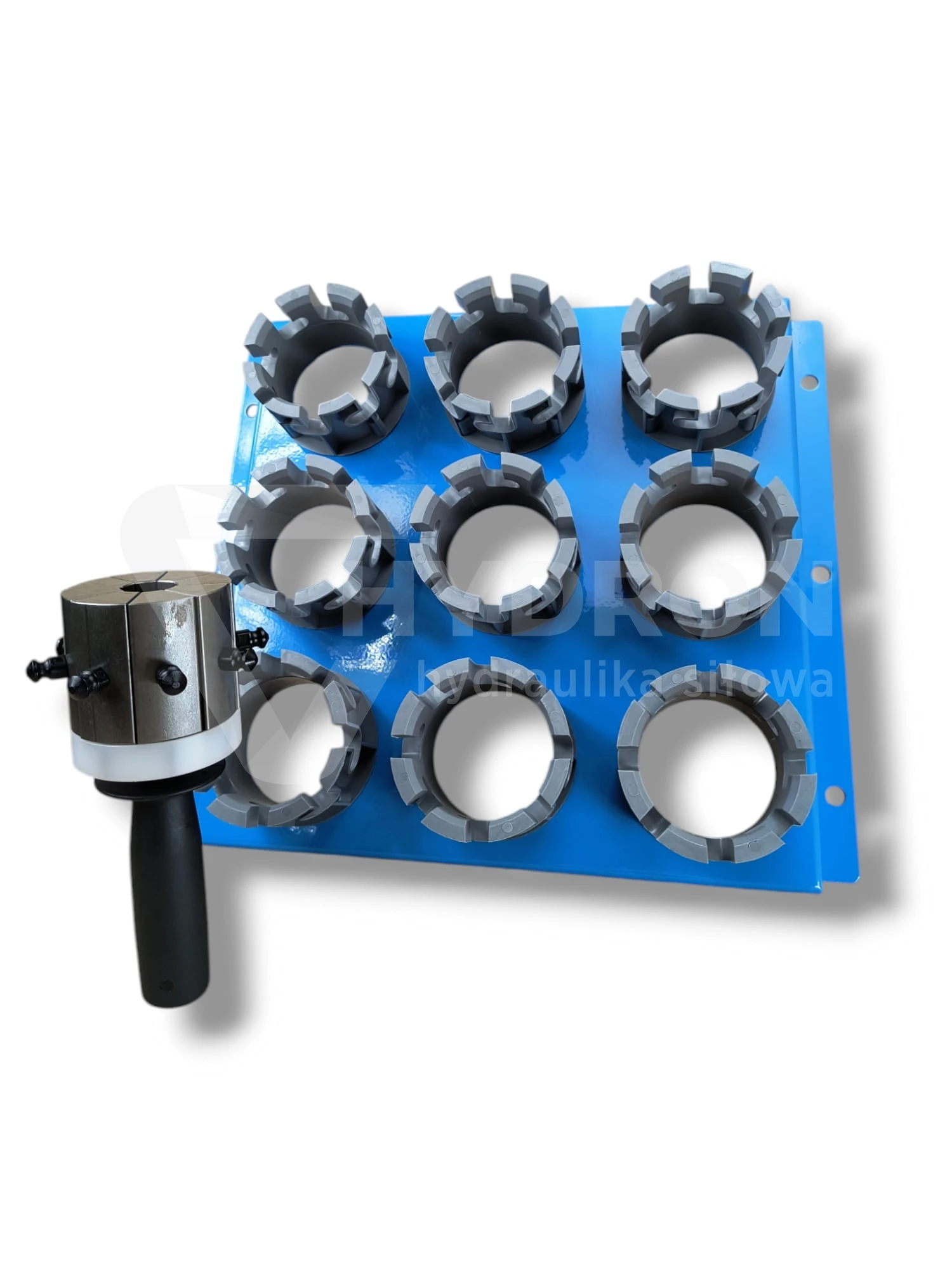

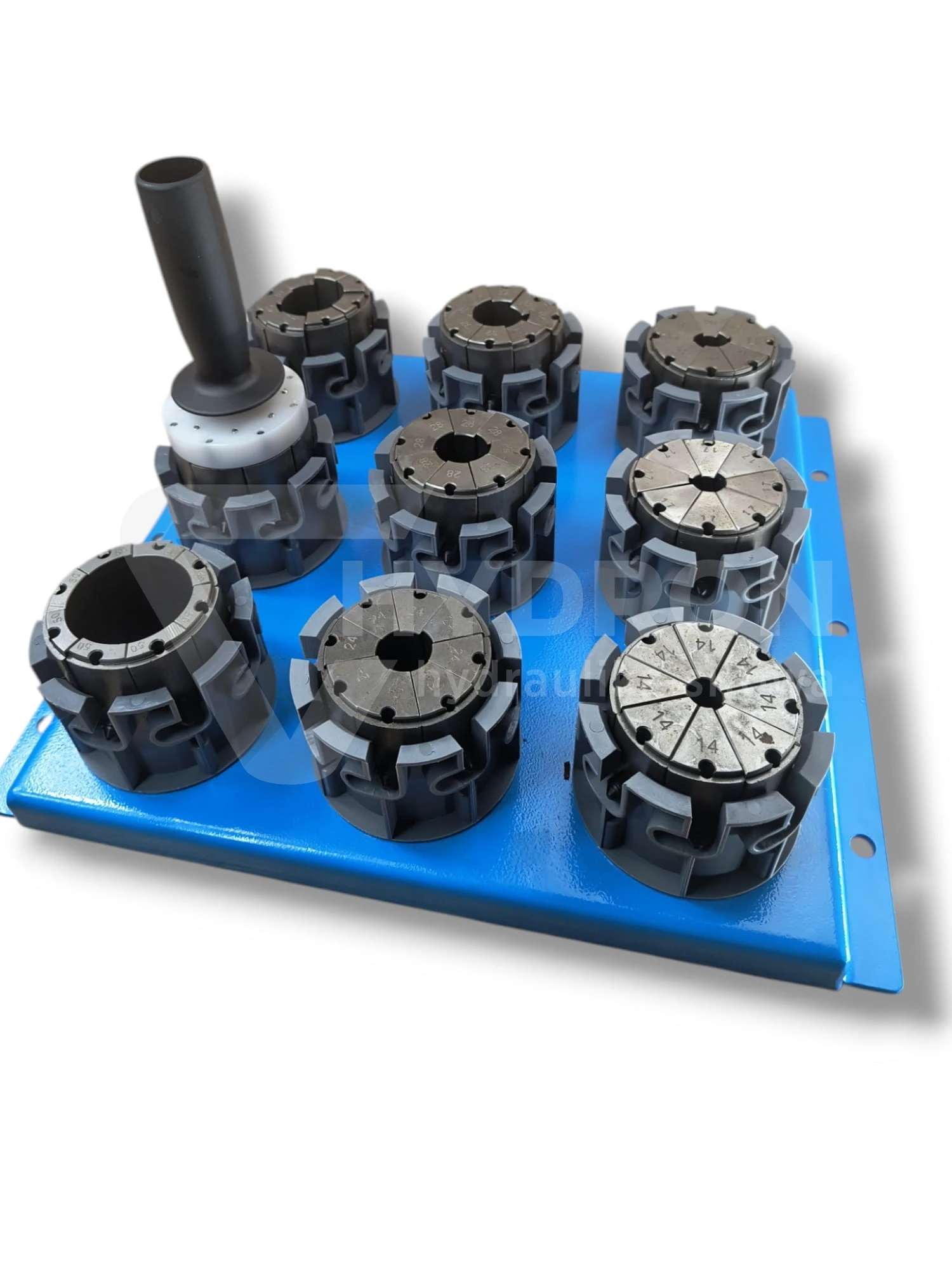

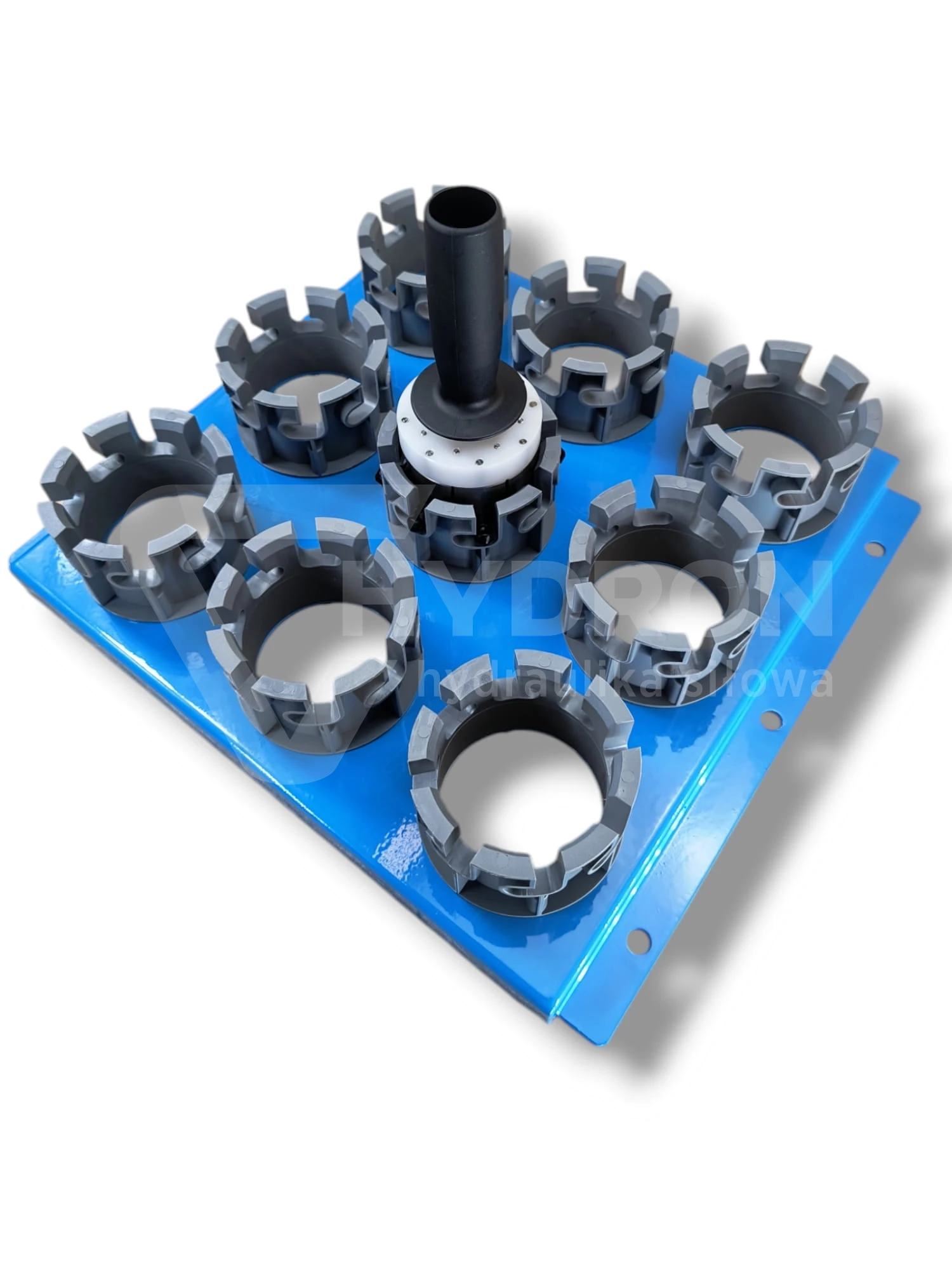

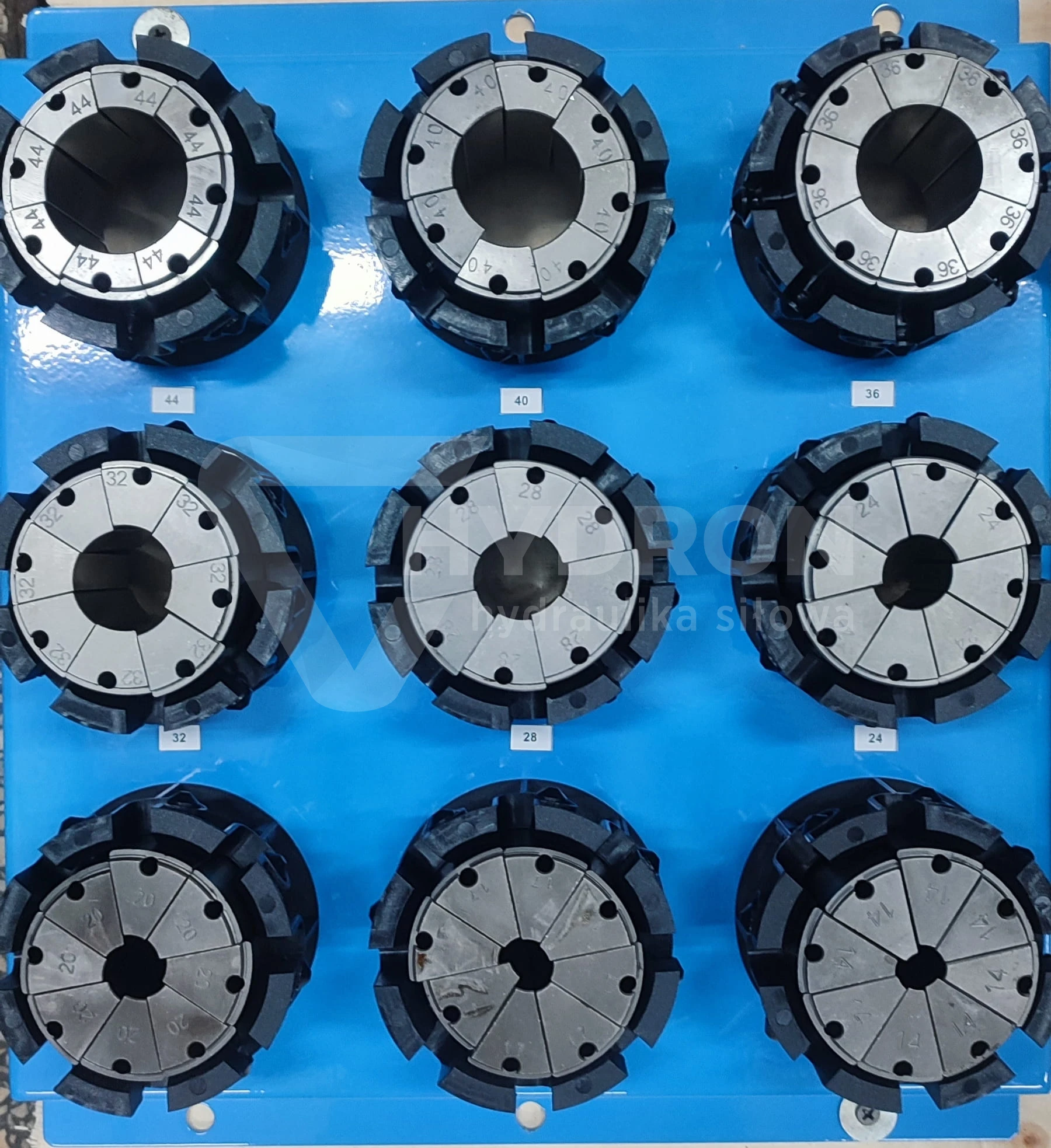

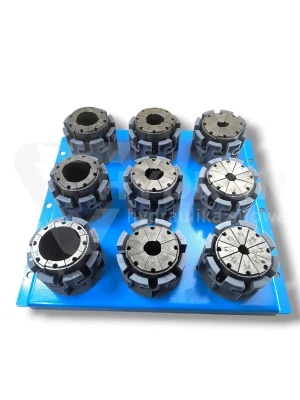

Dies included with the crimper (size / length):

• dies 14 mm (length 55 mm)
• dies 17 mm (length 55 mm)
• dies 20 mm (length 55 mm)
• dies 24 mm (length 55 mm)
• dies 28 mm (length 75 mm)
• dies 32 mm (length 75 mm)
• dies 36 mm (length 75 mm)
• dies 40 mm (length 90 mm)
• dies 44 mm (length 90 mm)
• dies 50 mm (length 90 mm)
