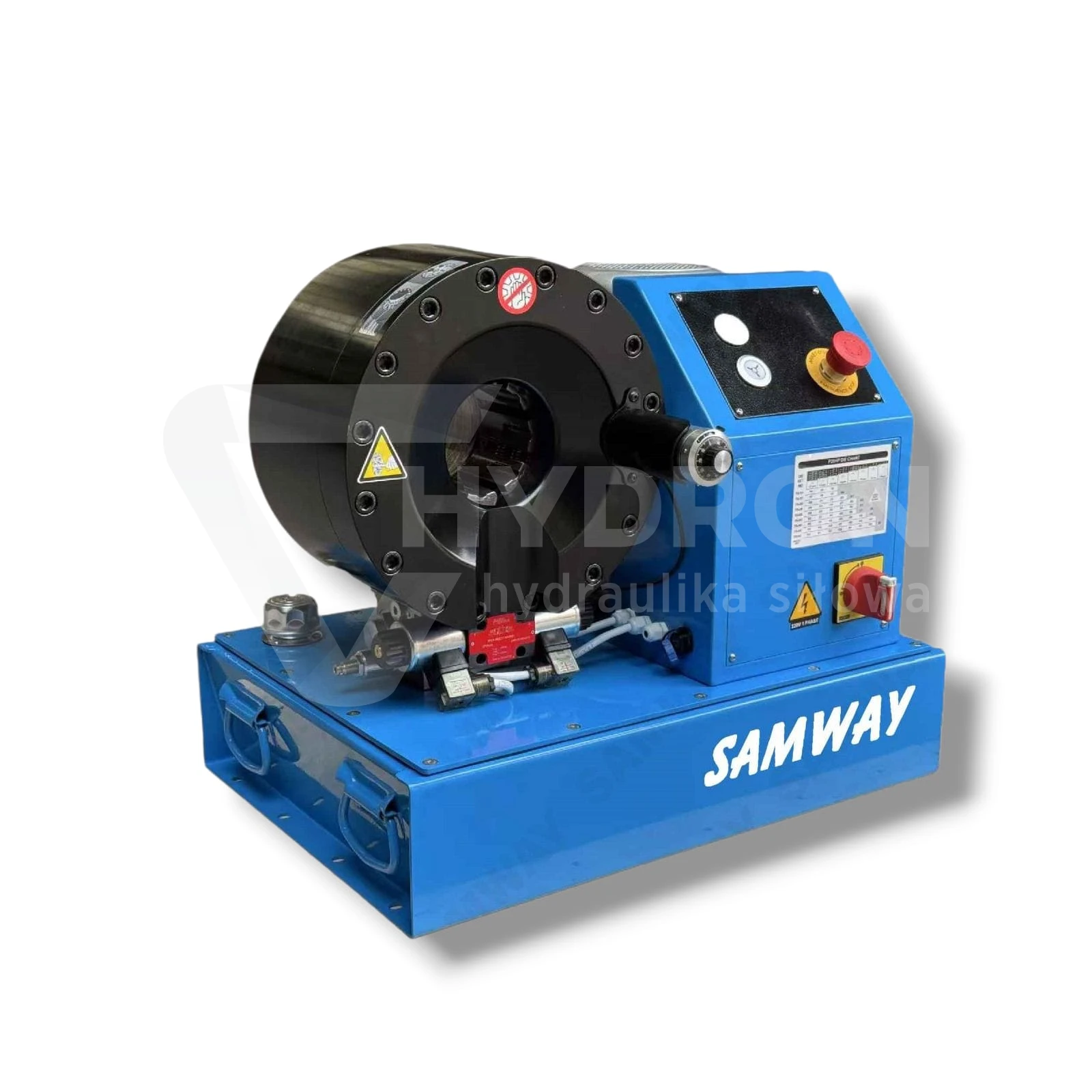

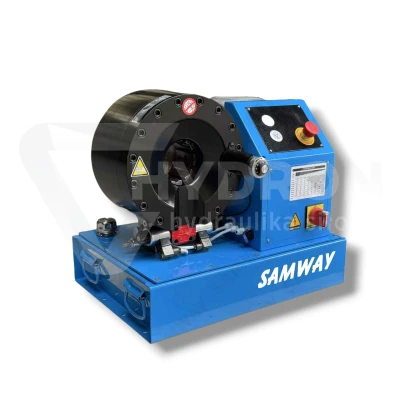

SAMWAY P18E 220V-230V electric hose crimper

Watch how the crimper looks: https://www.youtube.com/shorts/_0GG1YvOgHA

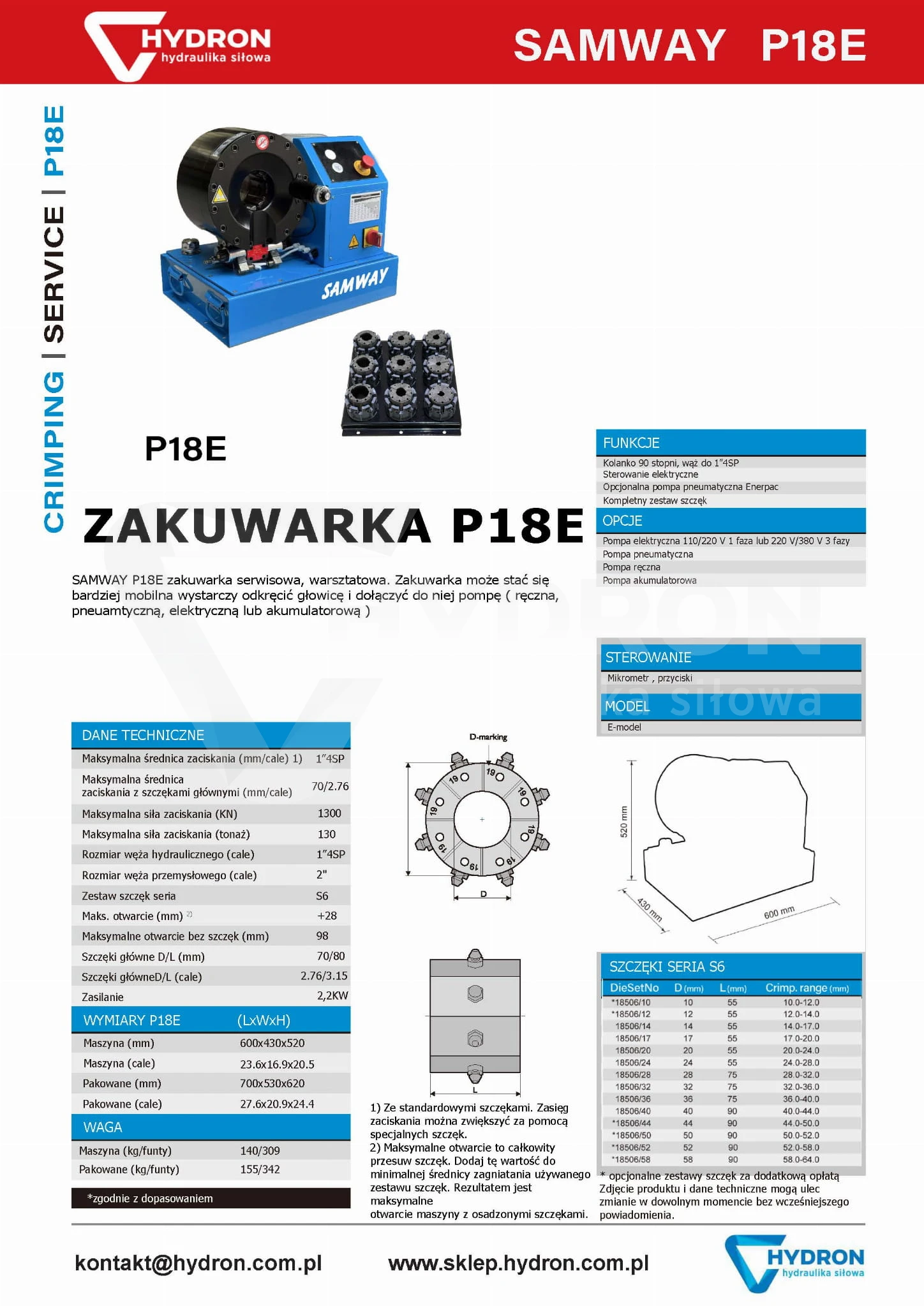

Technical parameters of the electric crimper:

• Crimps a maximum 90-degree elbow up to 1” 4SP
• Electric control
• Optional Enerpac pneumatic pump
• Complete set of dies / jaws

Technical specification / Crimping parameters:

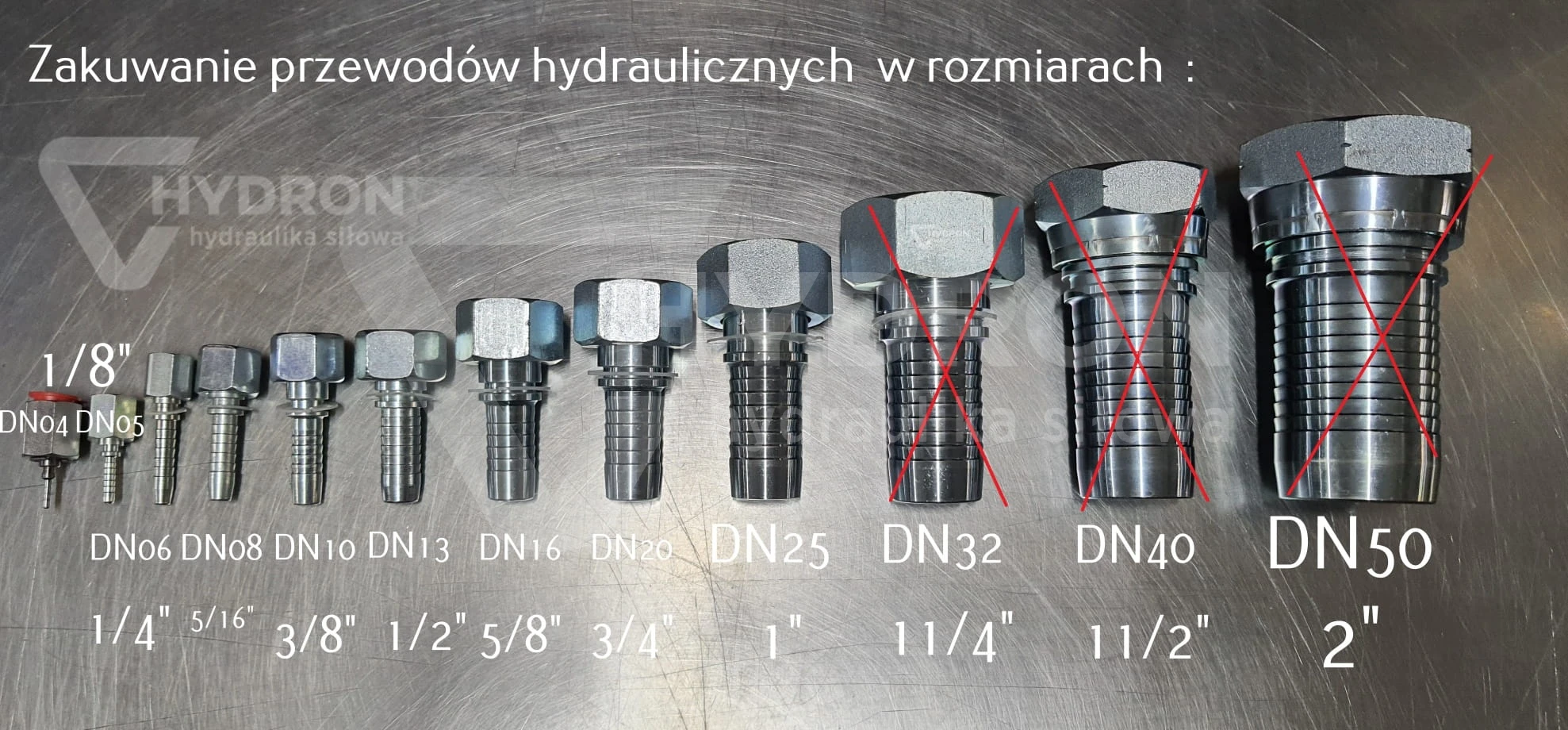

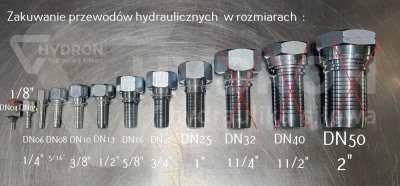

• Maximum crimping diameter (mm/inch) 1): 1” 4SP
• Maximum crimping diameter with master dies (mm/inch): 70 / 2.76
• Maximum crimping force (KN): 1300
• Maximum crimping force (tonnage): 130 tons
• Hydraulic hose size (inch): 1” 4SP
• Industrial hose size (inch): 2"
• Die set series: S6
• Maximum opening (mm) 2): +28 mm
• Maximum opening without dies (mm): 98 mm
• Master die D/L (mm): 70 / 80 mm
• Master die D/L (inch): 2.76 / 3.15
• Motor power: 2.2 KW
• Oil tank: 27 liters
• Machine dimensions (LxWxH): 600 x 430 x 520 mm (23.6 x 16.9 x 20.5 inches)
• Packaging dimensions (LxWxH): 700 x 530 x 620 mm (27.6 x 20.9 x 24.4 inches)
• Machine weight: 140 kg / 309 lbs
• Weight with packaging: 155 kg / 342 lbs

1) With standard dies. Crimping range can be increased with special dies.
2) Maximum opening is the total stroke. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with the die installed.

SAMWAY P18E 230 V electric crimper – ideal for workshops without three-phase power supply

The SAMWAY P18E 230 V electric crimper is a professional device designed for crimping hydraulic hoses with a diameter of up to 1" 4SP, i.e. four-wire hoses with an internal diameter of up to 25 mm. It is a solution created for users who do not have a 380 V three-phase power supply and at the same time expect high efficiency, precision and ease of use. Thanks to the power supply from a 230 V (single-phase) socket, the device can be successfully used in workshop, mobile and field conditions.

What makes the P18E crimper stand out?

The biggest advantage of the P18E model is its universal power supply – it does not require a three-phase installation, which makes it an excellent alternative to pneumatic crimpers and manual crimpers. Compared to these solutions, the electric crimper is much faster, more convenient to use and provides a repeatable and precise crimp, which is of great importance when working with demanding hydraulic lines. The compact design and factory-integrated electric drive mean that the device does not take up much space and can be placed in almost any workspace – both in a stationary workshop and in a service vehicle. Thanks to the high pressure force – as much as 1300 kN (130 tons) – the crimper will handle high-pressure lines, including 4-wire hoses up to 1", without any problems.

Who is this crimper intended for?

The SAMWAY P18E crimper is a device chosen primarily by:

• agricultural workshops and agricultural machinery services, which often operate in locations without access to a three-phase power supply,
• car and truck workshops, where there is a need for quick regeneration of hydraulic lines,
• companies servicing construction, forestry and industrial machinery that need mobile and efficient equipment,
• maintenance departments in industrial plants that perform their own crimping on site,
• mobile services that provide crimping services at the customer's site – the P18E will fit in most service vehicles and does not require a power generator.

Alternative to manual and pneumatic crimpers

For users who have previously used manual or pneumatic crimpers, the P18E model is a step forward. Manual versions are slower and require significant physical effort. Pneumatic crimpers, in turn, require the presence of a compressor, which involves additional costs, noise and the need to service another device. SAMWAY P18E not only eliminates these inconveniences but also allows you to work faster, quieter and with greater precision.
