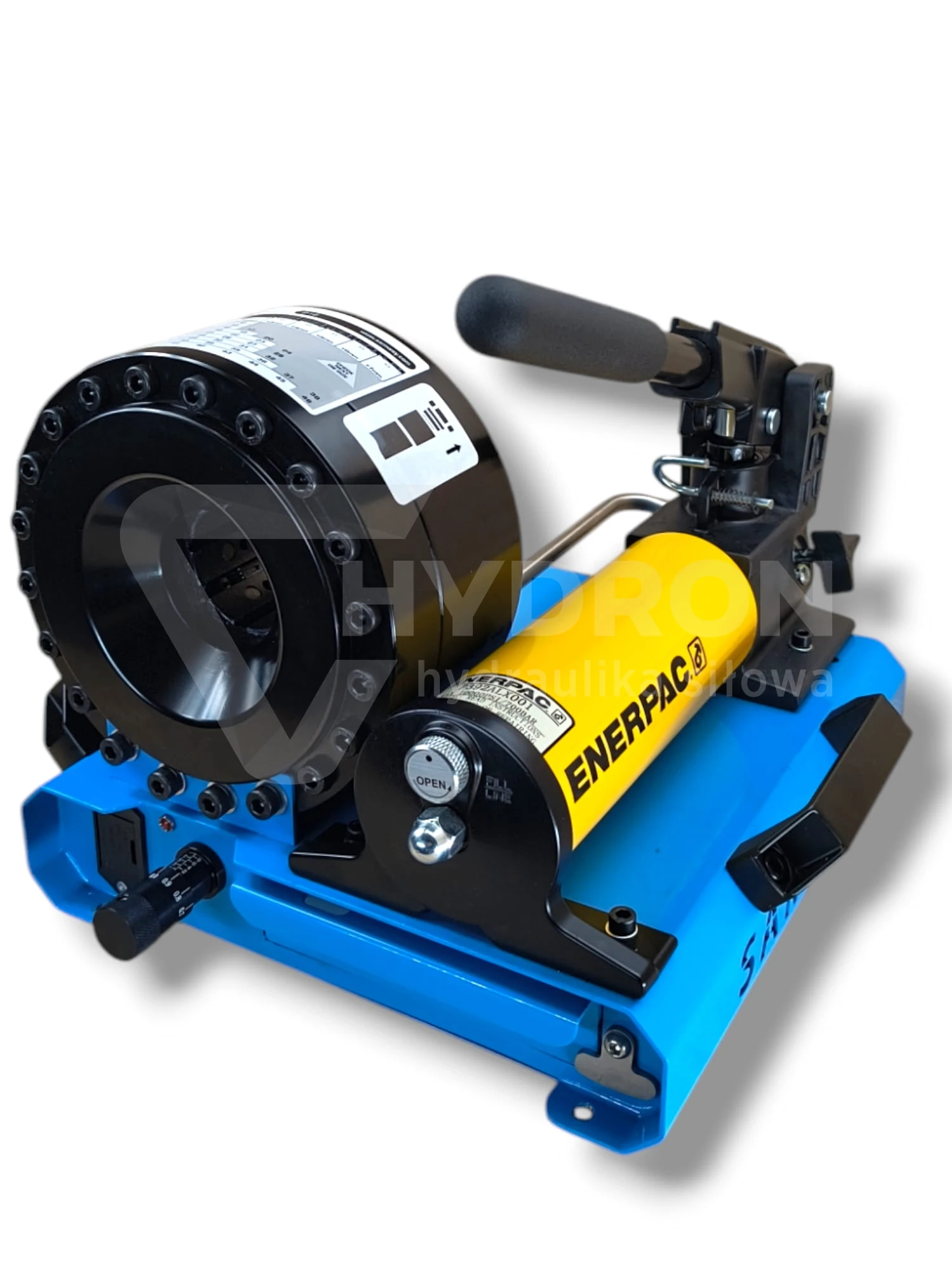

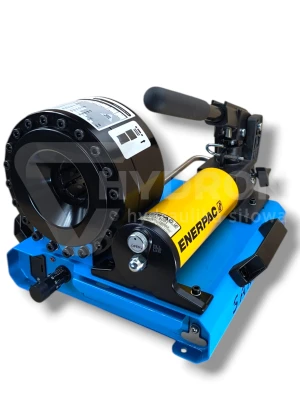

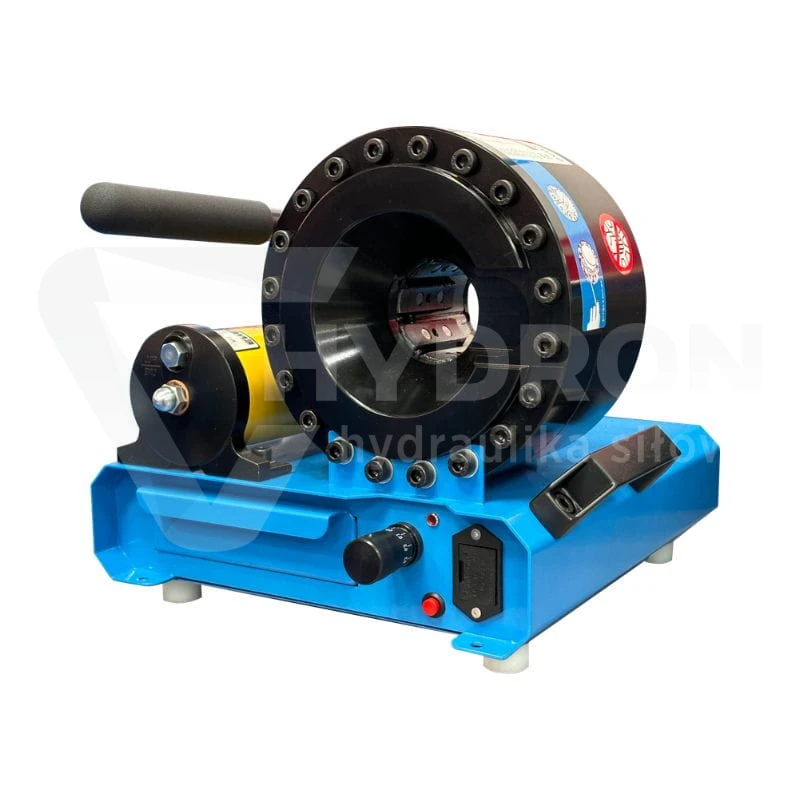

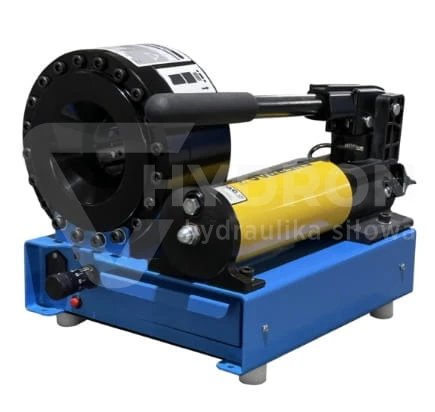

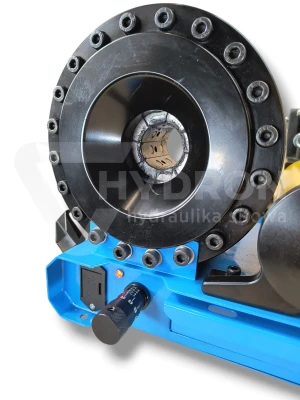

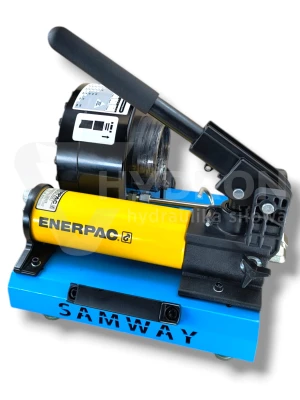

Manual hydraulic hose crimper - SAMWAY P16HPS

• crimper leasing
• what the crimper warranty covers

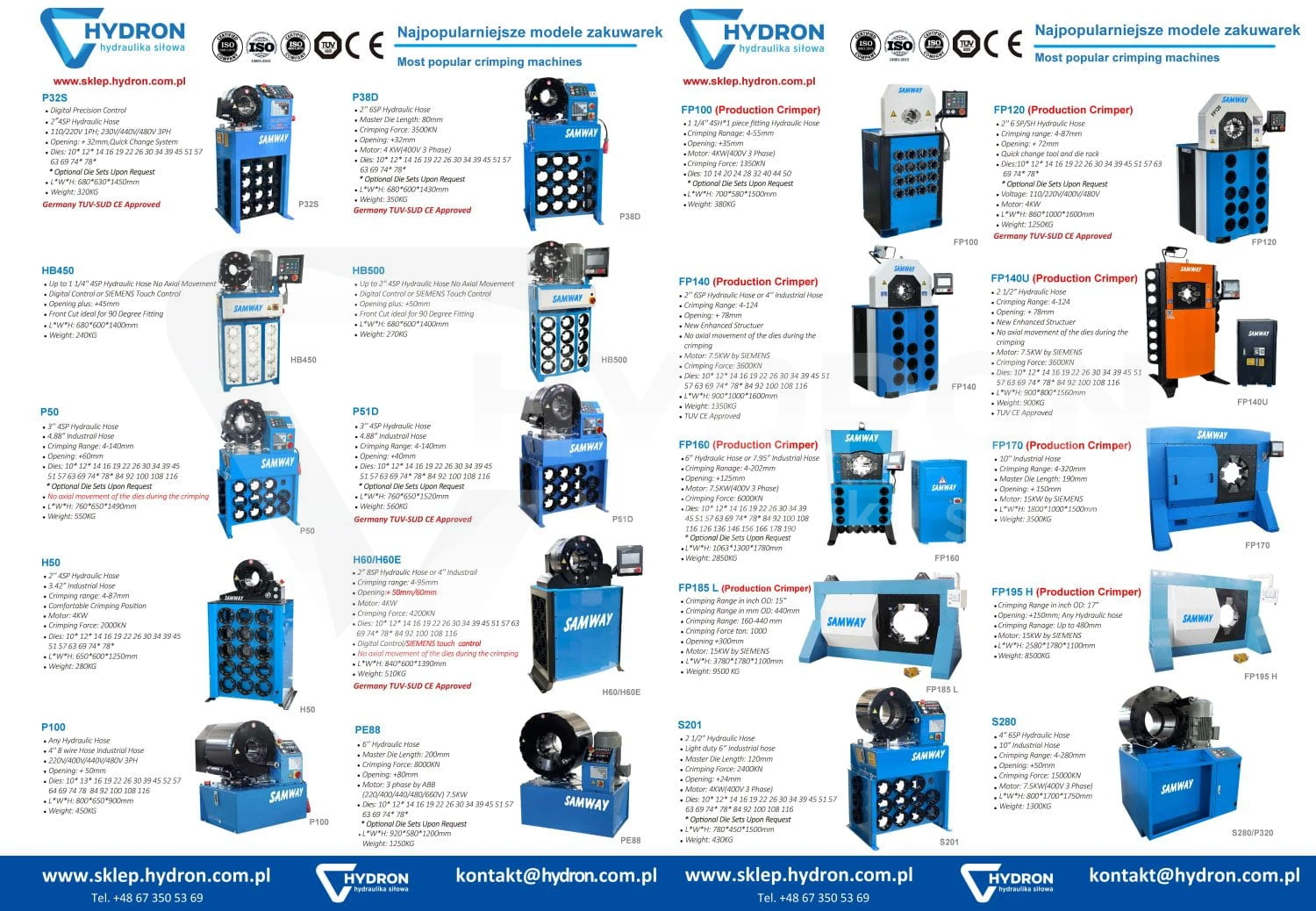

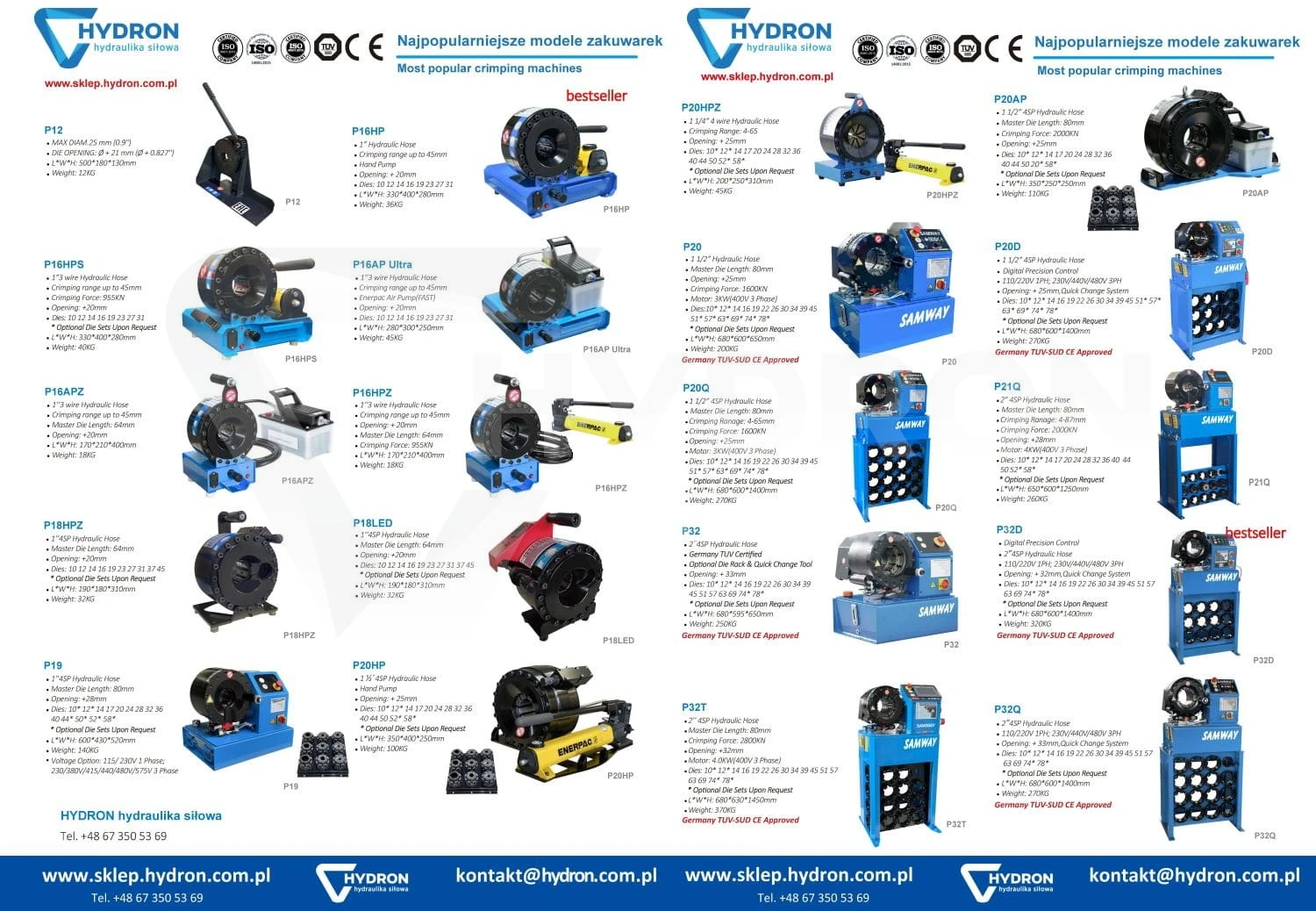

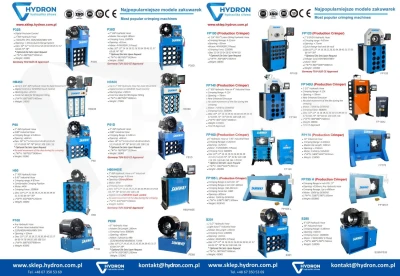

• check the most frequently sold crimper models

3 x times faster crimping compared to the standard P16HP model - larger manual pump

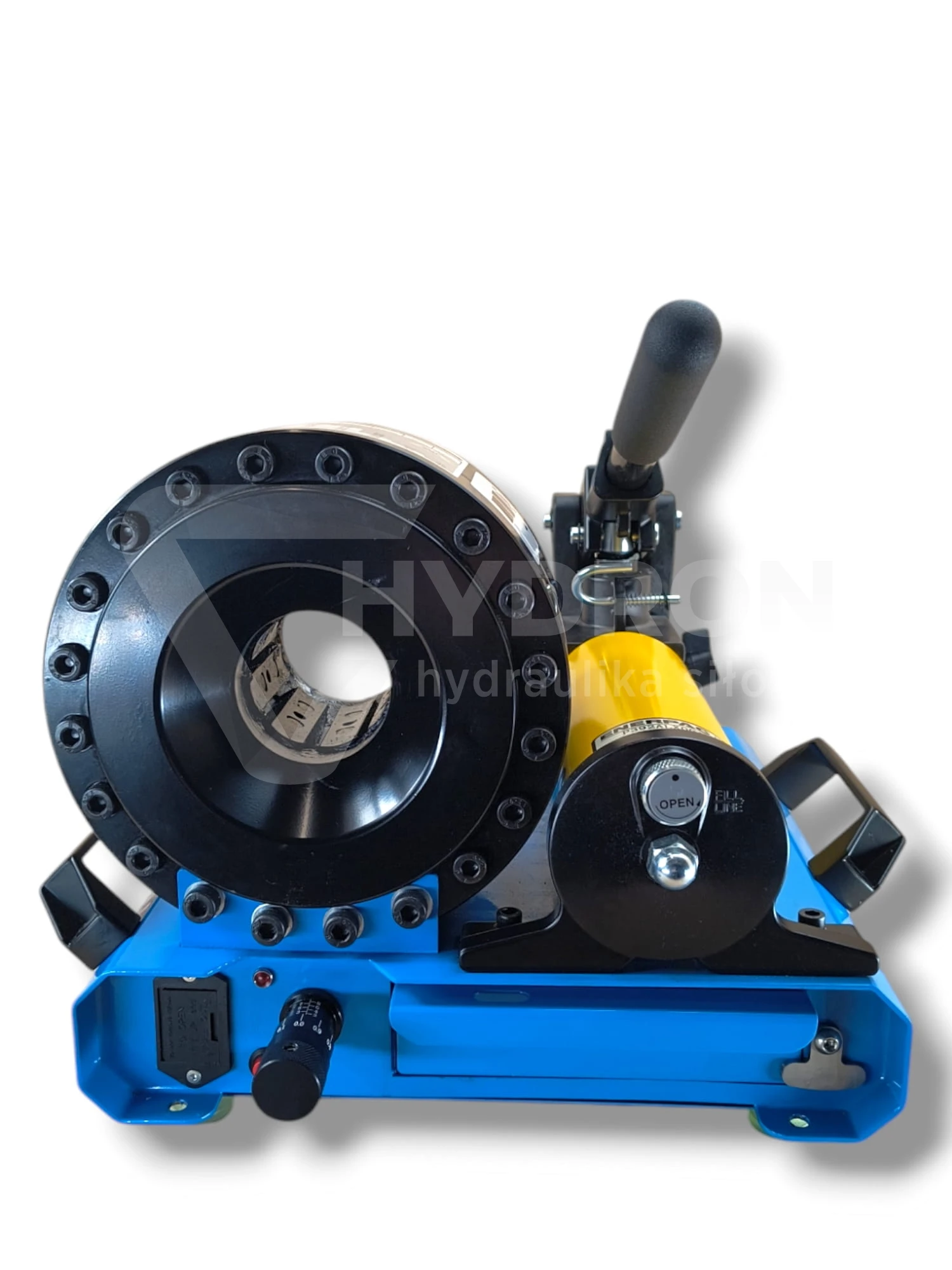

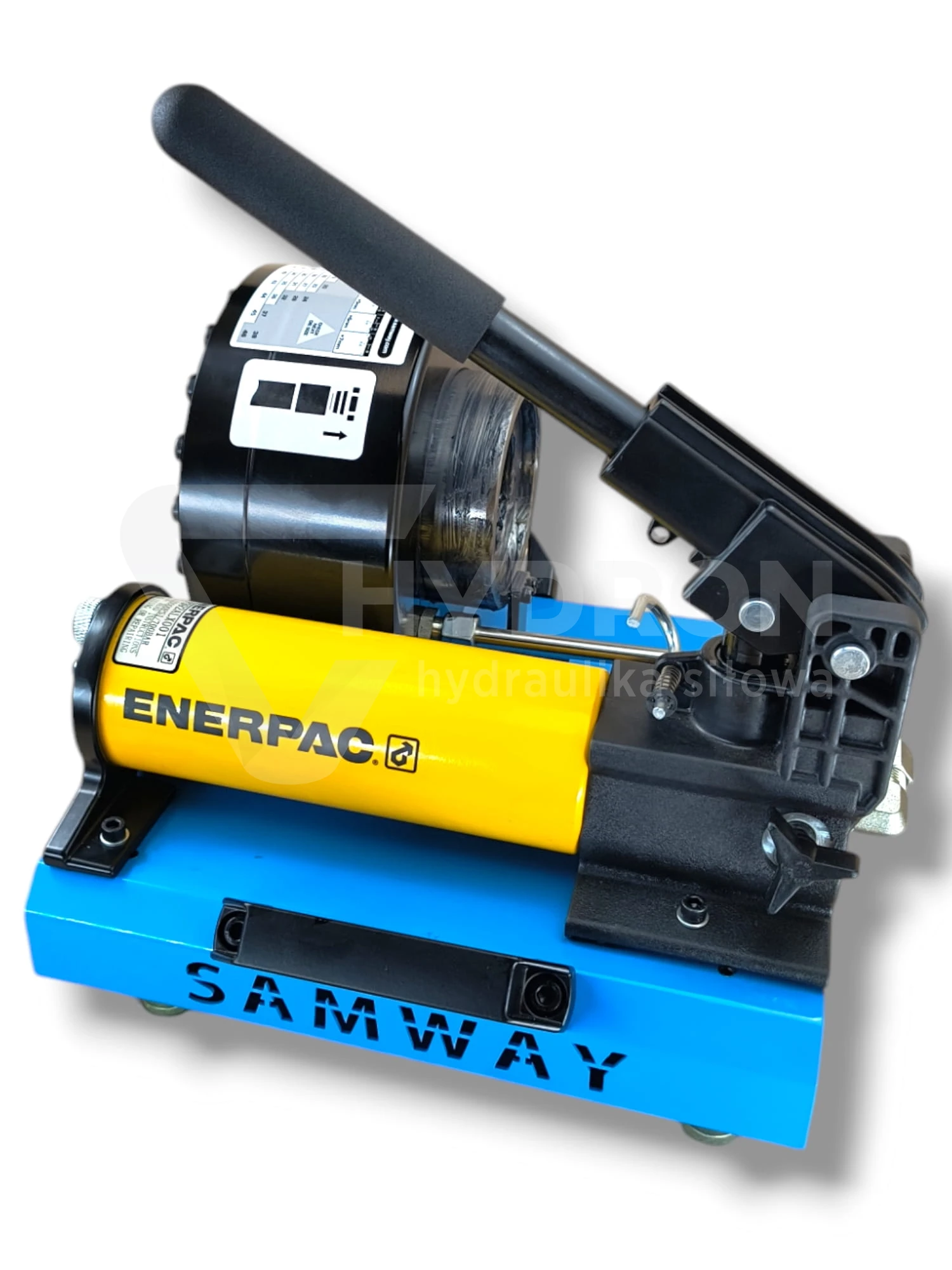

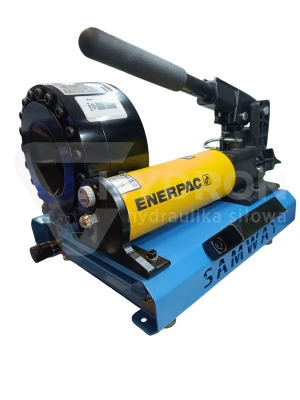

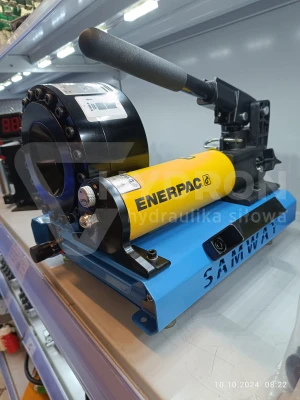

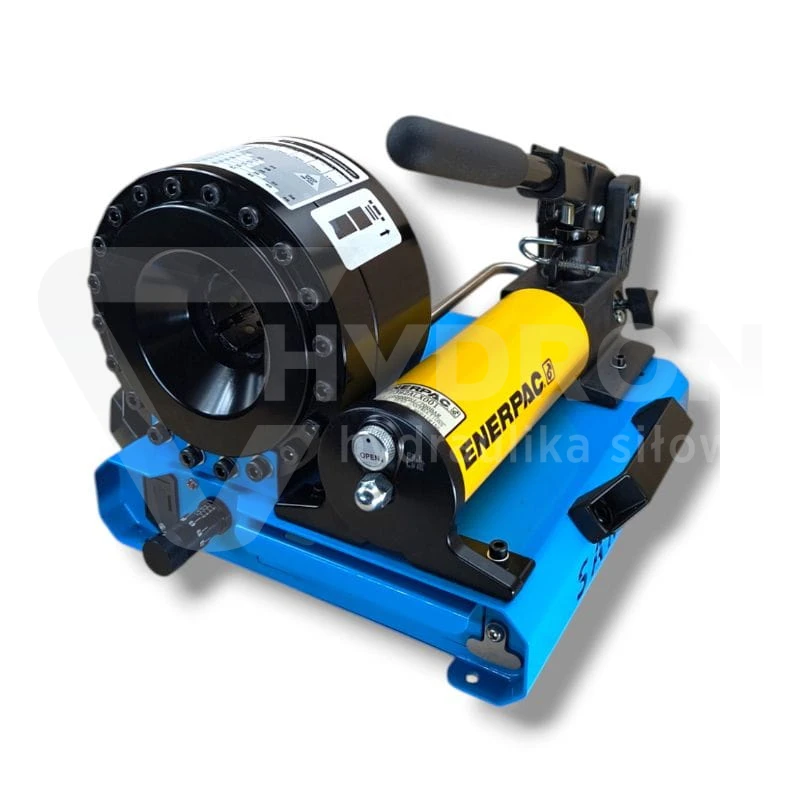

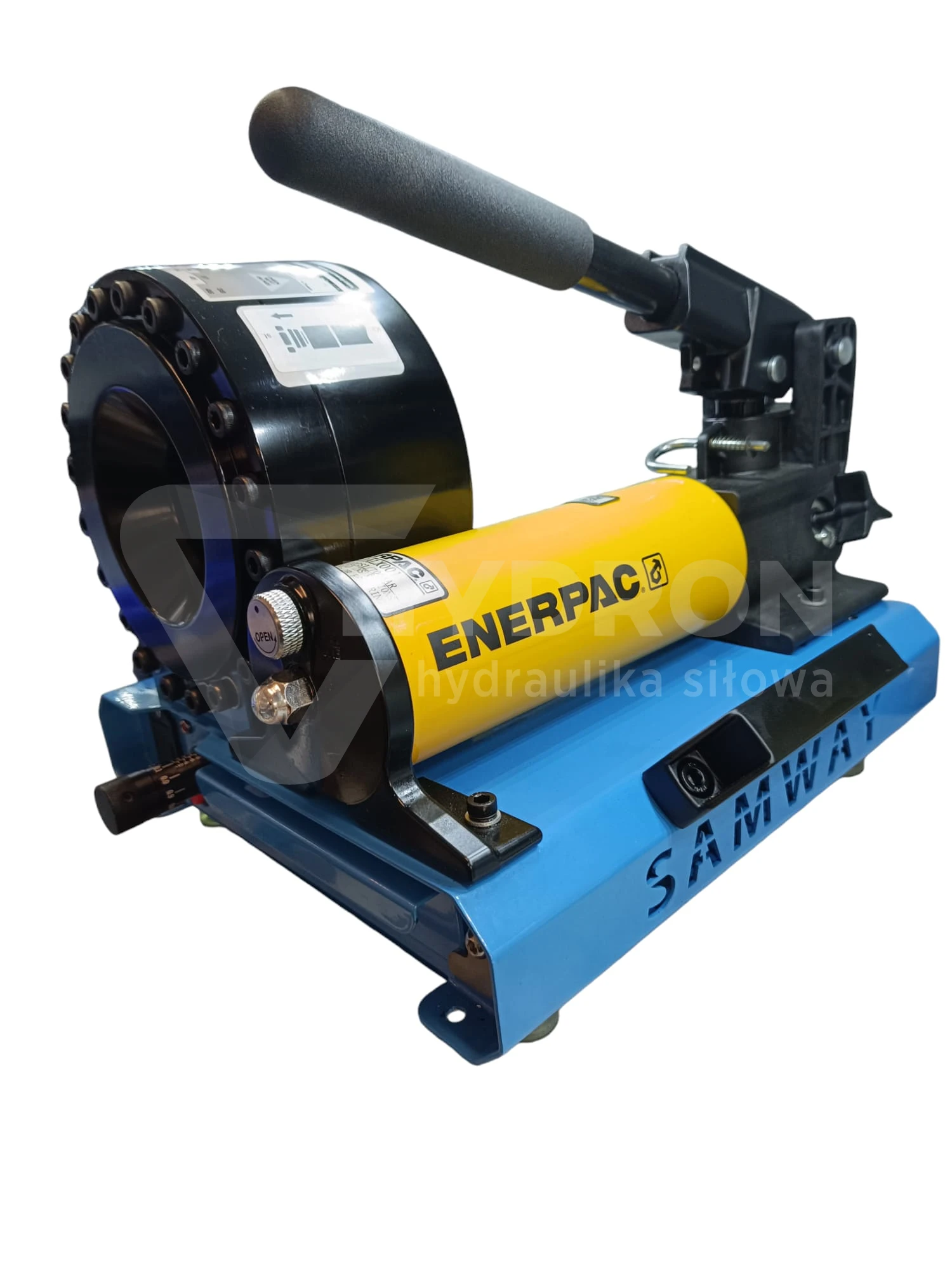

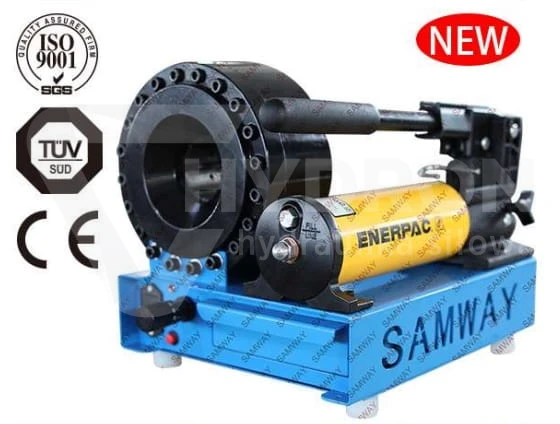

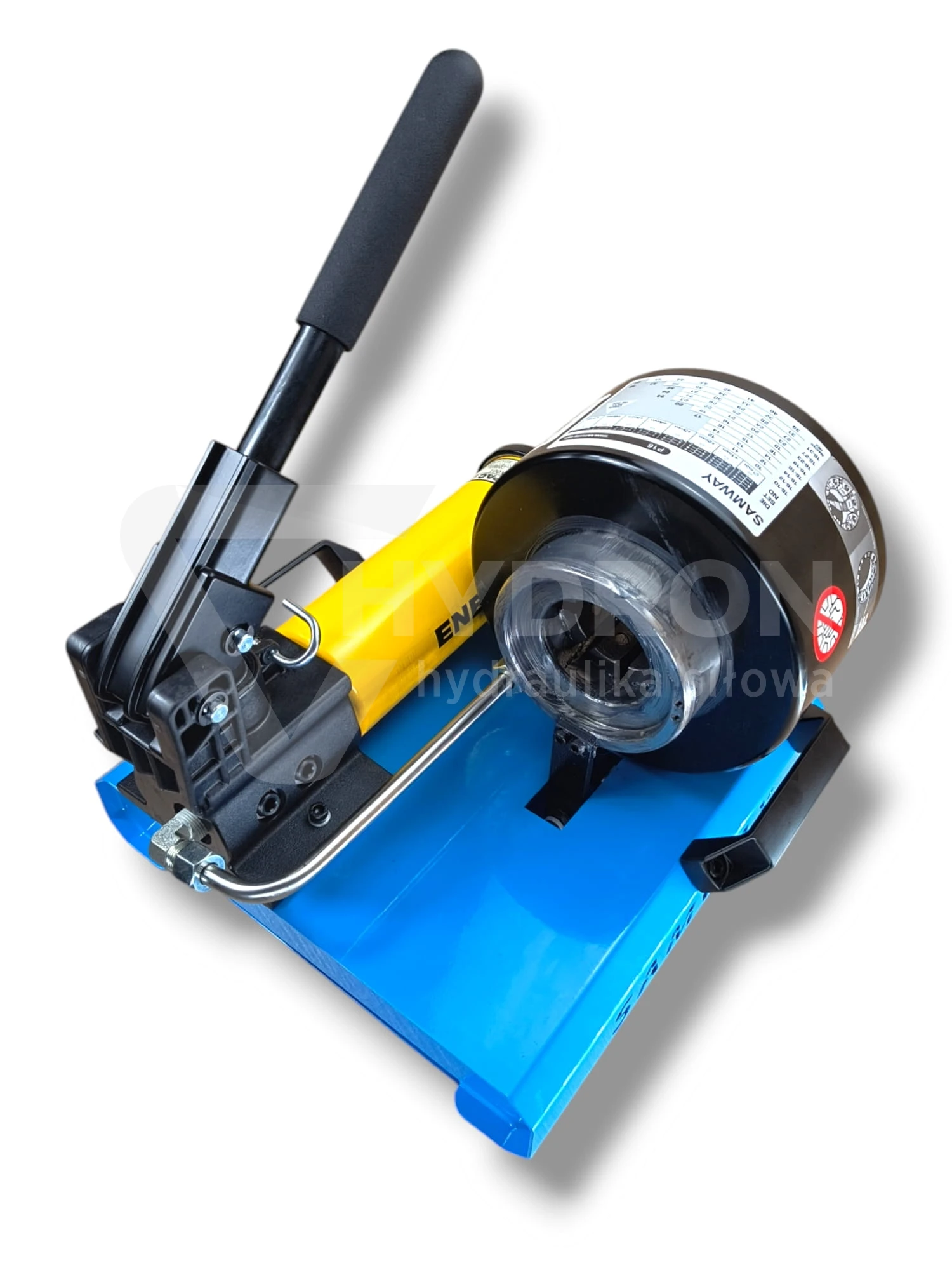

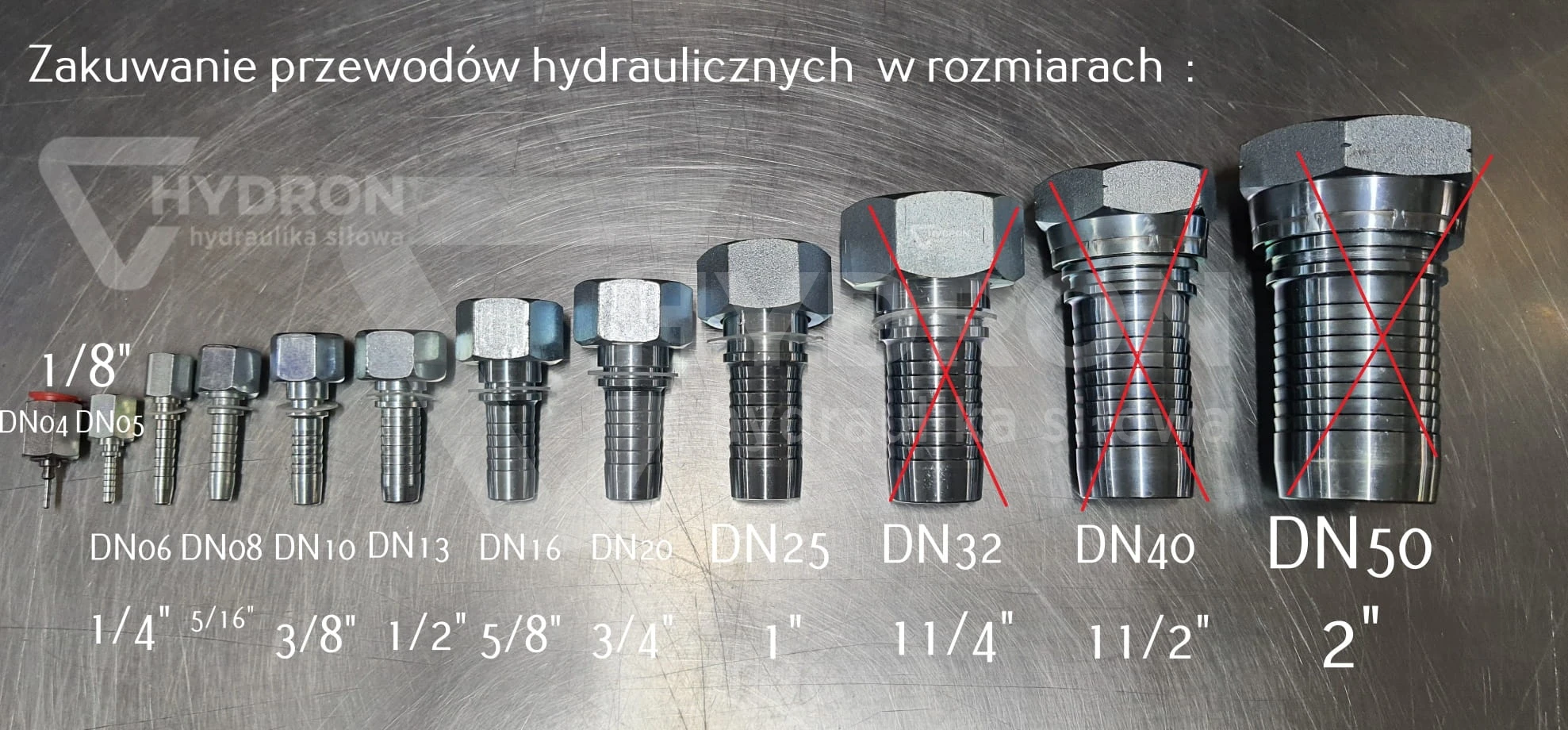

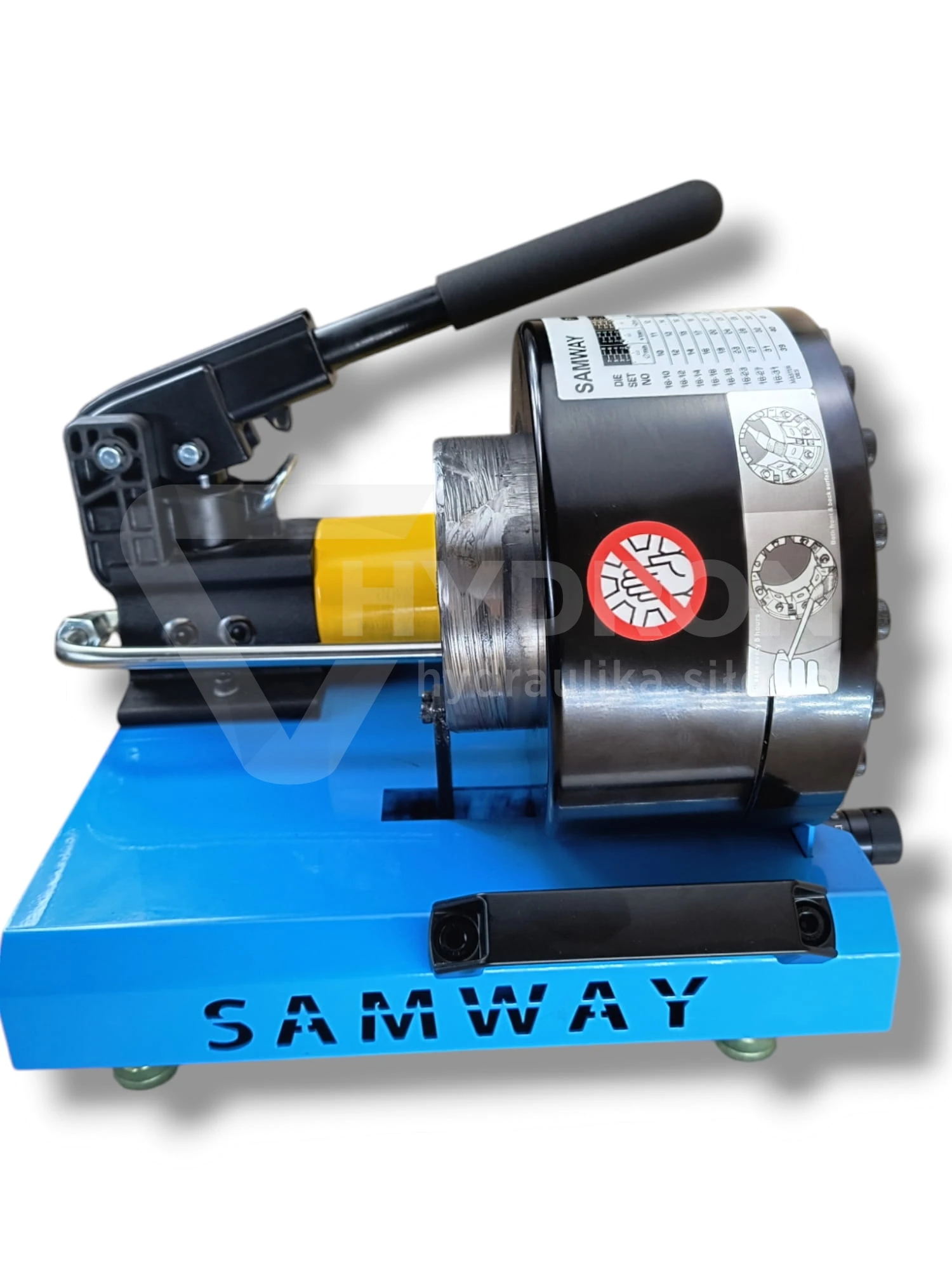

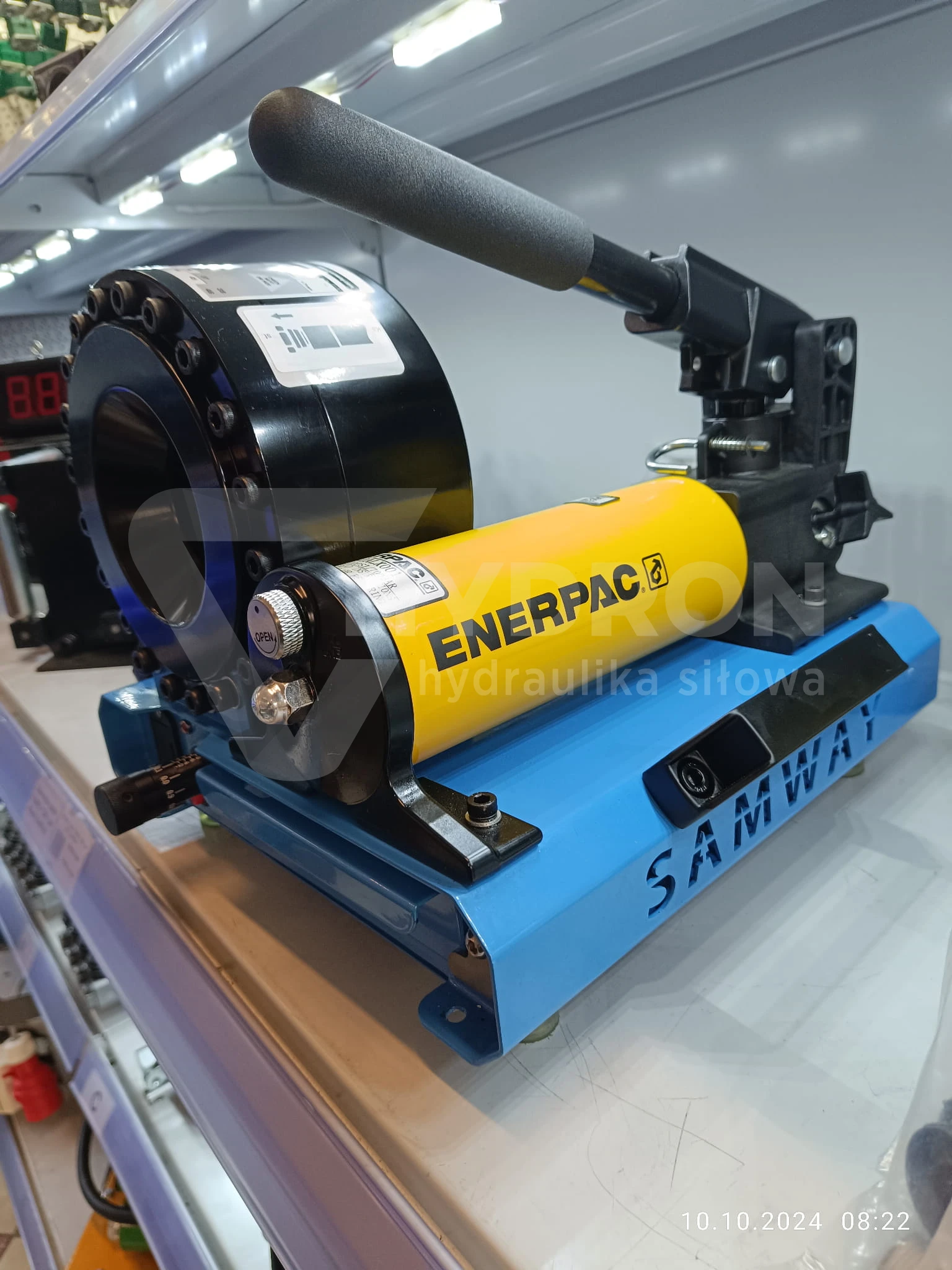

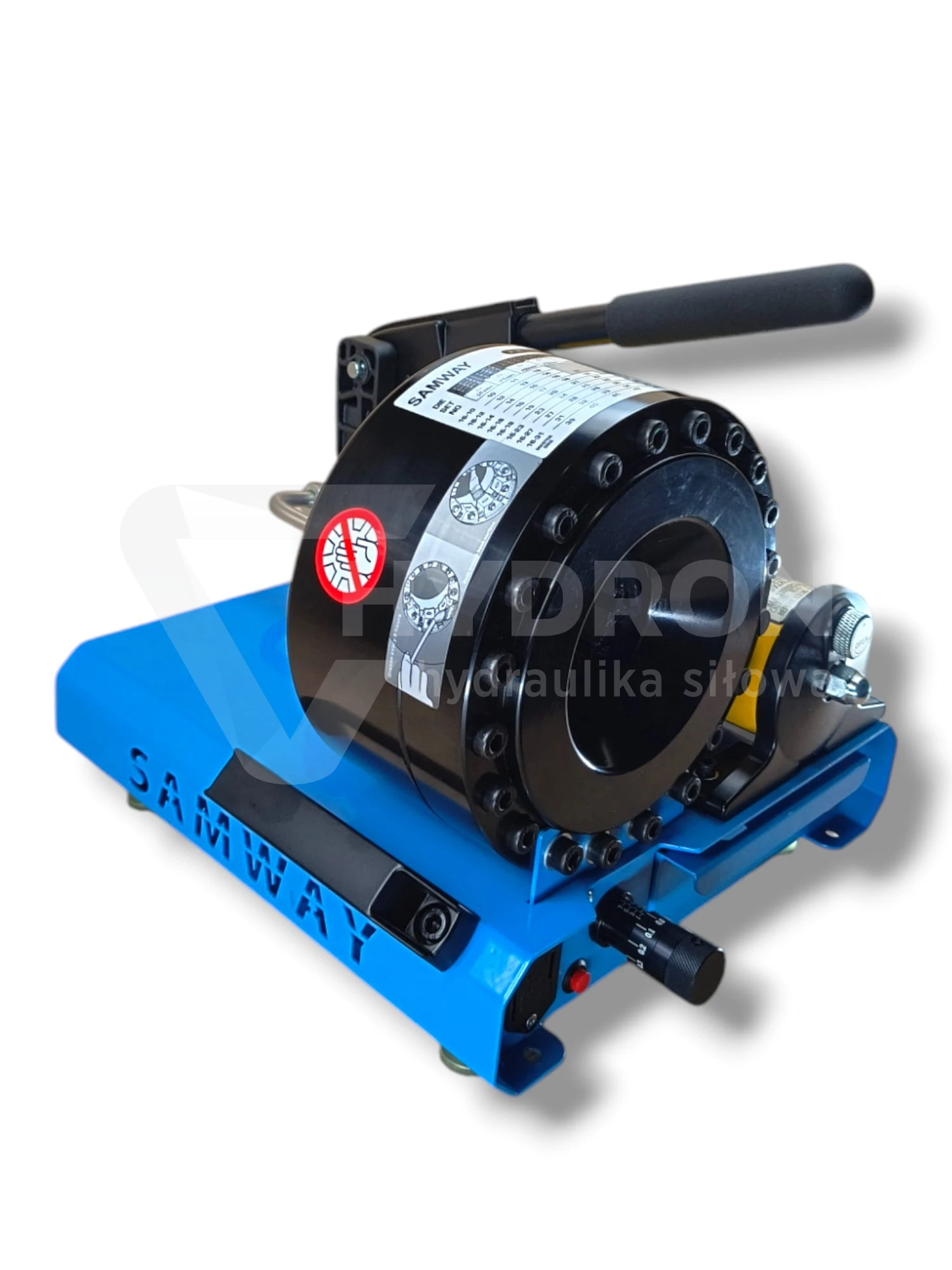

The latest version of the well-known crimper P16HP supplemented with a new ENERPAC manual pump (Enerpac P392FP manual pump - original Enerpac metal manual pump), which provides even faster crimping. The pump is much more efficient than the standard P142 pump, making crimping significantly faster. The SAMWAY P16HPS crimper is a portable crimper that enables crimping hydraulic hoses up to a diameter of one inch with three steel braids (1" 3-steel braids). The maximum diameter of the crimped element is 45mm on the outside. The press does not require a power supply - it is ready for operation. The crimper comes with all crimping dies and is filled with oil. We have warranty and post-warranty service for crimpers of all types. For the machines we offer, we have all types of spare parts such as: seals, pumps, screws, springs, additional dies. By purchasing a crimper in our store, you receive a guarantee, instructions in Polish, all appropriate certificates, declarations of conformity and full technical support from our employees. We offer various types of hose crimpers, including: manual crimpers, pneumatic-powered crimpers, electric crimpers and other types of machines: skiving machines, hose cutters. We also have starter sets of fittings and hoses.

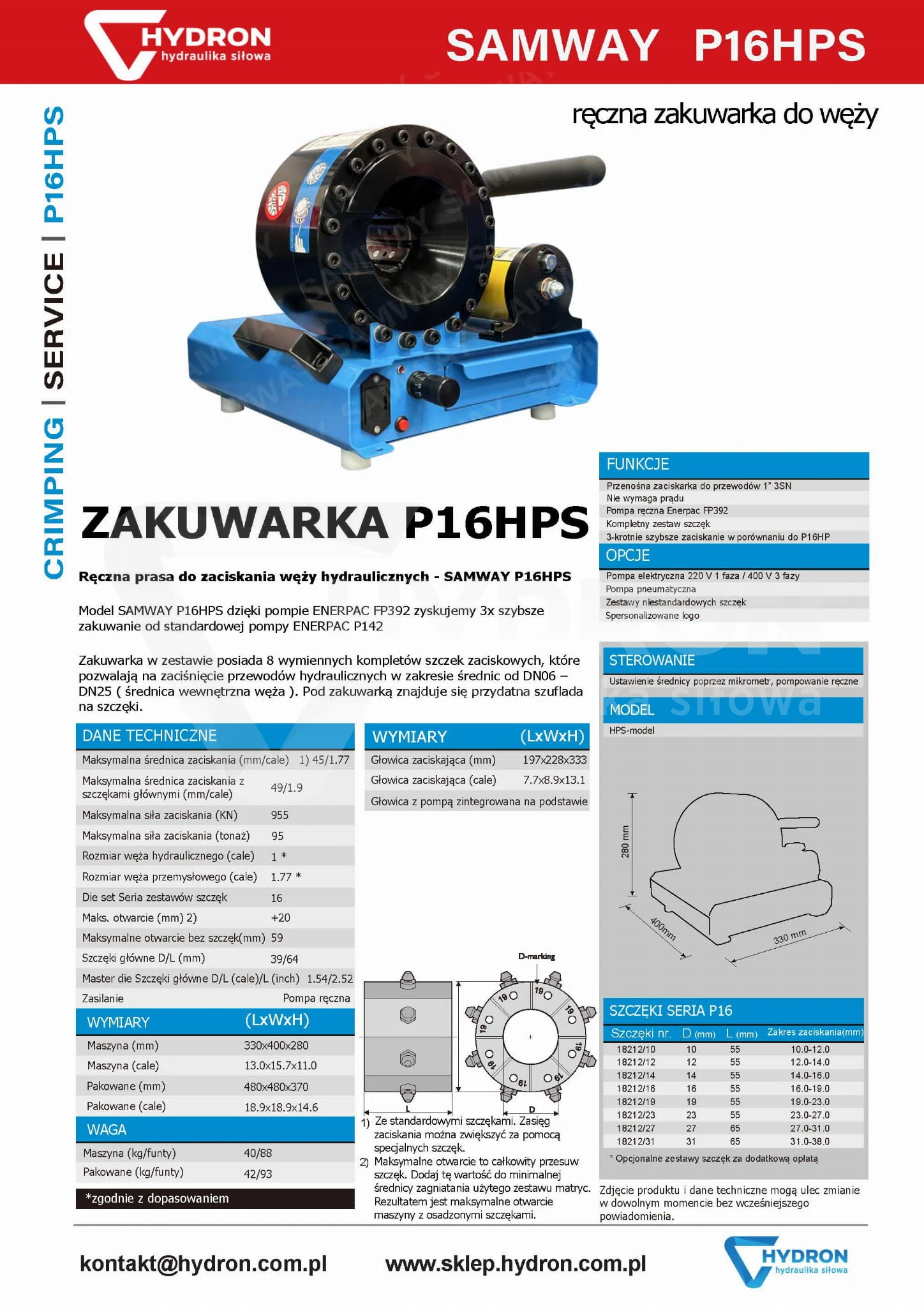

Technical data of the SAMWAY P16HPS manual press:

• Maximum crimping diameter (mm/inch): 45mm /1.77"
• Maximum crimping diameter with master dies (mm/inch): 49mm/1.9"
• Maximum crimping force (kN): 955
• Maximum crimping force (tonnage): 95 tons

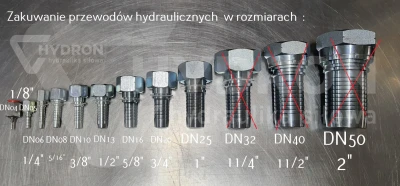

• Maximum hydraulic hose size (inch): 1"
• Industrial hose size (inch): 1.77"

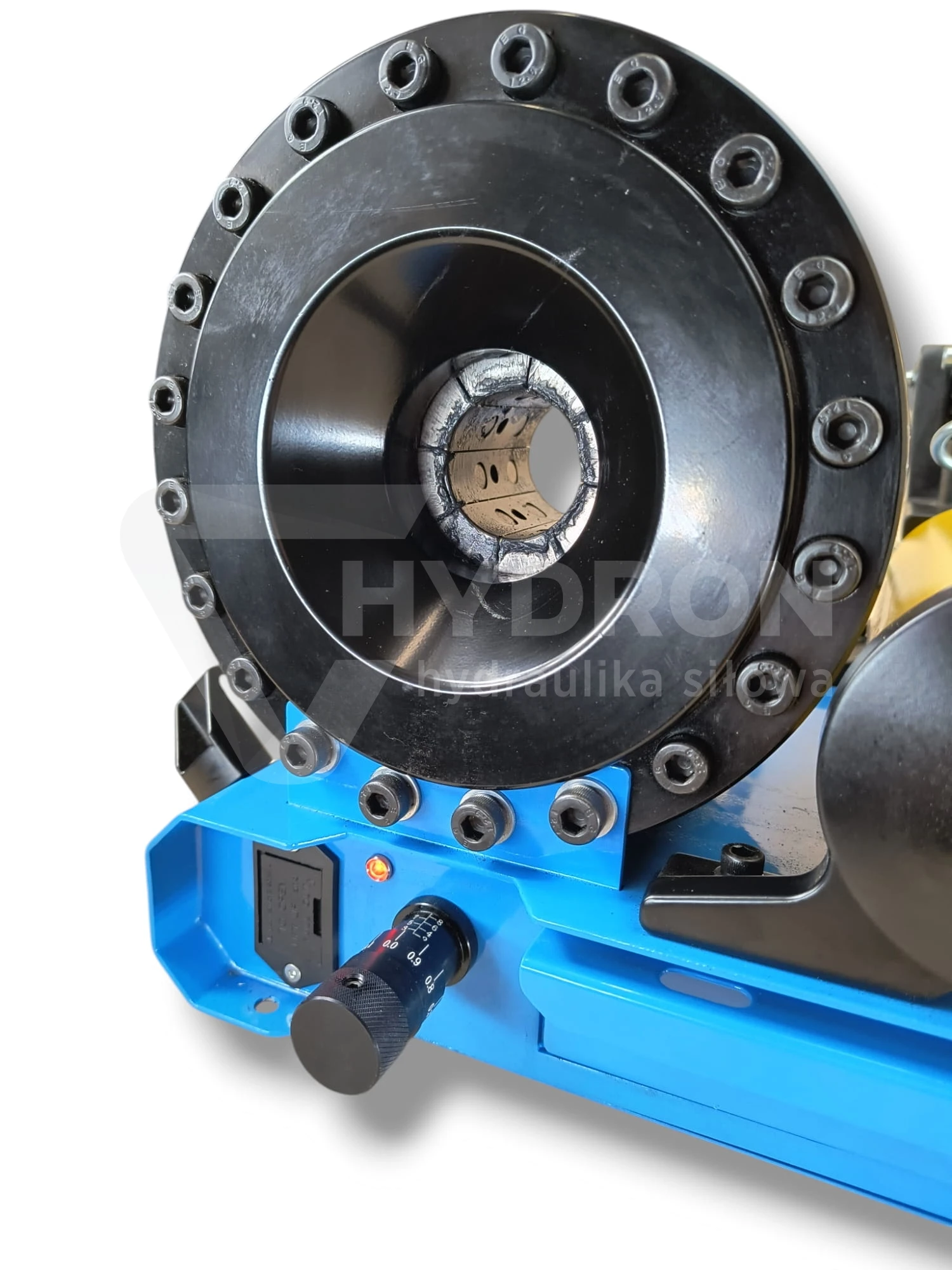

• Crimping die series: P16
• Maximum opening (mm): +20mm
• Maximum opening without dies (mm): 59mm
• Master dies D/L (mm): 39mm/64mm (width / length)
• Master die D/L (inch): 1.54"/2.52" (width / length)

Crimper dimensions (L x W x H)

• Machine (mm): 330x400x280
• Machine (inch): 13.0x15.7x11.0
• Packed (mm): 480x480x370
• Packed (inch): 18.9x18.9x14.6

Crimper weight

• Machine (kg/lbs): 40/88
• Packed (kg/lbs): 42/93

Mobile crimper dimensions P16HPS (L x W x H)

• Crimping head (mm): 197mmx228mmx333mm
• Crimping head (inch): 7.7"x8.9"x13.1"
• Hose length (meters): 4

Note: this model is not suitable for crimping large stainless steel ferrules! (very hard material) for this a larger machine like P20HP, P20AP or larger is needed.
