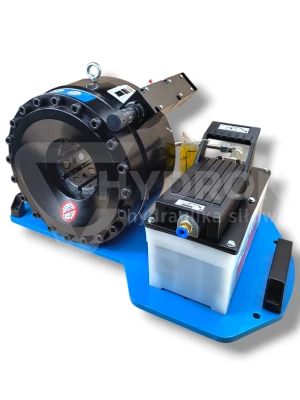

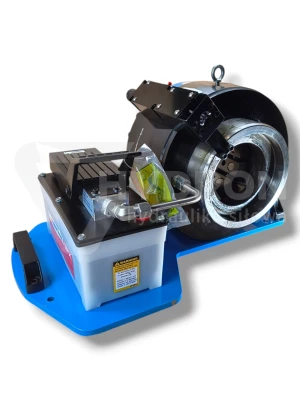

Pneumatic hose crimping machine P20AP

• Instructional video on operating the P20AP pneumatic crimping machine
• Book a free meeting and machine demonstration
• Check what is covered by the crimper warranty

The set includes a complete machine with a pneumatic pump and crimping dies! Machine ready for work!

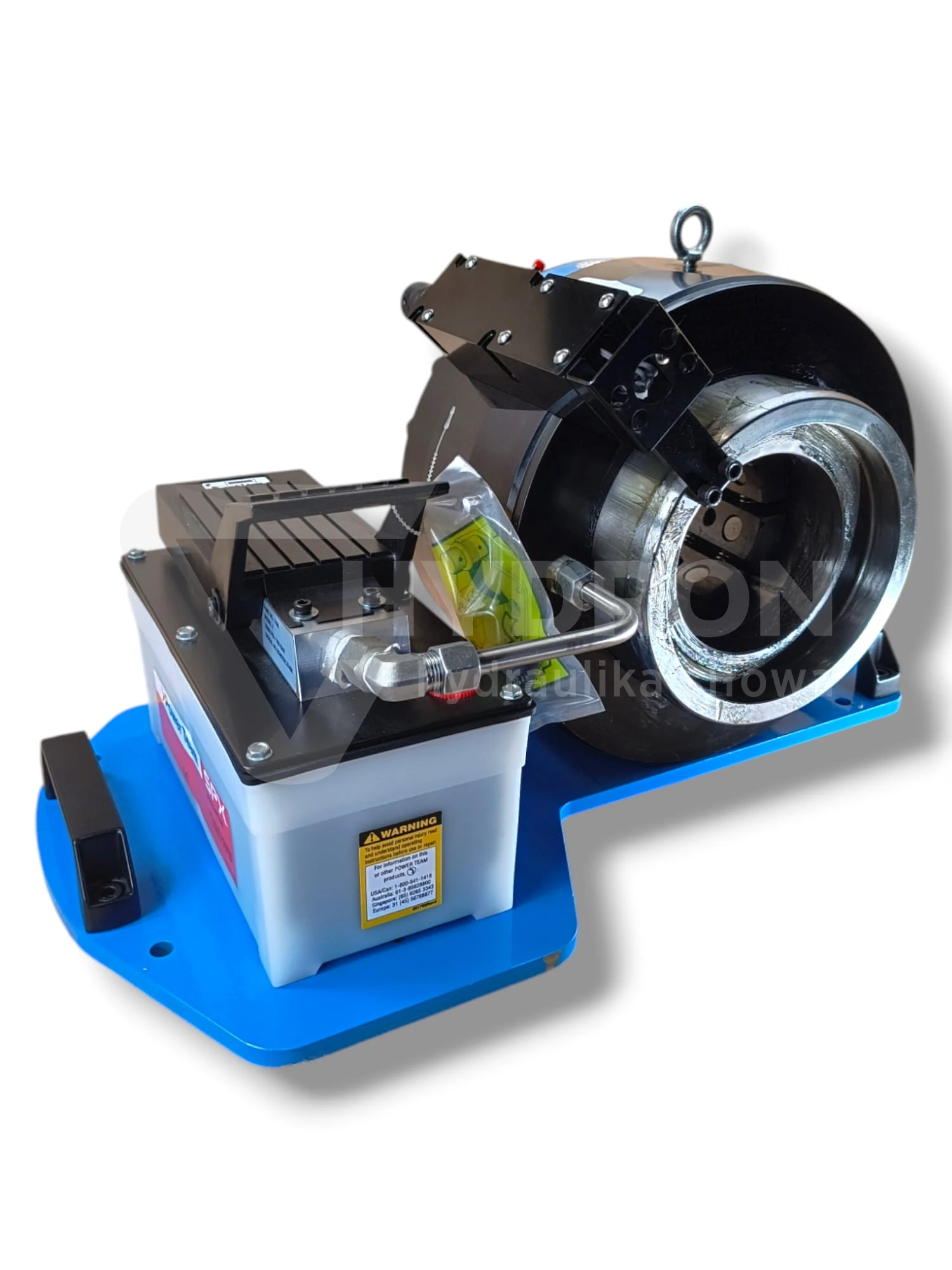

Great capabilities, compact design

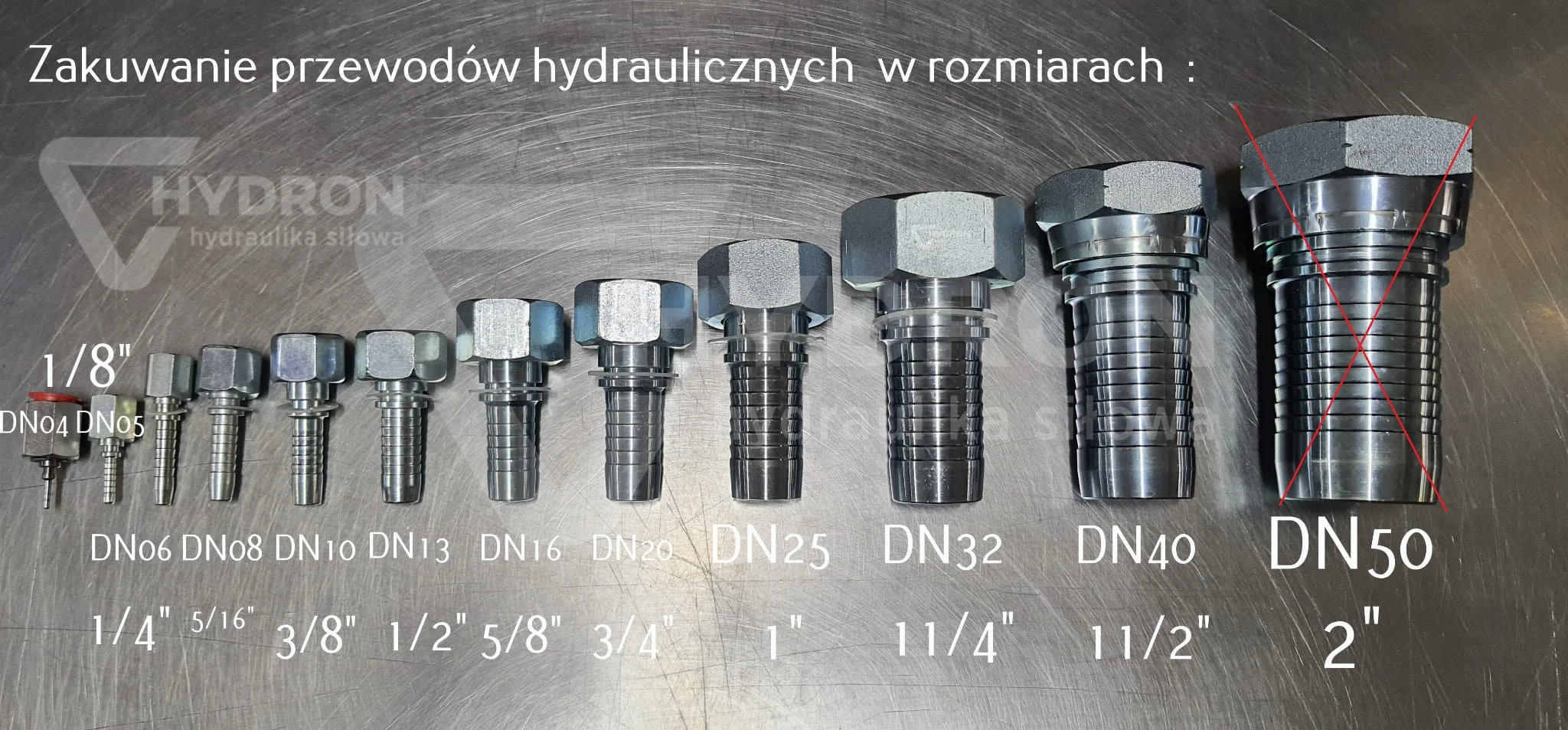

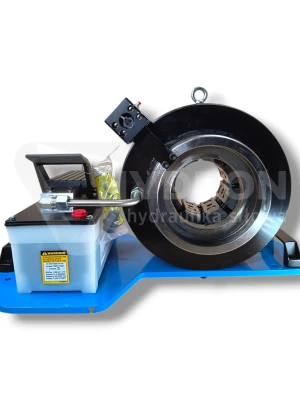

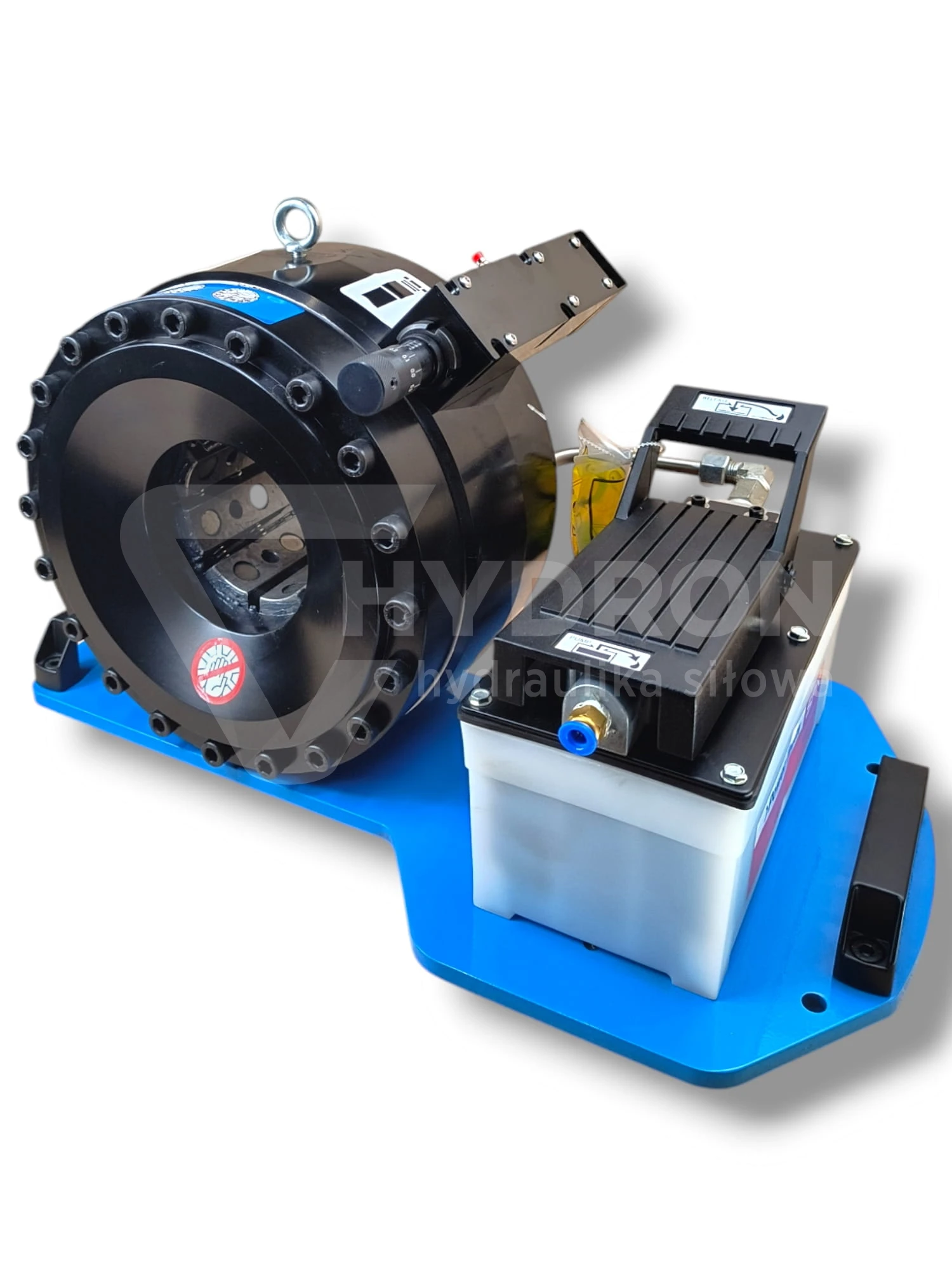

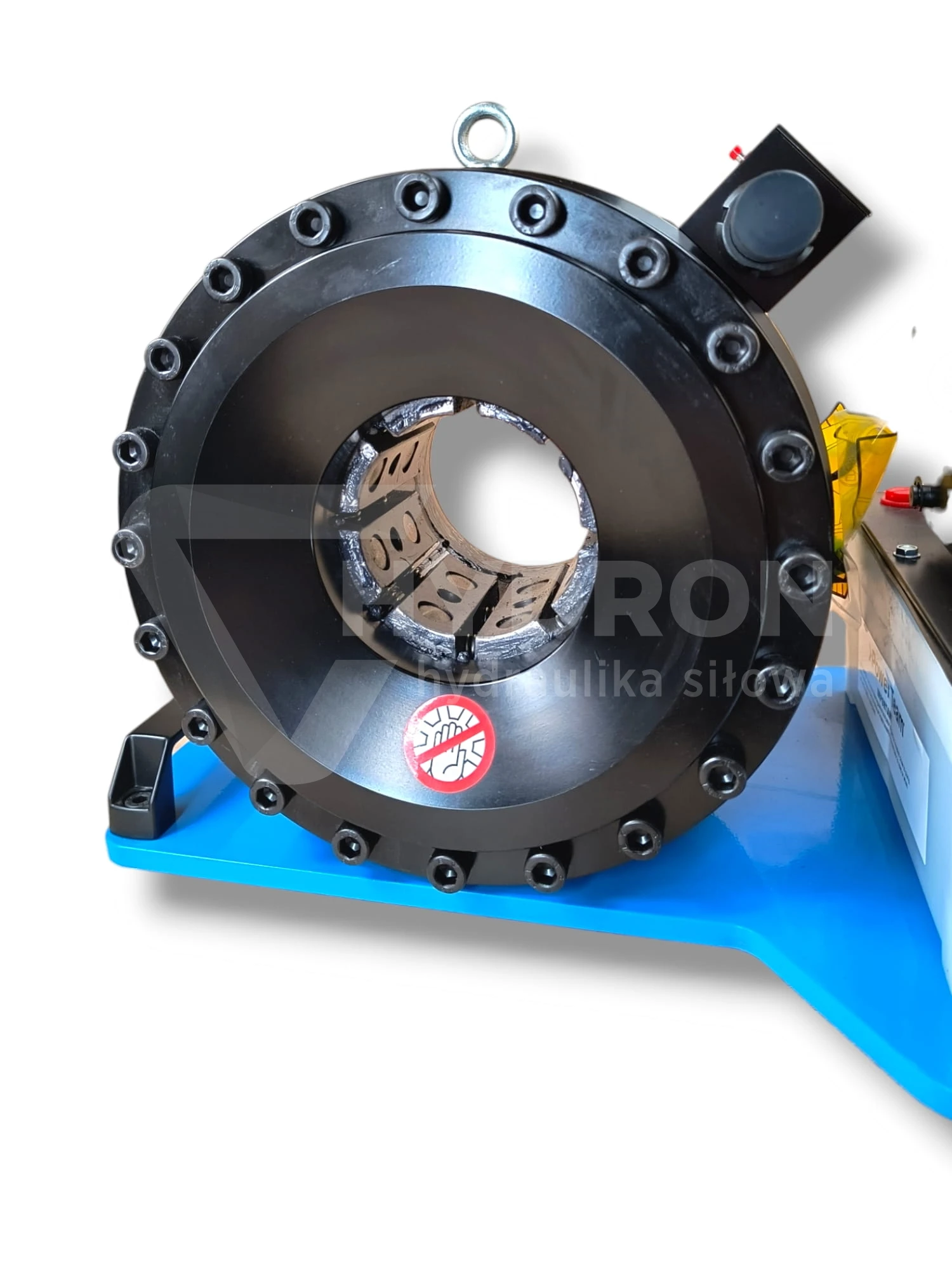

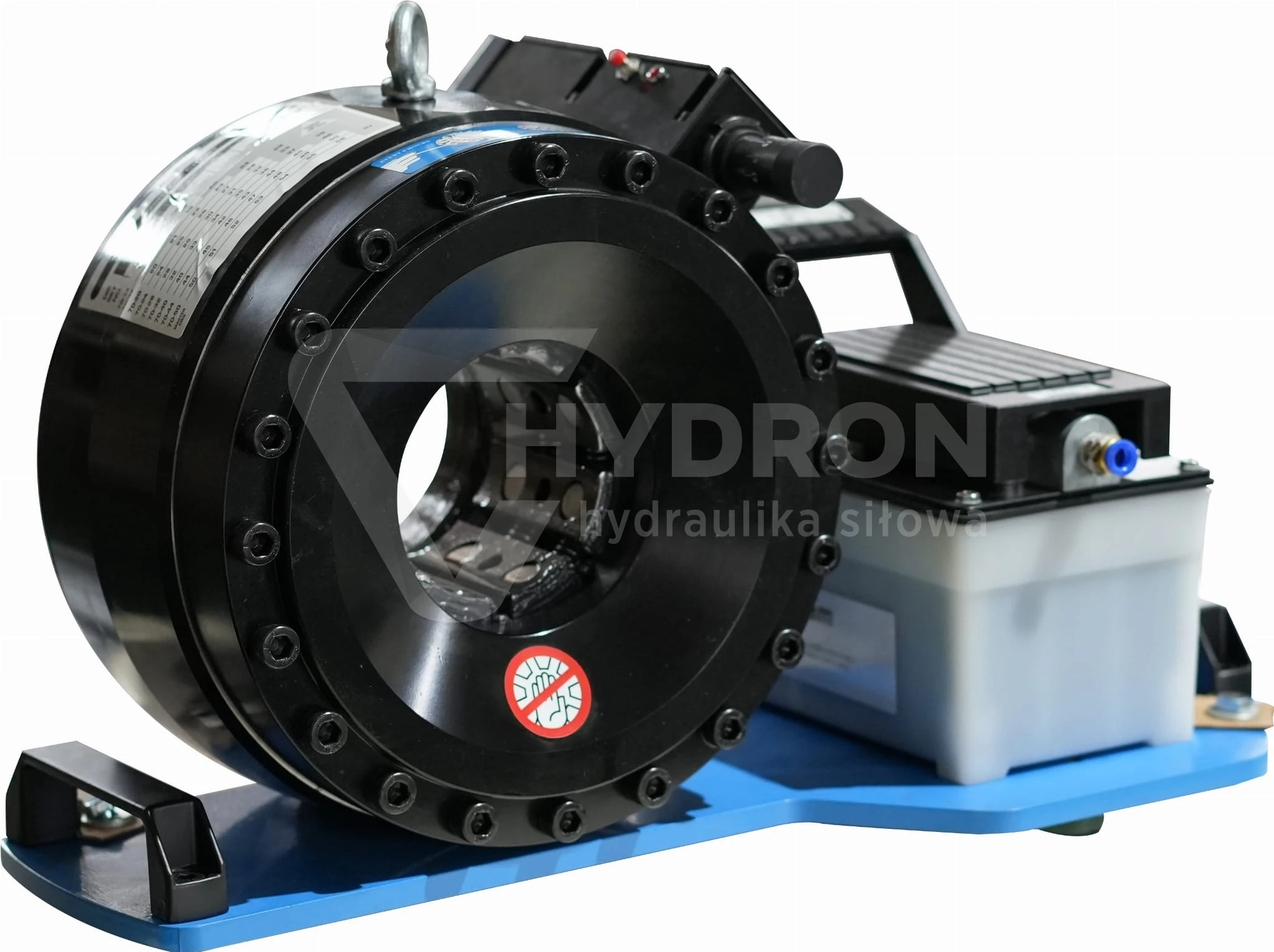

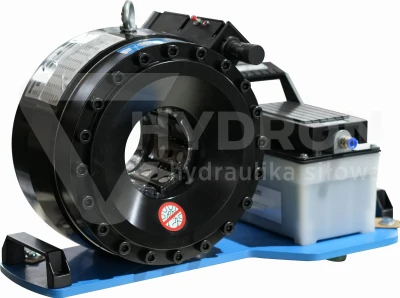

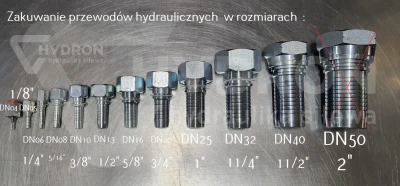

Pneumatic press designed for crimping SAMWAY P20AP hydraulic hoses. The maximum size of the crimped hose is DN40 4SP 1 1/2″ (DN40 = 40mm inside the hose). The P20AP model is the largest available crimper that is not electrically powered. The machine crimps a maximum of 2SN hoses up to DN50 diameter! Lightweight and easy to use, ideal for mobile services - due to its relatively low weight and compact dimensions, it is perfect for service vehicles. The largest elbow fitting that fits in the head of this crimper is a DN32 1 1/4". The main dies have a clearance of 67mm when fully closed (crimped). When fully open, 94mm.

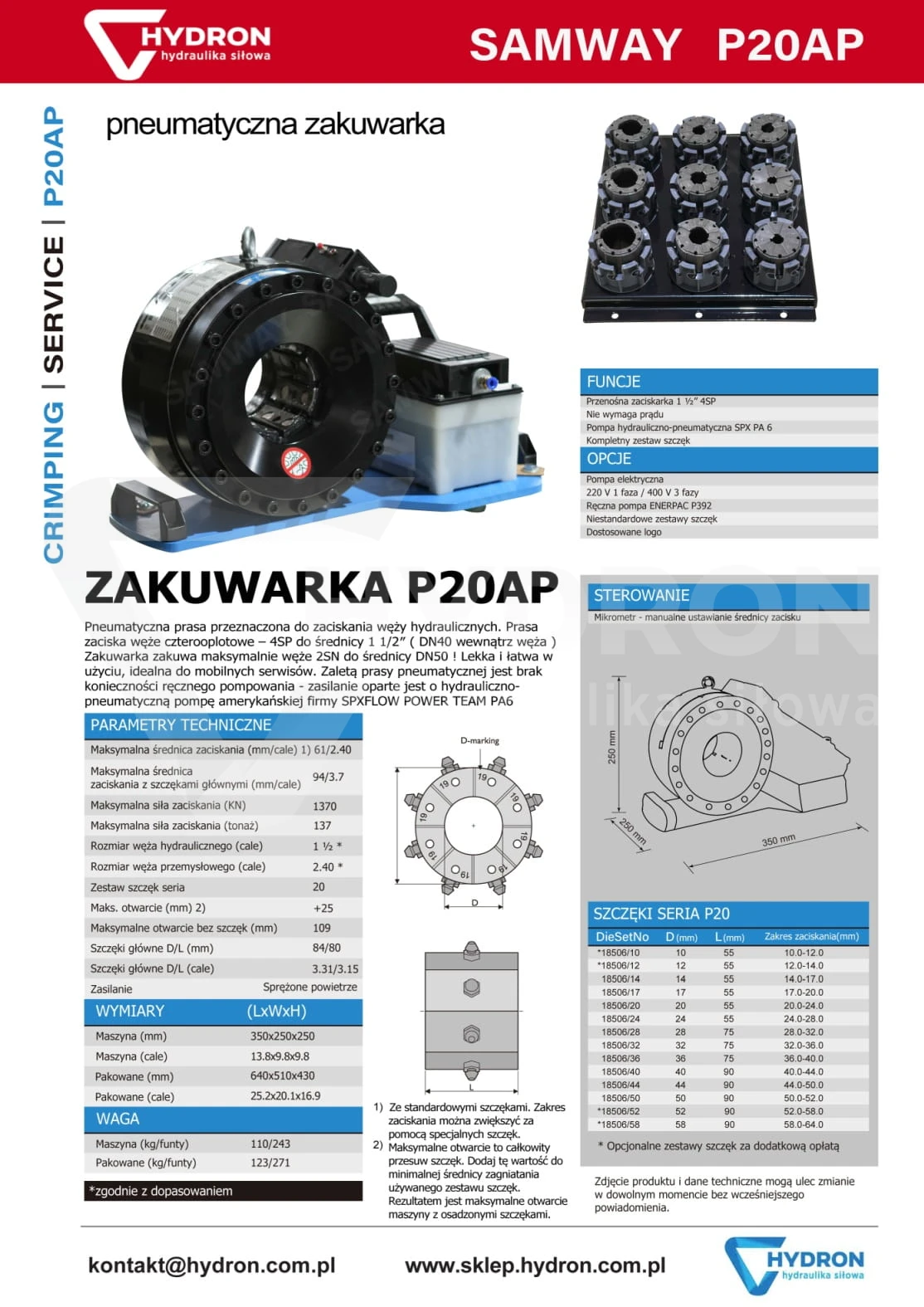

Crimping machine technical data:

• Model: SAMWAY P20AP
• Maximum size of the crimped hose: 1 ½’’ (DN40mm) 4SP
• Crimper range: from 4mm to 61mm
• Maximum crimping range on main dies: 94mm
• Die type: 20
• Main die length: 84mm
• Maximum die opening: +25mm
• Pneumatic pump: SPX or Enerpac: 700 bar
• Crimping force: 1370 KN (137 tons)

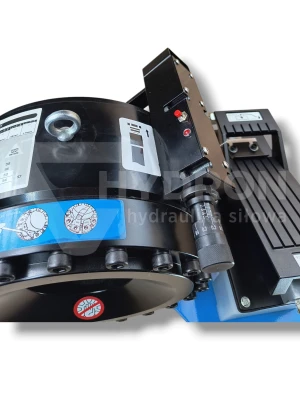

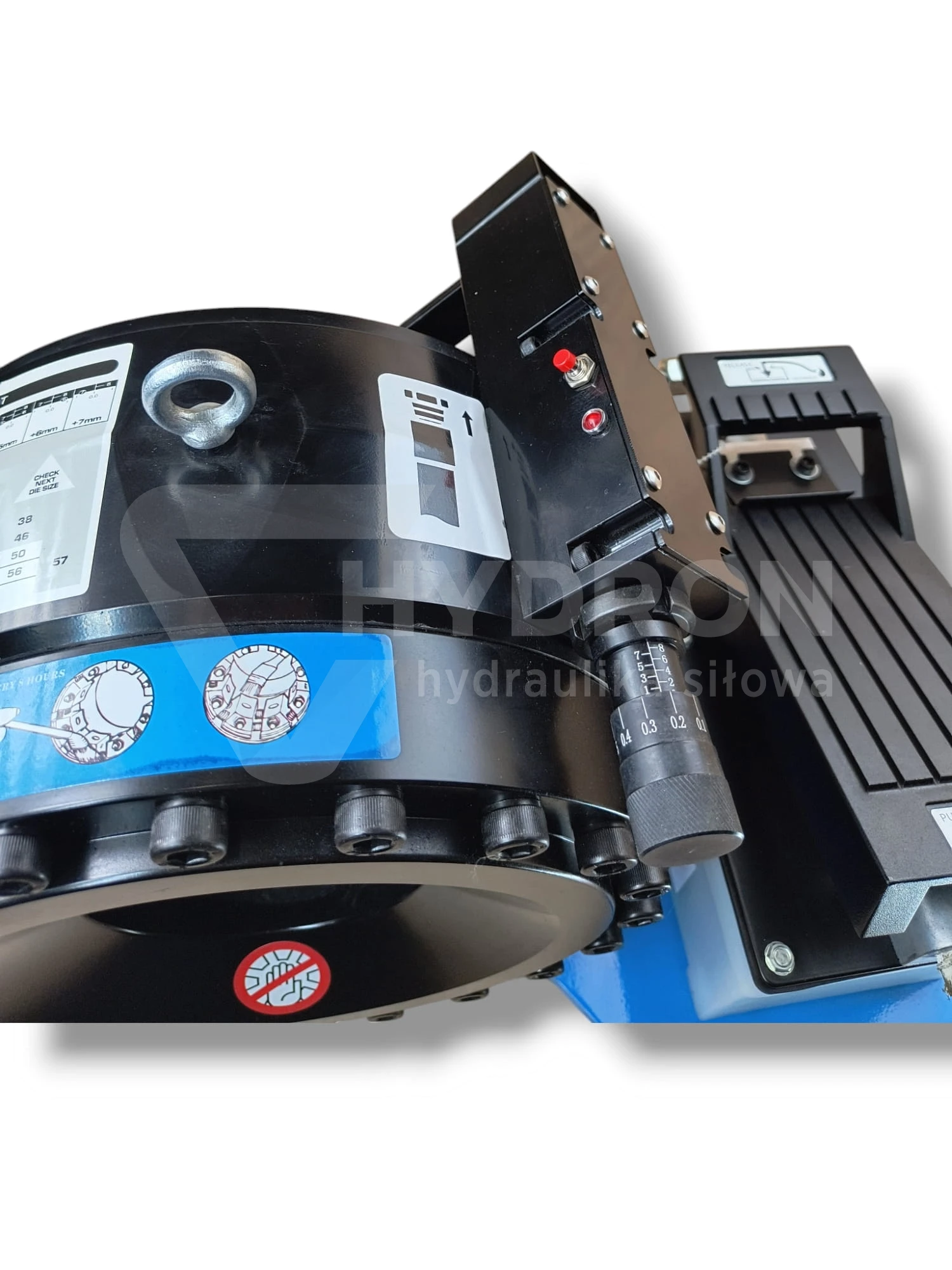

• Crimping diameter control: using a micrometer
• Crimper dimensions: 350mm (width) * 250mm (length) * 250mm (height)
• Weight: 110 KG (with dies)

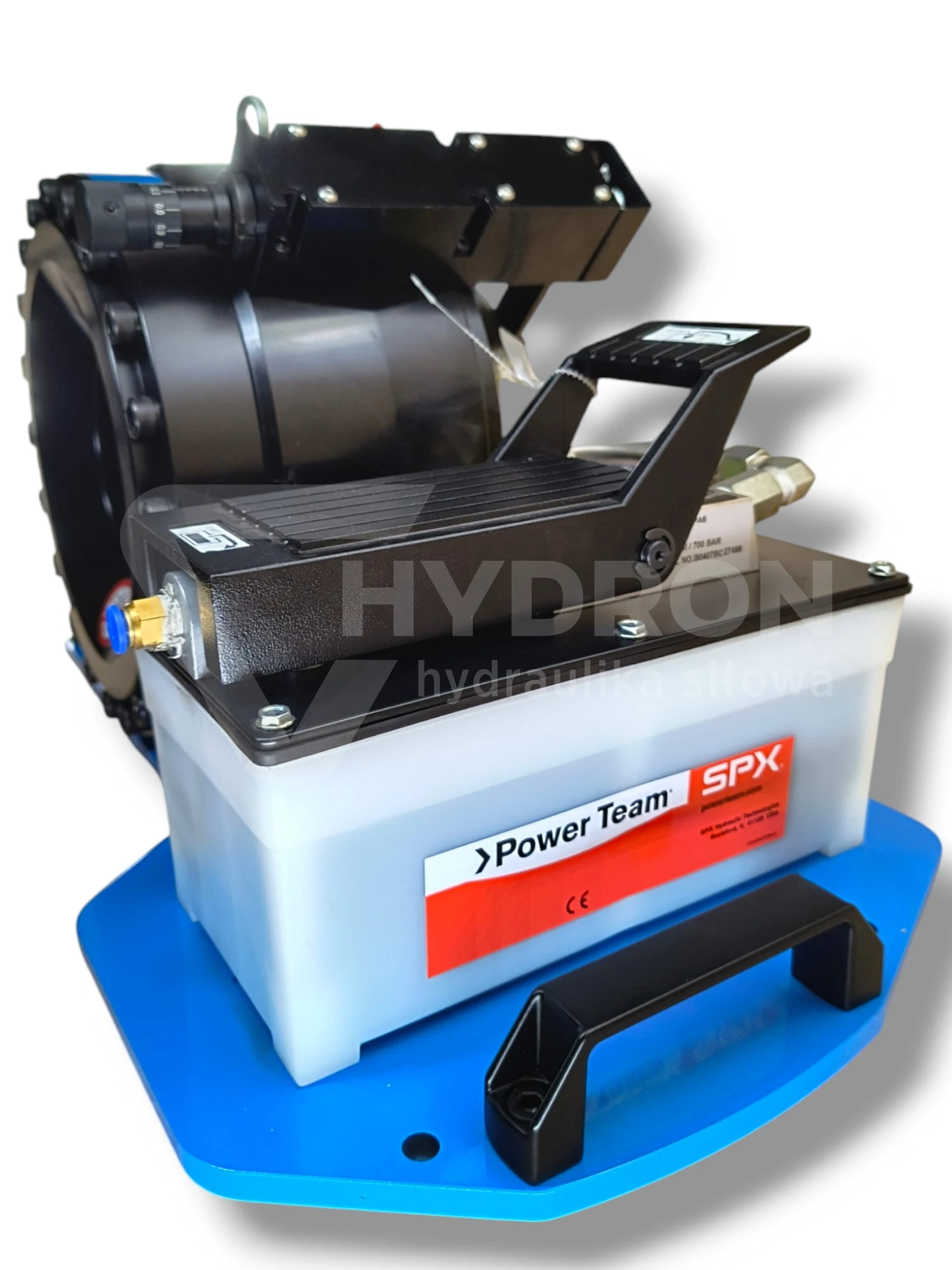

Hose crimper powered by compressed air

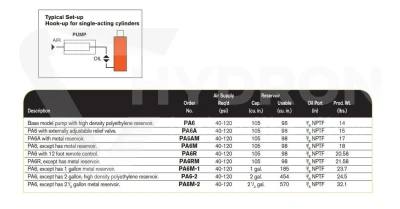

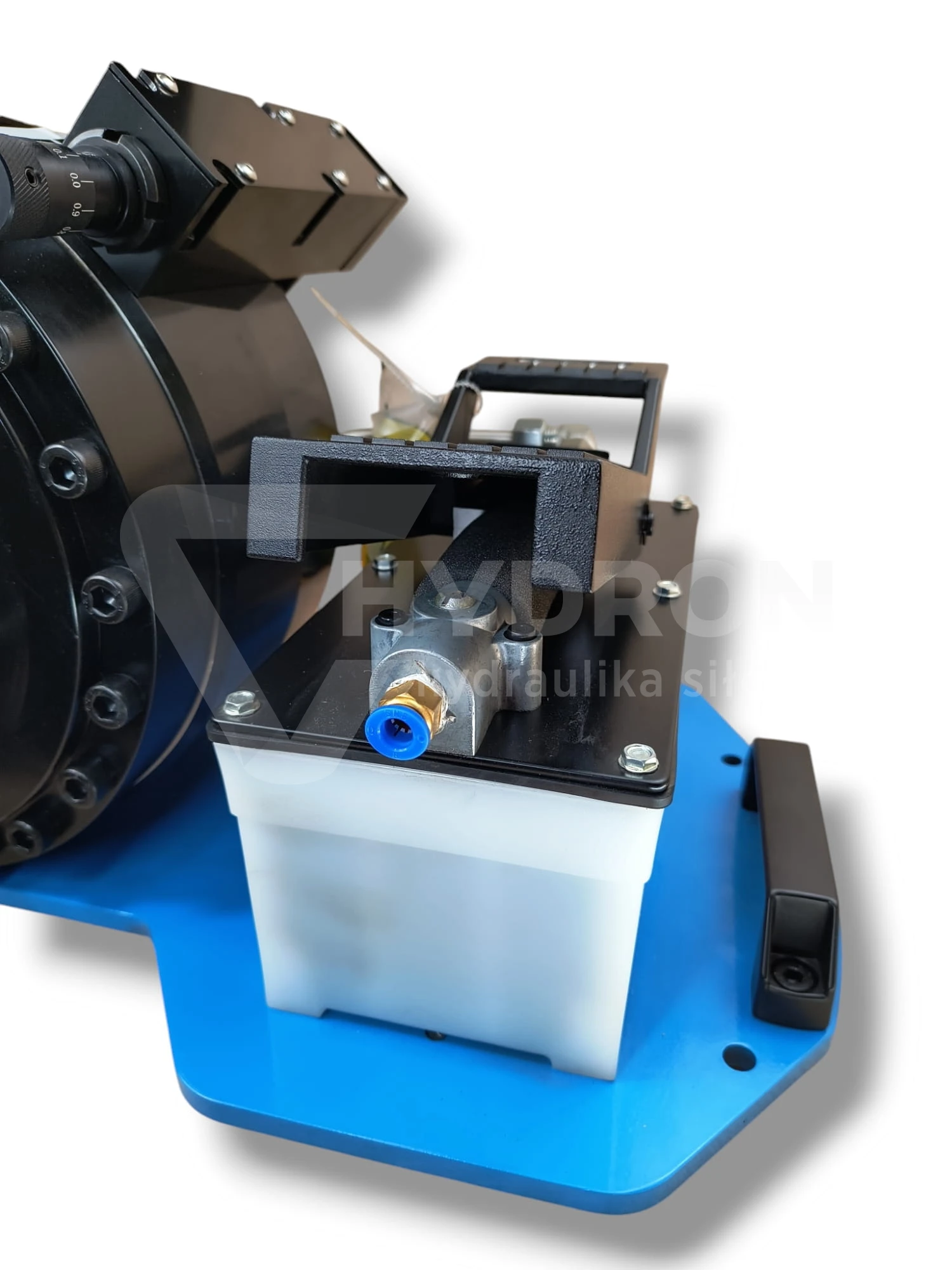

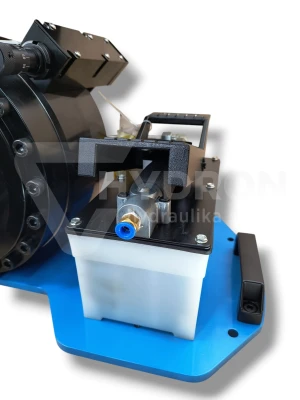

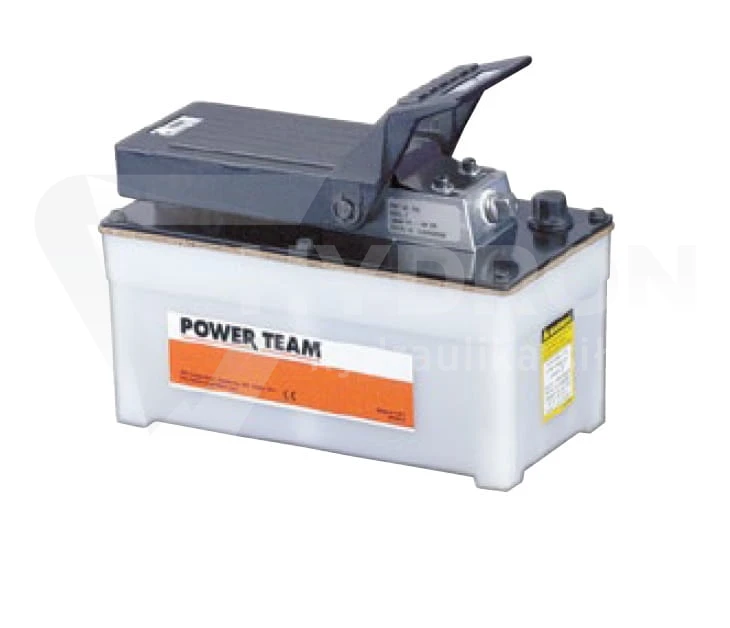

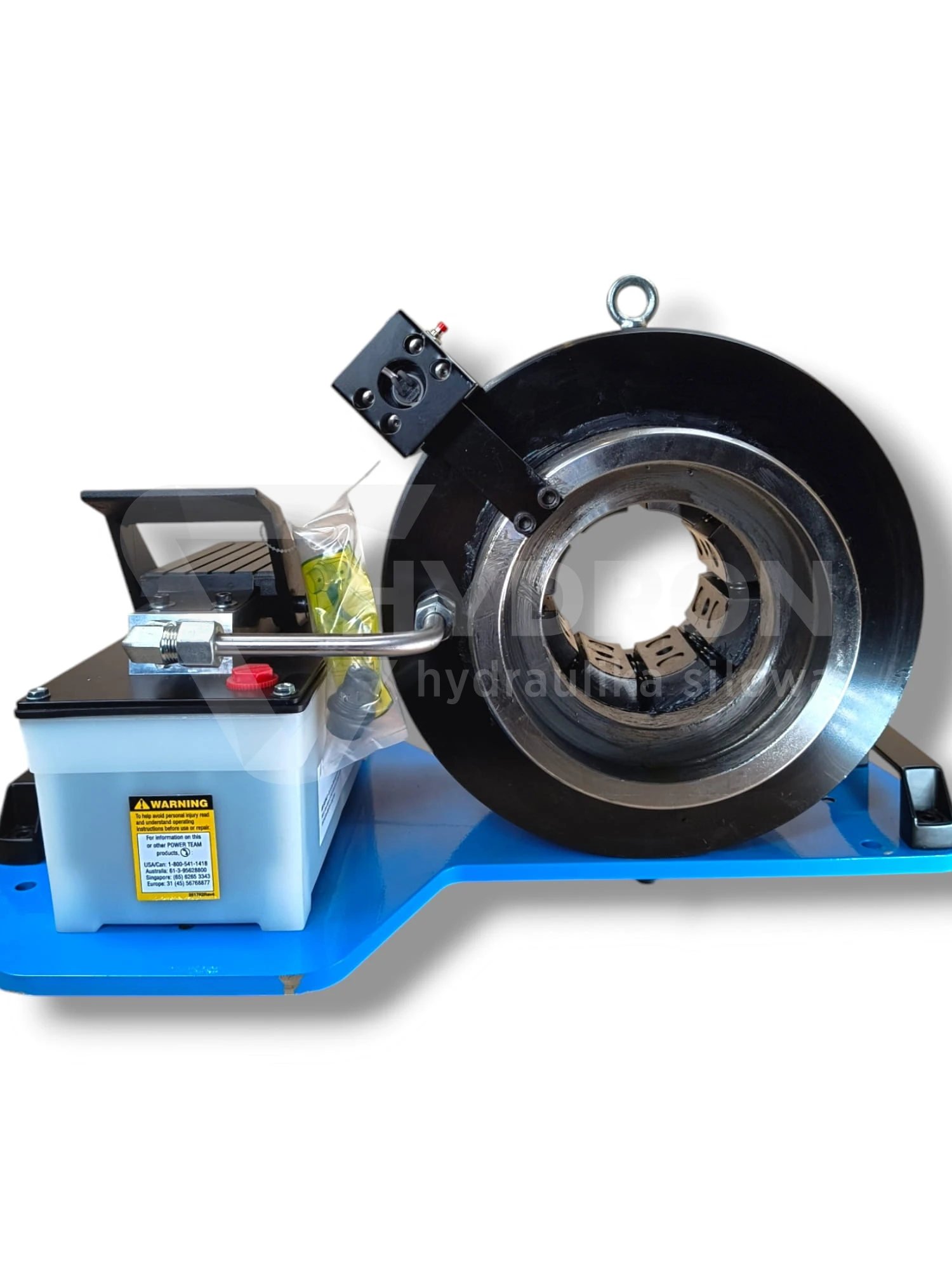

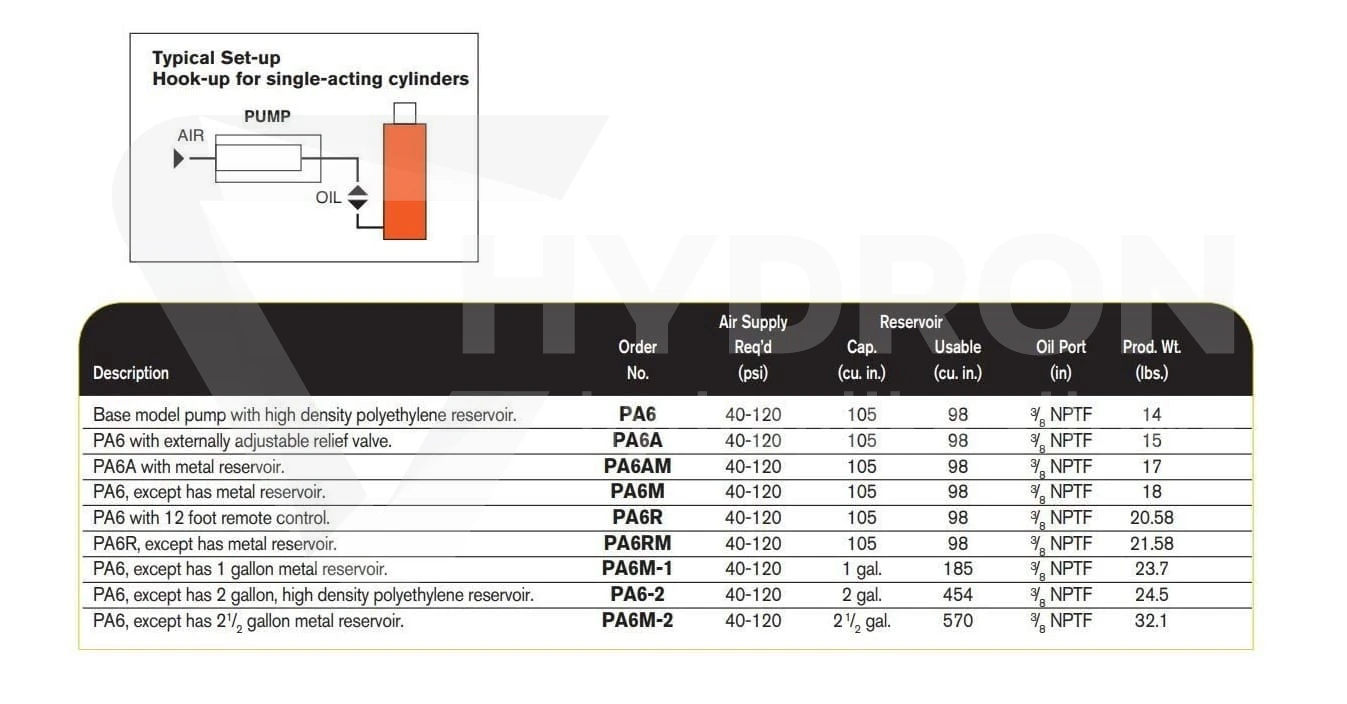

An undoubted advantage of the pneumatic crimper is that there is no need for manual pumping, as is the case with a standard manual SAMWAY P20HP crimping machine. In the pneumatic crimper, the power supply is based on a hydraulic-pneumatic pump from the American company SPX PA6 or ENERPAC. Just connect the air from the compressor! Importantly, the machine works even on the smallest store-bought compressors - 4.5 bar is enough to set the pump in motion. We also offer manual drive crimpers (manual pump). If you need a smaller press, check the P16HP crimper model. Due to its capabilities, the P20AP press is ideal for large mobile hose services (service for construction machinery, etc., road construction companies, car wash construction). Pneumatic crimpers are popular where electric crimpers cannot be used, e.g., in mines and explosion-hazard zones.

Greatest advantages of the crimper: large head (comfortable work), high crimping force, very good price for such a large machine.

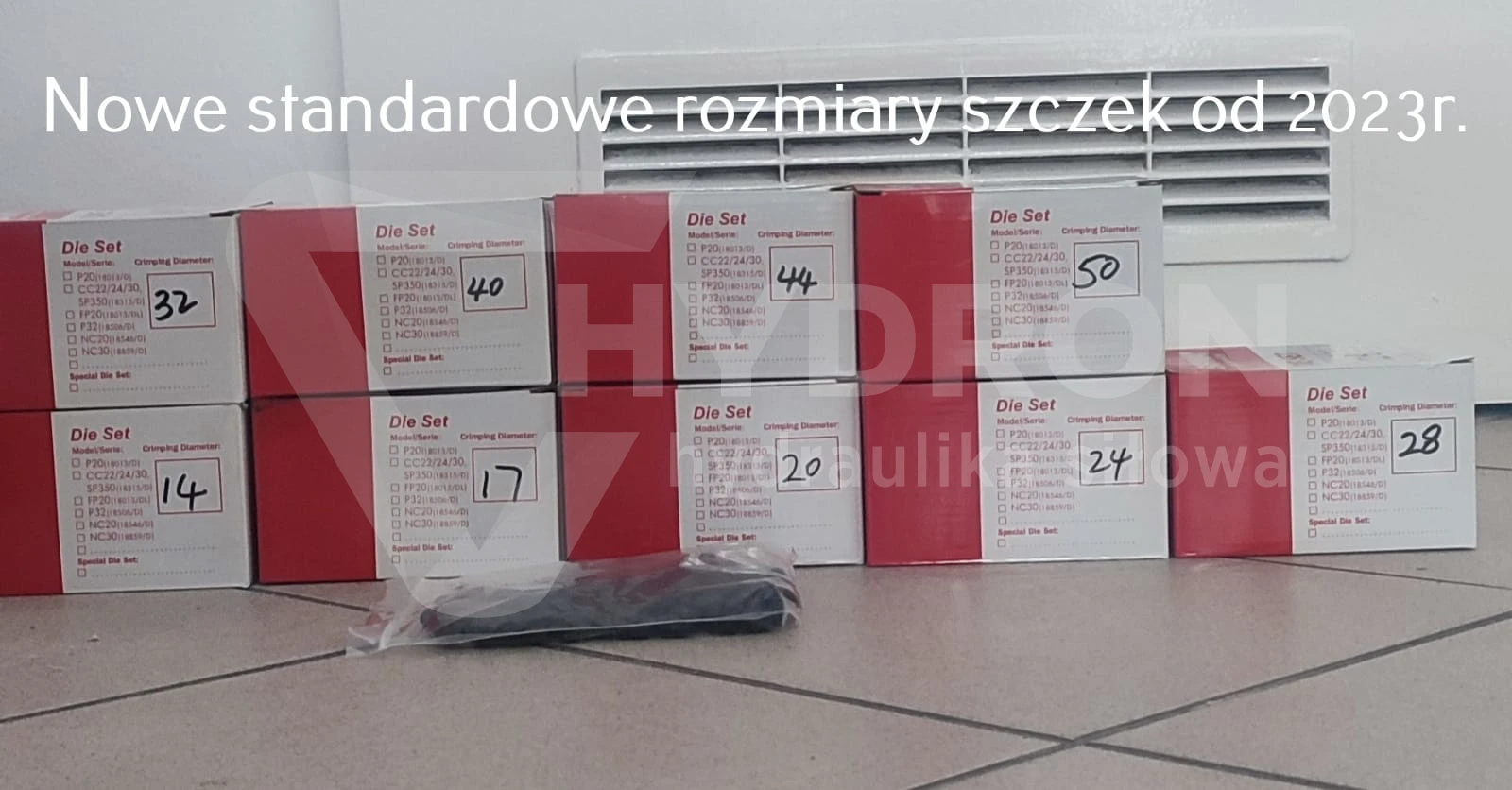

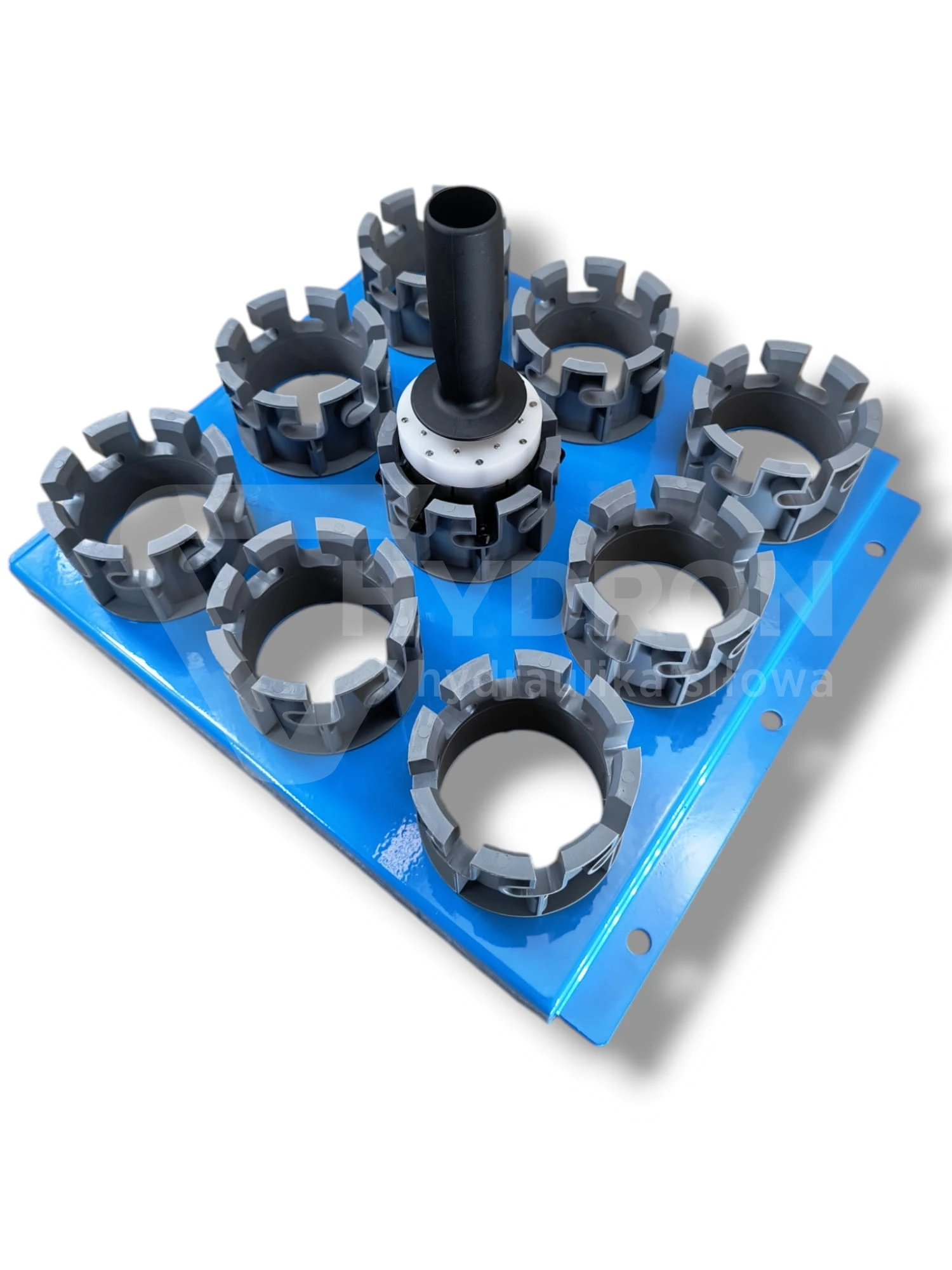

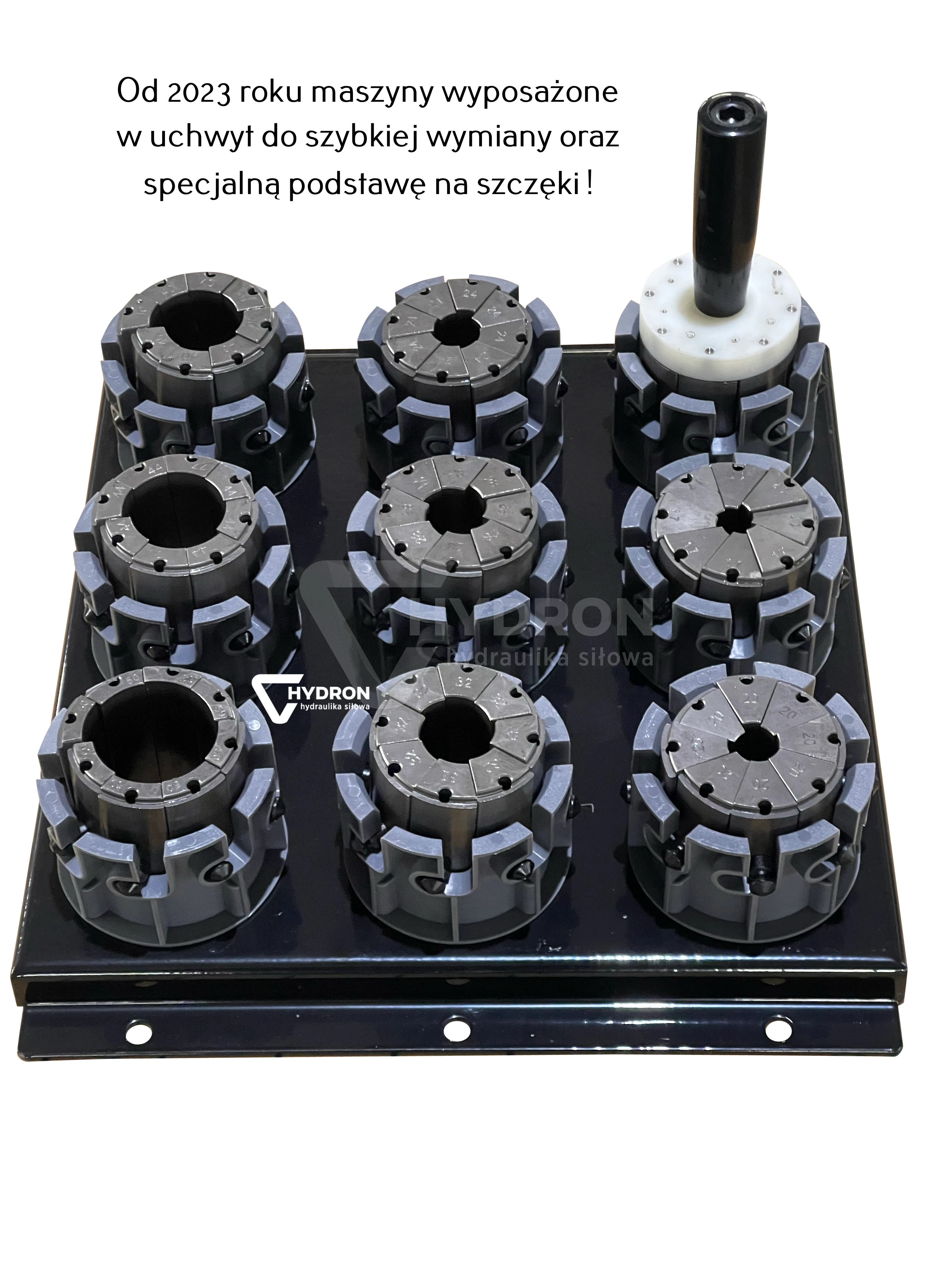

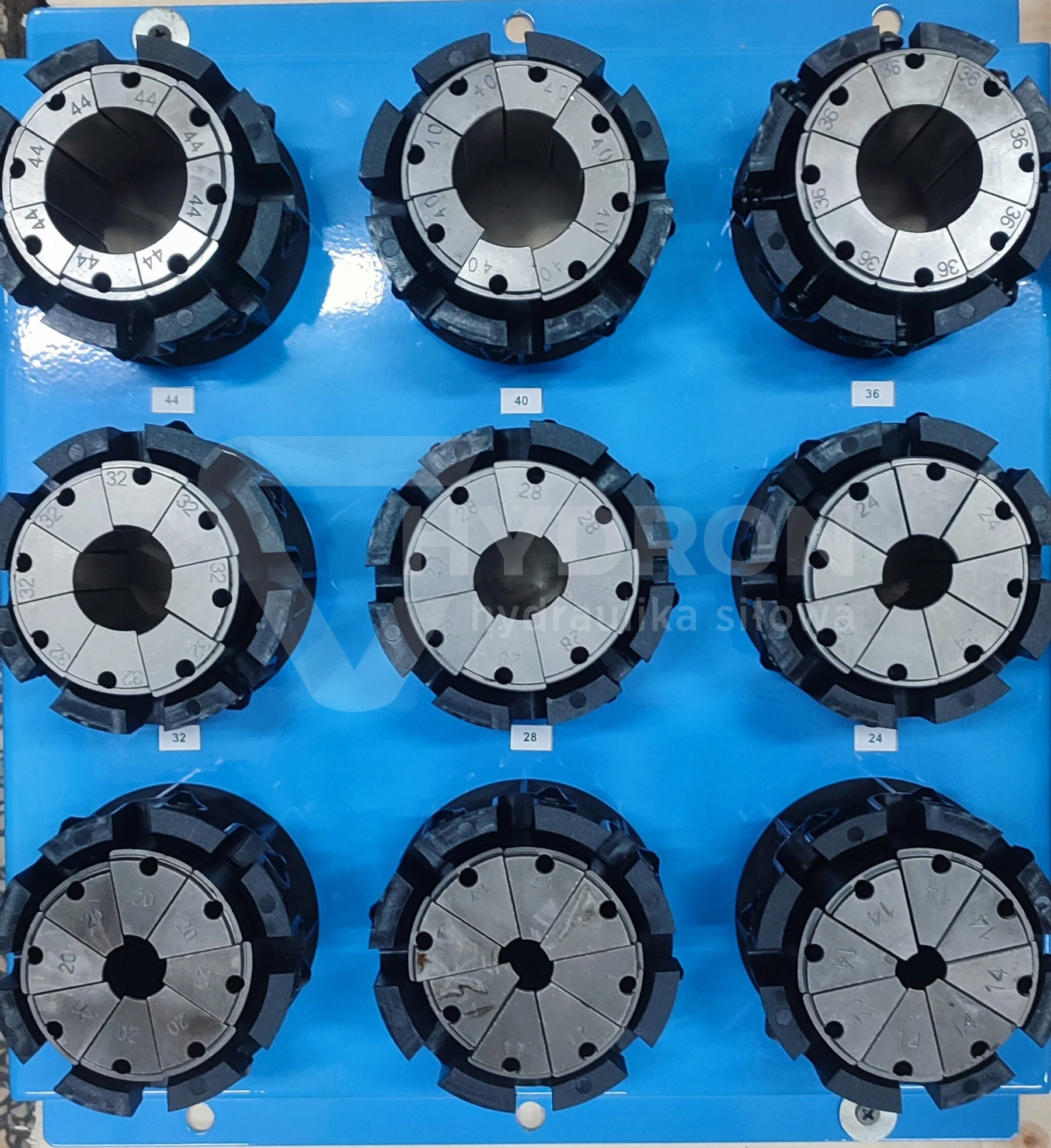

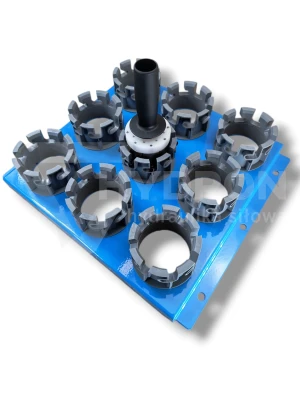

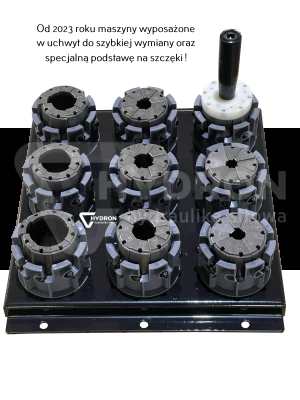

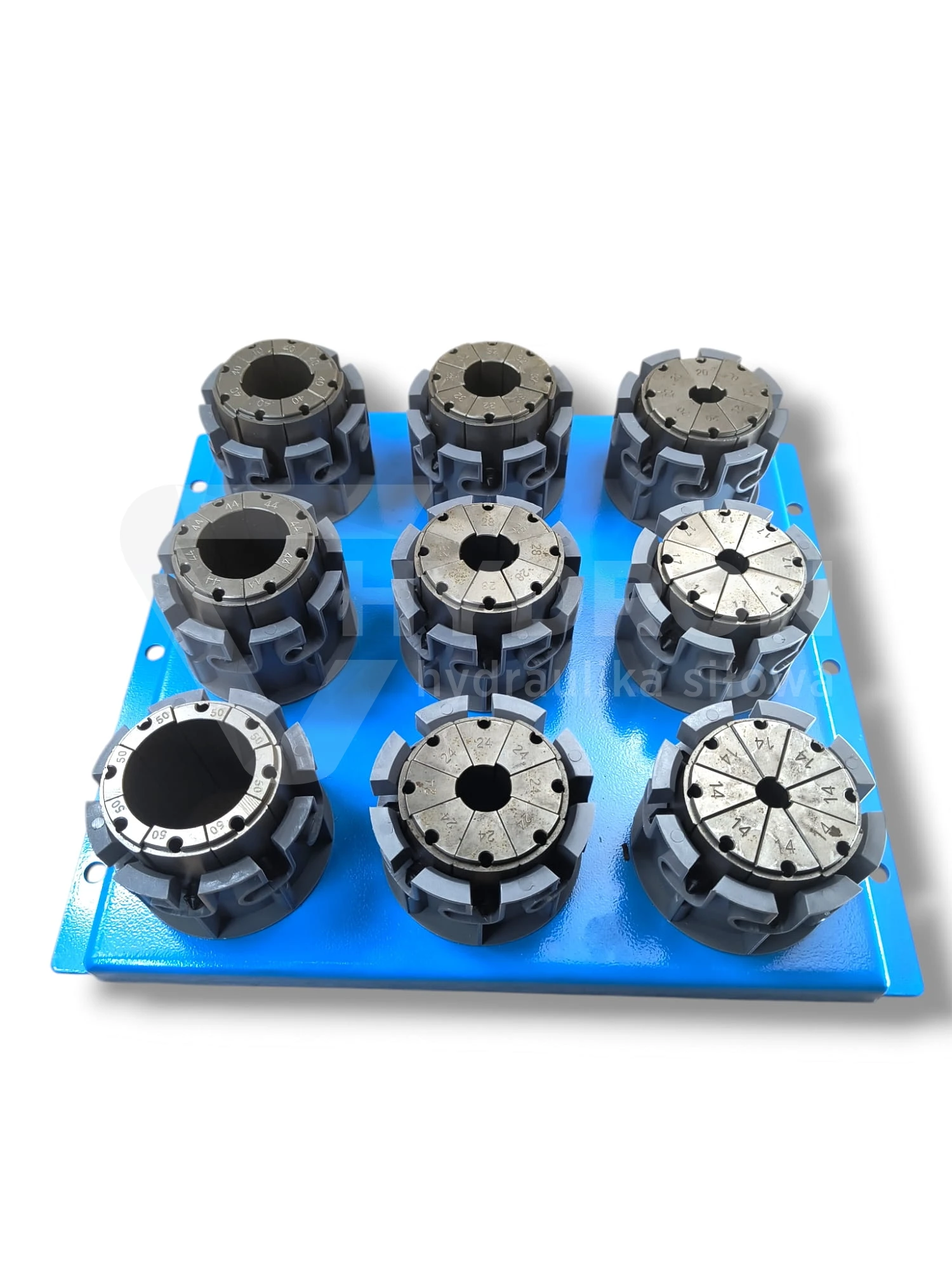

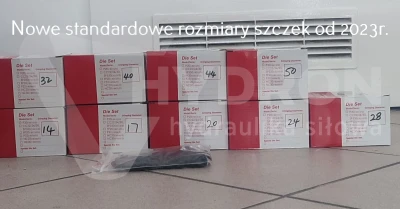

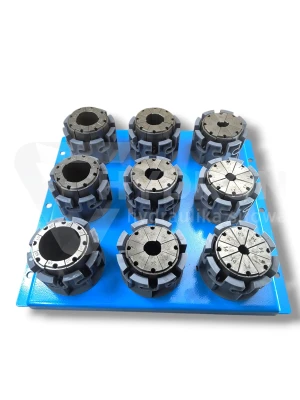

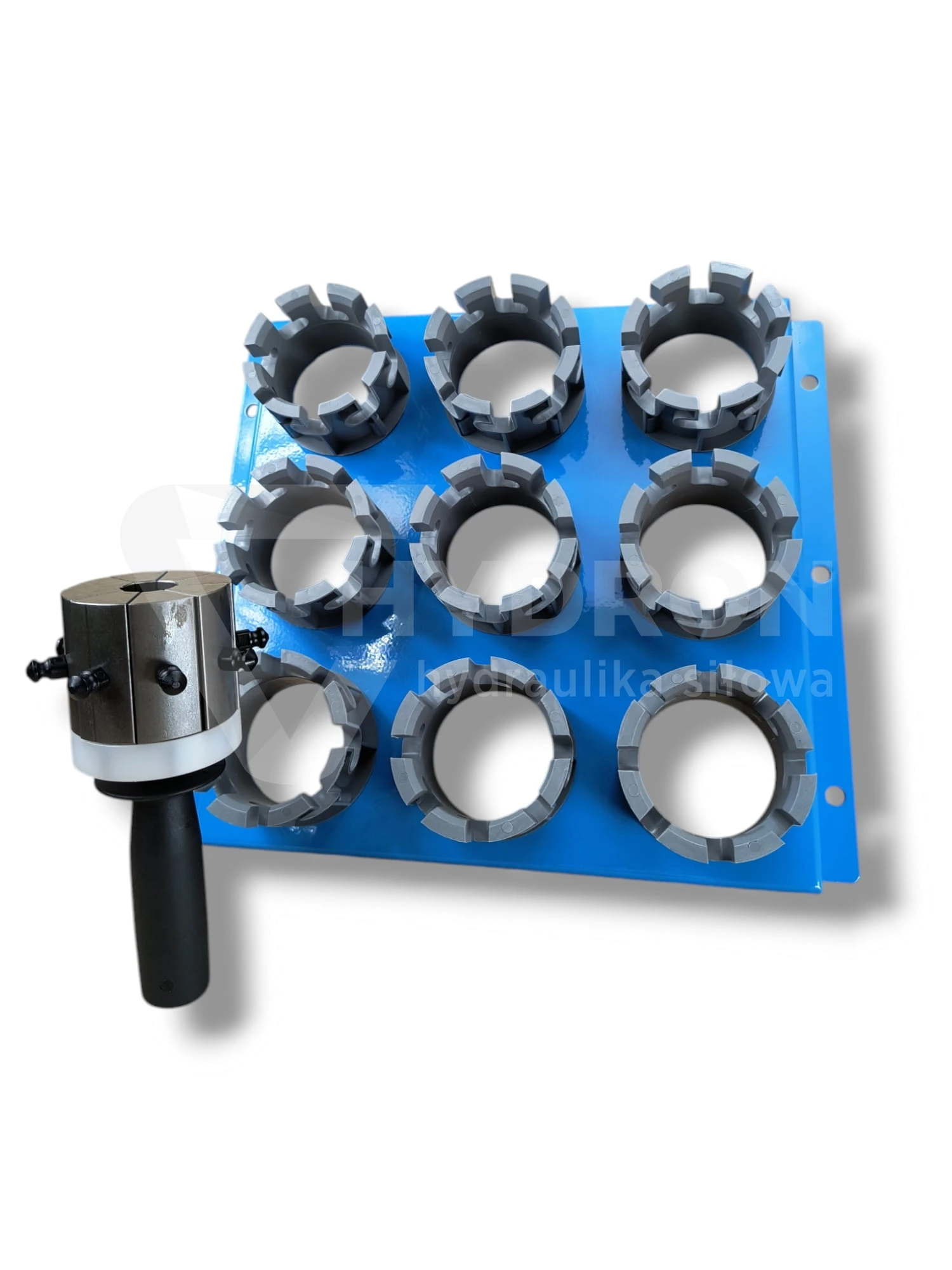

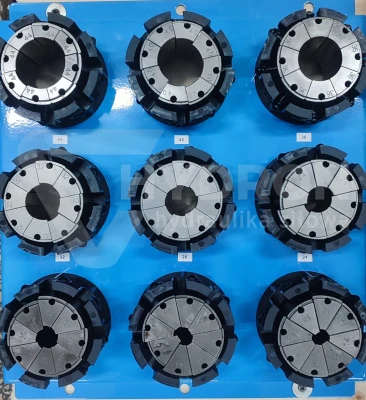

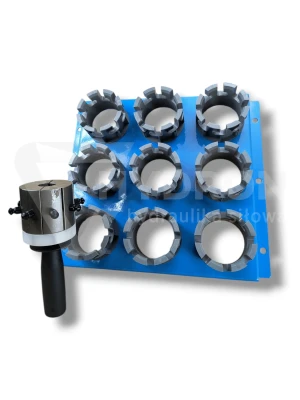

Crimping die sizes included in the set (size / length):

• 14 mm dies (length 55 mm)
• 17 mm dies (length 55 mm)
• 20 mm dies (length 55 mm)
• 24 mm dies (length 55 mm)
• 28 mm dies (length 75 mm)
• 32 mm dies (length 75 mm)
• 36 mm dies (length 75 mm)
• 40 mm dies (length 90 mm)
• 44 mm dies (length 90 mm)
• 50 mm dies (length 90 mm)
