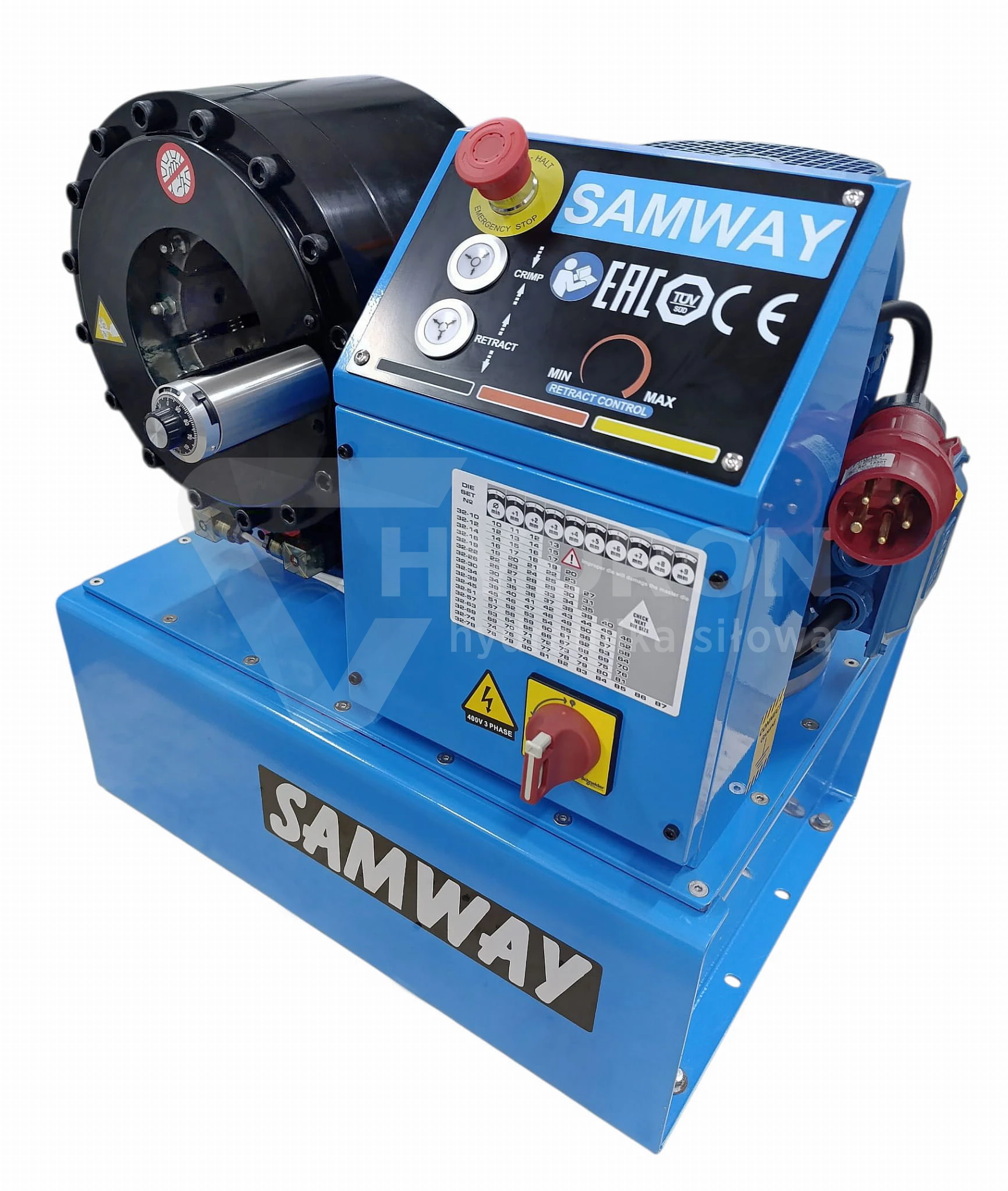

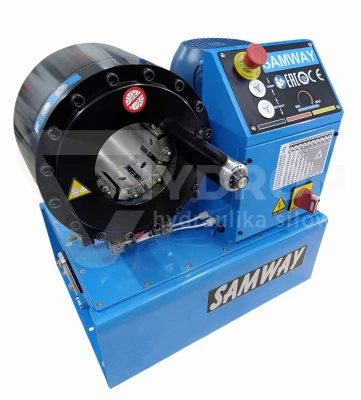

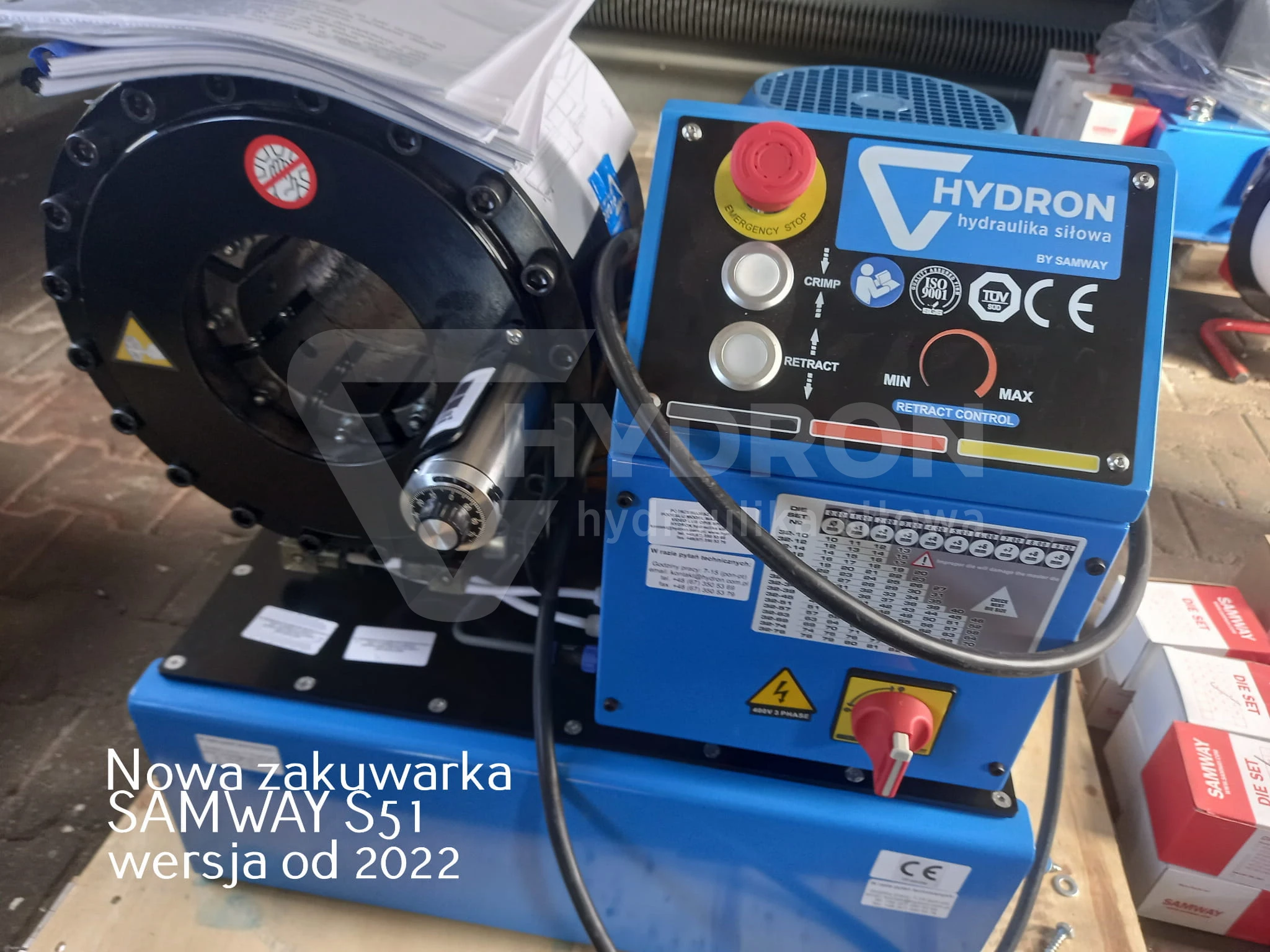

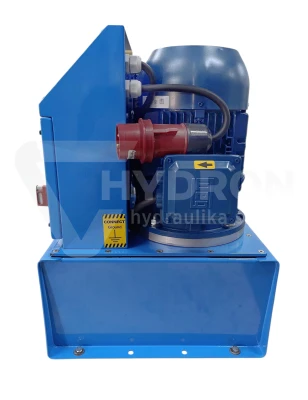

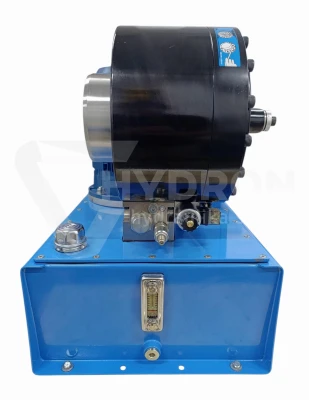

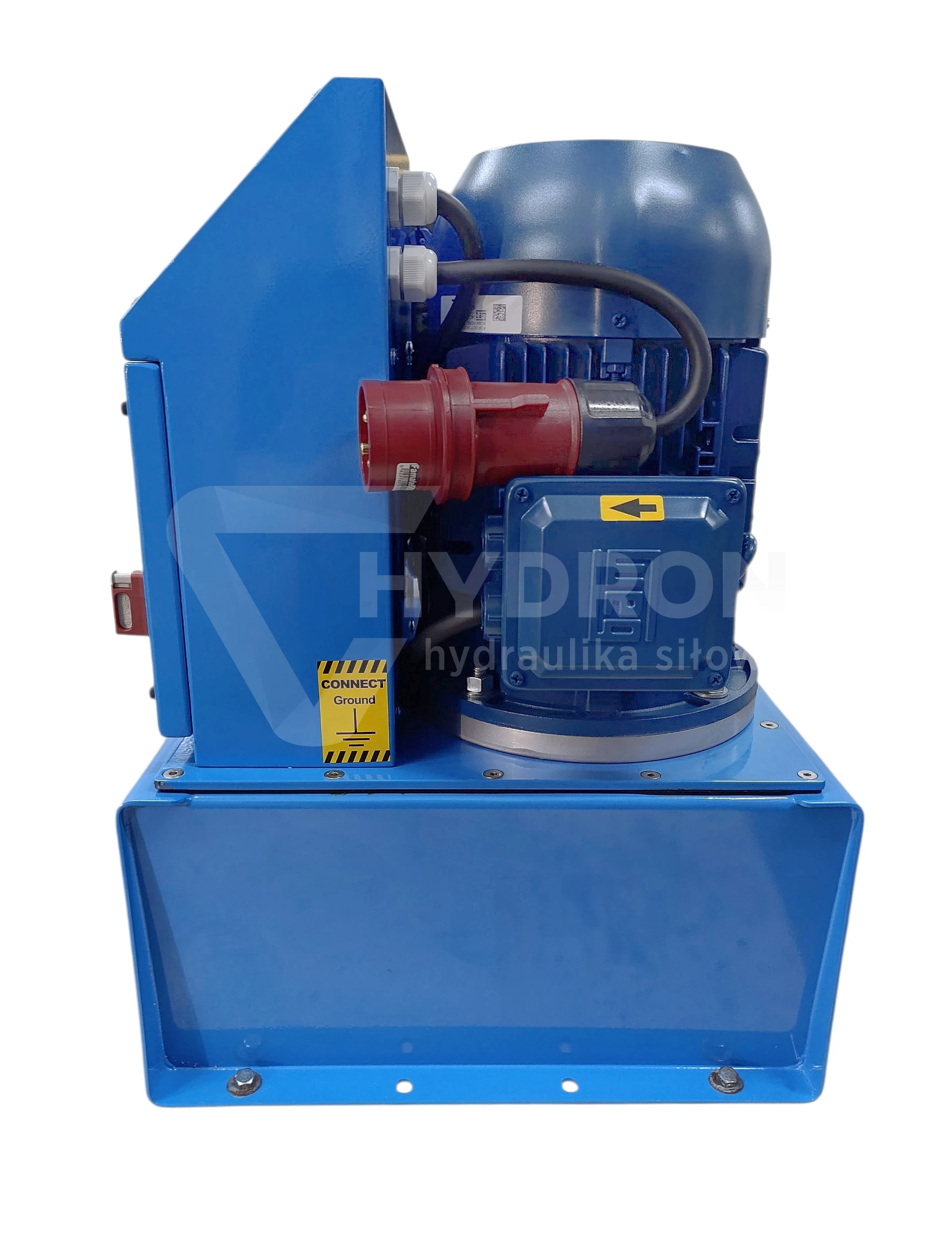

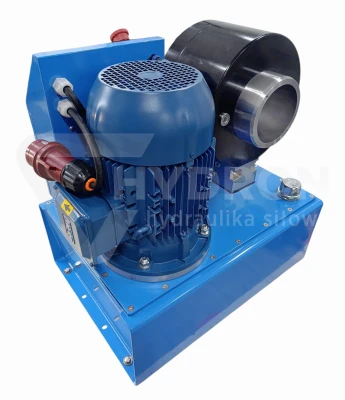

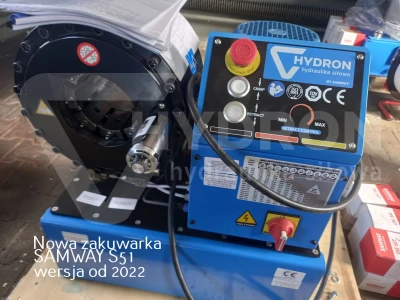

S51 hydraulic hose crimping machine up to 2" 4SP

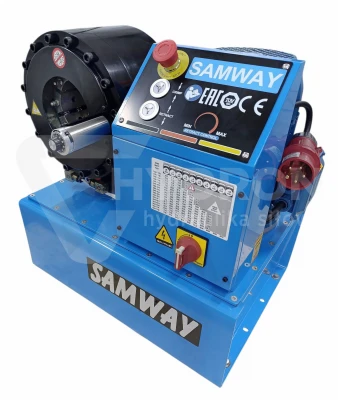

SAMWAY S51 Crimping Machine

• Book a free meeting and machine demonstration
• Watch the instructional video

One of the best electrically powered (3kW) hydraulic hose crimpers offered on the market. The S51 hydraulic hose crimping press is the optimal choice for all those who need a crimper with the best capabilities in relation to price. Due to its capabilities (the press crimps 4SP hydraulic hoses - four-braid up to DN50 or 2″ diameter), the crimper is intended for industry and workshops that crimp or intend to crimp hoses for heavy equipment (excavators, construction equipment, etc.).

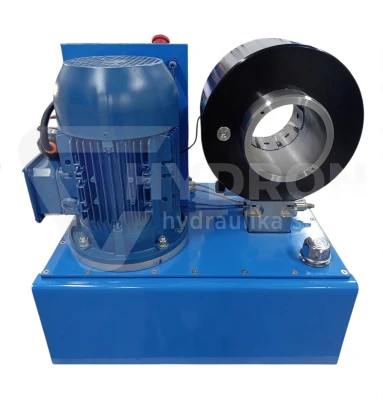

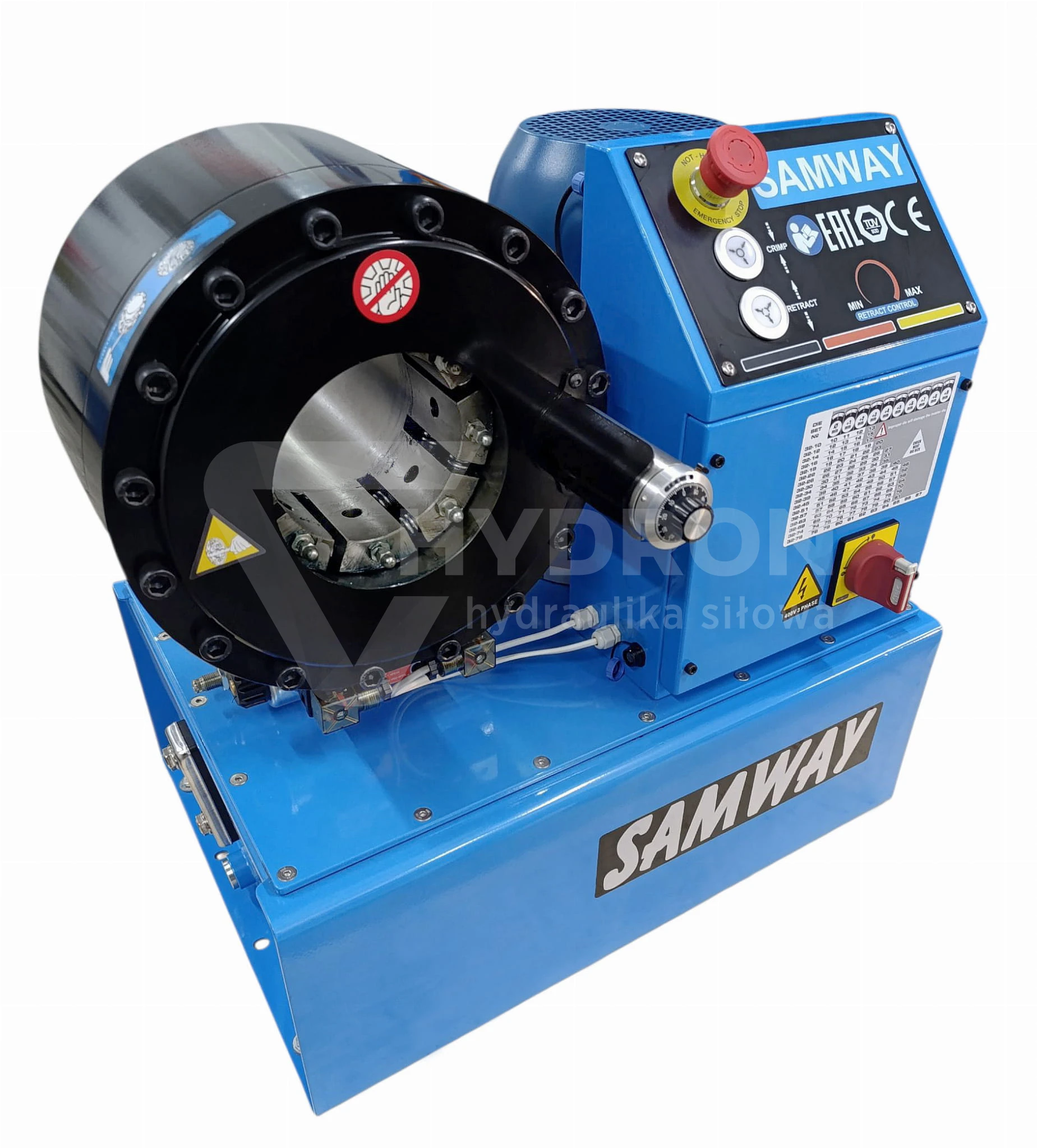

Large head = comfortable work

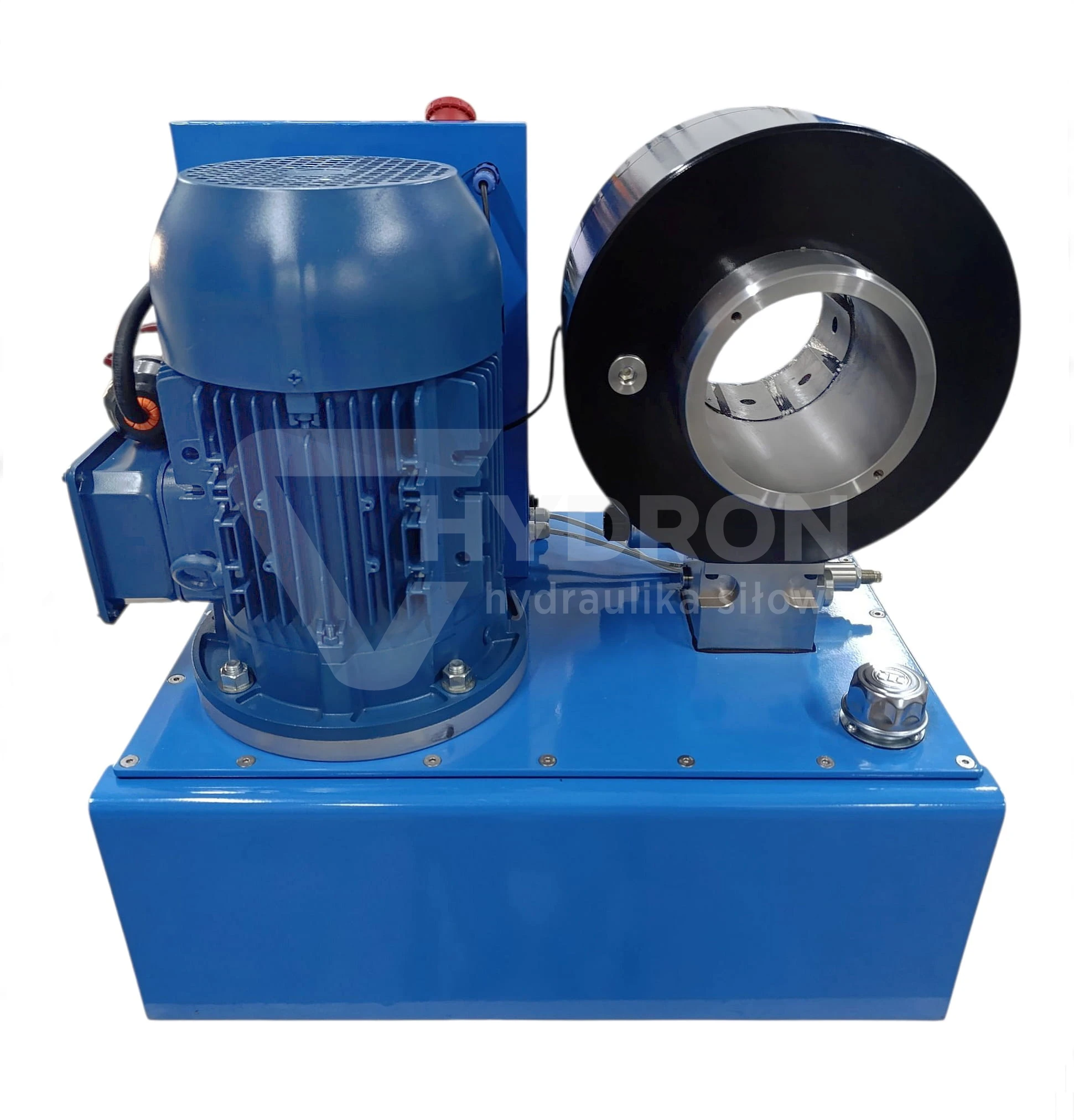

The crimper has a very large head, thanks to which it is able to crimp even the largest hydraulic hoses, which are 2" hoses (50mm inside the hose). The capabilities of the press do not end with high-pressure hoses. Thanks to the large size of the head, this model can crimp car power steering hoses, air conditioning hoses, pipes, and others - practically everything that is round and fits in the head.

Crimper ready for operation

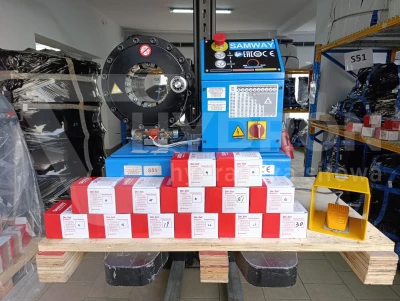

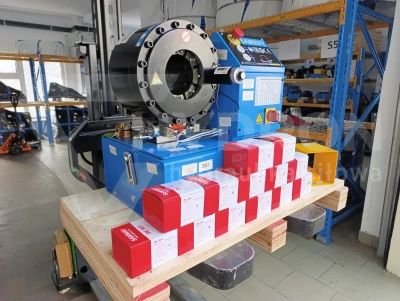

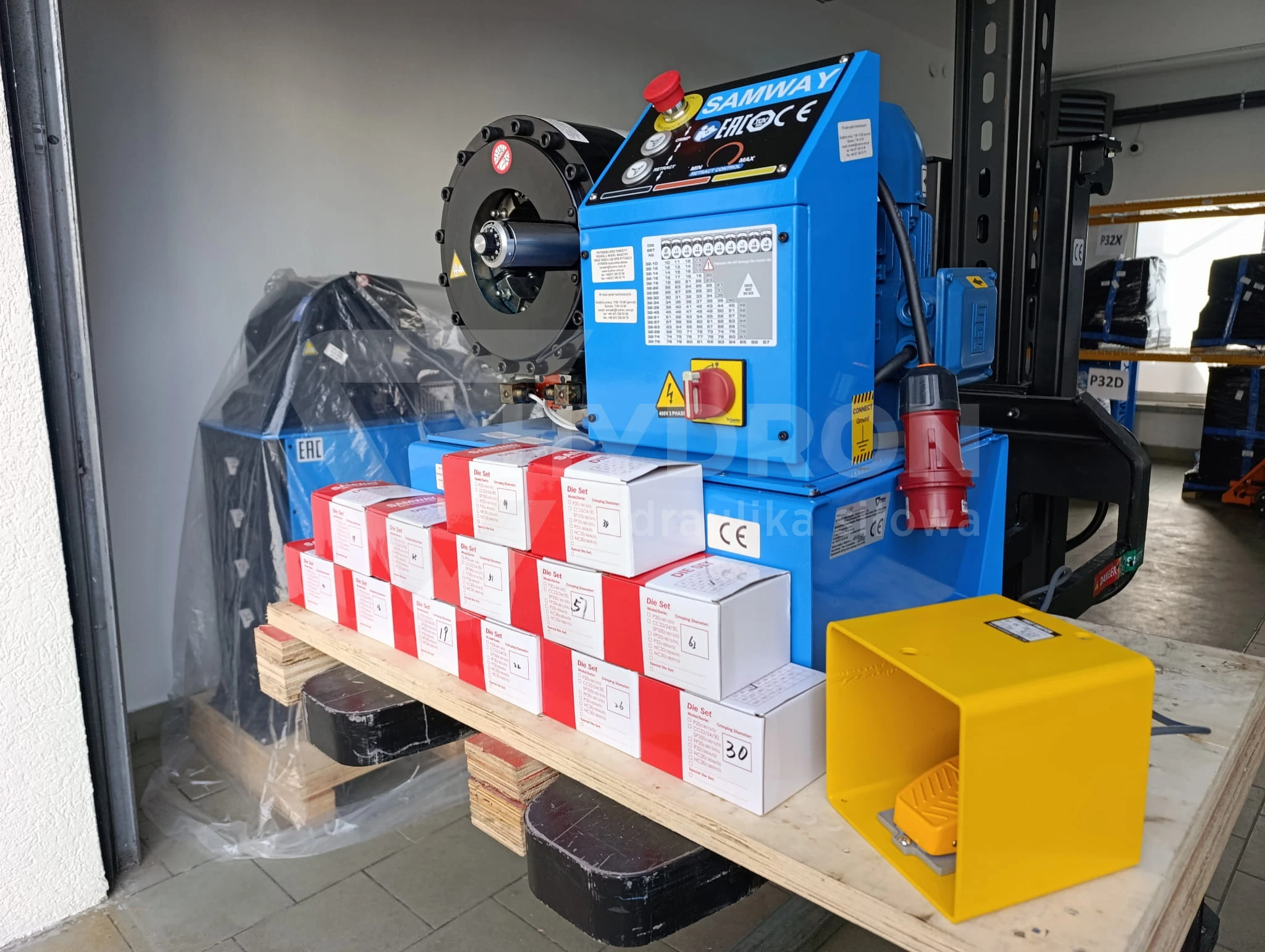

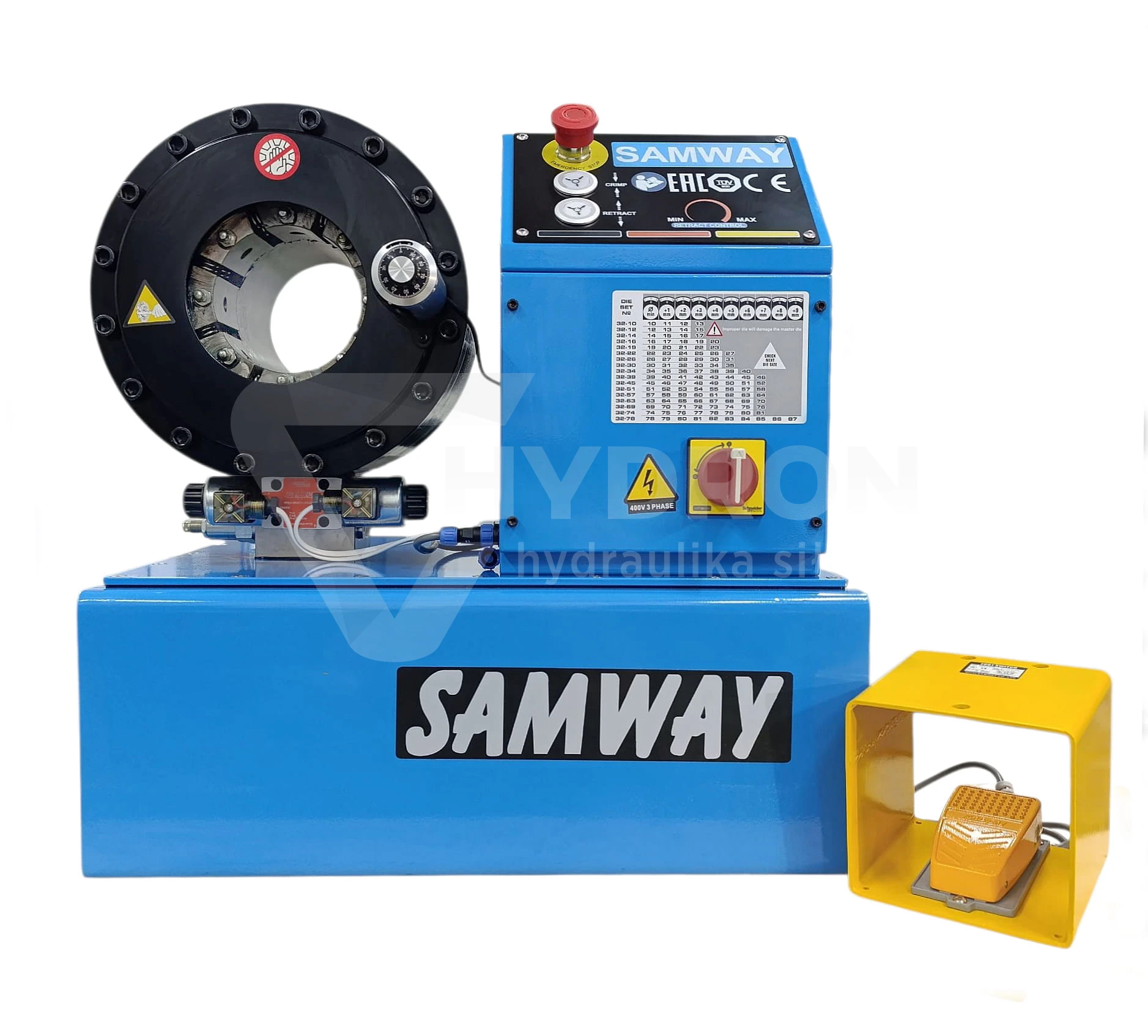

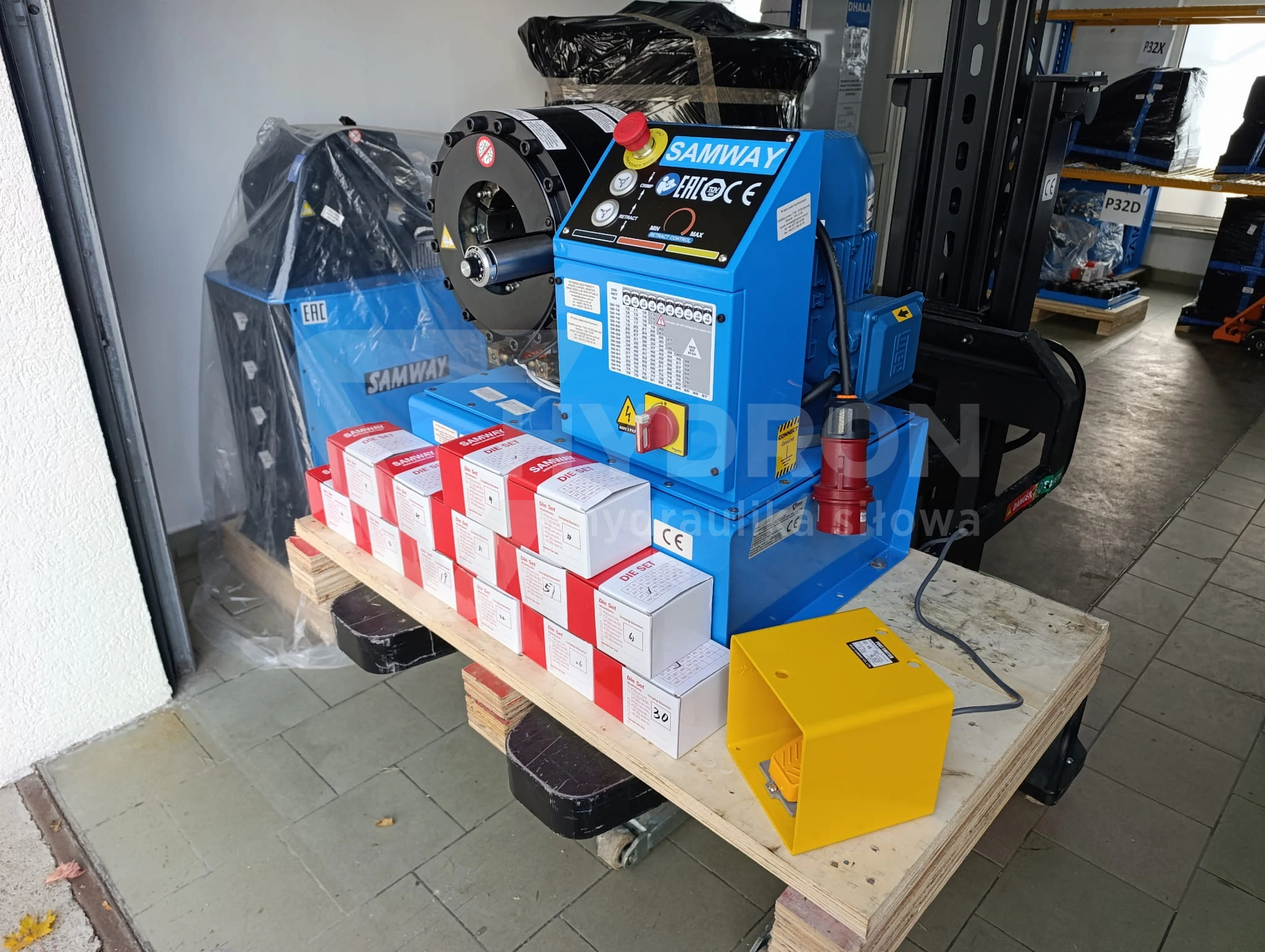

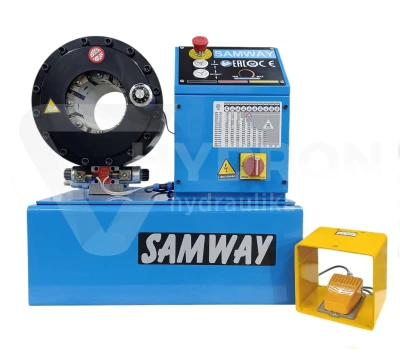

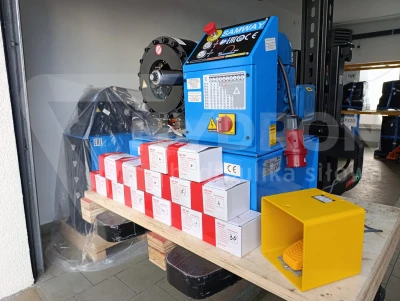

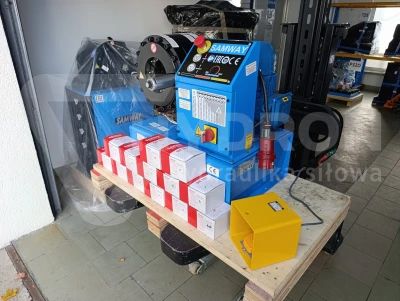

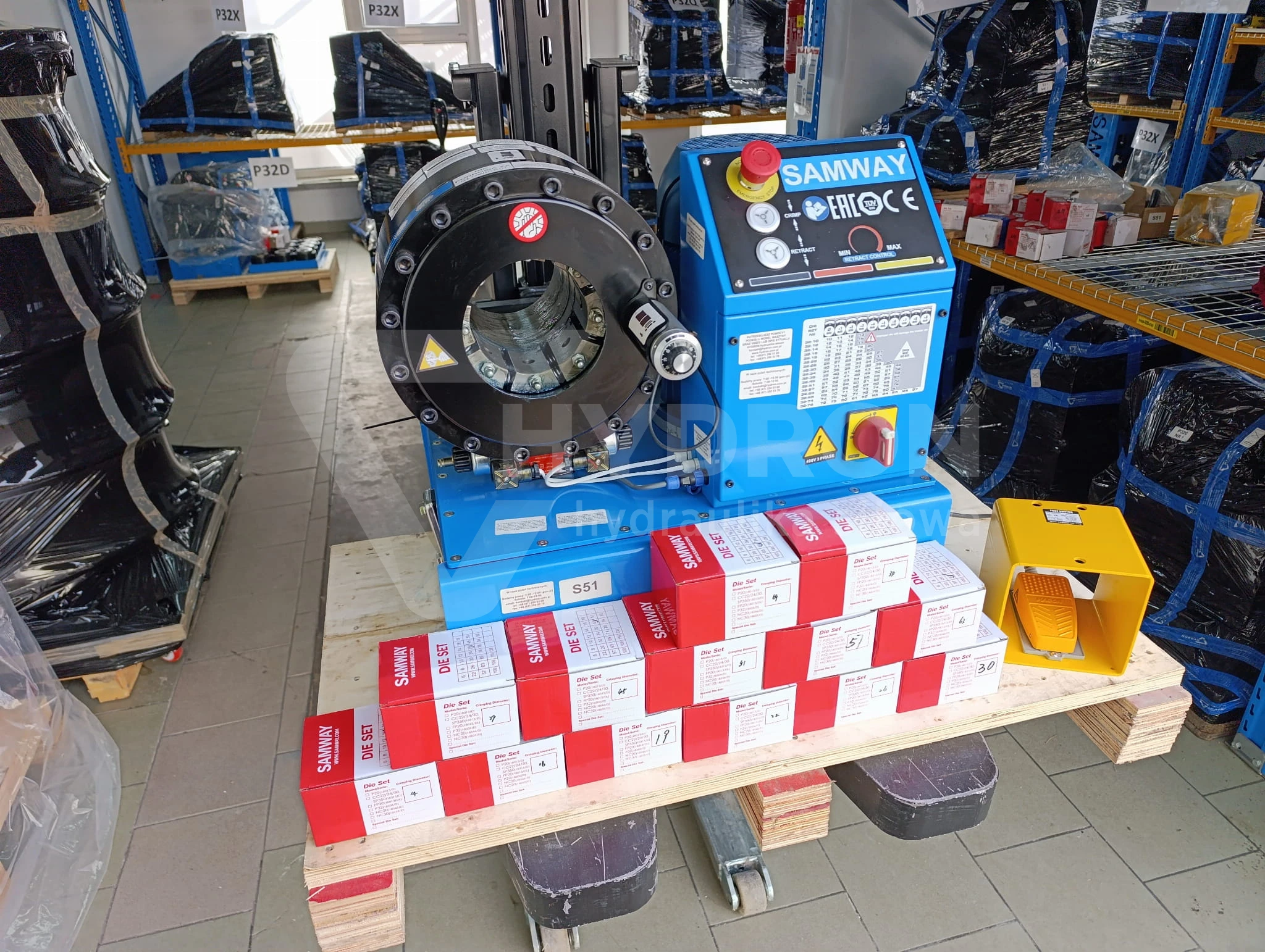

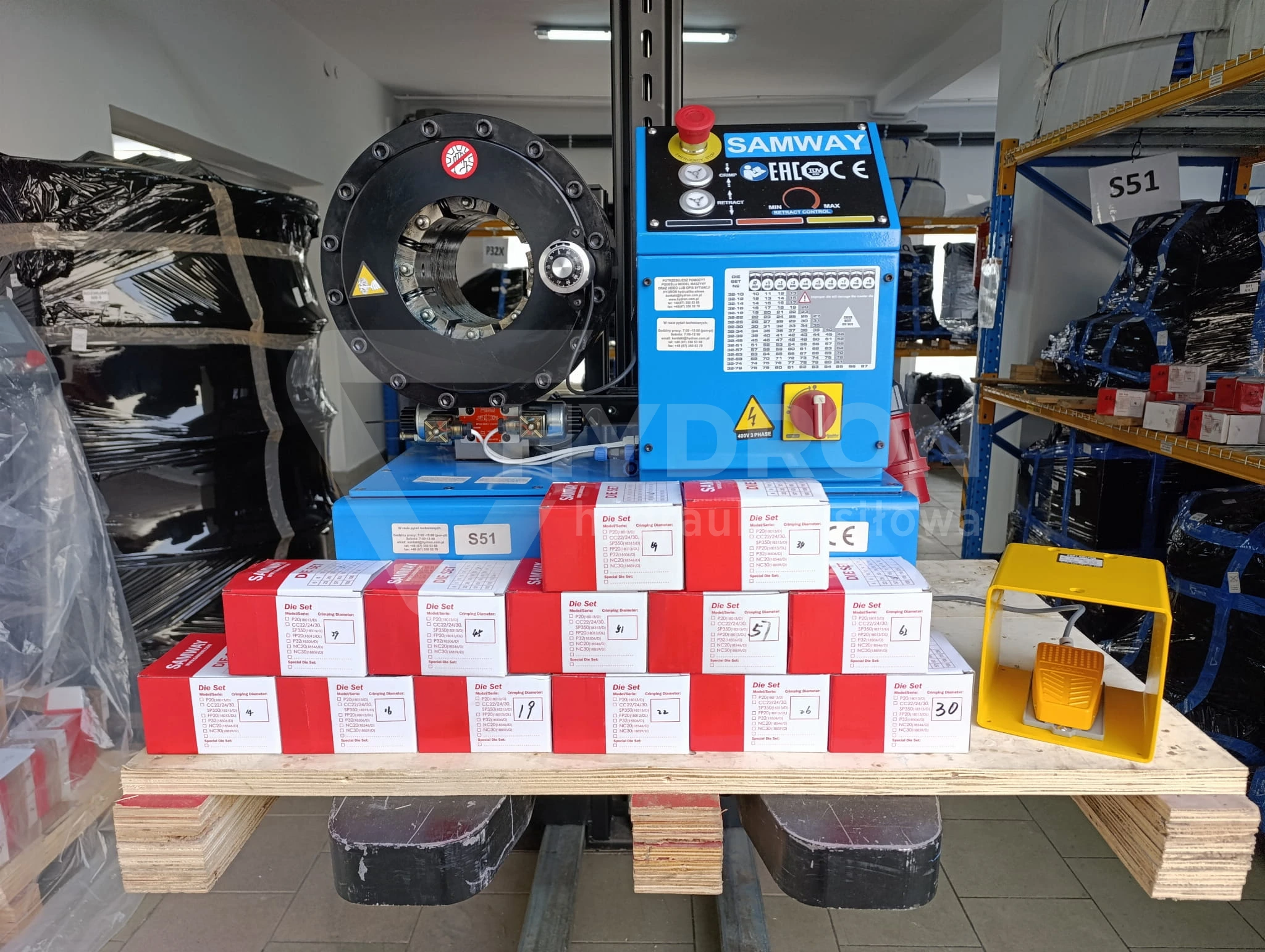

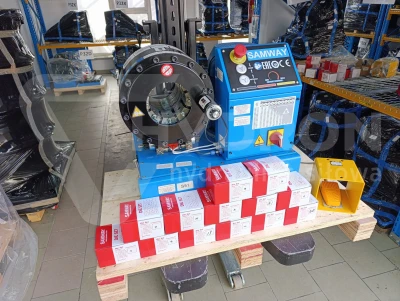

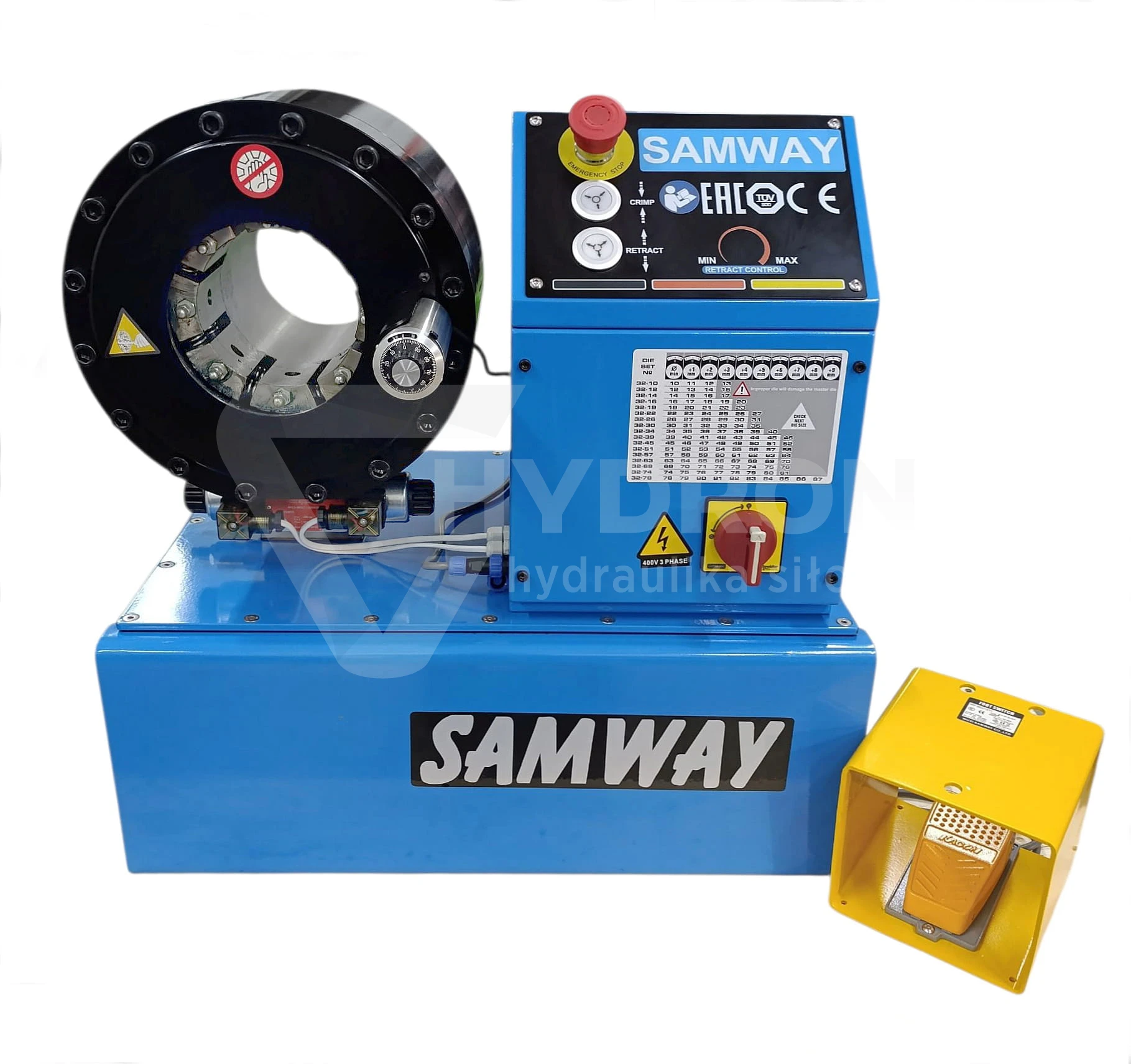

The set includes a complete crimper ready for work (filled with oil with a 16A 5-pin plug) + a key for removing dies + a foot pedal + 11 sets of crimping dies (so-called "stones"). We deliver the crimper free of charge to the indicated address and conduct free training in hydraulic hose crimping. The training lasts about 2 hours. In the set with the crimping press, you receive a complete set of all kinds of tables (hose crimping, hose selection tables, thread selection table) and all certificates and health and safety instructions.

Who is the S51 crimper for?

The S51 crimper model is the most popular among companies that produce hoses for their own needs (production companies) and companies that crimp several sizes for their needs. Due to its very competitive price and very large capabilities, this model is very popular among forestry service workshops.

The crimper allows for crimping :

- crimping of all hydraulic hoses,

- crimping of air conditioning hoses,

- crimping of steel ropes,

-zakuwanie rur aluminiowych i stalowych,

- crimping of steel pipes,

- crimping of car air conditioning hoses,

- crimping of car power steering hoses.

Technical specification of the crimper :

– the crimper is CE certified
– crimping force 280 tons
– crimping range: from 10mm to 80mm
– crimping range: 1/8″ – 2″ 4SP (DN05 – DN50)
– main dies length : 106mm
– maximum die opening ( 80mm + 24mm )
– cycle time : 7 sec.

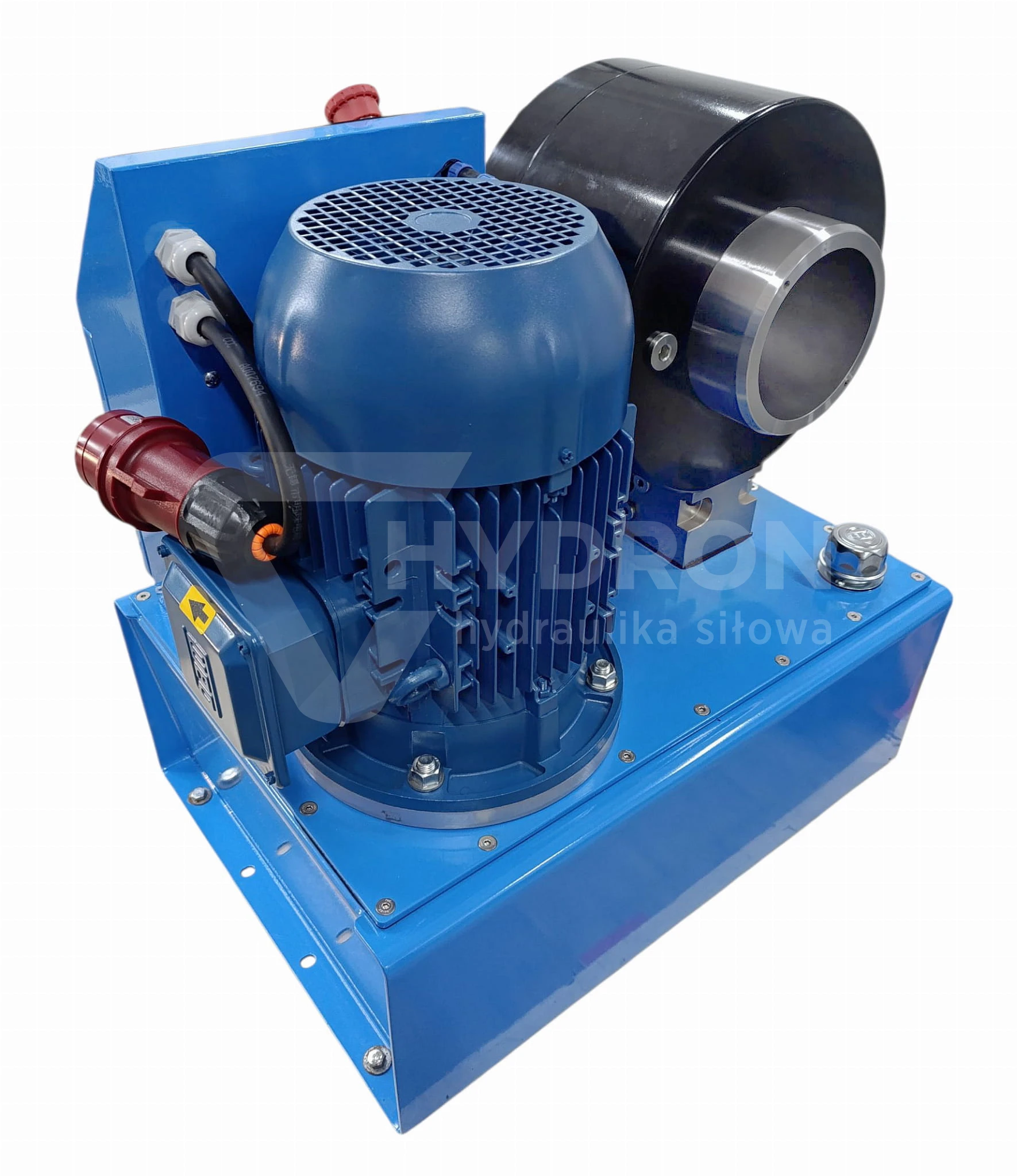

– 3-phase motor – 3kW;
– the head is a very large steel casting (weight of the head alone is 160kg)
– micrometer control

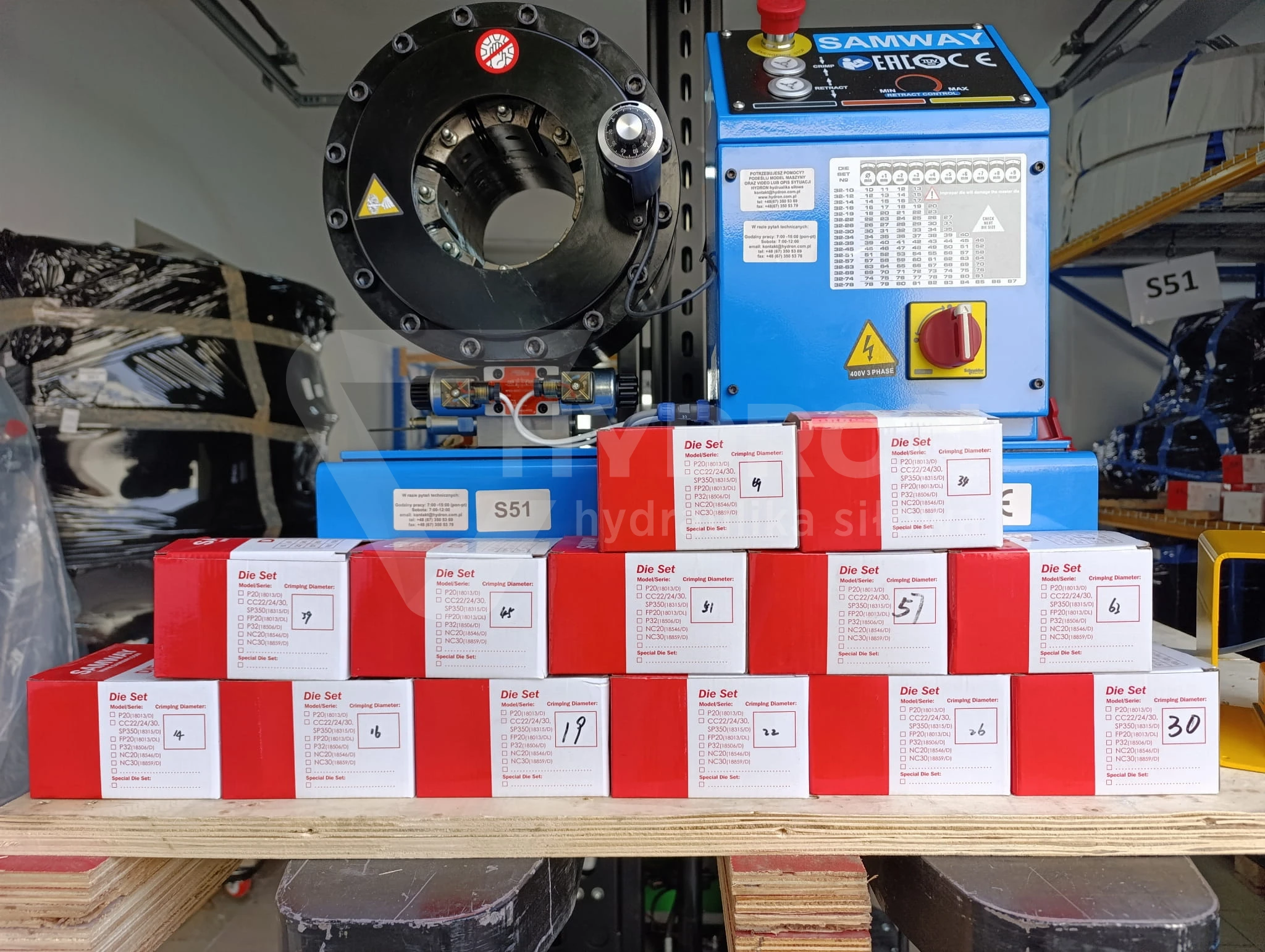

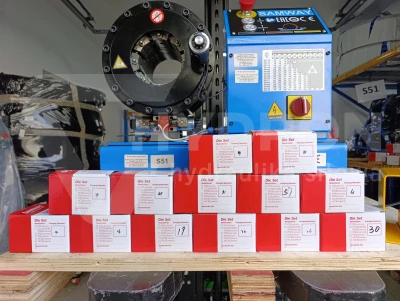

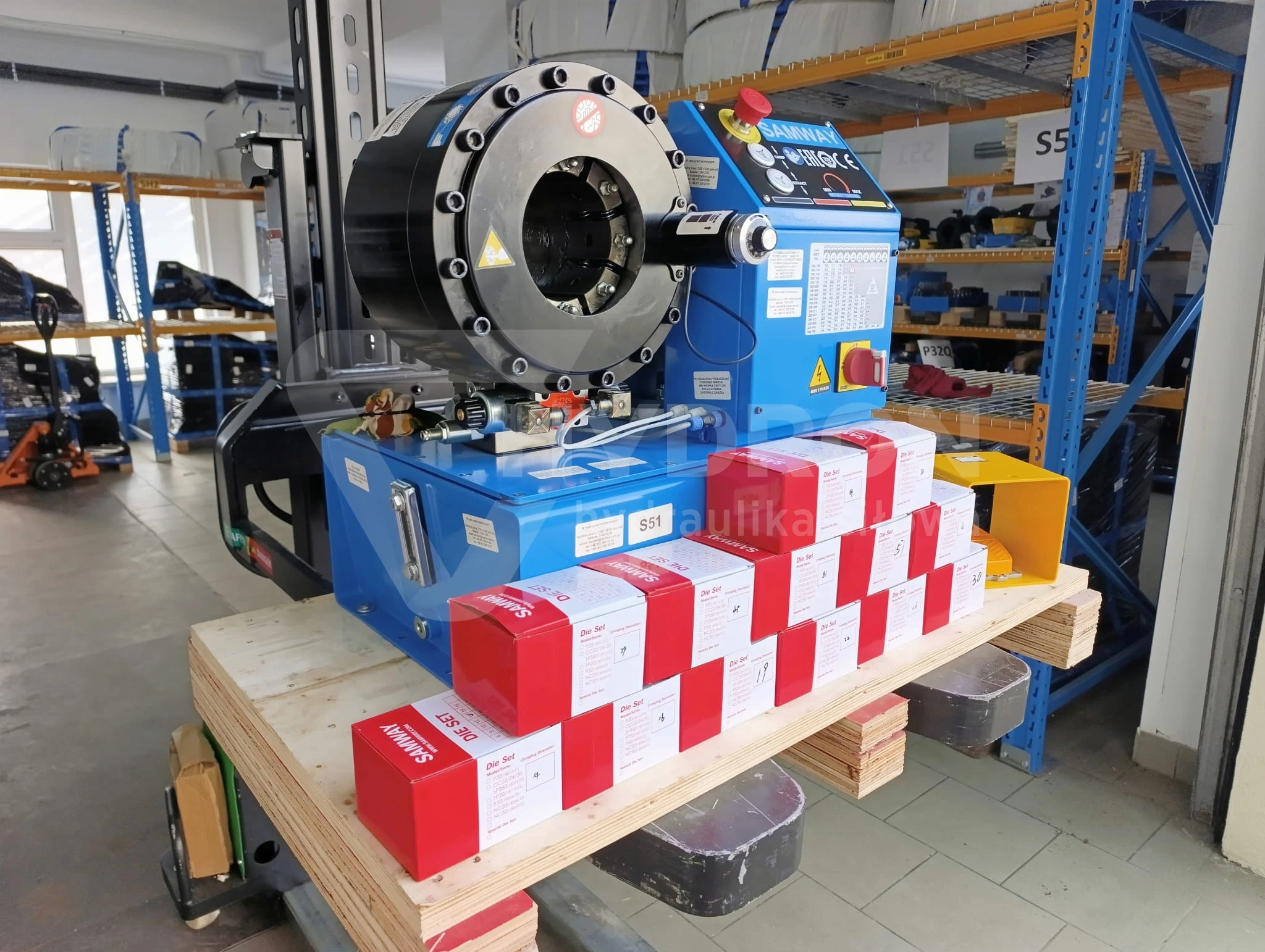

– 11 sets of dies are included in the set :
*15 ( die length 45mm ); *18 ( die length 50mm )
*21 ( die length 50mm ); *24 ( die length 65mm )
*27 ( die length 65mm ); *33 ( die length 65mm )
*39 ( die length 65mm ); *45 ( die length 65mm )
*51 ( die length 75mm ); *57 ( die length 79mm )
*66 ( die length 79mm ); Die hardness HRC 60
It is possible to purchase additional dies : 6mm, 8mm, 10mm, 14mm
– press dimensions : width 420× length 620×height 800 mm
– weight: 200kg
