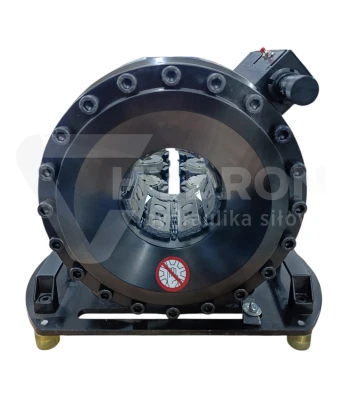

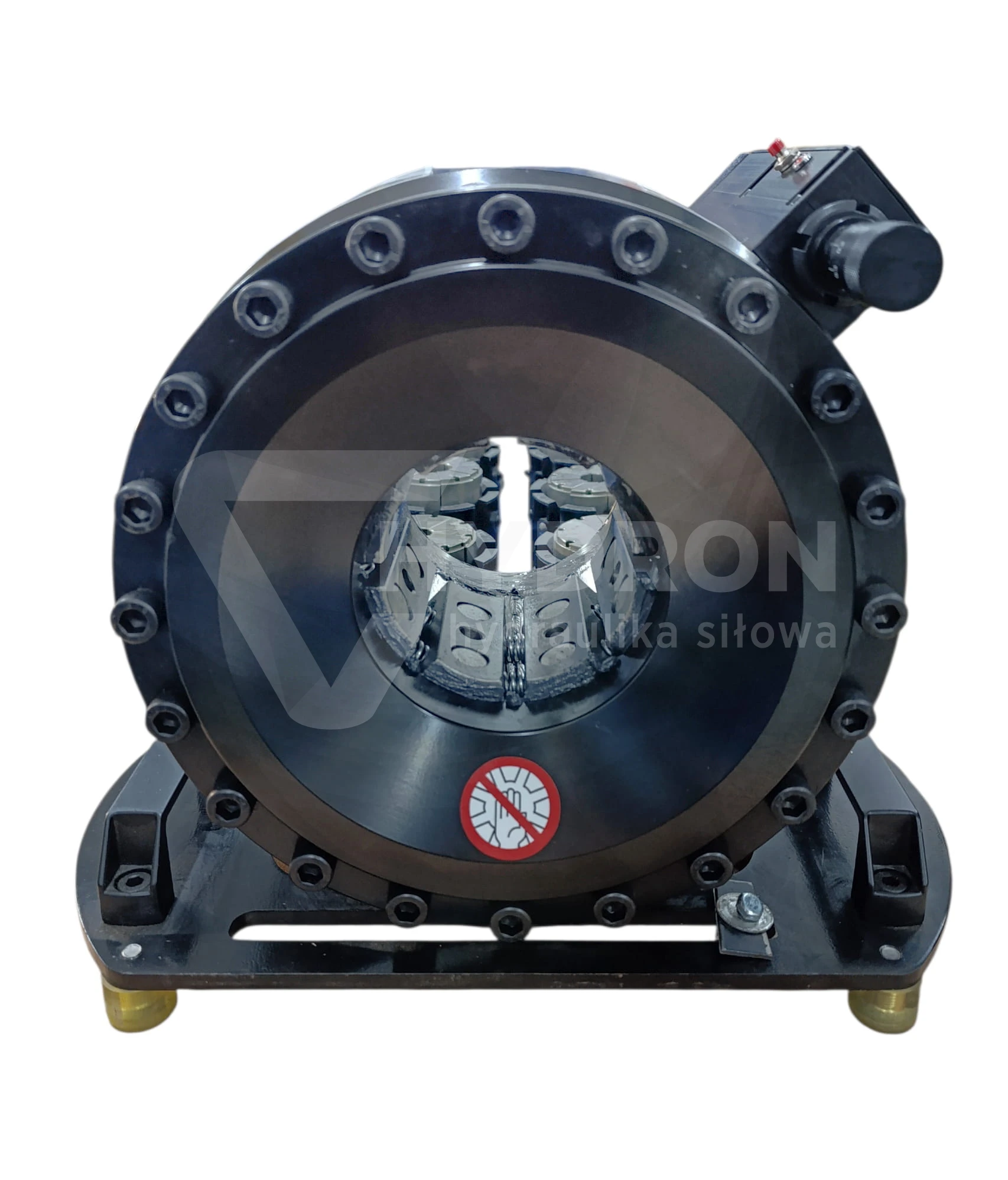

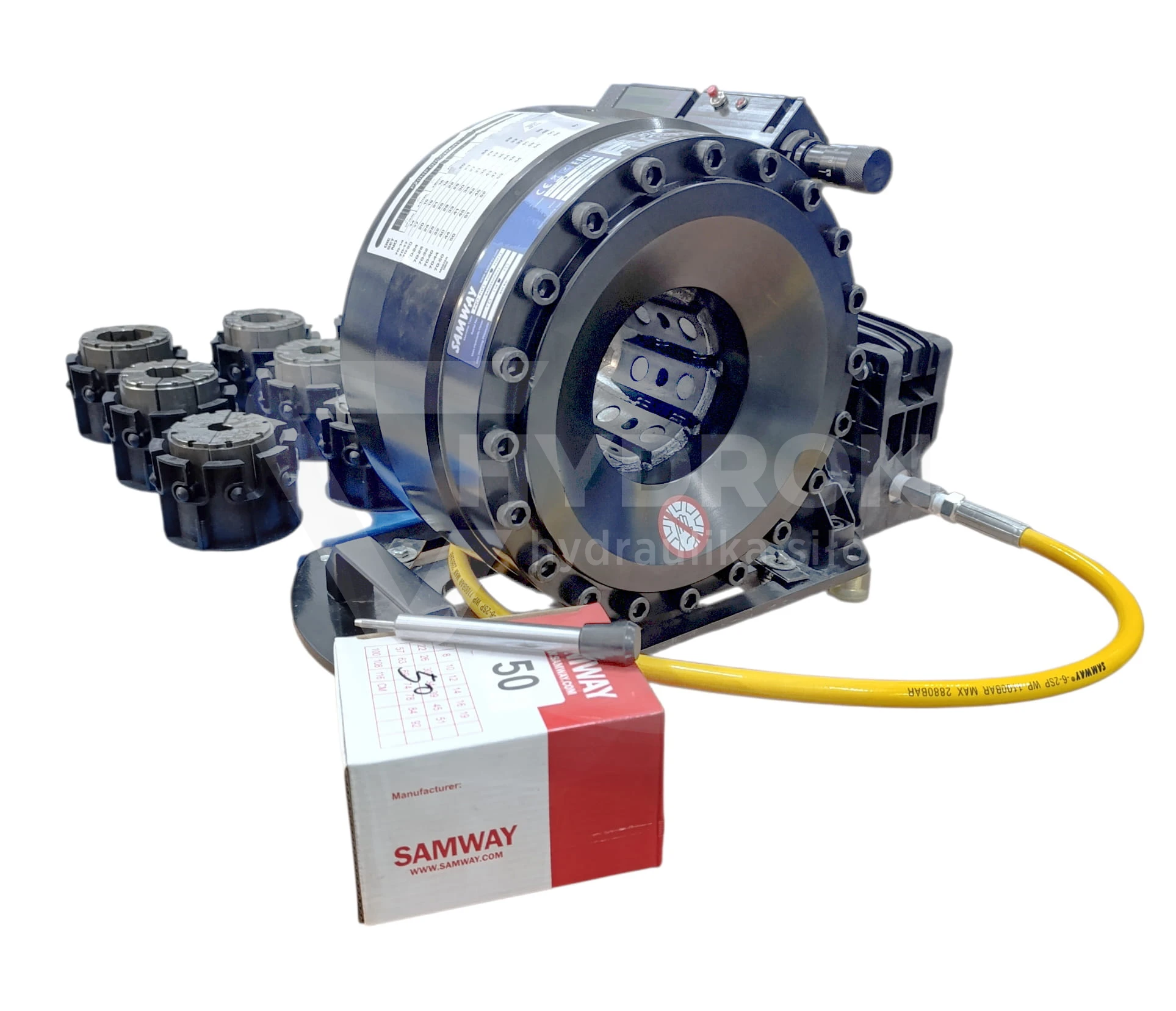

SAMWAY P20HPZ manual hose crimper

Manual hydraulic hose crimping press. Crimper for hose sizes up to DN50 (2") 2SN+dies + die rack + ENERPAC P392 pump

The press crimps four-wire hoses – 4SP up to 1 1/2″ diameter (DN40 inside the hose). The crimper crimps up to 2SN hoses to DN50 diameter! Lightweight and easy to use, ideal for mobile services. We also offer pneumatically driven crimpers (just connect to a compressor). If you need a smaller press, check model P16HPZ. The P20HPZ press, due to its capabilities, is ideal for large mobile hose services (construction machinery service etc.).

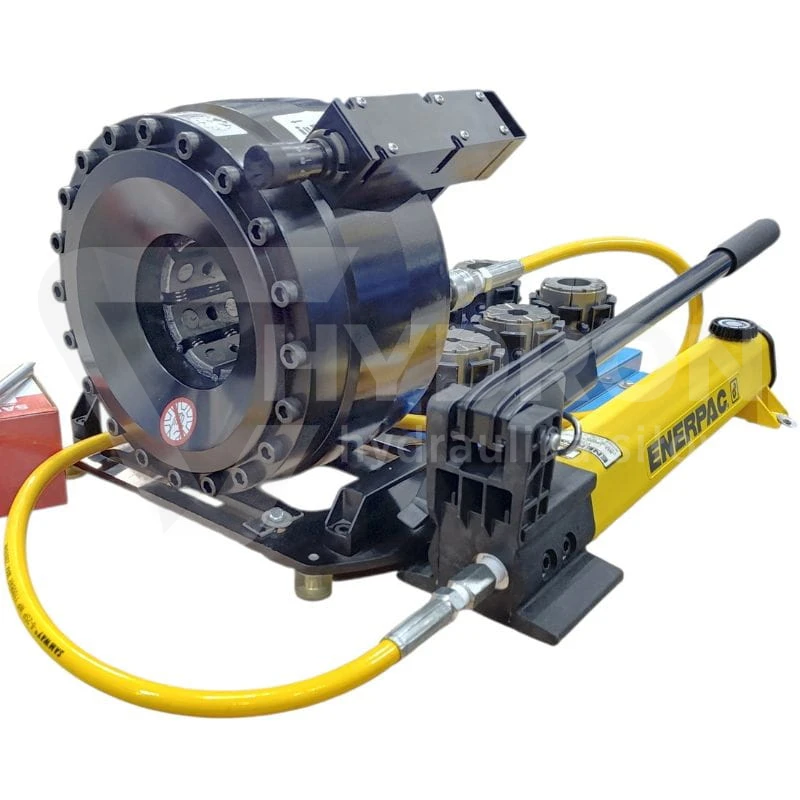

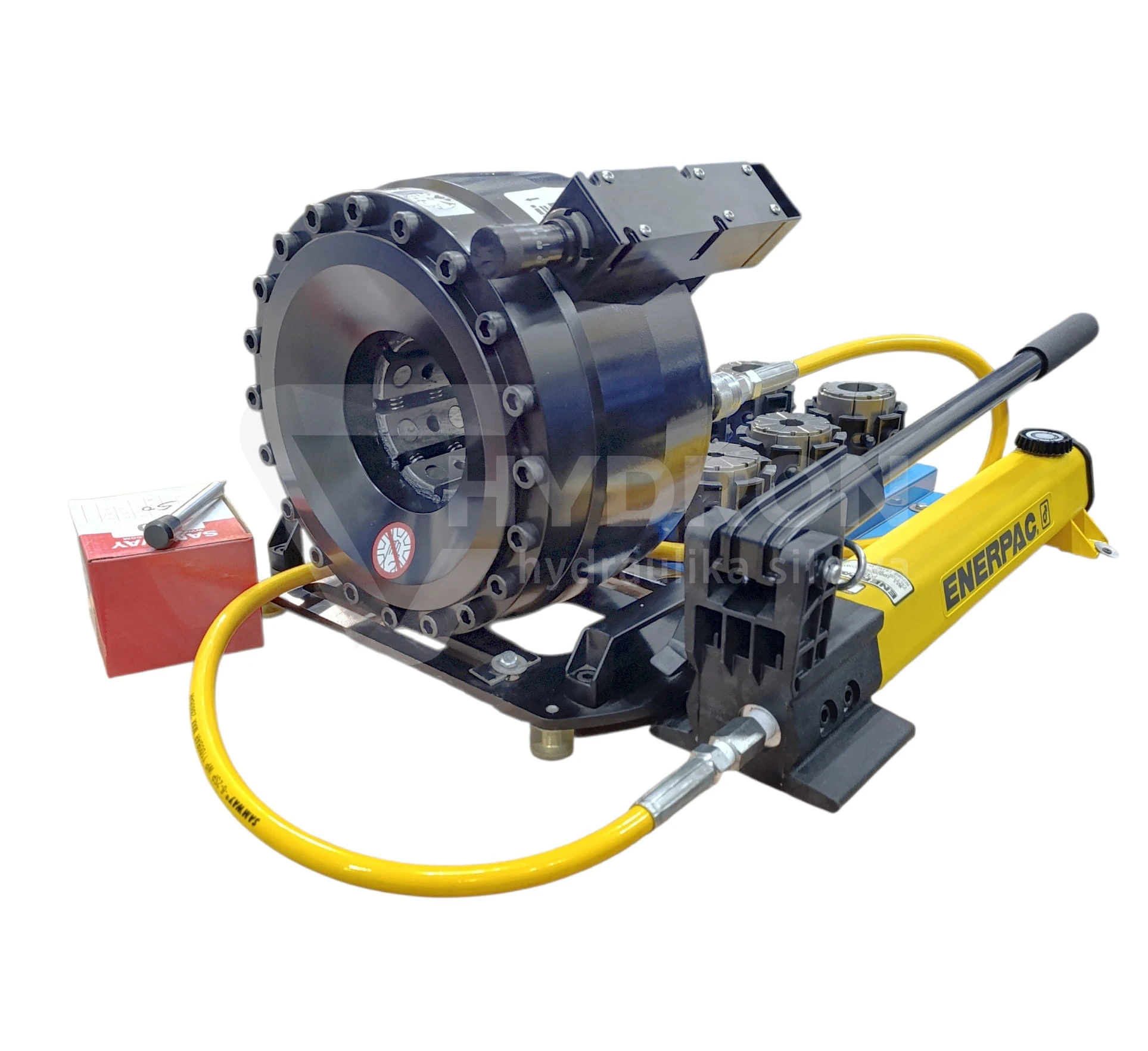

Hydraulic hose crimper P20HP

Portable crimper with a large crimping diameter: 1 1/2”. Does not require electricity. Powered by a manual pump or an Enerpac P392 pneumatic pump. Complete set of dies. Ready for work!

Technical specification of the crimper:

• model: SAMWAY P20HP
• Maximum hydraulic hose: 1 1/2” 4 wires
• Crimping range mm: 4-65
• Die type: P20
• Main die length mm: 64
• Maximum opening mm: +25
• Hand pump (optional): Hand pump
• Crimping force KN: 2100
• Control: Micro Dial
• L*W*H mm: 200*250*310
• Weight (kg): 45

Standard die sets included: size / length

• dies 14 mm (length 60 mm)
• dies 17 mm (length 60 mm)
• dies 20 mm (length 60 mm)
• dies 24 mm (length 60 mm)
• dies 28 mm (length 75 mm)
• dies 32 mm (length 75 mm)
• dies 36 mm (length 75 mm)
• dies 40 mm (length 75 mm)
• dies 44 mm (length 75 mm)
• dies 50 mm (length 75 mm)

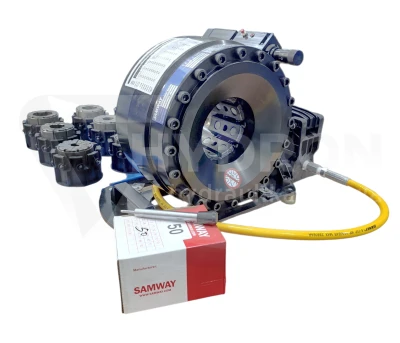

Large head, greater possibilities

The P20HP crimper is one of the largest manual crimpers available for crimping hydraulic hoses. Because the crimper head is very large, it has a very wide range of applications. We can crimp all types of hydraulic hoses, as well as pneumatic hoses, fuel hoses for gasoline, oil, air conditioning hoses, low-pressure hoses - in short, everything that fits into the crimper head. The crimper has a very high crimping force and can therefore also be used for crimping textile ropes or steel ropes.

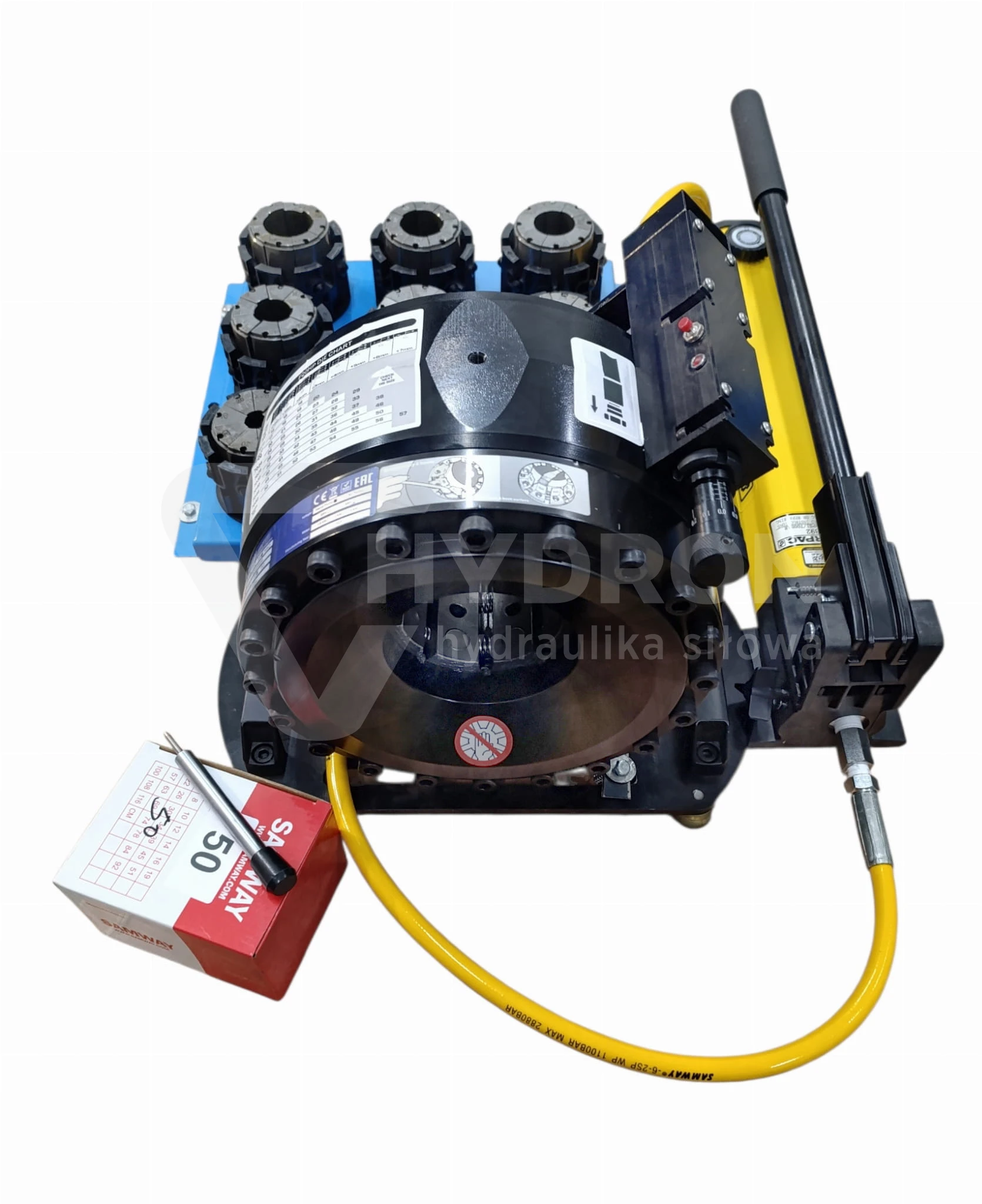

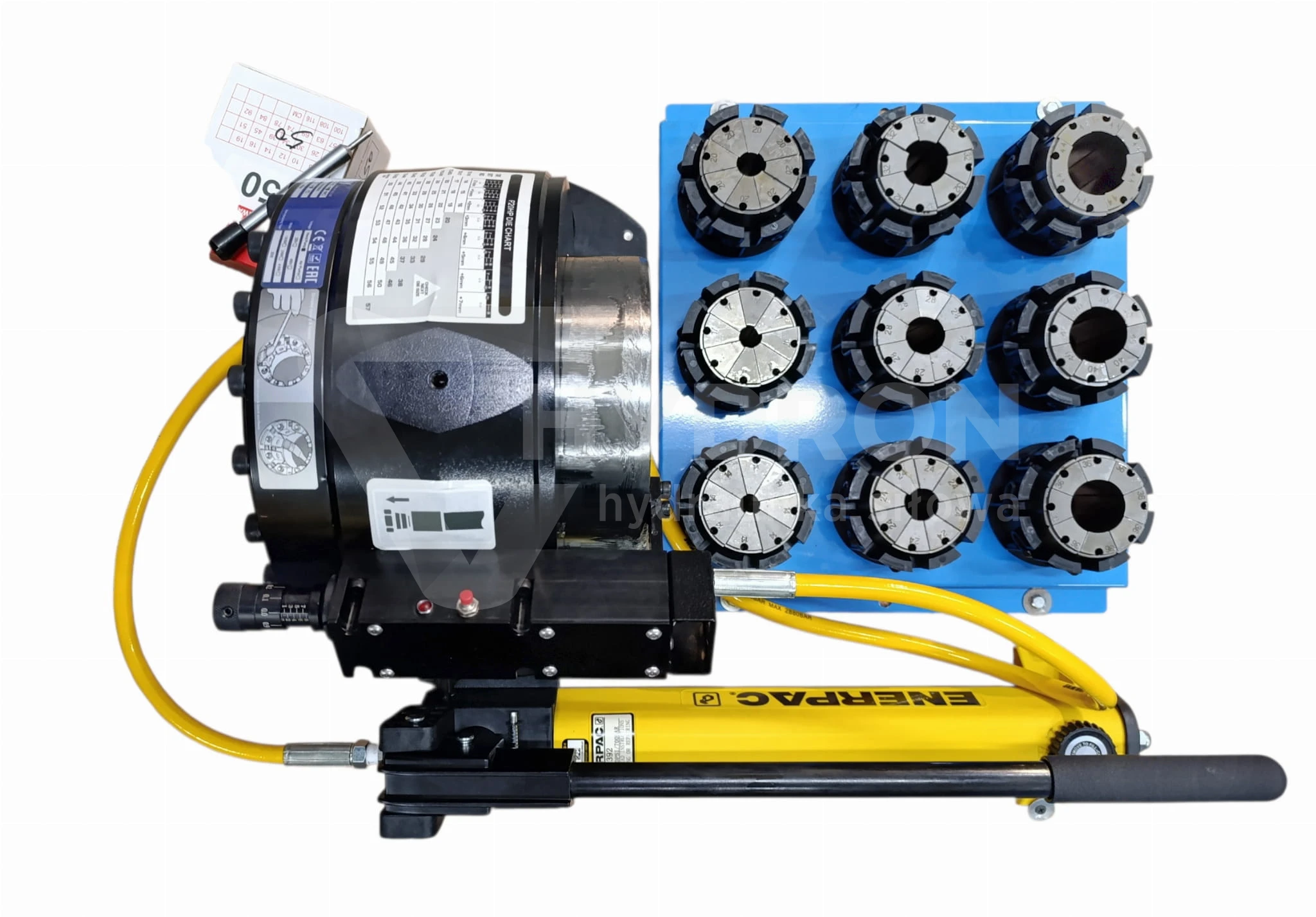

Quick die change system and die racks

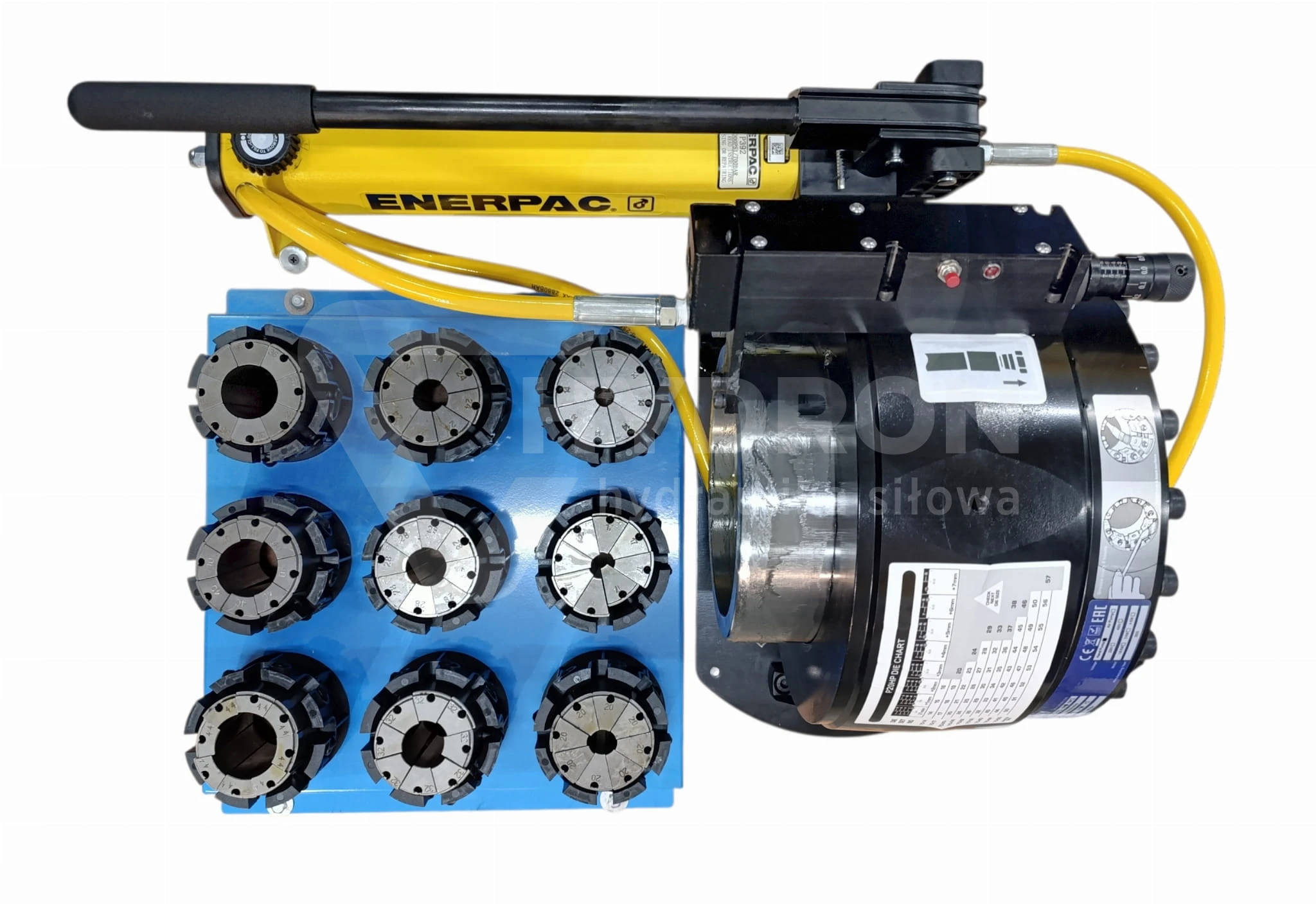

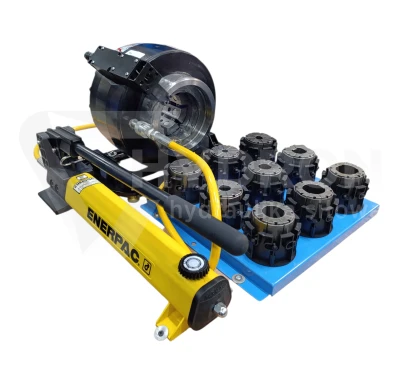

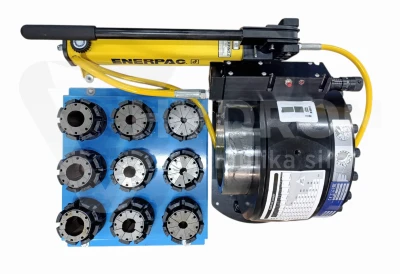

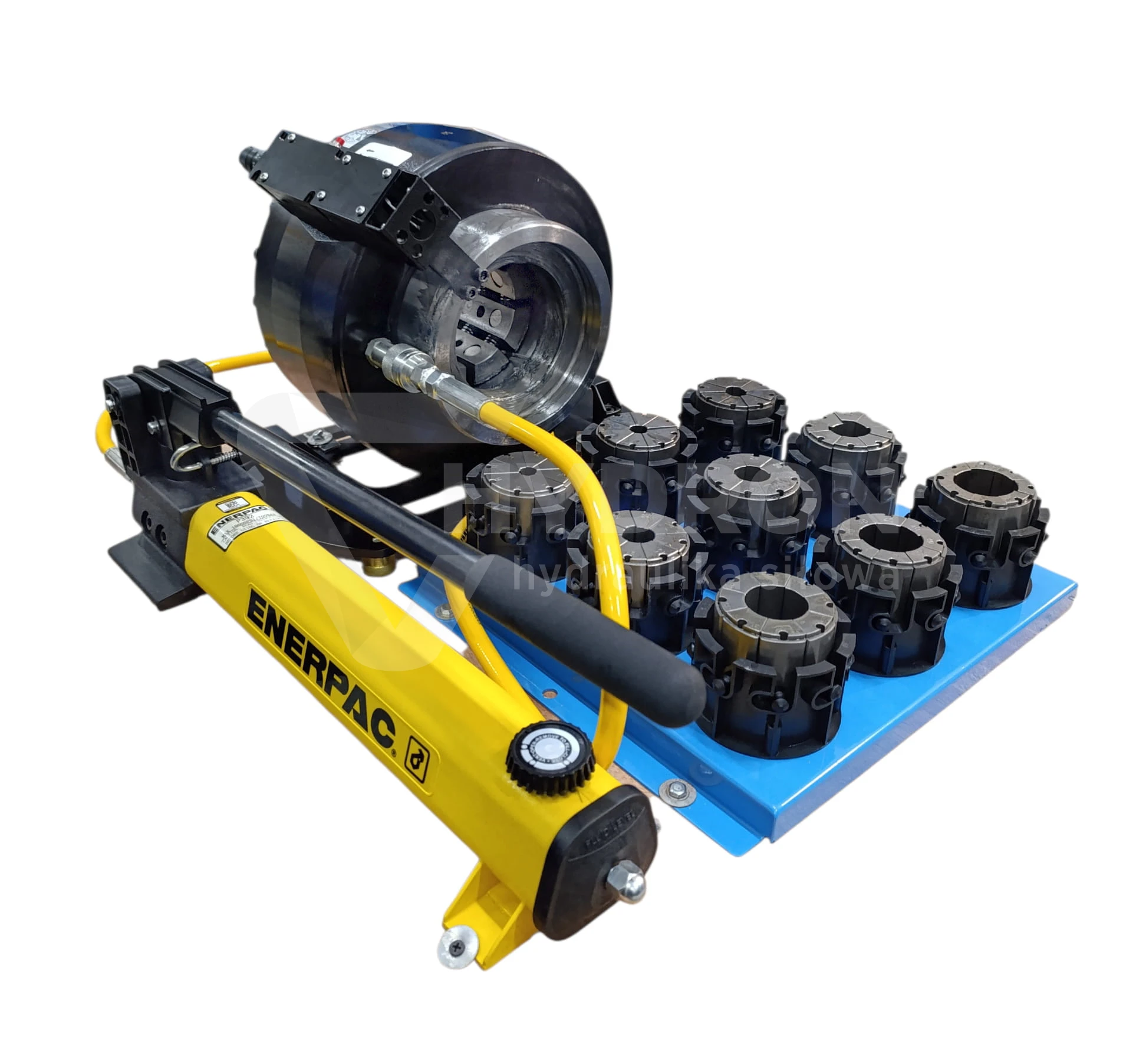

Since 2024, the crimper has been available in a version with a die rack and a handle for quick die replacement. This quick-change system consists of placing 8 dies onto the handle using a special tool and then attaching all dies at once into the crimper head.

Ideal solution for service vehicles, mobile service

This type of crimper is very popular among companies in the construction industry. The crimper is owned, among others, by road construction companies. The press has great capabilities while maintaining a low weight, making it an ideal solution for mobile services (service vehicles). The P20AP also comes in a compressed air version (model P20AP), which is powered by compressed air where you only need to connect a pneumatic hose and the hydraulic-pneumatic pump does the pumping, so we don't have to do it manually.

What hose size does the P20HP model crimp?

Hose sizes the crimper crimps: (internal diameter of the hose): these are 6 mm, 8 mm, 10 mm, 13 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, which are equivalents of 1/4 inch, 5/16 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch hoses. The P20HP manual press is equipped with interchangeable sets of dies (crimping segments), the crimping dies are included with the machine. The crimper and the entire set also include an Enerpac manual pump. The press is ready for work.

Supporting materials with the crimper

Our customers receive all the materials necessary to start work: i.e., manual in Polish, CE declaration of conformity, written warranty, health and safety instructions, hydraulic hose crimping table (so that we know what size to crimp a specific hose to).

Technical support, warranty and post-warranty service

Customers can count on full technical support and warranty and post-warranty service.

Hose crimping accessories - fittings, hoses, ends

We also offer crimping fitting sets, the so-called starter packages. Sets include hydraulic hoses, crimping ferrules, and hydraulic hose crimping ends. Our offer includes standard packages (the most popular ends, hoses, fittings), and we can also customize a package for the customer's specific business.

The largest selection of hose crimping machines in Poland

In our offer, you will find the largest selection of machines designed for crimping hydraulic hoses. We have low-pressure crimpers, small mobile crimpers, large crimpers, electric workshop crimpers, as well as industrial crimpers. If you have questions regarding crimping machines, contact the sales department, which will answer all questions.

How to crimp hydraulic hoses on a manual crimper?

How to crimp hoses on a manual crimper? The answer is very simple: we take the crimping table in hand and then look at what hose we have to crimp, what hose diameter with how many braids we need to crimp - we look at the table and check the dimension the crimping ferrule should have after crimping. If we already know the crimping diameter dimension, then we select the appropriate crimping dies available with our crimper. The principle is simple - we choose the dies closest in size to the size we need to crimp, then use a micrometer to add the appropriate diameter; after setting the diameter and installing the appropriate dies, we crimp the hose until the required diameter is reached. A control lamp installed in the machine informs us that the diameter has been reached - when the lamp lights up, we stop pumping and check if the diameter of the crimped ferrule on the hose is the same as in the crimping table; if it is the same, we are certain that the hose has been crimped correctly.

Training in crimper operation, training in hydraulic hose crimping

If you wish, you can receive free training in crimper operation as well as training in hydraulic hose crimping at our company. You can also order training for your company.
