SAMWAY P18HP mobile hose crimper

• Instructional video on how to use the P18HP manual hose crimper
• Schedule a free meeting and machine presentation
• Free shipping + free training at our company headquarters
• See an example of crimping with the P18HP hose crimper

Below is a video showing the difference between the P18HP models and the most popular model manual hose crimper P16HP

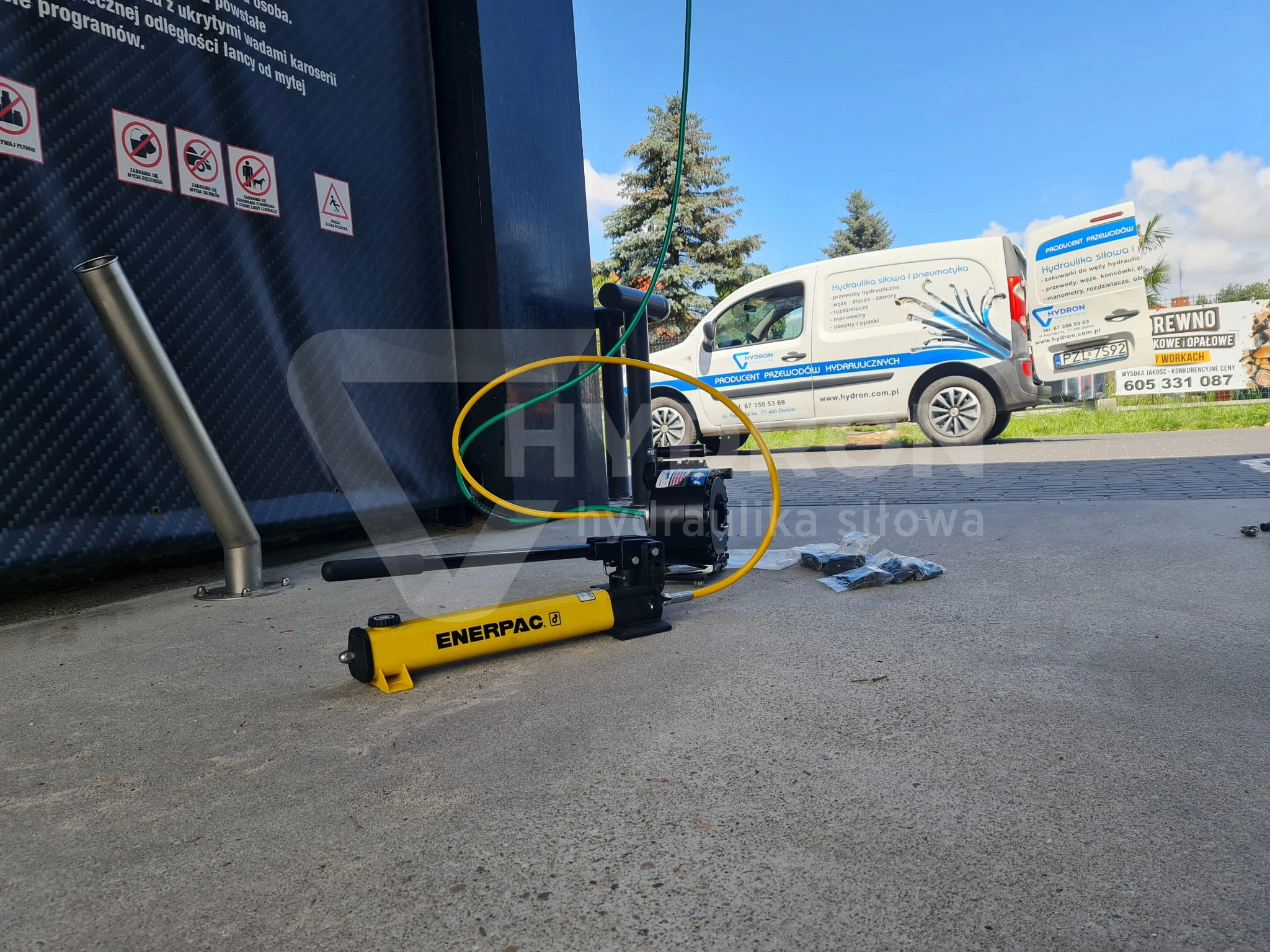

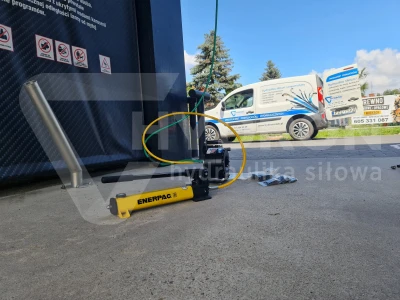

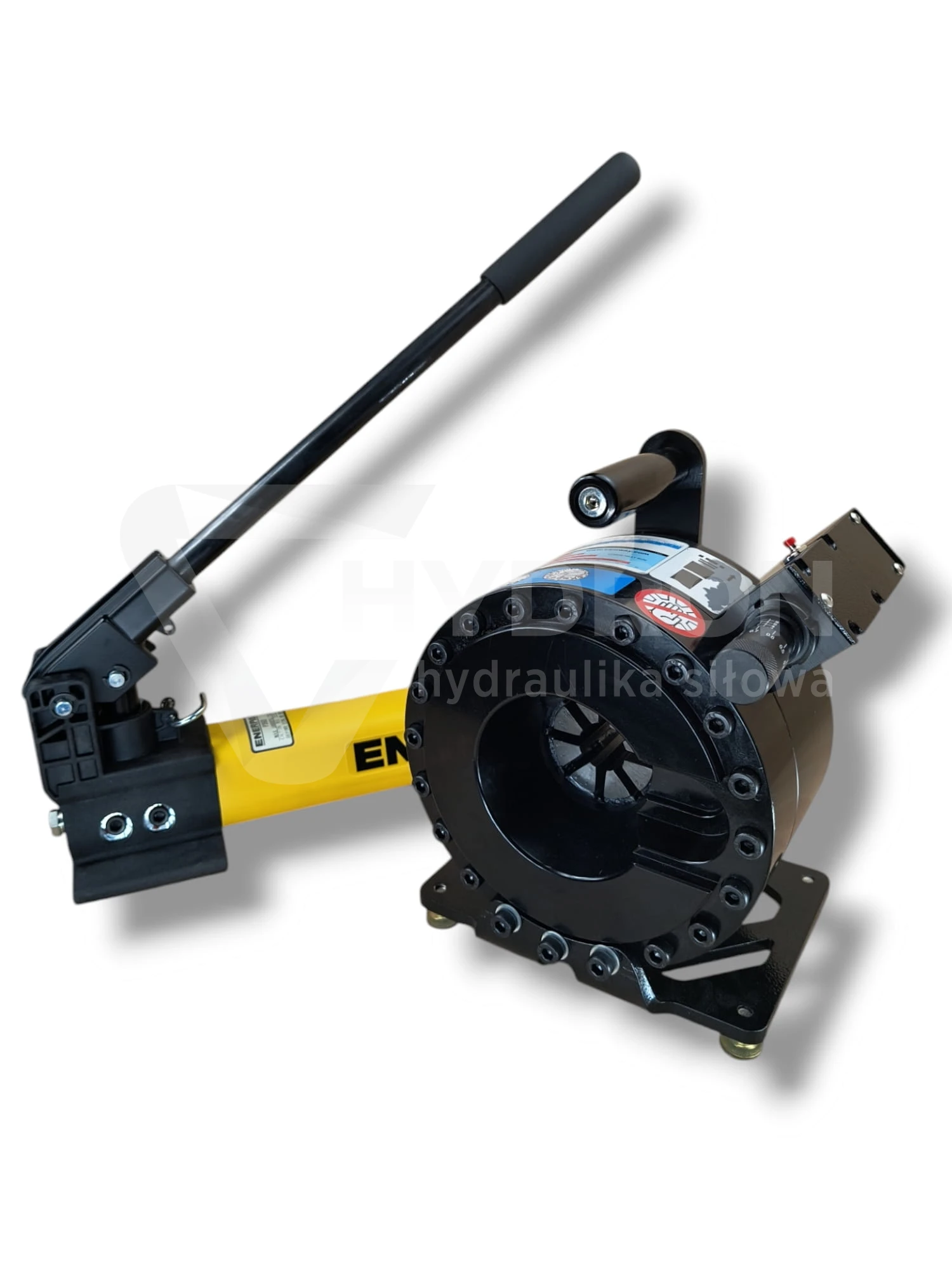

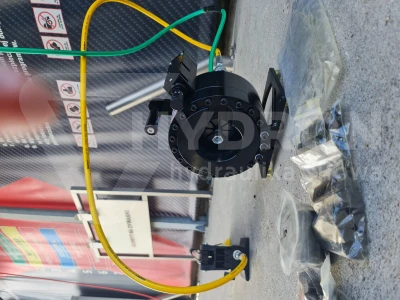

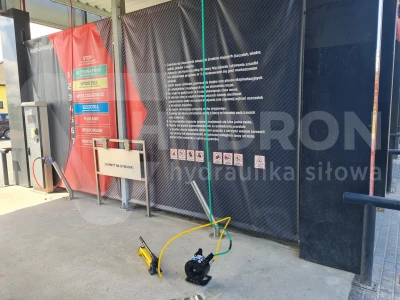

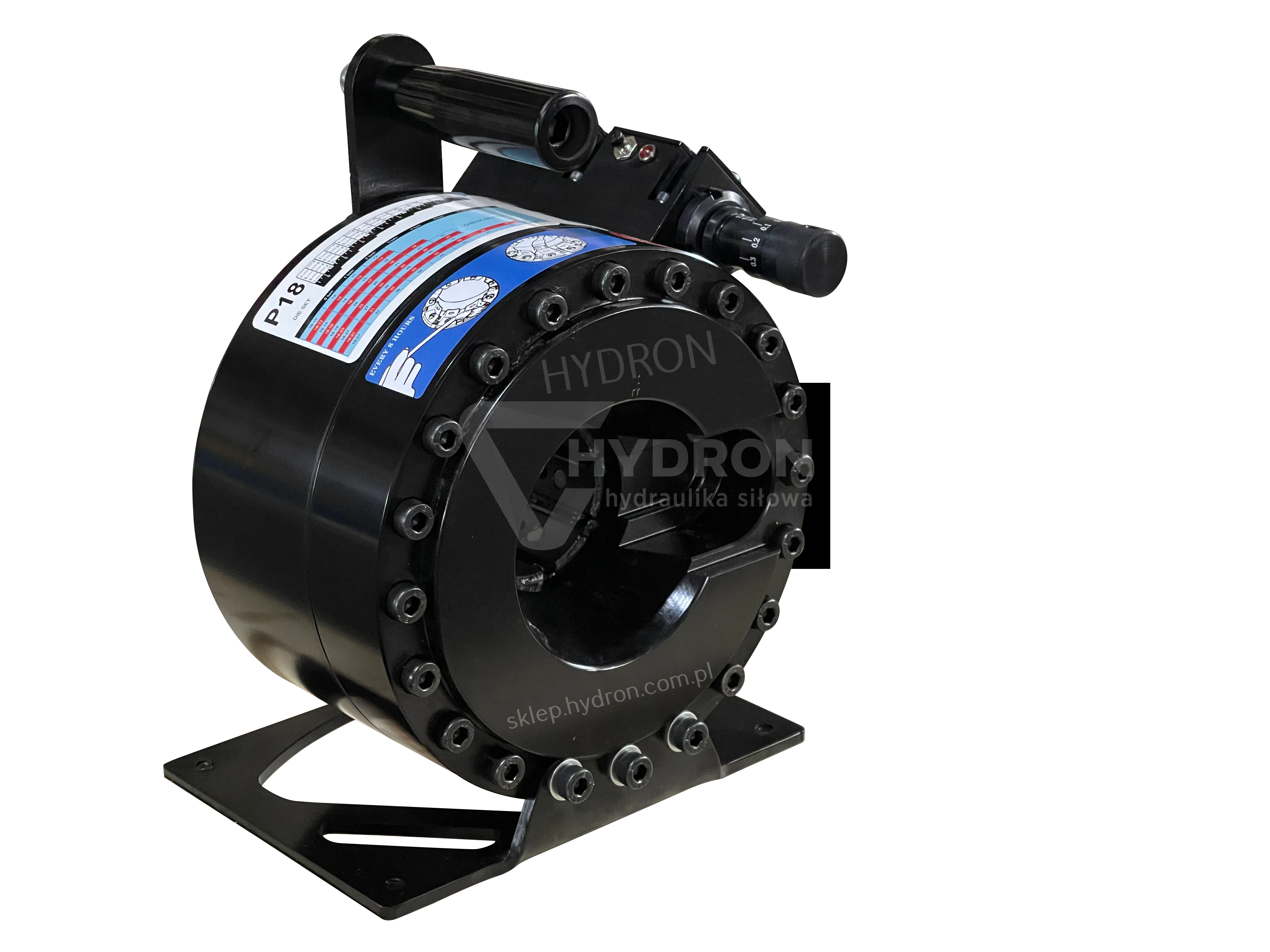

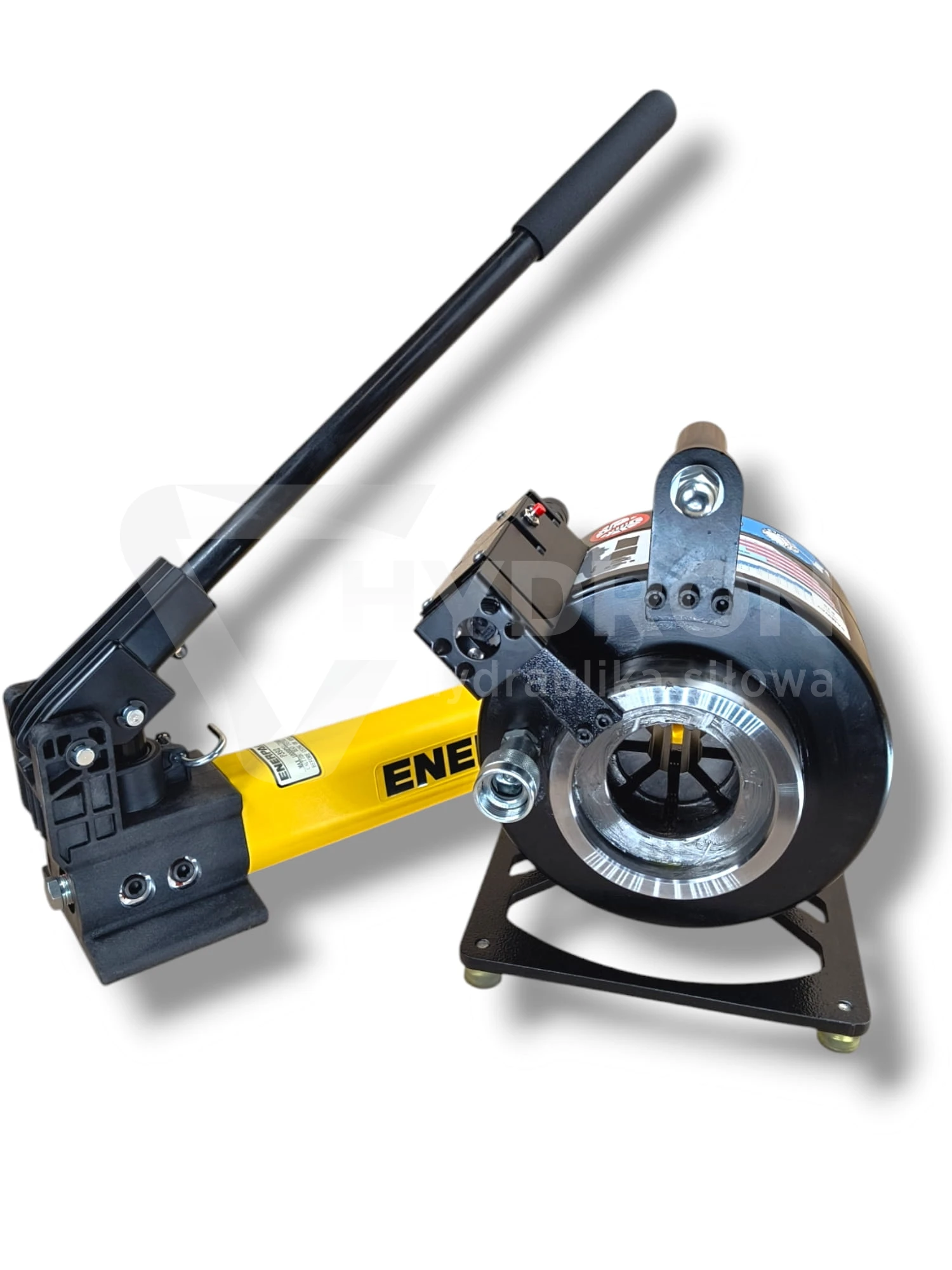

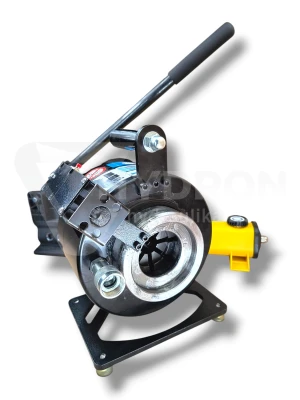

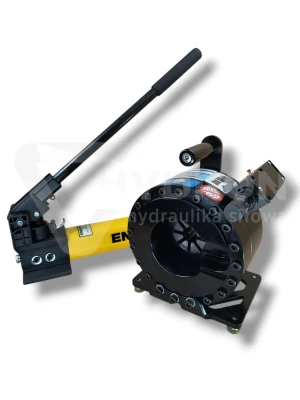

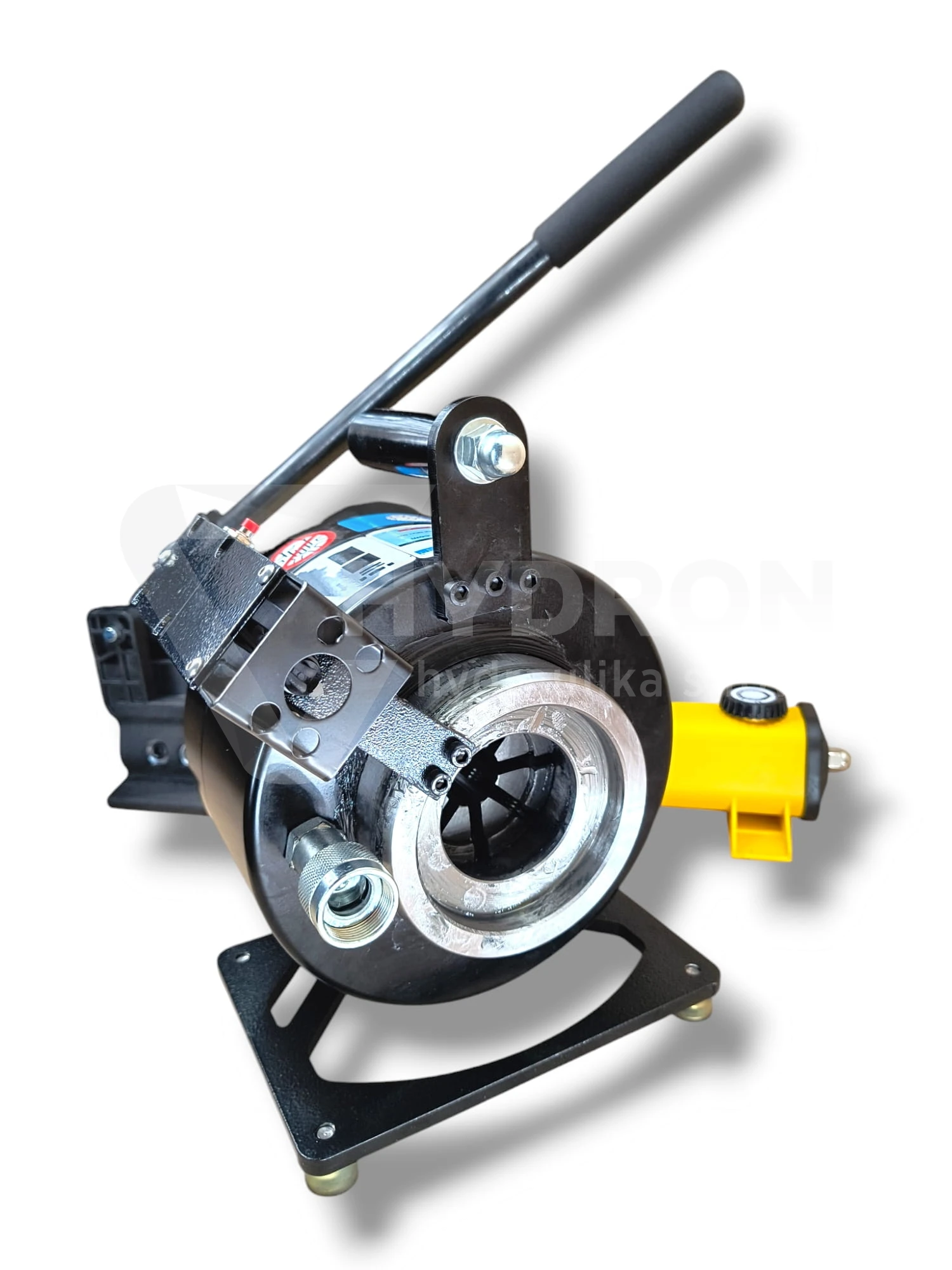

Manual portable hydraulic hose crimper

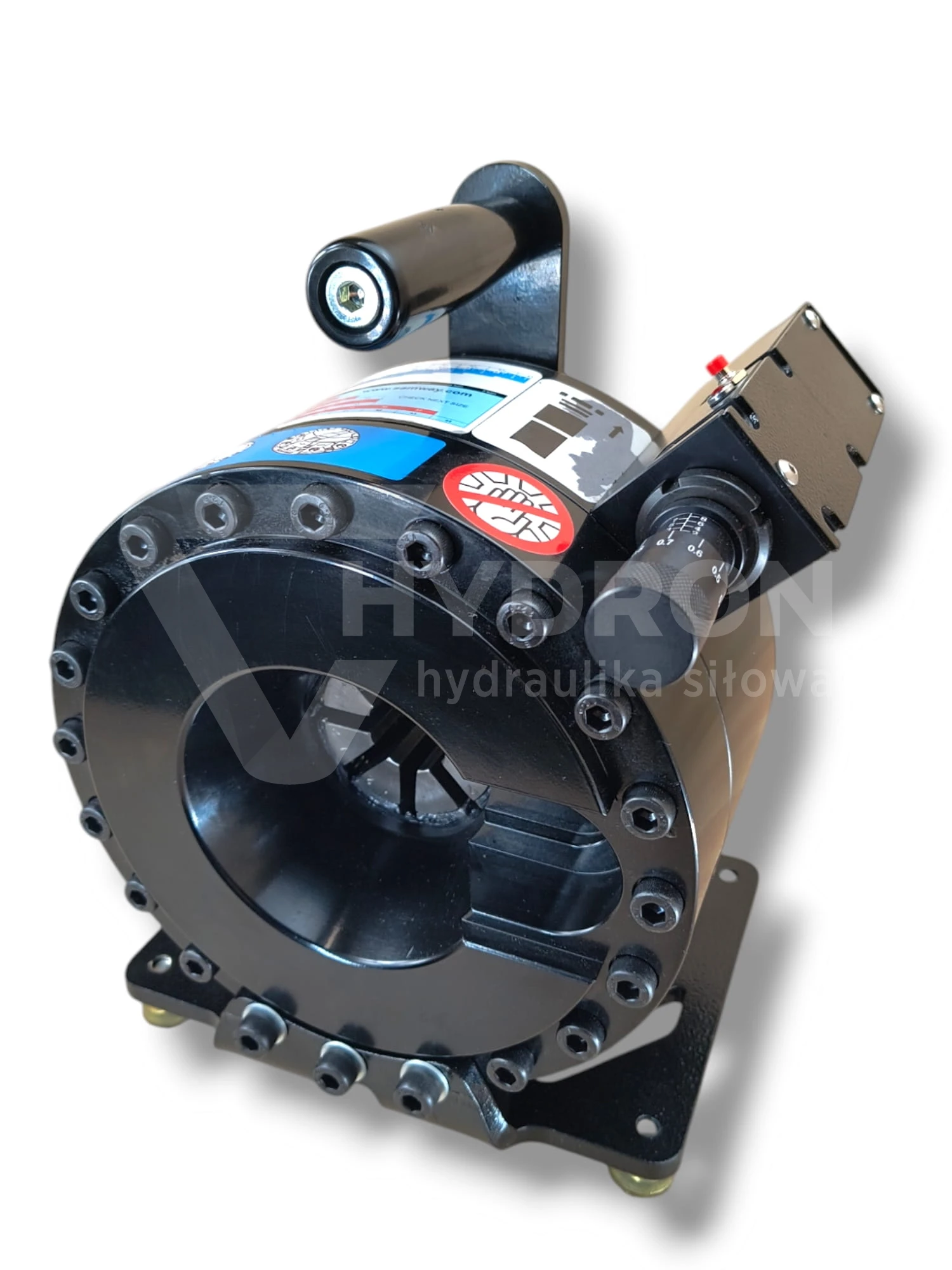

The P18HP hose crimper is a press with a very large head! Ideal for crimping elbow fittings. Enables crimping of hoses up to diameter DN25 4SP. The head opens to 60mm. Equipment for mobile service of construction machinery, forestry machinery, etc. Manual portable press for crimping hydraulic lines. The P18HP hose crimper is an intermediate solution between the smallest hose crimpers available in our offer such as P16HP, P16HPZ and large service hose crimpers like e.g. P20HP hose crimper. The P18HP model is a solution that combines large crimping capabilities and relatively low weight, so it can be successfully used for mobile hose crimping.

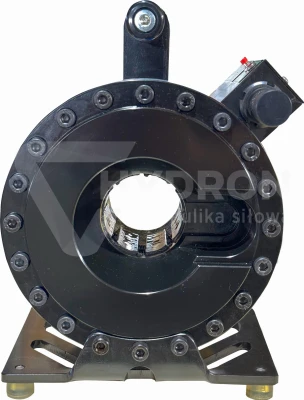

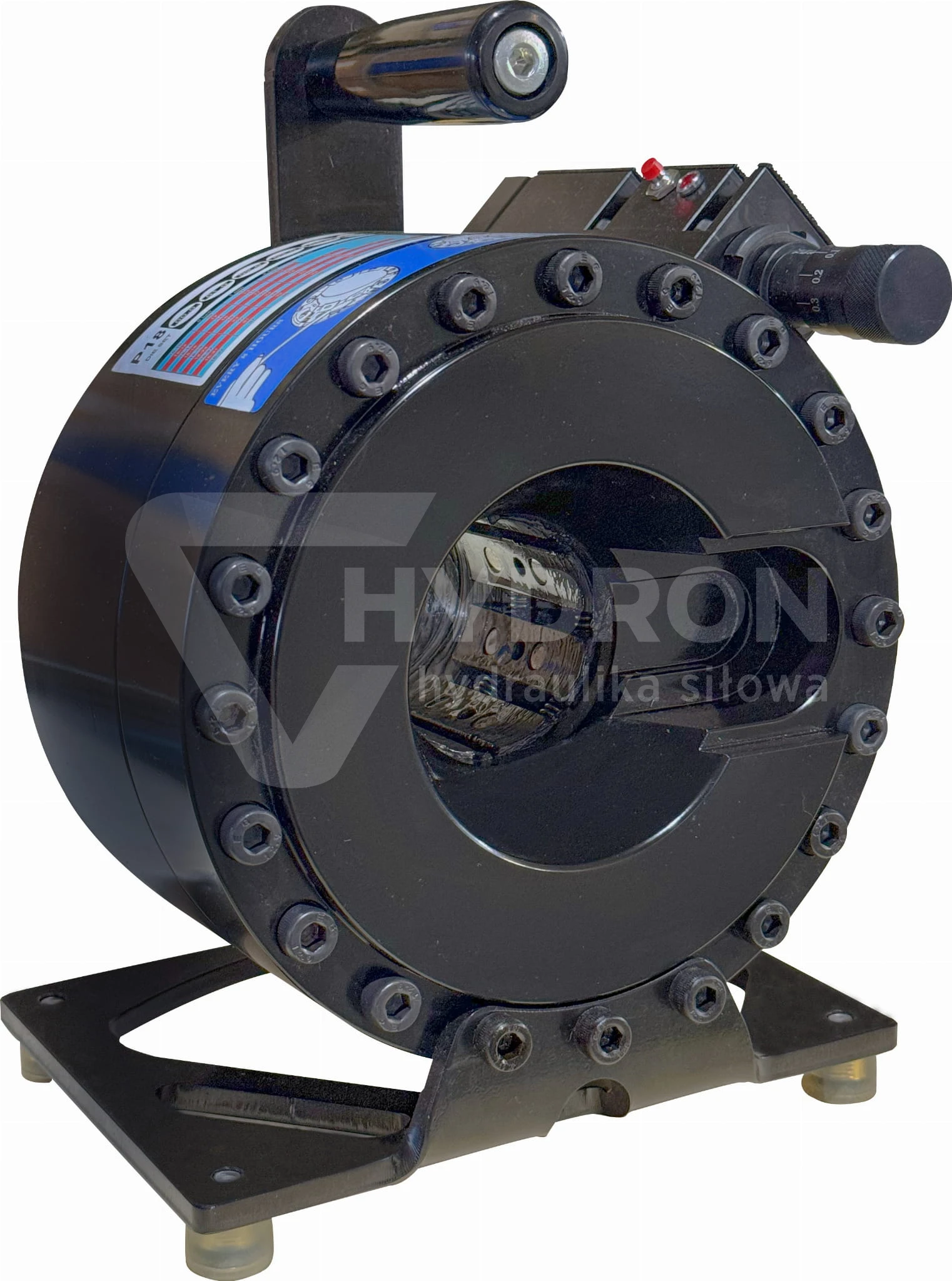

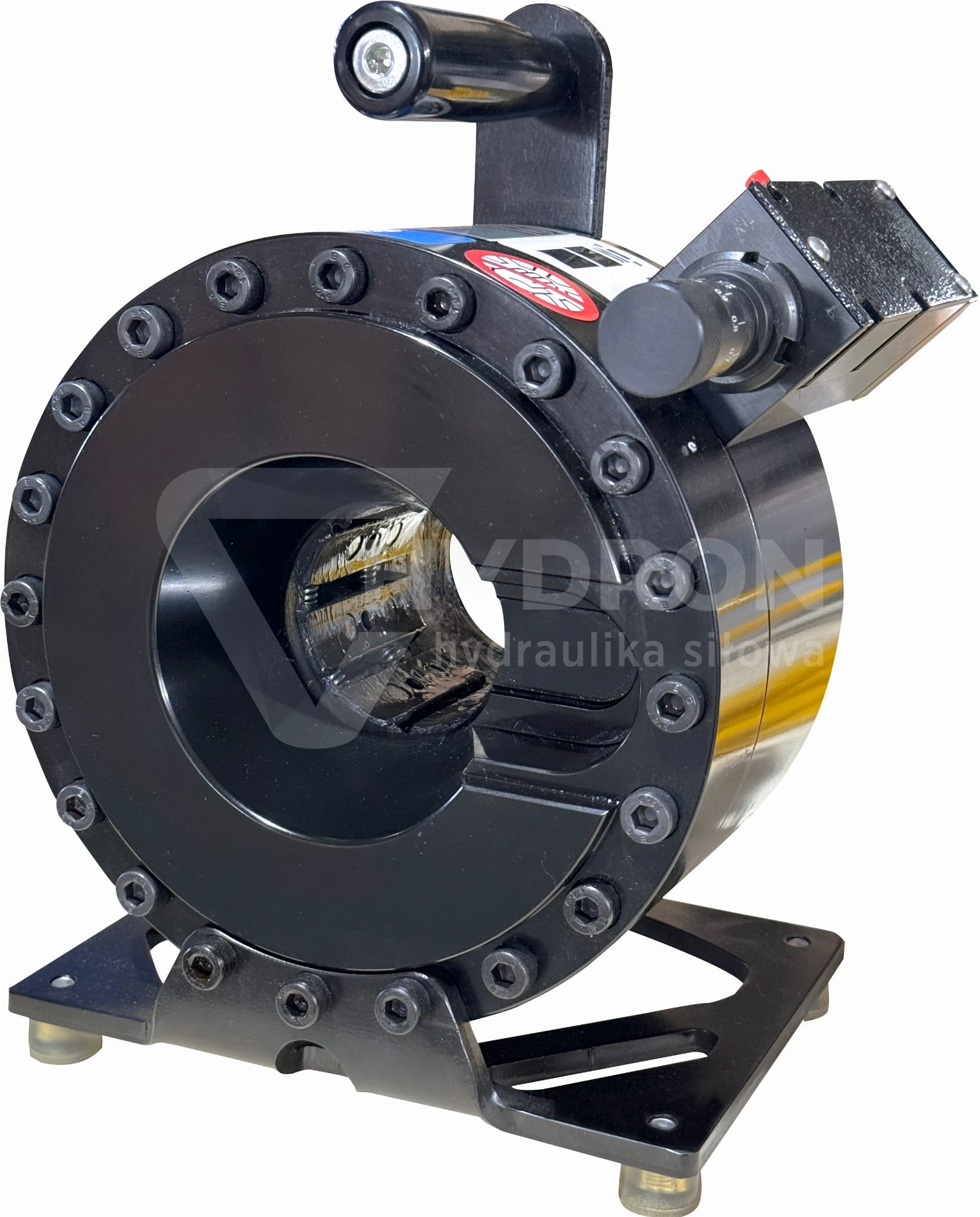

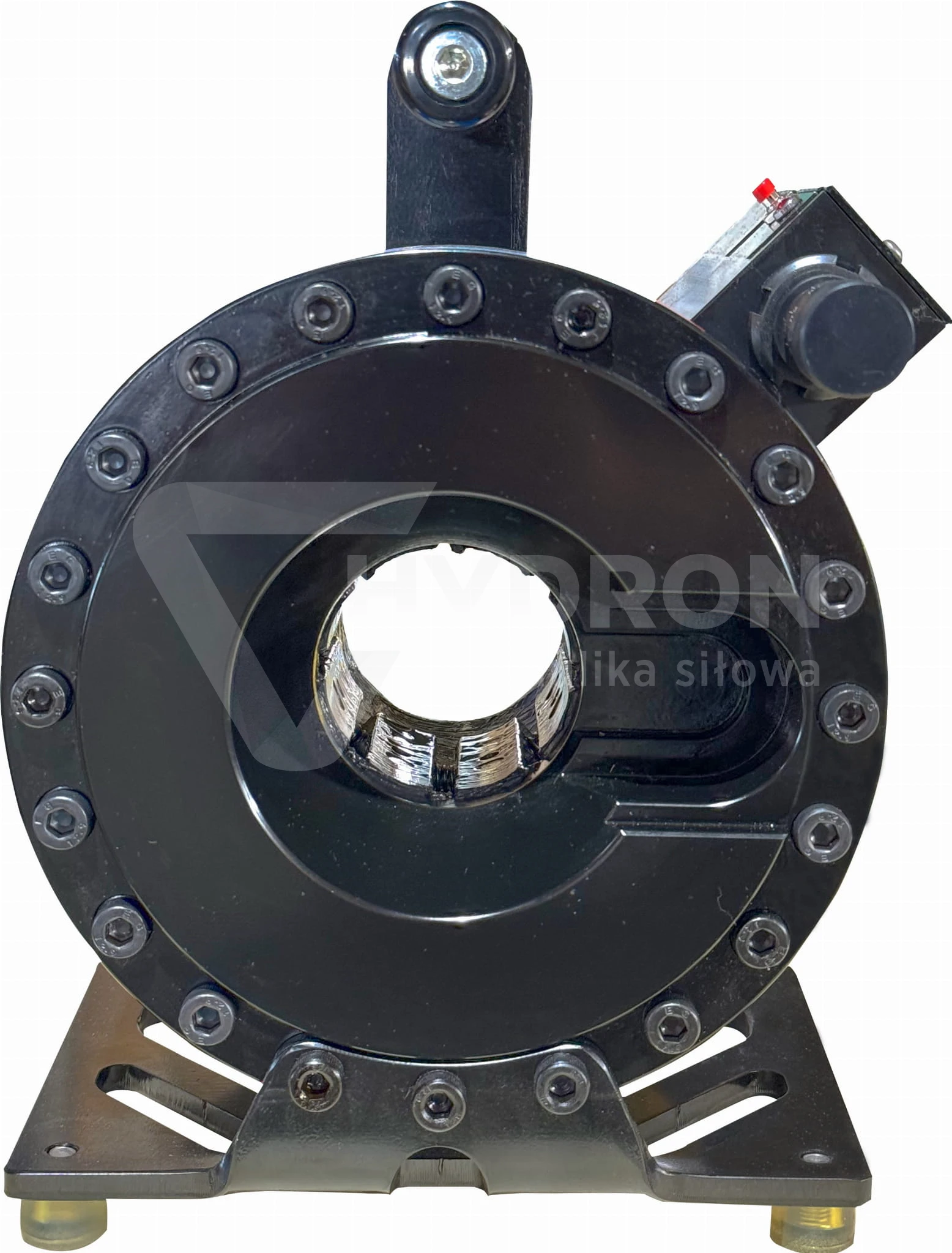

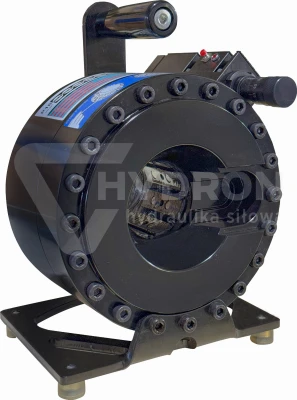

Special notch in the head for elbow fittings

The notch in the crimper head allows for crimping truly large elbow fittings. We remind you that in the P16HP model, the largest elbow fitting we can crimp is elbow fitting for DN13 (1/2") hose. The P18HP crimper, thanks to a special notch, allows for crimping even the largest elbows. It is worth remembering this when choosing a hose crimper.

Who is the P18HP model for?

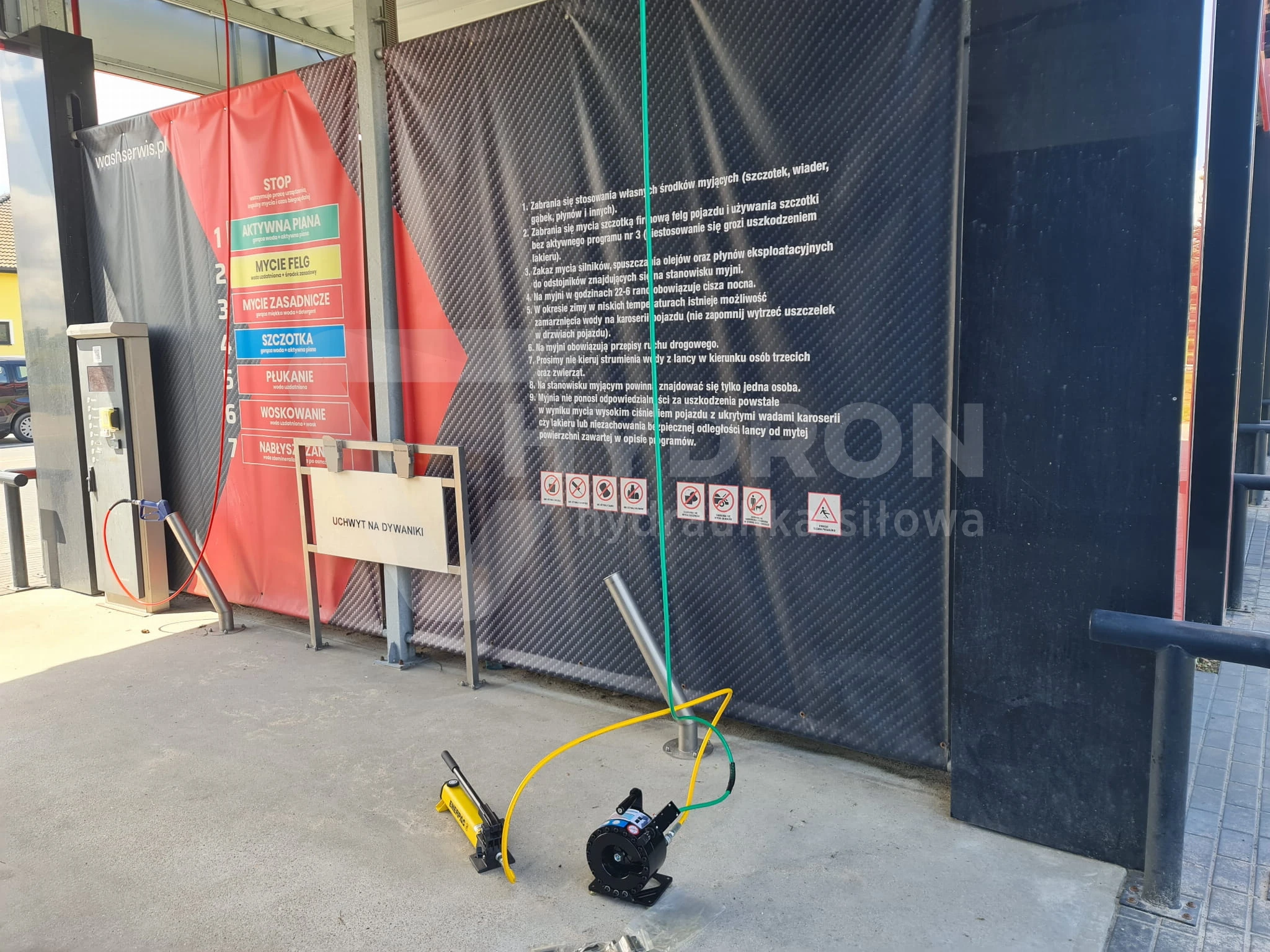

This hose crimper model is very popular in forestry service workshops. The hose crimper allows crimping hoses in single (1SN), double (2SN) and even four-wire steel braid. Four-wire steel braid (4SP) is mainly used in demanding machines - construction machinery, forestry machinery, which use very high working pressures. The undeniable advantage of the hose crimper is mobility - it weighs relatively little compared to its capabilities. With the P18HP crimper we can crimp in the field - without having to dismantle the hose on the machine. The weight, dimensions and large head make the hose crimper the ideal mobile hose crimper for people who need something larger than hose crimpers P16HPZ.

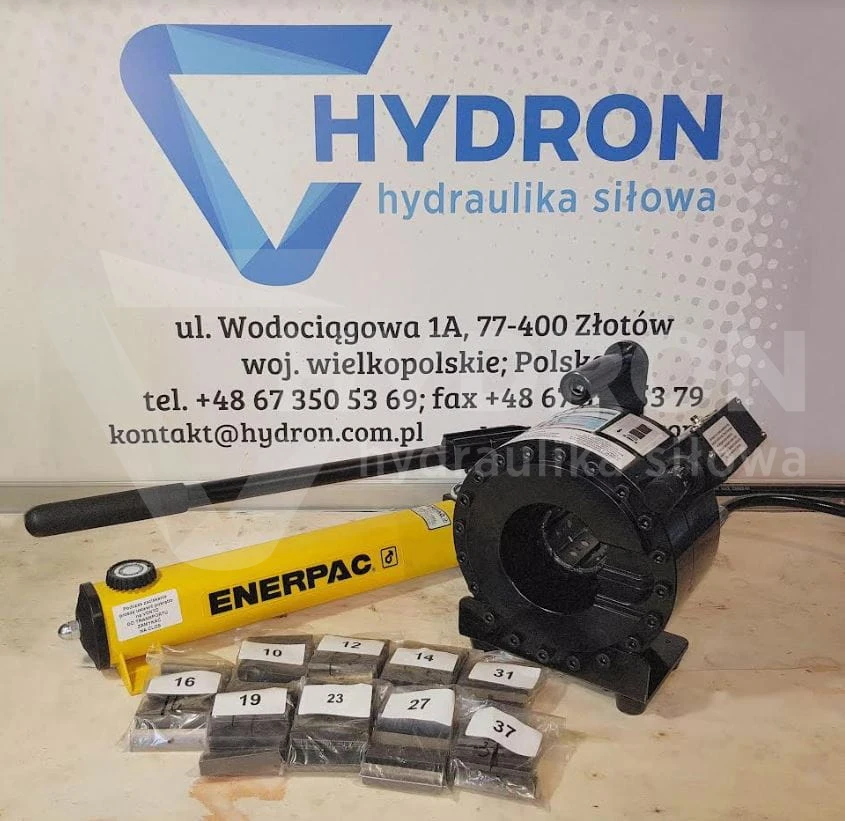

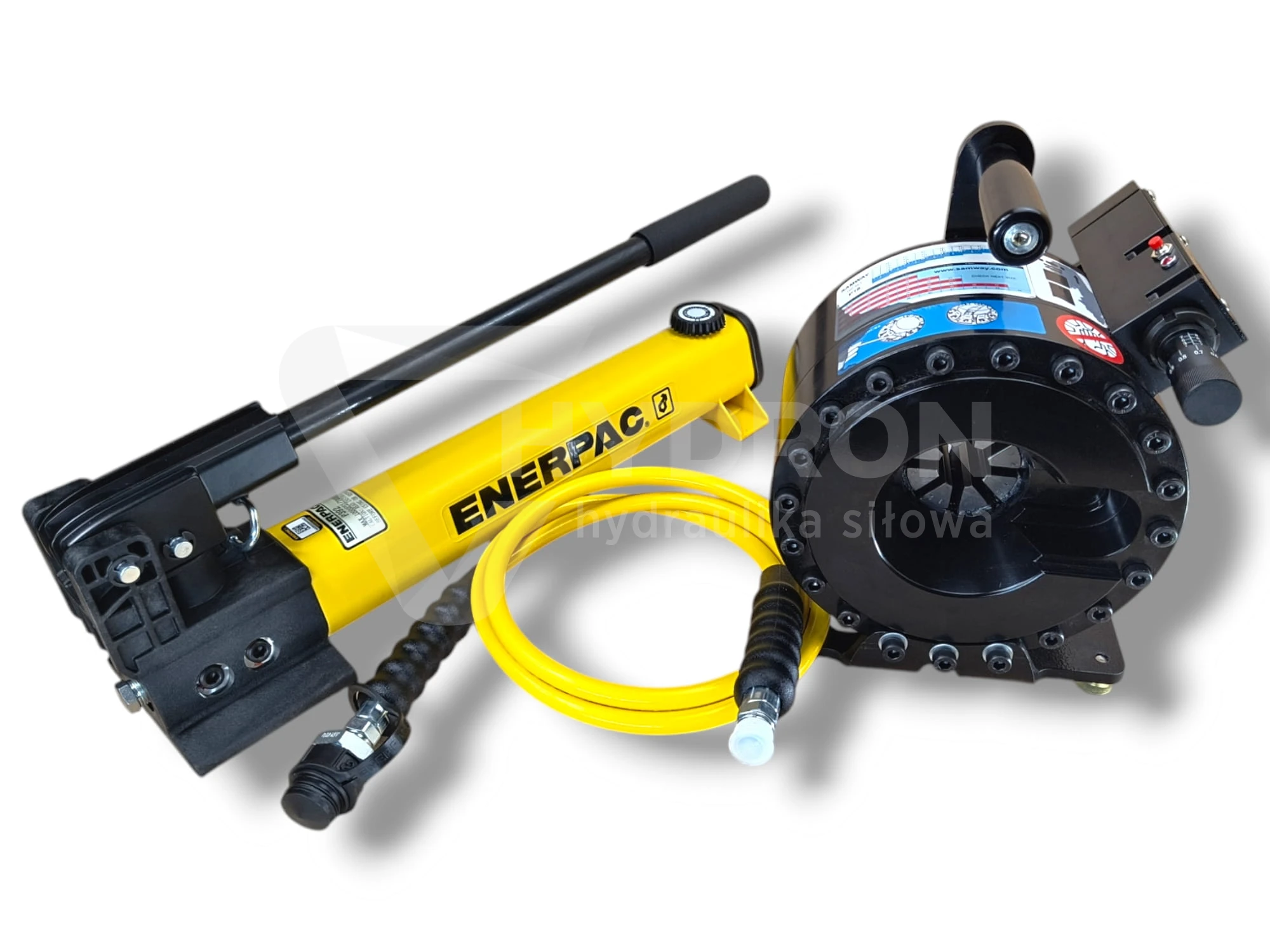

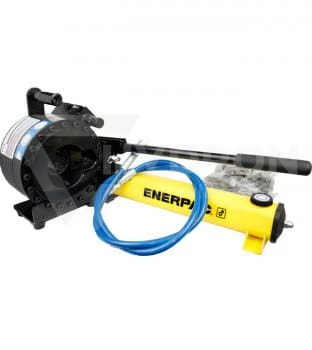

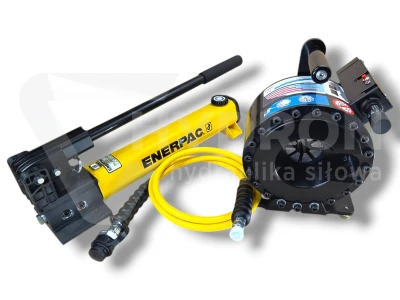

What is included in the set?

• crimping head
• large manual pump
• hose connecting the pump with the head
• crimping dies
• documentation package (instructions, certificates)

Complete hose crimper ready for work

We offer complete machines ready for crimping. Along with the machine, we send all documentation: operating instructions for the manual hose crimper, CE certificate, crimping tables, thread tables, hose selection, and many others. We offer free transport and full technical support.

Warranty

All machines offered by us have a written warranty. 12-month warranty from the date of purchase - it is possible to extend the warranty. We have a professional warranty and post-warranty service.

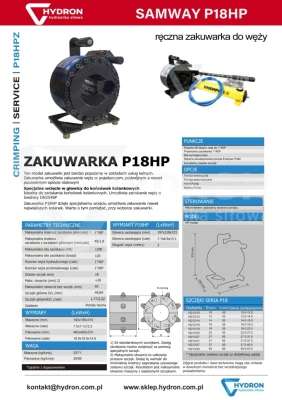

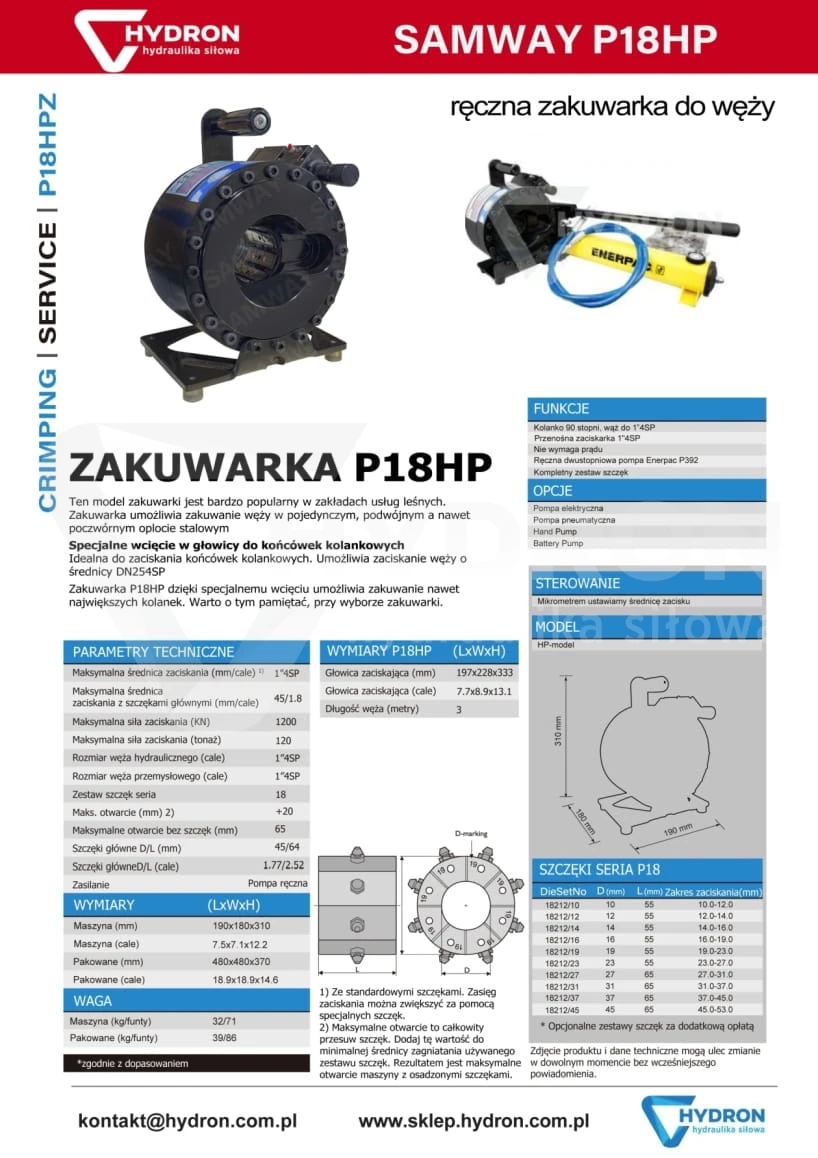

Technical specification of the hose crimper / Specification：

• Model: SAMWAY P18HP
• Maximum crimped hose size / Max Hydraulic Hose: 1" 4SP
• Crimping range / Crimping Range: from 4 mm to 60mm
• Maximum opening without dies: 65mm
• Crimping force: 120 tons
• Control: by micrometer

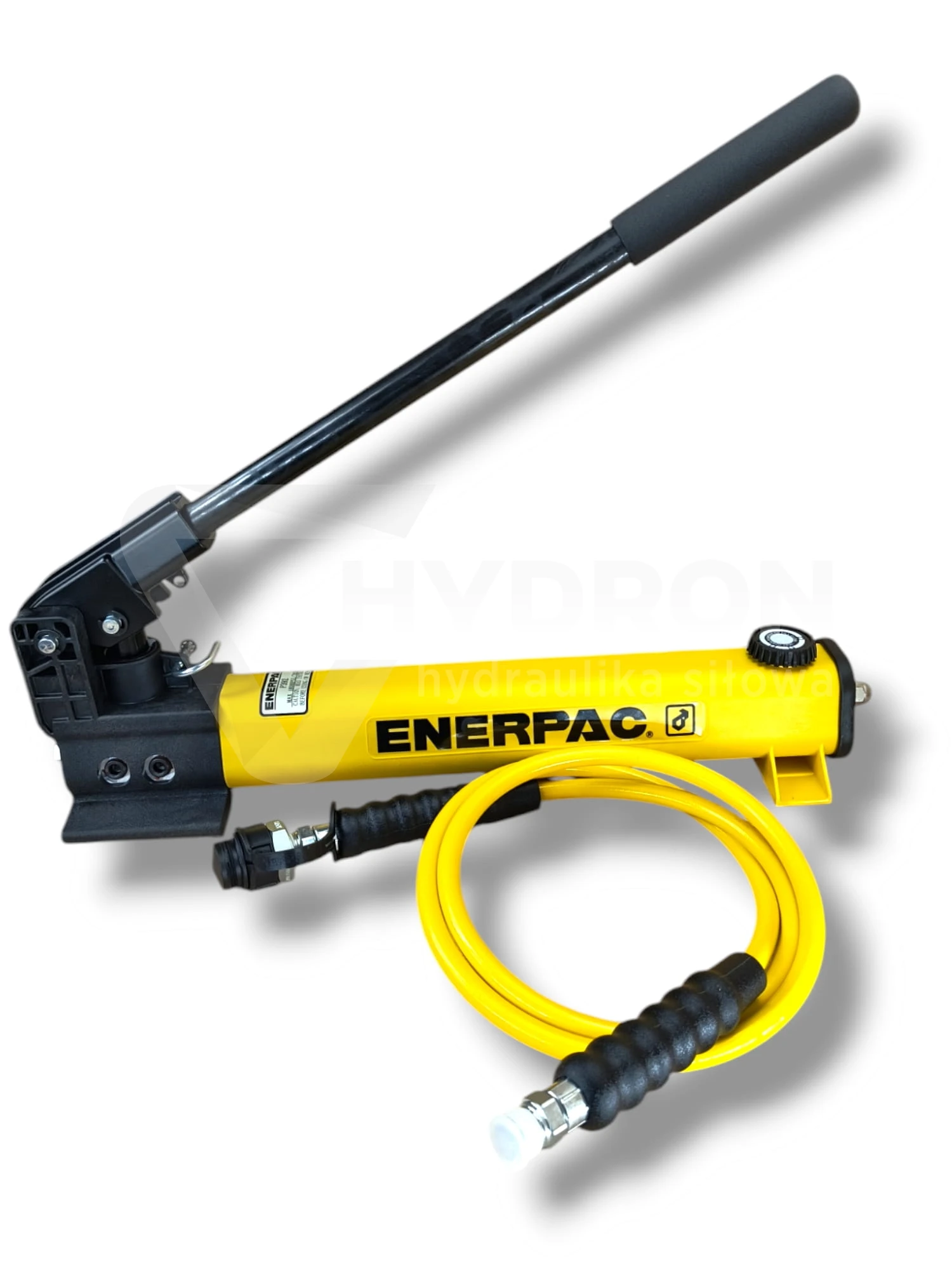

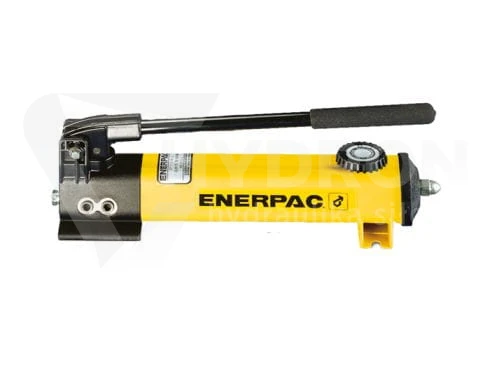

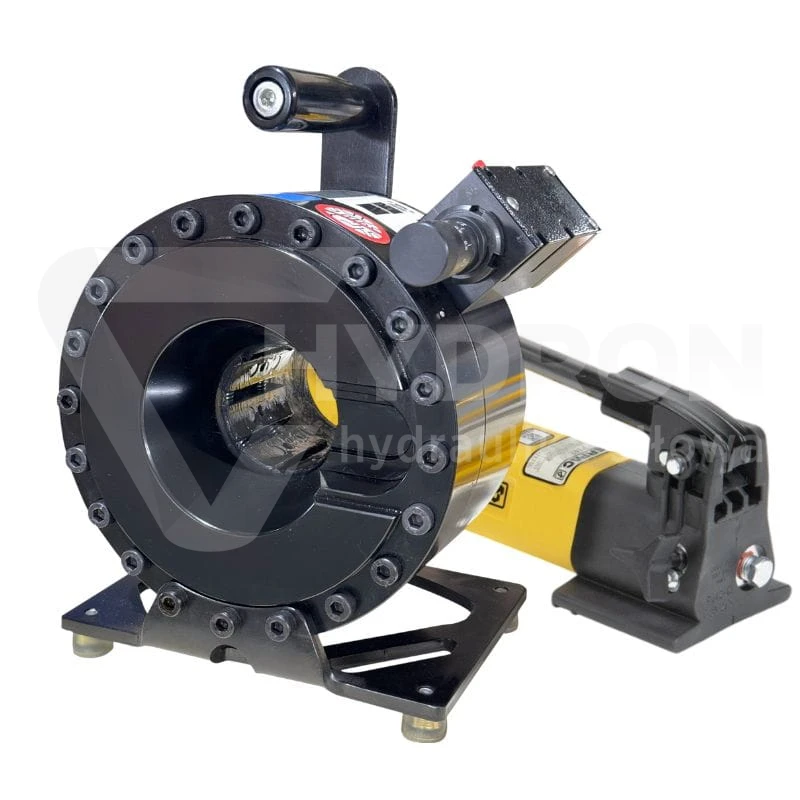

• Supply pump: two-stage ENERPAC P392
• Die type / Die Type: P18
• Weight: 32kg
• Dimensions: 190mm x 180mm x 310mm

Die set included with the hose crimper

Standard Die Sets Included： dimension (die length)

• 10 mm dies (55)
• 12 mm dies (55)
• 14 mm dies (55)
• 16 mm dies (55)
• 19 mm dies (55)
• 23 mm dies (55)
• 27 mm dies (65)
• 31 mm dies (65)
• 37 mm dies (65)

In the head, a KZE-B-G02-NPT quick coupler socket which is connected by a hose to the hydraulic pump.
