Mobile electric hose crimping machine SAMWAY P16HPE up to 1" 3SN 220V 1-phase

Electric crimping machine for hydraulic hoses SAMWAY P16HPE up to 1" 3SN 220V 1-phase

• Schedule a free meeting and machine presentation
• See how it works - click and watch the video

Characteristics of the portable electric crimper

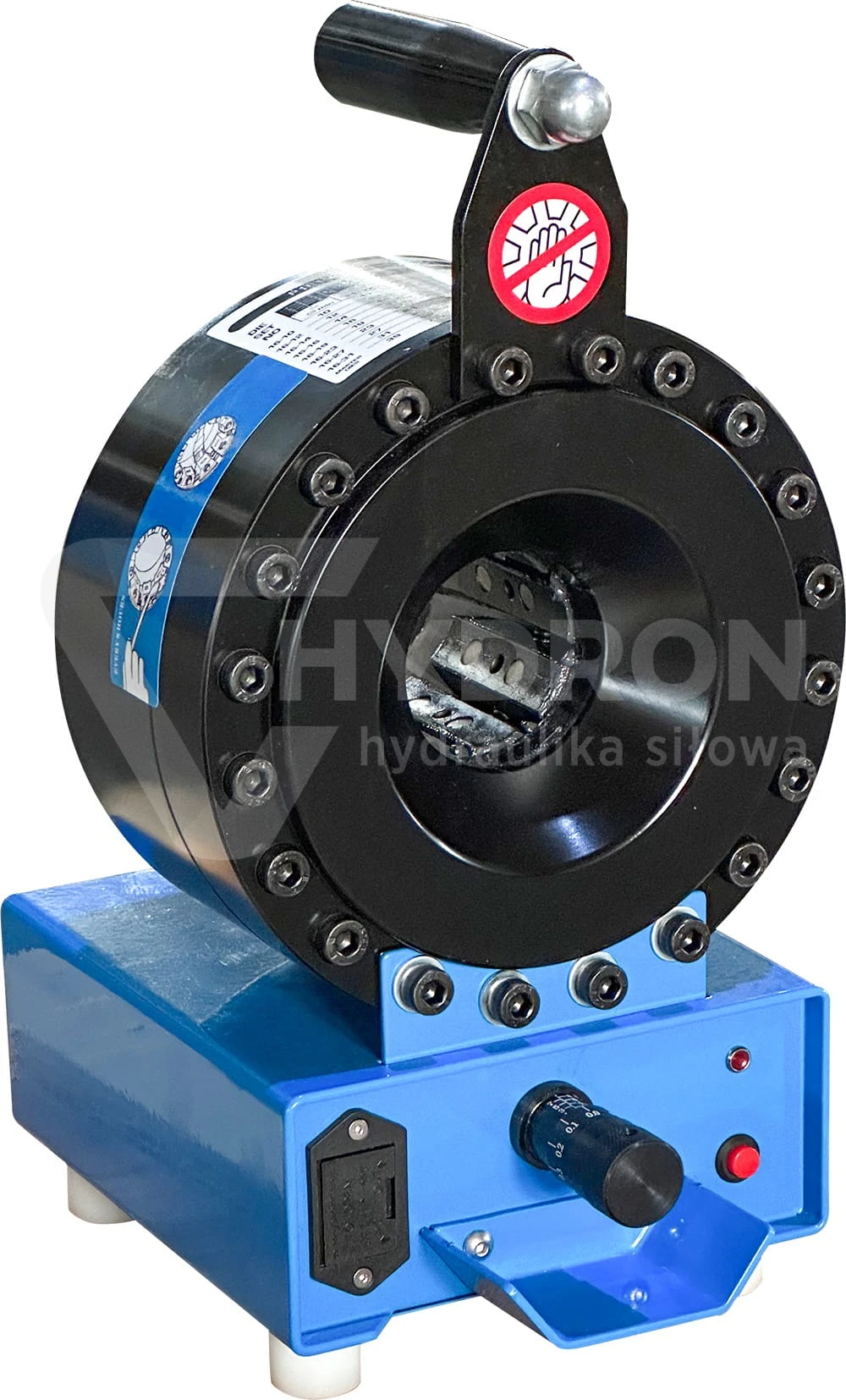

Lightweight and ergonomic manual hydraulic hose crimper. The crimping machine has a set of 8 interchangeable dies, which allow for crimping hydraulic hoses in the diameter range from DN06 – DN25. Mobile crimper (independent crimping head) connected by a flexible hose with a hydraulic pump (pump and hose are included in the set!). A separate head is extremely useful when it is necessary to crimp a hydraulic hose without having to completely disassemble it from the machine. The press is powered by a manual hydraulic pump, making it work great in the field (no need for an electrical power supply). The press has detailed instructions for die selection. The electric crimper is an ideal solution for small workshops and individuals providing mobile power hydraulics service. The price-quality ratio makes the electric press an optimal solution for points that plan to crimp hoses in small quantities.

Technical data:

• MODEL: SAMWAY P16HPE
• Maximum hose: 1" 3 braids
• Crimping range: 4-45 mm
• Die type: P16
• Main die length: 64 mm
• Maximum die opening: +20 mm
• Two-stage manual pump: 700 bar
• Crimping force: 95 tons
• Control: micrometer
• Dimensions: 330mm * 400mm * 280mm
• Weight: 25 kg + pump 27 kg

Dies included (size / length):

• 10 mm (length 55 mm)
• 12 mm (length 55 mm)
• 14 mm (length 55 mm)
• 16 mm (length 55 mm)
• 19 mm (length 55 mm)
• 23 mm (length 55 mm)
• 27 mm (length 65 mm)
• 31 mm (length 65 mm)

Check the topic: crimping machine leasing

Note: this model is not suitable for crimping large stainless steel sleeves! (very hard material) – for this needed is a larger machine like P20HP, P20AP or larger.
