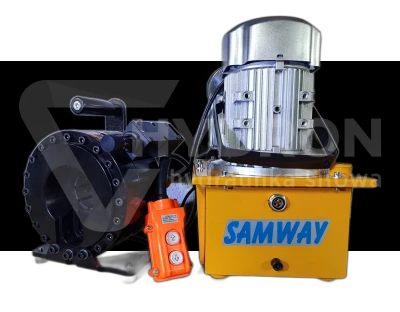

Electric hose crimping machine P18HPE 220V

COMPLETE CRIMPING MACHINE WITH HYDRAULIC PUMP, HOSE AND DIE SET!

• Book a free meeting and machine presentation
• See how it works - click and watch the video

New: P18HPE crimping machine with a very large head! Ideal for crimping elbow fittings. Enables crimping hoses up to DN25 4SP diameter. The head opens to 60mm. Equipment for mobile service of construction machinery, forestry machinery, etc. Manual portable press for crimping hydraulic hoses. The P18HPE crimper is an intermediate solution between the smallest P18HP crimpers and large service crimpers such as the P20HP. The P18HPE model is a solution that combines high crimping capabilities with a relatively low weight, making it successful for mobile hose crimping.

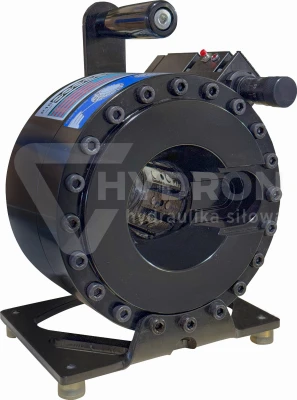

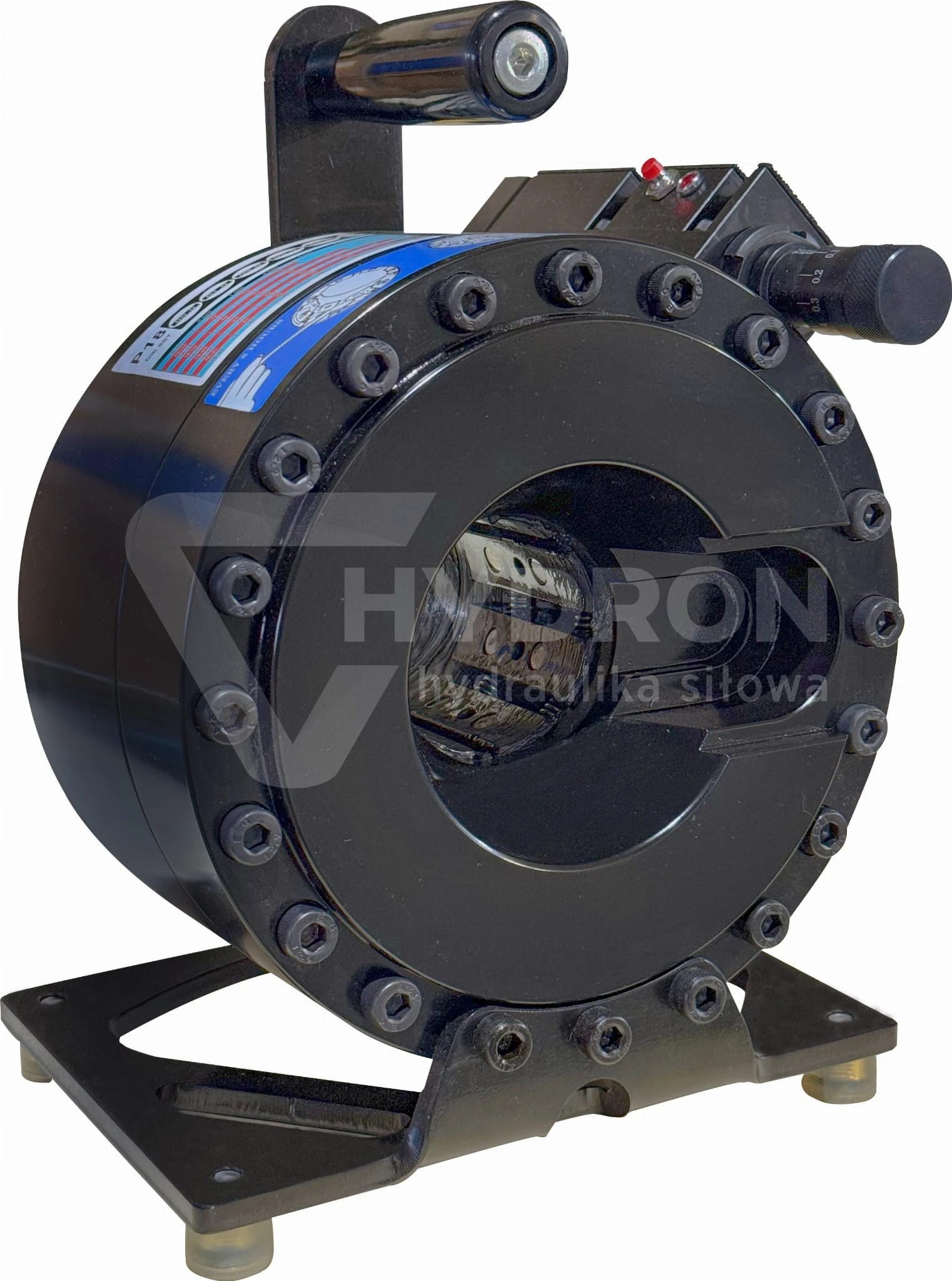

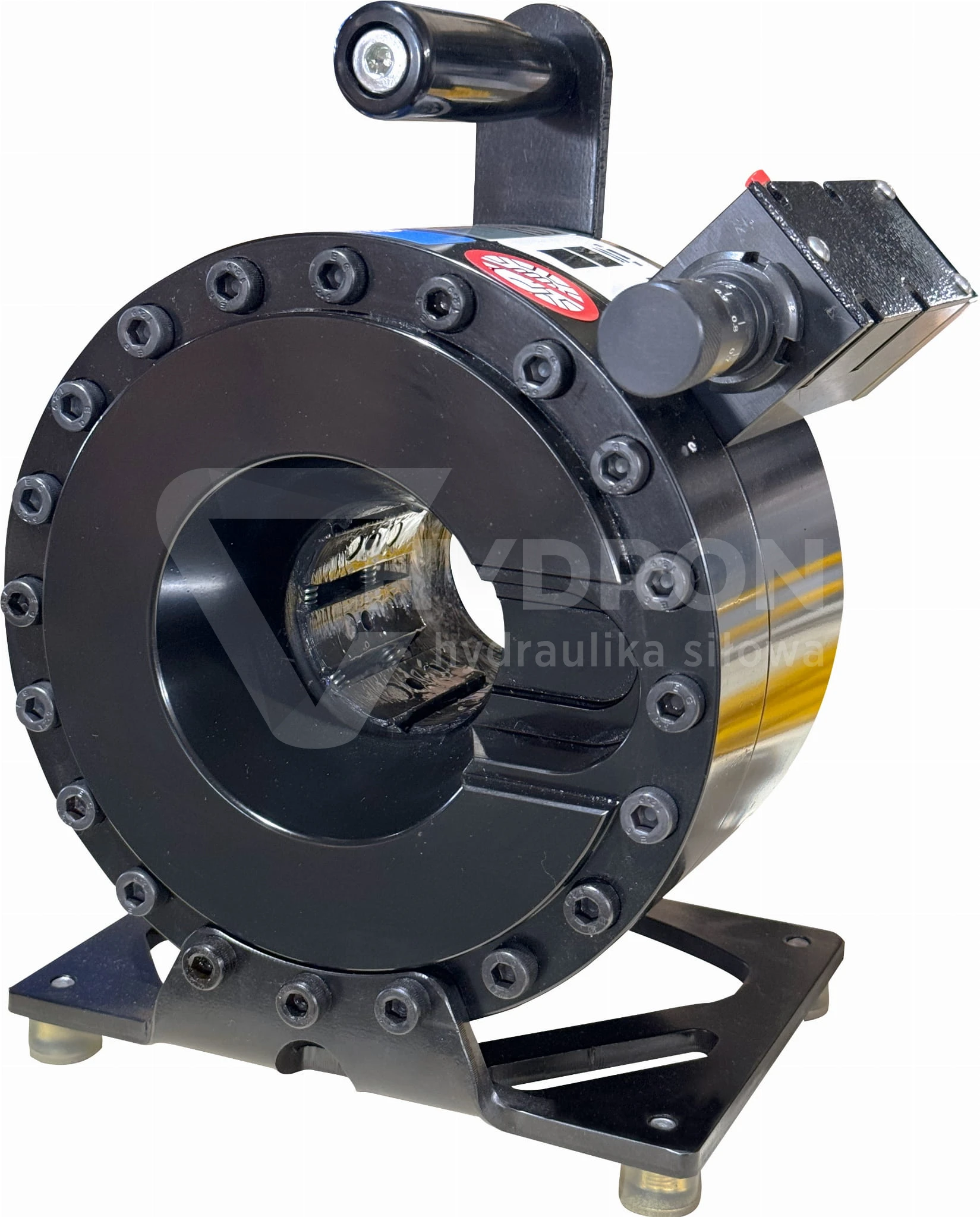

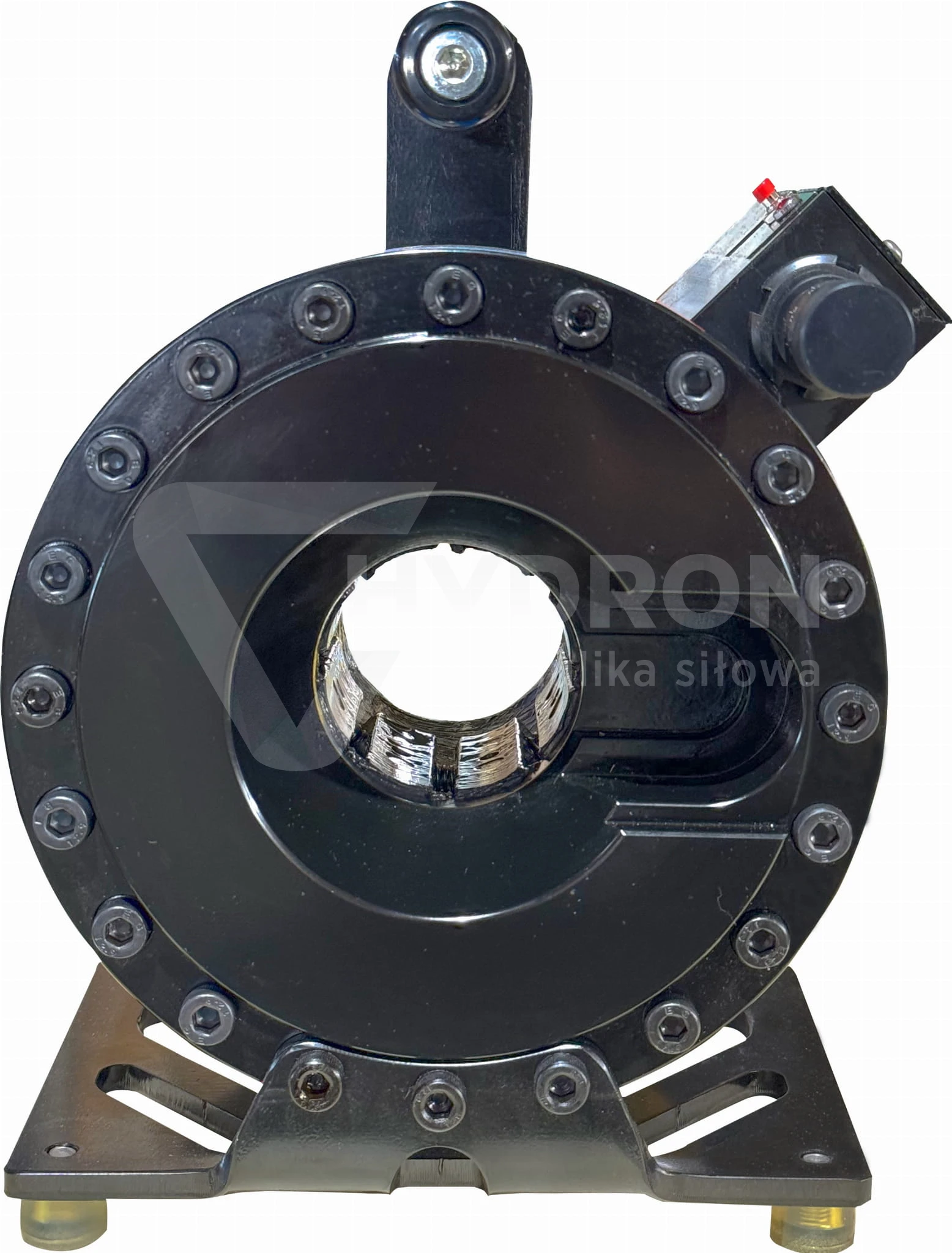

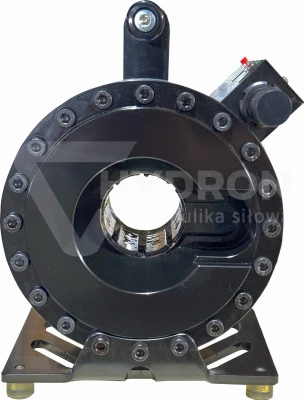

Special notch in the head for elbow fittings

The notch in the crimper head allows for crimping truly large elbow fittings. We remind you that in the P16HP model, the largest elbow fitting we can crimp is for a DN13 (1/2") hose. Thanks to the special notch, the P18HP crimper allows crimping even the largest elbows. It is worth remembering this when choosing a crimping machine.

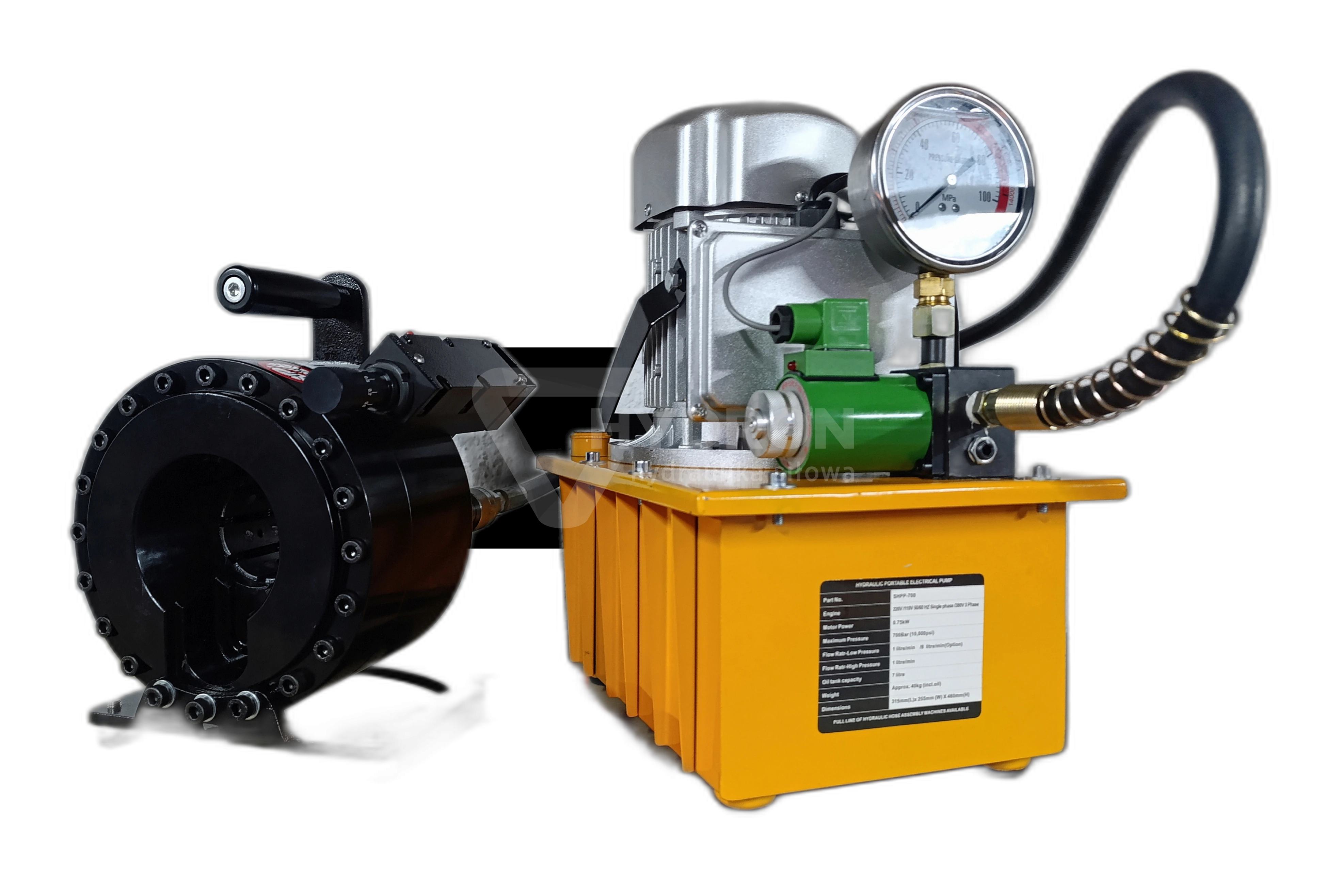

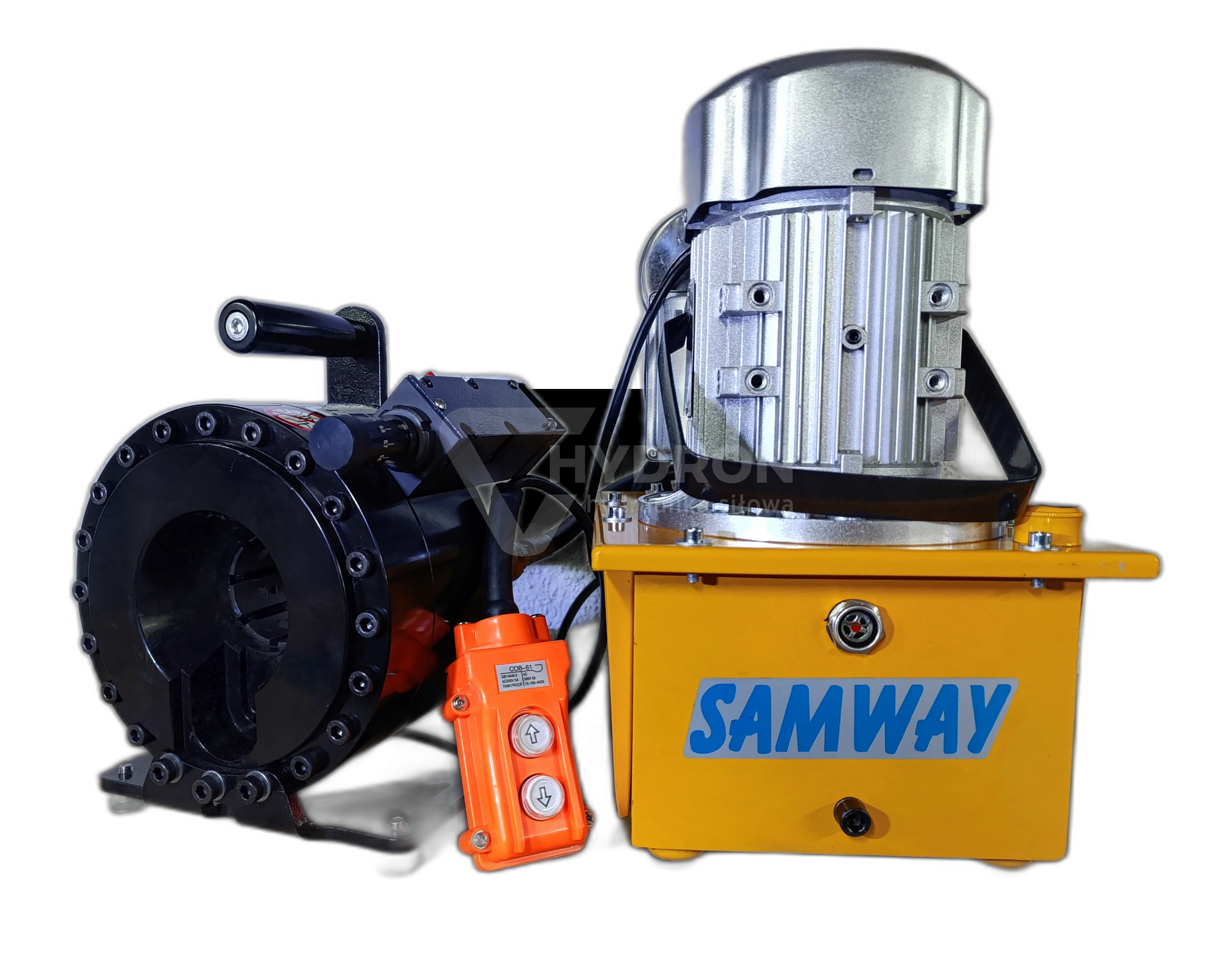

What is included in the set?

• crimper head
• 220V 1-phase pump
• hose connecting the pump to the head
• crimping dies
• documentation package (manuals, certificates)

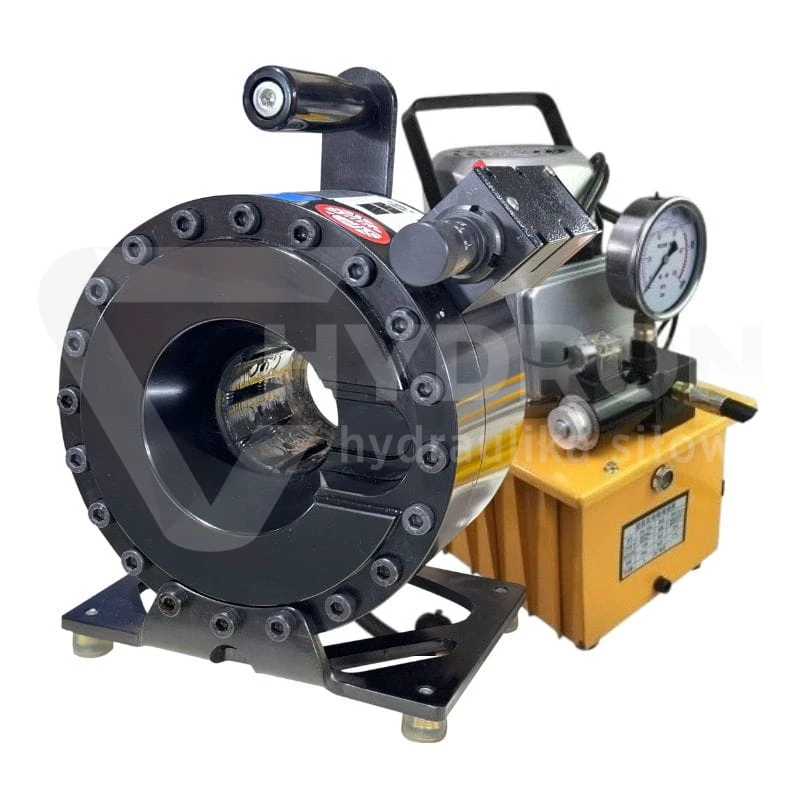

Complete crimping machine ready for operation

We offer complete, ready-to-crimp machines. Along with the machine, we send all documentation: manual for the manual crimper, CE certificate, crimping tables, thread tables, hose selection, and many others. We offer free transport and full technical support.

Warranty

All machines offered by us have a written warranty. 12-month warranty from the date of purchase - extension of the warranty is possible. We provide professional warranty and post-warranty service.

Specification ：

• Model: SAMWAY P18HPE
• Max Hydraulic Hose: 1" 4SP
• Crimping Range: 4-60 mm
• Die Type: P18
• Master Die Length: 64 mm
• Max Opening: +20 mm

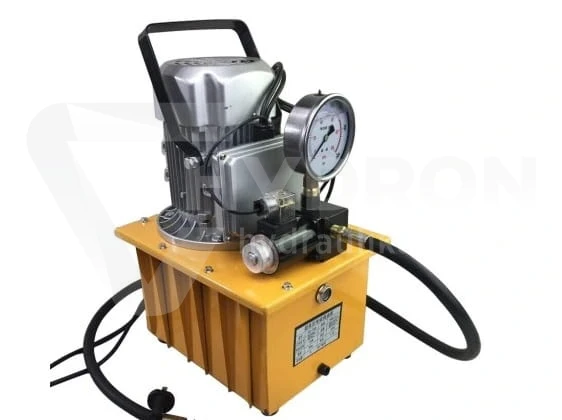

• Electric Pump: Samway 220V 700 bar
• Crimping Force: 1200 KN (120 tons)
• Control: Micro Dial
• Dimensions / L*W*H: 360*430*350 mm
• Weight: 40 KG (head + pump = 30.6 kg)

Die set included ：

Dies available in the set (size / die length):

• 10 mm dies (length 55 mm)
• 12 mm dies (length 55 mm)
• 14 mm dies (length 55 mm)
• 16 mm dies (length 55 mm)
• 19 mm dies (length 55 mm)
• 23 mm dies (length 55 mm)
• 27 mm dies (length 65 mm)
• 31 mm dies (length 65 mm)
• 37 mm dies (length 65 mm)

The set includes: crimper + hose + dies + pump.

In the head, there is a KZE-B-G02-NPT quick coupling socket, which is connected to the hydraulic pump with a hose.
