SAMWAY T220 hose test bench 220 MPa – 2200 bar

TESTING BENCH VIDEO

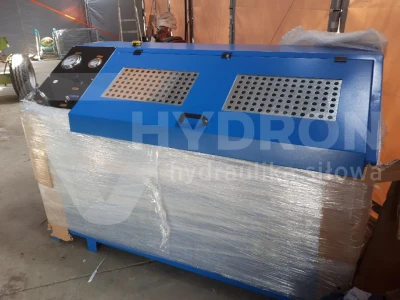

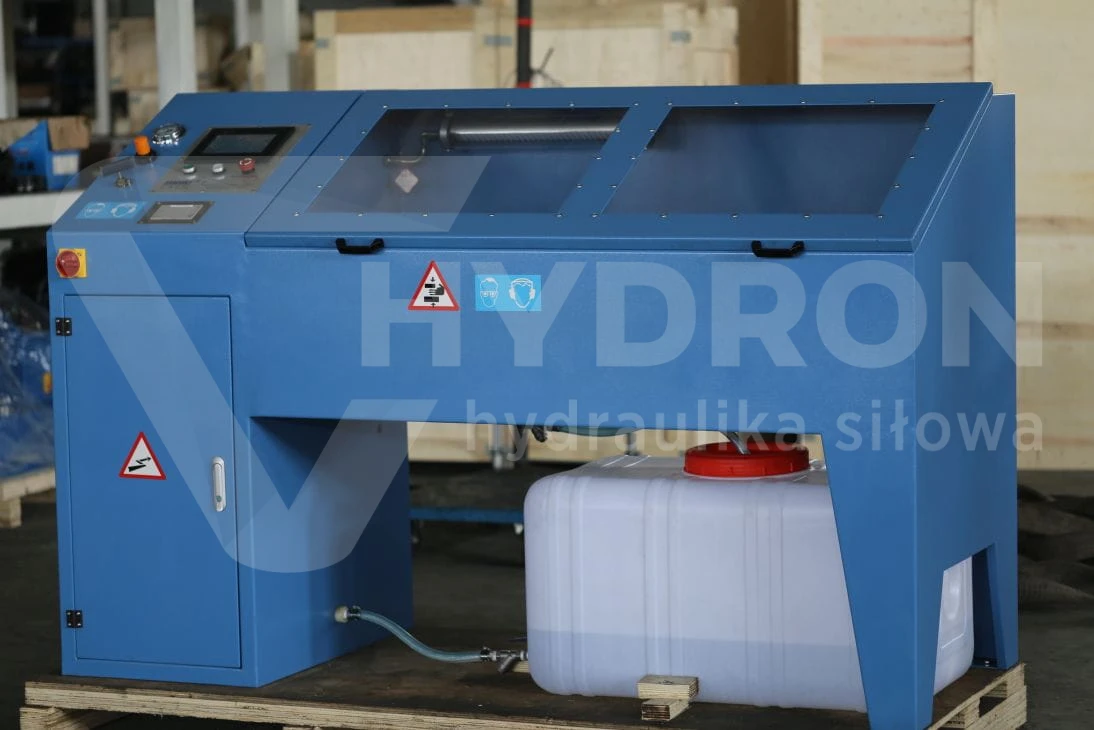

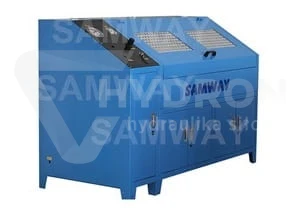

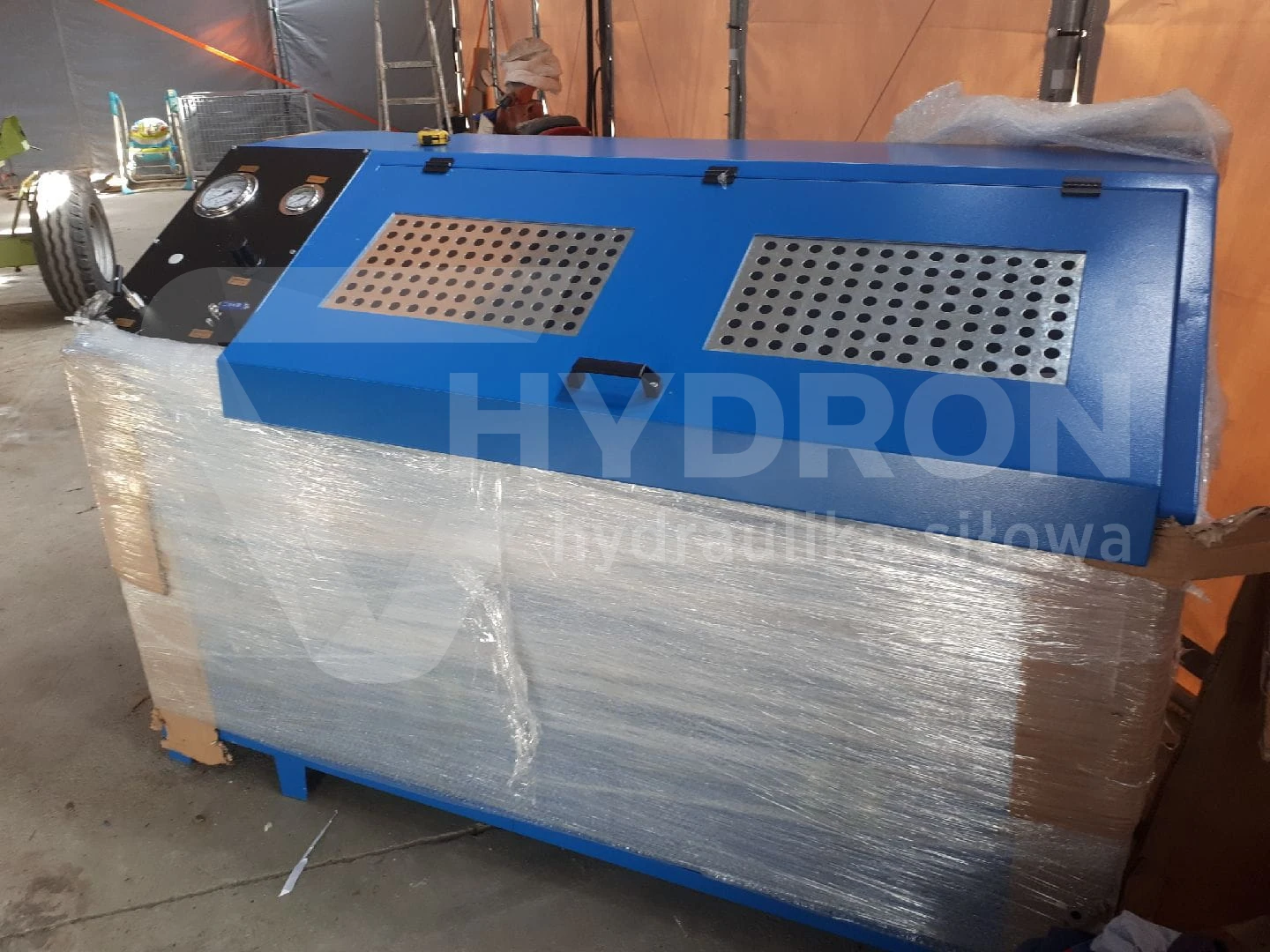

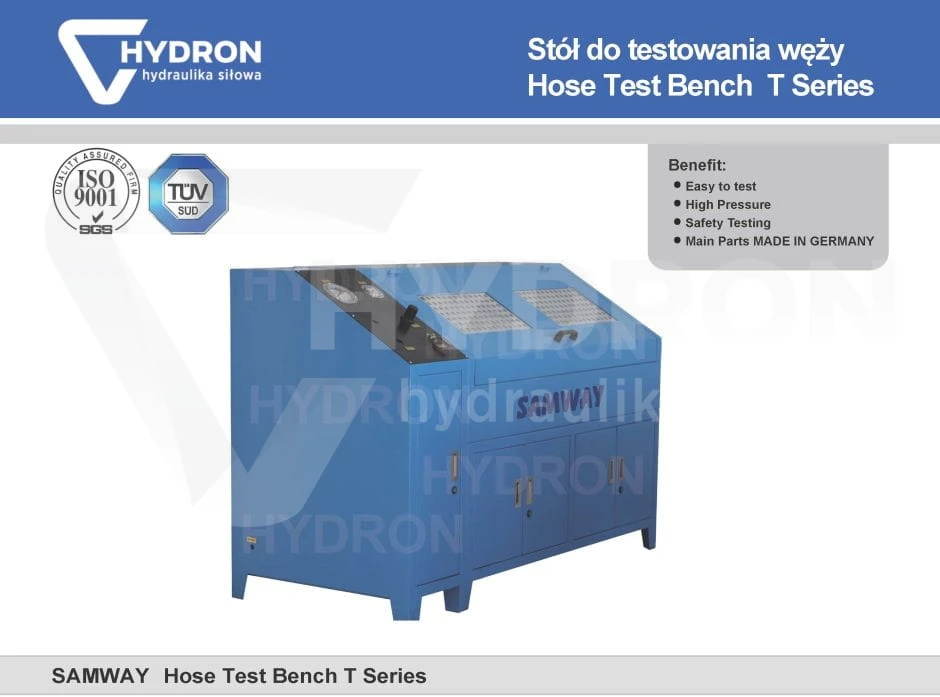

SAMWAY T220 is a stationary test bench designed for performing pressure tests on hydraulic hoses. The maximum test pressure of the device is 220 MPa (2200 bar). The machine is equipped with a test chamber with protective glass and a 1/4" NPT pressure connection. The design incorporates a German-made pump, a USA-made valve, and FESTO pneumatic components. The device can be upgraded with a printer, chamber lighting, a fast filling pump, and an automatic control module.

Application and technical characteristics

The SAMWAY T220 test bench is used for conducting pressure tests and leak inspections of finished hydraulic hoses. It can serve as equipment for test stands in facilities that manufacture and service hydraulic hoses. The testing takes place in a dedicated test chamber equipped with protective glass.

The maximum test pressure of the device is 2200 bar. This parameter defines the capabilities of the bench and does not mean that every hydraulic hose can be tested at such pressure. Test conditions should be selected according to the technical documentation of the complete hose assembly, the fittings used, and the required test procedure.

The bench features a test connection with a 1/4" NPT thread. When preparing a test, the compatibility of the threaded connections and the allowable pressure of all system components must be considered. NPT thread is not directly interchangeable with BSP thread.

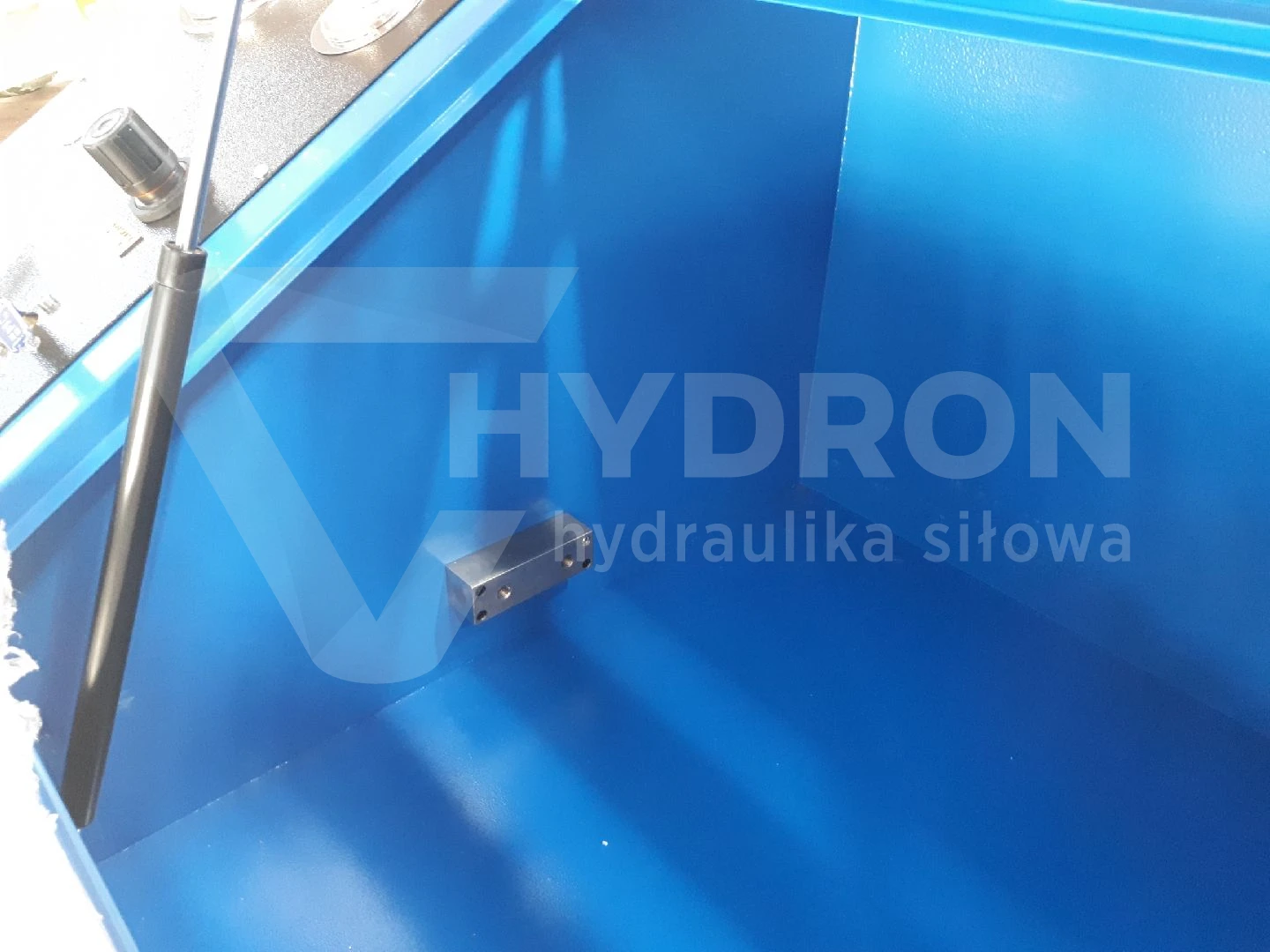

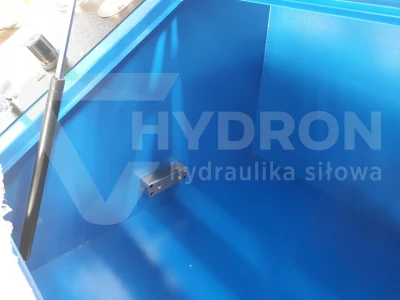

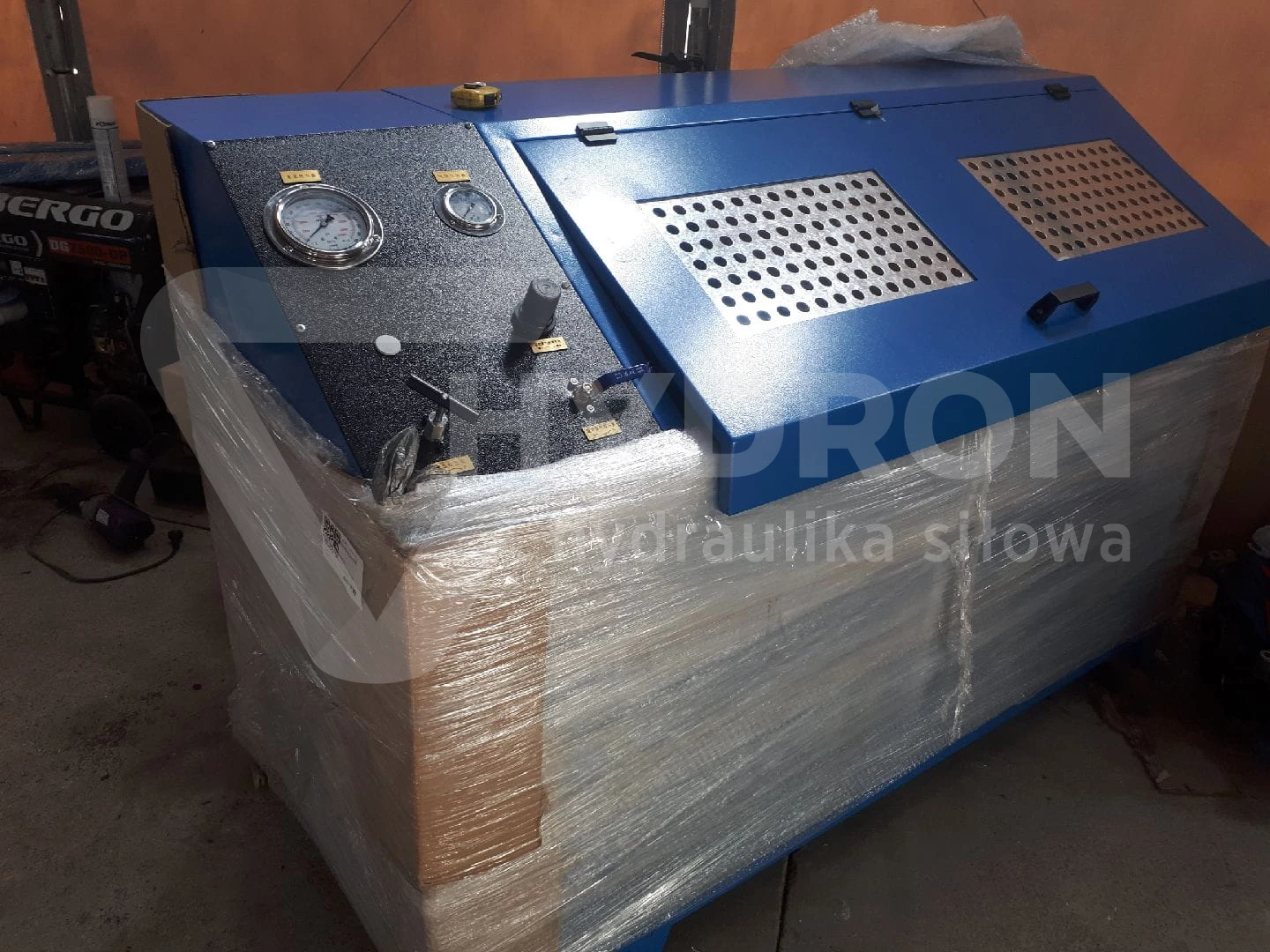

The test chamber dimensions are 1400 × 780 × 570 mm, while the overall dimensions of the device are 2000 × 1100 × 1300 mm. The weight of the bench is 350 kg and may increase depending on the selected additional equipment.

Equipment and configuration options

The SAMWAY T220 bench utilizes a German-made pump, a USA-made valve, and FESTO pneumatic components. The protective glass of the test chamber is standard equipment. The manufacturer allows for the expansion of the device configuration with additional elements.

• Test chamber protective glass – standard equipment.
• Chamber lighting – optional equipment.
• Fast filling pump – optional equipment.
• Printer – optional equipment.
• Automatic control module – optional equipment.

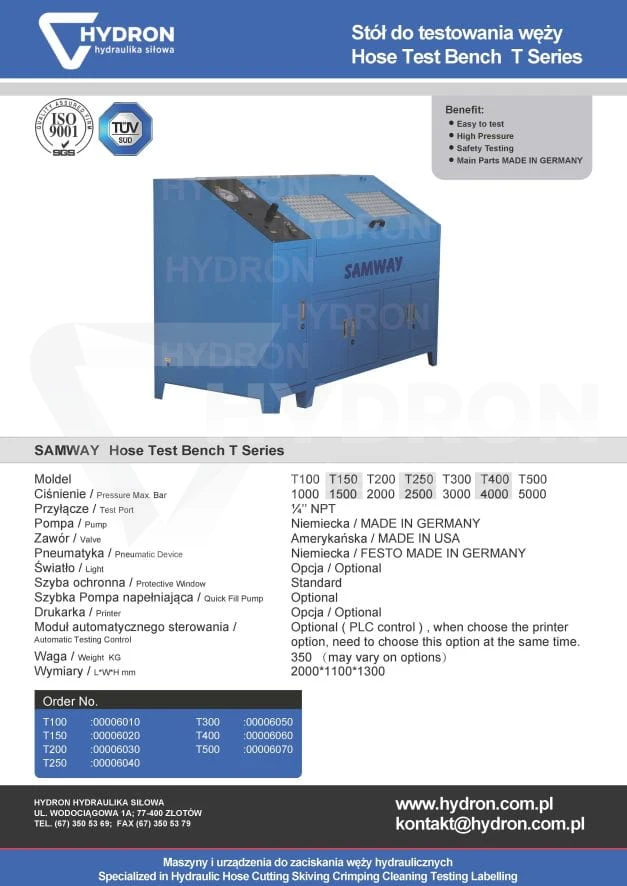

Technical specification

Frequently Asked Questions (FAQ)

What is the maximum test pressure achieved by SAMWAY T220?

The maximum test pressure is 220 MPa, which is 2200 bar. The pressure for a specific test must be determined based on the technical parameters of the complete hose and the appropriate test procedure.

Does the SAMWAY T220 come with a printer as standard?

No. The printer is optional equipment. Additionally, you can order chamber lighting, a fast filling pump, and an automatic control module.

What are the dimensions of the T220 test chamber?

The test chamber measures 1400 × 780 × 570 mm. The total dimensions of the device are 2000 × 1100 × 1300 mm. Protective glass is included as standard equipment.

What test connection is used in the SAMWAY T220?

The bench is equipped with a 1/4" NPT thread connection. The components used to connect the tested hose should be compatible with this standard and rated for the pressure intended during the test.
