SAMWAY T300 test bench for hydraulic hoses 3000 bar

TEST BENCH VIDEO

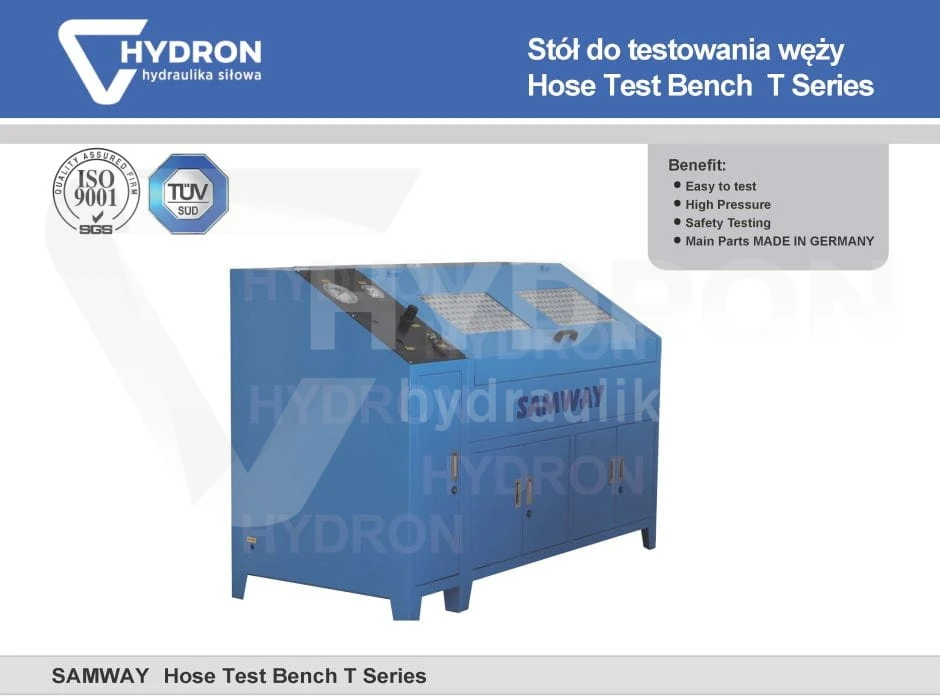

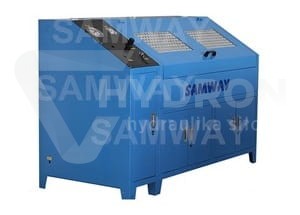

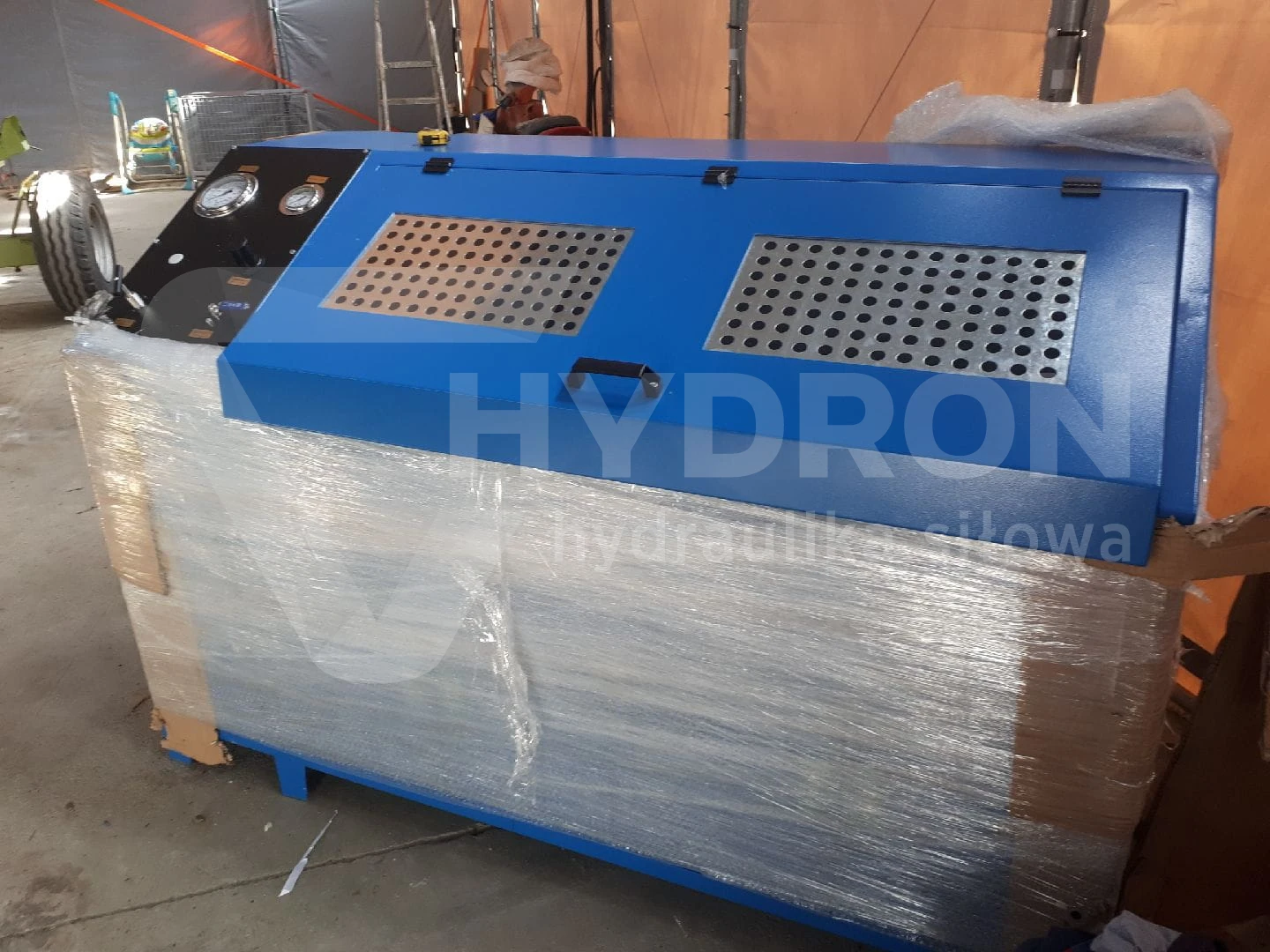

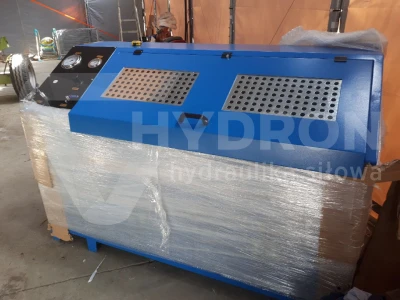

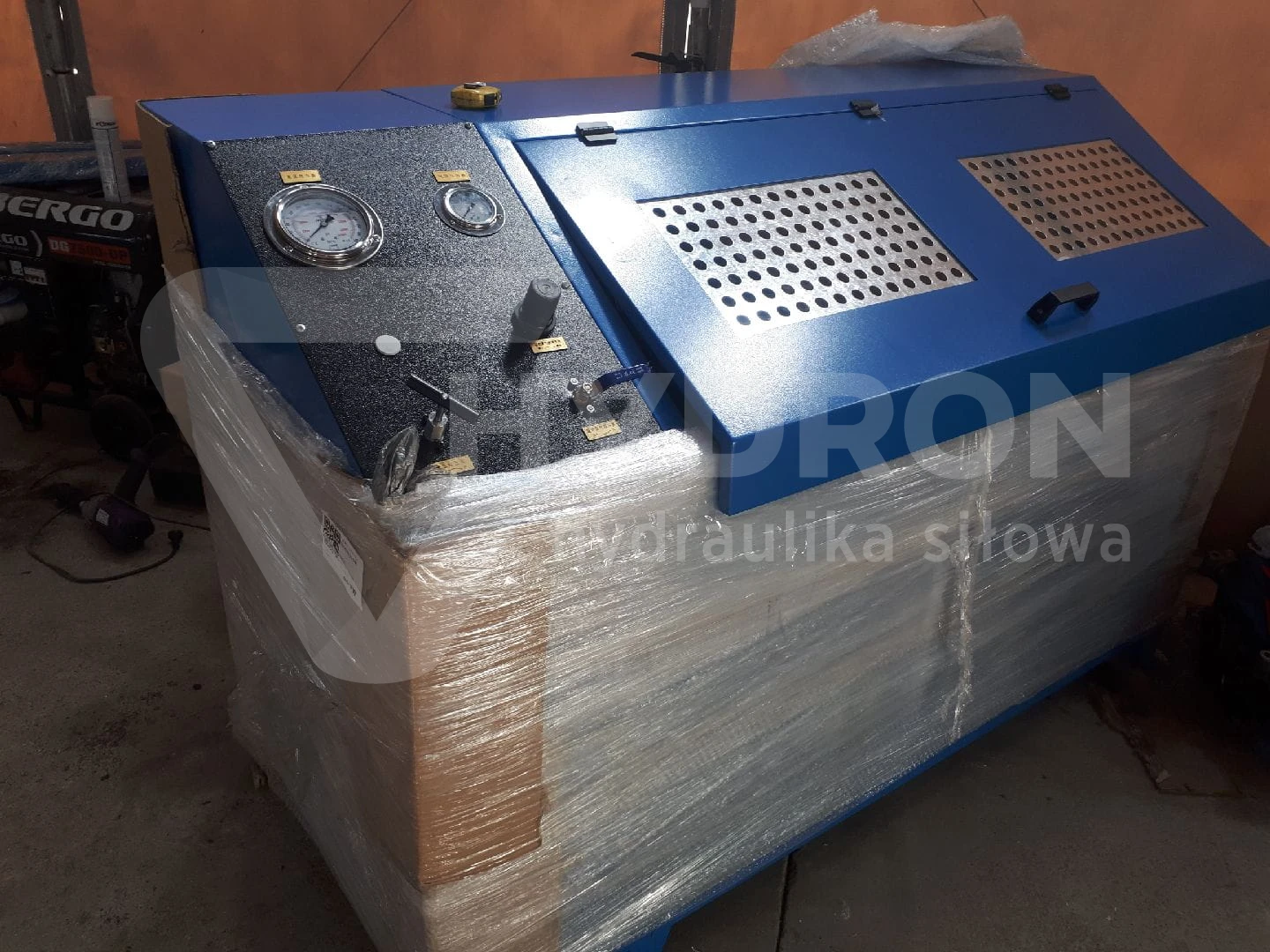

SAMWAY T300 is a stationary test bench designed for pressure testing hydraulic hoses. The maximum test pressure is 300 MPa (3000 bar). The device has a test chamber with dimensions of 1400 × 780 × 570 mm, equipped with a protective glass. The system uses a German-made pump, a US-made valve, and FESTO pneumatic components. The design allows for expansion with additional equipment, including a printer, lighting, and an automatic control module.

Application and technical characteristics

The SAMWAY T300 bench is designed for leak testing and pressure testing hydraulic lines. It can serve as equipment for testing ready-made hose assemblies, including hoses after assembly and fitting crimping.

The maximum test pressure of the device is 3000 bar. This is the bench's limit parameter, not the pressure that should be used when testing every line. Test conditions must comply with the documentation of the tested hose assembly and its inspection requirements.

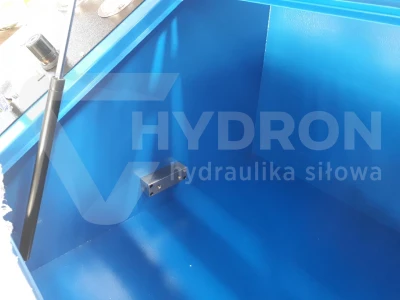

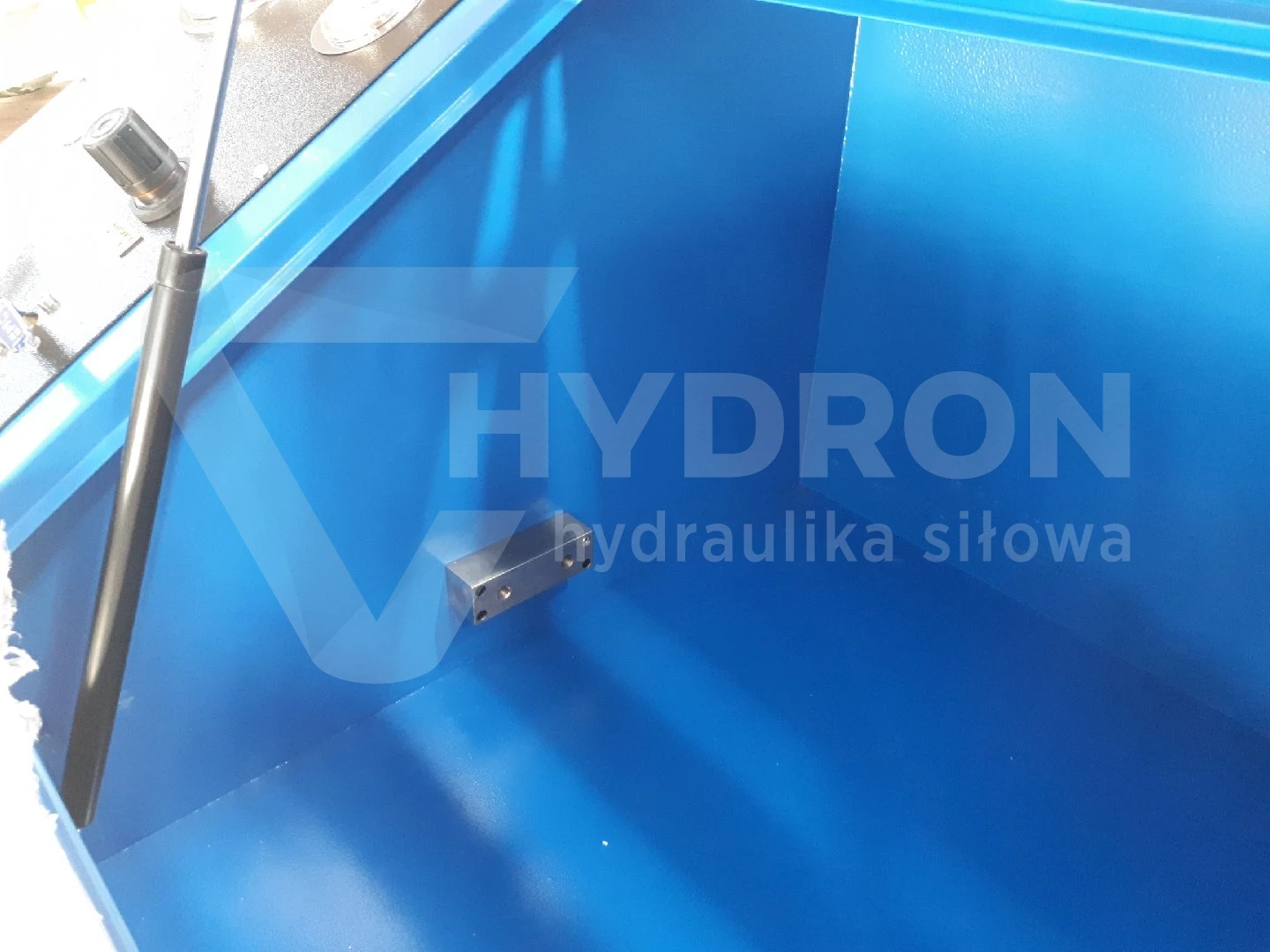

The device has a 1/4" NPT test connection. The pump is German-made, the valve is from the USA, while the pneumatic system uses FESTO components. The chamber with protective glass is a separate space for performing pressure tests.

The total dimensions of the bench are 2000 × 1100 × 1300 mm. The machine's weight is 350 kg and may be higher depending on the selected optional equipment.

Why choose our components?

• Maximum test pressure 300 MPa (3000 bar).
• Test chamber with dimensions 1400 × 780 × 570 mm.
• Protective glass as standard equipment.
• German-made pump and American-made valve.
• FESTO pneumatic components.
• Option to retrofit with a printer, lighting, fast filling pump, and automatic control.

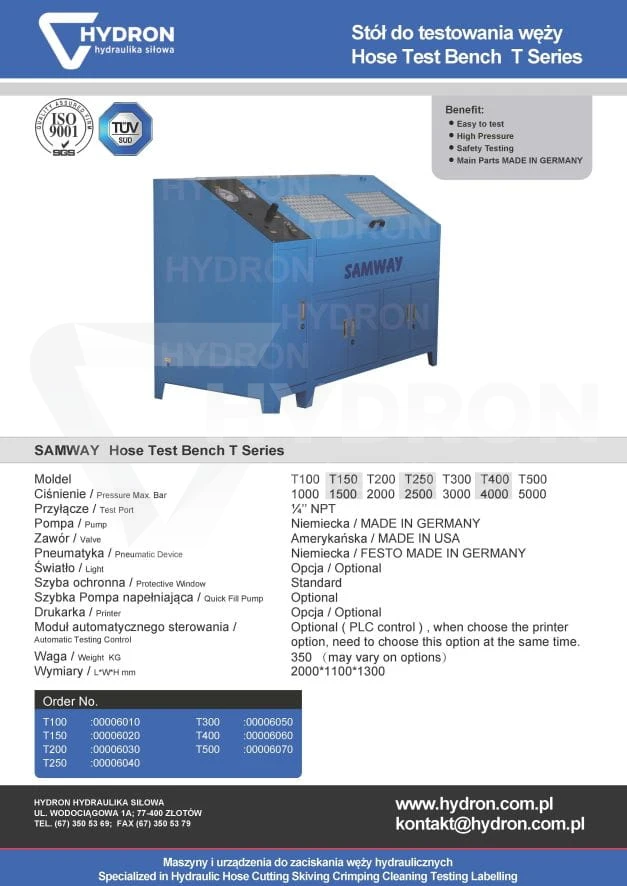

Technical specification

Frequently Asked Questions (FAQ)

What is the maximum test pressure of the SAMWAY T300?

The maximum test pressure is 300 MPa, which is 3000 bar. The pressure for a specific test should be determined according to the technical documentation of the hose and the fittings used.

Does the SAMWAY T300 have a printer as standard equipment?

No. The printer is optional equipment. The possibility of ordering the device with a printer should be considered when choosing the test bench configuration.

What are the dimensions of the T300 test chamber?

The test chamber has dimensions of 1400 × 780 × 570 mm. The total dimensions of the bench are 2000 × 1100 × 1300 mm. Protective glass is standard equipment for the device.

What optional equipment can be ordered for the T300?

Available options include chamber lighting, a fast filling pump, a printer, and an automatic control module. This equipment is not part of the standard configuration.
