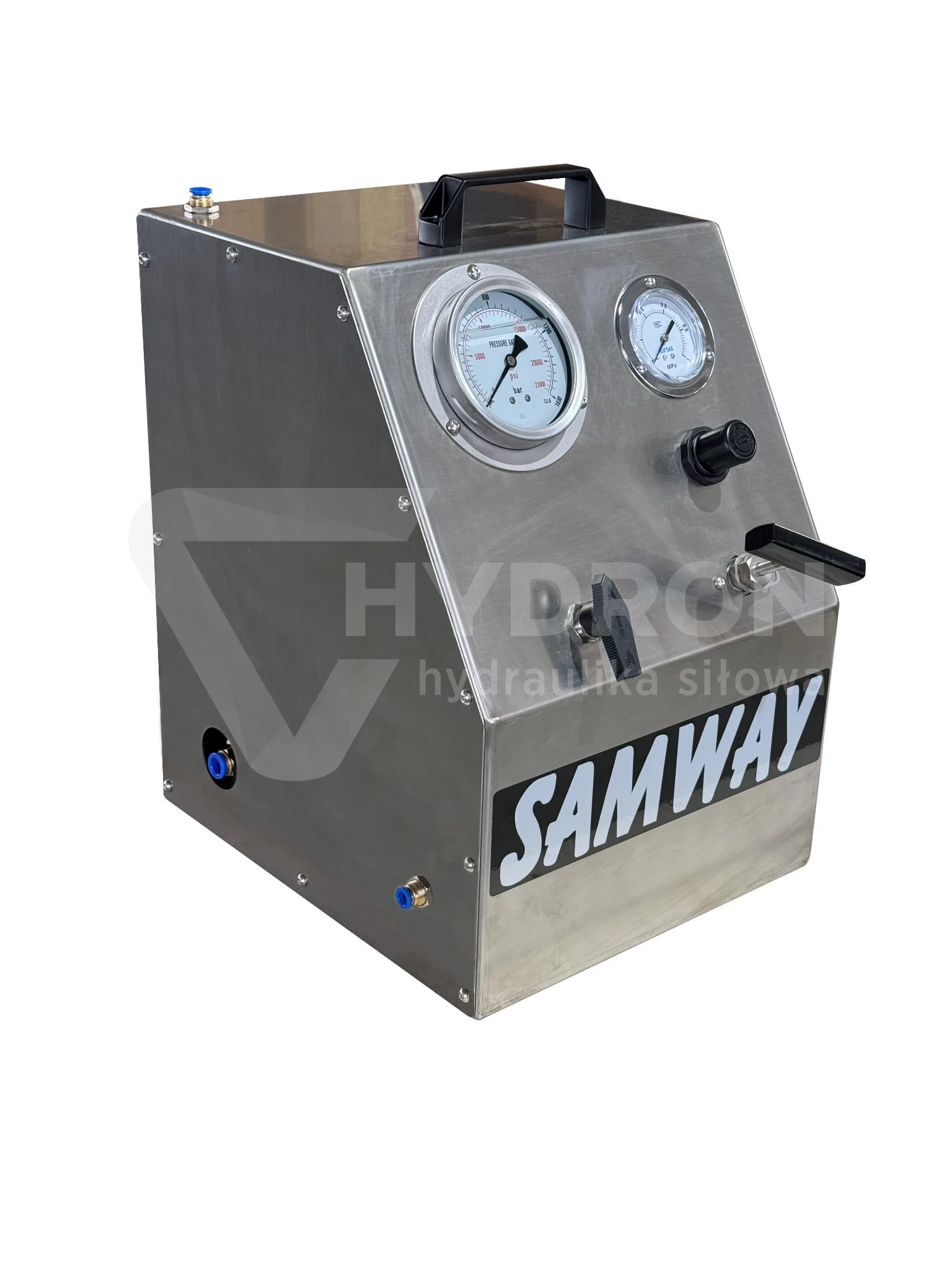

SAMWAY PHT2500 portable test bench for hydraulic hoses – 2500 bar

SAMWAY PHT2500 is a portable device for pressure testing hydraulic hoses, with a maximum test pressure of 2500 bar (250 MPa). It allows for leak testing of high-pressure hoses with sizes up to 2". Its compact design with dimensions of 250 × 300 × 400 mm allows the device to be used at workshop and service stations. The bench is equipped with a 1/4" NPT test connection as well as a pump and valve of German manufacture. The standard manual pressure release system enables a controlled conclusion of the test.

Application and technical characteristics

The SAMWAY PHT2500 portable tester is designed for conducting pressure tests on hydraulic hoses. It can be used for leak checking hoses after assembly of fittings, as well as in technical control processes. It is utilized in plants producing hydraulic hoses and workshops involved in their maintenance.

The maximum test pressure of the device is 2500 bar. This value defines the capabilities of the tester, not the permissible test pressure for every hose. Test parameters should be selected according to the technical requirements of the tested hose, fittings, and the complete assembly.

The device has a test port with a 1/4" NPT thread. The used pump and valve are of German manufacture. The manual pressure release system is standard equipment. Optionally, the tester can be equipped with a printer.

Why choose our components?

• Maximum test pressure of 2500 bar (250 MPa).
• Possibility of testing hydraulic hoses up to 2".
• Compact design allowing the device to be moved between stations.
• Pump and valve manufactured in Germany.
• 1/4" NPT test connection.
• Manual pressure release as standard equipment.
• Option to equip the device with an optional printer.

Technical specification

Frequently Asked Questions (FAQ)

What is the maximum pressure generated by SAMWAY PHT2500?

The maximum test pressure is 2500 bar (250 MPa). However, this does not mean that every hose can be tested at this pressure. The test value must correspond to the technical requirements of the complete hose assembly.

What hoses can be tested with the PHT2500 device?

The device is designed for pressure testing hydraulic hoses up to 2" in size. When connecting the tested hose, ensure compatibility of the connection elements with the 1/4" NPT test port.

Does the SAMWAY PHT2500 tester have a printer?

A printer is available as optional equipment. It is not part of the standard device configuration. The scope of its functions should be determined when selecting additional equipment.

Does the PHT2500 test bench allow for manual pressure release?

Yes. A manual pressure release mechanism is standard equipment for the device. Before disconnecting the tested hose, the test must be concluded and the pressure safely reduced according to the manufacturer's instructions.
