Hose test bench T400 400MPA

TESTING BENCH VIDEO

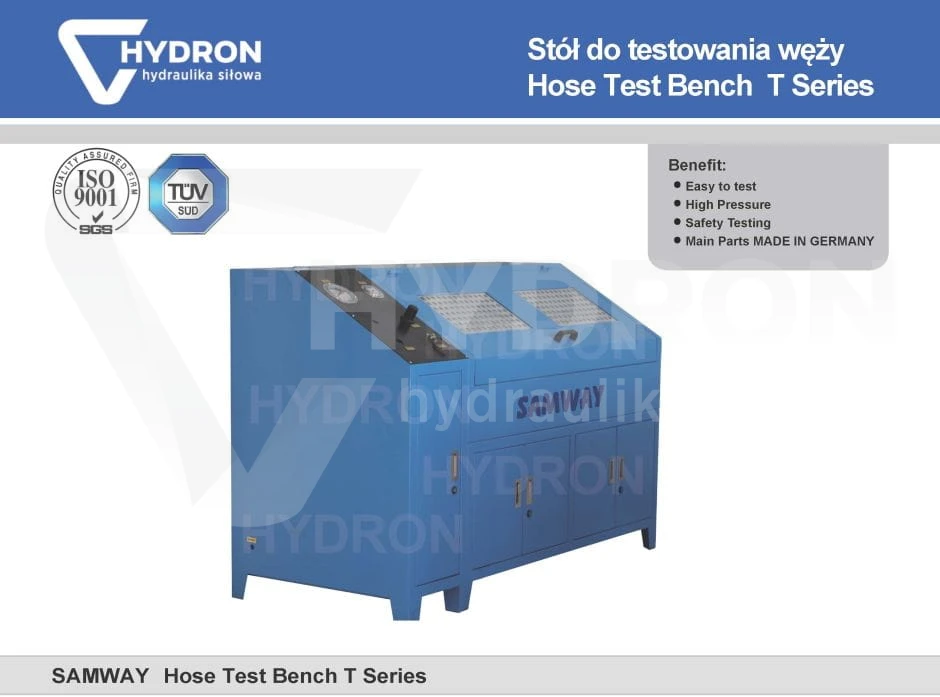

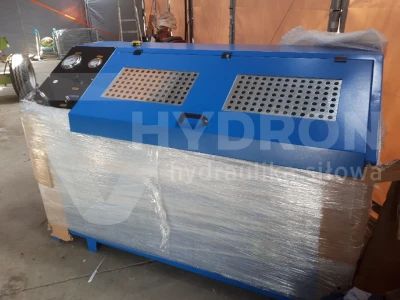

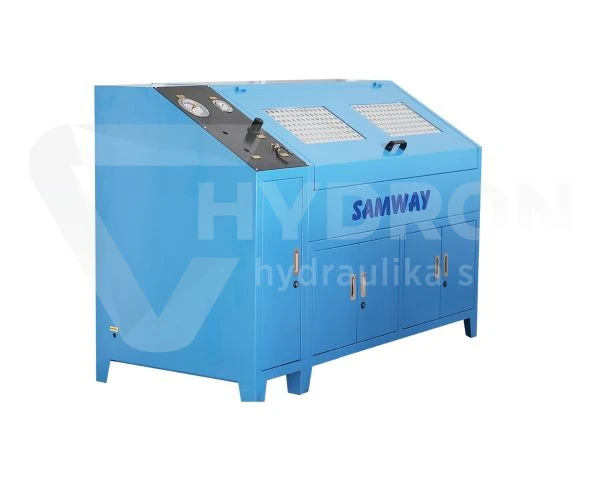

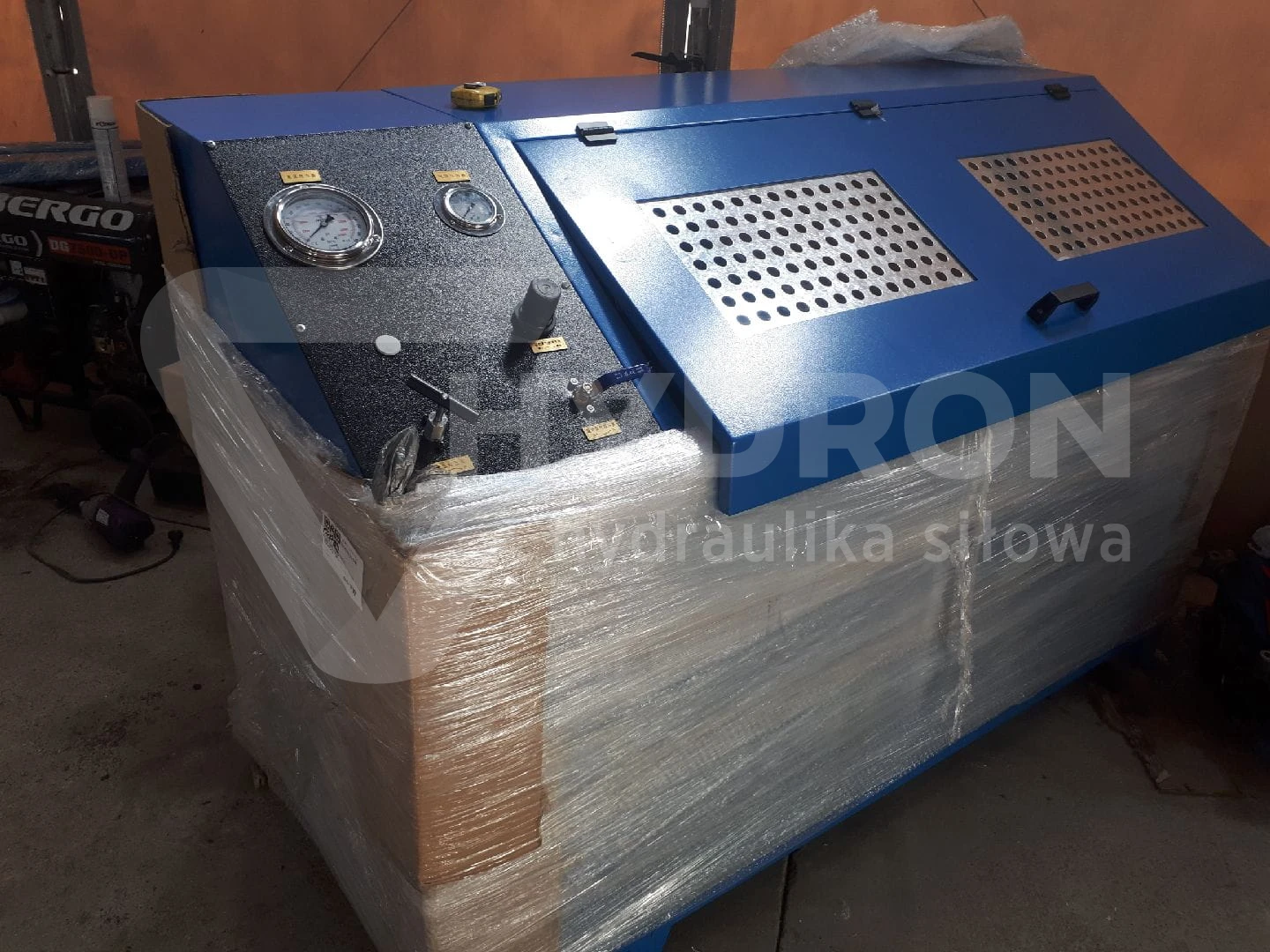

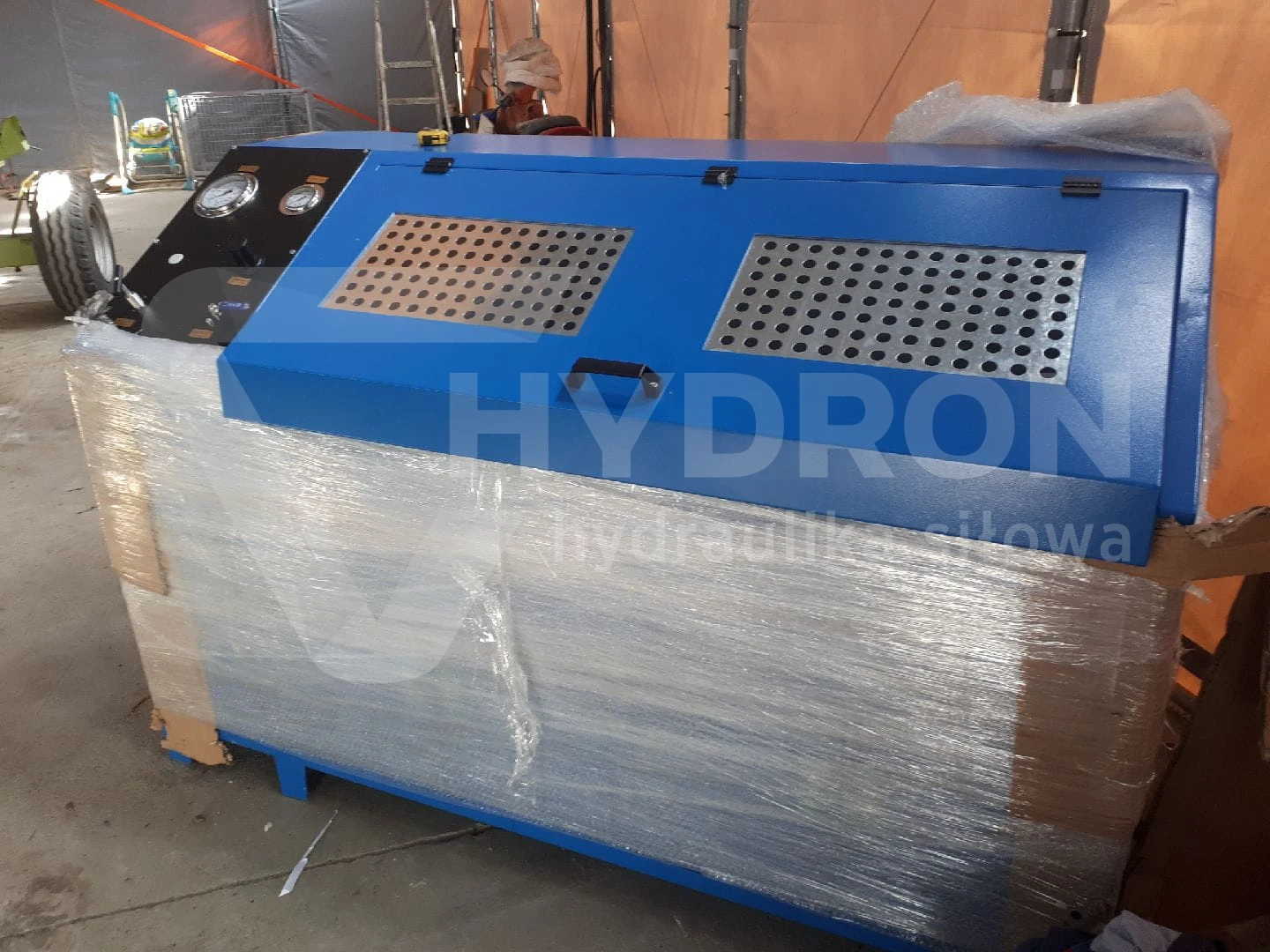

The SAMWAY T400 is a stationary test bench designed for high-pressure testing of hydraulic hoses. The device allows testing at a maximum pressure of 400 MPa (4000 bar). It features a test chamber with a protective window and a 1/4" NPT pressure connection. The design incorporates a German-made pump, a USA-made valve, and FESTO pneumatic components. The bench can be additionally equipped with a printer, chamber lighting, a high-speed filling pump, and an automatic control module.

Application and technical characteristics

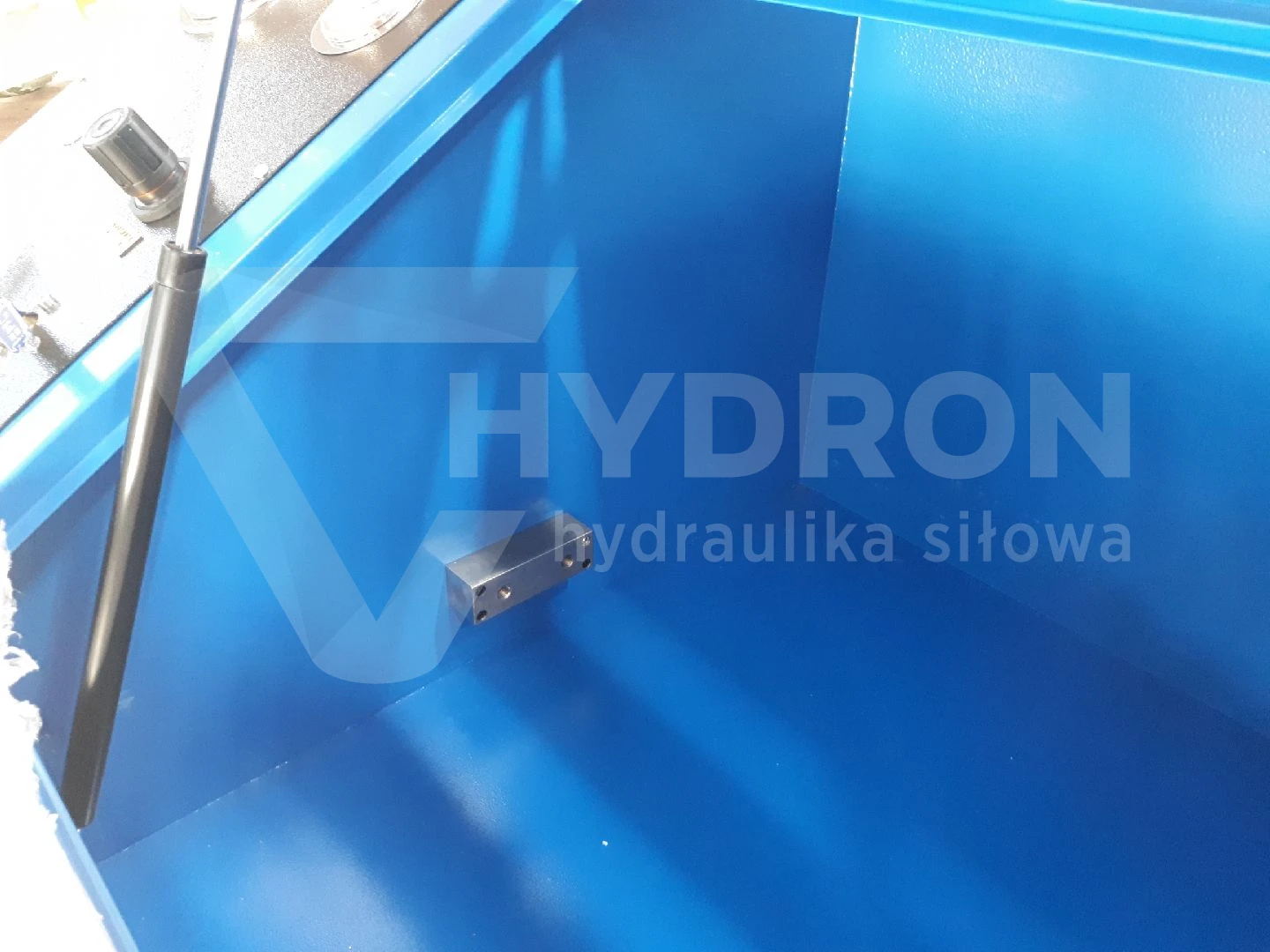

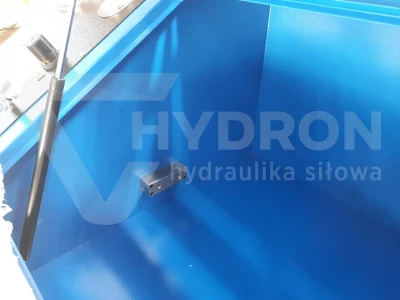

The SAMWAY T400 bench is used for leak testing and pressure testing of hose assemblies. It can be used in hydraulic hose manufacturing plants and workshops engaged in their assembly and servicing. The tested hose is placed in a separate test chamber equipped with a protective window.

The maximum test pressure is 4000 bar (400 MPa). This is the upper limit of the device's capability, not a value intended for testing every hose. Pressure and test duration should be determined based on the technical parameters of the complete hose assembly and the appropriate testing procedure. Particular attention should be paid to the allowable pressure of fittings, adapters, and other elements of the test connection.

The device has a 1/4" NPT connection. The installation uses a German-made pump, an American-made valve, and FESTO pneumatic components. When preparing the workstation, the thread type and pressure parameters of the connection accessories must be considered. NPT connections should not be directly replaced with BSP connections.

The test chamber has a length of 1400 mm, a width of 780 mm, and a height of 570 mm. The total dimensions of the bench are 2000 × 1100 × 1300 mm. The weight of the device is 350 kg, although the selection of additional equipment may increase it.

Equipment and configuration options

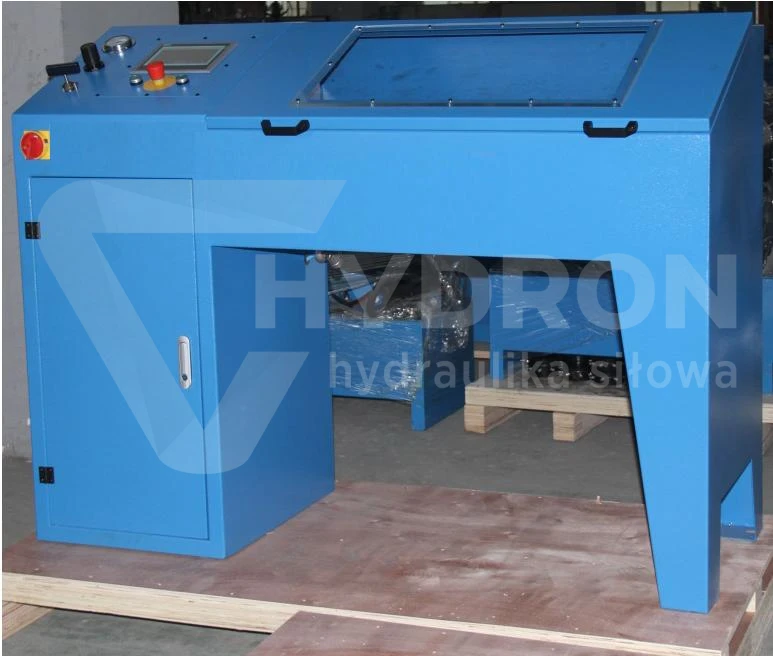

The T400 model features a protective window as standard equipment. Other options allow for the customization of the bench configuration to the needs of the test station. Before ordering, it is necessary to determine which additional functions are required during testing.

• Test chamber protective window – standard equipment.
• Test chamber lighting – optional equipment.
• High-speed filling pump – optional equipment.
• Printer – optional equipment.
• Automatic control module – optional equipment.

Why choose the SAMWAY T400 test bench?

• Maximum test pressure 400 MPa (4000 bar).
• Separate test chamber measuring 1400 × 780 × 570 mm.
• Protective window included in standard equipment.
• German-made pump and USA-made valve.
• FESTO pneumatic components.
• Possibility to expand the configuration with additional equipment items.

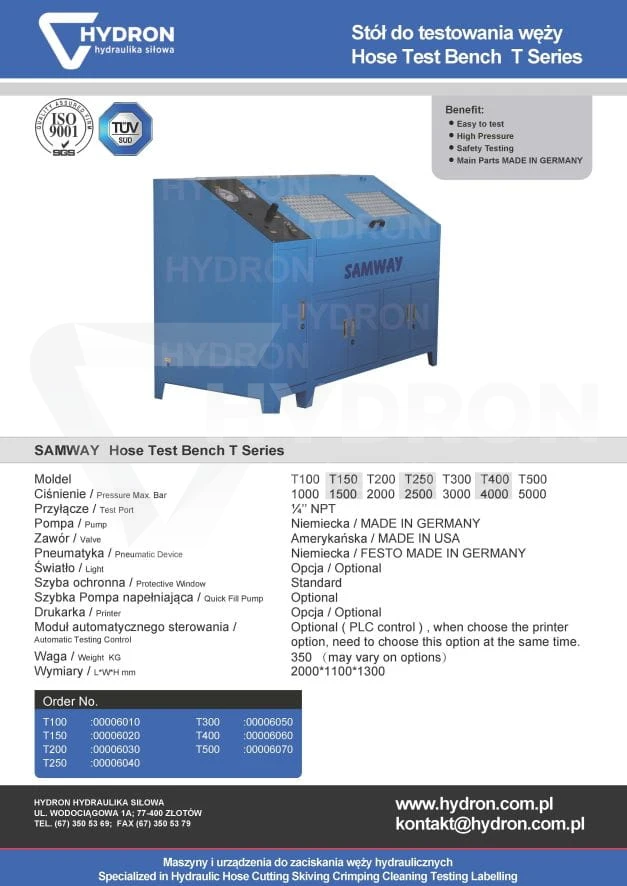

Technical specification

Frequently Asked Questions (FAQ)

What test pressure does the SAMWAY T400 reach?

The maximum test pressure of the device is 400 MPa, which is 4000 bar. The pressure value during a specific test should comply with the technical parameters of the hose assembly and the applicable testing procedure.

Is a printer included with the SAMWAY T400 bench?

No. The printer is optional equipment. You can also order an automatic control module, chamber lighting, and a high-speed filling pump.

What are the dimensions of the T400 test chamber?

The dimensions of the test chamber are 1400 × 780 × 570 mm. The total dimensions of the bench are 2000 × 1100 × 1300 mm. The chamber features a protective window that is included in the standard equipment of the device.

What pressure connection is used in the SAMWAY T400?

The bench features a 1/4" NPT test connection. The components used to connect the tested hose must comply with this thread standard and have parameters suitable for the pressure of the test being performed.
