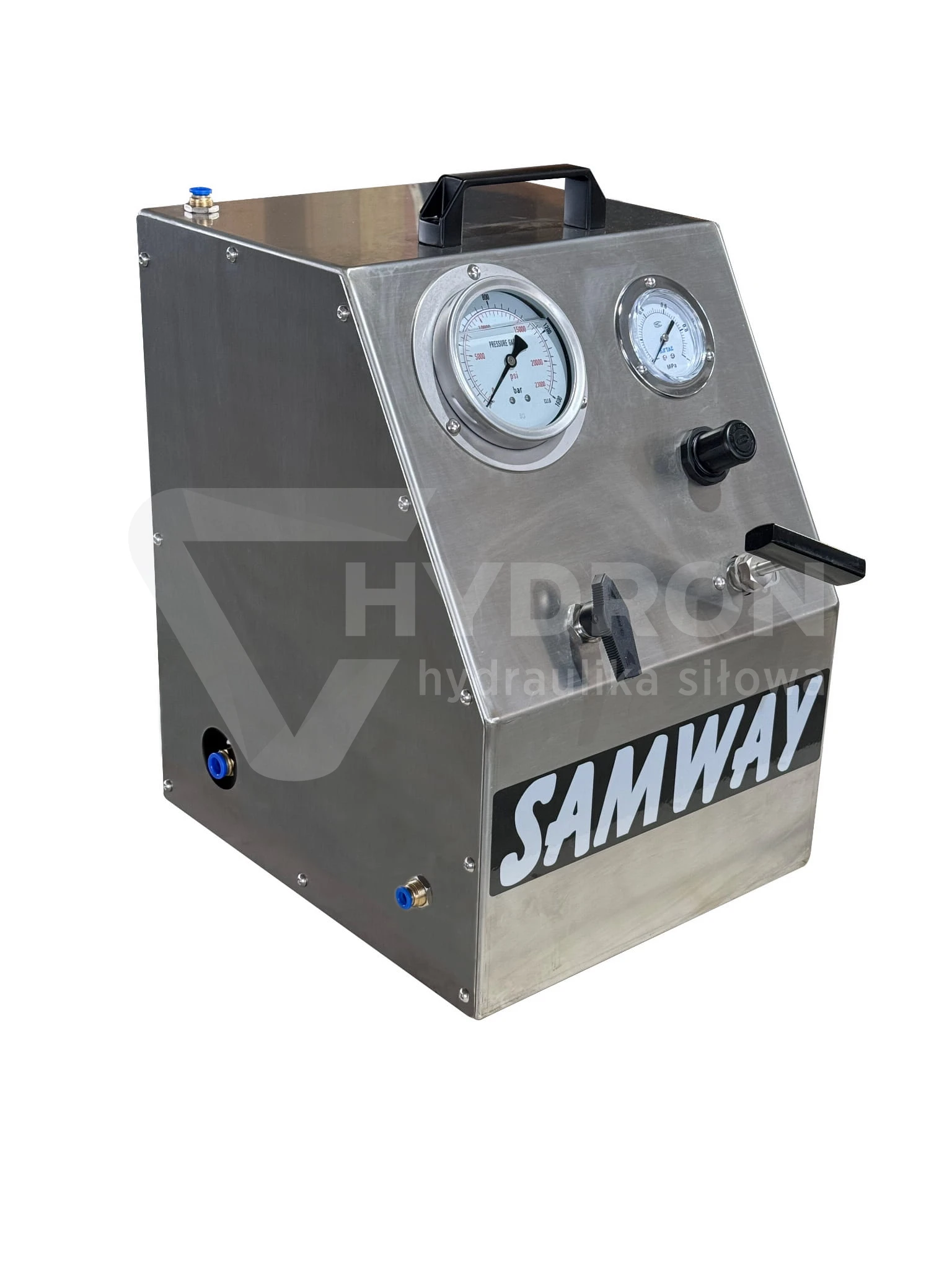

SAMWAY PHT2000 portable test bench for hydraulic hoses – 2000 bar

SAMWAY PHT2000 is a portable pressure tester designed for leak testing of hydraulic hoses. The device enables testing at pressures up to 2000 bar (200 MPa) and supports hose sizes up to 2". The compact design with dimensions of 250 × 300 × 400 mm facilitates the use of the tester at workshop and service stations. The PHT2000 model is equipped with a 1/4" NPT test port and a pump and valve made in Germany. The standard manual pressure release mechanism allows for completing the test before disconnecting the tested hose.

Application and technical characteristics

The SAMWAY PHT2000 test bench is designed for pressure testing hydraulic hoses. It can be used for leak control of finished hoses after assembly and crimping of the fittings. Small dimensions and a portable design allow the device to be used both at hose preparation stations and in power hydraulics service centers.

The maximum test pressure is 2000 bar, which corresponds to 200 MPa. This is the limit value of the device's parameters, not the pressure intended for testing every type of hose. The proper pressure and test duration should be determined based on the documentation of the tested hose, the fittings used, and the requirements for the complete hydraulic assembly.

The tester has a 1/4" NPT connection. When connecting the hose, use fasteners compliant with the NPT thread standard and the pressure parameters of the test system. The device is equipped with a pump and valve manufactured in Germany. A manual pressure release system is standard equipment, while a printer is available as an option.

Why choose our components?

• Maximum test pressure of 2000 bar (200 MPa), allowing for high-pressure testing of hydraulic hoses.
• Ability to test hydraulic hoses in sizes up to 2".
• Compact, portable design with dimensions of 250 × 300 × 400 mm.
• Pump and valve manufactured in Germany.
• Test port with 1/4" NPT thread.
• Standard manual pressure release mechanism after the test is completed.
• Option to equip the tester with an optional printer.

Technical specification

Frequently Asked Questions (FAQ)

What pressure tests is SAMWAY PHT2000 designed for?

The device is intended for leak testing of hydraulic hoses up to 2" in size. The maximum test pressure is 2000 bar. The specific test pressure should be selected according to the technical documentation of the tested hose and its fittings.

What connection does the PHT2000 tester have?

The test bench is equipped with a 1/4" NPT connection. When connecting the tested hose, appropriate connectors intended for NPT threads and the pressures occurring during the test should be used. The NPT thread is not interchangeable with BSP without an appropriate transition element.

Is SAMWAY PHT2000 equipped with a printer?

The printer is available as optional equipment and is not a part of the standard configuration of the device. Its availability and range of functions should be confirmed before ordering.

How is the pressure released after the test?

The SAMWAY PHT2000 has a standard manual pressure release system. After the test is completed, a controlled depressurization of the system should be carried out according to the manufacturer's instructions. The tested hose can only be disconnected after confirming the total removal of pressure.
