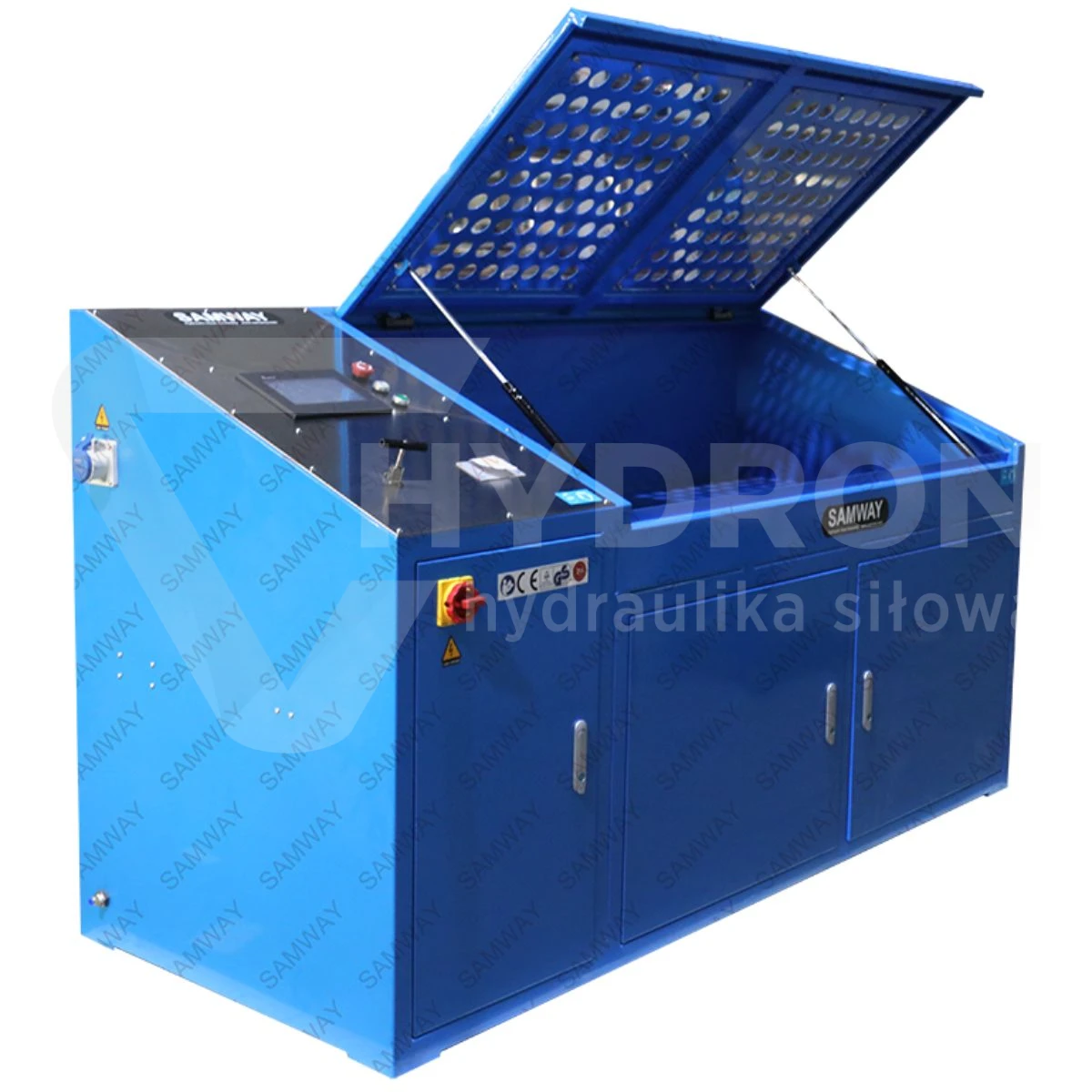

SAMWAY T200 200 MPa test bench with printer

The SAMWAY T200 is a stationary test bench designed for pressure testing of hydraulic hoses. The maximum test pressure of the device is 200 MPa (2000 bar). The offered version is equipped with a digital control panel and a printer for printing test results. The construction features a test chamber with protective glass, and the pressure system utilizes a German-made pump, a US-made valve, and FESTO pneumatics. The device is designed for technical inspection stations of hydraulic hoses.

Application and technical characteristics

The SAMWAY T200 test bench allows for checking the leak-tightness of hydraulic hoses during pressure tests. The maximum pressure of 2000 bar defines the device's capabilities, not the required test pressure for every hose. Test parameters should be set according to the technical documentation of the hose assembly and the fittings used.

The T200 model features a digital control panel and a printer for printing results. The test chamber, with dimensions of 1400 × 780 × 570 mm, is equipped with protective glass. The test connection is made to the 1/4" NPT standard. When connecting hoses, fasteners suitable for this thread and test pressure must be used.

The total dimensions of the bench are 2000 × 1100 × 1300 mm, and the weight of the device in its basic configuration is approximately 350 kg. The manufacturer allows for optional equipment expansion with lighting, a fast filling pump, and an automatic control module.

Standard and optional equipment

The presented SAMWAY T200 configuration includes a digital control panel and a test result printer. The basic equipment of the device also includes the test chamber's protective glass.

• Digital control panel – part of the offered configuration.
• Test result printer – included in the set.
• Chamber protective glass – standard equipment.
• Additional chamber lighting – optional.
• Fast filling pump – optional.
• Automatic control module – optional.

Why choose our components?

• Maximum test pressure of 200 MPa (2000 bar).
• Digital control panel and result printer in the offered configuration.
• Test chamber with protective glass, dimensions 1400 × 780 × 570 mm.
• German pump, US-made valve, and FESTO pneumatics.
• Possibility of expanding the device with additional equipment.

Technical specification

Frequently Asked Questions (FAQ)

What test pressure does the SAMWAY T200 achieve?

The maximum pressure of the device is 200 MPa, or 2000 bar. The pressure of a specific test should be determined based on the parameters of the hose being tested and its fittings, taking the correct testing procedure into account.

Is the SAMWAY T200 bench sold with a printer?

Yes. The presented version of the SAMWAY T200 includes a digital control panel and a printer for printing test results. In basic versions of this model, the printer may be optional equipment.

What are the dimensions of the T200 test chamber?

The test chamber measures 1400 × 780 × 570 mm. The total dimensions of the machine are 2000 × 1100 × 1300 mm. The chamber is equipped with protective glass, which is standard equipment.

What additional equipment can be ordered for the T200?

The manufacturer provides optional lighting, a fast filling pump, and an automatic control module. The scope of additional equipment should be confirmed during the device configuration.
