Hose testing table T150 150MPa 1500bar

TESTING TABLE VIDEO

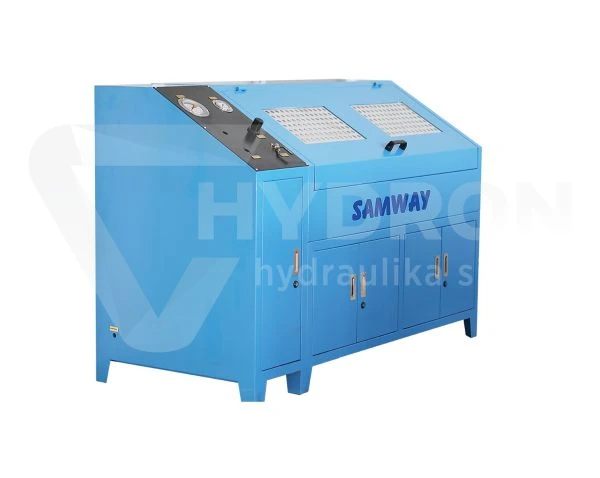

SAMWAY T150 is a stationary test bench designed for performing pressure tests on hydraulic hoses and lines. The device allows for testing at a maximum pressure of 150 MPa (1500 bar). It is equipped with a test chamber with protective glass, a 1/4" NPT connection, and a German-made pump. The system utilizes a US-made valve and FESTO pneumatic components. The table can be expanded with a printer, lighting, a high-speed filling pump, and an automatic control module.

Application and technical characteristics

The SAMWAY T150 table is used for testing hoses under pressure. It can be part of the equipment for a hydraulic line inspection station, where the tightness of finished hose assemblies is checked. The maximum test pressure of the device is 1500 bar, which corresponds to 150 MPa. This value defines the capabilities of the table, while the pressure for a specific test should be selected according to the parameters of the tested line and the fittings used.

The test chamber is 140 cm long, 78 cm wide, and 57 cm high. Protective glass is included as standard equipment. The total dimensions of the device are 2000 × 1100 × 1300 mm. The weight of the basic configuration is 350 kg and may increase when additional equipment is used.

The table is equipped with a test connection with a 1/4" NPT thread. Appropriate connection elements must be used when preparing the test. The pump is of German production, the valve is from the USA, and the pneumatic components are of the FESTO brand.

Standard and optional equipment

The standard configuration of the T150 table includes a test chamber with protective glass, a pump system, a valve, and pneumatic components. The manufacturer provides the possibility of expanding the device with additional equipment elements.

• Test chamber protective glass – standard equipment.
• Chamber lighting – optional.
• High-speed filling pump – optional.
• Printer – optional equipment.
• Automatic control module – optional.

Why choose our components?

• Maximum test pressure 150 MPa (1500 bar).
• Test chamber with dimensions of 140 × 78 × 57 cm.
• Protective glass provided as standard equipment.
• German-made pump and US-made valve.
• Pneumatic components from the German brand FESTO.
• Possibility of expansion with a printer, lighting, and automatic control.

Technical specification

Frequently Asked Questions (FAQ)

What is the maximum pressure reached by the SAMWAY T150 table?

The maximum test pressure is 150 MPa, which is 1500 bar. This is a parameter of the device, not the pressure required during the testing of every line. Test conditions should be determined according to the documentation of the tested hose assembly.

What are the dimensions of the T150 test chamber?

The chamber is 140 cm long, 78 cm wide, and 57 cm high. The total dimensions of the table are 200 × 110 × 130 cm. When selecting the device, both the dimensions of the chamber and the space needed to operate the table should be taken into account.

Does the T150 test bench have protective glass?

Yes. The test chamber protective glass is standard equipment for the SAMWAY T150 model. Tests should be conducted in accordance with the device's operating instructions and the safety requirements for pressure tests.

Can the SAMWAY T150 be equipped with a printer and automatic control?

Yes. A printer and an automatic control module are available as additional options. You can also order lighting and a high-speed filling pump. The range of optional equipment should be agreed upon before purchase.
