Portable SAMWAY PHT1000 test bench for hydraulic hoses – 1000 bar

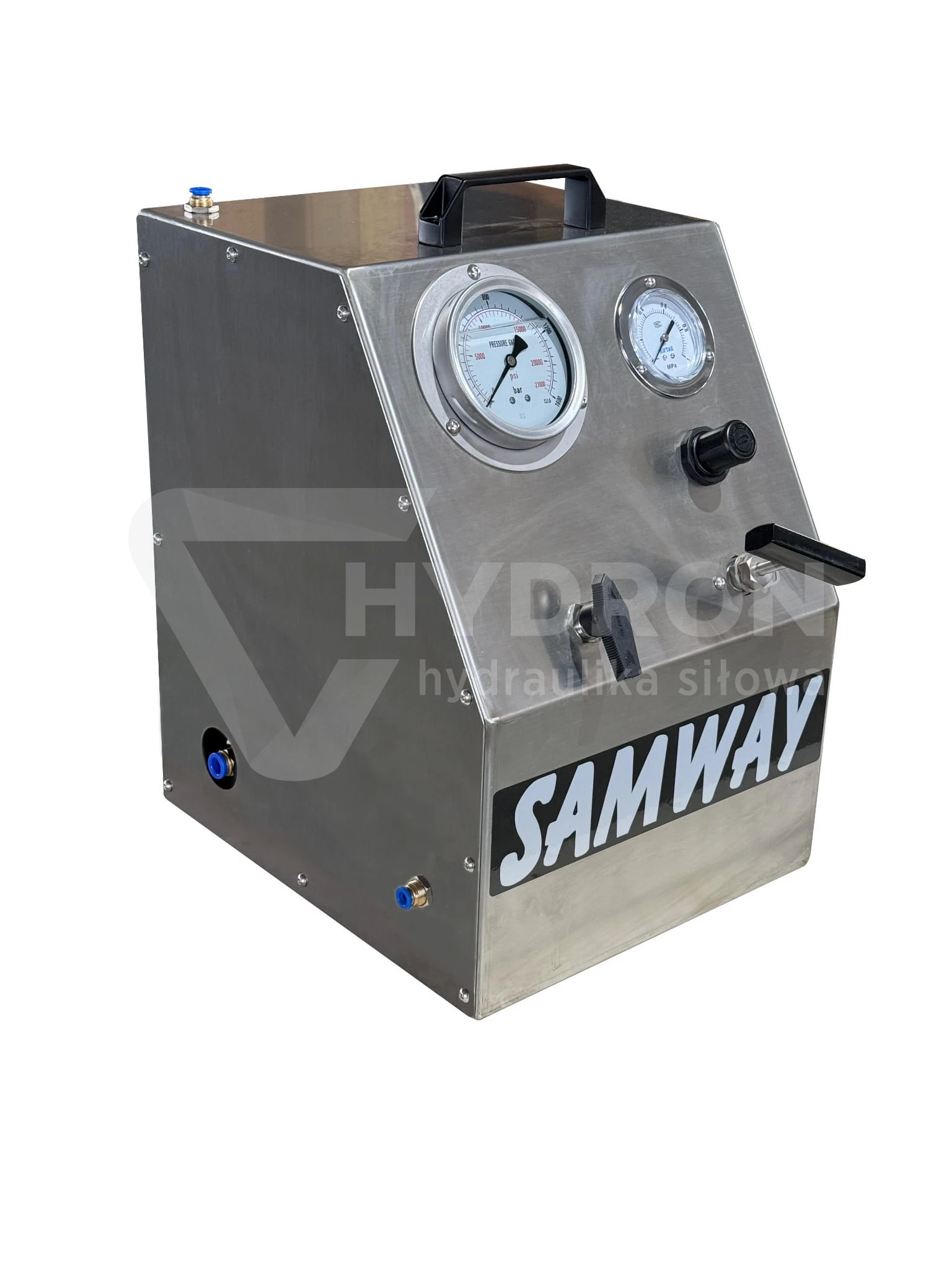

SAMWAY PHT1000 is a compact, portable test bench designed for performing hydraulic hose pressure tests. The device allows for testing hoses up to 2" in size with a maximum test pressure of 1000 bar (100 MPa). It is equipped with a 1/4" NPT test connection, a pump, and a German-made valve. Small dimensions of 250 × 300 × 400 mm facilitate the use of the tester at hydraulic hose inspection stations. A standard manual pressure release system allows for depressurization of the circuit after testing is completed.

Application and technical characteristics

The SAMWAY PHT1000 portable tester is designed for leak testing of hydraulic hoses. The device allows for hose pressure tests before they are put into operation. It can serve as equipment for technical inspection stations in hydraulic hose production or service facilities.

The maximum test pressure of the PHT1000 is 1000 bar. This parameter defines the upper limit of the device's capabilities, not the required test pressure for every hose. The test value should be determined based on the documentation of the complete hydraulic hose assembly, taking into account its design, fittings, and testing requirements.

The tester features a 1/4" NPT test port. The pump and valve used in the device are German-made. Standard equipment includes a manual pressure release mechanism. A printer is available as optional equipment. The device weight is approximately 25 kg and may vary depending on the selected configuration.

Why choose our components?

• Maximum test pressure 1000 bar (100 MPa).
• Ability to test hydraulic hoses up to 2" in size.
• Portable design with compact dimensions.
• German-made pump and valve.
• Test connection with 1/4" NPT thread.
• Standard manual pressure release system.
• Possibility to equip the device with an optional printer.

Technical specification

Frequently Asked Questions (FAQ)

What test pressure does the SAMWAY PHT1000 reach?

The maximum test pressure of the device is 1000 bar (100 MPa). The pressure used during a specific test should be selected according to the parameters of the tested hose and its inspection requirements.

What hoses can be tested with the PHT1000 tester?

The device is designed for testing hydraulic hoses up to 2". Before starting the test, the permissible test pressure of the complete hose assembly including fittings must be verified.

Does the PHT1000 test connection have NPT or BSP thread?

The tester has a 1/4" NPT connection. To connect the hose, fittings compliant with the NPT standard and the required test pressure should be used. NPT and BSP threads should not be treated as directly interchangeable.

Is the printer standard equipment for the PHT1000?

No. The printer is optional equipment. As standard, the device is equipped with a manual pressure release system. Before disconnecting the hose, the system must be completely depressurized according to the operating manual.
