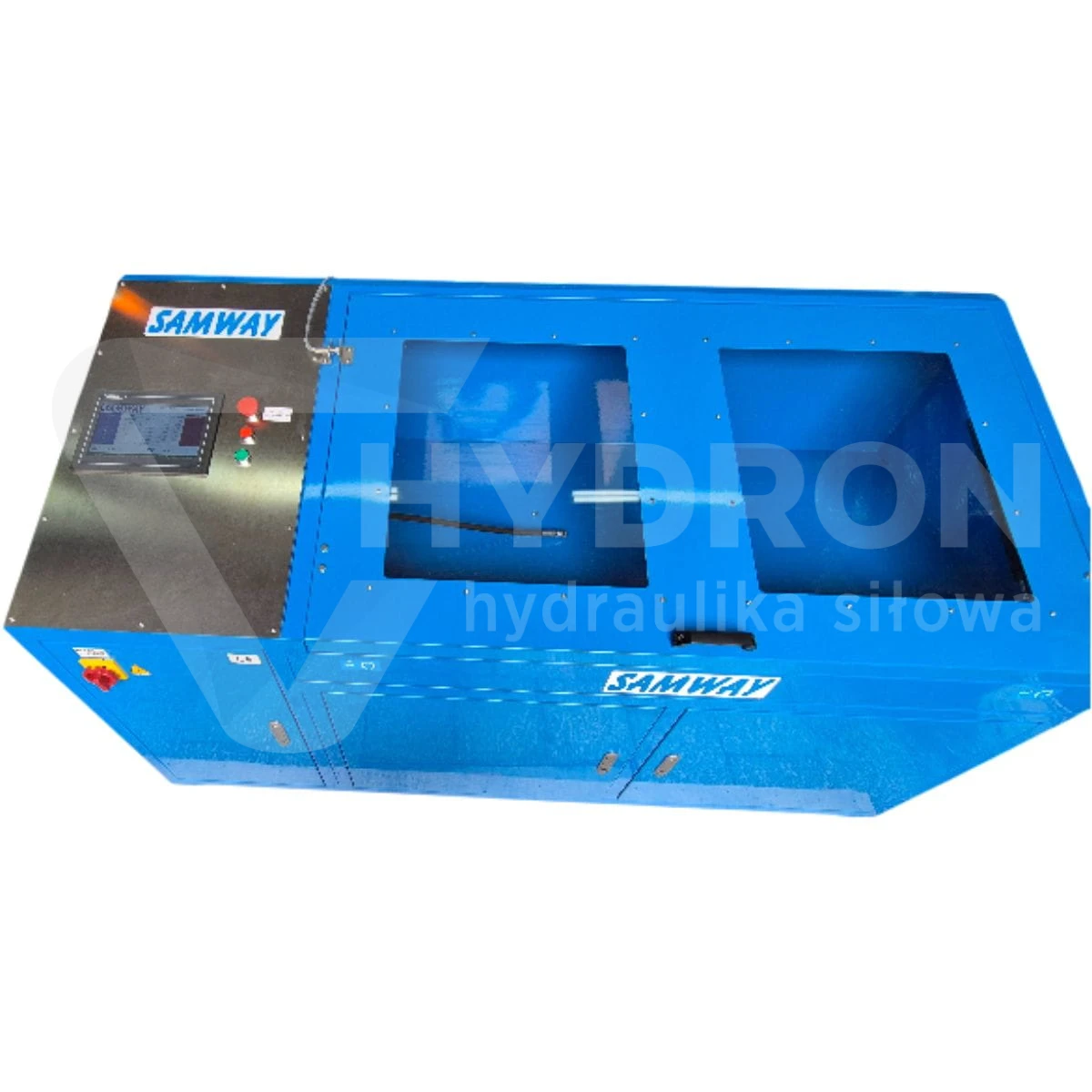

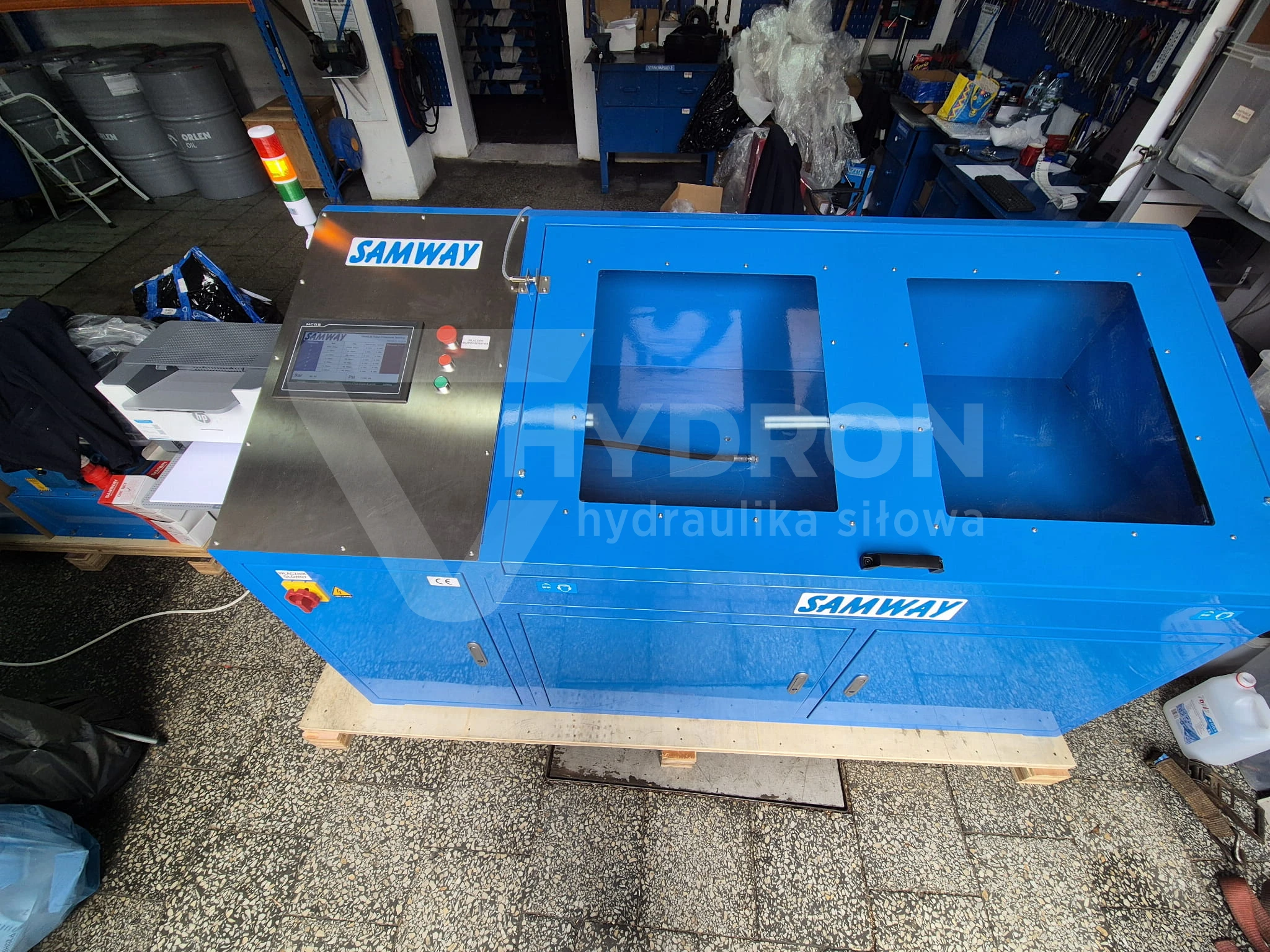

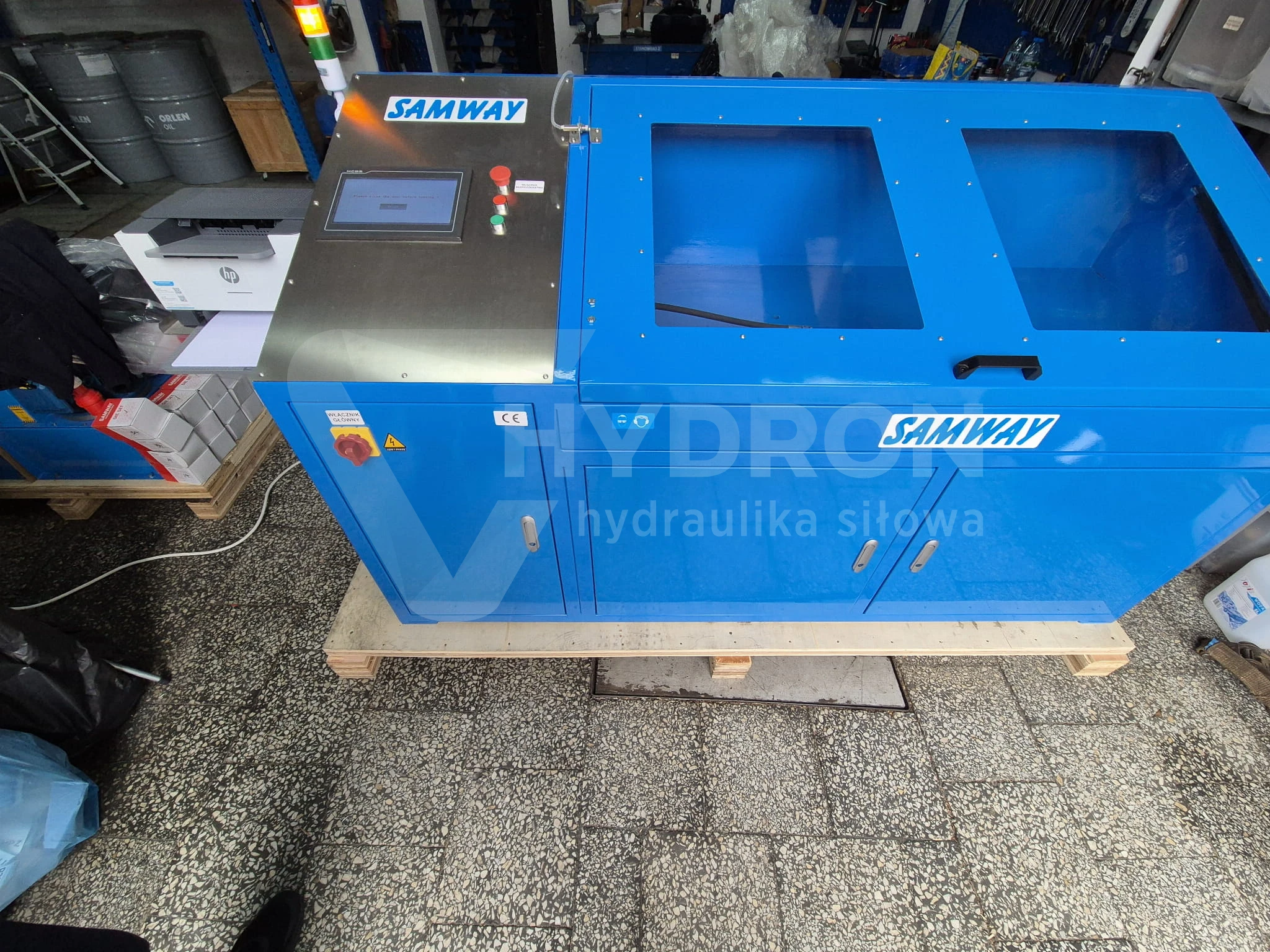

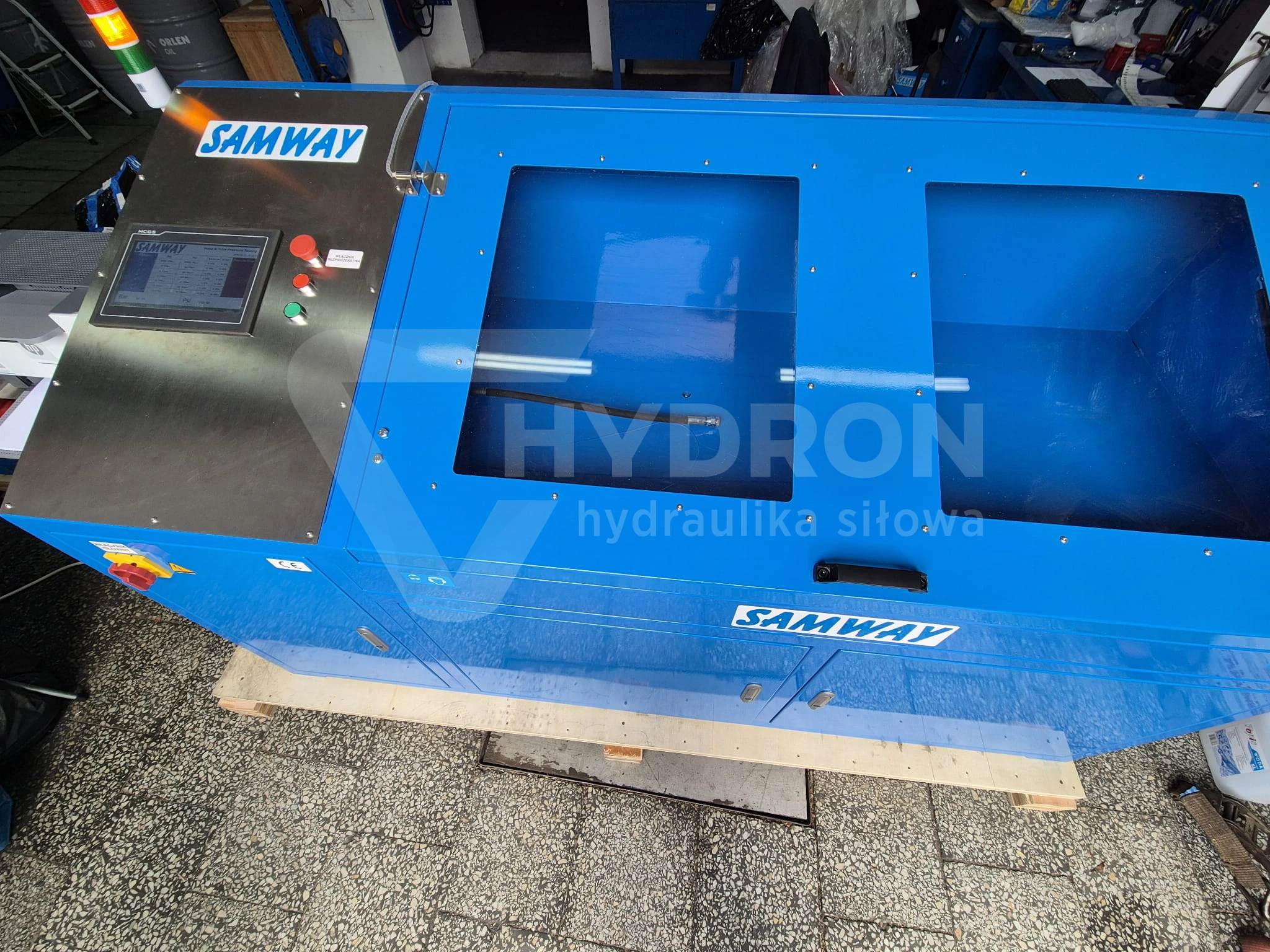

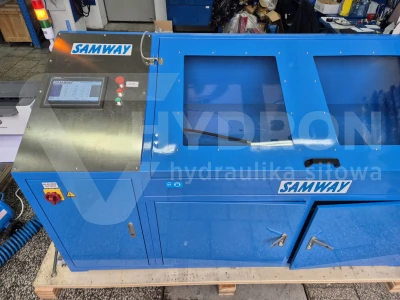

SAMWAY T440 440 MPa – 4400 bar hose test bench

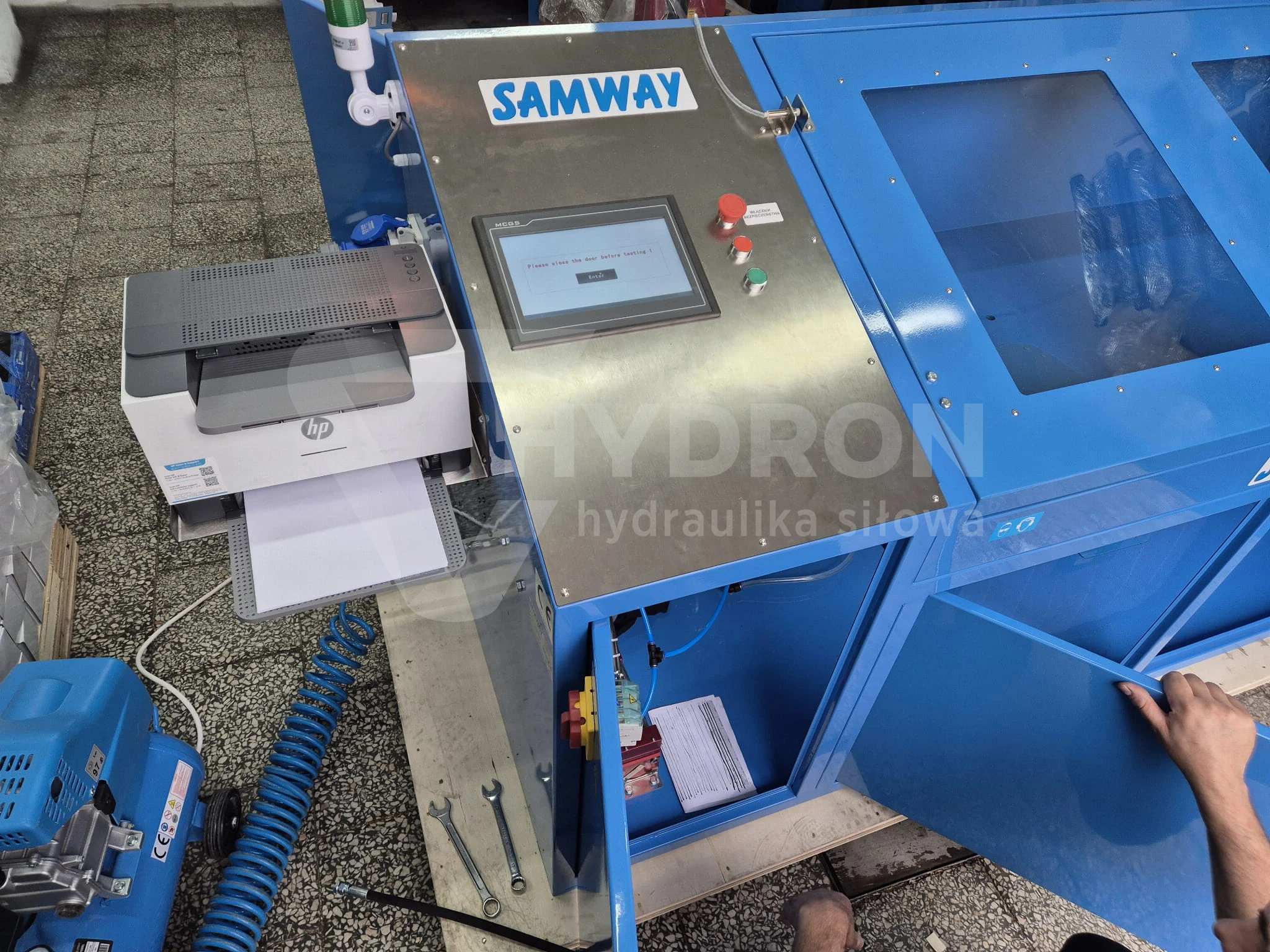

SAMWAY T440 is an industrial test bench designed for high-pressure testing of hydraulic hoses. The maximum test pressure is 440 MPa (4400 bar). The device is equipped with a test chamber with a protective glass and two pressure connections: 1/4" NPT and 3/8" NPT. The system uses a German-made pump, a USA-made valve, and FESTO pneumatic components. The bench can be expanded with a report printer, additional lighting, a fast filling pump, and an automatic control module.

Application and technical characteristics

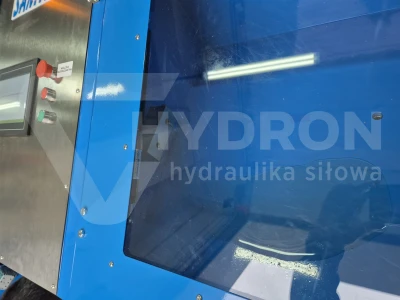

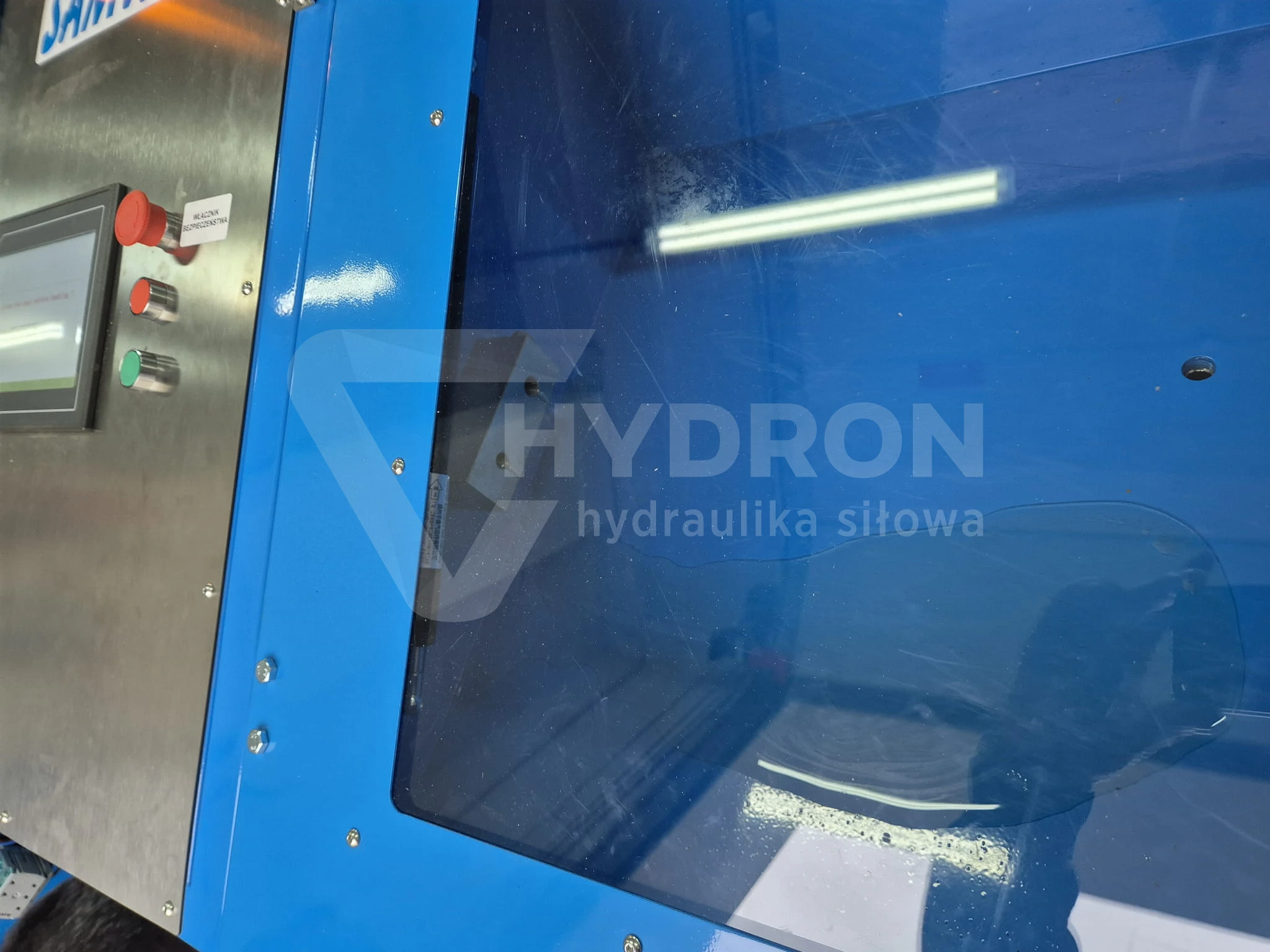

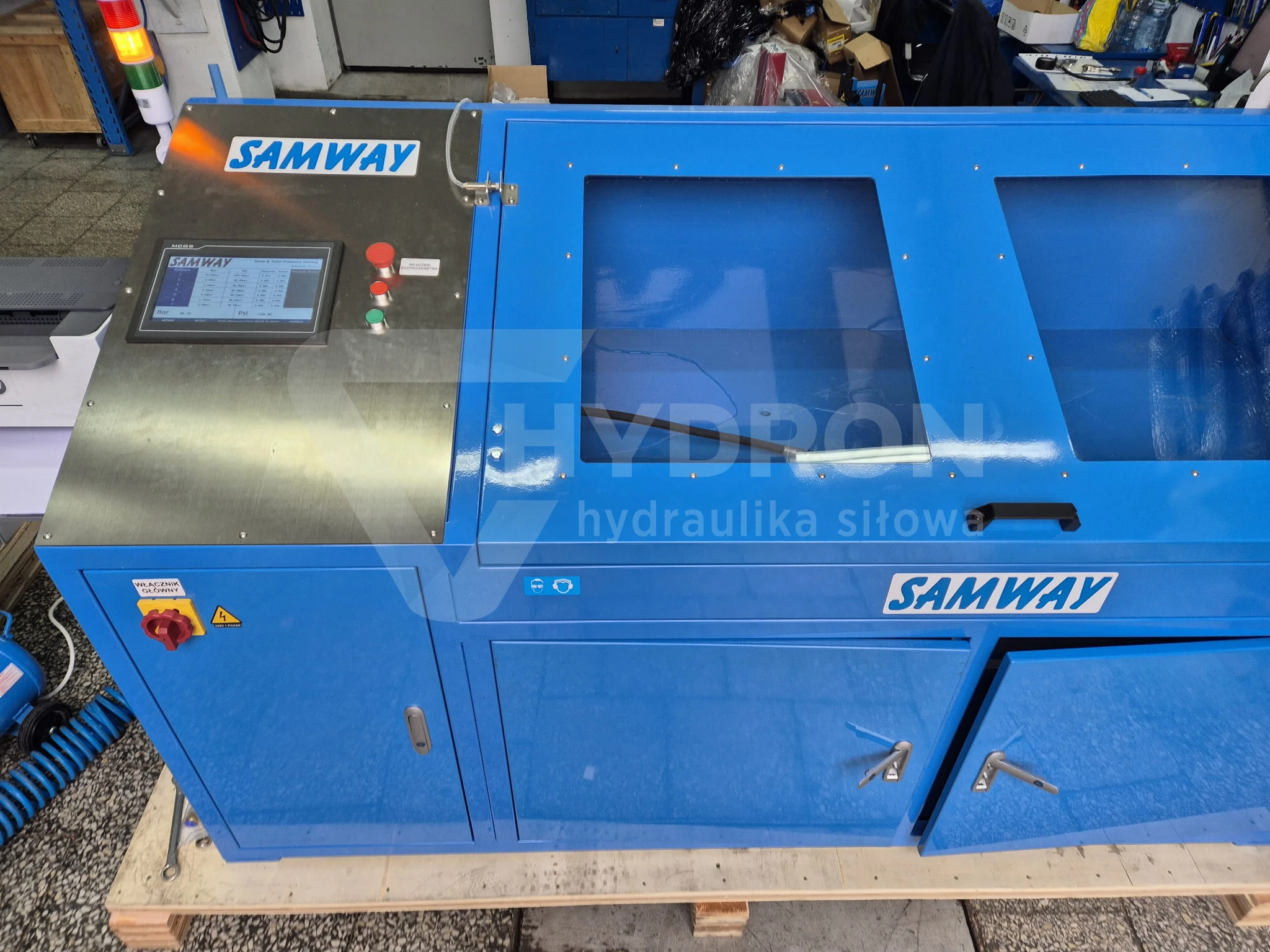

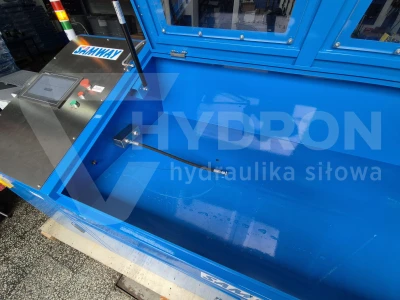

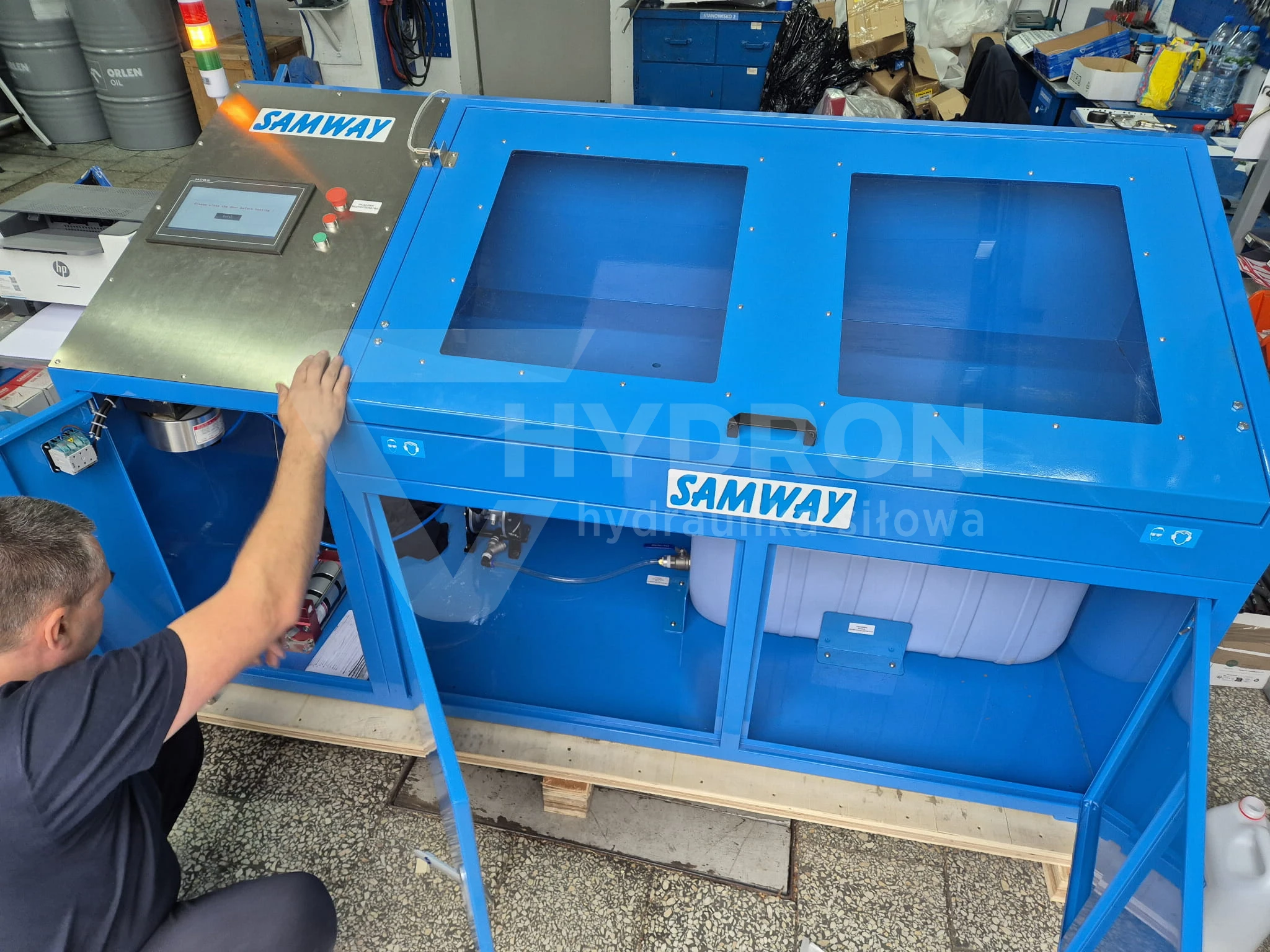

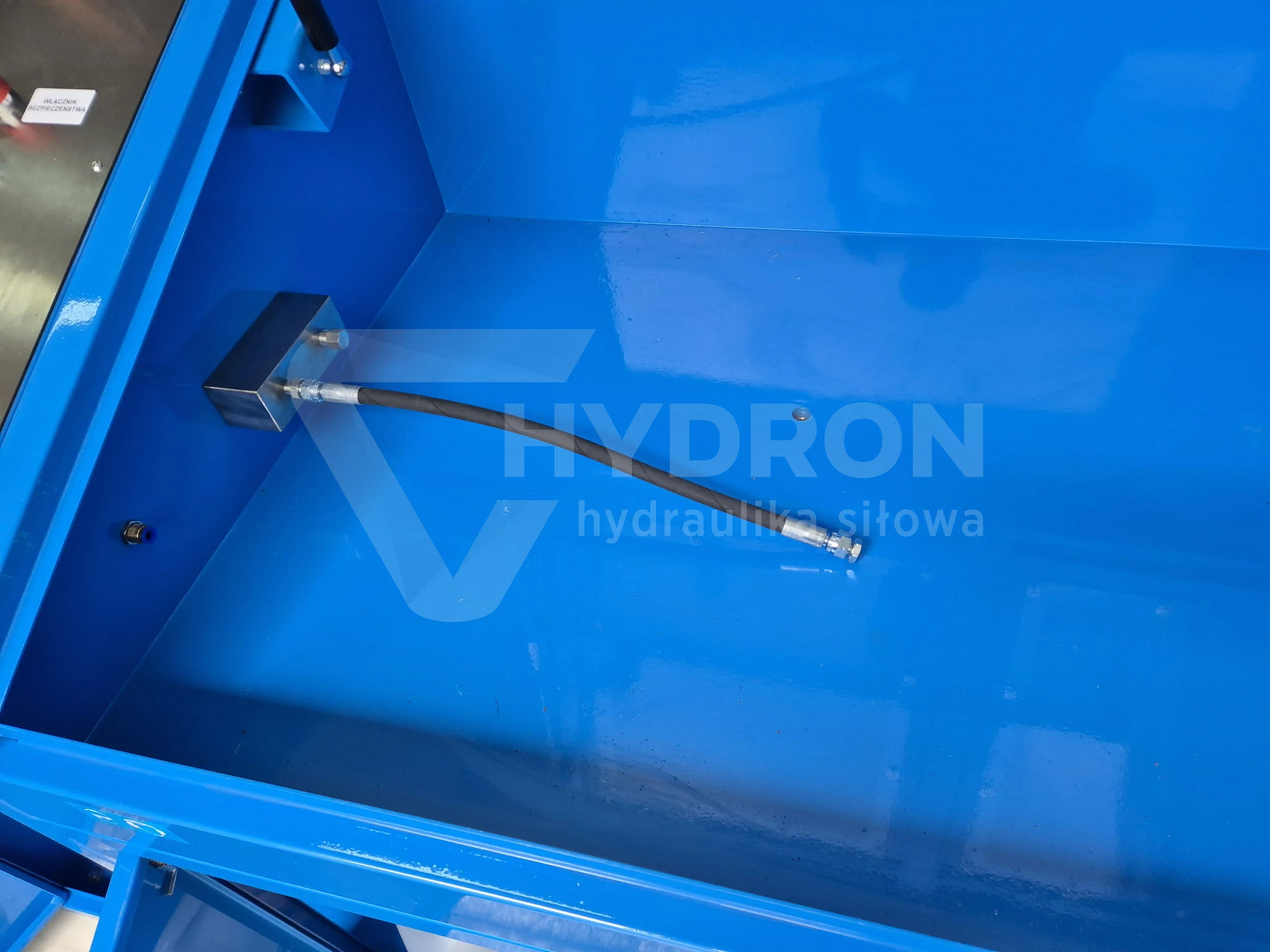

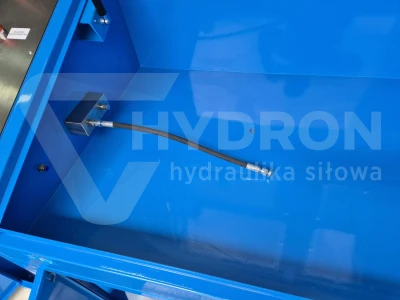

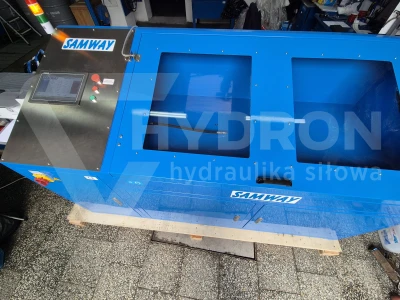

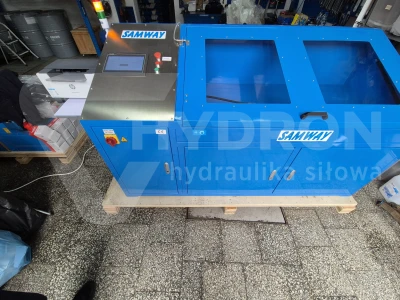

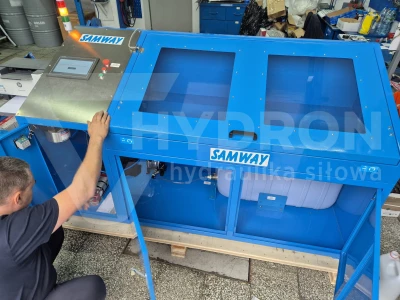

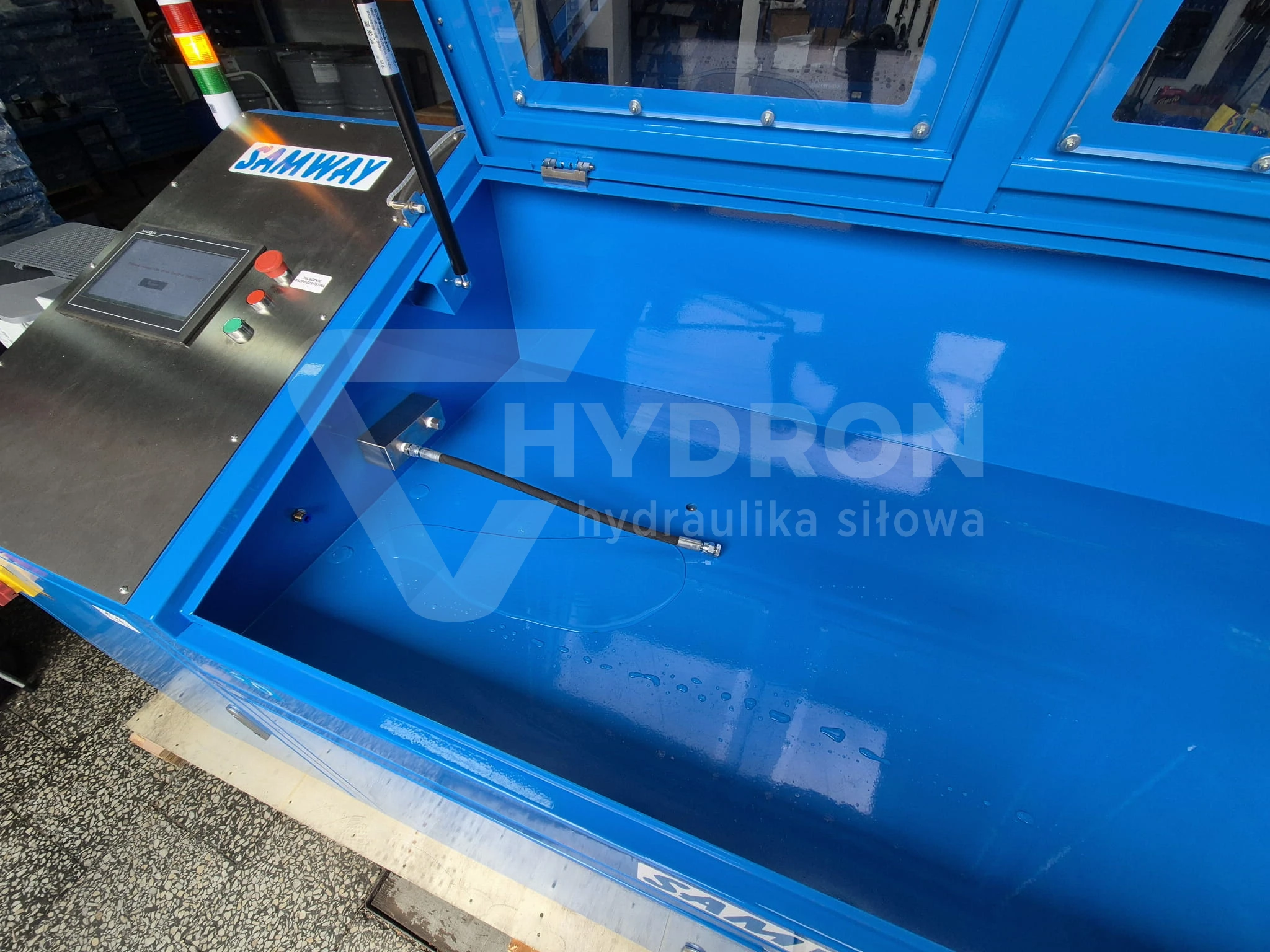

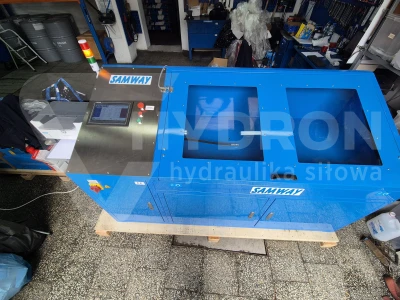

The SAMWAY T440 test bench is designed for leak testing and pressure testing of finished hydraulic hoses. It is used at technical inspection stations in facilities manufacturing and servicing high-pressure hoses. Tests take place inside a 1400 × 780 × 570 mm test chamber equipped with a protective glass.

The maximum test pressure of the device is 4400 bar. This value defines the table's capabilities, whereas the actual pressure and test time should be selected according to the technical requirements of the hose assembly being tested. Test parameters must account for the allowable pressures of the hose, fittings, and connection components.

The device features two test connections: 1/4" NPT and 3/8" NPT. The test medium is demineralized water. The system requires a compressed air supply with a minimum pressure of 8 bar, as specified in the product's technical description.

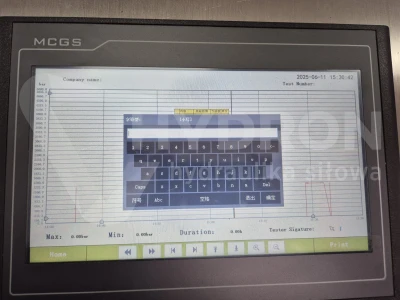

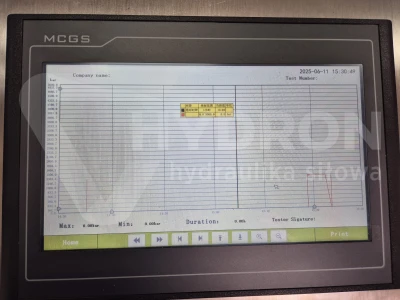

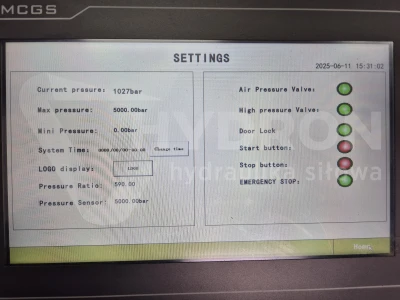

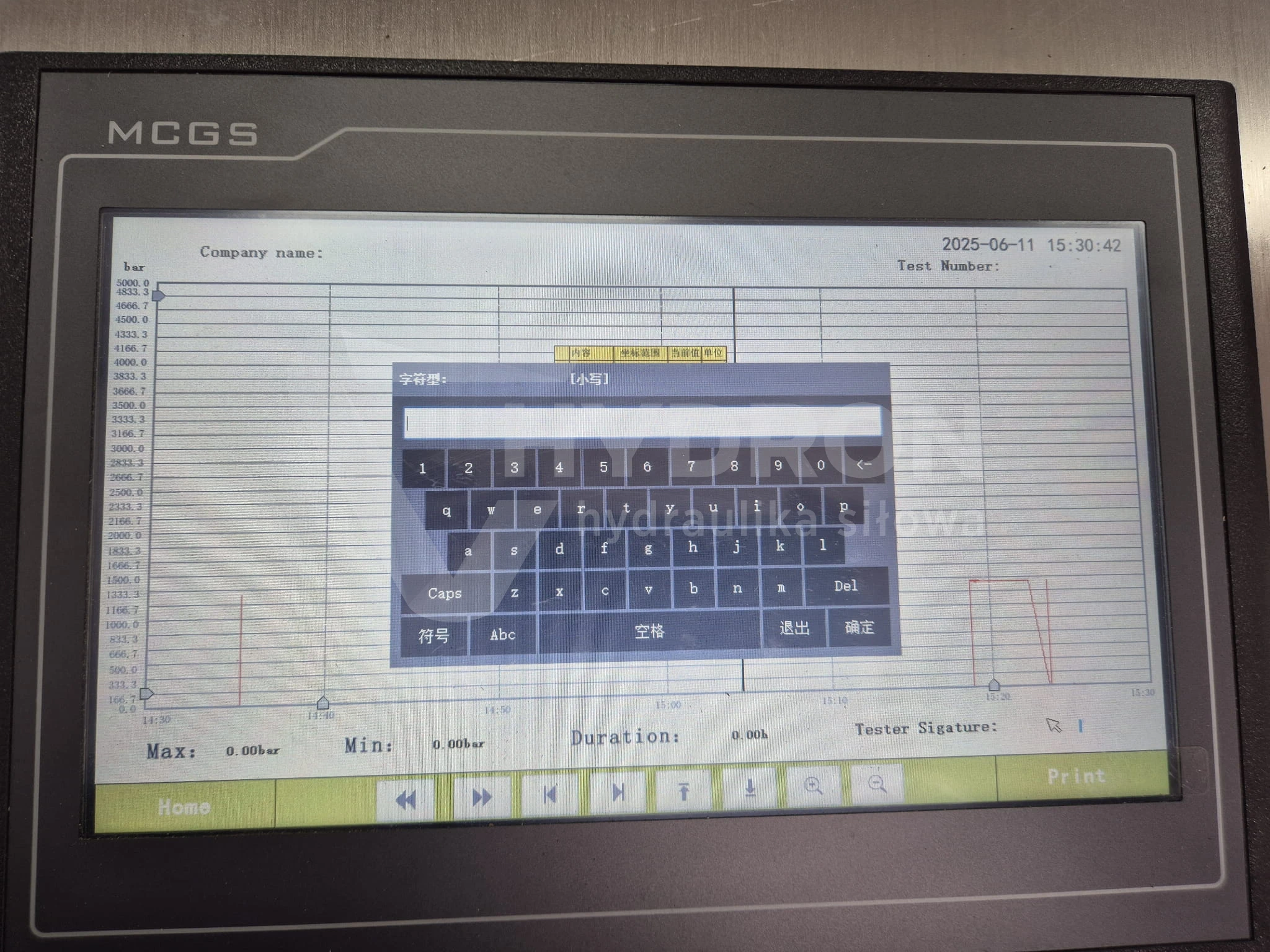

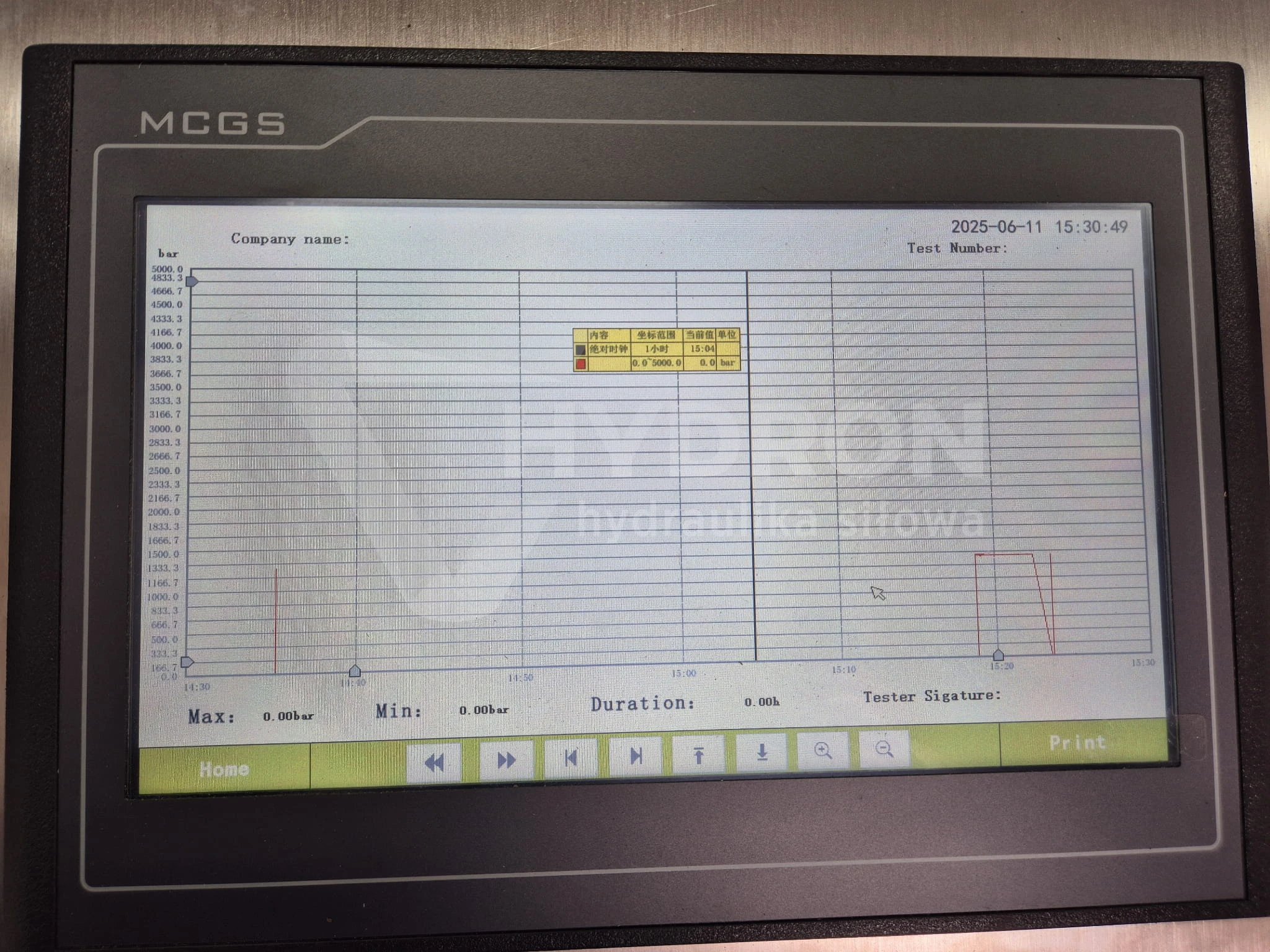

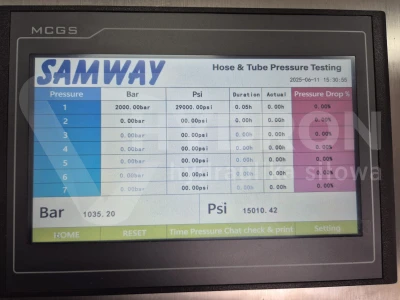

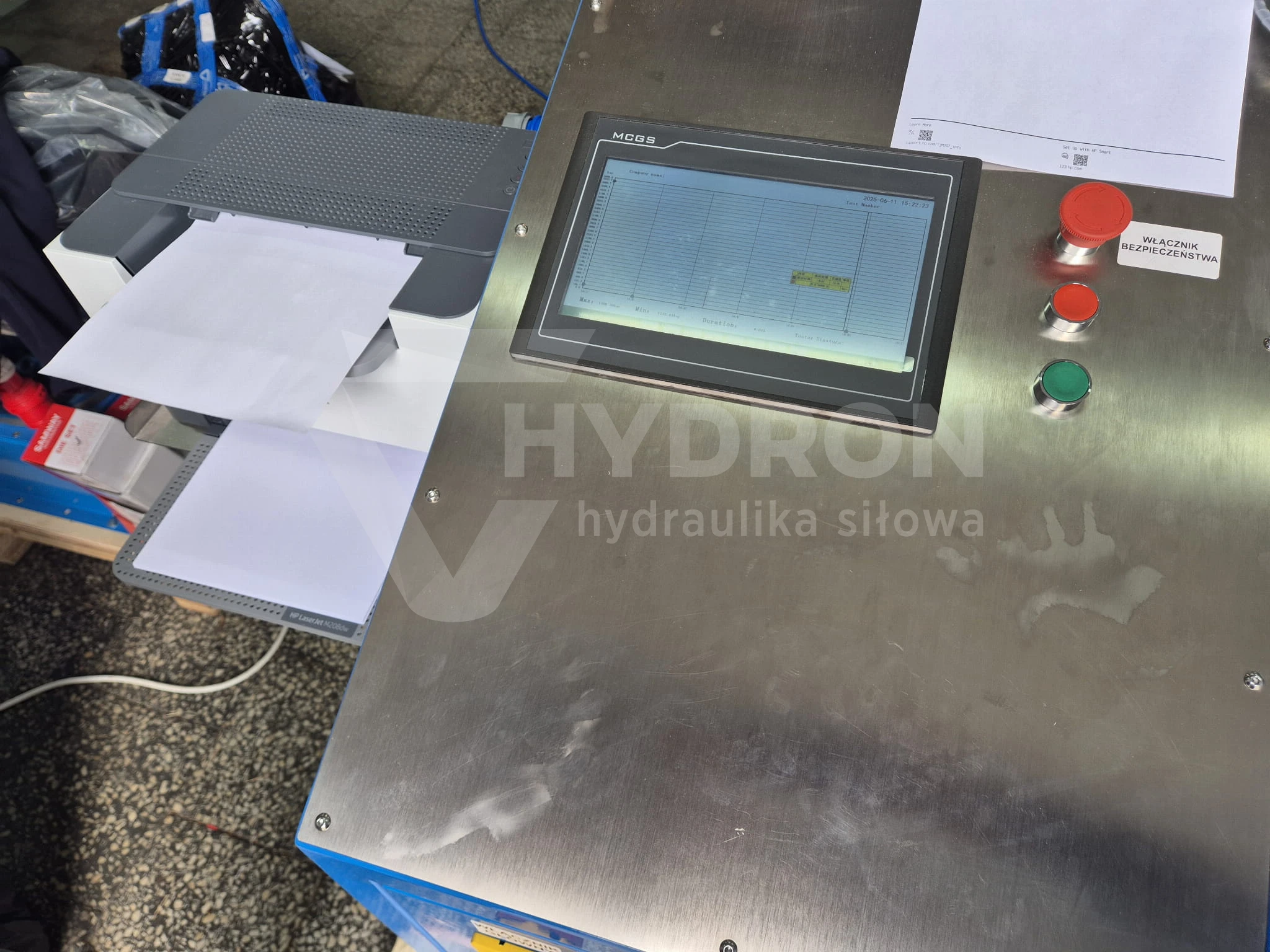

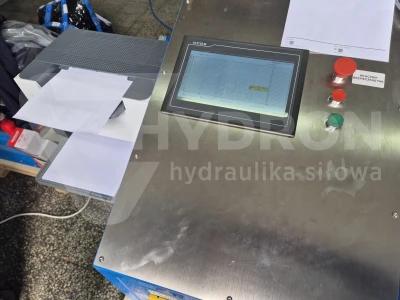

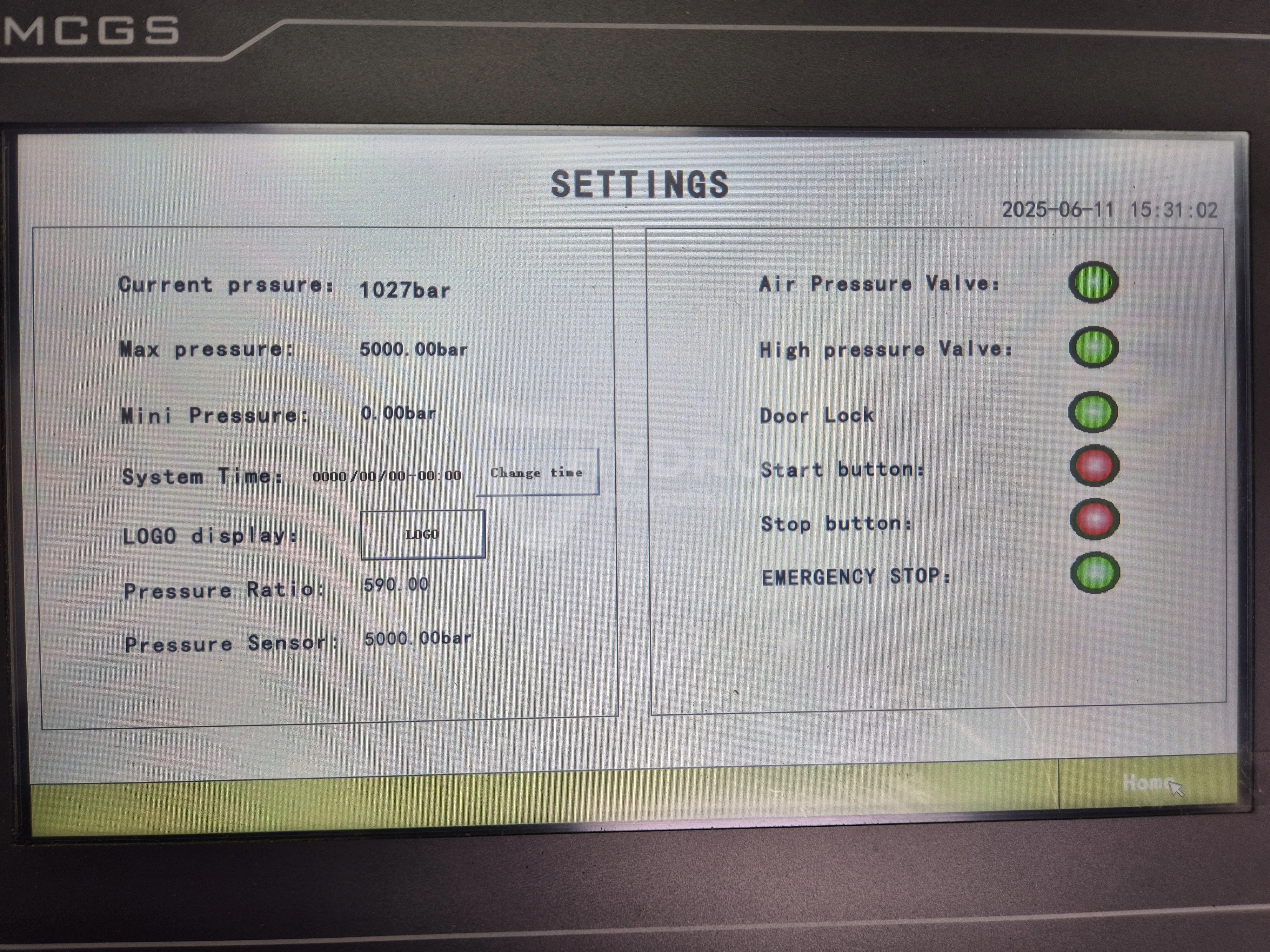

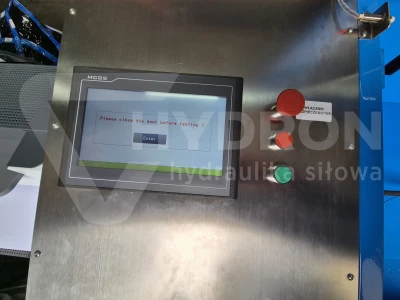

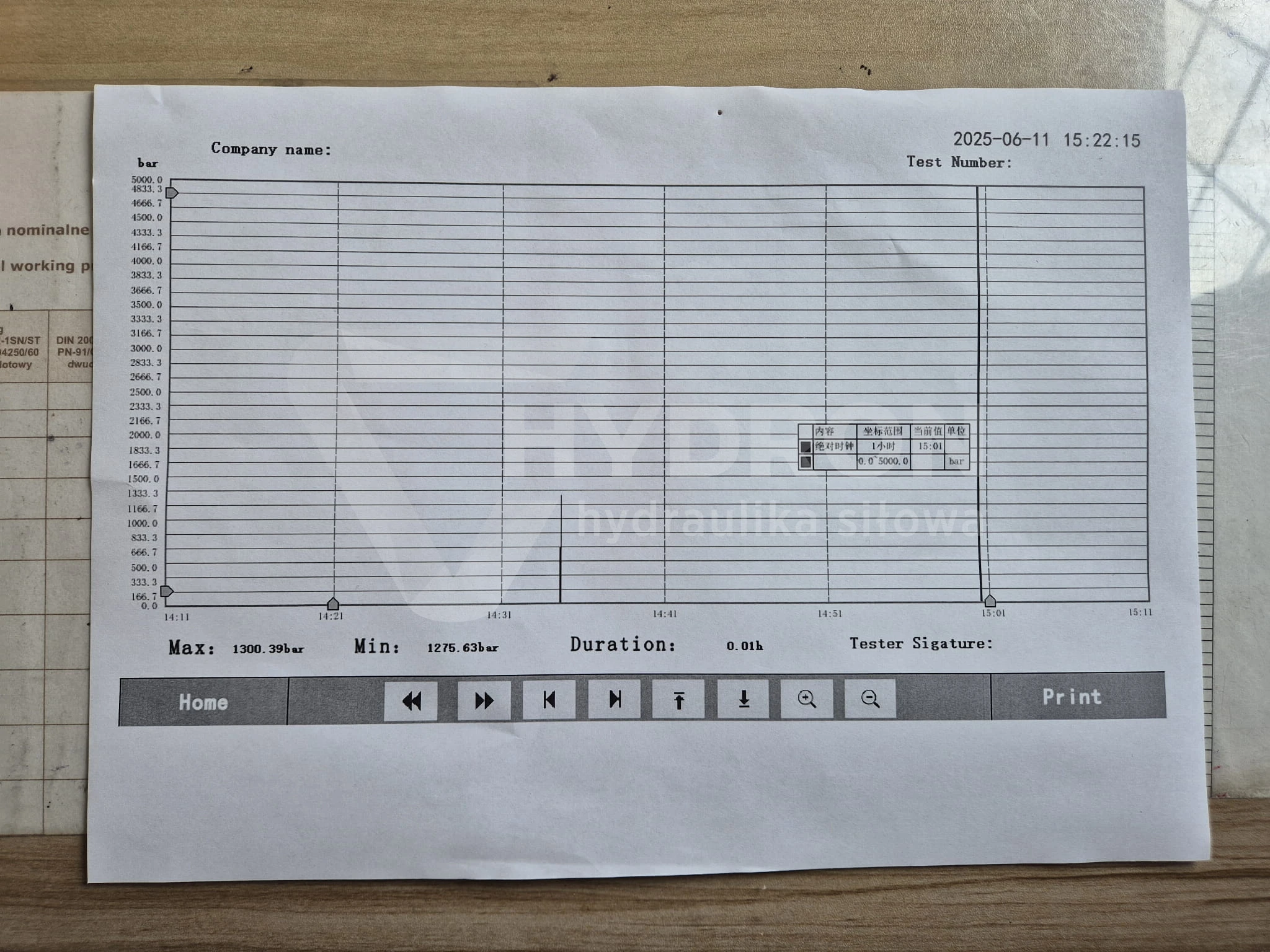

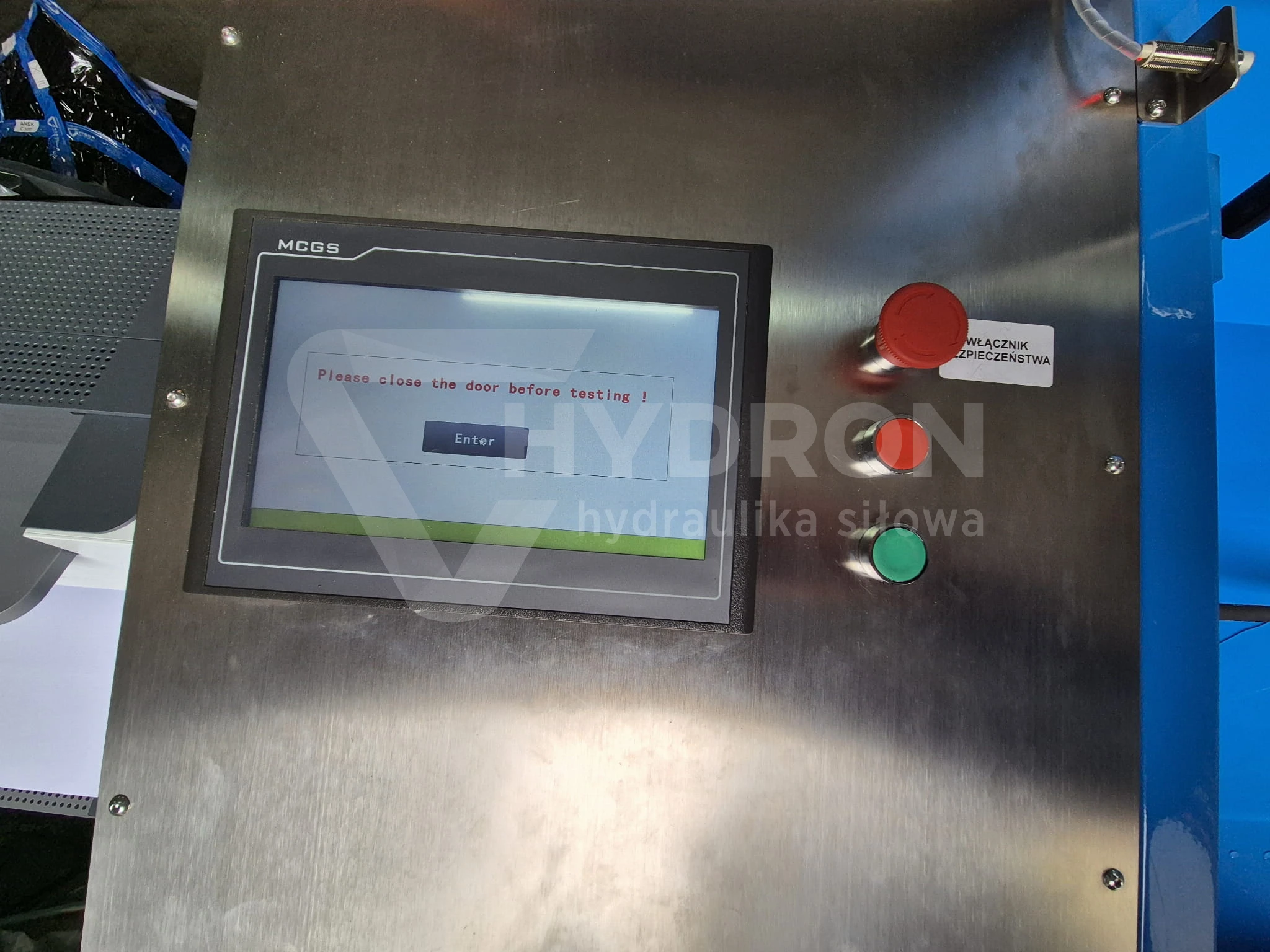

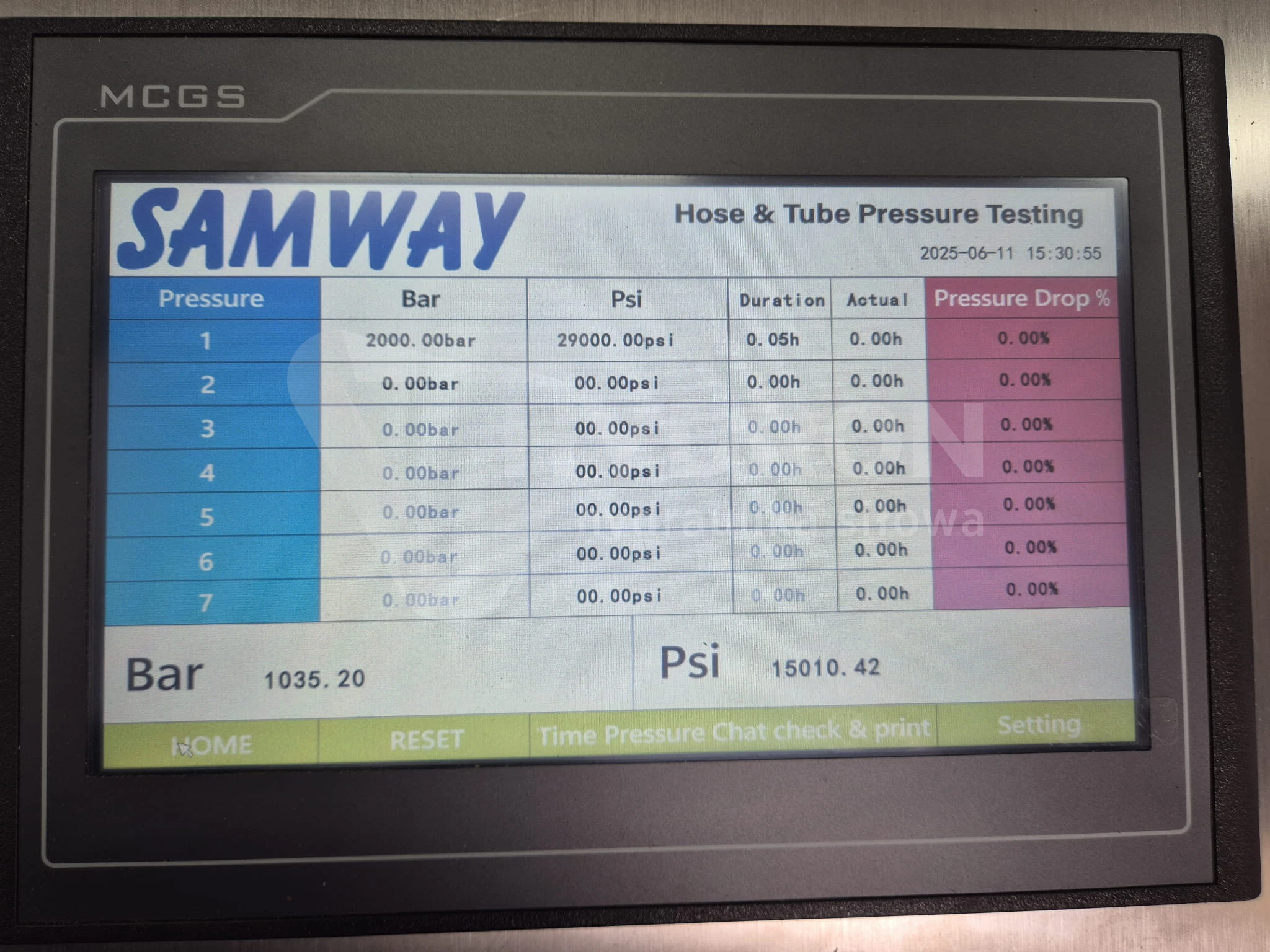

In the configuration with automatic control, it is possible to set the pressure and test time via a touch panel. The described automatic version allows for the test to be concluded after the programmed time has elapsed and the printing of a report if a printer is used. The panel and printer require appropriate equipment and an electrical power supply.

Standard and optional equipment

The SAMWAY T440 model features a test chamber with a protective glass, a German-made pump, an American-made valve, and FESTO pneumatic components. Additional equipment allows the device to be tailored to the specific requirements of the test station.

• Test chamber protective glass – standard equipment.
• German-made pump and USA-made valve.

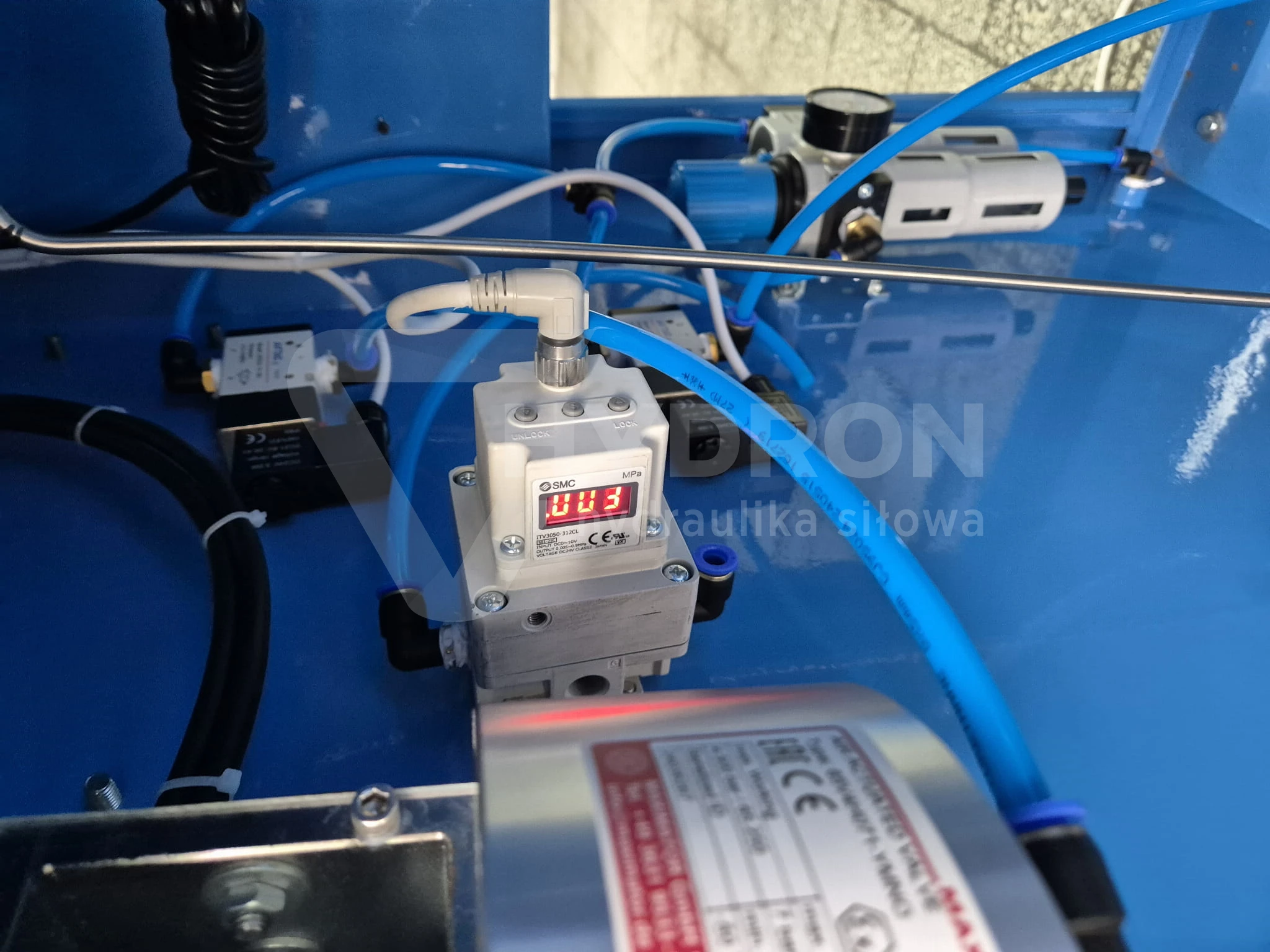

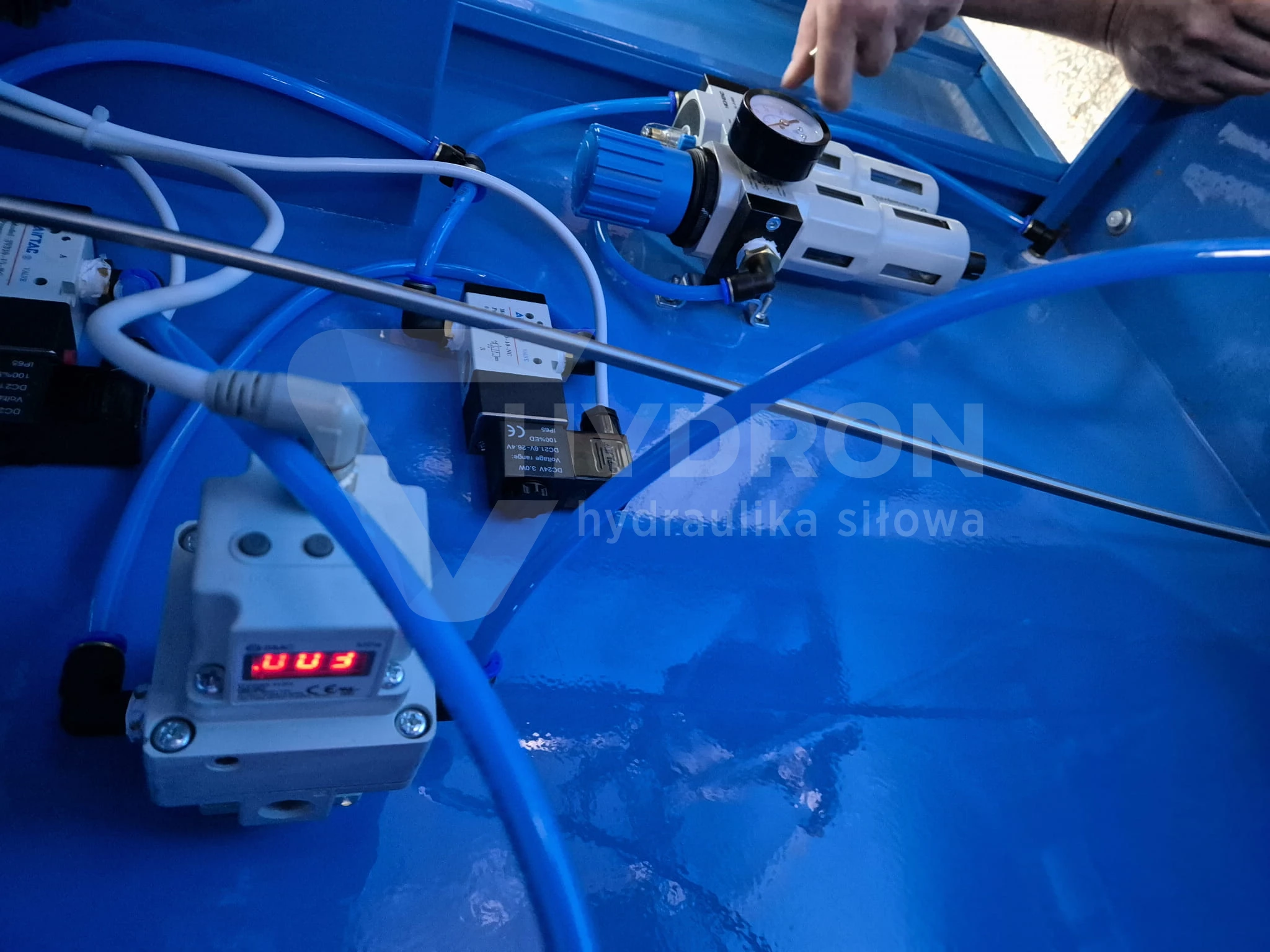

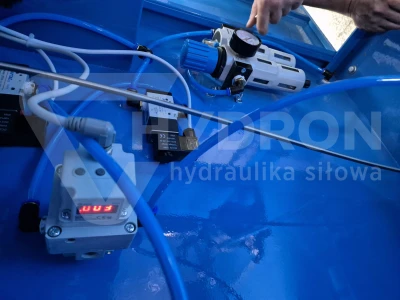

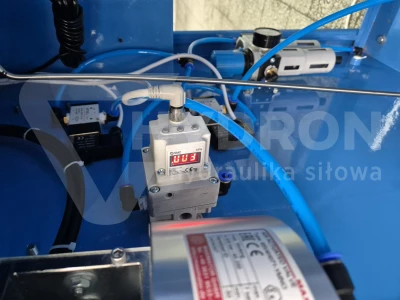

• FESTO pneumatic components.
• Additional chamber lighting – optional.
• Fast filling pump – optional.

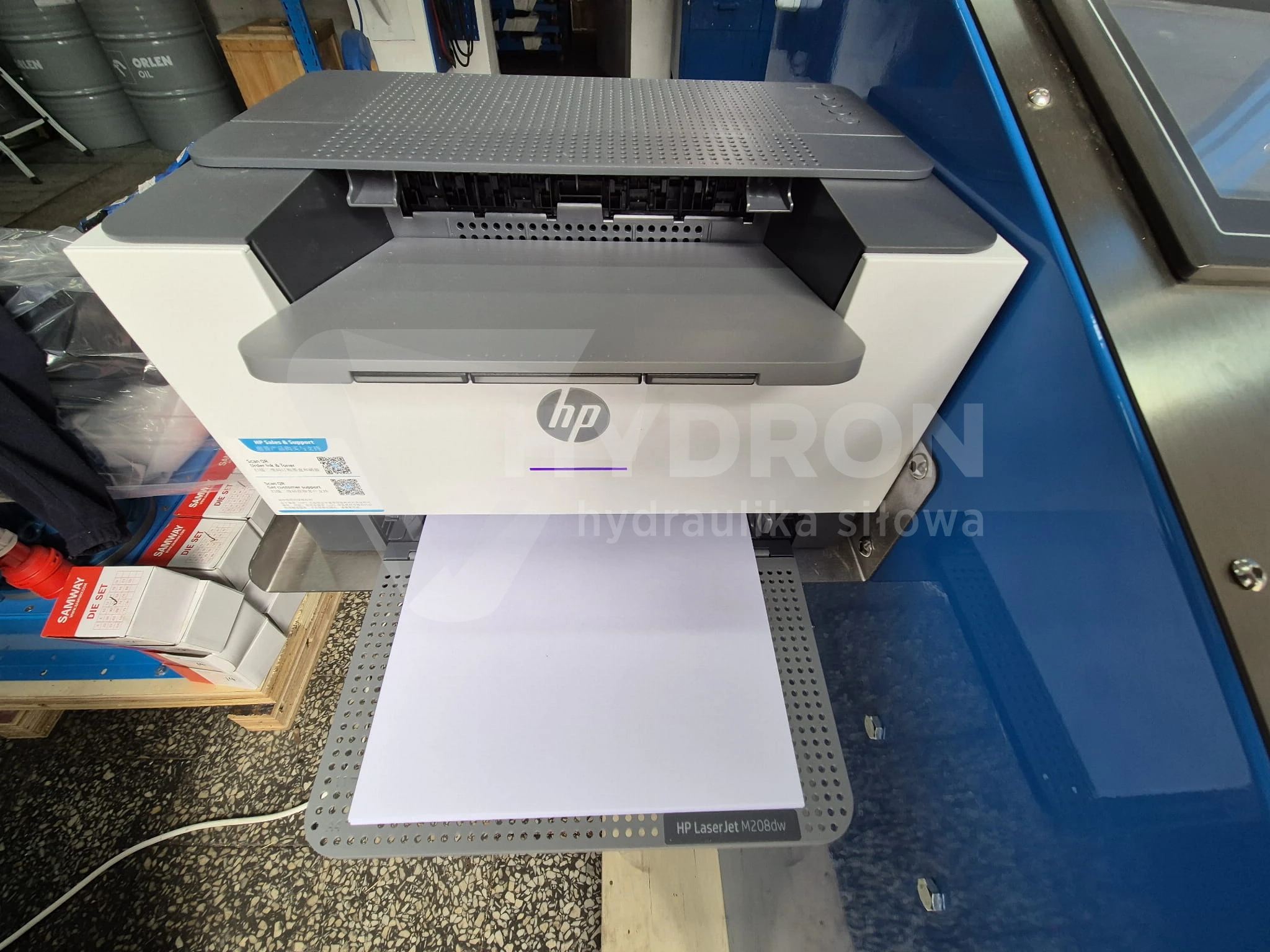

• Test report printer – optional.
• Automatic control module – optional.

Why choose our components?

• Maximum test pressure of 440 MPa (4400 bar).
• Two test connections: 1/4" NPT and 3/8" NPT.
• Separate test chamber with protective glass.
• German pump, American valve, and FESTO pneumatics.
• Expandable with automatic control and report printer.

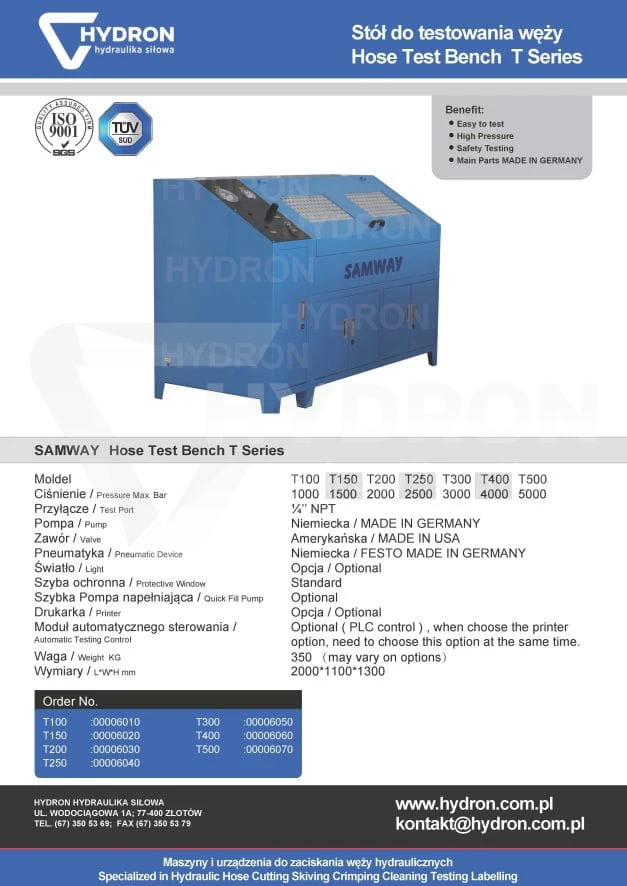

Technical specification

Frequently Asked Questions (FAQ)

What is the maximum test pressure reached by the SAMWAY T440?

The maximum test pressure of the device is 440 MPa, or 4400 bar. The pressure for a specific test must be adapted to the parameters of the hydraulic hose being tested and the requirements of the test procedure.

What test connections does the SAMWAY T440 bench have?

The device is equipped with 1/4" NPT and 3/8" NPT connections. When selecting adapters, consider the thread standard and the allowable test pressure of all system components.

Does the T440 bench have a printer and automatic control?

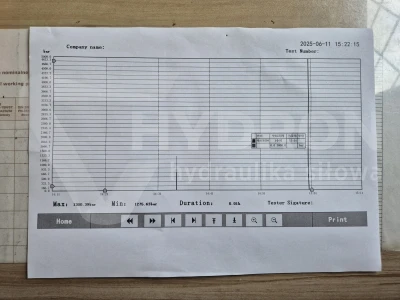

The printer and automatic control module are indicated as optional equipment. In a properly configured version, it is possible to set test parameters via a touch panel and print reports of the tests conducted.

What test medium and power supply does the SAMWAY T440 use?

The test medium is demineralized water. The device utilizes compressed air at a minimum pressure of 8 bar according to product specifications. The version with the panel and printer also requires an appropriate electrical power supply.
