SAMWAY T100 test bench for hydraulic hoses 1000 bar

TEST BENCH VIDEO

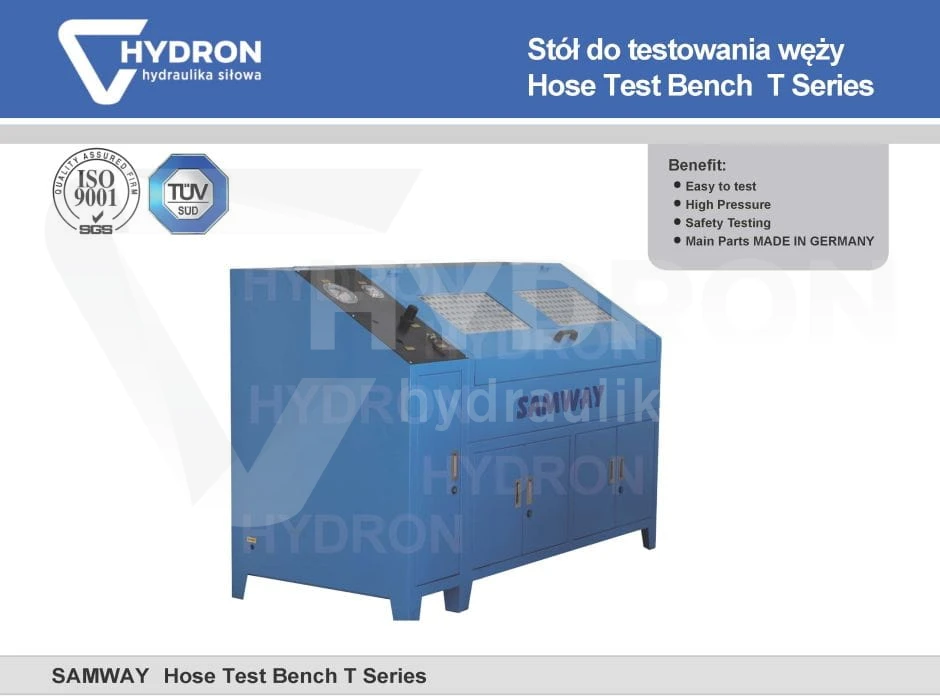

SAMWAY T100 test bench for hydraulic hoses 1000 bar

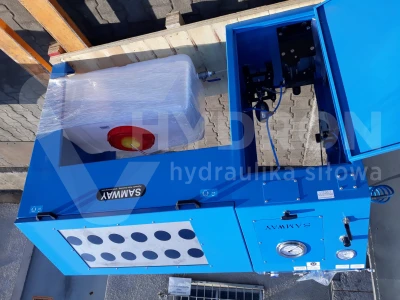

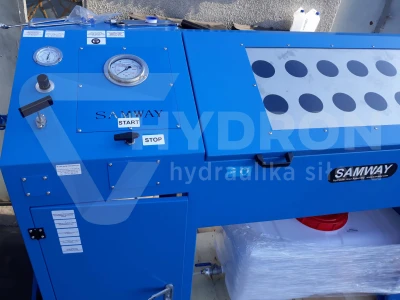

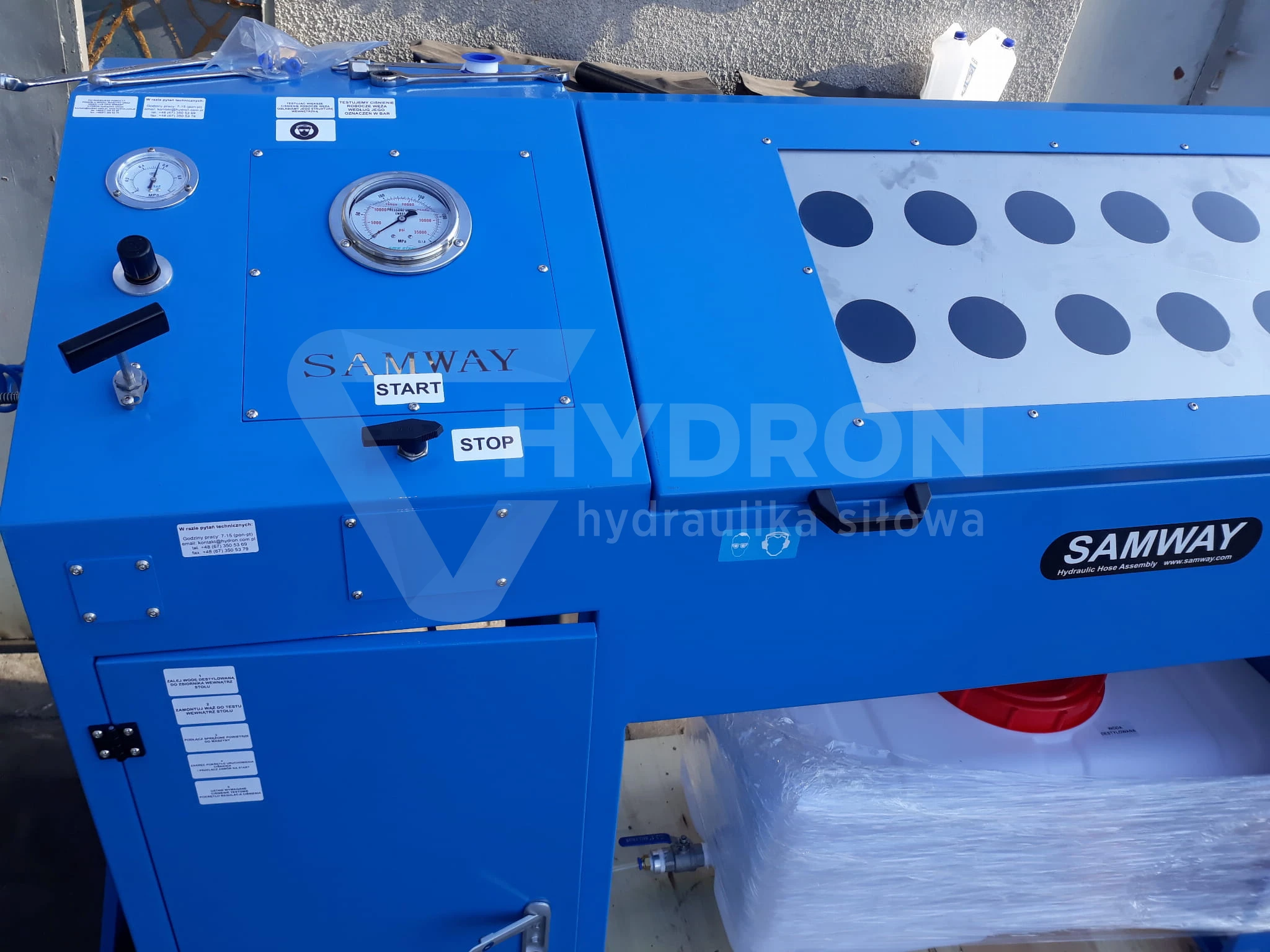

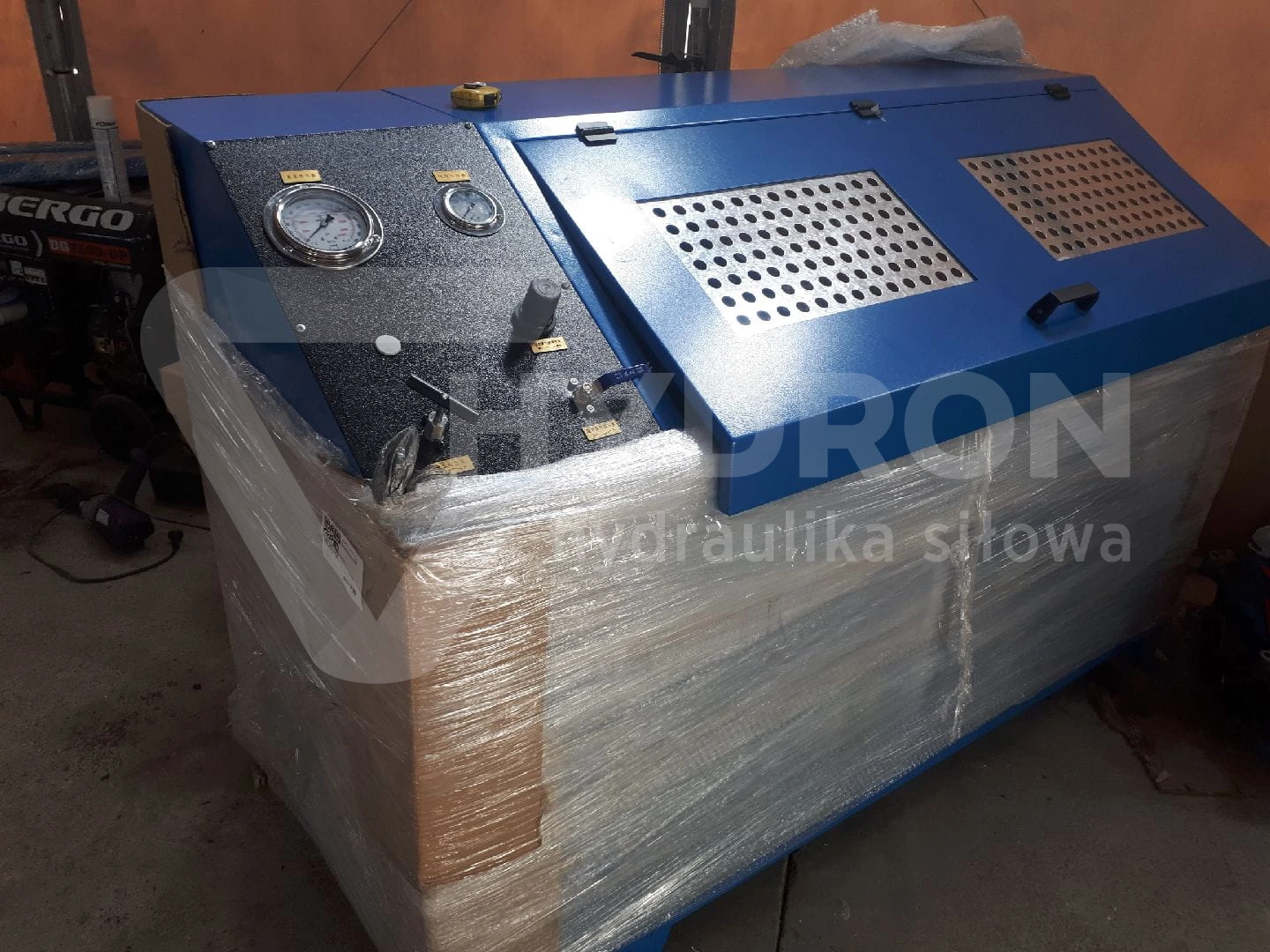

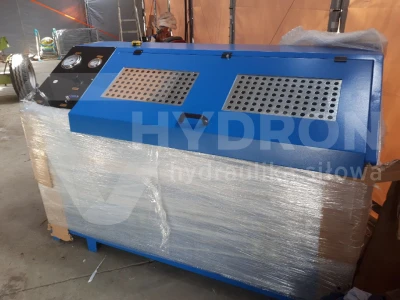

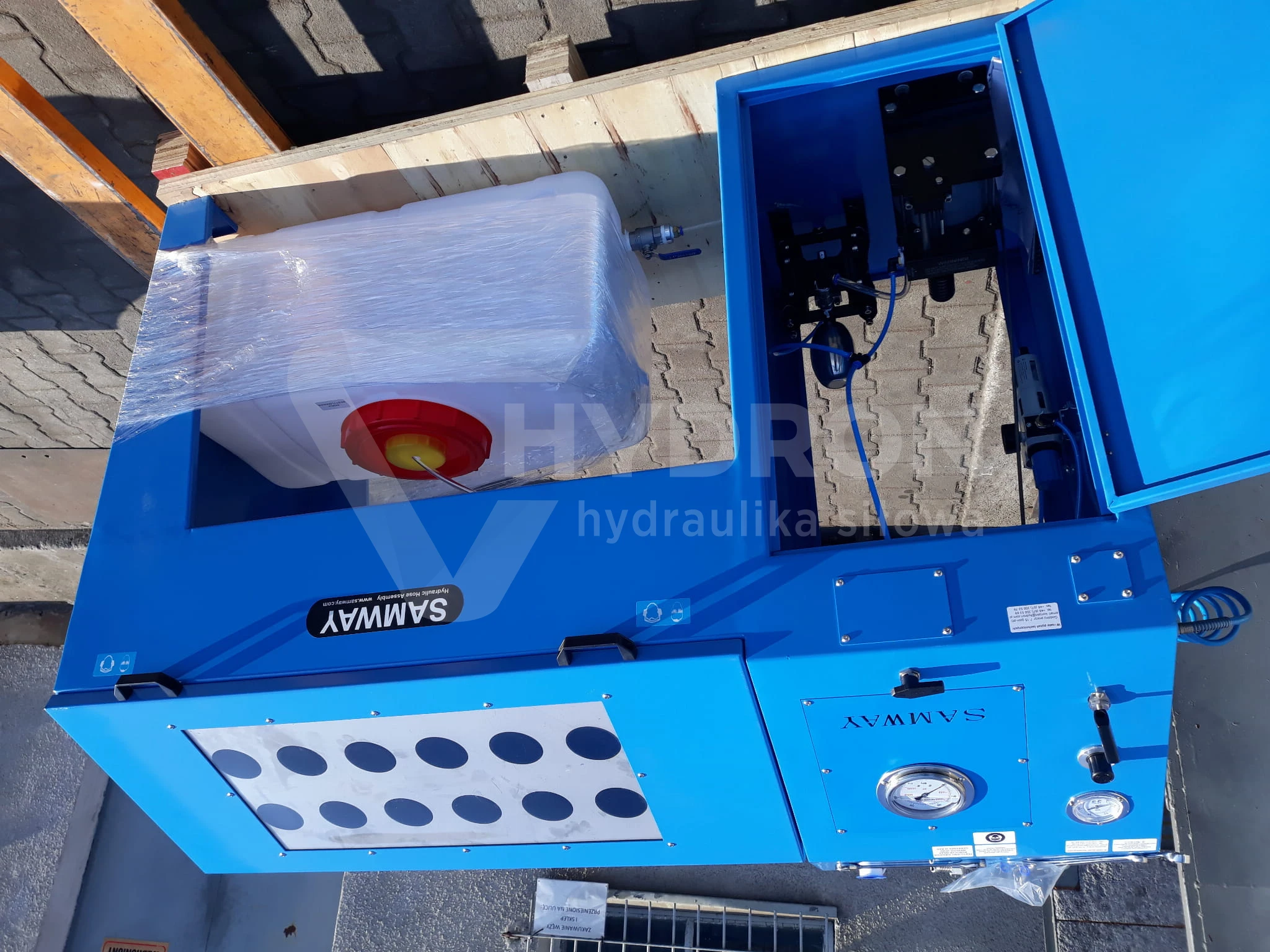

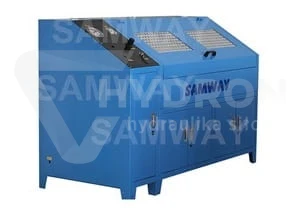

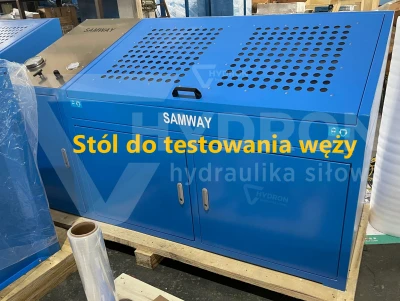

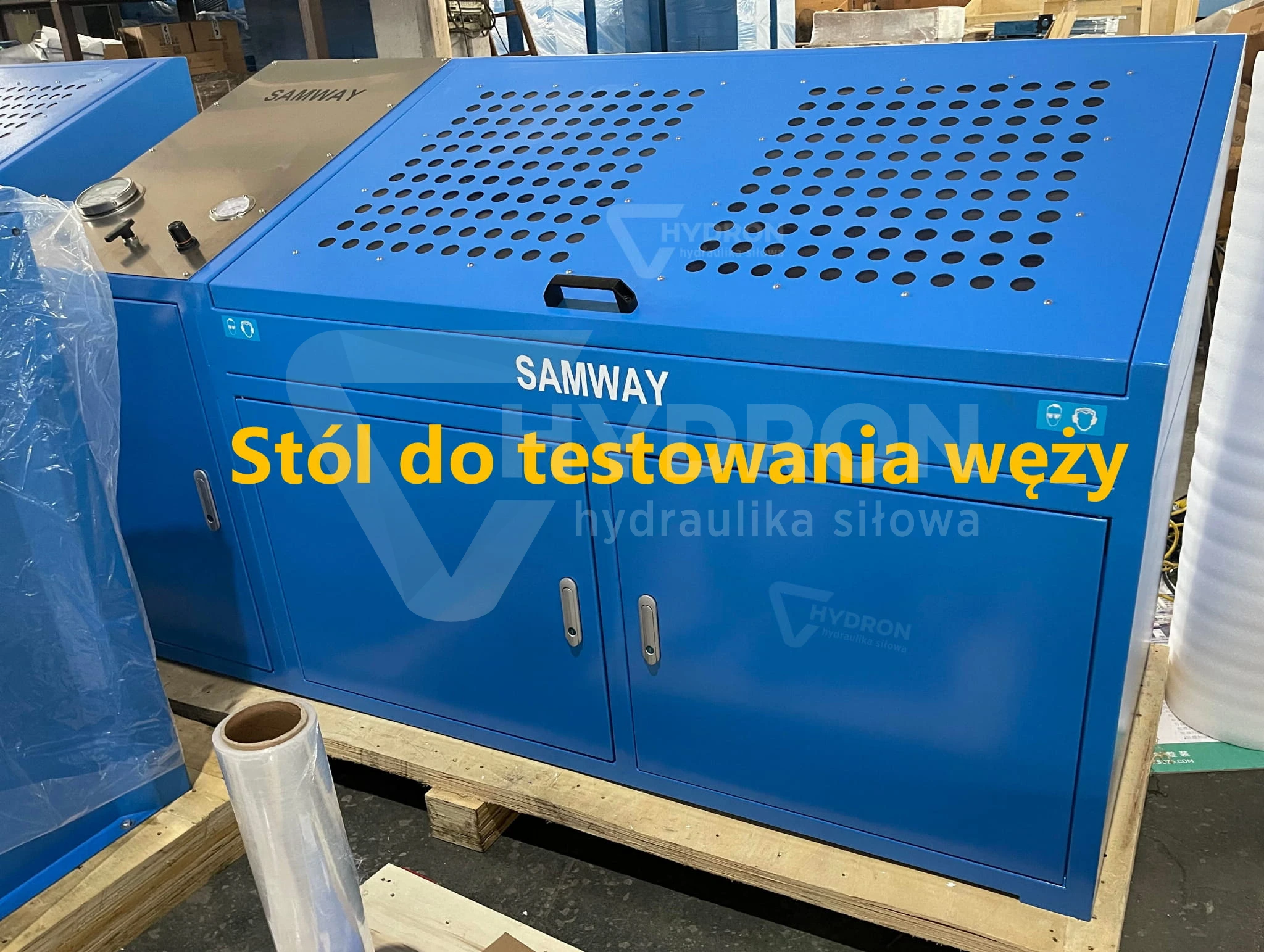

SAMWAY T100 is a stationary test bench designed for performing pressure tests on hydraulic hoses. The maximum test pressure is 100 MPa (1000 bar). The device is equipped with a test chamber with protective glass and a 1/4" NPT connection. The design utilizes a German-made pump, a US-made valve, and FESTO pneumatic components. The bench is intended for testing hoses under pressure, with the possibility of expanding the equipment with additional functions.

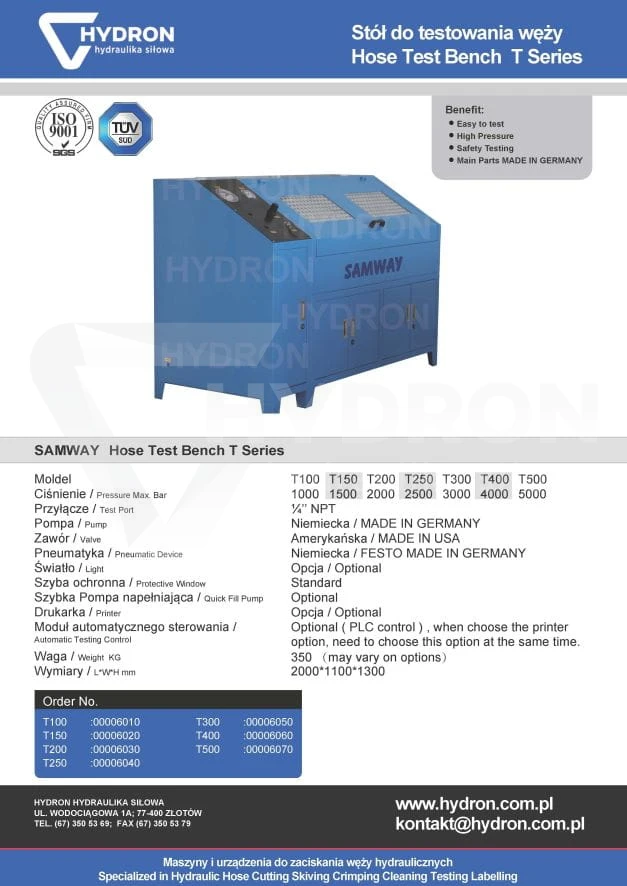

Application and technical characteristics

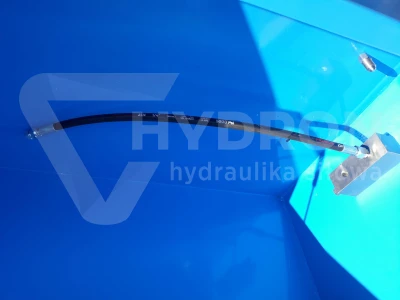

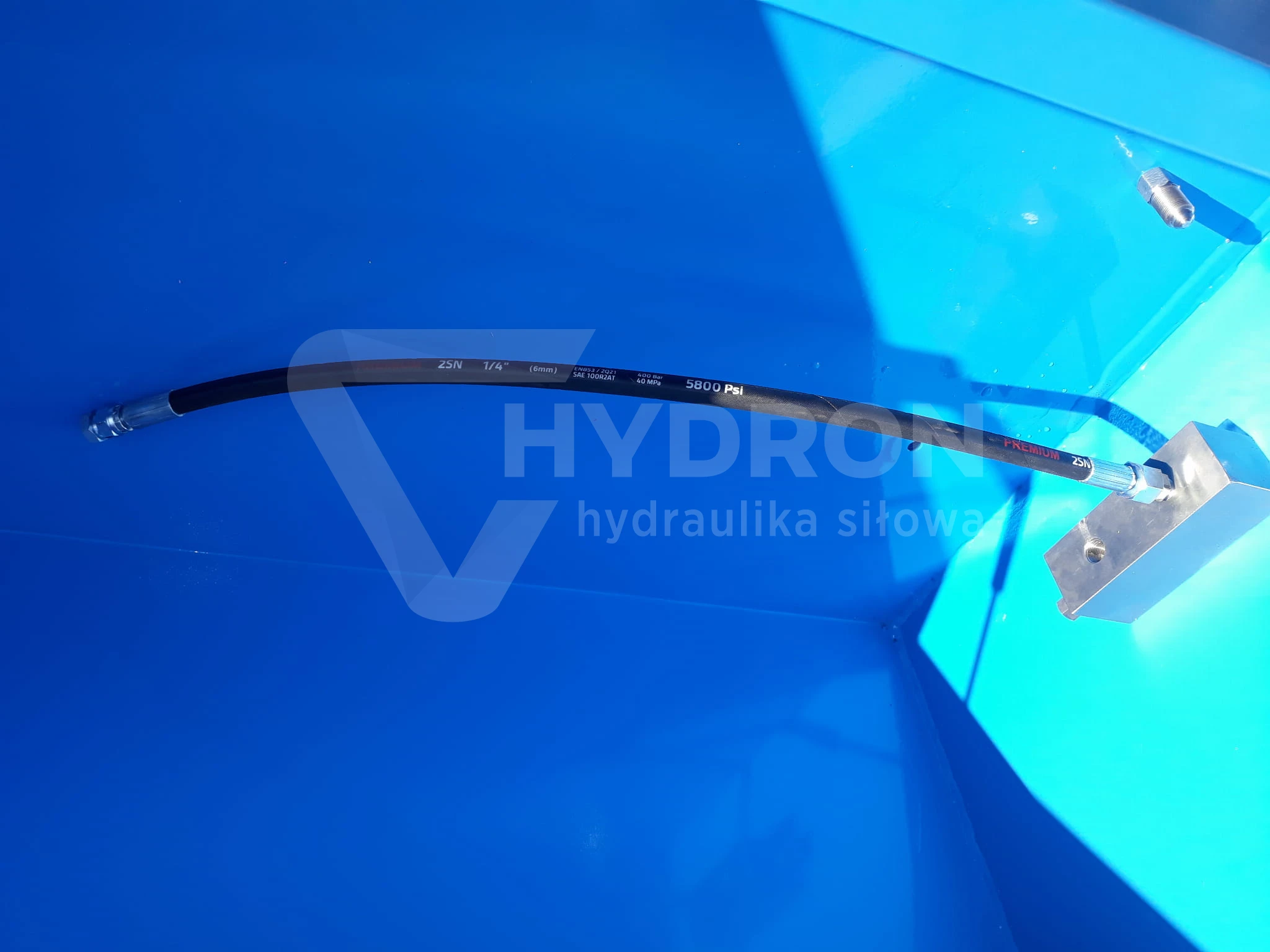

The SAMWAY T100 bench is used for carrying out pressure tests on hydraulic hoses. It enables the testing of hoses in a separate chamber equipped with protective glass. The device can be used at hose leak control stations after assembly and crimping of hydraulic fittings.

The maximum test pressure of the bench is 1000 bar. This parameter specifies the device's capabilities, not the required test pressure for every hose. Test conditions should be selected according to the technical specification of the complete hose assembly and the appropriate test procedure.

The test connection features a 1/4" NPT thread. The pump used in the device is of German production, the valve is from the USA, and the pneumatic system utilizes FESTO components. When selecting adapters and connecting hoses, thread compatibility and the allowable working pressure of all components must be taken into account.

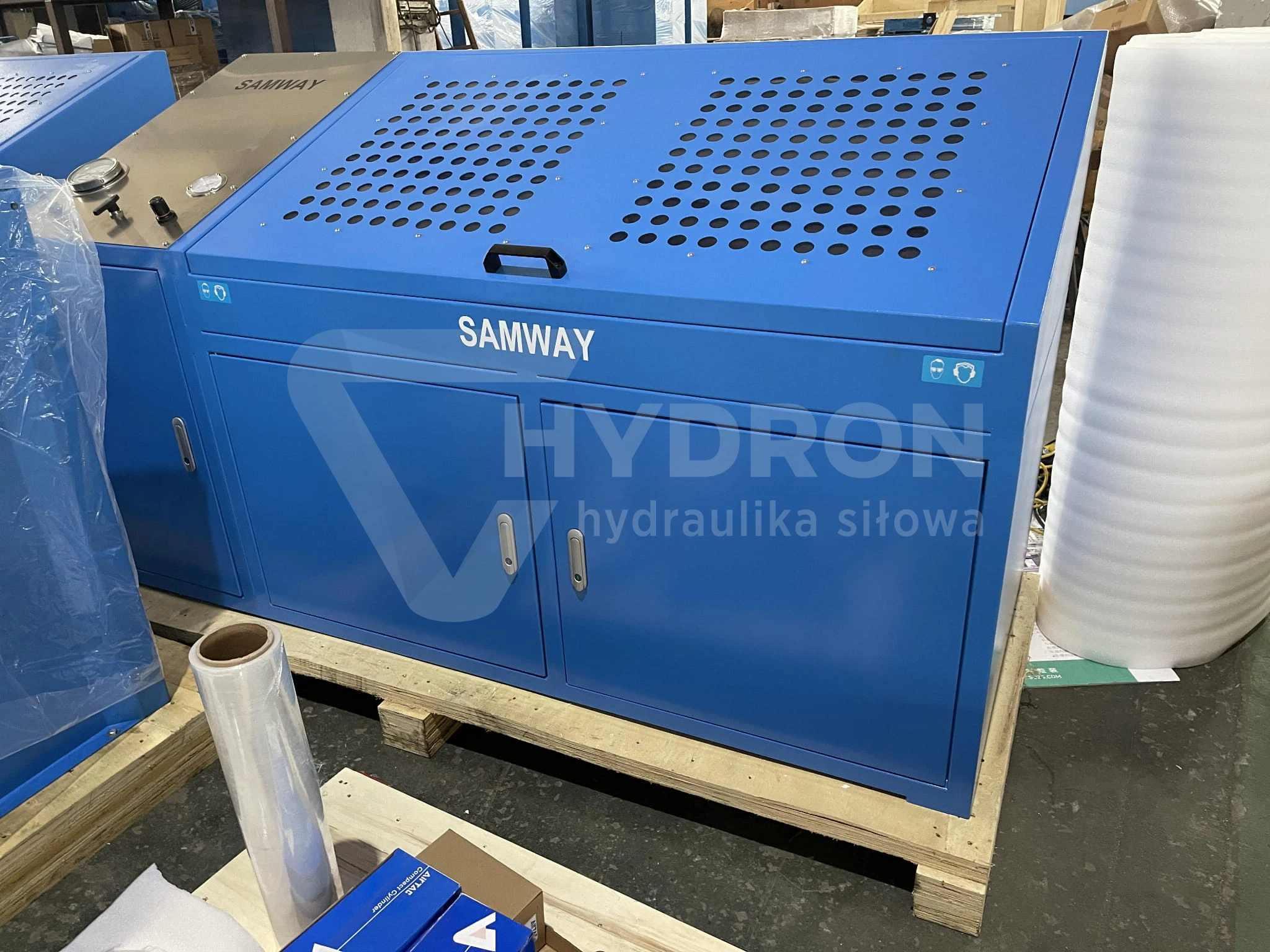

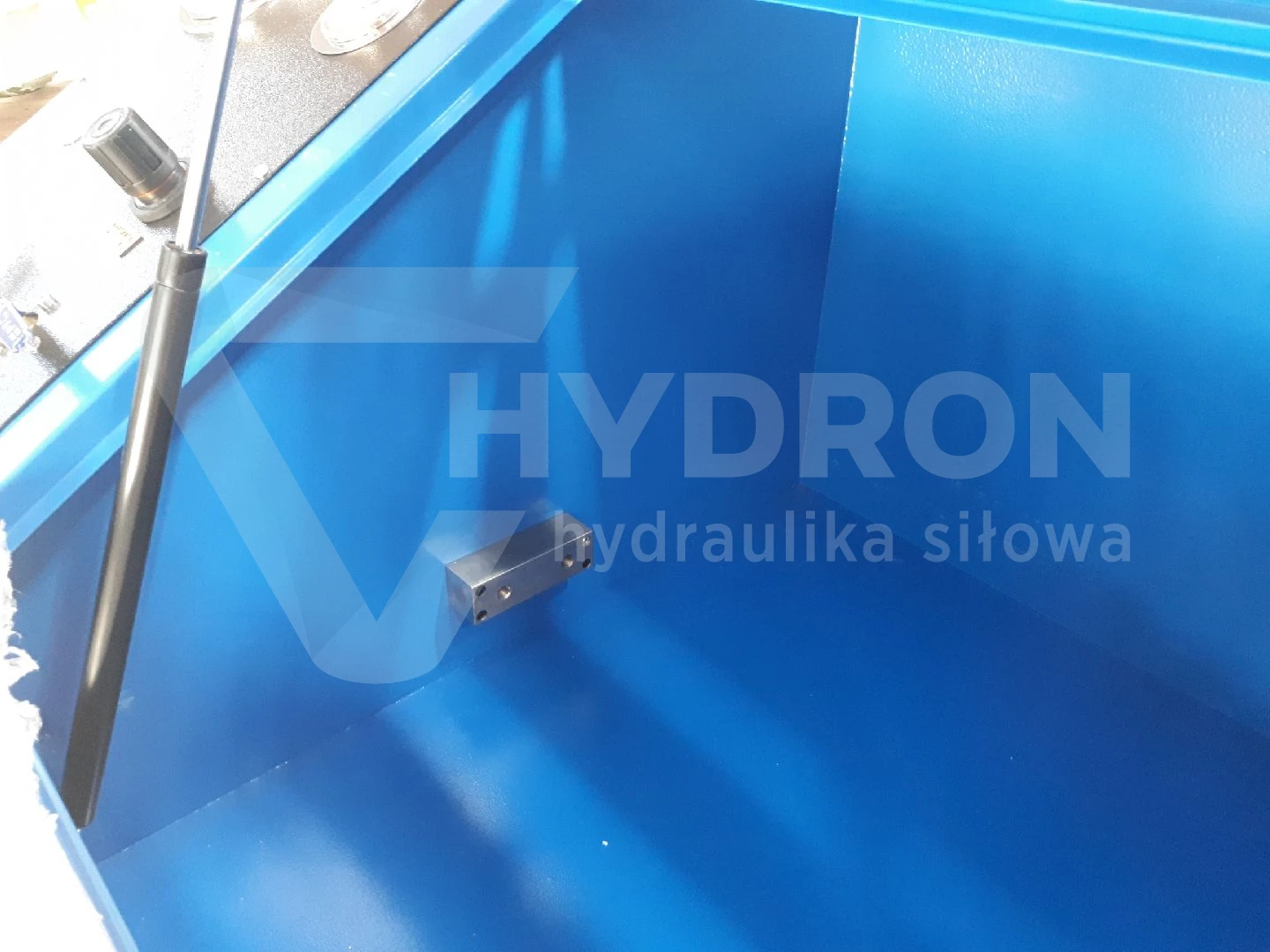

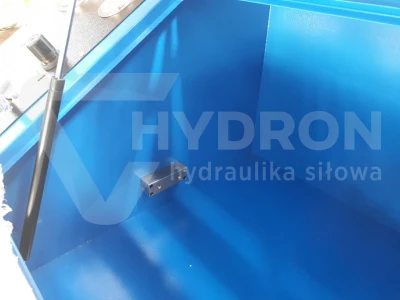

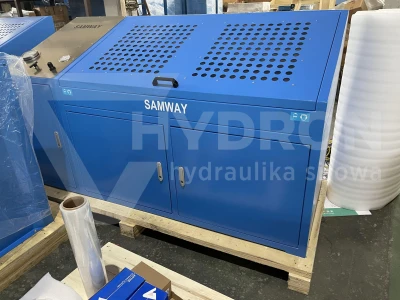

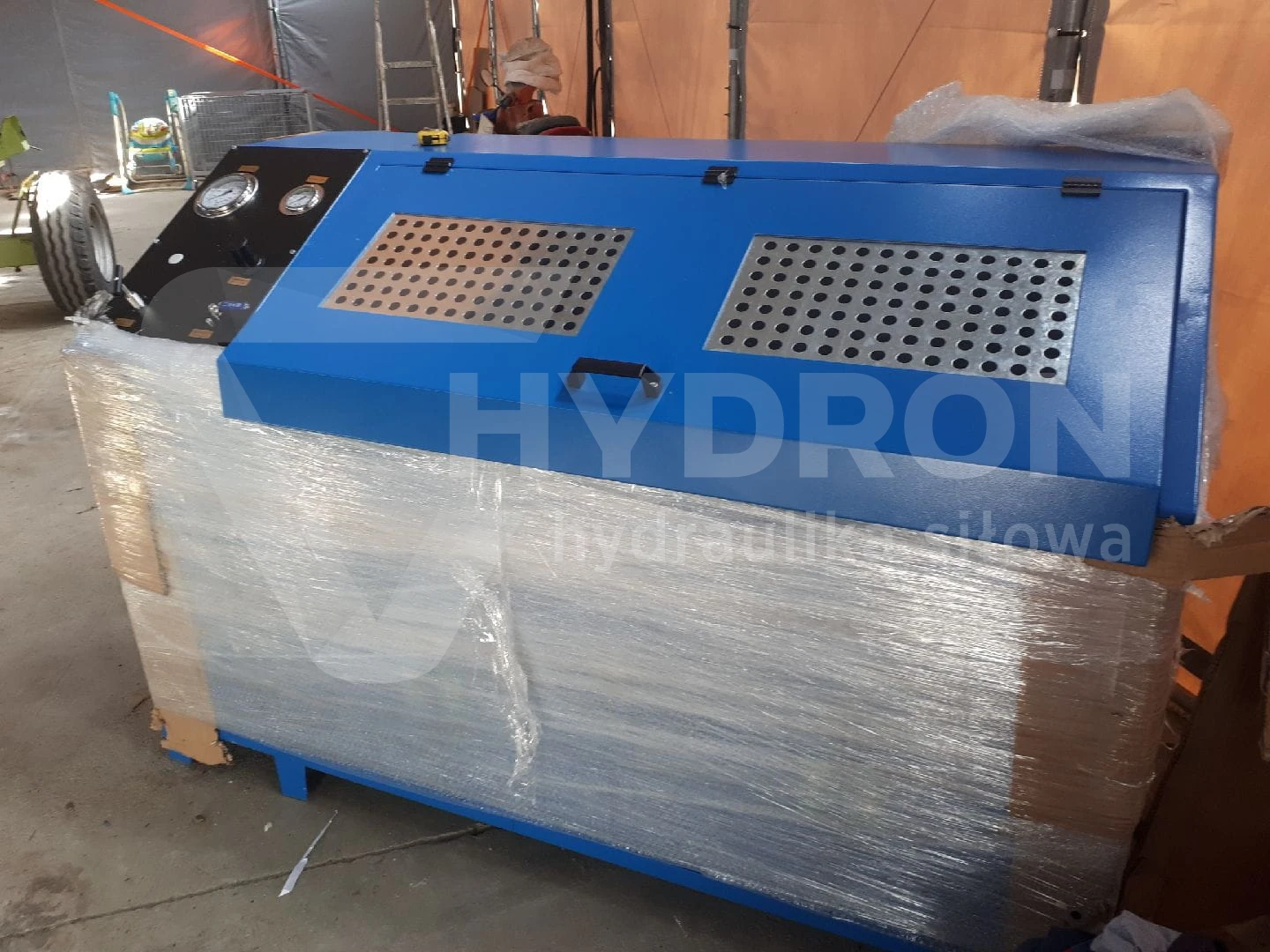

The test chamber dimensions are 1400 × 780 × 570 mm, and the overall dimensions of the bench are 2000 × 1100 × 1300 mm. The weight of the machine in the basic configuration is 350 kg and may increase when additional equipment is used.

Why choose our components?

• Maximum test pressure 100 MPa (1000 bar).
• Test chamber dimensions 1400 × 780 × 570 mm.
• Protective glass as standard equipment.
• German-made pump and US-made valve.
• FESTO pneumatic components.
• Expandable with a printer, lighting, high-speed filling pump, and automatic control module.

Important: The presented SAMWAY T100 version does not have a printer in the standard equipment. The printer and other additional options require separate selection during device configuration.

Technical specification

Frequently Asked Questions (FAQ)

What is the maximum test pressure reached by SAMWAY T100?

The maximum test pressure of the device is 100 MPa, which is 1000 bar. The pressure of a specific test should be adapted to the parameters of the hose being tested and the requirements of the test procedure.

Does the SAMWAY T100 include a printer in the standard equipment?

No. The printer is optional equipment. When ordering the device, you can choose a configuration with a printer and additional equipment items.

What are the dimensions of the T100 test chamber?

The dimensions of the test chamber are 1400 × 780 × 570 mm. The total dimensions of the bench are 2000 × 1100 × 1300 mm. The chamber is equipped with a protective glass supplied as standard.

What is the difference between the T100 bench and the PHT1000 portable tester?

SAMWAY T100 is a stationary bench with a test chamber measuring 1400 × 780 × 570 mm. The PHT1000 portable model has a compact design. Both devices have a maximum test pressure of 1000 bar but differ in construction and dimensions.
