SAMWAY T250 test bench for hydraulic hoses 2500 bar

TESTING TABLE VIDEO

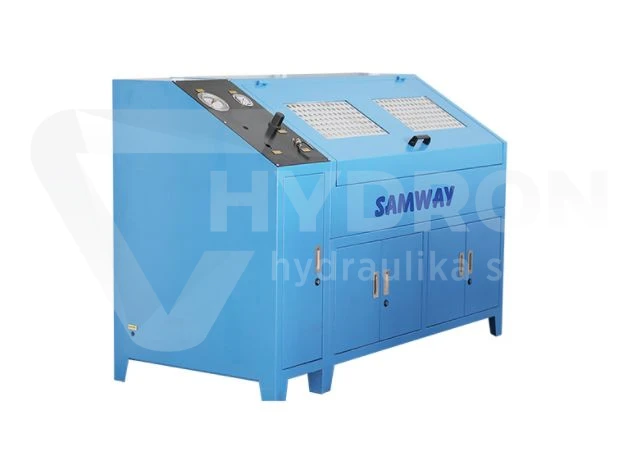

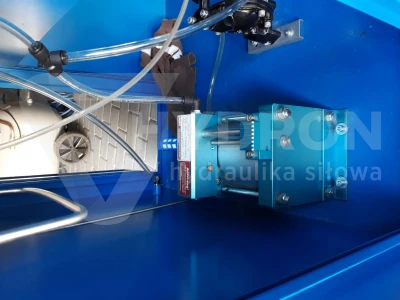

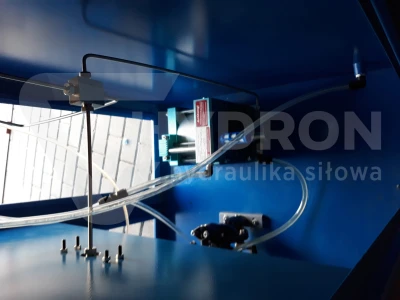

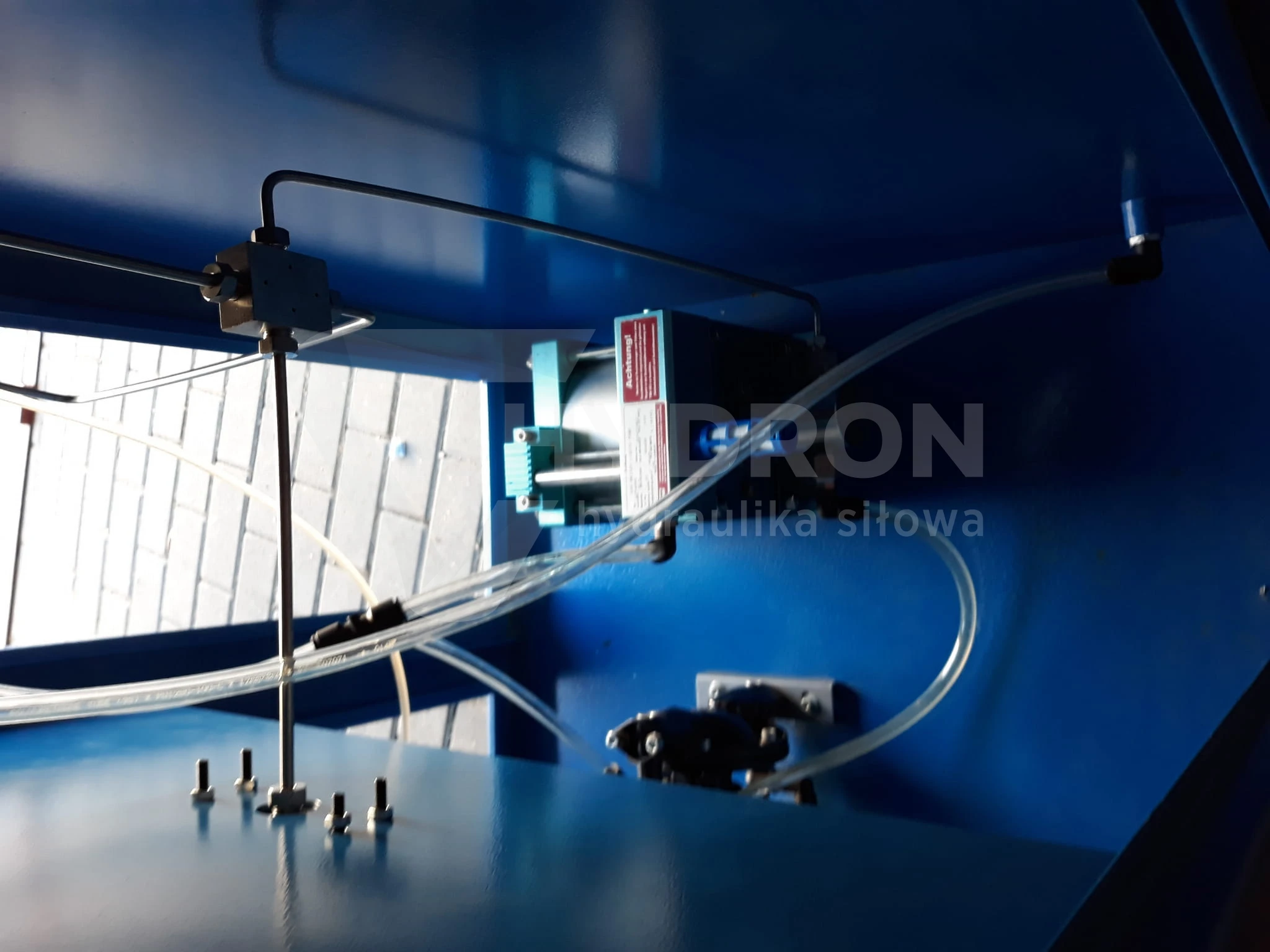

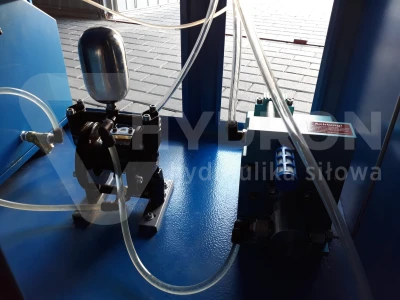

SAMWAY T250 is a stationary test bench for pressure testing hydraulic lines, with a maximum test pressure of 250 MPa (2500 bar). The device allows for leak checking of finished hoses and hydraulic connections. It is equipped with a test chamber with protective glass, a reservoir for test fluid, and a system powered by compressed air. The test pressure is regulated using a knob in the range from 0 to 2500 bar. The design utilizes a German-made pump, a USA-made valve, and FESTO pneumatic components.

Application and technical characteristics

The SAMWAY T250 testing table is designed for leak testing of hydraulic hoses. It can serve as equipment for an inspection station in plants producing and servicing hydraulic lines. The test involves connecting the hose to the test port, plugging its other end, and conducting the test at a set pressure.

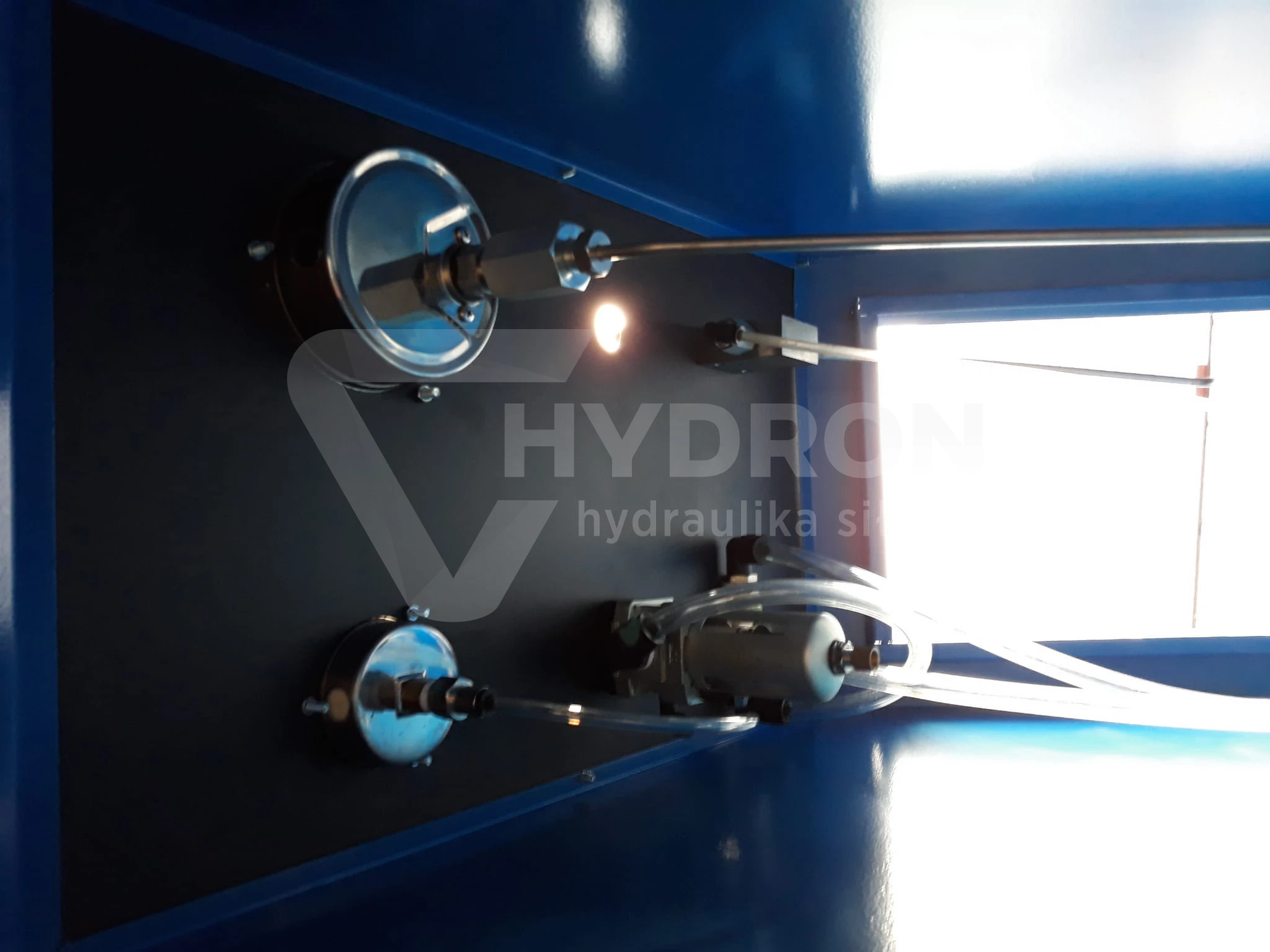

The maximum test pressure is 2500 bar (250 MPa). The operator regulates the pressure with a knob. The test pressure value must be adapted to the technical parameters of the tested hose, the fittings used, and the required testing procedure. A pressure of 2500 bar represents the maximum capabilities of the device, not the allowable test pressure for every hose.

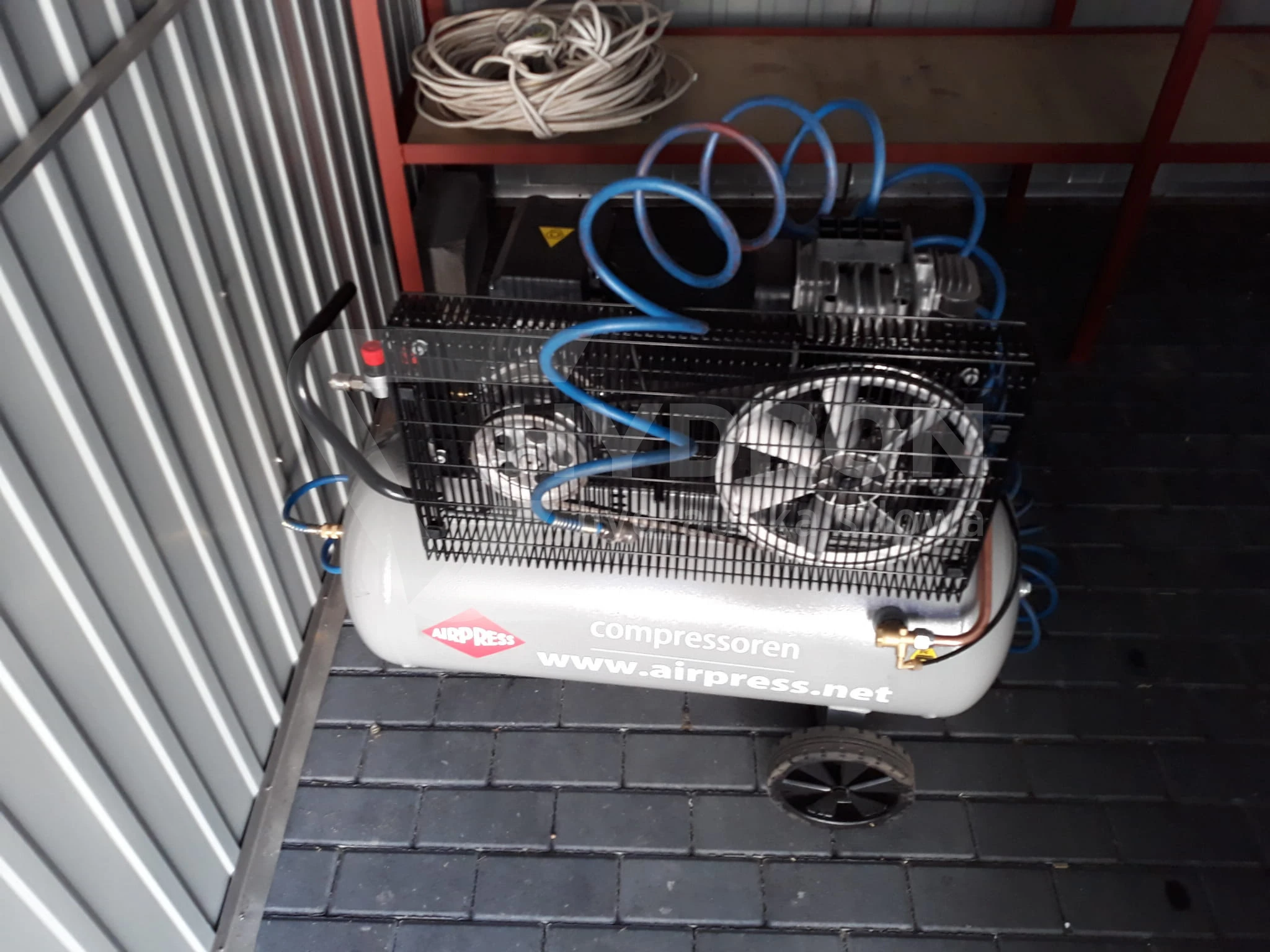

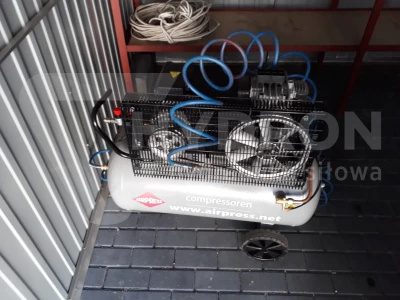

The device features a reservoir for distilled water or another non-corrosive liquid. Power is supplied by compressed air. According to the specifications, the optimal pneumatic supply pressure is 6 bar, which allows for the highest system power.

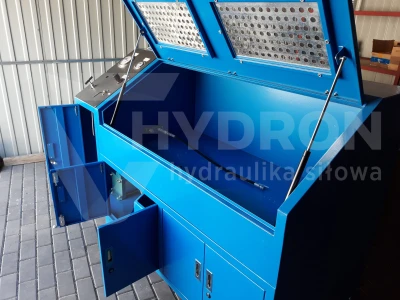

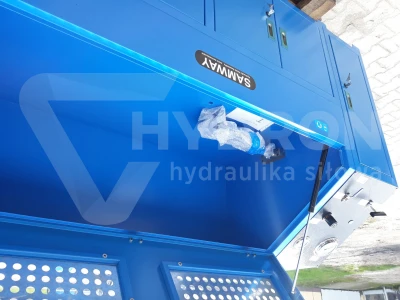

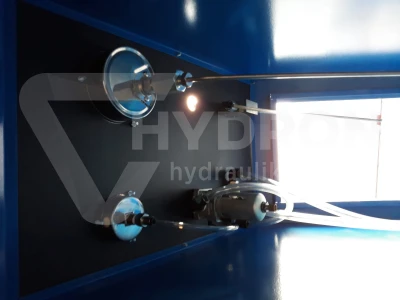

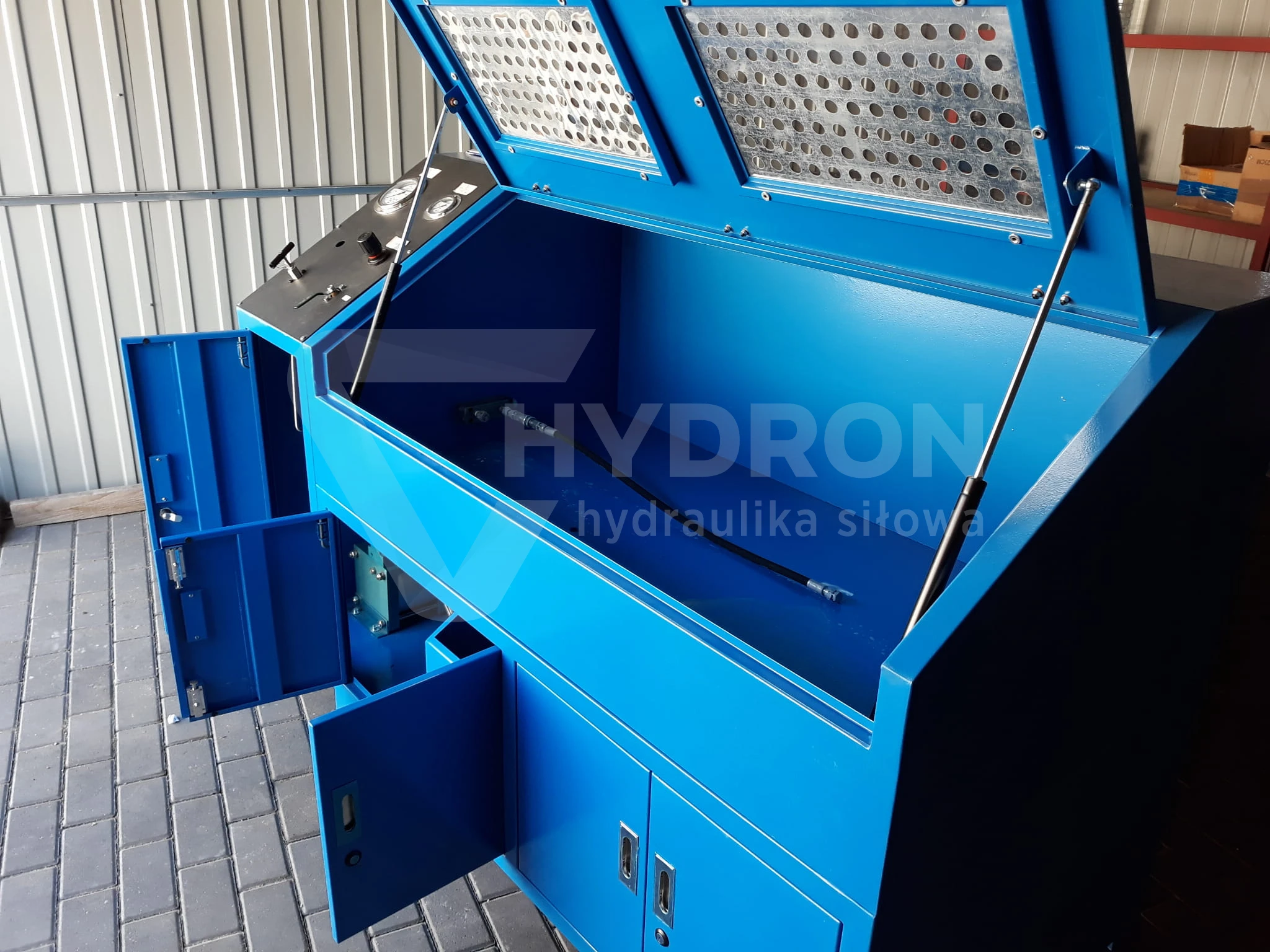

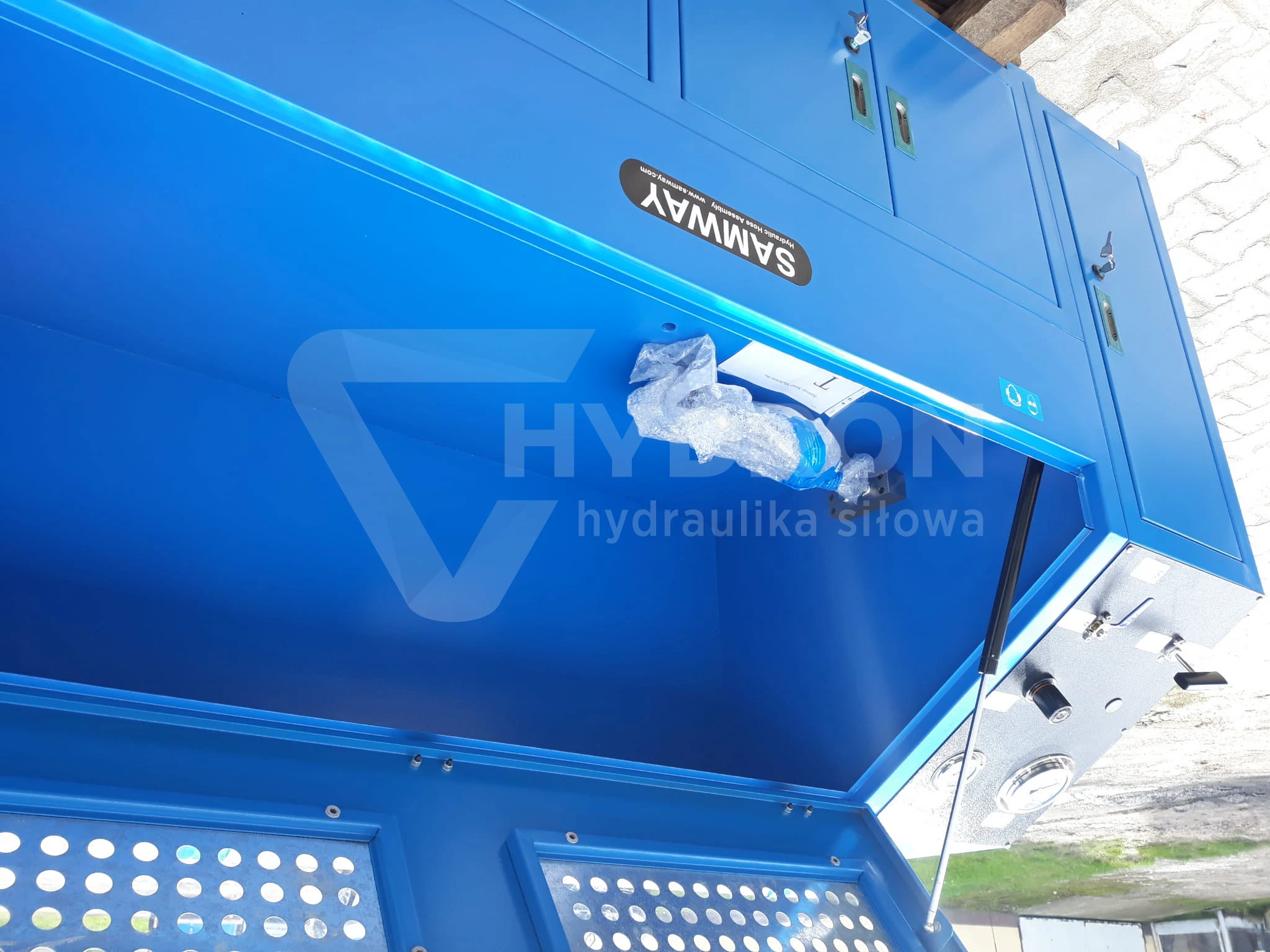

The test chamber measures 1400 × 780 × 570 mm and is equipped with a protective glass. The test connection is described as 1/4" NPT. Using appropriate adapters allows matching the connection method to the ends of the tested hose, provided that the thread compatibility and the allowable pressures of all connection elements are maintained.

Standard and optional equipment

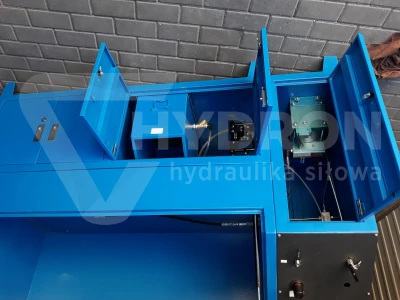

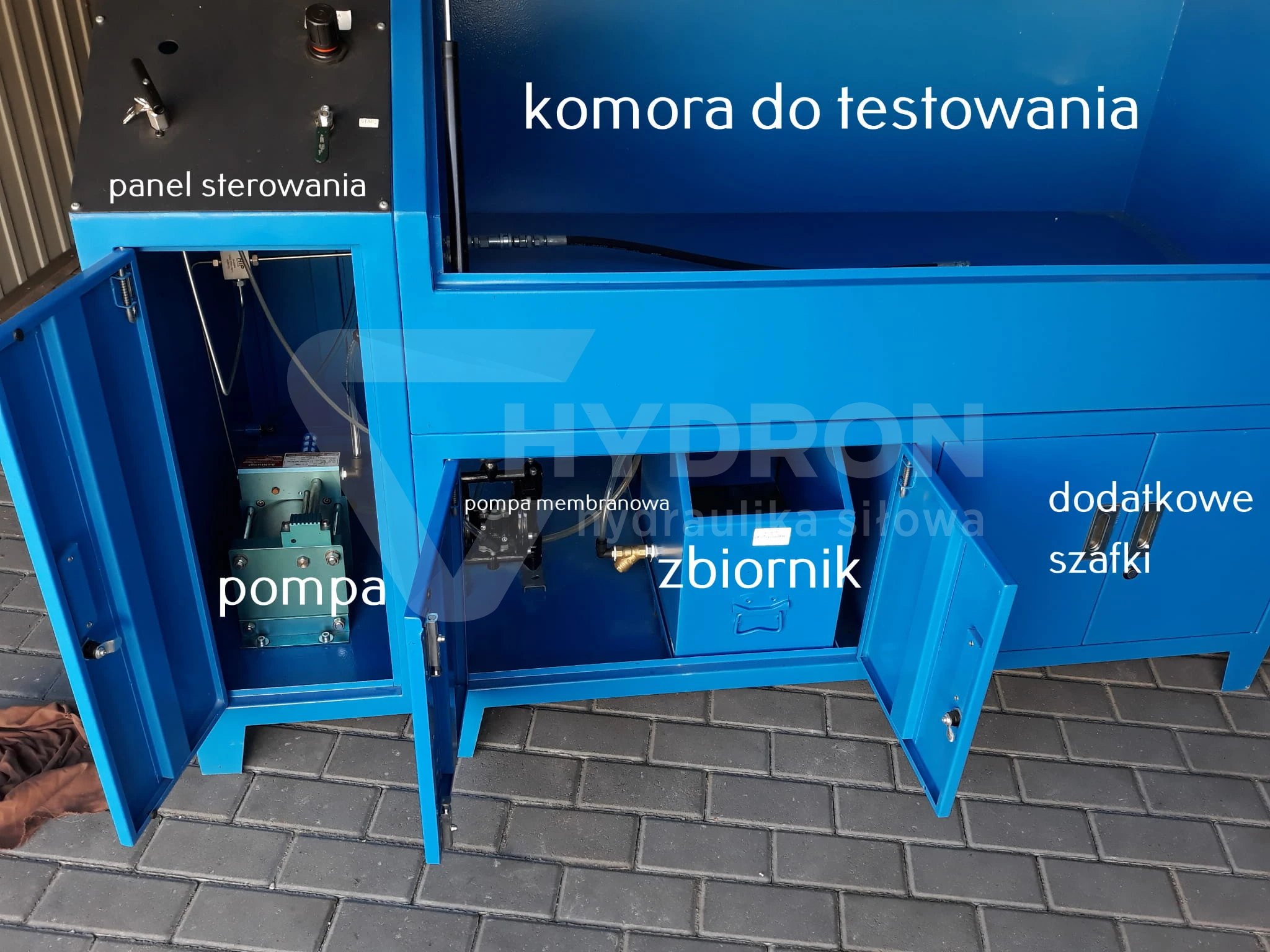

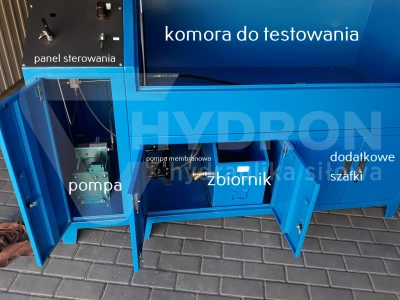

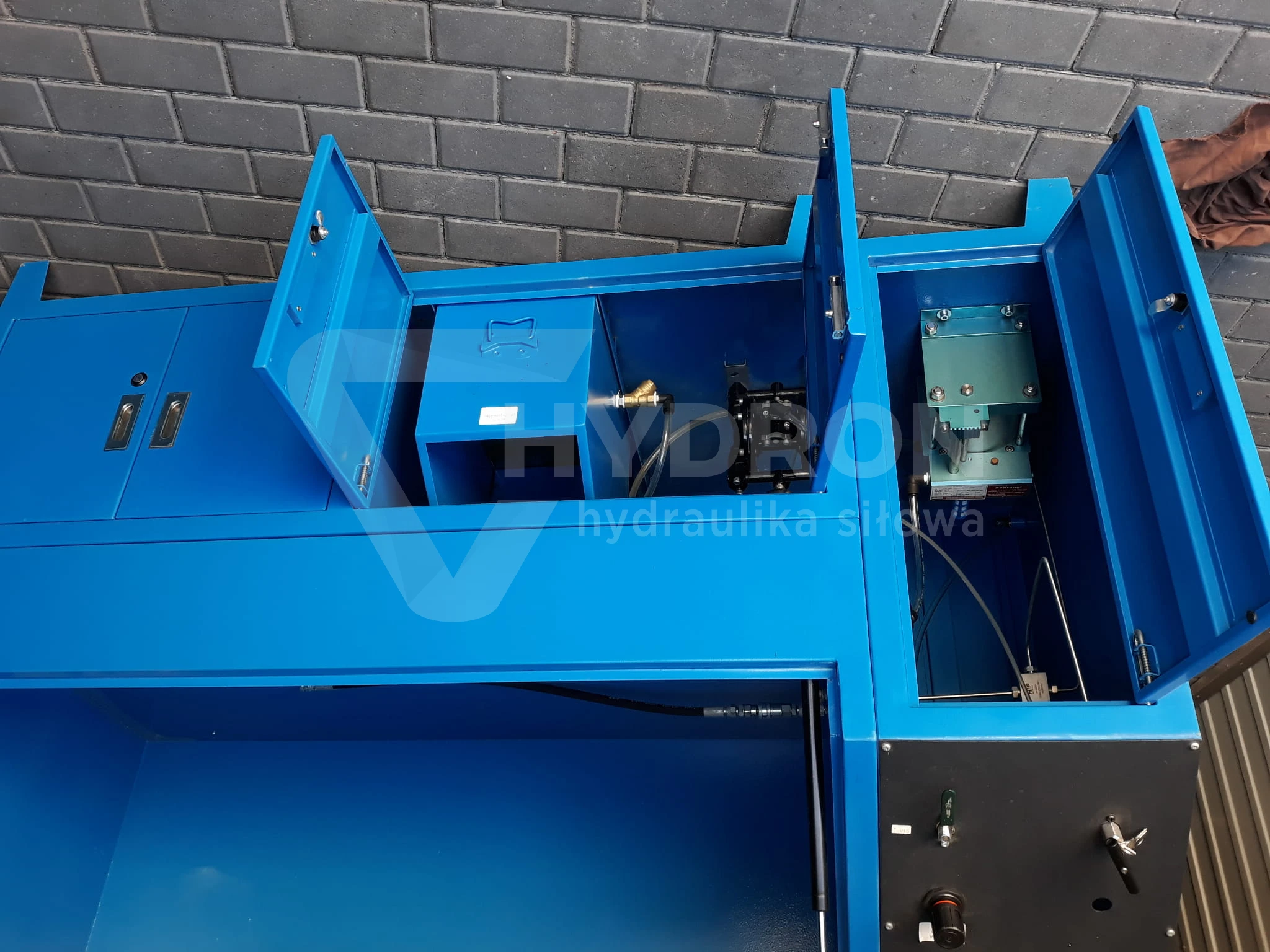

The SAMWAY T250 features a test chamber with protective glass and a pressure generation and regulation system. The manufacturer provides the possibility of expanding the machine configuration with additional equipment.

• Test chamber protective glass – standard equipment.

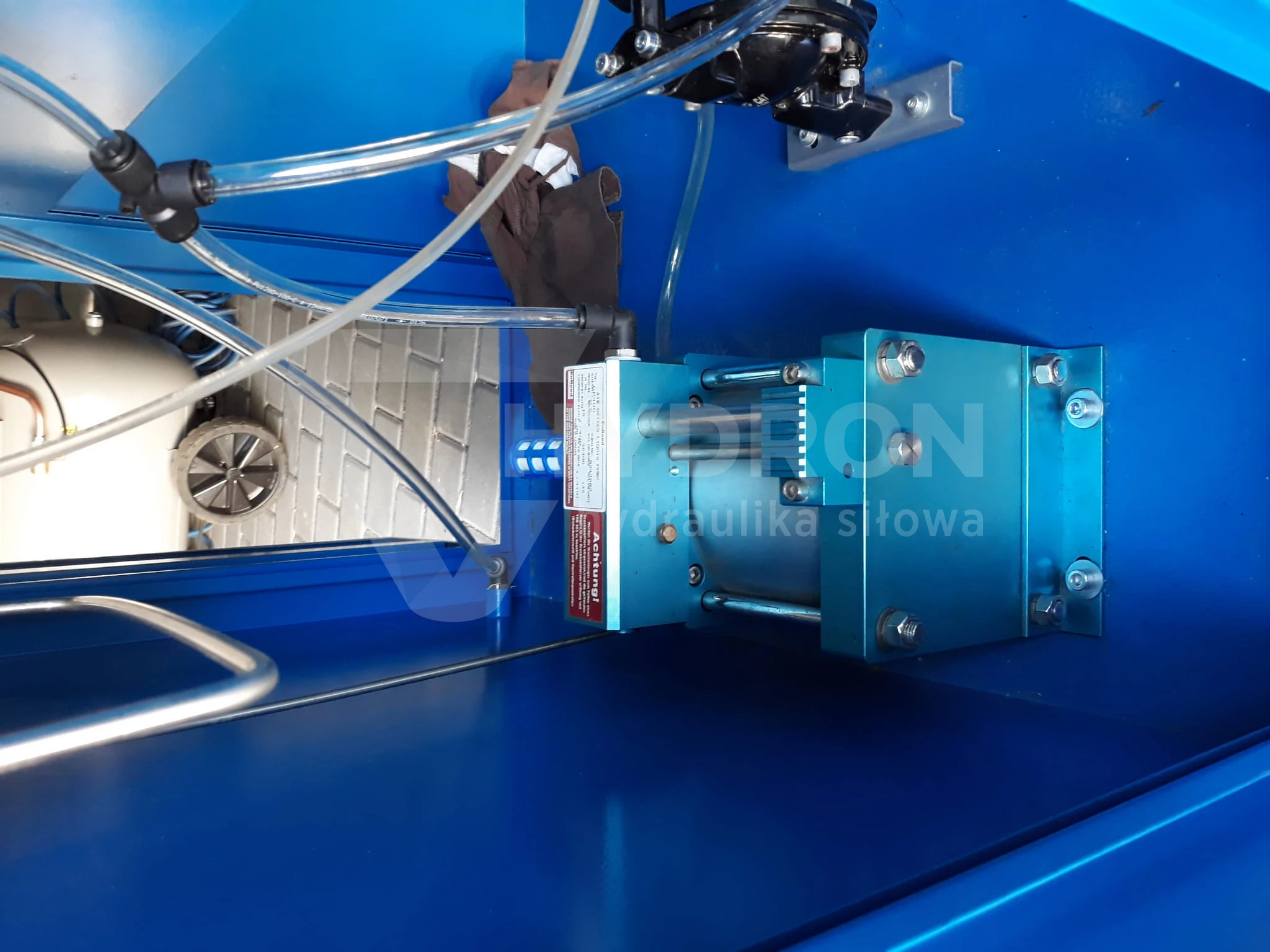

• German-made pump and USA-made valve.
• FESTO pneumatic components.
• Test chamber lighting – optional.

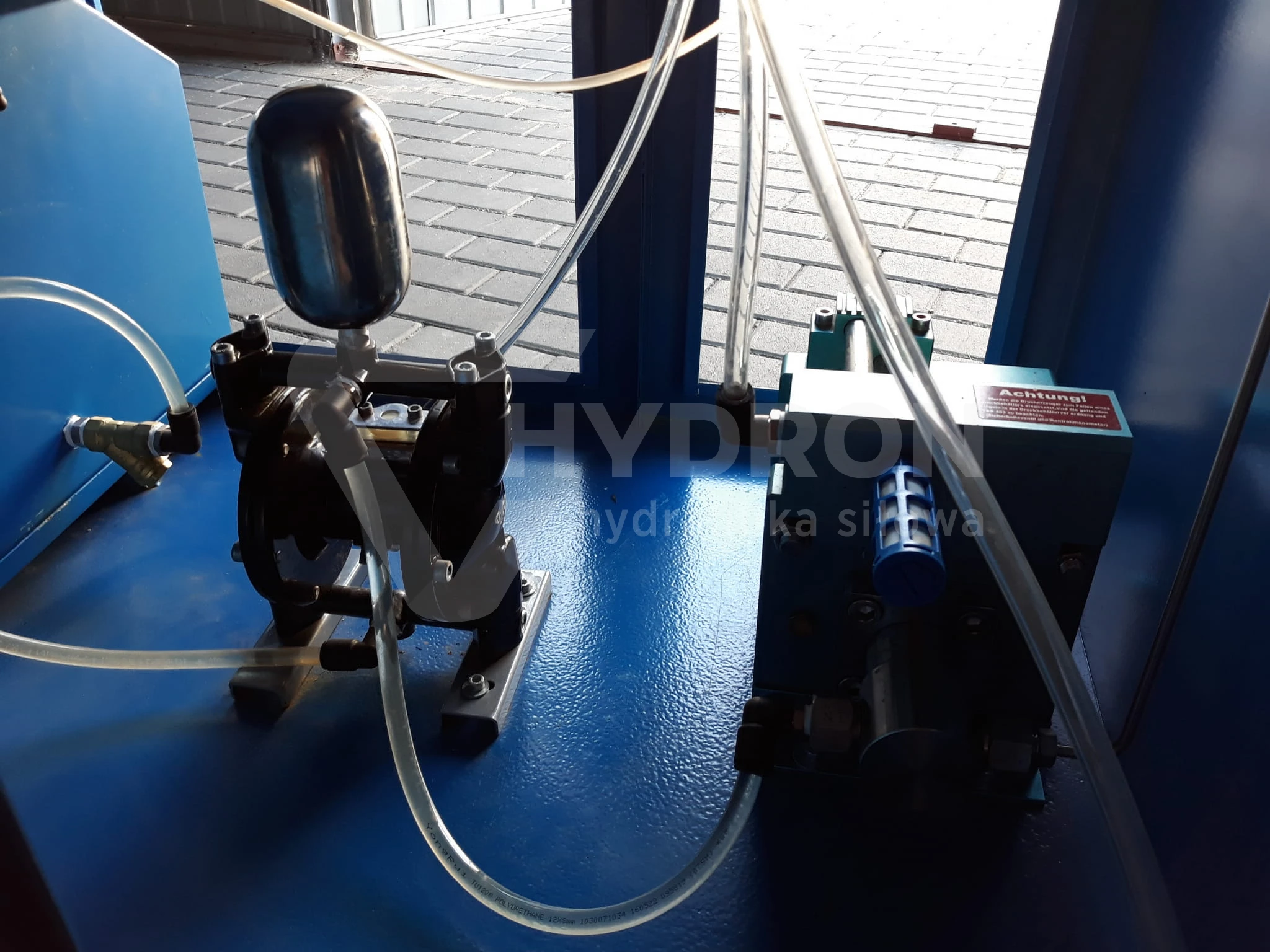

• Fast filling pump – optional.
• Test results printer – optional.
• Automatic control module – optional.

In the configuration with a printer, it is possible to provide information about the person performing the test, company name, date and time of the test, pressure, a graph of the test course, the maximum pressure reached, and the leak time.

Why choose our components?

• Maximum test pressure 2500 bar (250 MPa).
• Pressure regulation in the range of 0–2500 bar.
• Compressed air supply, optimally 6 bar.
• Test chamber with protective glass as standard.
• German pump, American valve, and FESTO pneumatics.
• Expandable with a printer, automatic control, and fast filling pump.

Technical specification

Frequently Asked Questions (FAQ)

What maximum test pressure does the SAMWAY T250 reach?

The SAMWAY T250 bench allows for pressure regulation in the range from 0 to 2500 bar (250 MPa). The test pressure should be selected according to the parameters of the complete hydraulic line and the requirements of the testing procedure.

What medium and power supply does the T250 bench use?

Distilled water or another non-corrosive liquid is used for tests. The device is powered by compressed air. According to the specifications, the optimal supply pressure is 6 bar.

Is the printer included in the standard equipment of the T250?

No. The printer is available as an option. The version equipped with a printer allows for the presentation of information regarding the test performed, including the date, time, pressure course, and maximum value reached.

What are the dimensions of the SAMWAY T250 test chamber?

The chamber dimensions are 1400 × 780 × 570 mm. The overall machine dimensions are 2000 × 1100 × 1300 mm. The chamber features protective glass, which is a standard equipment element.
